OWNER’S MANUAL FOR
PROFESSIONAL SERIES COUNTERTOP GRIDDLES:
MODEL NUMBERS:
ARMG, ARTG, AEMG, AETG, ACCG, ARGB, ARTY
PROFESSIONAL QUALITY COOKING EQUIPMENT
DESIGN CLASS FUNCTION
ARMG-36
AEMG-36
© 2012 American Range
All Rights Reserved

Installation, Operation and
Maintenance Instructions
Owner’s Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
FOR YOUR SAFETY!
Do not store or use gasoline or
other ammable vapors or liquids
in the vicinity of this or any other appliance.
FOR
YOUR
SAFETY
FOR
YOUR
SAFETY
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING!
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury
or death and will void warranty. Read the
installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING
IMPROPER
INSTALLATION
WARNING
IMPROPER
INSTALLATION
Model Number: __________________________________________
Serial Number: ___________________________________________
Purchase Date: ___________________________________________
Installed By: __________________________ Install Date:__________
Gas Type: _______________________________________________
Electrical Information: ______________________________________
This equipment is design engineered for commercial use only.
IMPORTANT SERVICE NOTICE!
Using any part other than genuine American Range factory supplied
parts relieves the manufacturer of all liability.
American Range reserves the right to change product design and
specications without notice. Such revisions do not entitle the buyer
to corresponding changes, improvements, additions or replacements
for the previously purchased equipment.
Instructions to be followed in the event the user smells gas should be posted
in a prominent location. This information should be obtained by
consulting the local gas supplier.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
To Our Most Valued Customer:
Congratulations on your purchase of an American Range product. We hope you will enjoy the
design, manufactured quality, innovative features and cooking performance of this product – it
represents our continuing dedication to satisfying the most demanding needs of customers
like you.
Please read this manual and become familiar with important safety information about how
to install and set-up the unit, basic operating instructions, and how to maintain that just-like-
brand-new appearance and performance - over years of day-to-day use.
If you should encounter any sort of problem, turn to the section of the manual entitled,
“Troubleshooting” – for a quick solution or guidance regarding the next step required to get
back to tip-top condition.
Thank you for choosing an American Range product for your kitchen. As you can expect, this
appliance is designed for years of reliable service. If you have any questions or comments,
please contact the dealer from whom you purchased the unit, or contact American Range
Customer Service via email: [e-mail] at www.americanrange.com, or call
888.753.9898.
PROFESSIONAL QUALITY COOKING EQUIPMENT
Sincerely,
President, American Range Corporation
Shane Demirjian

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
Table of Contents
GENERAL ...................................................................................................... 1
Important Safety Information .......................................................................1
Shipping Damage Claim Procedure..........................................................1
INSTALLATION ........................................................................................1-3
Instructions ..............................................................................................................1
Gas Standards and Codes ..............................................................................2
Gas Connection....................................................................................................2
Manual Shut-Off Valve.......................................................................................2
Rating Plate..............................................................................................................3
Clearances................................................................................................................3
OPERATING ................................................................................................. 3
Check for Gas Leaks..........................................................................................3
Lighting.......................................................................................................................3
Shut Down ..............................................................................................................3
MAINTENANCE.......................................................................................... 4
ARMG, ARTG, AEMG, AETG, ACCG, ARTY ........................................4
AGB..............................................................................................................................4
Stainless Steel.........................................................................................................4

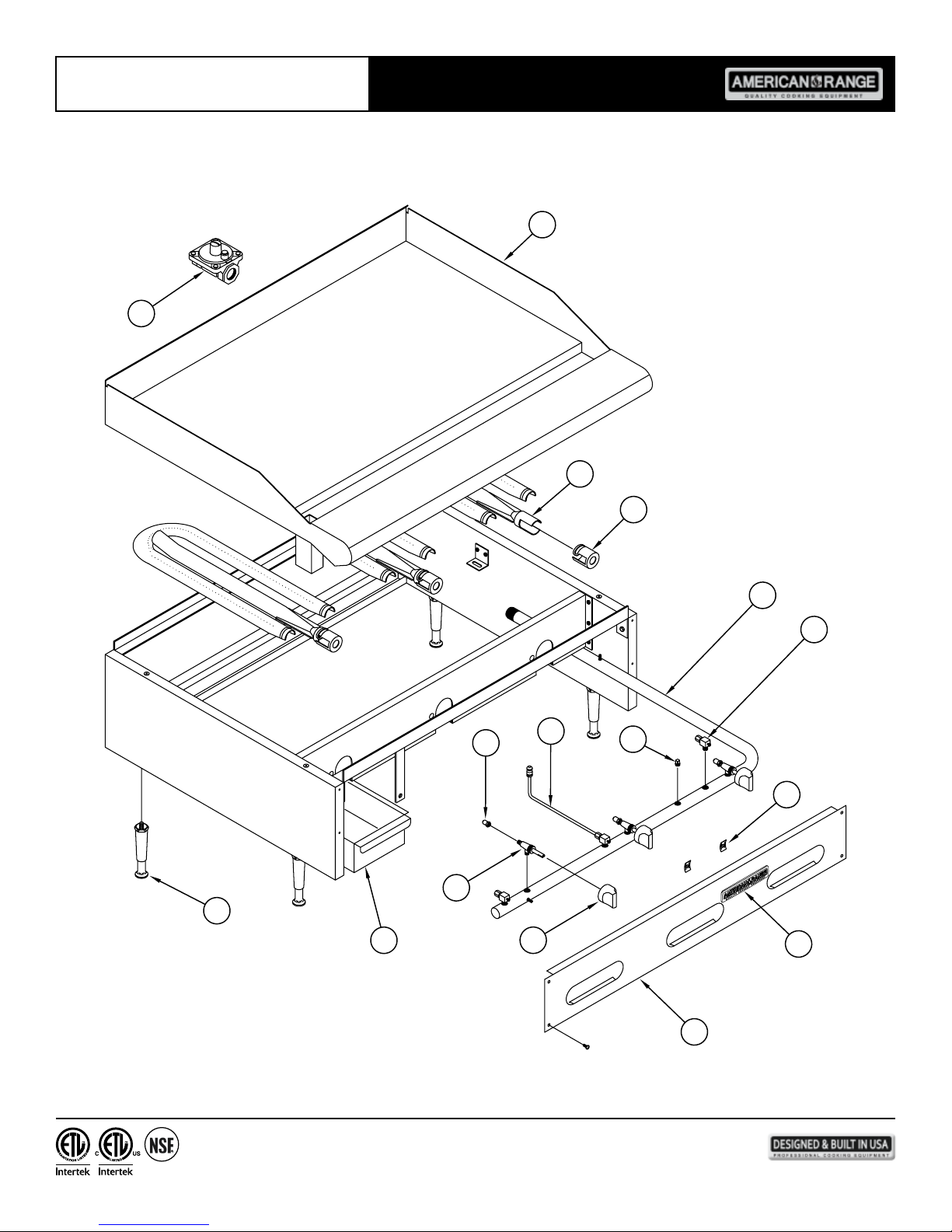

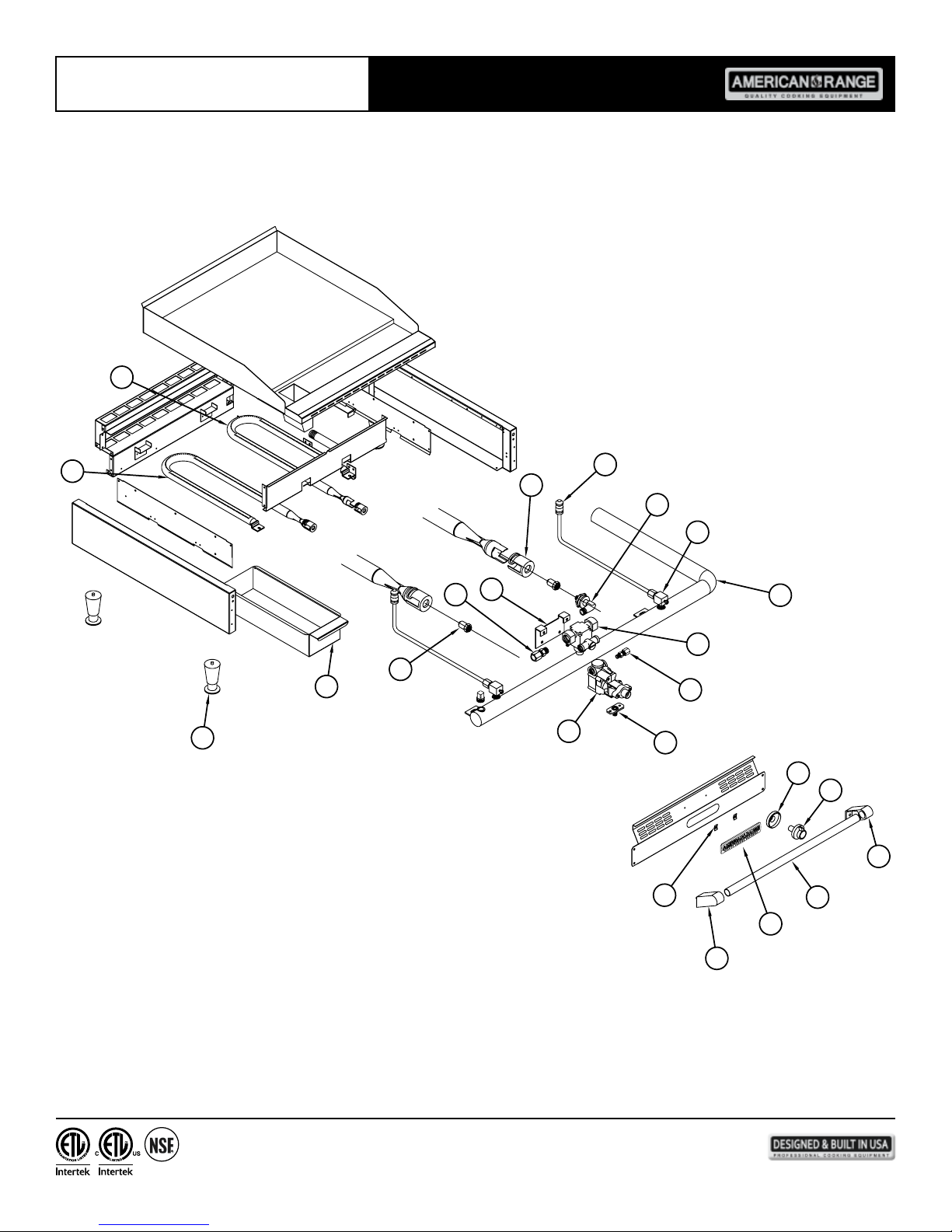

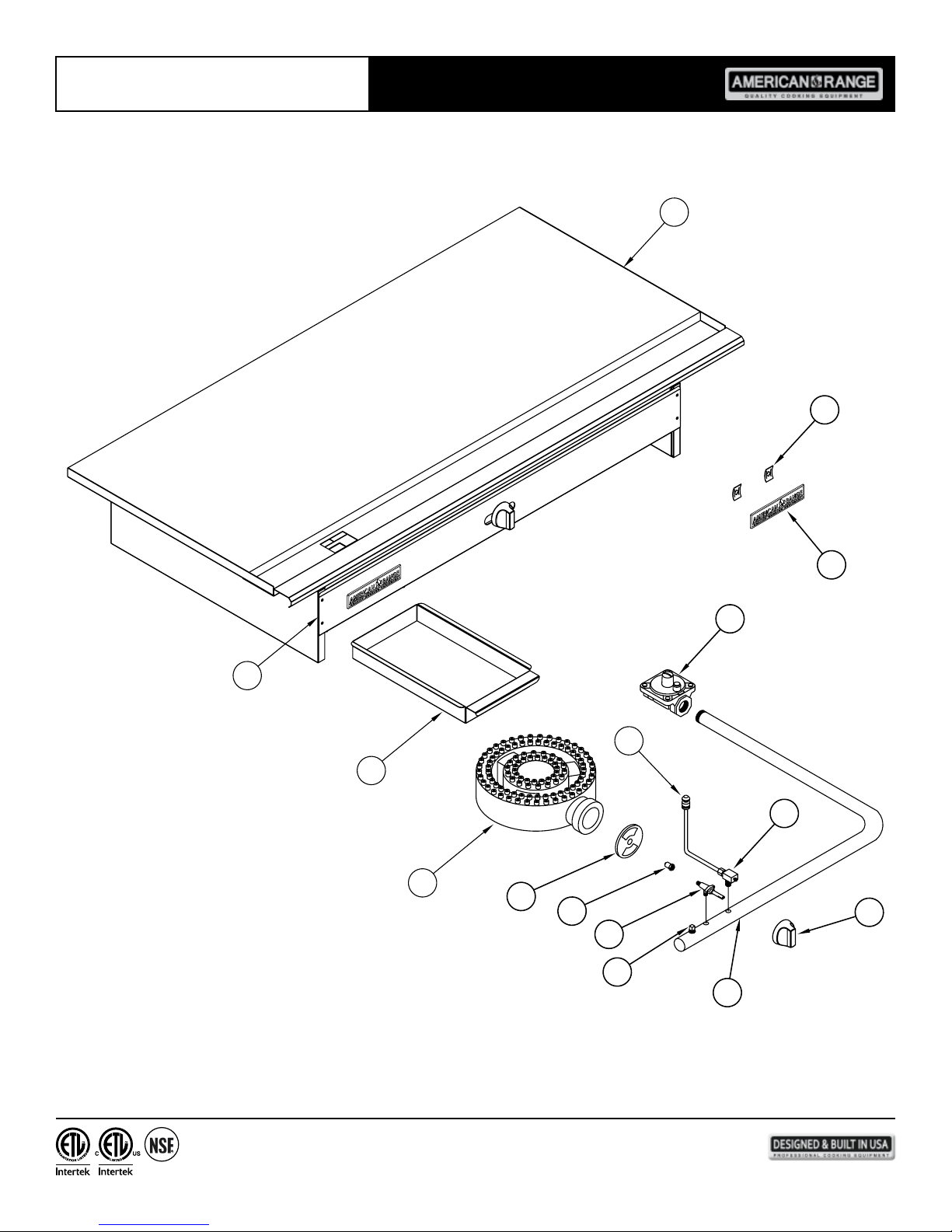

EXPLODED VIEW DRAWINGS/PARTS LISTS ............................... 6-13
ARMG....................................................................................................................6-7
ARTG .....................................................................................................................8-9
AEMG...............................................................................................................10-11
ARTY.................................................................................................................12-13

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
1
Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
Installation of the equipment should be performed by qualied, certied, licensed and/or authorized personnel who are familiar with
the functions of the equipment and experienced with state/local installation codes.
Operation of the equipment should be performed by qualied or authorized personnel who have read this manual and are familiar
with the functions of the equipment.
Service of the equipment should be performed by qualied personnel who are knowledgeable with American Range equipment.
The gas pressure regulator provided with the equipment must be installed when the appliance is connected to the gas supply.
The area around the appliance must be kept free and clear of combustibles such as solvents, cleaning liquids, brooms, rags, etc.
Proper clearances must be provided at the front of the appliances for servicing and proper operation.
Provisions shall be incorporated in the design of the kitchen, to ensure an adequate supply of fresh air and adequate clearance for
air openings into the combustion chamber, for proper combustion and ventilation. For proper operation of the appliance, do not
obstruct the ow of combustion and ventilation air.
The installation must conform with local codes, or in the absence of local codes, with the national fuel gas code, ANSI Z223.1 - 1988
(or latest addenda).
The appliance and its individual shut off valve must be disconnected from the gas supply piping system during any pressure testing of
that system in excess of 1/2 PSI.
The appliance must be isolated from the gas supply piping system by closing its individual manual shut off valve during any pressure
testing of the gas supply piping system at test pressures equal to or less than 1/2 PSI.
The gas supply line must be at least 3/4” NPT.
ShIPPING DAMAGE CLAIM PROCEDURE
The equipment is crafted and inspected carefully by skilled personnel before leaving the factory. The transportation company
assumes full responsibility for the safe delivery upon acceptance of the equipment.
If you receive a damaged product, immediately contact your delivery company, your dealer, your builder or installer. Do not
install or attempt to operate a damaged appliance.
1. Note any visible loss or damage on the freight bill or express delivery and have the note signed by the person making
the delivery.
2. File claim for damages immediately regardless of the extent of damages.
3. For damage noticed after unpacking (concealed loss or damage), notify the transportation company immediately and le
a "Concealed Damage" claim with them. This should be done within fteen (15) days from the date that delivery
is made to you. Retain the shipping container for inspection.
IMPORTANT
INSTALLATION INSTRUCTIONS
CALIFORNIA PROPOSITION 65 WARNING
The burning of gas cooking fuel generates some by-products which are on the list of substances known by the State of California to
cause cancer or reproductive harm. California law requires businesses to warn customers of potential exposure to such substances.
To minimize exposure to these substances, always operate this unit according to the Owners Manual, ensuring you provide proper
ventilation when cooking with gas.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
2
Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY

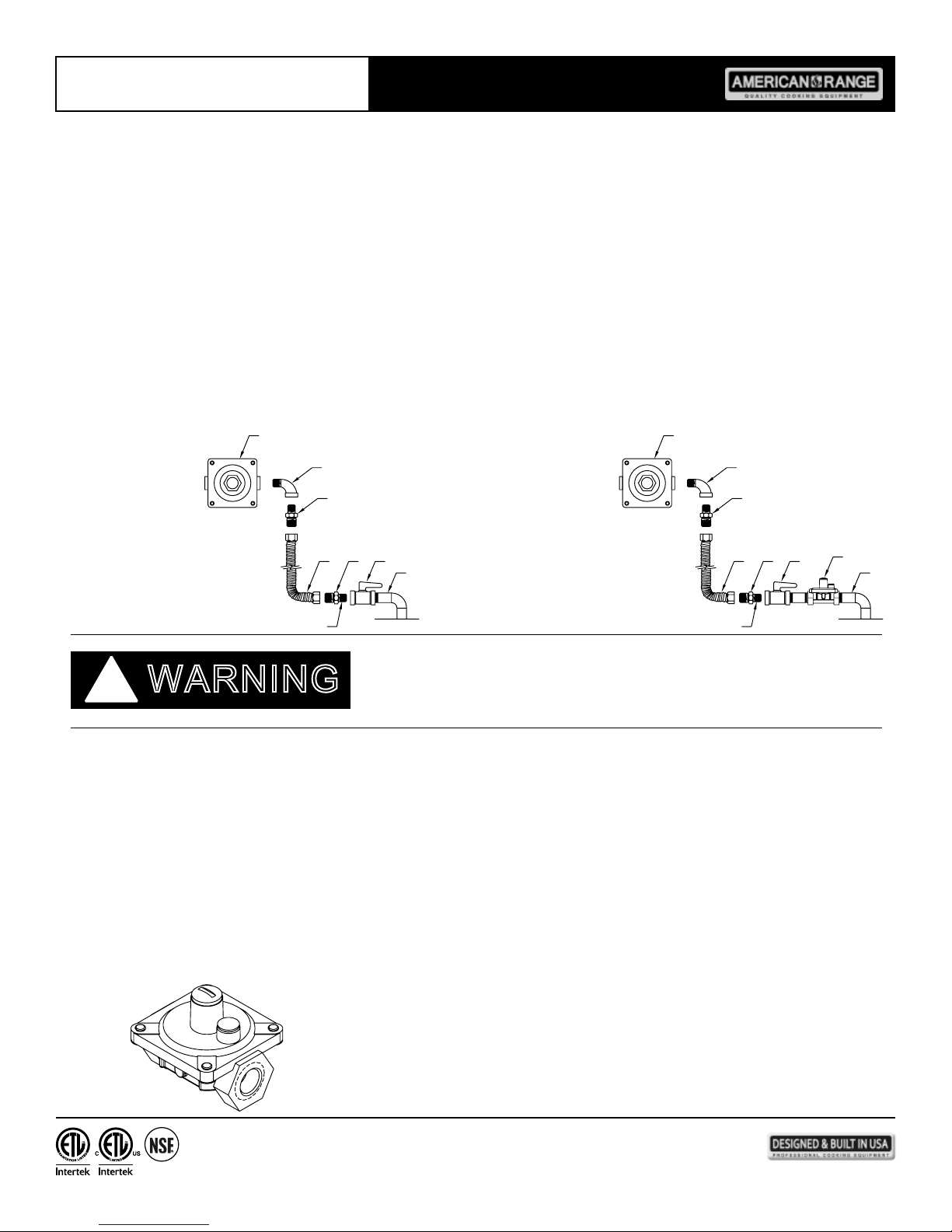

GAS CONNECTION - The gas inlet line size of this appliance is 3/4” NPT. For proper operation, the gas supply service line
must be the same size or greater than the inlet line size of the appliance. The gas line size must not be reduced at any point along
the supply line.
MANUAL ShUT-OFF VALVE - A gas pressure regulator and a contractor-supplied shut-off valve must be plumbed in the gas
service line ahead of the appliance – in a physical location where it can be reached quickly in the event of an emergency.
Visually double check any installer-supplied intake pipes and/or blow them out using compressed air to clear any dirt or debris,
threading chips, or other foreign matter – before installing a service line. Those particles will clog gas orices when gas pressure is
applied. Compounds used on threaded joints of this appliance piping must be resistant to the action of NG and LP gas and provide
a gas tight seal to prevent leaks.
The gas pressure regulator must be installed in the gas line – failure to install a pressure regulator will void the equipment
warranty. The regulators supplied with ranges have 3/4" NPT connections; the regulator is adjusted at the factory for
5" W.C. (water column) manifold gas pressure (natural gas) or 10" W.C. manifold gas pressure for propane gas operation.
Before connecting the regulator, check the incoming line pressure – as these regulators can only withstand a maximum inlet pressure
of 14" W.C. (1/2 PSI); exceeding this pressure will damage them. If the gas supply line pressure is greater than this amount, a step-
down regulator will be required. A gas ow direction arrow is cast into the body of the regulator to minimize installation error – it
should point downstream to the appliance. The blue air vent cap on the top of the regulator is part of the regulator and should not
be removed.
Any adjustment to the regulator must be made only by qualied and licensed service
personnel with the proper calibrated test equipment. Gas connections should be performed
by a qualied licensed contractor.
INSTALLATION - GAS STANDARDS AND CODES
IMPORTANT - The installation of this appliance must conform to local codes or, in the absence of local codes, with the National Fuel
Gas Code ANSI Z223.1, Natural Gas Installation Code CAN/CGA-B149-1, or the Propane Installation Code CAN/CGA-B149-2
as applicable, including:
1. The appliance and its individual shut off valve must be disconnected from the gas supply piping system during any
pressure testing of that system at test pressure in excess of 1/2 psi (3.45 kPa).
2. The appliance must be isolated from the gas supply piping system by closing the individual manual shut-off
valve during any pressure testing of the gas supply piping system.
When installing the pressure regulator - remember it can only handle 1/2 PSI. In
every LPG installation, you have high source pressures, ranging from 20 PSI to 100
PSI. If the high pressure gas line from the LPG tank is directly connected to the unit
without the proper step-down regulator, it will rupture the diaphragm in the valve,
rendering it useless.
WARNING
!
A
DCE
F
G
C
B B
C
G
F
ECD
A
H
NATURAL GAS LP GAS
A. Gas pressure regulator
B. 90º Street elbow
C. Adapter (must be 3/4" male pipe thread)
D. Flexible connector
E. Manual gas shut-off valve
F. 3/4" gas supply
G. Use pipe-joint compound
A. Gas pressure regulator
B. 90º Street elbow
C. Adapter (must be 3/4" male pipe thread)
D. Flexible connector
E. Manual gas shut-off valve
F. 3/4" gas supply
G. Use pipe-joint compound
H. Step down regulator

Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
3
X For installation on a non-combustible counter/oor only.

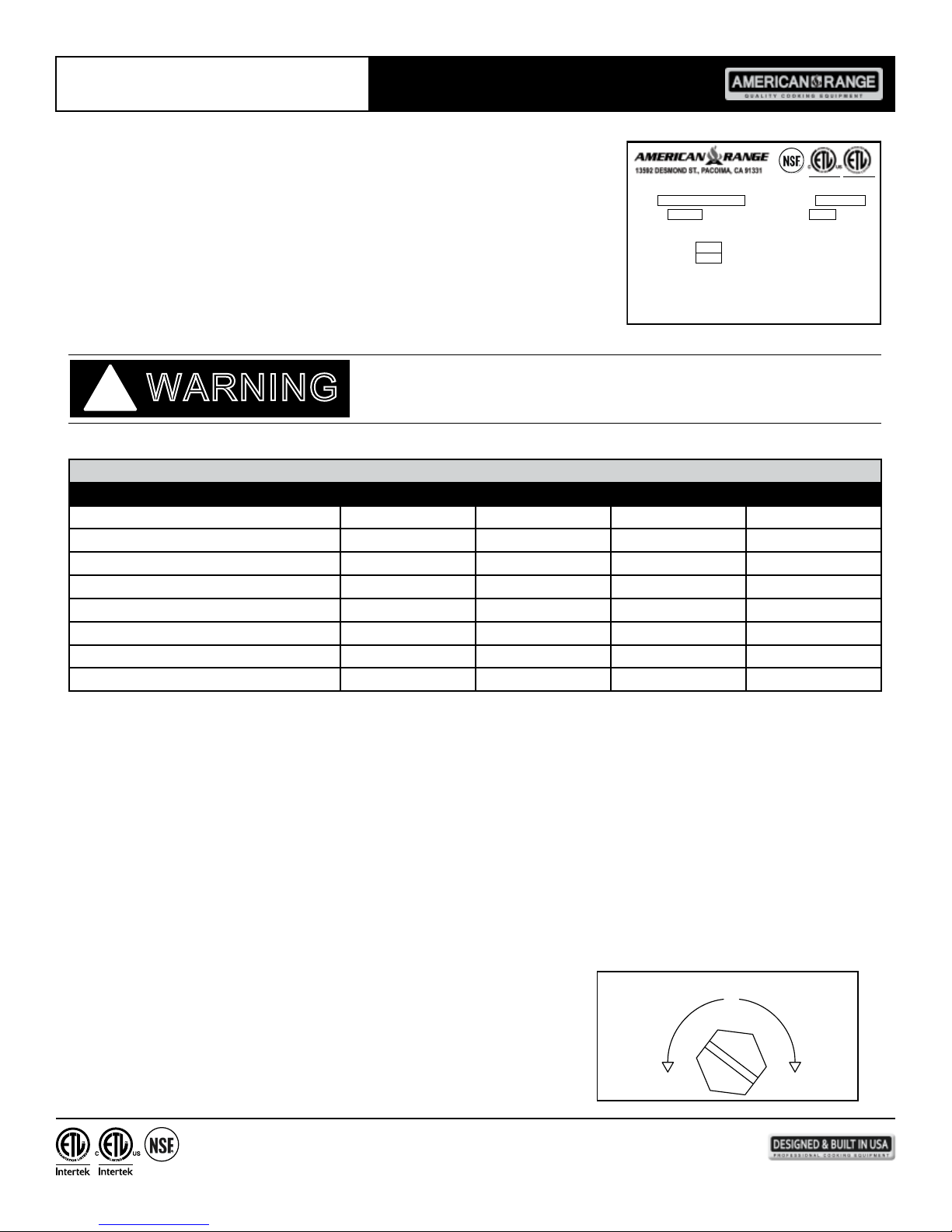

CLEARANCES
MODEL NON-COMBUSTIBLE WALLS COMBUSTIBLE WALLS
Rear Sides Rear Sides
ARMG 0" 0" 7" 8"
ARTG 0" 0" 7" 8"
AEMG 0" 0" 7" 8"
AETG 0" 0" 7" 8"
ACCG 0" 0" X X
ARGB 0" 0" 7" 8"
ARTY 0" 0" X X
Before lighting, check all joints in the gas supply line for leaks. DO NOT USE AN OPEN FLAMETO CHECK FOR LEAKS!
Use soap and water solution.
GAS LEAKS - ChECK OPERATION
1. Turn pilot valves to OFF position by turning adjustment screws clockwise.
2. Turn ON the manual gas valve at the inlet side of the gas supply line.
3. Check for gas leaks at the exible coupling or gas connector tting using a solution of one part soap and three parts water.
4. Sparingly spray or brush the soapy solution at the gas ttings; active bubbling indicates location of gas leak.
5. Turn pilot adjustment screw counter-clockwise, then light standing pilot and
adjust ame 1/4" high.
6. Turn ON gas valve/thermostat to light main burners.
7. For complete shut down, shut off gas valves and turn pilot adjustment screw
clockwise to shut off gas to the pilots.
PILOT ADJUSTMENT SCREW
MORE GAS LESS GAS
+-
Appliances must be connected only to the type of gas specied on the rating plate.
WARNING
!
If a gas leak is detected turn off the manual gas valve at the inlet side of the gas line.
Call your certied and licensed service technician.
Intertek
3013256
Intertek
MODEL: SERIAL NO.
ARMG-36
GAS TYPE: NAT MAN. PRESS: IN. W.C.
5.0
INPUT-BTU/HOUR/BURNER CLEARANCES
NON-COMB. COMB.
OPEN BURNERS 32,000
BACK
SIDES
0”
0”
7”
8”
FOR USE ONLY ON NONCOMBUSTIBLE FLOORS
CURB MOUNT MUST HAVE 2” OVERHANG
INTENDED FOR OTHER THAN HOUSEHOLD USE.
ANSI Z83.11a/CSA 1.8a-2007 Food Service Equipment
XXXXXX-XXX
GRIDDLE 30,000
Rating Plate
RATING PLATE - The information on the rating plate denes the model, serial
number, gas type (natural or liquid propane), operating pressures and burner BTU
ratings. It is essential for proper identication of the unit when requesting additional
information or factory support.
OPERATING INSTRUCTIONS

Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
4
ARMG, ARTG, AEMG, AETG, ACCG, ARTY
Periodic:
1. Remove burners and clean with warm water and wire brush. Make sure the tiny burner ports are not clogged.
2. Check valves for operation and clean if necessary. Consult your service agency or local gas company.
Daily:
1. Season prior to use. To season, pour a small amount of cooking oil (about 1 oz. per square foot [300 g /M2] over the top.
With a cloth, spread oil over the entire surface to create a thin lm. Wipe off any excess oil with a cloth. Turn burner on
very low and allow oil to burn off. Repeat the procedure three times before regular use.
2. Remove and empty grease pan. Clean thoroughly and replace.
3. Clean griddle plate with warm, soapy water and/or mixture of half and half vinegar and club soda. Rinse with warm water.
4. Turn griddle on and rinse again with warm water to boil-out any soap left at the edges of the griddle plate.
5. Repeat step one after cleaning process.
ARGB
Periodic:
1. Remove burners and clean with warm water and wire brush. Make sure the tiny burner ports are not clogged.
2. Check valves for operation and clean if necessary. Consult your service agency or local gas company.
Daily:
1. Season prior to use. To season, pour a small amount of cooking oil (about 1 ounce [28 grams] per .1 square meter of surface)
over the top. With a cloth, spread oil over the entire surface to create a thin lm. Wipe off any excess oil with a cloth. Turn
burner on very low and allow oil to burn off. Repeat the procedure three times before regular use.
2. Remove and empty grease pan. Clean thoroughly and replace.
3. Remove rack and grease pans. Clean with soap and water.
4. Wipe the inside clean.
5. Clean griddle plate with warm, soapy water and/or mixture of half and half vinegar and club soda. Rinse with warm water.
6. Turn griddle on and rinse again with warm water to boil-out any soap left at the edges of the griddle plate.
7. Repeat step one after cleaning process.
STAINLESS STEEL PARTS - Do not use steel wool, abrasive cloths, cleansers or powders to clean Stainless Steel surfaces. All
Stainless Steel parts should be wiped regularly with hot soapy water during the day and a Stainless Steel liquid cleaner at the end
of the day. To remove encrusted materials, soak in hot water to loosen the material, then use a wood or nylon scraper. Contact
the factory, factory representative or a local service company to perform maintenance and repairs.
DO NOT place ice or cold water on a hot griddle. This can cause irrepairable damage to the griddle plate.
DO NOT use chemicals or acidic cleansers to clean a griddle plate. Chemicals may seep into the edges of the plate, and
re-surface when heated, contaminating food.
DO NOT allow griddle plate to overheat, turn down or turn off the unit during down-time, when there is no product cooking.
MAINTENANCE INSTRUCTIONS
Your American Range Commercial Equipment has been designed and manufactured for years of reliable service. Keeping the unit
clean periodically will be appreciated by your customers, help extend the life of the product and make maintenace easier. The
following are a few tips gathered over the years from eld experience. We begin with the DO NOTS:

Notes
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
5

Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
6
ARMG
ON
OF F
ON
OF F
ON
OFF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
7
ARMG
ITEM NO. PART NO. DESCRIPTION
1
A92719 Griddle Plate Assembly ARMG-24 1800-24 21" Deep
A92720 Griddle Plate Assembly ARMG-36 1800-36 21" Deep
A92721 Griddle Plate Assembly ARMG-48 1800-48 21" Deep
A92722 Griddle Plate Assembly ARMG-60” 1800-60 21" Deep
A92723 Griddle Plate Assembly ARMG-72” 1800-72 21" Deep
2A14004 Burner, W Counter Top ARMG, ARTG 10473
3 A14037 Air Shutter, 2" 10464
4
A15036 Manifold, ARMG-24 ARHP24" 4B 2HT 1801-24 Counter Top
A15018 Manifold, ARMG_36/ARHP36" 6B 3HT 1801-36 Counter Top
A15022 Manifold, ARMG-48/ARHP48" 8B 4HT 1801-48 Counter Top
A15023 Manifold, ARMG-60/ARHP6010 60" 1801-60 10B 5HT Counter Top
A15050 Manifold, ARHP-72"/ARMG-72" 6HT 1801-72 Counter Top
5 A29300 Valve, Pilot Elbow Adjustable 10418 1/8 NPT 3/16 CC
6 A23010 Plug, 1/8" Pipe Hex Black All Manifolds
7A29201 Pilot Tip Assembly, ARMG
8 A29000 Hood, Orice #39 1/2" Brass 11039
9 A80109 Valve, Gas Manual On/Off UL 10419 AR, ARKB, ARRB, AECB
10 A32001 Knob, Gas On/Off Glossy Black Flat Down
11 A44003 Nut, Speed #6 Push Black 10601
12 A38000 Name Plate, American Range 8" 10499 Quality Commercial Chrome
13
A99823 Valve Cover, ARMG-24"/ARHP-24" 1802-24 Heavy Duty Stainless
A99824 Valve Cover, ARMG-36"/ARHP-36" 1802-36 Heavy Duty Stainless
A99825 Valve Cover, ARMG-48"/ARHP-48" 1802-48 Heavy Duty Stainless
A99826 Valve Cover, ARMG-60"/ARHP-60" 1802-60 Heavy Duty Stainless
A99827 Valve Cover, ARMG-72"/ARHP-72" 1802-72 Heavy Duty Stainless
14 A99800 Grease Can Assembly, ARMG ARTG 10250
15 A35011 Leg, 4" Adjustable Flanged NSF Stainless
16 A80110 Valve, Pressure Regulator 3/4 10480 Nat Gas Set 5.
A80011 Valve, Pressure Regulator 10481 LP Gas Set 10.0

Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
8
ARTG
20
19
18
16
11
8
2
1
21 3
4
5
6
7
9
10
13
12
14
15
17

Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
9
ARTG
ITEM NO. PART NO. DESCRIPTION
1
A92713 Griddle Plate Assembly ARTG24" 1900-24
A92714 Griddle Plate Assembly ARTG36" 1900-36
A92715 Griddle Plate Assembly ARTG48" 1900-48
A92716 Griddle Plate Assembly ARTG60" 1900-60
A92717 Griddle Plate Assembly ARTG72" 1900-72
2 A14004 Burner, W Counter Top ARMG, ARTG 10473
3 A14037 Air Shutter, 2" 10464
4A29201 Pilot Tip Assembly, ARTG
5A29300 Valve, Pilot Elbow Adjustable 10418 1/8 NPT 3/16 CC
6A44003 Nut, Speed #6 Push Black 10601
7A38000 Name Plate, American Range 8" 10499 Quality Commercial Chrome
8
A99599 Valve Cover, ARTG-24" Heavy Duty 1902-24 Stainless
A80114 Valve Cover, ARTG-36" Heavy Duty 1902-36 Stainless
A80120 Valve Cover, ARTG-48" Heavy Duty 1902-48 Stainless
A80121 Valve Cover, ARTG-60" Heavy Duty 1902-60 Stainless
A80122 Valve Cover, ARTG-72" Heavy Duty 1902-72 Stainless
9 A32020 Knob, Griddle BJ Thermostat 10483
10 A32012 Bezel, BJ Thermostat 10440
11 A11113 Thermostat, BJ Griddle/Gas Oven 10482 2 Outlet BJWA25PBD-01-48
12 A28000 Fitting, 3/8CC x 1/4 MIP Brass 10011
13 A23010 Plug, 1/8" Pipe Hex Black All Manifolds
14
A29000 Hood, Orice #39 1/2" Brass 11039
A29007 Hood, Orice #53 1/2" Brass
15 A24000 Elbow, Orice Mixr 3/8C-3/8-27 10442
16 A11101 Thermostat, BJ Griddle/Gas Oven 10421 1 Outlet BJWA25PB-04-48
17 A23100 Nipple, Flanged BJ Thermostat 10012
18
A15018 Manifold, ARMG-36/ARHP36" 6B #HT 1801-36 Counter Top
A15022 Manifold, ARMG-48/ARHP48" 8B 4HT 1801-48 Counter Top
A15023 Manifold, ARMG-60/ARHP6010 60" 1801-60 10B 5HT Counter Top
A15036 Manifold, ARMG-24/ARHP24" 4B 2 HT 1801-24 Counter Top
A15050 Manifold, ARMG-72/ARHP-72" 6HT 1801-72 Counter Top
19 A99800 Grease Can Assembly, ARMG/ARTG 10250
20 A35011 Leg, 4" Adjustable Flanged NSF Stainless
21
A80110 Valve, Pressure regulator 3/4 10480 Nat Gas Set 5.
A80011 Valve, Pressure Regulator 3/4 10481 LP Gas Set 10.0

Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
10
AEMG
1
ON
OF F
ON
2
6
3
45
7
8
9
10
11
12
13
16
18
19
20
21
17
14
15

Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
11
AEMG
ITEM NO. PART NO. DESCRIPTION
1
A92700 Griddle Plate Assembly, AEMG-12 16GA. Splash Guard & Short Drain
A92701 Griddle Plate Assembly, AEMG-24 16GA. Splash Guard & Short Drain
A92702 Griddle Plate Assembly, AEMG-36 16GA. Splash Guard & Short Drain
A92703 Griddle Plate Assembly, AEMG-48 16GA. Splash Guard & Short Drain
A92704 Griddle Plate Assembly, AEMG-60 16GA. Splash Guard & Short Drain
A92705 Griddle Plate Assembly, AEMG-72 16GA. Splash Guard & Short Drain
3 A14037 Air Shutter, 2" 10464
4
A29000 Hood, Orice #39 1/2" Brass 11039
A29007 Hood, Orice #53 1/2" Brass
5 A80109 Valve, Gas Manual On/Off UL 10419 AR, ARKB, ARRB, AECB
6 A29300 Valve, Pilot Elbow Adjustable 10418 1/8 NPT 3/16 CC
A99538 Valve Cover, AEMG-24" Heavy Duty 70535 Stainless
A99539 Valve Cover, AEMG-36" Heavy Duty 70552 Stainless
A99540 Valve Cover, AEMG-48" Heavy Duty 70553 Stainless
A99541 Valve Cover, AEMG-60" Heavy Duty 70670 Stainless
A99544 Valve Cover, AEMG-72" Heavy Duty 70944 Stainless
8 A44003 Nut, Speed #6 Push Black 10601
9 A38000 Name Plate, American Range 8" 10499 Quality Commercial Chrome
10 A32140 Bracket, Handle AEMG Rt Heavy Duty Chrome Plated 1” Tube
11
A53053 Tube, Handle AEMG-12" Stainless .049W x 1" x 11.3125" 180 Grit
A53054 Tube, Handle AEMG-24" Stainless .049W x 1" x 23.3125" 180 Grit
A53055 Tube, Handle AEMG-36" Stainless .049W x 1" x 35.3125" 180 Grit
A53056 Tube, Handle AEMG-48" Stainless .049W x 1" x 47.3125" 180 Grit
A53057 Tube, Handle AEMG-60" Stainless .049W x 1" x 59.3125" 180 Grit
A53058 Tube, Handle AEMG-72" Stainless .049W x 1" x 71.3125" 180 Grit
12 A32139 Bracket, Handle AEMG Lt Heavy Duty Chrome Plated 1" Tube
13 A32001 Knob, Gas On/Off Glossy Black Flat Down
14 A23010 Plug, 1/8" Pipe Hex Black All Manifolds
15
A15101 Manifold, AEMG-12"/AETG-12" Grid Work Duty Counter Top
A15102 Manifold, AEMG-24"/AETG-24" Grid Work Duty Counter Top
A15103 Manifold, AEMG-36"/AETG-36" Grid Work Duty Counter Top
A15104 Manifold, AEMG-48"/AETG-48" Grid Work Duty Counter Top
A15105 Manifold, AEMG-60"/AETG-60" Grid Work Duty Counter Top
A15113 Manifold, AEMG-72"/AETG-72" Grid Work Duty Counter Top
16 A99811 Grease Can, AEMG 70929
17 A29201 Pilot Tip, Assembly
18 A35010 Leg, 4" Adjustable AEMG Chrome Plated 1-3/4" Flange Toe NSF
20 A14083 Burner, AEMG Griddle Lt 70531
21 A14084 Burner, AEMG Griddle Rt 70532

Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
12
AETG
24
22
20
21
23
19
18
13
15
16
17
4
1
10
5
4
98
6
2
3
12
11

Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
13
AETG
NEED PARTS

Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
14
ARTY
1
2
3
4
8
6
7
10
11
12
13
5
14
15
9

Owner’s Manual ARMG, ARTG, AEMG, AETG,
ACCG, ARGB, ARTY
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
15
ARTY
ITEM NO. PART NO. DESCRIPTION
2 A44003 Nut, Speed #6 Push Black 10601
3 A38000 Name Plate, American Range 8" 10499 Quality Commercial Chrome
4A80110 Valve, Pressure Regulator 3/4 10480 LP Gas Set 5.
A80011 Valve, Pressure Regulator 3/4 10481 LP Gas Set 10.0
5 A29220 Pilot, Assembly ARTY Series
6 A29300 Valve, Pilot Elbow Adjustable 10418 1/8 NPT 3/16 CC
7 A32001 Knob, Gas On/Off Glossy Black Flat Down
9 A23010 Plug, 1/8" Pipe Hex Black All Manifolds
10 A80109 Valve, Gas Manual On/Off UL 10419 AR, ARKB, ARRB, AECB
11 A29000 Hood, Orice #39 1/2" Brass 11039
A29007 Hood, Orice #53 1/2" Brass
12 A14037 Air Shutter, 2" 10464
13 A14013 Burner, 2 Ring ARTY 73310 HD Medallion
14 A99800 Grease Can Assembly, ARMG, ARTG

13592 Desmond Street, Pacoima, CA 91331
818.897.0808 tel [phone] toll free
818.897.1670 fax
www.americanrange.com
WARRANTY REQUIREMENT
For reliable operation and for your own safety, this professional cooking equipment must
be installed by a certied/licensed contractor.
Failure to comply will void any written or implied warranty.
Should the equipment require service during the standard warranty period, the receipt
proving certied installation must be made available to American Range for verication.
If installation was not performed by a certied/licensed contractor be prepared to submit
a major credit card for payment for proper installation prior to service.
A70703 040912
