American Range ARR-27WD User manual

1
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
This manual is divided into several sections:
Important Safety Instructions informs you about signicant safety precautions when installing and operating your new appliance.
THIS IS A MUST READ SECTION OF THE MANUAL.
Installation Section
Villa Warming Drawer Dimensions and Cabinet Cutout Dimensions.
Troubleshooting describes how to troubleshoot common issues.
How to Operate Your Warming Drawer
Care and Cleaning
Warranty
ARR-36IRWD
ARR-30IRWD
ARR-27IRWD
ARR-36WD
ARR-30WD
ARR-27WD
INSTALLATION MANUAL, USE AND CARE AND WARRANTY FOR
VILLA WARMING DRAWERS
DESIGN CLASS FUNCTION
BEFORE USING YOUR APPLIANCE, PLEASE READ THIS MANUAL, PAYING SPECIAL ATTENTION TO THE
IMPORTANT SAFETY INSTRUCTIONS LOCATED IN THE NEXT SEVERAL PAGES
ABOUT THIS MANUAL
2
5
6
8
11
12
13

2
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
FOR YOUR SAFETY!
Do not store or use gasoline or other ammable vapors or
liquids in the vicinity of this or any other appliance.
FOR
YOUR
SAFETY
FOR
YOUR
SAFETY
IMPORTANT – PLEASE READ AND FOLLOW!
Instruction to be followed in the event the user smells gas must be posted in a prominent location.
This information must be obtained by consulting the local gas supplier.
WARNING!
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING
IMPROPER
INSTALLATION
WARNING
IMPROPER
INSTALLATION
»Before beginning, please read all the instructions carefully.
»DO NOT remove permanently axed labels, warnings, or plates from product. This may void the warranty.
»All local and national codes and ordinances must be observed, installation must conform with local codes.
»The Installer must leave these instructions with the consumer who must retain for local inspector’s use and for future reference.
»Installation and service must be performed by a qualied installer, service agency or gas supplier.
»Please ensure that the product is properly grounded.
»In the Commonwealth of Massachusetts, installation must be performed by a licensed plumber or gas tter.
Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
Hazards or unsafe practices which will result in severe personal injury or death.
Hazards or unsafe practices which may result in severe personal injury or death.
Hazards or unsafe practices which may result in minor personal injury or property damage.
This is the SAFETY ALERT SYMBOL. This symbol alerts you to hazards which will result in severe injury or death.
CA PROPOSITION 65: The burning of gas cooking fuel generates some chemical by-products which
are on the list of substances known by the State of California to cause cancer, birth defects and/or
reproductive harm. To minimize exposure to these substances, always operate this unit according to the
Owners Manual, ensuring to provide proper ventilation.
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING
!
DANGER
!
WARNING
!
!
CAUTION

3
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
A ground fault interrupter (GFI) shall be used as required by NFPA-70 (National Electric Code), Federal / State / Local
laws or local ordinances.
»The required use of a GFI is normally related to the location of the receptacle to its proximity to signicant sources of water or
moisture.
»American Range will not warranty any problems resulting from GFI outlets which are not installed properly or do not meet
the requirements below.
IF THE USE OF A GFI IS REQUIRED, it must be:
»The receptacle type (breaker type or portable type not recommended).
»Used with permanent wiring only (temporary or portable wiring not recommended).
»On a dedicated circuit (no other receptacles, switches or loads in the circuit).
»Connected to a standard breaker or appropriate size (GFI breaker of the same size not recommended).
»Rated for class (5mA + 1mA trip current) as per UL 943 standard.
»In good condition and free from any loose-tting gaskets (if applicable in outdoor situations).
»Protected from moisture (water, steam, high humidity) as much as reasonably possible.
To prevent possible damage to cabinets and cabinet nishes, use only materials that will not discolor or delaminate
and will withstand temperatures up to 194ºF (90ºC). Heat resistant adhesive must be used if the product is to be
installed in laminated cabinetry, check with your builder or cabinet supplier to make sure that the materials meet
these requirements.
The use of cabinets for storage above the oven may result in potential re or burn hazard.
To avoid risk of electrical shock, personal injury or death; verify your appliance has been
properly grounded in accordance with local codes, or in absence of codes, with the National Electrical Code (NEC),
ANSI/NFPA 70 latest edition, or in Canada, to Canadian electrical codes, CSA, C22.2.
Do not use the handle or door to lift the warming drawer, remove pull down door before installation to ensure
that it is not used to lift the unit. Make sure pins are inserted into hinges before removing door to prevent injury to
hands and / or ngers. (See installation instructions)
The misuse of the appliance(s) (e.g.; stepping, sitting, or leaning on them) can result in hazard or injuries and damage to
the product.
This appliance must not be used for space heating. This information is based on safety considerations.
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
DANGER

4
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
For personal safety, this appliance must be connected to a properly grounded and polarized electrical power supply. If only a two-prong
outlet is available, it is the customer’s responsibility to have it replaced with a dedicated, grounded, three-prong electrical outlet by a
licensed technician.
»Do not cut or remove the third (ground) prong from the power cord
»Do not use an adapter plug
»Do not use an extension cord
»Do not use a power cord that is frayed or damaged
IMPORTANT SAFETY INSTRUCTIONS
To avoid the possibility of explosion or re, do not store or use combustible, ammable or explosive liquids (such as gasoline) or vapors
inside or in the vicinity of this or any other appliance. Keep items that could explode, such as aerosol cans, away from the product. Do
not store explosive or ammable materials in nearby cabinets or areas. When operating the warming drawer, do not touch the heating
element, the inside surfaces of the drawer and drawer door – these can become HOT enough to cause burns.
Do not store items of interest to children above or near the appliance. Children, as well as adults, must never be allowed to sit, stand or
climb on any part of the appliance. Serious personal injury may occur.
Always DISCONNECT the electrical plug from the wall outlet power source before servicing the unit. It is recommended that a
dedicated electrical circuit be used for this appliance.
The California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition 65) requires the Governor of California
to publish a list of substances known to the State of California to cause cancer or reproductive harm, and requires businesses to warn
customers of potential exposures to such substances. Users of this appliance are hereby warned that when the oven is operated, there
may be some low-level exposure to some of the listed substances including carbon monoxide. Exposure to these substances can be
minimized by properly venting the oven to the outdoors using approved overhead ventilation equipment or by opening the windows
and/or doors in the room where the appliance is located. This appliance must not be operated without a properly sized and functional
ventilation hood.
!
CAUTION
!
DANGER
!
WARNING
!
WARNING
!
DANGER
Purchase a kitchen re extinguisher for your home and store it in close proximity to your appliance. Should an uncontrolled re occur,
never use water on grease res. Never pick up a aming pan. Use the door handle to open or close the appliance door.
Children must not be left alone or unattended in the kitchen while the appliance is in use. Never leave the appliance unattended during
use. Boil-overs may occur, causing spills which may ignite.
Never wear loose tting or long sleeved apparel while cooking. Never wear garments made of ammable materials. Clothing may ignite
or catch utensil handles. DO NOT drape towels or other items on door handles. These items could ignite and cause burns.
ALWAYS turn the appliance o at the end of cooking.
!
CAUTION

5
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
INSTALLATION
INSTALLING THE WARMING DRAWER INTO
A CABINET OR ISLAND
»Position the warming drawer to the front of the cabinet or
island cutout. Remove any leftover packaging material.
»Locate the rating plate and record the information on the
warranty card in this manual.
»Locate the power supply cord, insert the cord through the
cutout and plug into the 120 VAC three-prong receptacle.
»Pull the warming oven door handle out and use the drawer
front frame to push the warming drawer into the cutout. The
stainless steel front frame should be ushed even with the
cabinet front.
»Remove the plastic protective lm from the stainless steel
parts.
RATING PLATE
The information on the rating plate denes the model, serial number
and electrical ratings. Keep this information for future reference. It
is essential for proper identication of the unit when requesting
additional information or factory support.
3013256
XXXXXX-XXX
SERIAL NO.
AMERICAN
American Range (www.americanrange.com)
13592 DESMOND ST., PACOIMA, CA 91331
WARMING DRAWER MODEL NUMBER
ARR-27WD ARR-30WD
ARR-27IRWD ARR-30IRWD
XARR-36WD
ARR-36IRWD
UL 1026 2007/01/31 HOUSEHOLD COOKING APPLIANCES
CAUTION
TO ENSURE CONTINUED PROTECTION AGAINST ELECTRICAL SHOCK, CONNECT TO PROPERLY GROUNDED OUTLETS ONLY.
TO REDUCE RISK OF FIRE, DO NOT PLACE ANY HEATING OR COOKING APPLIANCE BENEATH THIS UNIT.
TO REDUCE THE RISK OF ELECTRICAL SHOCK, KEEP EXTENSION CORD CONNECTION DRY AND OFF THE GROUND.
FOR INDOOR AND OUTDOR BUILT-IN USE ONLY
PROTECTED BY U.S. PATENT 7,166,821
REPLACEMENT LAMP RATING: 120VAC, 200WATT
ELECTRICAL RATING: 60HZ, 8AMP
Rating Plate
»Secure the warming drawing to the cabinet or island using the
supplied screws.
»Perform a pre-functional test by pressing ON/OFF button. The
light should turn on and o.
»Push the door handle in to close the warming drawer.
NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and
overheating of the appliance. Do not use the warming drawer as a food or kitchen item storage area.
Do not store or use corrosive chemicals, vapors, ammables or non-food products in or near this appliance. It is specically designed
for use when heating or cooking food. The use of corrosive chemicals while heating or cleaning could result in personal injury or
damage to the appliance.
!
WARNING
CAUTION
CAUTION
!
Act quickly to prevent the re from getting out of control.
If a re occurs inside an oven, close the oven door and keep it closed – and turn o the oven. The lack of oxygen will help
suocate the ames.
If the oven continues to smoke as if a re were in process – call the re department.
Do not use water on grease res – turn o the burner, and if you can’t cover the aming pot with a lid, throw lots of baking soda
or salt on it. Never use a kitchen towel or potholder to snu out ames! Never throw our on a re – as it may explode!

6
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
Verify by measuring actual appliance from box. Measure twice, cut once.
CAUTION
CAUTION
!
IMPORTANT
IMPORTANT
INSTALLATION
WARMING DRAWER DIMENSIONS:
ARR-36WD – chassis front: 36" (914 mm) wide by 10" (254 mm) high
chassis: 34-1/2" (876 mm) by 9 1/4" (235 mm) high by 23-1/2" (597 mm) deep
ARR-30WD – chassis front: 30” (762 mm) wide by 10” (254 mm) high
chassis: 28-1/2” (724 mm) by 9 1/4” (235 mm) high by 23-1/2” (597 mm) deep
ARR-27WD – chassis front: 27” (686 mm) wide by 10” (254 mm) high
chassis: 25-1/2” (648 mm) by 9 1/4” (235 mm) high by 23-1/2” (597 mm) deep

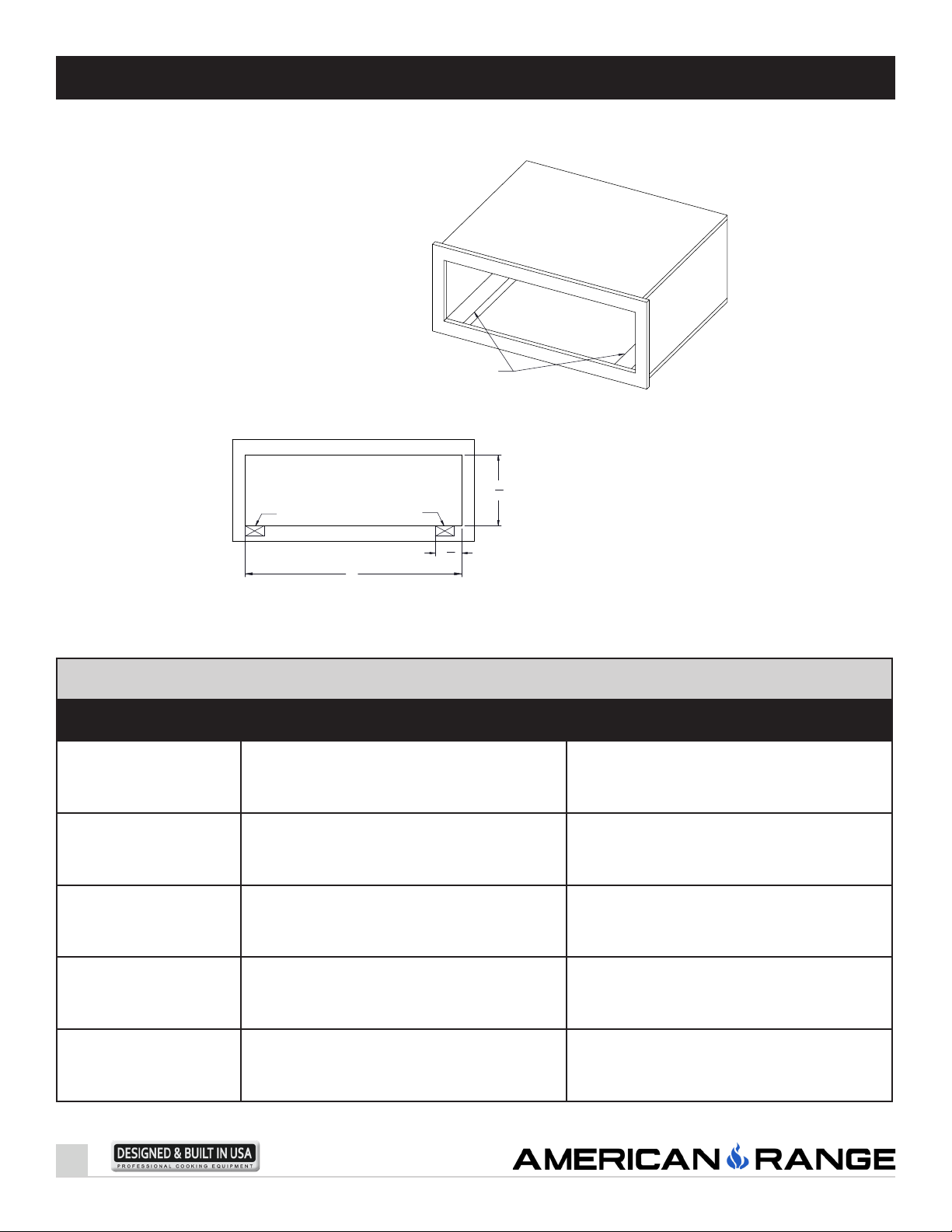

CUTOUT DIMENSIONS:
ARR-36WD – 34-5/8" (879 mm) wide by 9 3/8" (238 mm) high
ARR-30WD – 28-5/8" (727 mm) wide by 9 3/8” (238 mm) high
ARR-27WD – 25-5/8" (651 mm) wide by 9 3/8” (238 mm) high
23.51
9.19
28.53
CHASSIS FRONT
CHASSIS
WARMING DRAWER DIMENSIONS
:
ARR-36WD-V - CHASSIS FRONT: 36" wide x 10" high; CHASSIS: 34-1/2" wide x 9-1/4" high x 23-1/2" deep
ARR-30WD-V - CHASSIS FRONT: 30" wide x 10" high; CHASSIS: 28-1/2" wide x 9-1/4" high x 23-1/2" deep
ARR-27WD-V - CHASSIS FRONT: 27" wide x 10" high; CHASSIS: 25-1/2" wide x 9-1/4" high x 23-1/2" deep
CUTOUT DIMENSIONS:
ARR-36WD-V - 34-5/8" wide x 9-3/8" high
ARR-30WD-V - 28-5/8" wide x 9-3/8" high
ARR-27WD-V - 25-5/8" wide x 9-3/8" high

7
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
Packing Materials
The packing materials that protect the appliance during shipping have been designed to be biodegradable and recyclable. Please be sure
that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children.
Old Appliances
This appliance contains materials that can be recycled. Please contact your local recycling authority about the possibility of recycling these
materials. Please be sure that the appliance presents no danger to children while being stored for disposal. Before discarding
an old appliance, unplug it from the outlet and cut o its power cord. Remove any drawers to prevent trapping hazards.
CAUTION
CAUTION
!
Before servicing, disconnect the power supply by either removing the fuse, shutting o the power main or manually “tripping” the
circuit breaker. Installation work and repairs should only be performed by a qualied technician in accordance with all applicable codes
and standards. Repairs and service by unqualied persons could be dangerous and the manufacturer will not be held responsible.
INSTALLATION
Five foot cord and plug connects from lower right
rear side to 120 VAC service.
All installations must be performed in accordance
with local codes.
IMPORTANT SAFETY INSTRUCTIONS
Before connecting the appliance to the power supply, make sure that the voltage and frequency listed on the rating plate correspond with
the household electrical supply. Consult an electrician if in doubt. Only operate the Warming Drawer after it has been installed.
INSTALLER: Please leave these instructions with the consumer.
Electrical Connection
This appliance is equipped with a ve-foot-long power cord with a three-prong grounding plug ready for connection
to a standard 120 VAC, 60 Hz, 15 AMP power source.
Installation Tips
»The warming drawer should be located in the cabinet at a convenient height for easy access.
»The drawer should be installed clear of drafts caused by open doors and windows.
»Proper clearance must be allowed for the warming drawer to open without interference.
»The warming drawer must be secured to cabinetry to prevent the drawer from tipping when loading or unloading.
»The warming drawer should be level to prevent the drawer sliding open or closed on its own. The drawer cannot be leveled after it has
been installed. If necessary install a shelf inside the cabinetry to support the drawer.
WD
WIDTH
"X"
DIMENSION
27" (686 mm) 25-5/8" (651 mm)
30" (762 mm) 28-5/8" (727 mm)
36" (914 mm) 34-5/8" (625 mm)
2"
24" MIN.
OPEN DEPTH
X
2"
9 3/8"

8
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE WHAT TO DO
Drawer does not heat. There is no power to the warming drawer or the
circuit breaker has been tripped.
Plug the appliance into the outlet
or reset the circuit breaker.
Food is not warm. Adjust the temperature setting. Check that the convection fan vents have not been
blocked by large plates or dishes.
Dishes are not warm. The wrong temperature was selected or the dishes
need more time to warm.
Check the temperature setting or increase the
heater timer setting.
Food or dishes are too hot. Temperature setting is incorrect. Check the temperature setting and make sure food
is not too close to the heating element.
Appliance is noisy.
This is not a problem. The circulation fans which
distribute heated air make a sound when they
operate.
INSTALLATION
13 3
8
"
30"
24 3
4
"
32"
1"
C
L
3
2
1
4
3
9 3
8
"
A
3 1
2
"
CUTOUT
ALIGN ALIGN
ADD SUPPORTS
REVISIONS
ECN REV. DESCRIPTION DATE APPROVED
- A INITIAL RELEASE. 10-7-2021 -
ITEM DESCRIPTION QTY. U/M MATERIAL WEIGHT Finish
1 CAB TOP-FRONT WD 30 1 EA PLYWOOD 3/4" X 6 X 40-1/2 2.42 FLAT BLACK PAINT
2 WD 30 CABINET TOP-BOT 2 EA PLYWOOD 3/4" X 30 X 24 9.10 FLAT BLACK PAINT
3 CAB BASE TOP-SIDE 2 EA WOOD 1 X 4 X 24-3/4 3.68 FLAT BLACK PAINT
4 CAB TOP-BACK WD 30 2 EA WOOD 1 x 4 x 24-5/8 1.65 FLAT BLACK PAINT

9
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
INTEGRATED DOOR INSTALLATION
INSTRUCTIONS
»Custom made front panels can be installed with models
ARR-27IRWD, ARR-30IRWD and ARR-36IRWD.
»The custom panel must be at least 3/8" (10 mm) thick and
made of heat resistant material rated for 140°F (60°C) service.
INSTALLATION
CUSTOM PANEL DIMENSIOMS
27" 27"W x 10"H x 3/8"minD (689 x 254 x 10 min mm)
30" 30"W x 10"H x 3/8"minD (762 x 254 x 10 min mm)
36" 36"W x 10"H x 3/8"minD (914 x 254 x 10 min mm)
3/8"
3/8"
3/8"
CENTER CUSTOM DRAWER FRONT
WITH DRAWER FRONT FRAME
MARK & DRILL 1/8"
LEFT & RIGHT HOLES
OF DRAWER FRONT
MARK & DRILL 1/8"
TOP HOLES OF
DRAWER FRONT
USE SCREWS TO SECURELY MOUNT THE CUSTOM PANEL TO WARMING DRAWER FRONT.
W
H
CUSTOM PANEL DIMENSIOMS
27" 27"H x 10"W x 3/8"minD (689 x 254 x 10min MM)
30" 30"H x 10"W x 3/8"minD (762 x 254 x 10min MM)
36" 36"H x 10"W x 3/8"minD (914 x 254 x 10min MM)
3/8"
3/8"
3/8"
CENTER CUSTOM DRAWER FRONT
WITH DRAWER FRONT FRAME
MARK & DRILL 1/8"
LEFT & RIGHT HOLES
OF DRAWER FRONT
MARK & DRILL 1/8"
TOP HOLES OF
DRAWER FRONT
USE SCREWS TO SECURELY MOUNT THE CUSTOM PANEL TO WARMING DRAWER FRONT.
W
H
CUSTOM PANEL DIMENSIOMS
27" 27"H x 10"W x 3/8"minD (689 x 254 x 10min MM)
30" 30"H x 10"W x 3/8"minD (762 x 254 x 10min MM)
36" 36"H x 10"W x 3/8"minD (914 x 254 x 10min MM)
CENTER CUSTOM DRAWER FRONT
WITH DRAWER FRONT FRAME
MARK and DRILL 1/8"
TOP HOLES OF
DRAWER FRONT
MARK and DRILL 1/8"
LEFT and RIGHT HOLES
OF DRAWER FRONT
USE SCREWS TO SECURELY
MOUNT THE CUSTOM PANEL TO
WARMING DRAWER FRONT.
3/8"
3/8"
3/8"

10
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
CHECK ALL THAT APPLY
INSTALLATION CHECKLIST
This checklist has been developed to assure proper installation of your appliance.
REGISTRATION CARD
TO VALIDATE YOUR WARRANTY,
YOU MUST MAIL, EMAIL OR FAX THIS FORM WITH A COPY
OF YOUR RECEIPT TO:
AMERICAN RANGE CUSTOMER SERVICE,
13592 DESMOND STREET, PACOIMA, CA 91331
EMAIL: [email protected] FAX: [phone]
PRODUCT INSPECTION (Appearance and Aesthetics)
Inspect Packaging and Unit for Shipping Damage
Packaging damage? Yes No
Unit damage? Yes No
Inspect Unit for Manufacturing Defects
All Packaging Removed? Yes No
Front Section Defects? Yes No
Side Panels Defects? Yes No
INSTALLATION
Installation Manual Read? Yes No
Safety Instructions Read? Yes No
Specied Clearances (Including Cabinet-Surfaces Clearances)
were followed? Yes No
Unit Leveled, Front-to-Back and Side-to-Side? Yes No
Hold Down Bracket Installed? Yes No
Electrical Supply Properly Grounded? Yes No
Proper Polarity at receptacle? Yes No
Electrical Supply Adequate/Specied Input Voltage? Yes No
Power Cord Free From Damage? Yes No
No Extension Cord In Use? Yes No
GFCI Installed to specications? Yes No
INSPECTION and INSTALLATION NOTES:
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
FUNCTIONAL VERIFICATION
Oven Door(s) Functioning? Yes No
Hinge-Swing Motion Conrmed? Yes No
Door Alignment Conrmed? Yes No
Gasket Seal Conrmed? Yes No
A Copy of This Manual Has Been Provided
To The Owner of The Appliance? Yes No
Model Number: ____________________________________ *
Serial Number:_____________________________________ *
Gas Type: _________________________________________ *
Electrical Information: _______________________________ *
Purchase Date: _____________________________________
Dealer: ____________________________________________
Installation Date: _________________________________________
Installation Company: _____________________________________
Installation Rep’s Name:____________________________________
Installer’s Address: ________________________________________
Installer’s Phone: _________________________________________
*As specied on appliance Rating Plate – see page 6 for reference.
REGISTER ONLINE AT
www.americanrangehome.com/product-registration/
Questions?
In the event of a fault which you cannot easily x yourself,
please contact American Range. When contacting Technical
Service please quote the Serial Number and Model Number
of the warming drawer. This information is visible on the silver
data plate located beneath the drawer.

11
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
OPERATING YOUR WARMING DRAWER
ELECTRONIC CONTROL
POWER ON/OFF BUTTON
PROOF MODE BUTTON
LOW TEMPERATURE BUTTON
MEDIUM TEMPERATURE BUTTON
HIGH TEMPERATURE BUTTON
TIME SELECT BUTTON
CONTINUOUS TIME SELECT
BUTTON
To use the warming drawer, open the drawer door.
Press the ON/OFF to start and button light shall lit up, the heating element shall be energized and
the convection fan shall turn on.
PROOF - use to proof bread and other baked goods dough with yeast. Maximum temperature is 100°F.
The convection fan runs continuously in this mode. Keep the warming drawer door closed.
The warming drawer has 3 temperature settings and 4 timer selections, plus a continuous setting.
L (Low) - use to keep warming drawer temperature to 130°F;
M (Med) - use to keep warming drawer temperature to 160°F;
H (High) - use to keep warming drawer temperature to 190°F.
T (Timer Selection) - Press once for 1 HR and panel light shall lit; press twice for 2 HR;
press 3 times for 3HR; and press 4 times for 4 HR. The indicator light shall lit and move
correspondingly to the time selection.
CONTINUOUS - the warming drawer shall operate continuously when selected for parties and holidays.
This selection may also be used during observance of the Sabbath.
To turn off the appliance, press the ON/OFF button. The button light should not lit and the convection
fan should stop rotating.
IMPORTANT ! ALWAYS TURN OFF THE APPLIANCE WHEN NOT IN USED.
To use the warming drawer, open the drawer door.
Press the ON/OFF to start and button light shall light up, the heating element shall be energized and the convection fan
shall turn on.
PROOF – use to proof bread and other baked goods dough with yeast. Maximum temperature is 100°F.
The convection fan runs continuously in this mode. Keep the warming drawer door closed.
The warming drawer has 3 temperature settings and 4 timer selections, plus a continuous setting.
L (Low) – use to keep warming drawer temperature to 130°F;
M (Med) – use to keep warming drawer temperature to 160°F;
H (High) – use to keep warming drawer temperature to 190°F.
T (Timer Selection) – Press once for 1 HR and panel light shall light; press twice for 2 HR; press 3 times for 3HR; and
press 4 times for 4 HR. The indicator light shall light and move correspondingly to the time selection.
CONTINUOUS – the warming drawer shall operate continuously when selected for parties and holidays.
This selection may also be used during observance of the Sabbath.
To turn o the appliance, press the ON/OFF button. The button light should not be lit and the convection fan should
stop rotating.
IMPORTANT ! ALWAYS TURN OFF THE APPLIANCE WHEN NOT IN USE.
POWER ON/OFF BUTTON
PROOF MODE BUTTON
LOW TEMPERATURE BUTTON
MEDIUM TEMPERATURE BUTTON
HIGH TEMPERATURE BUTTON
TIME SELECT BUTTON
CONTINUOUS TIME SELECT
BUTTON ELECTRONIC CONTROL

12
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
OPERATING TIPS
»This is not a cooking device. Place already cooked and hot
food into drawer to keep it at serving temperature.
»The warming drawer can be turned o at any time by pressing
the ON/OFF key.
»Take care when opening and closing the loaded drawer to
prevent spills
OPERATING YOUR WARMING DRAWER
CAUTION
CAUTION
!
Before servicing, disconnect the power supply by either
removing the fuse, shutting o the power main or manually
“tripping” the circuit breaker. Do not clean or remove the
Warming Drawer until it has cooled.
»The warming drawer can also be used to warm glass, pyrex or
ceramic heat resistant dishes.
»Carefully remove dishes using oven mitts.
»Food and dishes can also be warmed simultaneously.
CAUTION
CAUTION
!
Dishes may be very hot!
CLEAN UP
»Cleaning the Appliance Front and Electronic Control Panel
»Clean the control panel with a soft, lightly dampened cloth
sprayed with a mild glass cleaner (i.e.; Simple Green). Dry the
control panel completely with a soft lint-free cloth. All external
surfaces and controls can be cleaned with warm water and
liquid dish soap applied with a sponge. Wipe the surfaces dry
using a soft cloth.
»Cleaning the Glass Shield
»The surface of the glass shield can be cleaned with a glass
cleaner.
»Cleaning Stainless Steel Surfaces
»Stainless Steel surfaces can be cleaned using a non-abrasive
Stainless Steel cleaner.
»Avoid the following on all surfaces:
»Abrasive cleaning agents, such as powder or cream cleansers
»Abrasive sponges, pot scourers or sponges that were used
with abrasive cleaning agents
»Oven sprays

13
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
American Range (hereafter AMR) hereby provides the following warranty
to the original residential user (“Owner”) for its new RESIDENTIAL
Product(s) to be free from defects in material and workmanship in normal
household use for the Warranty period(s) set forth below, beginning from
the date that power and/or gas is turned on with proof of installation.
Without proof of installation, the beginning is from time of purchase under
the terms and conditions as follows: Proof of original purchase date is
required to obtain service under this limited warranty.
This Warranty is applicable only on new AMR residential Products
and is non-transferable.
This Warranty is not applicable to AMR commercial Products. This
Warranty is strictly limited to Products sold to the original Owner in the
United States or Canada, and said Owner shall not be entitled to transfer
this Warranty to third parties. This Warranty is also not applicable on
AMR residential Products that are used for commercial purposes, including
without limitation, vacation rentals, re stations, clubs, government facilities,
non-prot groups, bed and breakfast facilities, and board and care facilities,
and any home based business whereby AMR products are utilized for a
commercial, non-household purpose. Residential products should not be
used in a commercial environment.
Warranty Period: For all Product(s) properly registered with AMR, with
proof of purchase and within ninety (90) days from the date of purchase, a
two year warranty* is in eect subject to the terms and conditions herein.
However, in the event that Owner fails to promptly register the Product(s)
with AMR within ninety (90) days of the date of purchase, the Warranty
period shall be strictly limited to a period of one year for parts and labor,
from the date of purchase. Proof of purchase is required for all claims
under this Warranty.
*Igniters limited to a one year warranty, from the date of purchase. Proof
of purchase is required for all claims under this Warranty. Two Year
Warranty applies only to purchases made after May 1, 2018, with a serial
number of 180101-100 or higher.
Exceptions to the Warranty: Rubber seals, light bulbs, and gaskets are
covered for a period of ninety (90) days only. Oven glass, porcelain, and
Products that are not defective, but that require adjustments for normal
wear and tear are expressly excluded from this Warranty.
Warranty Claims: In the event of a claim for repair of the Product(s), and
to obtain warranty service, Owner must contact either (i) the dealer from
whom the product was purchased; (ii) an authorized AMR service agent; or
(iii) AMR Residential service support at 1-888-753-9898. You will be asked
to provide a model and serial number, and date of original purchase.
AMR shall provide all new replacement parts and all repair labor under the
Warranty.
Under the terms of this Warranty, service must be performed by a factory
authorized AMR service agent/representative, and approved in advance by
AMR. AMR shall not be responsible for labor costs that have not been pre-
approved, with written conrmation by AMR. Note that service providers
are independent entities and not aliated with AMR. Travel expenses from
the factory authorized service agent to the product location are limited to
25 miles each way. For greater distances, either have the product delivered
to the servicer, make separate travel arrangements, or pay for the additional
servicer travel. All repair services shall be provided during normal business
hours. AMR will not be responsible for premium time or overtime charges
for labor covered under this warranty or for repairs made without AMR
authorization. Such charges shall be the responsibility of the Owner.
Limitation of Warranty: AMR shall have no obligation under this
Warranty as to any Product(s) which have been misapplied, mishandled,
abused, misused, modied, altered, subject to improper cleaning methods,
subject to harsh chemical action, modied by unauthorized service
personnel, damaged by accidents, ood, re, smoke, public unrest,
earthquake, tornado, hurricane, other acts of God, Owner negligence,
reasons beyond the control of AMR, failures due to improper installation,
insucient gas or electrical supply, problems due to improper ventilation,
or removed/altered serial numbers. Any damage due to water, chemical,
or direct contact to infrared burners will also not be covered under this
Warranty. This Warranty shall be void if the Product(s) are not properly
installed by a licensed plumber, and not properly calibrated for electrical
and gas connectivity, gas line size, correct pressure, and properly leveled.
Additionally, AMR factory recommended cleaning instructions must
be followed by Owner at all times or this Warranty shall be voided by
AMR. All delivery, installation, labor costs and other service costs are the
responsibility of the purchaser.
Dealer display, model home display and products sold “as-is” have the
following warranty:
1. One (1) year parts only warranty, if the manufacture date is less than
three (3) years old.
2. Excludes items that are: missing; cracked; aesthetic; broken; dented;
frayed.
Accordingly, except as stated herein-above the dealer display
and model home display goods are being sold on an “as-is”
or “with all faults” basis. Except as stated, the entire risk
as to the quality and performance of the goods is with the
buyer. Additionally, except as stated, should the goods prove
defective following their purchase, the buyer and not the
manufacturer, distributor, or retailer assumes the entire
cost of all necessary servicing or repair.
THIS WARRANTY IS LIMITED AND MADE IN LIEU OF ANY
AND ALL OTHER SUCH WARRANTIES EXPRESSED OR IMPLIED,
INCLUDING WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE
ENTIRE LIABILITY OF AMR IS SET FORTH HEREIN THIS WARRANTY.
OWNER SPECIFICALLY UNDERSTANDS AND ACKNOWLEDGES
THAT THERE ARE NO WARRANTIES, EITHER EXPRESSED OR
IMPLIED HEREUNDER OTHER THAN THE WARRANTIES WHICH
ARE SPECIFICALLY STATED HEREIN. SAID OWNER SHALL NOT RELY
ON ANY OTHER ASSERTIONS, REPRESENTATIONS OR STATEMENTS
BY AMR OR ITS AGENTS, OTHER THAN THOSE SPECIFICALLY
EXPRESSED IN THIS WARRANTY.
AMR’S LIABILITY ON ANY CLAIM OF ANY KIND IS EXPRESSLY
LIMITED AND SHALL NOT EXCEED THE WHOLESALE PRICE OF
THE PRODUCT(S) OR PART(S) THEREOF THAT GIVE RISE TO SUCH
CLAIM.
Failure by AMR to enforce any of its rights under this Warranty shall not
be construed as a waiver of those rights. AMR specically reserves the right
to investigate and verify all claims to determine the validity of the claim and
the claimant’s qualications under this Warranty. AMR reserves the right to
refuse Warranty service in the event that AMR determines that a claimant’s
right to the Warranty is inapplicable under the terms and conditions herein.
AMR is not responsible for consequential or incidental damage whether
arising out of breach of warranty, breach of contract, tort, or any other
legal theory, including without limitation, property damage, bodily injury,
loss of use, and/or lost prots. This Warranty gives the Customer certain
legal rights. The customer may also have other legal rights which vary from
state to state. Some states do not allow limitations on how long an implied
warranty lasts, or do not allow the exclusion or limitation of incidental
or consequential damages. If such laws apply, the limitations or exclusions
contained in the terms and conditions of this Warranty may not apply to all
such Owners.
AMR expressly reserves the right to make changes to their Warranty policy
before or after purchase by the Owner.
WARRANTY

R70005 RevD 06272022
14
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
© 2022 American Range All Rights Reserved
WARRANTY REQUIREMENT
For reliable operation and for your own safety, this professional cooking equipment must be installed by
a certied/licensed contractor.
Failure to comply will void any written or implied warranty.
In the event the equipment requires service during the standard warranty period, the receipt proving
certied installation must be made available to American Range for verication.
If installation was not performed by a certied/licensed contractor, be prepared to submit a major credit
card for payment for proper installation prior to service.
