Warming Drawers
Use & Care Manual
FOR YOUR SAFETY!
Do not store or use gasoline or
other ammable vapors or liquids
in the vicinity of this or any other appliance.
Model Number: __________________________________________
Serial Number: ___________________________________________
Purchase Date: ___________________________________________
Installed By: __________________________ Install Date:__________
Gas Type: _______________________________________________
Electrical Information: ______________________________________
FOR
YOUR
SAFETY
FOR
YOUR
SAFETY
Instruction to be followed in the event the user smells gas appears on Page 1 of this manual and
should be posted in a prominent location. This information should be obtained by
consulting the local gas supplier.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING!
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury
or death. Read the installation, operating and
maintenance instructions thoroughly before
installing or servicing this equipment.
WARNING
IMPROPER
INSTALLATION
WARNING
IMPROPER
INSTALLATION

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
To Our Most Valued Customer:
Congratulations on your purchase of an American Range product. We hope you will enjoy the
design, manufactured quality, innovative features and cooking performance of this product – it
represents our continuing dedication to satisfying the most demanding needs of customers
like you.
Please read this manual and become familiar with important safety information about how
to install and set-up the unit, basic operating instructions, and how to maintain that just-like-
brand-new appearance and performance - over years of day-to-day and special holiday use.
If you should encounter any sort of problem, turn to the section of the manual entitled,
"Troubleshooting" – for a quick solution or guidance regarding the next step required to get
back to tip-top condition.
Thank you for choosing an American Range product for your home. As you can expect, this
appliance is designed for years of reliable service. If you have any questions or comments,
please contact the dealer from whom you purchased the unit, or contact American Range
Customer Service at www.americanrange.com or 818.897.0808.
PROFESSIONAL QUALITY COOKING EQUIPMENT
Sincerely,
President, American Range Corporation
Shane Demirjian

Warming Drawers
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
Table of Contents
SAFETY INFORMATION ..............................................................................................................1-5
INSTALLATION INSTRUCTIONS ................................................................................. 6-9, 17-19
Appliance Dimensions.................................................................................................................................... 6
Cut Out Dimensions....................................................................................................................................... 6
Packing Materials................................................................................................................................................7
Old Appliances.................................................................................................................................................... 7
Installing Warming Drawer into a Cabinet or Island .................................................................8-9
Rating Plate............................................................................................................................................................ 8
Integrated Installations ..........................................................................................................................17-18
Wiring Diagram - All Models....................................................................................................................19
WARMING DRAWER KEY PAD ............................................................................................ 10-12
Keypad ...........................................................................................................................................................10-11
Continuous and Sabbath Mode ..............................................................................................................12
Electronic Control Factory Presets.......................................................................................................12
HOW TO LOAD THE WARMING DRAWER ..................................................................... 13-14
Operating Tips...................................................................................................................................................13
Warming Food..................................................................................................................................................13
Warming Dishes...............................................................................................................................................14
CLEANUP ........................................................................................................................................... 14
Cleaning Appliance Front and Control Panel..................................................................................14
Cleaning the Glass Shield............................................................................................................................14
Cleaning the Stainless Steel Surfaces....................................................................................................14
WARMING DRAWER CARE .................................................................................................. 15-16
Removing the Drawer ..................................................................................................................................15
Installing the Drawer......................................................................................................................................15
Troubleshooting...............................................................................................................................................16
WARRANTY ............................................................................................................................... 20-21

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
1
Warming Drawers
Use & Care Manual
WARNING
If the information in this manual is not followed exactly, a re or
explosion may result causing damage, personal injury or death.
• INSTALLATION AND SERVICE MUST BE PERFORMED BY A
CERTIFIED / LICENSED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER
• Do not store or use gasoline or other ammable vapors or liquids in the vicinity
of this or any other appliance.
• Please observe all local and national codes and ordinances.
• Do not remove any permanent warning labels or plates from this product.
• Please ensure that this product is electrically grounded.
• Consumers should retain these instructions for local inspectors and for
future use.
WARRANTY REQUIREMENT
For reliable operation and for your own safety, this professional cooking equipment
must be installed by a certied/licensed contractor.
Failure to comply will void any written or implied warranty.
Should the equipment require service during the standard warranty period, the
receipt proving certied installation must be made available to American Range for
verication.
If installation was not performed by a certied/licensed contractor be prepared to
submit a major credit card for payment for proper installation.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
2
Warming Drawers
Use & Care Manual
The Use and Care Manual is divided into several sections:
The Safety Section informs you about signicant safety precautions when installing and operating your
new warming drawer. This is a must read section of the manual.
Quick Start and Installation Section describes how to unpack the unit, what to save and what to discard,
installation dimensions, electrical connections and how to identify the primary parts of the product so you
can better understand what’s going on "under the hood".
How to Use Your Product shows how to operate the warming drawer.
The Care and Maintenance and Troubleshooting and Service Sections discuss how to keep your product
in good operating condition, how to identify what might be going wrong with the unit, and how to
communicate your observations with authorized eld service technicians.
Before using your appliance, please read this manual paying special attention to the important safety
instructions located in the next several pages.
ABOUT THIS MANUAL
!
DANGER
!
CAUTION
!
This is the SAFETY ALERT SYMBOL. This symbol alerts
you to hazards which will result in severe injury or death.
Hazards or unsafe practices which will result in severe
personal injury or death.
Hazards or unsafe practices which may result in minor
personal injury or property damage.
WARNING
!
Hazards or unsafe practices which may result in severe
personal injury or death.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
3
Warming Drawers
Use & Care Manual
PRECAUTIONS
For personal safety, this appliance must be connected to a properly grounded and polarized electrical power supply. If only a
two-prong outlet is available, it is the customer’s responsibility to have it replaced with a dedicated, grounded, three-prong
electrical outlet by a licensed technician.
• Do not cut or remove the third (ground) prong from the power cord
• Do not use an adapter plug
• Do not use an extension cord
• Do not use a power cord that is frayed or damaged
CAUTION
!
WARNING
!
The equipment is crafted and inspected carefully by skilled personnel before leaving the factory.
The transportation company assumes full responsibility for safe delivery of this equipment after it leaves our factory.
If you receive a damaged product, immediately contact your delivery company, your dealer, your builder or installer. Do not
install or attempt to operate a damaged appliance.
What to do if shipment arrives damaged:
• Visible loss or damage: Make note on the freight bill or express delivery and have it signed by the delivery person.
File a claim for damages immediately regardless of the extent of the damages.
• Concealed loss or damage: If damage is noticed after unpacking, notify the transportation company immediately and
le a “Concealed Damage” claim with the transportation company. This should be done within fteen (15) days of the
delivery to you.
• Retain container for inspection.
- SHIPPING DAMAGE CLAIM PROCEDURE
Always disconnect the electrical plug from the wall outlet before servicing the unit. It is recommended that a dedicated
electrical circuit be used for this appliance.
WARNING
!
Do not store items of interest to children above or near the appliance. Children, as well as adults, should never be allowed to
sit, stand or climb on any part of the appliance. Serious personal injury may occur.
DANGER
!
To avoid the possibility of explosion or re, do not store or use combustible, ammable or explosive liquids (such
as gasoline) or vapors inside or in the vicinity of this or any other appliance. Keep items that could explode, such as
aerosol cans, away from the product. Do not store explosive or ammable materials in nearby cabinets or areas.
When operating the warming drawer, do not touch the surfaces the walls of the oven or the inside surfaces of the oven
door - interior surfaces become hot enough to cause burns.
DANGER
!

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
5
Warming Drawers
Use & Care Manual
CAUTION
!
Act quickly to prevent the re from getting out of control.
If a re occurs inside an oven, close the oven door and keep it closed – and turn off the oven. The lack of oxygen will help
suffocate the ames.
If the oven continues to smoke as if a re were in process – call the re department.
If there is a re in a pan on a cooktop, turn off the burner and cover the pan with a tight tting lid using a potholder or oven
glove. If you can’t nd a lid, or the ame size appears dangerous, use your kitchen re extinguisher – aiming at the base of the
ames to put out the re.
Do not use water on grease res – turn off the burner, and if you can’t cover the aming pot with a lid, throw lots of baking
soda or salt on it. Never use a kitchen towel or potholder to snuff out ames! Never throw our on a re – as it may
explode!
PRECAUTIONS

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
6
Warming Drawers
Use & Care Manual
INSTALLATION INSTRUCTIONS

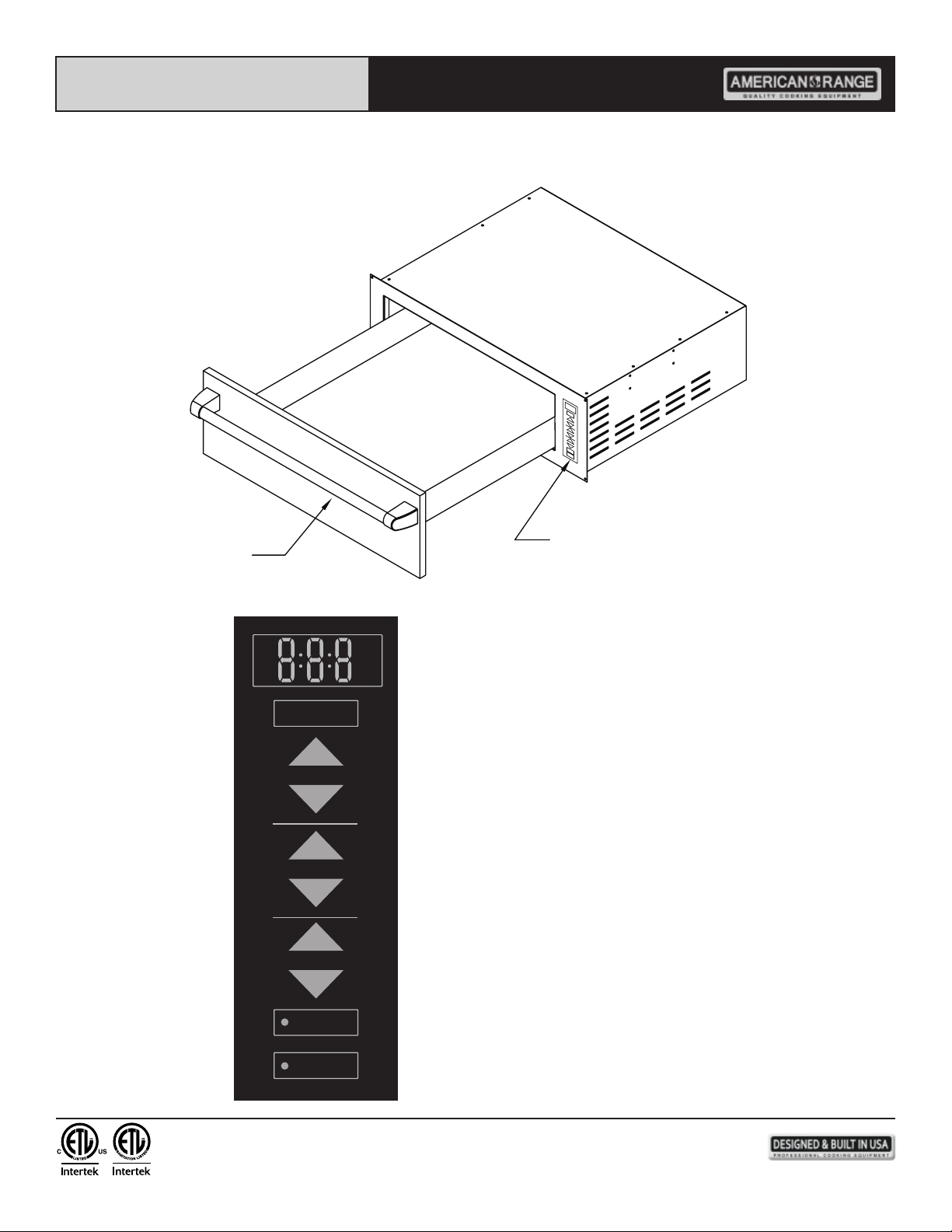

Appliance Dimensions:
ARR-36WD - drawer front 35-7/8” wide by 9-7/8” chasis front ange; 35-7/8” by 9” high by 23-7/8” deep chassis
ARR-30WD - drawer front 29-7/8” wide by 9-7/8” chasis front ange; 29-7/8” by 9” high by 23-7/8” deep chassis
ARR-27WD - drawer front 26-7/8” wide by 9-7/8” chasis front ange; 26-7/8” by 9” high by 23-7/8” deep chassis
ARR-36IRWD - drawer front panel; 35-1/2” wide by 9-7/8” chasis front ange; 35-1/2” by 9” high by 23-7/8” deep chassis
ARR-30IRWD - drawer front panel; 29-1/2” wide by 9-7/8” chasis front ange; 29-1/2” by 9” high by 23-7/8” deep chassis
ARR-27IRWD - drawer front panel; 26-1/2” wide by 9-7/8” chasis front ange; 26-1/2” by 9” high by 23-7/8” deep chassis
Cut-out Dimensions:
ARR-36WD – 34-5/8” wide by 9” high
ARR-30WD – 28-5/8” wide by 9” high
ARR-27WD – 25-5/8” wide by 9” high
ARR-36IRWD – 34-5/8” wide by 9” high
ARR-30IRWD – 28-5/8” wide by 9” high
ARR-27IRWD – 25-5/8” wide by 9” high
Please verify by measuring actual appliance from box. …measure twice, cut once…
CAUTION
!
IMPORTANT
REMOVE
ADD
TIME
ADJUST
TEMPERATURE
ON/OFF
FRONT
CHASIS FRONT FLANGE

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
7
Warming Drawers
Use & Care Manual
INSTALLATION INSTRUCTIONS
Packing Materials
The packing materials that protect the appliance during shipping have been designed to be biodegradable and recyclable. Please be
sure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children.
Old Appliances
This appliance contains materials that can be recycled. Please contact your local recycling authority about the possibility of recycling
these materials. Please be sure that the appliance presents no danger to children while being stored for disposal. Before discarding
an old appliance, unplug it from the outlet and cut off its power cord. Remove any drawers to prevent trapping hazards.
IMPORTANT SAFETY INSTRUCTIONS
Before connecting the appliance to the power supply, make sure that the voltage and frequency listed on the rating plate correspond
with the household electrical supply. Consult an electrician if in doubt. Only operate the Warming Drawer after it has been installed.
INSTALLER: Please leave these instructions with the consumer.
Electrical Connection
This appliance is equipped with a ve ft. long power cord with a three-prong grounding plug ready for
connection to a standard 120 VAC, 60 Hz, 15 AMP power source.
Installation Tips
• The Warming Drawer should be located in the cabinet at a convenient height for easy access.
• The drawer should be installed clear of drafts caused by open doors and windows.
• Proper clearance must be allowed for the Warming Drawer to open without interference.
• The Warming Drawer must be secured to cabinetry to prevent the drawer from tipping when loading
or unloading.
• The Warming Drawer should be level to prevent the drawer sliding open or closed on its own. The
drawer cannot be leveled after it has been installed. If necessary install a shelf inside the cabinetry to
support the drawer.
CAUTION
!
Before servicing, disconnect the power supply by either removing the fuse, shutting off the power main or manually “tripping”
the circuit breaker. Installation work and repairs should only be performed by a qualied technician in accordance with all
applicable codes and standards. Repairs and service by unqualied persons could be dangerous and the manufacturer will not
be held responsible.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
8
Warming Drawers
Use & Care Manual
INSTALLATION INSTRUCTIONS
INSTALLING THE WARMING DRAWER INTO A CABINET OR ISLAND
• Remove the drawer from the appliance before installing the appliance in the cabinetry.
• Pull the drawer completely out and release the center lock, located underneath the drawer, and push
the slide into the drawer cavity as far as it will go.
• Reaching around to the left and right side, release the side slide locks.
• Carefully pull the drawer straight out.
• Set the drawer down on a at, stable surface.
• Install spacer blocks and anti-tip blocks as shown in the installation on page 6.
• Leave 1/2" nominal spacing around the entire surface area of the unit if possible for coolest
cabinet operation.
• Plug the power cord of the unit into a power receptacle with electrical rating as specied on the
appliance label.
• Push the Warming Drawer cabinet into the cabinetry or island.
• Drive ve screws around the perimeter, securing the front face ange to the cabinet.
• To reinstall the drawer, set the drawer so the slide members align with the cavity slides.
• Carefully push the drawer all the way into the cavity.
• Pull the drawer out carefully to test successful realignment and reinstallation of the drawer.
RATING PLATE - The information on the rating plate denes the model,
serial number and electrical ratings. Keep this information for future reference.
It is essential for proper identication of the unit when requesting additional
information or factory support.
3013256
XXXXXX-XXX
SERIAL NO.
AMERICAN
American Range (www.americanrange.com)
13592 DESMOND ST., PACOIMA, CA 91331
WARMING DRAWER MODEL NUMBER
ARR-27WD ARR-30WD
ARR-27IRWD ARR-30IRWD
XARR-36WD
ARR-36IRWD
UL 1026 2007/01/31 HOUSEHOLD COOKING APPLIANCES
CAUTION
TO ENSURE CONTINUED PROTECTION AGAINST ELECTRICAL SHOCK, CONNECT TO PROPERLY GROUNDED OUTLETS ONLY.
TO REDUCE RISK OF FIRE, DO NOT PLACE ANY HEATING OR COOKING APPLIANCE BENEATH THIS UNIT.
TO REDUCE THE RISK OF ELECTRICAL SHOCK, KEEP EXTENSION CORD CONNECTION DRY AND OFF THE GROUND.
FOR INDOOR AND OUTDOR BUILT-IN USE ONLY
PROTECTED BY U.S. PATENT 7,166,821
REPLACEMENT LAMP RATING: 120VAC, 200WATT
ELECTRICAL RATING: 60HZ, 8AMP
Rating Plate

WD "A"
WIDTH DIMENSION
29-7/8"
35-7/8"
28-5/8"
34-5/8"
25-5/8"26-7/8"
2"
9-3/16"
24" MIN.
A
OPEN DEPTH
SIZE "A"
DIMENSION
27" 25-5/8"
30" 28-5/8"
36" 24-5/8"
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
9
INSTALLATION INSTRUCTIONS
27", 30" and 36" Radiant Convection Warming Drawers
ARR-27WD,ARR-30WD,ARR-36WD,ARR-27IRWD,ARR-30IRWD,ARR-36IRWD
Five foot cord and plug
connects from lower right
rear side to 120 VAC service.
All installations must be
performed in accordance
with local codes.
Warming Drawers
Use & Care Manual

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
10
Warming Drawers
Use & Care Manual
t Temperature and Time Display
t ON/OFF Key
t Move Up Preset Temperature List
t Move Down Preset Temperature List
t Increase Temperature or Time
t Decrease Temperature or Time
t Move Up Preset Time List
t Move Down Preset Time List
t Add To List Stored In Memory
t Remove From List Stored In Memory
WARMING DRAWER KEYPAD
REMOVE
ADD
TIME
ADJUST
TEMPERATURE
ON/OFF
DRAWER ELECTRONIC CONTROL
ADD
REMOVE
ON/OFF
TEMPERATURE
ADJUST
TIME

Warming Drawers
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
11
The radiant convection Warming Drawer is operated by electronic controls that are only visible when the Warming Drawer is open.
Once the Warming Drawer is turned on, you will feel radiant heat immediately.
Two convection fans inside the unit will activate to evenly distribute warm air throughout the drawer.
When the selected temperature is reached, the power level of the radiant heaters is automatically decreased to maintain the drawer
at the selected temperature for the time period selected. The convection fans will continue to operate. If the temperature drops
below the selected temperature, such as when you open the drawer to remove or add items, the electronic control automatically
powers the radiant heaters to recover.
On rst press of the ON/OFF key, the unit powers up to a preset temperature setting of 140ºF for an initial preset time duration of
thirty minutes.
If a different temperature is desired, you may press the Temperature UP Arrow key orTemperature DOWN Arrow key and scroll
through a preset list. When the desired temperature is shown in the display, the unit will heat to the displayed temperature.
If a special temperature entry is required, use the ADJUST UP or DOWN keys to scroll to the desired entry. When the entry is
satisfactory, the unit will heat to the displayed temperature.
To add the special entry to the preset list, press the ADD key. To remove any preset value from the preset list, press the REMOVE
key. The ADD and REMOVE key indicator lights let you know if you can add or remove the new settings from the preset time or
temperature list. When the ADD light is ON, you can add a displayed value to the list, when the REMOVE light is ON, you can
remove the displayed value from the list.
On-Time of the unit can be recalled from the preset list, adjusted longer or shorter, or added and removed from the preset list in a
similar fashion.
To lock out the unit for child safety, or prohibit operation for any reason, press and hold the Power ON/OFF key for ten seconds. To
unlock the keyboard, press and hold the POWER ON/OFF key for ten seconds.
WARMING DRAWER KEYPAD

Warming Drawers
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
12
WARMING DRAWER KEYPAD
CAUTION
!
NOTE
The “Continuous” setting requires close supervision to prevent res. Forgotten food will dry out and could potentially ignite.
CONTINUOUS AND SABBATH MODE
To set the Warming Drawer for Continuous or Sabbath Operation, turn on the unit using the power ON/OFF key. Locate the TEMP
UP and DOWN arrow keys. Each press of the TEMP UP key displays contents of a list of standard preset operating temperatures
present in the warming drawer computer memory. Select the one you would like to use – or adjust a selection using the ADJUST
keys to be even more specic.
Now, locate the TIME UP and DOWN arrow keys. Pressing the TIME UP or TIME DOWN key displays the contents of an operating
time list – just like the operating temperature list discussed above. After the preset times have been visited using the TIME UP key,
the next press shows the letters "con" in the display – short for continuous operation. When "con" has been selected, the warming
drawer will run day and night – safe, but potentially expensive with regard to energy use (continuous at 90oF setting being much less
expensive than continuous operation at 195oF). The letters can remain in the display indicating the unit will never go off. You may
recall, in standard operation of the warming drawer, operating temperatures show for a few seconds in the display – replaced by the
run timer (hours and minutes to shutoff).
The next "ADJUST" key press after "con" displays the letters "Sab" – this is a continuous 84 hour operation timer – handy for long
weekend holidays. Similar to continuous operation, the letters "Sab" remain in the display during operation of the warming drawer.
And, remember, no matter what temperature or time program you create or remove, you can always return to the factory presets
by pressing REMOVE and ON/OFF at the same time!
ELECTRONIC CONTROL FACTORY PRESETS
Preset Temperatures:
80°F
100°F
120°F
140°F
160°F
180°F
Preset Times:
30 minutes
45 minutes
1:00 hour
2:00 hours
4:00 hours
Sabbath (84 hours)
Continuous (must be turned off manually)
The drawer load capacity will depend on the type and size of your food and dishes. The maximum weight that the drawer will hold
is thirty-ve lbs. Do not put or rest heavy items on the drawer.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
13
Warming Drawers
Use & Care Manual
HOW TO LOAD THE WARMING DRAWER
Operating Tips
• This is not a cooking device. Place already cooked and hot food into drawer to keep it at serving temperature.
• For larger quantities of food, it may be necessary to use a higher temperature.
• Heating food in heat resistant glass and ceramic containers may require higher temperatures or longer times than heating food
in metal dishes because glass does not conduct heat as well as metal does.
• Allow extra time for the temperature to recover after adding or checking on food or dishes.
• Do not block the vents on the bottom and top at the right inside of the drawer. This will prevent food and dishes from
warming evenly.
Warming Food
• Open the drawer and place food on the oor of the drawer.
• Press the ON/OFF keypad - temperature of 140°F will be displayed (with thirty minutes operating time).
• If necessary, press the Temperature UP or DOWN keys to select other desired temperature settings. Press the Adjust UP or
DOWN key to ne tune your setting if required. Add the new setting to the preset list by pressing the ADD key, remove the
setting from the preset list by pressing the REMOVE key.
• Press the Time UP or DOWN keys to change the desired time setting. Once again, press the Adjust UP or DOWN key to ne
tune your setting if required. Add the new setting to the preset list by pressing the ADD key, remove the setting from the
preset list by pressing the REMOVE key.
• Close the drawer.
• The warming drawer can be turned off at any time by pressing the ON/OFF key.
• Take care when opening and closing the loaded drawer to prevent spills
• Keep the drawer closed while in use to prevent food from drying out. Remember, food may continue to cook while being
warmed in the drawer.
• When warming is complete keep the drawer open for a few minutes to allow the humidity to evaporate.
CAUTION
!
NOTE
Be careful not to place food too close to the side located radiant heating elements. Increased temperature at that side and
proximity to the radiant heaters may cause a re!

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
14
Warming Drawers
Use & Care Manual
CLEAN UP
Cleaning the Appliance Front and Electronic Control Panel
Clean the control panel with a soft, lightly dampened cloth sprayed with a mild glass cleaner (i.e.; Simple Green). Dry the control
panel completely with a soft lint-free cloth. All external surfaces and controls can be cleaned with warm water and liquid dish soap
applied with a sponge. Wipe the surfaces dry using a soft cloth.
Cleaning the Glass Shield
The surface of the glass shield can be cleaned with a glass cleaner.
Cleaning Stainless Steel Surfaces
Stainless Steel surfaces can be cleaned using a non-abrasive Stainless Steel cleaner.
Avoid the following on all surfaces:
• Abrasive cleaning agents, such as powder or cream cleansers
• Abrasive sponges, pot scourers or sponges that were used with abrasive cleaning agents
• Oven sprays
CAUTION
!
Before servicing, disconnect the power supply by either removing the fuse, shutting off the power main or manually "tripping"
the circuit breaker. Do not clean or remove the Warming Drawer until it has cooled.
Warming Dishes
• The Warming Drawer can also be used to warm glass, pyrex or ceramic heat resistant dishes.
• Open the drawer.
• Place the dishes in the drawer, arranging them in the drawer for best results.
• Set the temperature to 140ºF.
• Set the time to fteen minutes.
• Close the drawer.
• After fteen minutes the Warming Drawer will shut off.
• Carefully remove dishes using oven mitts.
• Food and dishes can also be warmed simultaneously.
• Keep in mind that the temperature setting to keep food warm may be higher than the temperature required to warm dishes.
HOW TO LOAD THE WARMING DRAWER
CAUTION
!
Dishes may be very hot!

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
15
Warming Drawers
Use & Care Manual
WARMING DRAWER CARE
Removing the Drawer
• The drawer can be removed for easier cleaning.
• Pull the drawer completely out and release the center lock, located underneath the drawer, and push the
slide into the drawer cavity as far as it will go.
• Reaching around to the left and right side, release both side slide locks and pull the drawer straight out.
BE CAREFUL WHEN REMOVING THE HEAVY DRAWER.
• Clean all surfaces of the drawer with a solution of warm water and liquid dish soap.
• Wipe drawer surfaces dry with a soft cloth.
Installing the Drawer
• Push all slides into the drawer cavity.
• Slip all inner ball races forward, keeping the slides in the cavity.
• Align the drawer with the inner ball races and carefully push the drawer into the cavity. You should feel the drawer traveling
on the slide system.
• Push the drawer all the way into the cavity, then carefully pull the drawer forward to be sure the slide locks are engaged.
Warming Drawer Repair
Repairs should only be carried out by a qualied and trained person in accordance with local and national safety regulations.
Unauthorized repairs could cause an injury or machine damage. Some minor problems can be xed without a service call.
Contact factory for repairs, American Range Customer Service at www.americanrange.com or 818.897.0808.

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE WHAT TO DO
Drawer does not heat. There is no power to the warming drawer or the
circuit breaker has been tripped.
Plug the appliance into the outlet
or reset the circuit breaker.
Food is not warm. Adjust the temperature setting. Check that the convection fan vents have not been
blocked by large plates or dishes.
Dishes are not warm. The wrong temperature was selected or the dishes
need more time to warm.
Check the temperature setting or increase the
heater timer setting.
Food or dishes are too
hot. Temperature setting is incorrect. Check the temperature setting and make sure food is not too close to the heating element.
Appliance is noisy.
This is not a problem. The circulation fans which
distribute heated air make a sound when they
operate.
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
16
Warming Drawers
Use & Care Manual
WARMING DRAWER CARE
Questions?
In the event of a fault which you cannot easily x yourself, please contact American Range. When contacting Technical Service
please quote the Serial Number and Model Number of the Radiant Convection Warming Drawer. This information is visible on the
silver data plate located beneath the drawer.

• As shown in Figure 1, a handle may be attached to the custom front panel if desired. Remember to countersink the handle
screws, so the back surface is ush for attachment to the metal drawer front.
• Loosen the two screws on the inner left and right side of the drawer, as shown in Figure 2, and remove the panel from the
appliance drawer.
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
17
Warming Drawers
Use & Care Manual
INSTALLATION INSTRUCTIONS
INTEGRATED DOOR INSTALLATION INSTRUCTIONS
• Custom made front panels can be installed with models ARR-27IRWD, ARR-30IRWD and ARR-36IRWD.
• The custom panel must be at least 3/8” (10 mm) thick and made of heat resistant material rated for 140°F (60°C) service.
Figure 1
Figure 2
