American Recorder OAS-4000 Series User manual

OAS-4000 Series
rev 1118
American Recorder Technologies, Inc.
1872 Angus Ave., Simi Valley, CA 93063 USA
Toll Free: 888 611-3790 · Voice: 805 527-9580 · Fax: [phone]
[e-mail] · www.americanrecorder.com
RoHS
Always consult your local municipality for
the proper disposal of electronic waste.
Ó 2018 American Recorder Technologies, Inc.
2RU LED
INDICATOR SIGNS
For installation or technical questions:
PHONE: [phone] EMAIL: [e-mail]
SPECIFICATIONS:
SIZE: 19”L x 3.5”H x 1.5”D LIGHTS: 18 ea. bright white LED (50K hour op. life)
FRAME MATERIAL: Steel PANEL MATERIAL: Scratch resistant acrylic
OPERATION VOLTAGE: 9VDC POWER CONSUMPTION: 150mA
OPTIONAL ENCLOSURE: MDF (4050 series)
OPTIONS (not included):
FLASHER MODULE
4 BUTTON CONTROLLER WIFI SMART SOCKET
Flasher module will automatically flash sign ‘on’ and ‘off’ every
2 seconds. MODEL: OAS-FLASH
ON, OFF, AUTO FLASH (1.5 sec interval)
& MOMENTARY FLASH (push to flash,
off when released) buttons.
Simple 4 wire connection and small
size - 2.5” x 1.5” x 0.75”
MODEL: OAS-CON-4B
Use local WiFi network to power sign
ON/OFF using smartphone or tablet.
Plugs into any 110VAC outlet. FREE
app (available for iOS and android
devices)
MODEL: OAS-CON-WIFI

Congratulations on your purchase of an AMERICAN RECORDER TECHNOLOGIES
LED INDICATOR SIGN. INDICATOR SIGNS are the perfect solution for alerting
others that important broadcast, performance, recording, lessons, rehearsals,
services, conferences, interviews and proceedings are in progress. This product
utilizes a high-efficiency LED design for long-use life and low energy consumption.
The 2RU size sign fits and standard equipment rack. The optional enclosure has a
sleek and slim design and is easy to install. No special tools or equipment is
required for the installation.
Use only as intended. Should only be used by qualified individuals.
CAUTION: Risk of electrical shock! Do not use near water or if you are wet.
Intended for indoor use only. Use in dry, ventilated area free of excessive
dust, humidity, flammable materials, corrosive fumes and conductive contaminants.
Power supply is for 110-220 volt AC (input), 60 Hz to 9 volt DC (output). Can be
used with other 9VDC power sources (max 1 amp) only.
WARNING: Do not use if the powered cord or extension wire is worn or damaged.
PLASTIC LENS CARE: Do not use harsh chemicals, abrasives or glass cleaners
on the plastic lens. Use AMERICAN RECORDER Optical Grade Micro Fiber
Cleaning Cloth. Visit www.AmericanRecorder.com for more information.
KEEP THIS PRODUCT OUT OF THE REACH OF CHILDREN
The information contained in this document is subject to change without notice.
American Recorder Technologies, Inc. makes no warranty of any kind with regard
to this material, including, but not limited to, the implied warranties of merchant-
ability and fitness for a particular purpose. Not liable of errors contained herein or
for incidental or consequential damages in connection with the furnishing,
performance, or use of this material.
IMPORTANT SAFETY PRECAUTIONS
!
AMERICAN RECORDER TECHNOLOGIES, INC. (ART) includes with this product a
limited one year guarantee, free from defects in manufacture and workmanship to the
original owner. Warranty does not apply to misuse, abuse, neglect, accident, improper
use, etc. ART reserves the right to make such determination on the basis of factory inspection.
A valid return authorization number must be obtained from ART customer service department
for all factory warranty service. All warranty repairs must be returned prepaid. (COD's will be refused).
WARRANTY
Parts List: (1 ea.) LED Sign Box with Panel
(1 ea.) 110~220vAC(input) to 9vDC (output) power supply
(1 set) Mounting Hardware (only with enclosure models)
CONNECTIONS:
OPTIONAL WALL MOUNTING: (enclosure model only)
1. Find a flat location for mounting sign to wall.
2. With a ruler or tape measurer, measure and mark the wall area for the mounting holes which are 16” apart. Additionally,
a level can be used to assure your sign will be parallel to the door jam and ceiling.
3. For attachment directly to wood or studs, drill a 1/8” hole and use the supplied #8 screws. For drywall, drill a 7/32” hole
and gently tap in supplied plastic retainers and then screw in the #8 screw into retainer.
4. The head of the screw should be spaced 1/4” away from the wall in order to allow the SIGN BOX’s keyhole cutouts to slide
over and down the back of the enclosure. Assure power cord is not crimped, crushed or shorted when mounted.
#8 Wood Screw Plastic retainer
Tools required
NOTE: Care should be taken
when running cable through
door jams so wire does not
get pinched or damaged.
Cordless Drill
Drill bits
Phillips
Screwdriver 7/32” 1/8”
FLASHER
MODULE
OPTIONAL ADD-ONS
V
POWER
ON OFF FLASH
MOMENTARY
+ - + -
INPUT OUTPUT
KEYHOLE
CUTOUTS
16”

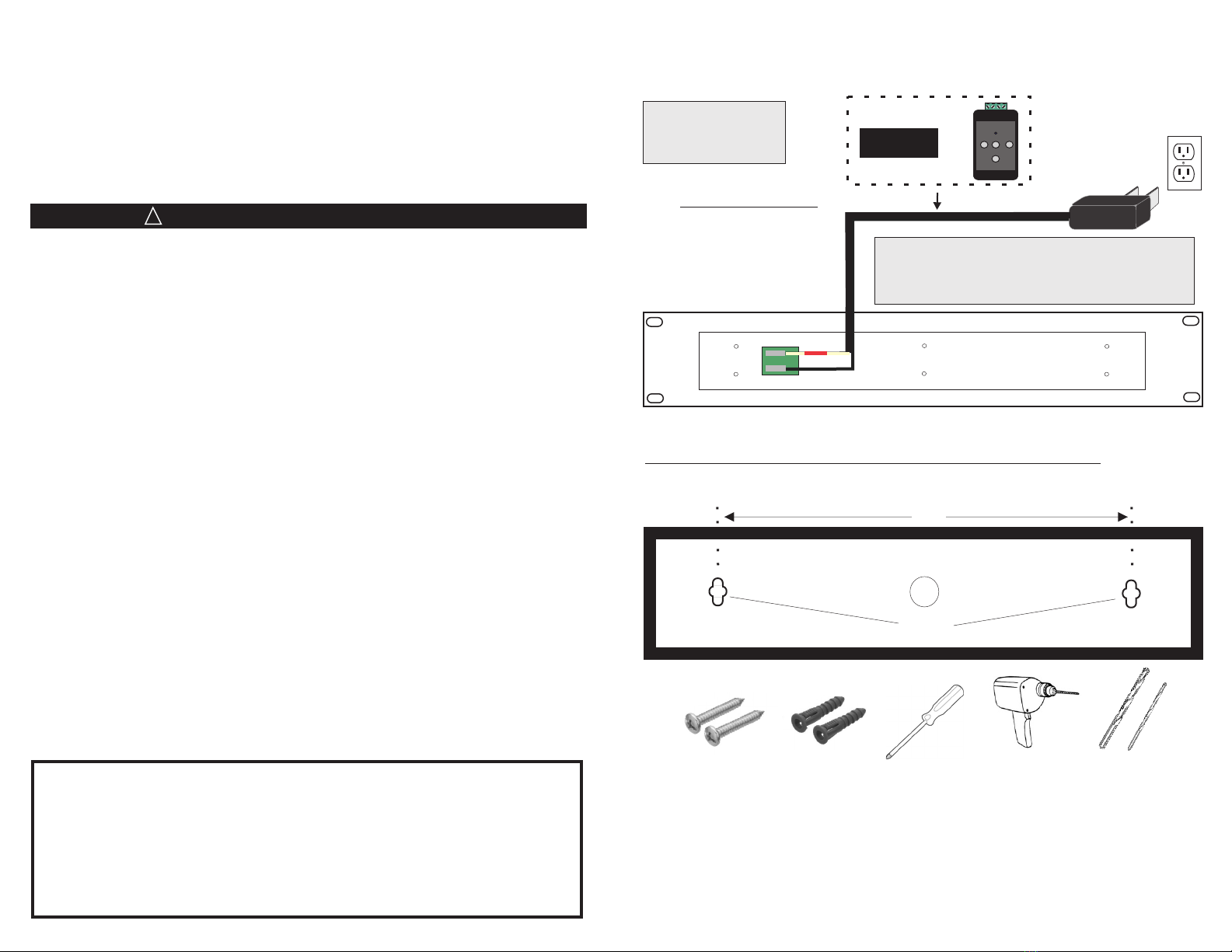

TO ACCESS MODULAR PLUG & POWER SUPPLY, OPEN, REMOVE TWO RACK SCREWS LOCATED ON
THE FRONT RIGHT OF HINGED PANEL. USE CAUTION WHEN SWINGING PANEL OPEN.
CONNECTIONS:
OPTIONAL 25' EXTENSION CABLE IF REQUIRED (sold separately)
110V ~ 220VAC
NOTE: DO NOT PLUG IN POWER SUPPLY INTO WALL SOCKET
UNTIL ALL CONNECTIONS HAVE BEEN MADE. The power supply
has a 6 foot cord. Wires are color coded, red or white for positive
and black for negative, as shown in diagram. Connect to green
modular plug as shown in diagram below.
OPTIONAL ADD-ONS
POWER
SUPPLY
+
-
+9-24DC
GND
POWER
ON OFF FLASH
MOMENTARY
+ - + -
INPUT OUTPUT
Modular Plug
