American Sanders B-2+DC User manual

7” Edger
B-2+DC
Operator’s Manual

READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read this book prior to
operating or attempting any service or maintenance procedure to your American Sanders machine could result in injury
to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in
the operation of this machine before using it. If your operator(s) cannot read this manual, have it explained fully before
attempting to operate this machine.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
***This product is intended for commercial use only***
WARNING!
The Products sold with this Manual contain or may contain chemicals that are known to certain governments (such as the State of
California, as identied in its Proposition 65 Regulatory Warning Law) to cause cancer, birth defects or other reproductive harm. In
certain locations (including the State of California) purchasers of these Products that place them in service at an employment job site
or a publicly accessible space are required by regulation to make certain notices, warnings or disclosures regarding the chemicals that
are or may be contained in the Products at or about such work sites. It is the purchaser’s responsibility to know the content of, and
to comply with, any laws and regulations relating to the use of these Products in such environments. The Manufacturer disclaims any
responsibility to advise purchasers of any specic requirements that may be applicable to the use of the Products in such environments.
In this Operation Manual you will find three statements that you must read and observe to ensure safe operation of this
machine.
DANGER means: Severe bodily injury or death can occur to you or other personnel if the DANGER statements
found on this machine or in this Operation Manual are ignored or are not adhered to. Read and observe
all DANGER statements found in this Operation Manual and on your machine.
WARNING means: Injury can occur to you or to other personnel if the WARNING statements found on your
machine or in the Operation Manual are ignored or are not adhered to. Read and observe all WARNING
statements found in this Operation Manual and on your machine.
CAUTION means: Damage can occur to the machine or to other property if the CAUTION statements found
on your machine or in this Operation Manual are ignored or are not adhered to. Read and observe all
CAUTION statements found in this Operation Manual and on your machine.
Operator Safety Instructions
EN Contents
Operator Safety Instructions........................................................................................... 2
Introduction and Machine Specications........................................................................ 6
Machine Set-Up.............................................................................................................. 8
Sanding Cuts and Sandpaper ...................................................................................... 9
How to Operate the Machine........................................................................................ 10
Maintenance................................................................................................................. 11
SECTION II: Parts Manual
Lower Assy .............................................................................................................38-39
Upper Assy ..............................................................................................................40-41
Wiring Diagram............................................................................................................. 41

3
EN
DANGER: Failure to read the Owner’s Manual prior to operating or servicing your American Sanders machine could result in injury to
you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the
operation of this machine before using it. If you or your operator(s) cannot read English, have this manual explained fully
before attempting to operate this machine.
DANGER: A. Sanding/nishing wood oors can create an explosive or combustible environment. Do not operate this machine around
solvents, thinners, alcohol, fuels, oor nishes, wood dust or any other ammable materials. Cigarette lighters, pilot lights,
electrical sparks and all other sources of ignition should be extinguished or avoided. Keep work area well ventilated.
B. Dust generated from sanding wood oors can spontaneously ignite or explode. Promptly dispose of any sanding dust in
a metal container clear of any combustibles. Do not dispose in a re.
DANGER: A. Electrocution could occur if the machine is being serviced while the machine is connected to a power source. Disconnect
the power supply before servicing.
B. Electrocution or re could occur if the machine is being operated with a damaged power cord. Keep the power cord clear
of the pad. Always lift the cord over the machine. Do not move the machine by the power cord.
C.Shock hazard. Do not use the machine if it has been rained on or sprayed with water.
DANGER: To avoid injury keep hands, feet, and loose clothing away from all moving parts on the machine. Disconnect the power cord
before replacing the pad, changing the abrasive, or when servicing. Do not operate the machine unless all guards are in
place. Never leave the machine unattended while connected to a power source.
WARNING: Injury can occur if protective clothing or equipment is not used while sanding. Always wear safety goggles, protective
clothing, and dust mask while sanding.
WARNING: This sander is not to be used on pressure treated wood. Some pressure treated woods contain arsenic and sanding
pressure treated wood produces hazardous dust. Inhaling hazardous dust from pressure treated wood can cause serious
injury or death. Sanding pressure treated wood decks or uneven surfaces can damage the sander which is not covered
under warranty or damage waiver.
WARNING: Any alterations or modications of this machine could result in damage to the machine or injury to the operator or other
bystanders. Alterations or modications not authorized by the manufacturer voids any and all warranties and liabilities.
WARNING: Risk of explosion. Floor sanding can result in an explosive mixture of ne dust and air. Use oor sanding machine only in a
well-ventilated area free from any ame or match.
General Power Tool Safety Warnings
WARNING: Read all safety warnings and instructions. Failure to follow warnings and instructions may result in electric
shock, re and or serious injury.
Save all warnings and instructions for future use.
The term "power tool" in the warnings refers to your main-operated (corded) power tool or battery operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Clutter or dark areas invite accidents .
b) Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids, gasses, or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock .
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an
increased risk of electric shock if your body is earthed or grounded .
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock .
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from
heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of cord suitable for outdoor
use reduces the risk of electric shock .

4
EN
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) or ground fault circuit
interrupter (GFCI ) protected supply. Use of a RCD or GFCI reduces the risk of electric shock .
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool
while you are tired or under the inuence of drugs, alcohol, or medication. A moment of inattention while operating
power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injury.
c) Prevent unintentional starting. Ensure switch is in off-position before connecting to power source and/or battery
pack, picking up, or carrying the tool. Carrying power tools with your nger on the switch or energizing power tools that
have the switch on invites accidents .
d) Remove any adjustment wrench or key before turning the power tool on. A wrench or key left attached to a rotating part
of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in
unexpected situations .
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewelry, or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust related hazards. It is recommendation that the tool always be supplied
via a residual current device with a rated residual current of 30mA or less.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better
and safer at the rate for which it was designed .
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired .
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any
adjustments, changing accessories or storing power tools. Such preventative safety measures reduce the risk of starting
the power tool accidently.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition
that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and
are easier to control.
g) Use the power tool, accessories and tool bits ect. in accordance with these instructions , taking into account the
working conditions and the work to be performed . Use of the power tool for operations different from those intended could
result in a hazardous situation.
5) Service
a) Have the power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that
the safety of the power tool is maintained . If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
Safety Warnings For Sanding Operations
1. This power tool is intended to function as a sander. Read all safety warnings, instructions and specications provided with
this power tool. Failure to follow all instructions listed below may result in electric shock, re, or personal injury.
2. Operations such as grinding, wire brushing, polishing or cutting-off, are not recommended to be performed with this power tool.
Operations for which the tool was not designed may create a hazard and cause personal injury.
3. Do not use accessories which are not specically designed and recommended by the tool manufacturer. Just because the
accessory can be attached to your power tool, it does not assure safe operation .
4. The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories
running faster than their rated speed can break and y apart .
5. The outside diameter and thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized
accessories cannot be adequately guard or controlled.
6. The arbor size of wheels, anges, backing pads or any other accessory must t the spindle of the power tool. Accessories
with arbor holes that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and
may cause loss of control.
7. Do not use damaged accessory. Before each use inspect the accessory such as abrasive wheel for chips or cracks, backing
pad for cracks, tear or excess wear, wire brush for loose or cracked wires . If power tool or accessory is dropped, inspect
for damage or install an undamaged accessory. After inspecting or installing an accessory, position yourself or bystanders
away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute . Damaged
accessories will normally break apart during this time.

5
EN
8. Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As
appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping ying debris generated by
various operations. The eye protection must be capable of stopping ying debris generated by various operations . The dust
mask or respirator must be capable of ltering particles generated by your operations. Prolonged exposure to high intensity
noise may cause hearing loss.
9. Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective
equipment. Fragments of work piece or a broken accessory mayy away and cause injury beyond immediate area of
operation .
10. Hold power tool by gripping insulated surfaces (handle) only, when performing an operation where the cutting accessory may
contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power
tool "live" and shock the operator.
11. Position the cord clear of the spinning accessory. If you loose control, the cord may be cut or snagged and your arm or hand
may be pulled into the spinning accessory.
12. Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the
surface and pull the power tool out of your control.
13. Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your
clothing, pulling the accessory into your body.
14. Regularly clean the power tools air vents. The motor's fan will draw the dust inside the housing and excessive accumulation
may cause electrical hazards.
15. Do not operate the power tool near ammable materials. Sparks could ignite these materials.
16. Do not use excessively oversized sanding disc paper. Follow manufacturer's recommendations when selecting sanding paper.
Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the
disc or kickback.
17. Risk of explosion. Floor sanding can result in an explosive mixture of ne dust and air. Use oor sanding machine only in a
well-ventilated area free from any ame or match.
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or
snagging causes rapid stalling of the rotating backing pad which in turn causes uncontrolled power tool to be forced in the opposite
direction of the backing pad's rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the work piece, the edge of the wheel that is entering into the pinch
point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away
from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under
these conditions.
Kickback is the result of power tool misuse and incorrect operating procedures or conditions and can be avoided by taking proper
precautions as given below.
1. Maintain a rm grip on the power tool and position your body and arms to allow you to resist kickback forces . Always use
auxiliary handles, if provided for maximum control over kickback or torque reactions during start up. The operator can control
torque reactions or kickback forces, if proper precautions are taken.
2. Never place your hand near the rotating accessory. Accessory may kickback over your hand.
3. Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in the
direction opposite to the wheel's movement at the point of the snagging.
4. Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges
or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
Additional Rules For Safe Operation
1. Empty the dust bag or dust collection receiver frequently. Do not leave residue in dust bag or dust collection receiver
unattended . Always empty in a non-combustible metal container. Sanding wood or varnish produces dust that can self ignite
and cause injury or damage. Follow this precaution for storage.
2. Set all exposed nails. Sweep loose abrasive away from work area. Do not strike metal pipes, ect., with sanding paper.
Striking metal or abrasive particles with sanding paper produces sparks that could ignite the sanding dust which can cause
injury or damage.
3. Do not operate a partially assemble power tool. Keep all adjustments within manufacturer's specications. Keep all fasteners
tight. Operating a partially assembled power tool could result in injury to the operator or bystander and could cause damage to
the equipment or surroundings .
4. Do not attempt to change the sanding paper while the power tool is running. The sanding pad can snag clothing and cause
injury to limbs and moving sanding paper can cause abrasions.
5. The power tool should only be used on an electrical system (mains) that is rated for the electrical requirements of the power
tool as shown on the nameplate. Use only on an earthing (grounded) system. Do not service the power tool if it is energized
or connected to an electrical circuit. Improper use could cause re or electric shock.

WARNING: This machine contains moving parts. To reduce the
risk of injury, always unplug the power cord before servicing.
6
Introduction
EN
1
2
3
4
5
6
7
8
9
INTRODUCTION AND MACHINE SPECIFICATIONS
The American B-2 is specically designed for nishing oor edges, stairs, and other hard-to-reach surfaces. The handle location and
low center of gravity make the American B-2 easy to operate.
The excellent cutting power comes from a powerful universal type motor. A motor that delivers maximum performance without slowing
down or overheating. Its exclusive two speed control when switched to hi-speed produces 3200 rpm for fast, rough sanding. At low
speed, the American B-2 operates at 2800 rpm for ne, nish sanding. A non-marking disc guard protects the rubber pad, permitting
the edger to work right up to the baseboard or wall.
Also standard is a convenient built-in headlight. Powerful fan and sanding disc housing design provides efcient dust pickup. Plus an
easy to remove dust pipe that makes cleaning a quick and simple task.

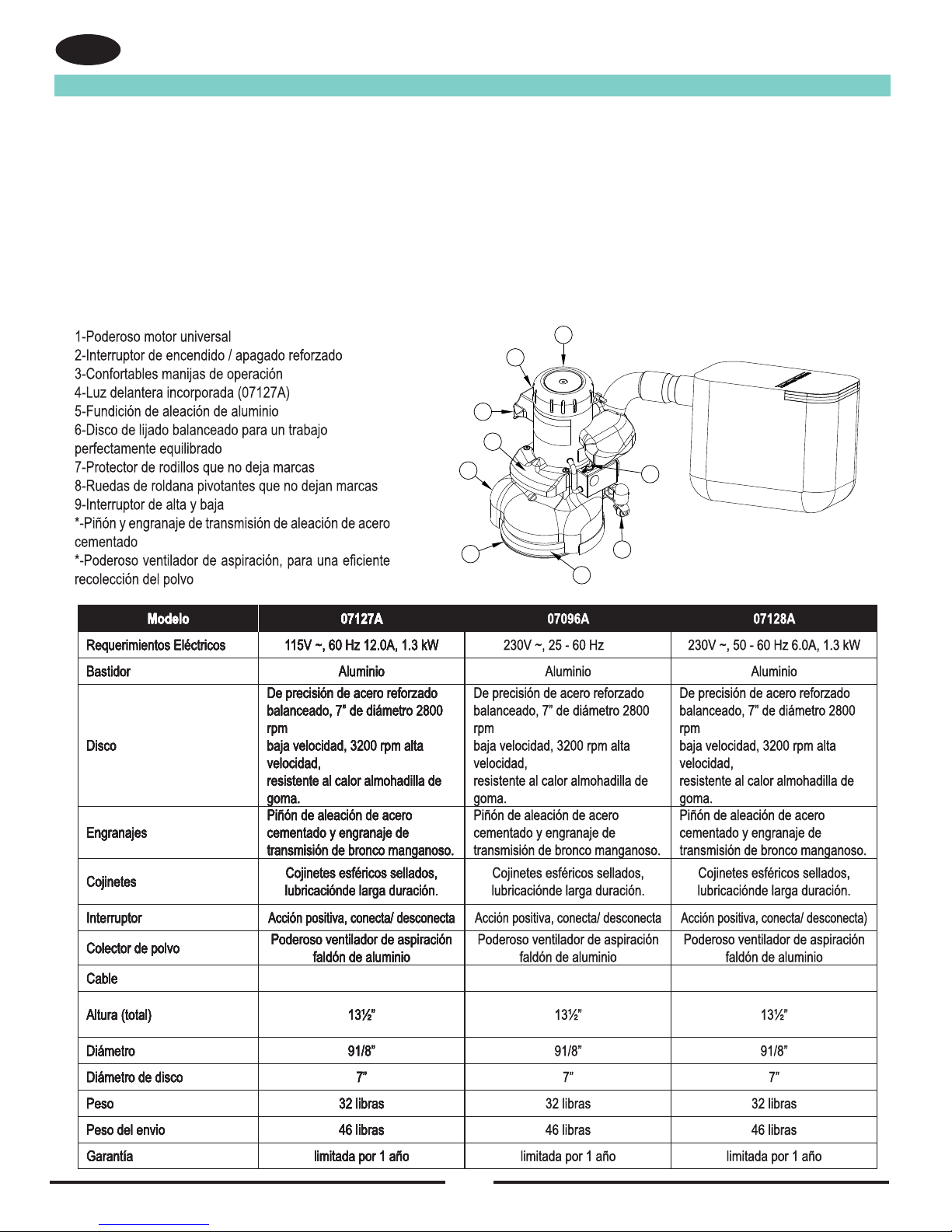

1-Powerful Universal Motor
2-On-Off Heavy Duty Switch
3-Comfortable Operating Handles
4-Built-In Headlight (07127A)
5-Aluminum Alloy Casting
6-Balanced Sanding Disc for perfectly matched job
7-Non-Marking Roller Guard
8-Non-Marking Swivel Type Casters
9-High Low Switch
*-Hardened Steel Alloy Pinon and Drive Gear
*-Powerful Vacuum Fan for effecient dust pickup
Model 07127A 07096A 07128A
PART NUMBER 07127A 07096A 07128A
Electrical Rating 115V-,60Hz 12.0A, 1.3kW 230V ~, 25 - 60 Hz 230V ~, 50 - 60 Hz / 6.0A, 1.3 kW
Frame Aluminum Aluminum Aluminum
Disc Heavy duty steel precision
balanced, 7" dia. 2800 rpm high
speed, heat resistant rubber pad
Heavy duty steel precision
balanced, 7" dia. 2800 rpm high
speed, heat resistant rubber pad
Heavy duty steel precision
balanced, 7" dia. 2800 rpm high
speed, heat resistant rubber pad
Gears Hardened steel alloy pinion and
manganese bronze drive gear
Hardened steel alloy pinion and
manganese bronze drive gear
Hardened steel alloy pinion and
manganese bronze drive gear
Bearings Sealed ball bearings, lifetime
lubricated
Sealed ball bearings, lifetime
lubricated
Sealed ball bearings, lifetime
lubricated
Switch Positive action, on-off toggle Positive action, on-off toggle Positive action, on-off toggle
Dust Collector Powerful vacuum fan, full aluminum
skirt
Powerful vacuum fan, full aluminum
skirt
Powerful vacuum fan, full aluminum
skirt
Cord 50' 50' 50'
Height (Overall) 13-1/2" 13-1/2" 13-1/2"
Diameter 9-1/8" 9-1/8" 9-1/8"
Disc Diameter 7" 7" 7"
Weight 32lbs. 32lbs. 32lbs.
Shipping Weight 46lbs. 46lbs. 46lbs.
Warranty 1 Year Limited 1 Year Limited 1 Year Limited

(Canada, Mexico, and United States)

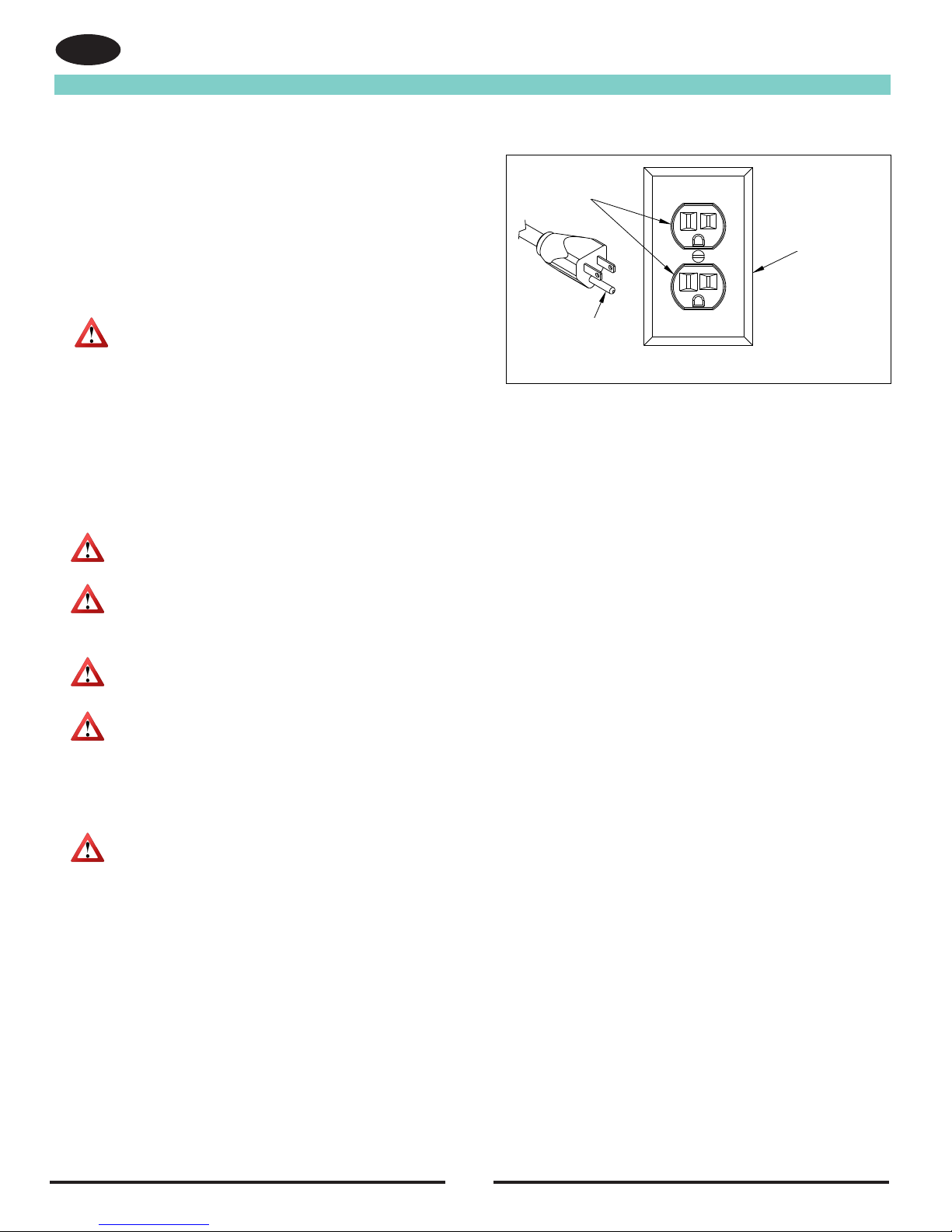

Grounding Pin
Grounded Outlet Box
Grounded Outlet
Figure 3
7
Electrical Connection Instructions
EN
120 VOLT MACHINES
Instructions for connection to the power supply and the
electrical ground.
This product must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electric current to
reduce the risk of electrical shock. This product is equipped with a cord
having an equipment-grounding conductor and grounding plug. The
plug must be inserted into an appropriate oulet that is properly installed
and grounded in accordance with all local codes and ordinances.
WARNING:
Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualied
electrician or service person if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided
with the product - if it will not t the outlet, have a proper outlet
installed by a qualied electrician.
This product is for use on a nominal 120 volt circuit and has a grounding attachment plug that looks like the plug illustrated in Fig. 3. Make sure
that the product is connected to an outlet having the same conguration as the plug. No adaptor should be used with this product.
WARNING:
To prevent possible electric shock, protect the machine from rain. Keep the machine in a dry building.
WARNING:
To prevent possible electric shock, always usea 3-wire electrical system connected to the electrical ground. For maximum
protection against electrical shock, use a circuit that is protected by a ground fault circuit interrupter. Cronsult your electrical contractor.
WARNING:
Do not cut, remove or break the ground pin. If the outlet does not t the plug, consult your electrical contractor.
WARNING:: Have worn, cut or damaged cords replaced by an authorized service person.
EXTENSION CORDS
Use only an approved extension cord with three conductors, a plug with three terminals, and a connector body with three holes. The machine
has a power cord with wire size 14 AWG (AWG means American Wire Gauge).
WARNING::
If you use an extension cord, use an extension cord with minimum wire size 12 AWG. Do not use an extension cord longer than 50 feet.
Do not join two extension cords

8
Machine Set-up
EN
This sanding machine is designed to be operated with a remote
vacuum dust collection sytem or with the included dust bag.
Preparing Remote Vacuum Dust Collection Sytems
To prepare the machine for remote vacuum dust collection systems
that have a 2" hose end, follow this procedure:
1. Install 2" hose end (gure 1, A) directly over the exhaust tube
(gure 1, B).
2. The exhaust tube can be rotated for optimum convenience.
To prepare the machine for remote vacuum dust collection systems
that have a 1 ½" hose end, follow this procedure:
1. Install the 2" x 1½" hose end adaptor (Part No. 30563A)
(gure 1, C) over the exhaust tube (gure 1, B).
2. Insert 1 ½" hose end (gure 1, D) into the adaptor (gure 1, C).
NOTE: Start the remote vacuum collection system before
operation.
Preparing to use the included dust bag
To prepare the machine for use with the included dust bag (Part No.
53544B), follow this procedure:
1. Install the dust bag by pressing the end onto the exhaust tube
until the ring locks into the groove (gure 2). This is best done
by pressing on the back of the bag opening with the palm of
your hand.
2. The exhaust tube can be rotated for optimum convenience.
3. To remove the dust bag from the exhaust tube, pry up the end
of the bag opening to partially release the internal rib from the
groove, then pull.
4. To empty the dust bag, unzip the disposal ap and force
contents out by inverting the bag.
NOTE: For best results, empty frequently. Follow all warnings
posted in this manual and on the dust bag.
Install the dust bag by
pressing the end onto the
exhaust tube until the ring
locks into the groove.
A
2" Hose from
vacuum system
(not included)
1.5" Hose from
vacuum system
(not included)
D
B
C
Exhaust Tube
(30563A) 2" Tube x 1.5" hose adaptor
Figure 1
Figure 2

9
Machine Set-up
EN
Figure 3
Figure 4
How to Install the Sandpaper

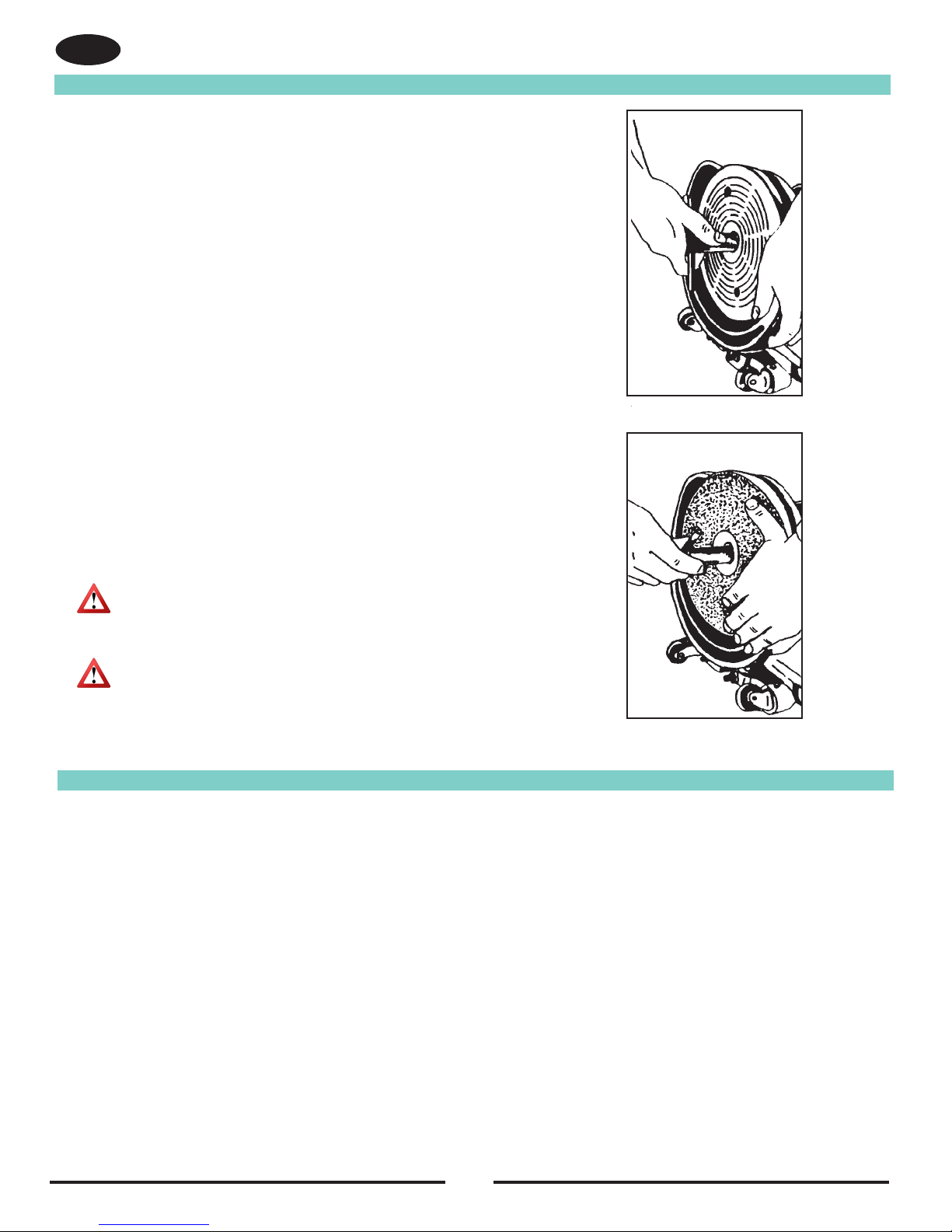

NOTE: Use a sandpaper disc that has a 7" diameter and a ⅞" hole in
the center.
1. Put the machine upside down.
2. A special wrench is in the bracket behind the motor. Use the
special wrench to remove the screw and washer from the center
of the sanding pad. See Figure 3.
3. Put the sanding disc in position on the sanding pad.
4. Put the special washer and the holding screw in position in the
center of the sanding pad.
5. Put one hand on the sandpaper. Using the special wrench, turn
the screw clockwise with the other hand. Make sure the screw is
tight. See Figure 4.
6. Return machine to upright position.
WARNING: Serious injury could occur when attempting to replace
abrasive while machine is connected to power supply.
Always disconnect power before installing abrasive.
CAUTION: Gearbox damage could result from machine resting
upside down for extended periods of time. Lubricant
may drain from gearbox. Always return machine to
upright position after installing abrasive.
Sanding Cuts and Sandpaper
Initial Cut
The purpose of the initial cut is to remove old nish and gross imperfections on the oor surface. A coarse abrasive should be used. If the surface is
severely damaged by deep scratches, pre-existing dwell marks, uneven planks, etc., it may be necessary to sand across or diagonally to the grain to
restore evenness to the surface. If these conditions are not present, the initial cut should be done in the direction of the grain.
If glazing, loading, or burning takes place immediately into an initial cut, select a coarser abrasive. If this should occur during an initial cut, the
abrasive has dulled and must be replaced.
Final Cuts
The purpose of a nishing cut is to remove the scratches produced during the initial cut. Use a ne (60 - 80 grit) grain abrasive.
If the surface remains rough after a nishing cut, it may be necessary to use an even ner grain of abrasive (80 - 100 grit). Care should be taken in
selecting the grit size of the abrasive. A very ne grain will close the pores on a wood oor making admission of a stain difcult.
If glazing or burning should occur immediately into a nishing cut, increase pace. If it should occur during a nishing cut, the abrasive has dulled
and must be replaced.

10
Operating Instructions
EN
DANGER: Failure to remove the electrical plug from the electrical
outlet before attempting any service or maintenance
could result in electrocution or severe injury. Always
unplug the machine before attempting any service.
Never leave machine unattended while plugged in.
To operate the machine follow this procedure:
1. Move the machine to the location of your work.
2. Connect the extension cord to the short power cord on the
machine. See gure 5.
3. Connect the other end of the extension cord to the power supply
outlet.
4. Put the variable speed switch in the "HI" position (1). See gure
6. After reaching full speed, put the switch in the "LO" position if
low speed is needed.
NOTE: The high speed operation is for fast wood removal. For nish cuts
and custom work, use the low speed operation.
5. Tilt the machine back so that the sandpaper disc does not touch
the oor See (1) in Figure 7. Hold both handles. See (2) in
Figure 7.
6. Put the On/Off switch in the "ON" position. See (3) in Figure 7.
7. Keep the machine moving as you lower the sandpaper disc to
the oor surface.
8. Do not press down on the machine. The weight of the machine
gives enough pressure for all types of sanding.
Figure 5
Figure 6
NOTE: Do not store or rest the machine on the sanding disc assembly.
It may cause the disc to become warped or cause it to be out of
balance.
Figure 7
2
1

11
Maintenance
EN
CAUTION: Maintenance and repairs performed by unauthorized
personnel could result in damage or injury. Maintenance
and repairs performed by unauthorized personnel will void
your warranty. Servicing of these units must always be
referred to an authorized American Sanders distributor.
The Dust Control System
Remove the dust from the bag when the bag is ⅓"
full or when the efciency of the dust control system decreases.
If the exhaust pipe gets an obstruction, follow this procedure:
1. Remove the four screws that hold the exhaust pipe to the
housing. See gure 8.
2. Remove the obstruction from the exhaust pipe.
3. Install the exhaust pipe.
How to Adjust the Angle Of The Sandpaper Disc To The Floor
The adjustment of the machine is correct when the front part of the
sandpaper disc makes contact with the oor.
To change the adjustment of the machine, follow this procedure :
1. Using the special wrench, loosen the lock nut on each caster.
See (1) gure 9.
2. Loosen the jam nut. See (2) gure 9.
3. Raise or lower the casters as needed.
4. Tighten the jam nut on each caster.
5. Tighten the lock nut on each caster.
How To Replace The Light Bulb
To replace the light bulb, follow this procedure:
1. Remove the two screws that hold the light guard to the hous-
ing. See gure 10.
2. Remove the light guard.
3. Remove the light bulb from the socket.
4. Install a new light bulb.
5. Put the lamp guard in position.
6. Install the two holding screws.
The Ventilation Plug
1. To clean the ventilation opening in the center of the plug,
remove the plug from the machine. With the plug removed,
also inspect the grease in the gearbox. See gure 11.
Figure 8
Figure 10
Figure 11
Figure 9
1
2

Figure 12
Figure 13
Figure 14
Lubrication
The machine is completely lubricated. The bearings and gears in the gear
unit have enough lubricant for approximately six months of normal operation.
All other bearings are sealed and have enough lubricant for the life of the
machine. No lubricant is needed for the rotating disc guard.
How To Change The Lubricant In The Gearbox
To change the lubricant in the gearbox, follow this procedure:
1. Put the machine upside down on a bench.
2. Align one of the two holes in the rubber pad with one of the three
holes in the rotating disc guard.
3. Align both holes with one of the three screws in the gear housing
cover. Remove the screw from the gear housing cover. See gure
12.
4. Align the holes with each of the other two screws, then remove
screws.
CAUTION!
Make sure no dust enters the gear box. Damage could occur to
the gear box.
5. Remove the cover from the gear housing.
6. Remove the old lubricant from the gearbox.
7. Add ten ounces of American Sanders lubricant to the gearbox.
CAUTION!
To prevent damage to the motor, do not add more than ten
ounces of lubricant to the gearbox.
8. Using the three screws removed above, install the cover on the
gear housing.
9. Start the machine and let it run for 15 minutes. A small amount of
excess lubricant should ow out the vent hole. If none appears it
may be necessary to add additional lubricant.
10. Wipe off excess lubricant and clear vent hole.
How To Check The Carbon Brushes
Depending on use, a set of brushes can be expected to last 250 hours
and should be inspected sometime prior to that time.
To check the brushes, follow this procedure:

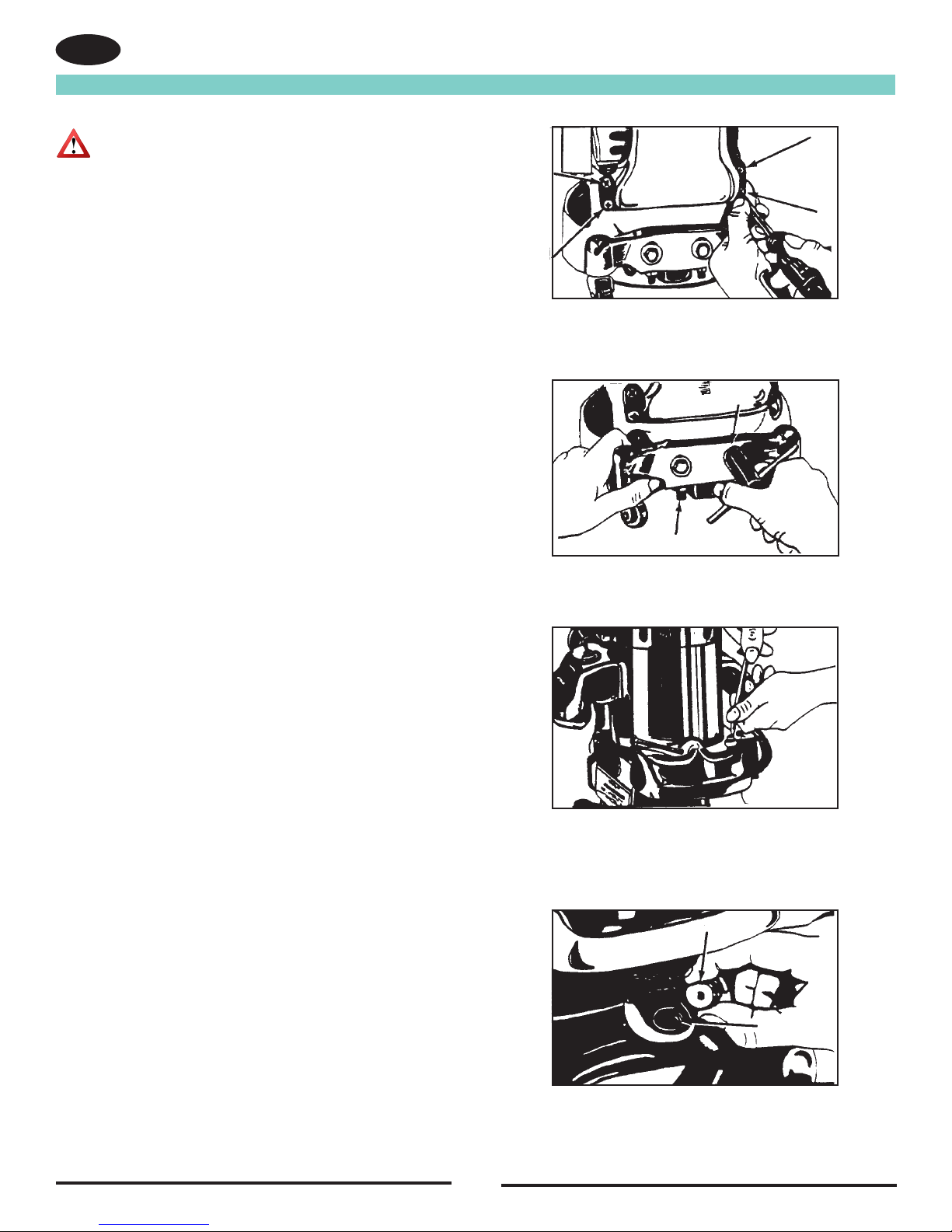

1. Remove the motor cover. See gure 13.
2. Inspect the carbon brushes. Replace both brushes if either brush
has worn to 3/8" in length, or is worn to the wear indicator. See
gure 14.
3. To replace the brushes, disconnect the eld wire (A) from the
brush holder (B). Then remove the two screws and washers (C)
securing the holder to the motor housing. See gure 15.
Lubricants
Qty Part No.
1 Qt. 16610A
1 Gal. 16611A
Figure 15
A
A
B
B
C
C
C
C
12
Maintenance
EN

13
Maintenance
EN
How To Check The Carbon Brushes (cont)
4. Gently pry the holder down from the motor housing.
5. Rotate holder from beneath the motor housing and lift out.
6. Disconnect the brush shunt wire from the holder. For convenience,
cut the terminal from the shunt wire and remove brush.
7. To put in a new carbon brush, negotiate the terminal on the shunt
wire by the spring and brush holder guide. Take care not to
damage the spring. See gure 16.
8. Depress the brush into the guide and connec the shunt wire to
the holder.
9. Depress the brush and insert the holder into the motor housing.
10. Rotate holder beneath motor housing. Relax brush against
commutator.
11. Align posts on holder with holes in housing.
12. Gently pry the holder into the housing.
13. Reattach screws and washers.
14. Start up the machine, if sparking between either brush and the
commutator occurs, use a brush seating stone on the commutato r
to promote full engagement between the brushes and
commutator.
15. Install the motor cover.
Figure 16

14
52
FloorCrafter
Belt Sander
Parts Manual
Notes:
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
B-2+DC
7” Edger
Operator’s Manual

Contents
Instrucciones de seguridad para el operador..............................16
Introducción..................................................................18
Instrucciones de conexión eléctrica ............................................19
Instalación de la maquina............................................................20
Mantenimiento......................................................................22
LEA ESTE MANUAL
Este manual contiene información importante acerca del uso y la seguridad de la máquina. Si no lee el manual antes de utilizar su
máquina American Sanders o de intentar realizar los procedimientos de reparación o mantenimiento de la misma, usted o el resto
del personal podrían sufrir lesiones; asimismo, podrían producirse daños a la máquina o a otras propiedades. Antes de utilizar la
máquina, es necesario recibir la capacitación adecuada en la operación de la misma. Si el operador de la máquina no sabe leer en
español, explíquele el manual exhaustivamente antes de que intente utilizarla.
Todas las indicaciones incluidas en este manual se ofrecen desde la posición del operador en la parte posterior de la máquina.
ADVERTENCIA!
Los Productos a la venta en este Manual contienen, o pueden contener, productos químicos reconocidos por algunos gobiernos (como el Estado de
California, según lo indica en su Proposición 65, Ley de Advertencia Regulatoria) como causantes de cáncer, defectos de nacimiento u otros daños
reproductivos. En algunas jurisdicciones (incluido el Estado de California), los compradores de estos Productos que los coloquen en servicio en un
emplazamiento laboral o en un espacio de acceso público tienen la obligación regulatoria de realizar determinados avisos, advertencias o divulgaciones
respecto de los productos químicos contenidos o posiblemente contenidos en los Productos utilizados en tal lugar. Es la responsabilidad del comprador
conocer y cumplir con todas las leyes y reglamentaciones relacionadas con el uso de estos Productos en tales entornos. El Fabricante niega toda
responsabilidad de informar a los compradores sobre requisitos especícos que pueden regir el uso de los Productos en tales entornos.
ES
52
FloorCrafter
Belt Sander
Parts Manual
Notes:
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________

PELIGRO signica: Usted u otras personas pueden estar expuestos a sufrir lesiones personales, inclusive la
muerte si las indicaciones de PELIGRO que se encuentran en esta máquina o en el manual
de instrucciones se ignoran o no se tienen en cuenta. Lea y respete todas las indicaciones
de PELIGRO que se encuentran en el manual de instrucciones y en la máquina.
ADVERTENCIA signica: Usted u otras personas pueden estar expuestos a sufrir lesiones personales, si las
indicaciones de ADVERTENCIA que se encuentran en esta máquina o en el manual de
instrucciones se ignoran o no se tienen en cuenta. Lea y respete todas las indicaciones de
ADVERTENCIA que se encuentran en el manual de instrucciones y en su máquina.
PRECAUCIÓN signica: La máquina u otros bienes pueden sufrir daños materiales si las indicaciones de PRECAUCIÓN
que se encuentran en la máquina o en el manual de instrucciones se ignoran o no se
tienen en cuenta. Lea y respete todas las indicaciones de PRECAUCIÓN que se
encuentran en el manual de instrucciones y en la máquina.
Instrucciones De Seguridad Para El Operador
ES
16

ES
17

18
INTRODUCCIÓN Y ESPECIFICACIONES DE LA MÁQUINA
ES
1
2
3
4
5
6
7
8
9
American B-2 ha sido especícamente diseñada para el acabado de bordes de pisos, escaleras y otras supercies de difícil alcance. La ubicación de
la manija y el bajo centro de gravedad hacen que American B-2 sea de fácil operación.
Su excelente poder de corte proviene de un poderoso motor de tipo universal, un motor que proporciona un máximo rendimiento sin funcionar con
lentitud ni recalentarse. Su exclusivo control de dos velocidades proporciona 3200 rpm para un lijado rápido, en tosco, cuando se lo coloca en alta
velocidad. A baja velocidad, American B-2 funciona a 2800 rpm para proporcionar un lijado de acabado no. Un protector del disco, que no deja
marcas, resguarda la almohadilla de goma, permitiendo que la canteadora trabaje justo hasta el zócalo o la pared.
La unidad cuenta con la ventaja de una luz delantera estándar incorporada, instalada en fábrica. El diseño incluye un poderoso ventilador y
alojamiento del disco de lijado para proporcionar una efectiva recolección del polvo. Además de un tubo de polvo de fácil extracción que hace de la
limpieza una tarea rápida y simple.
Modelo 07127A
Requerimientos Eléctricos 115V ~, 60 Hz 12.0A, 1.3 kW
Bastidor Aluminio
Disco
De precisión de acero reforzado
balanceado, 7” de diámetro 2800
rpm
baja velocidad, 3200 rpm alta
velocidad,
resistente al calor almohadilla de
goma.
Engranajes
Piñón de aleación de acero
cementado y engranaje de
transmisión de bronco manganoso.
Cojinetes Cojinetes esféricos sellados,
lubricaciónde larga duración.
Interruptor
Acción positiva, conecta/ desconecta
Colector de polvo Poderoso ventilador de aspiración
faldón de aluminio
Cable 25’
Altura (total) 13½”
Diámetro 91/8”
Diámetro de disco 7”
Peso 32 libras
Peso del envio 46 libras
Garantía limitada por 1 año
07096A 07128A
230V ~, 25 - 60 Hz 230V ~, 50 - 60 Hz 6.0A, 1.3 kW
Aluminio Aluminio
De precisión de acero reforzado
balanceado, 7” de diámetro 2800
rpm
baja velocidad, 3200 rpm alta
velocidad,
resistente al calor almohadilla de
goma.
De precisión de acero reforzado
balanceado, 7” de diámetro 2800
rpm
baja velocidad, 3200 rpm alta
velocidad,
resistente al calor almohadilla de
goma.
Piñón de aleación de acero
cementado y engranaje de
transmisión de bronco manganoso.
Piñón de aleación de acero
cementado y engranaje de
transmisión de bronco manganoso.
Cojinetes esféricos sellados,
lubricaciónde larga duración.
Cojinetes esféricos sellados,
lubricaciónde larga duración.
Acción positiva, conecta/ desconecta Acción positiva, conecta/ desconecta)
Poderoso ventilador de aspiración
faldón de aluminio
Poderoso ventilador de aspiración
faldón de aluminio
25’ 25’
13½” 13½”
91/8” 91/8”
7” 7”
32 libras 32 libras
46 libras 46 libras
limitada por 1 año limitada por 1 año
50' 50' 50'

Conexión a Tierra
Receptáculo con
Toma a Tierra
Caja del
Receptáculo con
Toma a Tierra
Figura 3
19
MAQUINAS 120 V. NSTRUCCIONES PARA LA CONEXION ELECTRICA DE LA MAQUINA
ES

20
INSTALACIÓN DE LA MÁQUINA
ES
Esta lijadora está diseñada para utilizarse con un sistema colector de
polvo remoto mediante vacío o con la bolsa de polvo incluida.
Preparación de los sistemas colectores de polvo remotos mediante
vacío
Si desea preparar la máquina para sistemas colectores de polvo remotos
mediante vacío que tengan un extremo de manguera de 2", siga este
procedimiento:
1. Instale e extremo de manguera de 2" (gura 1, A) directamante
sobre el tubo de escape (gura 1, B).
2. El tubo de escape puede girarse para mayor comodidad.
Si desea preparar la máquina para sistemas colectores de polvo remotos
mediante vacío que tengan un extremo de manguera de 1 ½", siga este
procedimiento:
1. Instale el adaptador del extremo de manguera de 2" x 1½" (Node
pieza 30563A) (gura 1, C) sobre el tubo de escape (gura 1, B).
2. Inserte el extremo de manguera de 1½" (gura 1, D) en el adaptador
(gura 1, C).
NOTA: Ponga en marche el sistema colector remoto mediante vacío
antes de encender la máquina.
Preparación para usar la bolsa de polvo incluida
Si desea preparar la máquina para su uso con la bolsa de polvo incluida
(Node pieza 53544B), siga este procedimiento.
1. Instale la bolsa de recolección de polvo presionando el extremo del
tubo de escape hasta que el anillo encaje dentro de la ranura (gura
2). El mejor modo de hacer esto es presionando la parte posterior
de la abertura de la bolsa con la palma de su mano.
2. El tubo de escape puede girarse para mayor comodidad.
3. Para retirar la bolsa de polvo del tubo de escape, haga palanca
hacia arriba en el extremo de la abertura de la bolsa para liberar
parcialmente el saliente interno de la ranura, y después tire.
4. Para vaciar la bolsa de polvo, abra la aleta de vaciado y saque sus
contenidos dando la vuelta a la bolsa.
NOTA: Para lograr los mejores resultados, vacíe frecuentemente.
Siga todas las advertencias incluidas en el manual y en la bolsa de
polvo.
A
MANGUERA DE 2"
DEL SISTEMA DE
ASPIRACIÓN (NO
INCLUIDO)
MANGUERA DE
1.50" DEL SISTEMA
DE ASPIRACIÓN
(NO INCLUIDO)
D
B
C
TUBO DE ESCAPE
30563A TUBO DE 2" X
ADAPTADOR DE MANGUERA DE 1.50"
Figura 1
Figura 2
INSTALE LA BOLSA DE
RECOLECCIÓN DE POLVO
PRESIONANDO EL EXTREMO DEL
TUBO DE ESCAPE HASTA QUE EL
ANILLO ENCAJE DENTRO DE LA
RANURA.
