LITTLE WONDER®
OPERATOR/OWNER MANUAL
AND
SAFETY INSTRUCTIONS
for
EDGER
©2003, LITTLE WONDER, Div. Schiller-Pfeiffer, Inc.
Patents Granted in USA and Australia.
US Patent No. 5,826,667. Other US patents pending.
Design registrations Granted in
USA, Australia, Japan, Great Britain
Patent Pending on Cross-Blade System.
IMPORTANT MANUAL – DO NOT THROW AWAY
Manual always to be available for reference or instructing new operators
SUPERVISORS, THIS IS YOUR RESPONSIBILITY
IMPROPER USE
CAN CAUSE
SERIOUS INJURY
MAKE SURE THIS
MANUAL IS READ
AND CAREFULLY
UNDERSTOOD
BEFORE STARTING
OR OPERATING
THIS EQUIPMENT

CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . .2
SERVICE INFORMATION . . . . . . . . . . . . . . . . . . . .2
PARTS AND CONTROLS . . . . . . . . . . . . . . . . . . . . .3
SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLING THE XTRA EDGER . . . . . . . . . . . . . .8
FUEL MIX AND FUELING . . . . . . . . . . . . . . . . . . .8
STARTING AND STOPPING INSTRUCTIONS . . . . . .10
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . .11
AIR AND FUEL FILTER MAINTENANCE . . . . . . .13
ENGINE IDLE SPEED ADJUSTMENT . . . . . . . . . .13
CUTTER BLADE REPLACEMENT . . . . . . . . . . . . .14
LUBRICATION OF GEARS . . . . . . . . . . . . . . . . . .14
CHECKING THE SPARK PLUG . . . . . . . . . . . . . . .15
CHECKING THE MUFFLER . . . . . . . . . . . . . . . . .15
TROUBLESHOOTING TIPS . . . . . . . . . . . . . . . . . .16
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
PARTS BREAKDOWN. . . . . . . . . . . . . . . . . . . . 19
ENGINE PARTS LIST . . . . . . . . . . . . . . . . . . . . .20
ENGINE PARTS BREAKDOWN . . . . . . . . . . . . . . .21
BODY WORKSHOP MANUAL . . . . . . . . . . . . . . . .22
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
INTRODUCTION
This Manual contains operating, assembling,
safety and maintenance instructions for the
Little Wonder Gasoline Powered Xtra Edger.
This professional edging machine was designed to
the highest standards to ensure you many hours of
uninterrupted service.
Pay special attention to the safety precautions
outlined on pages 4 to 7. Allow only persons who
understand this Manual to operate the Xtra Edger.
To receive maximum performance and satisfaction
from your Xtra Edger, it is important that you read
and understand the maintenance and safety
precautions before using the edger. Contact your
Little Wonder dealer or the Little Wonder distribu-
tor in your area if you do not understand or cannot
carry out any of the instructions in this Manual.
SERVICE INFORMATION
Contact your authorized Little Wonder
dealer for service.
WARNING
As with any power tool, some special
safety precautions must be observed
to reduce the risk of personal injury.
Careless or improper use may cause
serious or even fatal injury.
▲
!▲
!
SAFETY WARNINGS
THE PURPOSE OF SAFETY WARNING AND NOTES IN THIS MANUAL
IS TO ATTRACT YOUR ATTENTION TO POSSIBLE DANGERS AND THE
EXPLANATIONS WITH THEM DESERVE YOUR CAREFUL ATTENTION
AND UNDERSTANDING. THE SAFETY WARNINGS IN THIS MANUAL AND
ON THE XTRA EDGER DO NOT, BY THEMSELVES, ELIMINATE ANY
DANGER. THE INSTRUCTIONS OR WARNINGS THEY GIVE ARE NOT
SUBSTITUTES FOR PROPER ACCIDENT PREVENTION MEASURES.
▲
!▲
!
▲
!
WARNING: Failure to obey a
safety warning can
result in injury to
yourself and others.
NOTE: Advises you of information
or instructions vital to the
operation or maintenance
of the equipment.
!
2

The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects or other reproductive harm.
13 Blade cover reduces the risk of flying
debris and direct contact with the feet or
hands.
10 Cross blade set rotates when engine speed
is increased above idle.
52 Wheel for moving and guiding edger.
27 Grass shield reduces flyback of stones
and foreign material.
68 Cross-brace attaches downwards on
handles
35, The handles of the Xtra Lawn
36 Edger are held by both hands.
50 The ON/OFF switch and throttle
trigger which increases speed of engine
for automatic safety clutch to engage and
thus rotate blade.
85 Handle nut for holding handles onto
housing (and adjusting anti-vibration of
handle).
71 Height adjustment for adjusting depth of
cutting blade.

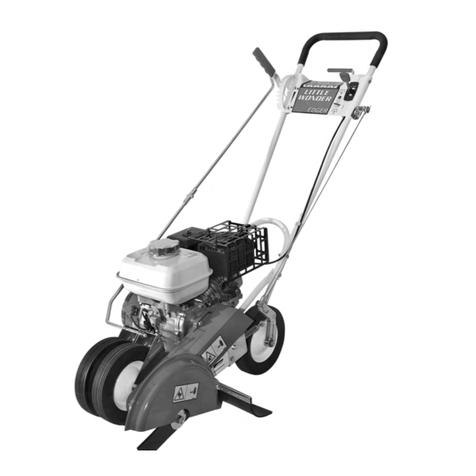

PARTS AND CONTROLS
DANGER!
KEEP HANDS & FEET AWAY
ROTATING BLADE
DIRECTION OF ROTATION
WARNING
KEEP INSIDE OF BLADE GUARD CLEAN,
ESPECIALLY IN WET CONDITIONS. A CLOGGED
GUARD CAN SLOW DOWN OR STOP BLADE
ROTATION AND MAY CAUSE DAMAGE TO
AUTOMATIC SAFETY CLUTCH. ALWAYS OPERATE
BLADE AT HIGH SPEED WHEN EDGING.
3
Key #21
Key #22
Key #25
FIG 1
WARNING
●ALWAYS REPLACE FUEL CAP SECURELY.
●METAL PARTS OF ENGINE HOT DURING &
AFTER USE. DO NOT TOUCH.
WARNING - TO PREVENT SERIOUS INJURY
FOLLOW ALL SAFETY PRECAUTIONS IN OPERATOR MANUAL - IMPROPER USE CAN CAUSE SERIOUS OR FATAL
INJURY ●OBJECTS MAY BE THROWN OR RICHOCHET IN ALL DIRECTIONS - ALWAYS WEAR EYE PROTECTION
●KEEP BYSTANDERS AT LEAST 50FT (16M) AWAY ●ALWAYS WEAR EAR PROTECTION ●WEAR SNUG FITTING
CLOTHING ●MINORS SHOULD NEVER BER PERMITTED TO USE THIS EDGER ●WEAR STURDY SHOES WITH
NON-SLIP SOLES ●DO NOT LEND, RENT OR SELL THIS EDGER WITHOUT THE OPERATOR MANUAL.
(FORM No.43133)
▲
!WARNING:
50 36
21
35
25
68
85
71
52
10
13
27
22

Little Wonder’s philosophy is to continually improve
all of its products. As a result, engineering changes
and improvements are made from time to time. If
the operating characteristics or the appearance of
your Xtra Edger differs from those described in this
manual, please contact your Little Wonder dealer for
information and assistance.
WARNING
Like any power tool, the use of
any lawn edger may be dangerous.
It is important that you read, fully
understand, and observe the following
safety precautions and warnings.
Re-read this operator’s manual and
the safety instructions periodically.
▲
!▲
!
WARNING
Careless or improper use of the
machine may cause serious injury.
Have your dealer show you how
to operate your Xtra edger.
▲
!▲
!
WARNING
The Xtra Edger must not be
operated by minors. Bystanders,
especially children and animals,
should not be allowed in the area
where a machine is in use
(at least 15 feet away) (Fig. 2b).
Never let the unit run unattended.
▲
!▲
!
WARNING
Do not lend, rent or sell this
machine without the operator’s
manual. Be sure that anyone using
this unit understands the information
contained in this manual before use.
▲
!▲
!
Safe use of an Xtra Edger involves:
1. The Operator
2. The Xtra Edger
3. The use of the Xtra Edger
THE OPERATOR
PHYSICAL CONDITION
Operator must be in good physical condition and
mental health, and not under the influence of
any substance (drugs, alcohol, etc.) which might
impair vision, dexterity or judgement (Fig. 2a).
4
SAFETY PRECAUTIONS
WARNING
Prolonged use of any hand-held
powered machine exposing the
operator to vibrations may produce
whitefinger disease (Raynaud’s
phenomenon) or carpal tunnel syndrome.
These conditions reduce the hand’s
ability to feel and regulate temperature,
produce numbness and burning
sensations, and may cause nerve and
circulation damage and tissue necrosis.
▲
!▲
!

sunny conditions, always wear a hat and long
sleeve shirt for protection against skin cancers.
Use of a good brand of sunscreen cream is also
recommended on exposed skin surfaces.
Replace immediately broken or cracked blade
covers and grass debris deflector.
Never operate an Xtra Edger unless wearing
goggles or properly fitting safety glasses with
adequate top and side protection which comply
with ANSI Z 87.1.
Engine noise may damage your hearing. Wear
sound barriers (ear plugs or ear mufflers) to pro-
tect your hearing. Continual and regular users
should have their hearing checked regularly.
SAFE FUELING
The Xtra Edger unit uses an oil-gasoline mixture
for fuel (see the chapter on “Fuel,” page 8).
Do not operate an Xtra Edger when fatigued.
Be alert - if you get tired while operating the
machine, take a break. Tiredness may result in
loss of control. Working with any power tool
can be strenuous. If you have any condition that
might be aggravated by strenuous work, check
with your doctor before operating the machine.
The Xtra Edger is equipped with vibration-
reducing hand grips and main handle anti-
vibration mountings. These are designed to
reduce the transmission of engine vibrations to
the operator’s hands. Replace hand grips and
mountings when worn or damaged.
The rubber handles do not guarantee that you
will not sustain whitefinger disease or carpal
tunnel syndrome. Therefore, continual and
regular users should monitor closely the
condition of their hands and fingers. If any
of the above symptoms appear, seek medical
advice immediately.
PROPER CLOTHING
Clothing must be sturdy and snug-fitting, but
allow complete freedom of movement (see Fig.
3). Avoid loose-fitting jackets, flared or cuffed
pants, or anything that could trip the operator.
Wear overalls or long pants to protect your legs.
DO NOT wear shorts. Use of gloves when
working with the Xtra Edger is recommended.
Good footing is most important. Wear sturdy
shoes with nonslip soles. DO NOT wear
sandals or operate with bare feet. In hot or
WARNING
Proper eye protection is a must.
The blade cover may not protect the
operator from all fast moving foreign
objects, even though the discharge is
directed away from the operator,
as ricochets and bouncebacks may
occur during lawn edging operations.
▲
!▲
!
5
FIG 4
WARNING
Gasoline is an extremely flammable
and explosive fuel. Use extreme
caution when handling gasoline or
fuel mix. Do not smoke or bring
any fire or flame near the fuel.
▲
!▲
!

SAFE FUELING INSTRUCTIONS
Refuel outdoors only. Always switch off the
engine and allow it to cool before refueling.
Relieve fuel tank pressure by loosening fuel
cap slowly. Never remove fuel filler cap while
engine is running.
Select bare ground for fueling, then move at
least 10 feet from the fueling spot before start-
ing the engine. Wipe off any spilled fuel before
starting your Xtra Edger and check for leakage.
Always tighten fuel filler cap securely after
fueling.
SAFE STARTING
You should always inspect your unit before
starting it. Make sure the controls and safety
devices are working properly.
For specific starting instructions, see the
appropriate section of this operators manual.
Place the machine on firm ground or other solid
surface in an open area. Maintain good balance
and secure footing.
Failure to follow this procedure may result in
injury to hand or fingers or may damage the
starter mechanism.
SAFE WORKING INSTRUCTIONS
AND IMPORTANT ADJUSTMENTS
Never operate your machine if it is damaged,
improperly adjusted or not completely and
securely assembled. At correct idle speed, the
blade should not turn. Do not use the Xtra
Edger with incorrect idle speed; see the speed
setting instructions on page 13.
SAFE MAINTENANCE, REPAIR AND STORING
Use only original Little Wonder replacement
parts for maintenance and repair. Use of parts
manufactured by others will void warranty
and/or may cause serious or fatal injury.
Follow the maintenance instructions in the
appropriate section of this manual. Any repairs
should be carried out by an authorized service
dealer.
WARNING
Always allow engine to cool before
refueling. Accidental spillage of gasoline
over hot engine could cause fire or
explosion to occur with consequent
possible disfigurement or fatal injury.
Wash and clean hands after fueling.
▲
!▲
!
WARNING
The Xtra Edger is a one-person
machine. To reduce the risk of eye or
other injury from thrown objects,
ensure that bystanders are at least 50
feet away during use. Replace
immediately any worn or broken debris
deflector shield or blade cover. If
approached, release throttle trigger to
immediately deaccelerate the engine.
▲
!▲
!
WARNING
When you pull the starter grip, do not
wrap starter rope around your hand.
Do not allow grip to snap back, but
guide starter rope slowly back to
permit rope to rewind properly.
▲
!▲
!
6
WARNING
Always stop the engine, make sure that
the blade is stopped, and disconnect
the spark plug before adjusting blade
height, doing any maintenance or repair
work, or cleaning the unit or blade.
▲
!▲
!

Check fuel filler cap for leaks at regular
intervals. Use the specified spark plug and
make sure it and the ignition lead are always
in good condition.
Remember that the risk of forest or grass fires is
greater in hot weather.
Keep spark plug and wire connection tight and
clean. Spark plug electrode gap should be
checked with a feeler gauge at least every 50
operating hours and reset if necessary. Fit a
new spark plug if electrodes are badly pitted
or fouled with carbon build-up.
Store Xtra Edger in a dry, high or locked
location place and out of reach of children.
Before storing for a longer period, always empty
the fuel tank.
WARNING
A worn or damaged muffler is a fire
hazard and may cause loss of hearing.
Check to see that the muffler is in good
condition. The lawn edger must not be
operated if the muffler is not functioning
properly, is damaged, or has been removed.
In order to reduce the risk of fire, do not
modify or remove any part of the muffler
and ensure your spark arrestor screen
is not worn or broken.
▲
!▲
!
Keep the space behind and beside the engine
clear at all times to allow for the escape of hot
and toxic exhaust fumes.
Operate your machine under good visibility and
daylight conditions only. Work carefully.
SAFE WORKING CONDITIONS
When working with the Xtra Edger, always
wrap your fingers tightly around each handle.
Keep your hands in this position to have your
machine under control at all times. NEVER
attempt to operate the Xtra Edger with one
hand, as a loss of control may result in serious
or fatal injury.
Make sure the handle grips are in good
condition and free of moisture, pitch, oil or
grease. Use both hands, one on each handle,
to operate and control the lawn edger. Do not
overreach. Keep proper footing and balance at
all times.
WARNING
Never touch a hot muffler
as burns will result.
▲
!▲
!
WARNING
Never store the machine with gasoline
inside a building where fumes may reach
an open flame or spark (e.g. gas or oil-fired
heater appliance, electric motor, etc.).
▲
!▲
!
WARNING
Start and operate your unit
outdoors and in a ventilated area.
▲
!▲
!
7
WARNING
Do not touch hot engine during
and immediatley after use as
you may burn yourself.
▲
!▲
!
WARNING
Electrical shock. Never touch electrical
wires or components while the engine
is running. They are sources of high
voltage and can give you an electrical
shock. Replace immediately any
faulty tension lead or spark plug cap.
▲
!▲
!

ASSEMBLING THE XTRA EDGER
FUEL MIX AND FUELING
1. Fit cross brace (Key #68) to handles (Key #35 & 36) with brace touching the ground. Use 4
screws (Key #1) and 4 locknuts (Key #2) provided in packet.
2. Fit handle assembly to edger. Insert 150mm (6”) bolt through left handle, edger body and right
handle. Screw large wing nut (Key #85) on bolt (Key #31) so that bolt end is approximately flush
(level) with face of the center boss of the large wing nut. This allows handle “platform” to “float”
without vibration. DO NOT OVERTIGHTEN WING NUT.
3. Fit throttle (Key #50) to right handle (Key #36). Clip in throttle cable/ignition switch wire with
2 cable clamps (Key #60) attached to handle. THROTTLE CABLE FROM ENGINE MUST BE
FITTED UNDER HANDLE. DO NOT LOOP OVER HANDLE.
8
WARNING DANGER
FUEL IS EXTREMELY FLAMMABLE. HANDLE IT WITH CARE.
KEEP AWAY FROM IGNITION SOURCES.
DO NOT SMOKE WHILE FUELING YOUR EQUIPMENT.
▲
!▲
!
FIG 6
60 50
31
85
85
1
35
2
36
68
Your Little Wonder Xtra Edger is powered by a
commercial, two-stroke, air cooled engine
which requires a fuel mixture of gasoline and
two-cycle oil.
Use a mixture of 50 parts unleaded regular
gasoline and 1 part two-cycle oil (50:1). Use
branded 89 octane unleaded gasoline or gasohol
(maximum 10% ethyl alcohol, or 15% MTBE,
no methyl alcohol.)

Here’s how to mix the oil with the gas:
1. Pour 1/2 gallon of the gasoline into a safe
one gallon container. Do not mix the fuel
and oil in the engine fuel tank.
2. Add 2.6 ounces (50:1 ratio) of two-cycle
engine oil to the gasoline and mix. Then
add the other 1/2 gallon of gasoline.
3. Screw the cap onto the gasoline can.
Then swirl the can to blend the oil and gas.
4. Carefully pour the fuel mix into the Xtra
Edger’s fuel tank. After putting the fuel
tank’s cap back on, wipe up spilled
fuel from tank and gasoline can.
IMPORTANT:
Two-cycle fuel separates and ages. Do not mix
more than you will use in a month. Using old
fuel can cause difficult starting or engine
damage. Shake fuel container to thoroughly
mix fuel before each use. Do not attempt to run
your engine on gasoline only; this will cause
engine failure and void engine warranty.
Need pre-measured engine oil? Contact your
local authorized Little Wonder dealer.
Remember...
•Always mix two-cycle oil with gasoline
before fueling your edger. Never, ever run
your Edger on gasoline alone. This will ruin
your engine and void all warranties.
•Always use a clean gas can and always use
unleaded gas.
•Never try to mix the oil and gasoline in the
engine fuel tank.
•Always mix oil and gas in the proper
proportions: 2.6 ounces of two-cycle engine
oil to one gallon of unleaded gasoline.
IMPORTANT NOTE:
DO NOT use old or stale oil/gasoline
mixture. Always use the proper
oil/ gasoline mixture. If you do not,
your engine will suffer rapid,
permanent damage and you will
void the engine warranty.
9
WARNING DANGER
Pressure may build up in the canister. Remove fuel cap slowly
to avoid injury from fuel spray. Replace fuel cap securely.
Clean the fuel cap and canister from time to time.
Take care when handling gasoline. Avoid direct
contact with the skin and avoid inhaling fuel vapor.
Change fuel pickup filter at least once every year or more frequently, depending on use.
Before fueling, clean the filler cap and the area around it to ensure that no dirt
falls into the tank. Never mix the gasoline and oil in the fuel tank of the engine.
Always allow engine to cool before refueling. Accidental spillage of gasoline over a hot
engine could cause fire or explosion to occur. See Page 6 - Safety Precautions, Fueling.
Fill or add fuel to the tank only when the edger is in a horizontal position as shown
(Fig. 7). Allow engine to cool down for at least 5 minutes before adding fuel.
▲
!▲
!
FUEL MIX

STARTING AND STOPPING INSTRUCTIONS
1. Place lawn edger on ground in horizontal
position (see Fig. 9C). Be sure the ignition
switch is “ON.” Pull switch toward
operator to turn ON. Switch is located
on right side of trigger (see Fig. 8).
2. COLD START: Move choke lever up to
start (closed) position (Fig. 9A). Press and
release primer 3 or 4 times until the fuel
flows into the clear tube (Fig. 9B). Place
one foot on the cross brace. Make sure you
have a firm footing. Hold down engine
with left hand and with right hand, pull the
starter grip slowly until you feel it engage -
and then give it a fast pull (Fig. 9C).
Do not pull out starter rope more than 26”
(65 cm) - it might break.
3. Stand between handles to start. Do not let
starter grip snap back. Guide it back slowly
so that the starter rope can rewind slowly.
4. PULL THE STARTER ROPE BRISKLY
until you hear the engine sound like it
wants to run or runs then stops (normally
1-5 pulls).
5. Open choke gradually (open position,
Fig. 9A) to allow engine to run.
10
NOTE: In warm temperatures or with hot
engine, this step may not be necessary.
6. HOT OR WARM START: (Engine has
already been started and warmed up.)
Switch ignition “ON.” Pull starter until
engine runs.
WARNING
The blade will rotate when engine is
idling fast or when engine is cold).
TO STOP ENGINE move ignition switch
forward into the “OFF” position (Fig. 8).
▲
!▲
!
FIG 8
FIG 9C
FIG 9A FIG 9B

NOTE: Abuilt-in automatic centrifugal clutch
disengages the blade from rotating at engine
idle speed. The clutch engages the blade when
the engine speed is increased.
7. Throttle trigger (engine accelerator control)
is operated by pushing down interlock with
thumb and pulling on trigger (Fig. 8).
8. FLOODED ENGINE: (Engine will not
start.) If smoke or fuel comes from exhaust
and engine will not start.
i. Check that ignition switch is “ON,”
CHOKE LEVER is on RUN position.
ii. Pull starter rope up to 10 times to clear
engine of fuel so it can start.
iii. If engine has excessive fuel that cannot
be cleared by i and ii above, remove
spark plug from engine and from spark
plug terminal, crank engine to clear
excess fuel, wipe and dry spark plug of
all fuel, re-install spark plug and
terminal, and restart as above.
IMPORTANT: After 1 hour of use, tighten all
screws (especially 9 screws around gear case).
Check after every 20 hours of use.
9. To stop motor, push switch slide on throttle
trigger side forward.
Anti-Vibration (AV) Adjustment
Handle nut can be tightened to mark on knob
to obtain best AV effect to reduce handle
vibrations.
During Break-In Period
Afactory-new machine should not be run at
high revs (full throttle) without any load. This
avoids unnecessary wear during the break-in
period. As all moving parts have to set during
break-in period, frictional resistances in the
engine are greater during this period. Engine
develops its maximum power after about 5 to 15
tank fillings.
After Finishing Work
Storing for a short period: Keep the unit in a
dry place until you need it again. Do not store
where open flame or electrical machinery is
operating.
Storing for a long period: Drain the fuel tank
and run engine until carburetor is dry.
OPERATING INSTRUCTIONS
1. The Xtra Edger is very easy and simple to
use. For some people, it may take a few
edgings to become an expert.
2. Thoroughly inspect the area where the
edger is to be used and remove all stones,
sticks, wires and other foreign objects.
3. Adjust blade height (Fig. 10). With a
new blade, try the second hole closest
to operator.
11
WARNING
Only operate unit when moving forward.
DO NOT operate walking backwards,
as you may trip, fall and injure yourself.
▲
!▲
!
WARNING
TO AVOID PERSONAL INJURY,
NEVER CARRY THE EDGER WHILE
THE ENGINE IS RUNNING.
Stay clear of the rotating blade.
Stop the engine prior to making
adjustments and cleaning.
▲
!▲
!FIG 10

12
FIG 12A
FIG 11
10. Sideways Tilting: Lower either left or right
handle to achieve angle cutting (Fig 12D).
11. Clutch: The Xtra Edger is equipped with
a centrifugal clutch. DO NOT run edger at
low speeds or, if blade is jammed, at high
speeds as clutch shoes will prematurely
wear out and cause damage.
FIG 12B
FIG 12C FIG 12D
4. With both arms fully extended downwards
(see illustration on front cover), hold both
handle grips firmly. With the engine
running, pull the throttle trigger to increase
engine speed.
5. If blade is not deep enough, or if digging
is too deep, adjust blade height or slightly
raise or lower handles to suit depth required
(Fig. 11). However, it is always more
comfortable and relaxed to have arms fully
extended downwards.
6. As cutting action begins, push the lawn
edger forward so that the blade can cut the
edge as you move forward (Fig. 12A).
7. Continue at a moderate pace until you are
familiar with the controls and the handling
of the Xtra Edger.
8. If blade jams or stops in the ground
(Fig. 12B), lower handles or pull back unit
and recommence. Control engine and
cutting speed to suit work being done.
When cutting efficiently, engine speed
should be full throttle under load.
9. Edging along Concrete edge: For position
of blade, align edge guide on top of blade
cover with edge of concrete. If blade hits
concrete, lower handles and re-position
blade at side of concrete. Even with the
grass growing over the concrete and you
cannot see the edge, you can feel the edge
of the concrete with the rotating blade by
slightly sideways tilting the handles of
the edger away from the concrete so that
the blade tilts towards the concrete and
touches or “kisses” the concrete edge and
acts as a guide (Fig 12C). Edger blades are
made from high tensile hardened spring
steel and will last a long time. Once the
edge is established the second and
subsequent times around are very fast
especially when the blade kisses or touches
the concrete edge (Fig 12C).

13
FIG 13
FIG 15
FIG 16
FIG 14
AIR FILTER MAINTENANCE
NOTE: Clean and re-oil the air filter every 5
hours of operation or daily. The air filter is one
of the most important areas to maintain. If it is
not maintained, you will void the warranty.
Before cleaning, make sure the unit is turned off.
1. Wash the two filters in detergent and water
(Fig. 13). Rinse the filter thoroughly and
allow it to dry.
2. Apply enough clean two-cycle oil or
SAE 30 oil to saturate the filters when
squeezed. Squeeze the filters to spread the
oil and to remove excess oil (Fig. 13).
Reinstall the mesh screen and plate screen,
two air filters and air filter cover (Fig 14).
NOTE: If the unit is operated with a dry or
dirty filter or without the air filter and/or
carburetor/air filter cover, you will void
the warranty.
FUEL FILTER
When the engine runs short of fuel supply and
the tank has gasoline in it, clean the fuel filter
for blockage (Fig. 15).
THROTTLE CABLE
The normal play is .040” to .080” when
measured at the carburettor side. Re-adjust with
the cable adjustor as required (Item 1, Fig. 16).
NOTE: Throttle cable wire is not to be pulled
tight (against trigger throttle). Trigger to have
small initial movement before it pulls cable and
carburettor throttle lever.
ENGINE IDLING SPEED
It is normal that the engine keeps running with-
out the blade rotating, when the throttle lever is
released. When the engine speed is too high or
too slow, readjust the idle set screw
(Item 2, Fig. 16).

BLADE REPLACEMENT
1. Stop engine. Clean area around dust cover
and pry out with screwdriver (Fig. 17).
2. Through dust cover hole, place 14 mm
socket. On blade end of shaft, place 18 mm
wrench on blade nut (Fig. 18).
3. Unscrew nut (Key #40) counter-clockwise
(normal right hand thread).
4. Remove one small washer (Key #16), one
large washer (Key #17) and one straight
then one formed blade (Key #10). Before
installing blade and washers, clean all grit
and grease. Assemble these parts clean and
dry. Fit large washer (Key #17), new
blades (Key #10) with flat blade on inside
then overlapping formed blade, large
washer (Key #17), one small washer
(Key #16), and nut (Key #40) (Fig. 19).
Tighten nut.
5. Clean plastic dust cap (Key #72) and
housing (Key #80); press back by gently
tapping into place. Clean inside blade cover of
any built up dirt.
LOOSE BLADE
Follow steps 1 and 2 of Blade Replacement and
tighten nut clockwise.
LUBRICATION OF GEARS
The oil in the gear case should be filled up
according to use by adding light, free-flowing,
lithium-based grease (P/N 100130) through fill
screw hole in casing (Fig. 17). Use a suitable
filling gun or squeeze grease pack (P/N
100130). Remove bleed screw to allow grease
to eject, indicating gear box is 3/4 full. Refit
bleed screw and push in 3-4 more pumps. Refit
fill screw.
WARNING
DO NOT RUN ENGINE WITHOUT
BLADE TIGHTENED TO BLADE SHAFT
AS GEAR DAMAGE WILL OCCUR.
▲
!▲
!
WARNING
USE ONLY LITTLE WONDER
BLADES (P/N 100105). Other blades
have larger size holes (1/2”) which
will cause out-of-balance vibrations
which will damage unit and cause injury.
▲
!▲
!
14
FIG 17
FIG 18
FIG 19
FIT BLADES AT
RIGHT ANGLES.
2 SPIGOTS ON EACH
BLADE FIT INTO HOLES OF OTHER BLADE
FITTING INSTRUCTIONS
40
17
16
10
17

CHECK THE SPARK PLUG
If engine is low on power, difficult to start
or runs poorly at idling speed, check the spark
plug.
•Allow engine to cool down.
•Remove spark plug.
•Clean dirty spark plug.
•Check electrode gap - it should be 0.02”
(0.5 mm) (Fig. 20).
•Rectify faults which have caused fouling of
spark plug. Possible faults include:
-Incorrect carburetor setting.
-Too much oil or wrong type of oil in
fuel mix.
-Old fuel mix.
-Dirty air filter.
-Unfavorable running conditions (e.g.
operating at part load).
Do not clean the spark plug in an abrasive
grit spark plug cleaner, as expensive dam-
age to the engine could occur through loose
grit damaging chrome in cylinder bore.
Fit a new spark plug after approximately 100
operating hours or earlier if electrodes are
badly eroded (recommended type: NGK
BPMR7A or Champion RCJ-6Y).
NOTE: Using spark plugs other than those
designated may result in the engine failing to
operate properly or in the engine becoming
overheated and damaged.
CHECKING EXHAUST MUFFLER
Tighten exhaust screws. If exhaust gasket is
leaking, replace gasket. If the engine is low
on power, check the muffler. Allow motor to
cool down. Remove and scrape out excess
carbon (Fig. 21) on both inlet and exit exhaust
or have this done by a service dealer. Replace
exhaust spark arrestor if worn, broken or
blocked (Fig. 22).
15
0.5mm
0.02”
Resistor Spark
Plug
FIG 20
FIG 22
FIG 21
If debris causes blockage around the
intake air cooling vent or between the
cylinder fins, it may cause the engine to
overheat, and that in turn may cause
mechanical failure on the part of the Xtra
Edger. Remove air deflector to clean.

PROBLEM CAUSE ACTION
Engine will not run. Ignition switch is “OFF”
Empty fuel tank
Primer bulb was not pushed enough times
Engine is flooded
Turn switch “ON.” Push down.
Fill fuel tank.
Press primer bulb fully and slowly
5 times.
Use starting procedure without
using choke. See page 11.
Engine runs rough
or is hard to start.
Carburetor/crankcase/cylinder
gaskets/crankshaft seal leaking
Damaged engine parts
Tighten screws.
Replace gaskets with a sealant and
tighten screws. Replace crankshaft
seal, damaged parts.
Engine lacks power
or stalls when cutting.
Dirty air filter
Blocked muffler
Clean or replace air filter.
Clean muffler
Cutting blade
does not turn
when operating.
Blade cover filled with dirt/grass.
Clutch slipping.
Loose blade nut.
Clean.
Cut less depth. Check clutch.
Tighten nut. See page 14.
Gear case leaking. Loose screws
Broken “O” ring
Tighten.
Replace.
Noisy gears. No heavy oil in gear case.
Loose blade nut or gear adjustment
incorrect.
Refill. See page 14.
Reassemble parts correctly.
TROUBLESHOOTING TIPS
16

NOTES
17

LITTLE WONDER XTRA EDGER PARTS LIST
18
KEY # PART # DESCRIPTION
1100500 Screw M5 x 36mm 2100501 Nut Nyloc 5mm 3100100 Ball Bearing 6203RS 5100101 “O” Ring 6100102 Felt Seal 7100103 Adjusting Arm Spring 9100503 Set Screw 5/16 x 5/8” BSW
10 100105 Cross-blade Set 11 100504 Adjusting Arm Bolt and Pin 12 100106 Blade Cover Support 13 100107 Blade Cover 14 100108 Blade Drum 15 100109 Blade Shaft Drive 16 100506 Blade Washer Small (hardened) 17 100507 Blade Washer Large 18 100110 Crown Gear L/E 20 100111 Crown Gear Spacer 21 100604 Warning Label “Hot Motor” 22 100605 Warning Label “Blade Cover” 25 100607 Warning Label on Left Handle 26 100112 Grass Shield Spring 27 100113 Grass Shield 28 100114 Grass Shield Cover 29 100115 Grass Shield Limiter 30 100116 Grass Rubber Flap 31 100509 Handle Bolt 5/16 x 6” Cup Head
KEY # PART # DESCRIPTION
32 100117 Handle AV Rubber 33 100118 Handle End Plug (small) 34 100119 Main Body Shield 35 100120 Main Handle LH (Pro) 36 100121 Main Handle RH (Pro) 37 100510 Nut 5/16 Nyloc 39 100512 Nut Nyloc 3/8 40 100513 Nut 12mm x 1.75 41 100514 Pinion Washer .020” 42 100122 Pinion L/E 43 100515 Screw M5 x 39 Short/thread 44 100516 Spring Pin 3/16 x 11/16 45 100517 Screw M5 x 38 47 100519 Screw M5 x 16 49 100521 Screw Self Threading M5 x 20 50 100123 Throttle Trigger Assembly 51 100522 Washer Blade Cover 52 100124 Wheel Complete 53 100523 Wheel Axle Bolt 3/8 x 4 1/2 54 100125 Wheel Axle Spacer 49mm Z/P 55 100126 Wheel Axle Tube 39mm 56 100127 Wheel Support Arm 57 100524 Wheel Support Axle Bolt 3/8 x 2.5” 58 100128 Height Adjust Shaft Spacer 35mm 59 100525 Washer 3/8 x 20mm 60 100129 Throttle Wire Clamp
KEY # PART # DESCRIPTION
61 100130 Grease & Dispenser 62 100700 Pro Operators Manual 67 100132 Pro Clutch Drum 68 100133 Pro Handle Cross Brace 69 100134 Pro Clutch Cover 71 100136 Pro Height Adjust Handle 72 100137 Pro Dust Plug 73 100138 Cable Tube 74 100526 Screw 25mm x 6 75 100527 Washer 76 100139 Main Drive Shaft 78 100141 Handle Grip 79 100142 Switch Wire Pro 80 100143 Pro Main Body 81 100144 Pro Main Body Cover 82 100145 Handle AV Rubber Plate 83 100900 Pro G34L Motor 84 100146 Throttle Cable 85 100147 Knob Assembly 86 100148 Debris Deflector Assembly 87 100149 Engine Air Deflector 88 100528 Spacer 89 100150 Muffler Shield Plug 90 100603 Shaft Label 91 100602 Recoil Label

19
LITTLE WONDER XTRA EDGER PARTS BREAKDOWN

20
