Ametek DR5200 Wiring diagram

Radar (FMCW) Level Transmitter for liquids in storage
and process applications
Safety manual
Safety manualSafety manual
Safety manual
DR5200
DR5200DR5200
DR5200
Supplementary Instructions
Supplementary InstructionsSupplementary Instructions
Supplementary Instructions
© AMETEK Drexelbrook - DR5200-LM SIL2 Issue 2

CONTENTS
2
www.drexelbrook.comDR5200-LM SIL2 Issue 2
DR5200
1 Introduction 4
1.1 Scope of the document..................................................................................................... 4
1.2 Revision history ................................................................................................................ 4
1.3 Device description ............................................................................................................ 5
1.4 Related documentation .................................................................................................... 5
1.5 Terms and definitions....................................................................................................... 6
2 System description 7
2.1 Peripheral equipment ...................................................................................................... 7
2.2 Software for use with the device...................................................................................... 7
3 Installation 8
4 Electrical connection 9
5 Start-up 10
5.1 General notes ................................................................................................................. 10
5.2 Device parameters ......................................................................................................... 10
6 Specification of safety function 11
6.1 Preliminary requirements.............................................................................................. 11
6.2 Definition of the safety function ..................................................................................... 11
6.2.1 General notes........................................................................................................................ 11
6.2.2 Limits of application.............................................................................................................. 11
6.2.3 Safety function characteristics ............................................................................................. 12
7 Operation 13
7.1 Conditions of use ............................................................................................................ 13
7.2 Failure state ................................................................................................................... 13
7.3 Operation mode .............................................................................................................. 14
7.4 Error conditions.............................................................................................................. 15
7.5 User parameters ............................................................................................................16
7.5.1 Limits for supervisor menu functions related to antenna configuration ............................ 16
7.5.2 Limits for supervisor menu functions related to device configuration ............................... 17
8 Service 20
8.1 Periodic maintenance..................................................................................................... 20
8.2 Keep the device clean..................................................................................................... 20
8.3 Availability of services .................................................................................................... 20
8.4 Proof tests ...................................................................................................................... 20

CONTENTS
3
www.drexelbrook.co DR5200-LM SIL2 Issue 2
DR5200
8.5 Calibration procedure .................................................................................................... 23
8.5.1 General notes........................................................................................................................ 23
8.5.2 Current output check............................................................................................................ 24
8.5.3 Measuring range check (in process conditions) .................................................................. 25
8.6 Troubleshooting.............................................................................................................. 26
8.7 Returning the device to the manufacturer..................................................................... 26
8.7.1 General information.............................................................................................................. 26
8.7.2 Form (for copying) to accompany a returned device............................................................ 27
9 Technical data 28
9.1 General notes ................................................................................................................. 28
9.2 Assumptions ................................................................................................................... 28
9.3 Characteristics for the device safety function ............................................................... 29
9.4 SIL-specific technical data ............................................................................................. 29
9.5 Support for SIL-approved devices.................................................................................. 31
10 Appendix 32
10.1 Start-up report ............................................................................................................. 32
10.2 Proof test report form (for copying) ............................................................................. 33
11 Notes 34

INTRODUCTION 1
4
DR5200
www.drexelbrook.comDR5200-LM SIL2 Issue 2
1.1 Scope of the document
This document supplies functional safety data about the device. This data agrees with the
IEC 61508 standard.
1.2 Revision history
WARNING!
The data in this supplement only contains the data applicable to the SIL approval. The technical
data for the standard version in the handbook (document [N1]) shall be valid in its current
version, provided that it is not rendered invalid or replaced by this supplement.
INFORMATION!
Installation, commissioning and maintenance may only be carried out by approved personnel.
Issue Date Description
1April 28, 2015 First issue.
2November 27, 2018 Firmware version (converter) changes from 1.00.10 to 1.00.11.
Firmware version (sensor) changes from 1.00.15 to 1.00.16.

1 INTRODUCTION
5
DR5200
www.drexelbrook.com DR5200-LM SIL2 Issue 2
1.3 Device description
This device is a 2-wire level transmitter that uses FMCW (Frequency Modulated Continuous
Wave) / Radar technology. Radar is a non-contact technology. It measures the distance, level,
mass, volume, flow rate and reflection of liquids, pastes and slurries. It is particularly suitable
for the level measurement of corrosive and viscous products.
Measurements are given through a 4...20 mA current output and can be displayed via a DTM
(device type manager) for remote communication or an integrated display screen with wizard-
driven set-up and online help functions. Only the 4...20 mA current output is used as the safety
function.
When the device detects a measurement error, it supplies an output current less than 3.6 mA.
Although the device can be set to a high error value (≥21 mA), some hardware failures can cause
the device to give a low error value (≤3.6 mA). For more data, refer to
Limits for supervisor
menu functions related to device configuration
on page 17 (2.4.2 RANGE I).
Refer also to "Device description" in the handbook (document [N1]).
1.4 Related documentation
INFORMATION!
The manufacturer designed and developed the device for safety integrity level (SIL) 2.
Data for the SIL approval is not taken from field experience (i.e. it is not
“ proven in use ” ) because
this method can give unrealistic data if assumptions are too optimistic.
[N1] DR5200 Handbook
[N2] IEC 61508-1 to 7:2010 Functional safety of electrical / electronic / programmable
electronic safety-related systems
[N3] NAMUR Recommendation NE 043 Standardization of the Signal Level for the Failure
Information of Digital Transmitters
[N4] NAMUR Recommendation NE 053 Software of Field Devices and Signal Processing
Devices with Digital Electronics
[N5] DR5200 Supplementary Instructions for ATEX applications

INTRODUCTION 1
6
DR5200
www.drexelbrook.comDR5200-LM SIL2 Issue 2
1.5 Terms and definitions
DC
D
Diagnostic Coverage of dangerous failures
Firmware Software embedded in the device.
FIT Failure In Time (1×10
-9
failures per hour)
FMCW Frequency-Modulated Continuous-Wave. The measuring principle. For more
data, refer to “Technical Data”in the handbook (document [N1]).
FMEDA Failure Modes, Effects and Diagnostics Analysis
HFT Hardware Fault Tolerance
High demand or
continuous mode Where the frequency of demands for operation made on a safety-related system is greater than one time per year
I/O Input / output
λ
DD
Rate for dangerous detected failure
λ
DU
Rate for dangerous undetected failure
λ
SD
Rate for safe detected failure
λ
SU
Rate for safe undetected failure
Low demand mode Where the frequency of demands for operation made on a safety-related system
is no greater than one time per year
MTBF Mean Time Between Failures
MTTF Mean Time To Failure
MTTR Mean Time To Recovery
PFD
AVG
Average Probability of Failure on Demand
PFH Probability of a dangerous Failure per Hour
Process safety time The time interval between a potentially dangerous failure and an error value
from the current output.
SFF Safe Failure Fraction
SIL Safety Integrity Level
SIS Safety Instrumented System
TBF Tank bottom following. A device measurement mode. For more data, refer to
“Technical Data”in the handbook (document [N1]).
Type A system "Non-complex" system (all failure modes are well defined). For more data, refer
to subsection 7.4.3.1.2 of IEC 61508-2.
Type B system "Complex" system (all failure modes are not well defined). For more data, refer
to subsection 7.4.3.1.2 of IEC 61508-2.
T[Proof] Proof Test Interval
T[Repair] Time to Repair
T[Test] Internal Diagnostics Test Interval
1oo1 1 out of 1 channel architecture (single architecture performs the safety function)
1oo1D 1 out of 1 channel architecture with diagnostics

2 SYSTEM DESCRIPTION
7
DR5200
www.drexelbrook.com DR5200-LM SIL2 Issue 2
2.1 Peripheral equipment
You can use the device with the equipment that follows:
•A logic solver that can read 4...20 mA current input and low error alarm signals
•A PC or workstation (this is used only to change parameters)
•A HART
®
Handheld Controller (this is used only to change parameters)
For more data, refer to "Start-up" in the handbook (document [N1]).
2.2 Software for use with the device
You can change device parameters with the software that follows:
•PACTware™
•AMS™Device Manager
For more data, refer to "Start-up" in the handbook (document [N1]).

INSTALLATION 3
8
DR5200
www.drexelbrook.comDR5200-LM SIL2 Issue 2
Calibrate the device to make sure that the safety function operates correctly if:
•the device was delivered without an antenna, or
•the device is delivered with an antenna extension, antenna types for stilling wells (DN80,
DN100, DN150 and DN200 Metallic Horn antennas) or the Wave-Guide antenna
This maintenance task must be done and recorded by approved personnel. For more data, refer
to
Calibration procedure on page 23.
For more data, refer to "Installation" in the handbook (document [N1]).
WARNING!
If the device is to agree with the requirements for functional safety given in IEC 61508, you must
obey the installation instructions given in the handbook (document [N1]). The device must be
installed by approved personnel.
If the device is delivered with an antenna extension, antennas for stilling wells (DN80, DN100,
DN150 and DN200 Metallic Horn antennas) or the Wave Guide antenna, refer to the "Installation"
and "Operation" chapters in the handbook. Make sure that the values for menu items 2.3.5
STILLWELL D., 2.3.6 STILLWELL H. and 2.3.7 ANTENNA.EXT are correct.

4 ELECTRICAL CONNECTION
9
DR5200
www.drexelbrook.com DR5200-LM SIL2 Issue 2
For more data, refer to “Electrical connection”in the handbook (document [N1]).
DANGER!
If the device is for use in potentially explosive atmospheres, you must obey the electrical
connection instructions given in the supplementary instructions for ATEX applications
(document [N5]). We recommend that you use a galvanically-isolated power supply.
WARNING!
If the device is to agree with the requirements for functional safety given in IEC 61508, you must
obey the electrical connection instructions given in the handbook (document [N1]). The device
must be installed by approved personnel.

START-UP 5
10
DR5200
www.drexelbrook.comDR5200-LM SIL2 Issue 2
5.1 General notes
Do a check of the device and tank before you energize the device:
•Are all the wetted components (antenna, flange and gaskets) resistant to the product in the
tank?
•Does the information on the signal converter nameplate agree with the operating data? Does
the order code on the nameplate show the SIL option (DR5200xxx1xxxxxx or
DR5200xxx5xxxxxx)?
•Are the process temperature and pressure in the limits for operation of the device?
•Did you correctly install the device on the tank?
•Do the electrical connections agree with the national electrical codes?
Complete the start-up report on page 32.
The manufacturer offers a range of services to support the customer. These services include
repair, maintenance, technical support and training.
5.2 Device parameters
For more data about device configuration, refer to the "Start-up" and "Operation" chapters in the
handbook (document [N1]). Also refer to
User parameters on page 16.
DANGER!
Make sure that the device and the installation agree with the requirements of the Ex certificate
of compliance. For more data, refer to the supplementary instructions for Ex approvals.
DANGER!
Before you energize the device, make sure that the polarity and the supply voltage are correct.
WARNING!
If the device was delivered without an antenna, then do a device calibration to make sure that the
safety function operates correctly. For more data about the procedure, refer to Calibration
procedure on page 23
.
WARNING!
The device agrees with the data given in the customer order. If you change the configuration of
the device after its delivery, the manufacturer does not accept responsibility for the incorrect
configuration of the SIL-approved version of the device. Use device parameters that are
applicable to the application, because conditions at the plant can have an effect on the functional
safety of the measuring system.

6 SPECIFICATION OF SAFETY FUNCTION
11
DR5200
www.drexelbrook.com DR5200-LM SIL2 Issue 2
6.1 Preliminary requirements
6.2 Definition of the safety function
6.2.1 General notes
The device contains a safety function that agrees with the international standard IEC 61508
(document [N2]). This safety function operates if there is a large difference between the level
measurement and the level shown as a current output.
If the device finds that there is a difference of more than 2.5%of the 4...20 mA range between the
level measurement and the level shown as a current output, then the current output changes to
an error signal in less than 30 seconds. The safety integrity level of this safety function is SIL2.
6.2.2 Limits of application
This version of the device has the restrictions that follow:
•Distance is measured in Direct mode
Direct modeDirect mode
Direct mode (only one product in the tank is permitted).
•Only the compact version (the signal converter is attached directly to the antenna) can be
used.
•It is a 2-wire loop-powered device.
•HART®communication is not permitted when you use the safety function.
•The process safety time must be more than 33 minutes. This minimum time agrees with
International Standard IEC 61508 Part 2 (document [N2]), section 7.4.4.1.4.
•Use DN80 and DN100 Metallic Horn antenna only in stilling wells as specified in the handbook
(document [N1]).
For more data, refer to
SIL-specific technical data on page 29.
WARNING!
The data in this supplement only contains the data applicable to the SIL approval. The technical
data for the standard version in the handbook (document [N1]) shall be valid in its current
version, provided that it is not rendered invalid or replaced by this supplement.
INFORMATION!
If menu item 2.4.5 ERROR DELAY = 0 s, then the current output changes to an error signal in less
than 30 seconds. If menu item 2.4.5 ERROR DELAY is more than 0 seconds, then the current
output changes to an error signal in 30 seconds + 2.4.5 ERROR DELAY.
After the device finds an error, it will try to measure the level of the product again. If the device
can measure the level, the error signal will change to the measurement signal. If the device
continues to have the same problem, the output current will change to the error signal. If, after
30 seconds, the output current is not 3.6 mA then the error is recorded as a "dangerous
undetected failure" in the FMEDA analysis. If, after 30 seconds, the output current is 3.6 mA then
the error is recorded as a "dangerous detected failure" in the FMEDA analysis.

SPECIFICATION OF SAFETY FUNCTION 6
12
DR5200
www.drexelbrook.comDR5200-LM SIL2 Issue 2
6.2.3 Safety function characteristics
The safety function uses only a 4...20 mA analog output signal to measure the level and give the
device status. The analog output signal has an accuracy of ±2.5% of the 4...20 mA range.
For more data about the top dead zone, refer to the"Operation" and "Technical Data" chapters in
the handbook (document [N1]).
If the device finds a fault:
If a logic solver is used, it must use low error alarm signals (current input ≤3.6 mA) to set itself
to a fail-safe condition.
WARNING!
The device must have the applicable options and settings for the application. The ambient and
process conditions must agree with the technical data given in the handbook (document [N1])
and this document (safety manual). You must obey the installation instructions given in the
handbook (document [N1]).
CAUTION!
We recommend that the 4 and 20 mA limits of the measuring range are not in the top dead zone
(100 mm / 3.9
¨ below the antenna).
The shape of the tank bottom can have a large effect on the accuracy when the tank is almost
empty. We recommend that device is not used to measure the liquid when it is less than 300 mm
from the bottom of the tank.
Function input
Function inputFunction input
Function input None
Function output
Function outputFunction output
Function output 4…20 mA
Error signal
Error signalError signal
Error signal ≤3.6 mA

7 OPERATION
13
DR5200
www.drexelbrook.com DR5200-LM SIL2 Issue 2
7.1 Conditions of use
The configuration is protected with a password. For more data on password protection and
device configuration, refer to the “Operation”chapter in the handbook (document [N1]).
7.2 Failure state
For any type of safe or dangerous detected failure, the device sets the current output to less than
3.6 mA. Although this value can also be set to a high error value (≥21 mA), some hardware
failures will always cause the device to give a low error value (≤3.6 mA). Thus, the output signal
for the fail-safe condition is less than 3.6 mA. For more data, refer to
Limits for supervisor menu
functions related to device configuration
on page 17 (2.4.2 RANGE I).
WARNING!
Only approved personnel can change device settings. Keep a report of changes to the device
settings. These reports must include the date, the menu item (e.g. 2.3.1 TANK HEIGHT), the old
parameter and the new parameter.

OPERATION 7
14
DR5200
www.drexelbrook.comDR5200-LM SIL2 Issue 2
7.3 Operation mode
In operational conditions, the device continuously measures the distance between the tank
connecting flange face / thread stop and the surface of the product.

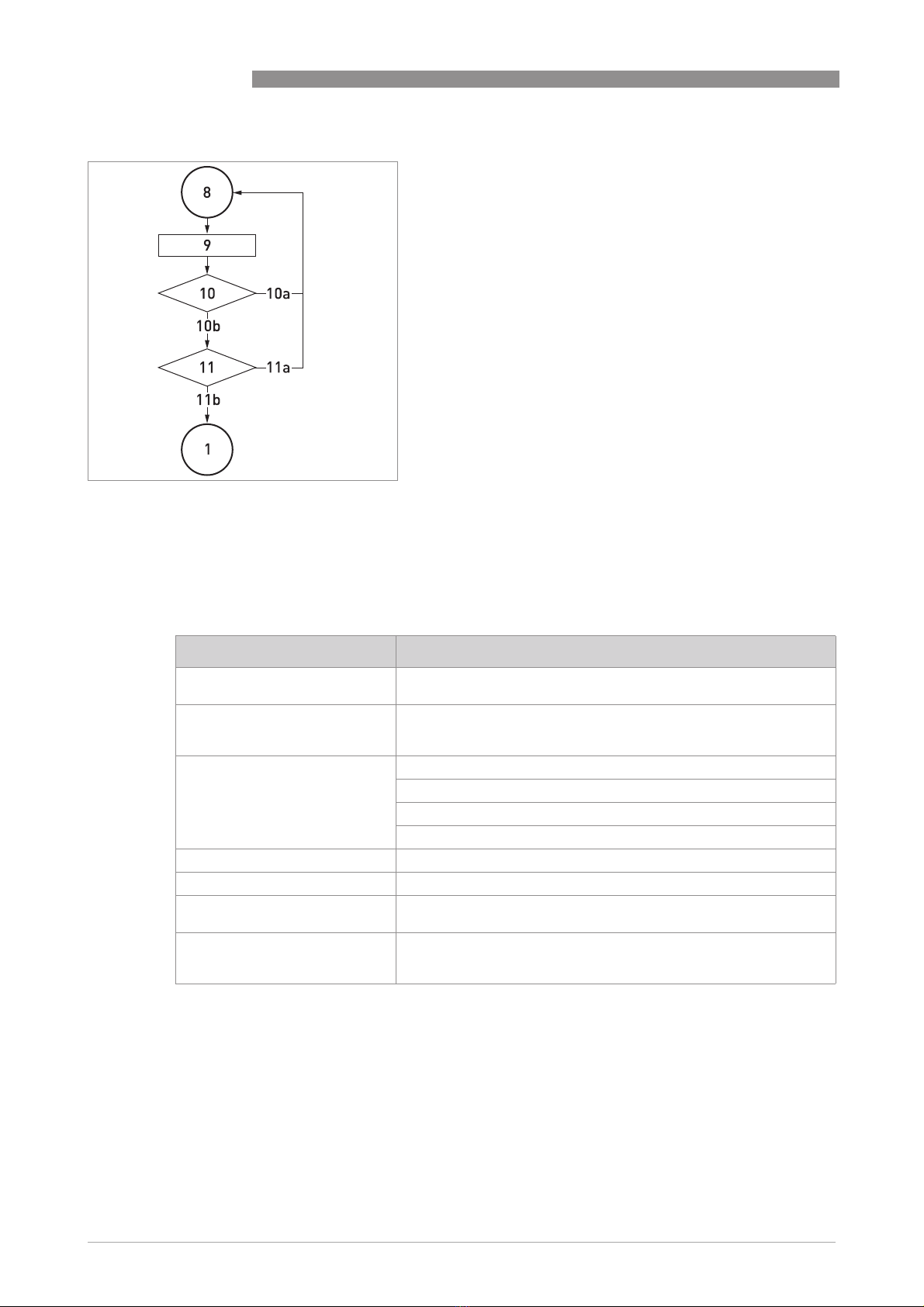

The operation mode of the device is shown in the flow chart that follows:
1 Initial state (start the device / new measurement)
2 Make sure that sufficient energy is available
3 Is there sufficient energy?
3a No. There is not sufficient energy.
3b Yes. There is sufficient energy.
4 The device does an auto-diagnostic check at
intervals of 24 hours
5 Is there an error condition?
5a Yes. There is an error condition.
5b No. There is not an error condition.
6 Distance measurement
7 Is a correct measurement available?
7a No. A correct measurement is not available.
7b Yes. A correct measurement is available.
8 Error mode state
9 Current output (distance value or a derived
measurement value)
10 Is the parameter set for the current output
correct?
10a No. The parameter set for the current output is
incorrect.
10b Yes. The parameter set for the current output is
correct.

7 OPERATION
15
DR5200
www.drexelbrook.com DR5200-LM SIL2 Issue 2
7.4 Error conditions
The device can sense the error conditions in the table that follows. When the device detects a
measurement error, it supplies an output current at the error signal current value.
For more data, refer to the "Status and error messages" section in the handbook (document
[N1]).
8 Error mode state
9 Current output (error value)
10 Is the parameter set for the current output
correct?
10a No. The parameter set for the current output is
incorrect.
10b Yes. The parameter set for the current output is
correct.
11 Is a new correct measurement available?
11a No. A correct measurement is not available.
11b Yes. A correct measurement is available.
1 Initial state (new measurement)
Error condition Cause
Device does not start
immediately This error occurs if more than 20 seconds are necessary to start the device.
The current output is incorrectly
calibrated Do a current output check. For the procedure, refer to
Current output
check on page 24. If the values do not agree with the tolerances given
in the procedure, speak to the supplier.
Component hardware errors Memory failure
Voltage failure
No signal
Microwave failure
Ambient temperature is too high The ambient temperature is more than +80°C / +176°F.
Ambient temperature is too low The ambient temperature is less than -40°C/-40°F.
Incorrect measurement signal
(e.g. level lost) The signal peak is not found within the measuring window that filters the signals received by the antenna. The measurement is not correct.
Overfill The level is in the blocking distance. If menu item 2.5.3 OVERFILL EN.
is set to "YES", there is a risk that the product will overflow and cover
the antenna.

OPERATION 7
16
DR5200
www.drexelbrook.comDR5200-LM SIL2 Issue 2
7.5 User parameters
7.5.1 Limits for supervisor menu functions related to antenna configuration
INFORMATION!
If you change a parameter in one or more of the menu items that follow, this will have an effect
on the safety function.
WARNING!
If the device was delivered without an antenna, then calibrate the device to make sure that the
safety function operates correctly. For more data, refer to Calibration procedure on page 23
.
CAUTION!
This section gives data on the modification of a small number of parameters in the 2.0.0
SUPERVISOR menu. If it is necessary to change parameters in the 3.0.0 SERVICE menu or the
4.0.0 MASTER menu, contact your supplier.
If you change the values of one or more of the parameters given in the "User parameters"
section, this can have an unwanted effect on the safety function. Do a check of the safety function
after you change a parameter.
INFORMATION!
Safety function check
Safety function checkSafety function check
Safety function check
Make sure that the 4...20 mA measurement range is correctly calibrated.
LEGAL NOTICE!
The manufacturer declines all responsibility for the correct operation of the safety function if
these parameters in the 3.0.0 SERVICE or 4.0.0 MASTER menus are changed by the customer.
Menu
No.
Function Function description Selection list Default value
and comments
2.3.4 STILLWELL EN. If this menu item is set to
"YES", then you must give the
stilling well height and inner
diameter in menu items 2.3.5
STILLWELL D. and 2.3.6
STILLWELL H..
YES, NO NO
2.3.5 STILLWELL D. The inner diameter of the
stilling well. If the device is
installed in a stilling well or
has a Wave-Guide antenna,
enter the diameter. The
device will use this data if you
set 2.3.4 STILLWELL EN. to
"YES". This menu item is not
shown if you set 2.3.4
STILLWELL EN. to "NO".
min-max:
22...999 mm / 0.9...39.3¨
1
2.3.6 STILLWELL H. The height of the stilling well.
If the device is installed in a
stilling well or has a Wave-
Guide antenna, enter the
height. The device will use
this data if you set 2.3.4
STILLWELL EN. to "YES". This
menu item is not shown if you
set 2.3.4 STILLWELL EN. to
"NO".
min:
500 mm / 19.7¨
max:
2.3.1 TANK HEIGHT
1

7 OPERATION
17
DR5200
www.drexelbrook.com DR5200-LM SIL2 Issue 2
7.5.2 Limits for supervisor menu functions related to device configuration
2.3.7 ANTENNA.EXT Optional antenna
extensions.These are
attached between the flange
and the antenna.
min: 0 mm / 0¨
max: 2000 mm / 78.7¨or
2.3.1 TANK HEIGHT
1
2.3.8 ANTENNA.TYP Type of antenna. For more
data, refer to the "Technical
data" chapter in the
handbook.
PP Horn, PTFE Horn,
Metal. Horn, Wave
Stick, Wave Guide
1
2.3.9 DIST.PIECE Optional distance piece
between the converter and
the process connection. This
is for high-temperature
applications more than
+150°C / +302°F. The distance
piece is 120 mm / 4.7¨long.
For more data, refer to the
"Technical data" chapter in
the handbook.
min:
0mm/0¨
max:
2.3.1 TANK HEIGHT
1
1This value is given in the customer order data
Menu
No.
Function Function description Selection list Default value
and comments
CAUTION!
• 2.6.1 ADDRESS is set to "0". If it is not set to "0", the safety function will not operate correctly.
• 2.4.2 RANGE I is set to "4-20 / 3.6E" or "3.8-20.5 / 3.6E". If the error signal is set to "22 mA" or
"Hold", the safety function will not operate correctly.
• 2.5.4 MEASUR.MODE is set to "Direct". If the error signal is set to "TBF Partial" or "TBF Full",
the safety function will not operate correctly.
• 2.2.1 SET OUTPUT is not shown on the device display or in PACTware ™ . If SET OUTPUT is
shown, the output will change to the set test value, independent of the measured value. The
current output will go back to the measured value when the user makes the display or
PACTware
™ go back to the menu level.
Menu
No.
Function Function description Selection list Default value and
comments
2.3.1 TANK HEIGHT The distance from the tank
connecting flange face /
thread stop down to the tank
bottom.
min-max:
1…30 m /
3.3…98.4 ft
Default value agrees
with the customer
order
2.4.1 OUTPUT FUNC. The output function. Select an
output function to scale the
current values in relation to a
given point (usually the device
process connection or the
tank bottom). The output
current value is shown on a
bar graph in normal mode if
the measurement name is the
same as the output function.
Conversion parameters are
shown if there is volume or
mass data in 2.8.1 INPUT
TABLE.
Distance, Level,
Distance
conversion, Level
conversion
Default value agrees
with the customer
order

OPERATION 7
18
DR5200
www.drexelbrook.comDR5200-LM SIL2 Issue 2
2.4.2 RANGE I This parameter sets the
range of the output current
with (3.8...20.5 mA) or without
(4...20 mA) over-run values. It
also tells the device what to
do if an error occurs. For
example, the device will
change to an error value of
3.6 mA if you set RANGE I to
"3.8-20.5/3.6E".
4-20, 4-20 / 22E,
4-20 / 3.6E,
3.8-20.5 / 22E,
3.8-20.5 / 3.6E
3.8-20.5 / 3.6E 1
2.4.3 SCALE 4mA This gives a measurement
value to 4 mA. min-max: 2 Default value agrees with the customer
order
2.4.4 SCALE 20mA This gives a measurement
value to 20 mA. min-max: 2 Default value agrees with the customer
order
2.4.5 ERROR DELAY The time after which the
current output changes to an
error value. The error value
shows that there is a
measurement error.
MN=minutes and S=seconds.
0 S, 10 S, 20 S, 30 S,
1MN,2MN,
5MN,15MN
0S3
2.5.4 MEASUR.MODE The device uses the dielectric
constant (ε
r
) of the tank
contents to monitor level. In
direct mode (if the dielectric
constant is high), the level
signal is a reflection on the
surface of the tank contents.
If the dielectric constant is
low, the device uses TBF
mode. The device in TBF
mode uses the radar
reflection on the bottom of
the tank (the signal goes
through the tank contents).
The tank must have a flat
bottom for the device to
operate correctly in TBF
mode. This menu item is set
by default to "Direct" for tank
contents with an ε
r
>1.8. If ε
r
is very low (<1.6), use "TBF
Full". If ε
r
is low (ε
r
=
1.5...1.7), use "TBF Partial"
mode. "TBF Partial" is an
automatic mode that lets the
device make a selection
between "Direct mode and
"TBF" mode. If you use "TBF
Full" or "TBF Partial", enter
the dielectric constant in
menu item 2.5.3 Er
PRODUCT.
Direct, TBF Partial,
TBF Full Direct Do not change.
Do not change.Do not change.
Do not change.
Menu
No.
Function Function description Selection list Default value and
comments

7 OPERATION
19
DR5200
www.drexelbrook.com DR5200-LM SIL2 Issue 2
2.5.5 OVERF. ENAB. If this function is in operation,
the device will monitor the
level even if it is in the
blocking distance. The
reading shown on the display
stays fixed at the blocking
distance if the level is higher
than the blocking distance.
The output will show that the
tank is full. An error is
recorded by default.
If this function is not in
operation, the device looks
for the largest signal between
the process connection and
the tank bottom.
YES, NO NO 4
2.5.6 MULT.REF.EN. Multiple reflections will cause
the device to display smaller
level readings. Objects in the
tank, sharp corners,
installation of the device on a
large nozzle or at the centre
of a dome roof, and low
dielectric products (ε
r
=
1.8...5) can cause multiple
reflections. A very calm
surface or a tank with a small
convex or flat roof can also
cause multiple reflections.
If this function is in operation,
the device looks for the first
signal peak below the
process connection. This
signal peak is then used to
measure the level of the tank
contents. If this function is not
in operation, the device looks
for the largest signal below
the process connection.
YES, NO NO
2.5.7 EMP.SPEC.EN. The supervisor can start or
stop the empty spectrum
filter.
YES, NO NO
2.6.1 ADDRESS Any HART®address more
than 0 will activate HART®
multidrop mode.
Multidrop mode is not
Multidrop mode is notMultidrop mode is not
Multidrop mode is not
permitted for SIL-approved
permitted for SIL-approvedpermitted for SIL-approved
permitted for SIL-approved
devices.
devices.devices.
devices.
min-max:
0…63 0. Do not change.
Do not change.Do not change.
Do not change.
2.8.1 INPUT TAB. The device uses the
conversion table to convert
distance or level
measurements to volume and
mass readings. The readings
are shown in normal mode.
min-max:
0…30 conversion
pairs
0
1Use only "4-20 / 3.6E" or "3.8-20.5 / 3.6E"
2Units and range depend on the output function, length unit and volume unit selected
3If the safety function must immediately give a result, we recommend that you do not change this value
4This menu item does a continuous check for radar reflections between the blocking distance (value set in menu item
2.3.2) and the flange. But condensation or other sources of parasitic signals can cause an "overfill" error. If you set this
menu item to "YES", make sure that there are no sources of parasitic signals near to the flange.
Menu
No.
Function Function description Selection list Default value and
comments

SERVICE 8
20
DR5200
www.drexelbrook.comDR5200-LM SIL2 Issue 2
8.1 Periodic maintenance
You must obey the maintenance instructions given in the handbook (document [N1]).
8.2 Keep the device clean
For more data, refer to “Service”in the handbook (document [N1]).
8.3 Availability of services
The manufacturer offers a range of services to support the customer after expiration of the
warranty. These include repair, maintenance, technical support and training.
8.4 Proof tests
It is necessary to do proof tests to make sure that the safety function is applicable to the full
measuring range.
•The device settings must be correct. If a parameter is incorrect, the device will not measure
correctly.
•The electronic components must not be defective.
•The software programs (firmware etc.) must operate correctly.
•The antenna must correctly transmit and receive the measurement signal. Parasitic signals
must not have an effect on the performance of the device.
We recommend that you do a proof test immediately after you install and start the device.
Prepare the device for the proof tests. Do a check of the device parameters.
INFORMATION!
For more precise information, please contact your local sales office.
WARNING!
SIS engineers must calculate the interval of proof tests. The minimum time between proof tests
must be less than 5 years, but the interval between proof tests must also agree with the safety
system used on site.
CAUTION!
• Proof tests done by the customer must be equivalent or more difficult than the tests given in
this section.
• Keep a report of each proof test. These reports must include the date, the tests results
(performance of the safety function or faults found), a list of approved personnel who did the
test and the report revision number. These reports must be put into storage and made easily
available. A proof test report form (for copying) is available on page 33
.
•
The location of the device and how it is installed on the tank can have an effect on the
performance. Make sure that you obey the installation instructions given in the handbook.
