SpeedCheck®
SERIAL TO ETHERNET CONVERTER INSTALL GUIDE
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com
For the SPEEDCHECK-15/18 radar speed signs
87883_INSTALL-GUIDE_SPEEDCHECK-15-Serial-to-Ethernet_RevF

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 2
SERIAL TO ETHERNET INSTALL GUIDE
TABLE OF CONTENTS
Table of Contents
1.0 Warnings and Precautions ................................................................................................................................3
1.1 Warranty Disclaimer ...................................................................................................................................3
1.2 Standards ...................................................................................................................................................3
1.3 Safety and Usage Precautions ...................................................................................................................3
2.0 Overview..............................................................................................................................................................5
3.0 Installation...........................................................................................................................................................5
3.1 SPEEDCHECK-15 Installation ...................................................................................................................6
3.2 SPEEDCHECK-18 Installation ...................................................................................................................9
4.0 Converter Configuration ................................................................................................................................. 11
4.1 Static IP Address ..................................................................................................................................... 13
4.2 Dynamic IP Address ................................................................................................................................ 14
5.0 SpeedCheck Manager Configuration............................................................................................................. 15

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 3
SERIAL TO ETHERNET INSTALL GUIDE
1.0 WARNINGS AND PRECAUTIONS
1.0 Warnings and Precautions
The following symbols indicate important safety warnings and precautions throughout this guide:
WARNING indicates that serious bodily harm or death may result from failure to adhere to the
precautions.
CAUTION indicates that damage to equipment may result if the instructions are not followed.
NOTE suggests optimal conditions and provides additional information.
1.1 Warranty Disclaimer
This guide will familiarize you with the installation of Carmanah's SpeedCheck Serial to Ethernet Converter for
SPEEDCHECK-15/18. Failure to comply with the use, storage, maintenance, installation or placement instructions
detailed in this guide could void the warranty.
1.2 Standards
Perform all installation, wiring, grounding and maintenance in conformance with local building and electrical
codes. Adherence to the National Electrical Code (NEC) is mandatory to comply with any certification markings.
Non-adherence to code may void the warranty.
1.3 Safety and Usage Precautions
Use extreme caution when handling the batteries as they can generate hazardous short-circuit
currents. Remove all jewelry (bracelets, metal-strap watches, etc.) before handling the batteries.
Solar panels produce DC electricity when exposed to light and can therefore produce an
electrical shock or burn. To render solar panels inoperative, remove them from sunlight or fully
cover their front surface with an opaque material.
Before lifting any heavy or bulky equipment, ensure the load is secured so moving parts do not
shift, and that it can be lifted as far as needed without back strain or loss of grip. Installation may
require more than one person.
Ensure the equipment is not powered during installation and wiring of the system.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 4
SERIAL TO ETHERNET INSTALL GUIDE
1.0 WARNINGS AND PRECAUTIONS
Recheck all completed wiring for proper polarity prior to energizing the system.
Changes or modifications to Carmanah equipment not expressly approved by Carmanah could
void both the user's authority to operate the equipment and the warranty.
This install guide is specific to the SpeedCheck Serial to Ethernet Converter and is not a
replacement for the complete SPEEDCHECK-15/18 product user manual.
Visit support.carmanah.com to download the complete product user manual.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 5
SERIAL TO ETHERNET INSTALL GUIDE
2.0 OVERVIEW
2.0 Overview
The serial to Ethernet converter option for Carmanah’s SPEEDCHECK-15/18 radar speed signs allows signs to
be configured remotely over an established network using Carmanah’s SpeedCheck Manager software. When the
serial to Ethernet converter option is ordered with a SPEEDCHECK-15/18 sign, the converter comes pre-installed
in the sign. A standard Ethernet cable (not included) is required to connect the converter to your network and to a
PC during configuration.
The converter requires specific configuration to function on your network. See Section 4for more details.
3.0 Installation
Before starting this procedure, refer to the SPEEDCHECK-15/18 product user manual as needed at
support.carmanah.com.
The images in this guide may differ from your SpeedCheck radar speed sign. They are for illustrative
purposes only.
ENSURE DEVICE IS COMPLETELY POWERED OFF SO THERE IS NO DANGER OF
ELECTRICAL SHOCK OR RISK OF DAMAGING EQUIPMENT.
This section assumes your system has been fully assembled and installed already. If this is not the case, certain
steps may be skipped that are not necessary. Your system may look different than illustrated below.

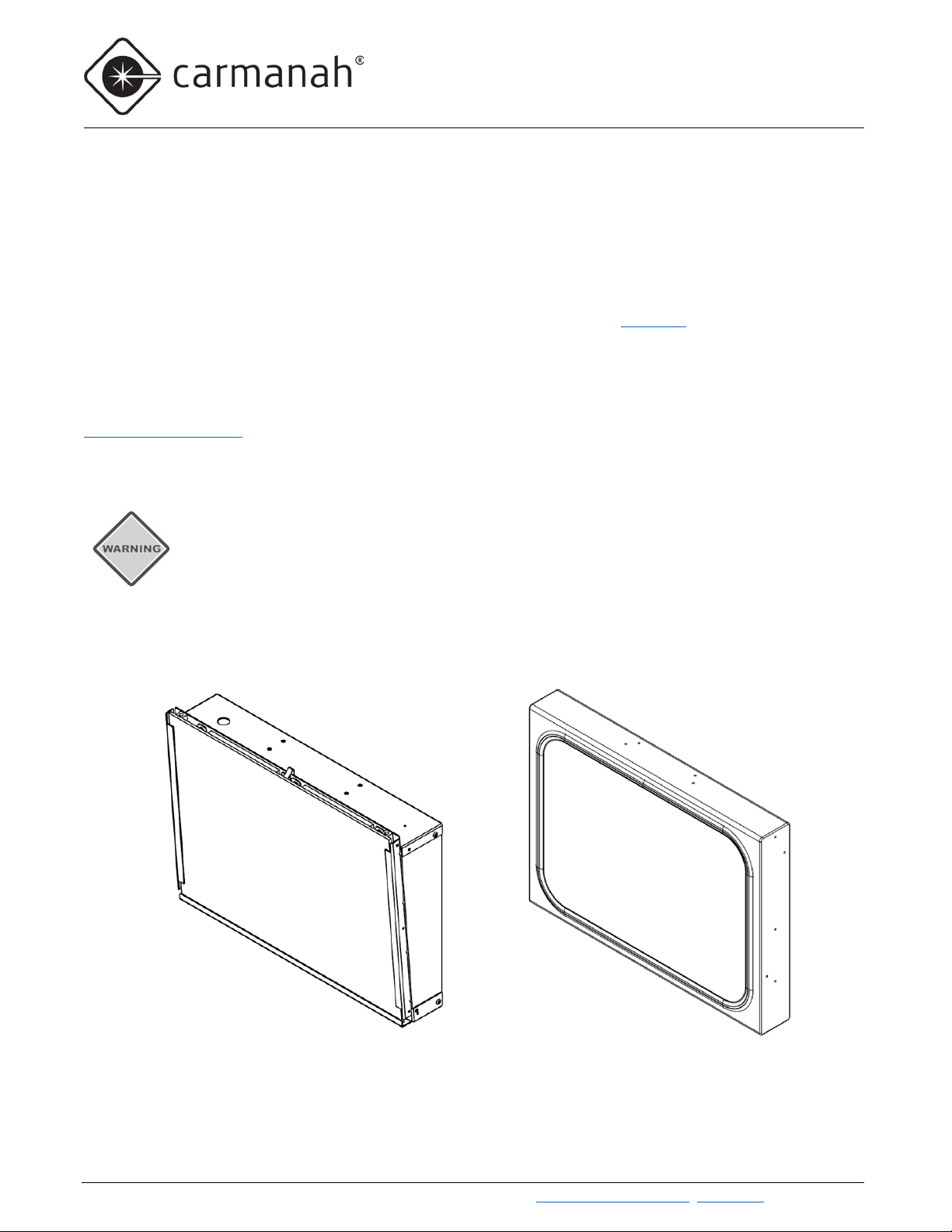

SPEEDCHECK-15 SPEEDCHECK-18

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 6
SERIAL TO ETHERNET INSTALL GUIDE
3.0 INSTALLATION
3.1 SPEEDCHECK-15 Installation
1. Disconnect power to the SPEEDCHECK-15 sign by turning off the breaker or removing the fuse(s) in the
associated power cabinet.
2. Remove the two hex head screws, one on each side, holding the sign face to the display enclosure.
3. Tilt the sign to the rear and lift to remove.
4. Lift window retainer clip and tilt window forward. Lift and remove window.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 7
SERIAL TO ETHERNET INSTALL GUIDE
3.0 INSTALLATION
5. Remove the right LED board by pulling it towards you about 1/4". Pull up by grasping the LED board
stiffeners only. When the retainer tabs clear the top hanger pins slide the LED board upwards and then
pull down to clear the bottom hanger pins.
6. Open the DIN rail fuse block(s) as a precaution to ensure no power will feed the controller during this
procedure.
7. Disconnect the LED wiring on the back and carefully set aside the right and left LED boards. Do not bend
the LEDs in this process.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 8
SERIAL TO ETHERNET INSTALL GUIDE
3.0 INSTALLATION
8. Fish an Ethernet cable (not included) into the junction box on top of the sign and down into the sign,
plugging it into the converter. Install cable ties for strain relief. Connect the other end to your laptop. This
cable will eventually be connected to your network switch.
9. Reconnect the LED wiring to the left and right LED display boards and install the left LED first back onto
the sign enclosure with the bottom retaining tabs going in first.
10. Close the DIN rail fuse block(s) in the radar sign and install the right LED board back onto the display
enclosure in the same manner as step 9. Reinstall the fuse(s) or close the breaker in the power cabinet to
apply power to the radar sign. Wait up to 60 seconds and confirm all display LED segments are
operational during the start-up procedure.
11. Wait for vehicle traffic to activate the system to ensure the radar is working properly.
12. See Section 4 to configure the converter. Once the configuration is completed, disconnect the Ethernet
cable from your laptop and connect it to your network switch.
13. Install the polycarbonate window back onto the display enclosure and ensure it is secured with the
window tab. The glossy side faces towards traffic.
14. Reinstall the sign and secure to the display enclosure using the two hex screws.
15. See Section 5 if the sign requires programming via SpeedCheck Manager.
a. SpeedCheck Manager can be downloaded at support.carmanah.com.
Serial to Ethernet converter
Ethernet cable to network (not provided)

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 9
SERIAL TO ETHERNET INSTALL GUIDE
3.0 INSTALLATION
3.2 SPEEDCHECK-18 Installation
1. Disconnect power from the SPEEDCHECK-18 sign by turning off the breaker or removing the fuse(s) in
the associated power cabinet.

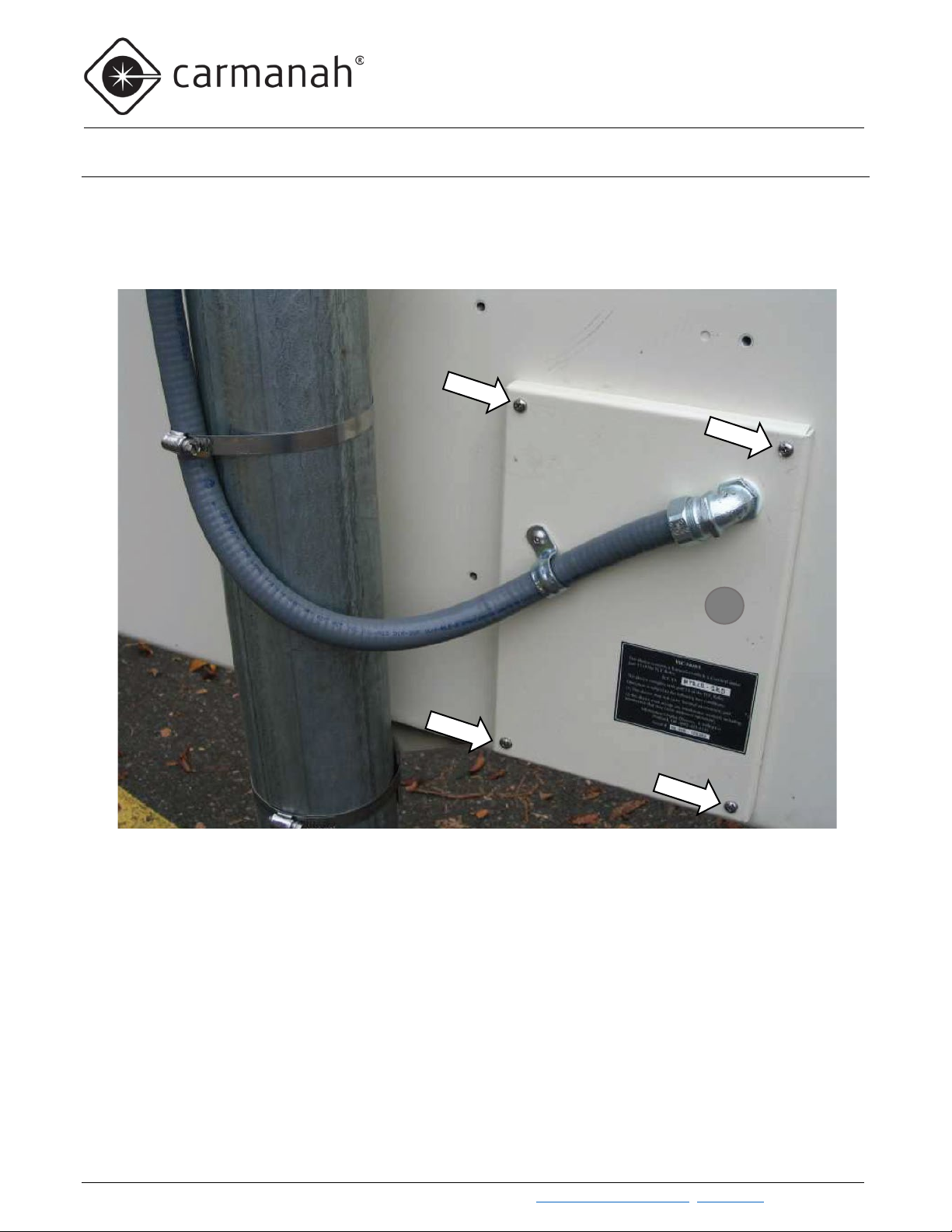

2. Remove the four screws holding the back panel assembly to the back of the SPEEDCHECK-18 sign.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 10
SERIAL TO ETHERNET INSTALL GUIDE
3.0 INSTALLATION
3. Fish the Ethernet cable (not included) to the back panel assembly and plug it into the converter. Connect
the other end to your laptop. If necessary, use the second 3/4” conduit opening to route the Ethernet
cable to the converter. This cable will eventually be connected to your network switch.
4. Reinstall the back panel assembly to the SPEEDCHECK-18 sign. Ensure nothing gets pinched in the
gasket. Tighten the four screws firmly.
5. Turn on the breaker or reinstall the fuse in the power cabinet.
6. Wait for vehicle traffic to activate the system to ensure the radar is working properly.
7. See Section 4 to configure the converter. Once configuration is completed, disconnect the Ethernet cable
from your laptop and connect it to your network switch.
8. See Section 5 if the sign requires programming via SpeedCheck Manager.
a. SpeedCheck Manager can be downloaded at support.carmanah.com.
Serial to Ethernet converter
Ethernet cable to network (not provided)
Hole plug for second conduit opening

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 11
SERIAL TO ETHERNET INSTALL GUIDE
4.0 CONVERTER CONFIGURATION
4.0 Converter Configuration
There are two options for configuring the serial to Ethernet converter:
•Static IP address
•Dynamic IP address
The following steps are common to both options and need to be completed first. The steps below assume
a Windows-based laptop:
1. Ensure your laptop is connected to the serial to Ethernet converter via the Ethernet cable connected in
Section 3.

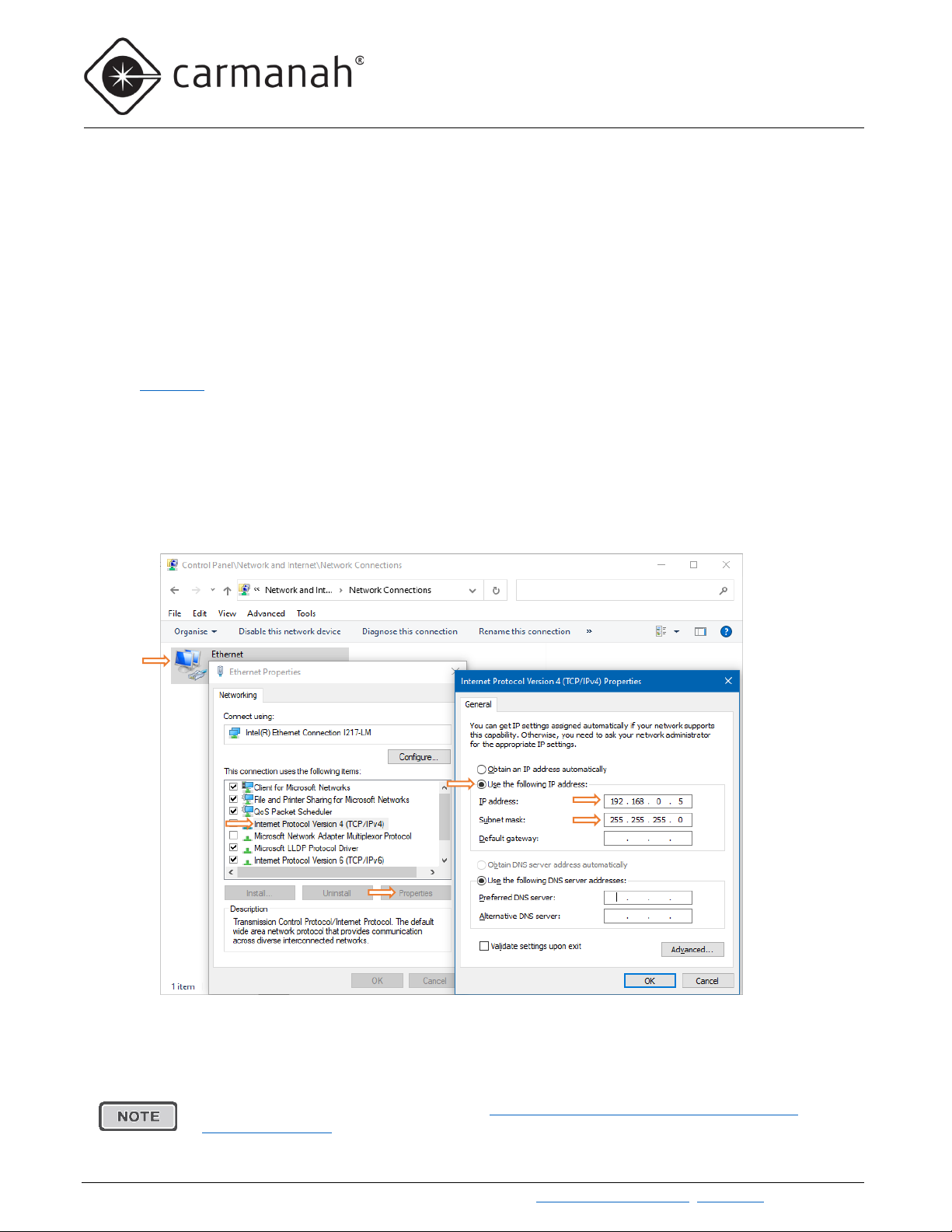

2. Press the Windows key, type View Network Connections and press Enter. Right click on the Ethernet
device and select Properties.
3. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
4. Select Use the following IP address and enter the following:
a. IP Address: 192.168.0.5
b. Subnet mask: 255.255.255.0
5. Open a web browser and type 192.168.0.7 in the address bar. In the window that opens, enter admin for
both username and password and click OK. You should now be connected to the USConverters web
interface.
Additional information can be found here: http://www.usconverters.com/serial-etherent-
converter-us2000a

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 12
SERIAL TO ETHERNET INSTALL GUIDE
4.0 CONVERTER CONFIGURATION
6. Navigate to RS232 and update “Local Port Number:” to 2101 and click Save.
7. All other default settings should match the following image.
8. Update password under Misc Config as required (recommended) and click Save.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 13
SERIAL TO ETHERNET INSTALL GUIDE
4.0 CONVERTER CONFIGURATION

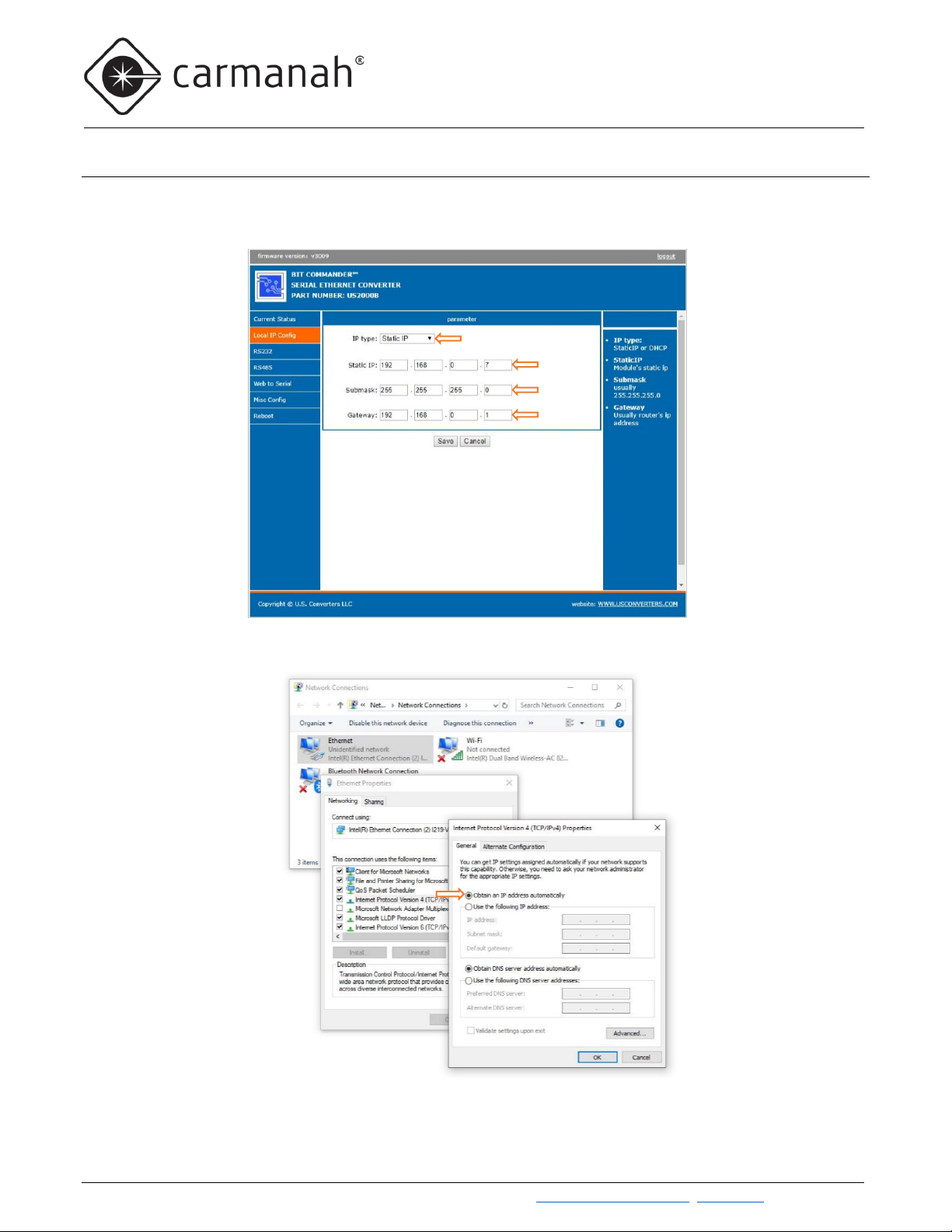

4.1 Static IP Address
1. Under Local IP Config, change “IP type:” to Static IP.
2. Set the following static network parameters as per your network (IP, Submask, Gateway).
3. Click the “Save” then the “Reboot” buttons on the user interface.
4. Restore your laptop settings to Obtain IP/DNS address automatically.
5. Disconnect the Ethernet cable from the laptop and connect it to your network switch.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 14
SERIAL TO ETHERNET INSTALL GUIDE
4.0 CONVERTER CONFIGURATION

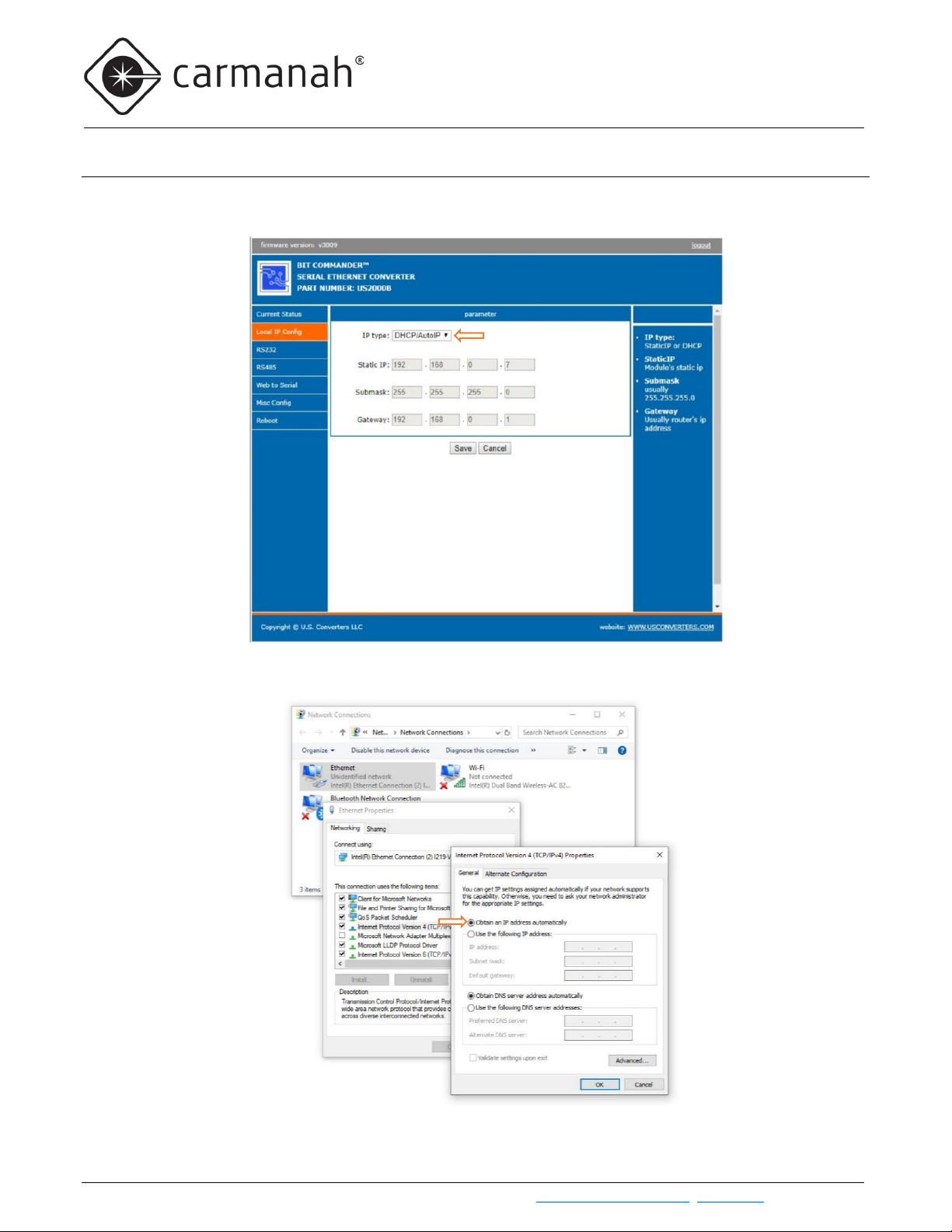

4.2 Dynamic IP Address
1. Under Local IP Config, change “IP type:” to DHCP/AutoIP.
2. Click the “Save” then the “Reboot” buttons on the user interface.
3. Restore laptop settings to obtain IP/DNS address automatically.
4. Disconnect the Ethernet cable from the laptop and connect it to your network switch.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 15
SERIAL TO ETHERNET INSTALL GUIDE
5.0 SPEEDCHECK MANAGER CONFIGURATION
5.0 SpeedCheck Manager Configuration
The steps below explain how to communicate with the system remotely via the SpeedCheck Manager software.
This assumes the system has been installed and is functioning normally. Visit support.carmanah.com to download
the latest version of the SpeedCheck Manager software.
1. Open the SpeedCheck Manager software. If you do not have a copy, please contact Carmanah.
2. Select Network Network Connection Setup Add Entry Enter IP Address and particulars for
your SpeedCheck sign. The example below is for illustrative purposes only.
3. Enter the password under Device Password if the SpeedCheck sign has a password set already under
Device Setup.Add an appropriate description of the device, and select power source and schedule (if
applicable).
4. Click Apply Changes and then click Test Connection and confirm successful communication.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 16
SERIAL TO ETHERNET INSTALL GUIDE
5.0 SPEEDCHECK MANAGER CONFIGURATION
5. Click on Connect to establish a connection. Ensure you now have a green bar under the Connected To
status to signify a successful connection has now been made.
6. Adjust the settings to the system as needed. Refer to the full SpeedCheck Manual under the Help menu
for more information.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 17
SERIAL TO ETHERNET INSTALL GUIDE
5.0 SPEEDCHECK MANAGER CONFIGURATION
This page intentionally left blank.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | [e-mail] | carmanah.com 18
SERIAL TO ETHERNET INSTALL GUIDE
5.0 SPEEDCHECK MANAGER CONFIGURATION
© 2021 Carmanah Technologies Corporation
Technical Support:
Email:
[e-mail]
Toll Free:
1.877.722.8877 (US & Canada)
Worldwide:
1.250.380.0052
Fax:
1.250.380.0062
Web: carmanah.com
