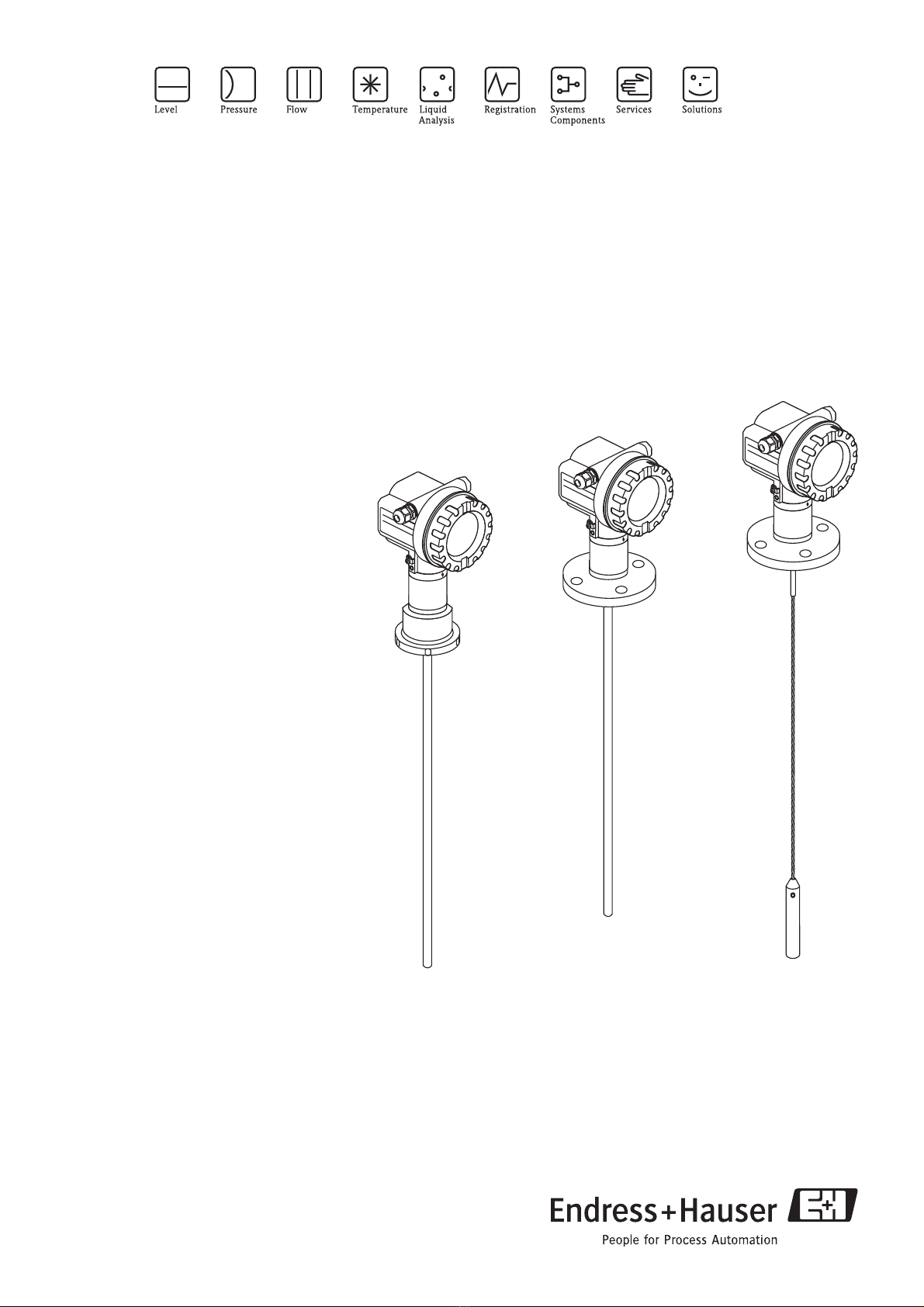

Endress+Hauser Levelflex M FMP41C User manual

BA278F/00/en/05.06
No. 52021037
Valid as of software version
V 01.04.00 (amplifier)
V 1.0 (communication)
Operating Instructions
Levelflex M FMP41C
Guided Level-Radar
FOUNDATION Fieldbus
9

Brief overview Levelflex M FMP41C with FOUNDATION Fieldbus
2Endress + Hauser
Brief overview
For quick and simple commissioning:
Safety Instructions →Page 6 ff.
Explanation of the warning symbols
You can find special instructions at the appropriate position in the chapter in
question. The positions are indicated with the icons Warning #, Caution "and
Note !.
Æ
Installation →Page 12 ff.
The steps for installing the device and installation conditions (e.g. dimensions)
can be found here.
Æ
Wiring →Page 22 ff.
The device is virtually completely wired on delivery.
Æ
Display and Operating Elements →Page 27 ff.
An overview of the position of the display and operating elements can be found
here.
Æ
Commissioning via Display VU331 →Page 51 ff.
In the "Commissioning" section, you learn how to switch on the device and
check the functioning.
Æ
Commissioning via Operating Software ToF Tool →Page 67 ff.
In the "Commissioning" section, you learn how to switch on the device and
check the functioning.
Additional information on the operation of the ToF Tool can be found in the
operating instructions BA224F/00.
Æ
Fault Tracking / Trouble Shooting →Page 78 ff.
If faults occur during operation, use the checklist to localise the cause.
Here you can find measures you can take yourself to take remedial action
against the fault.
Æ
Index →Page 101 ff.
You can find important terms and keywords on the individual sections here.
Use the keyword index to find quickly and efficiently the information you need.

Levelflex M FMP41C with FOUNDATION Fieldbus Brief overview
Endress + Hauser 3
Brief operating instructions
L00-FMP40xxx-19-00-00-en-012
!Note!
This operating manual explains the installation and initial start-up for the level transmitter
measuring device. All functions that are required for a typical measuring task are taken into account
here.
In addition, the Levelflex M provides many other functions that are not included in this operating
manual, such as optimising the measuring point and converting the measured values.
An overview of all device functions can be found on Page 96.
An extensive description of all device functions can be found in BA245F – "Description of the
instrument functions" on the enclosed CD-ROM.
Operating Instructions can also be found on our homepage: www.endress.com
E
+
-
+
E
+
-
E
E
-
… …
… …
KA 189F/00/a2/11.05
52012501
52012501
100%
0%
F
E
UB
LN
D
L
Levelflex M - Brief operating instructions
input E
(see sketch)
input F
(see sketch) displayed
D and L are confirm
or specify
range
suggestion
000
measured value
Group
selection
00
basic setup
01
safety settings
09
display
04
linearisation
05
extended calibr.
0C
system
parameters
092
language
0A
diagnostics
0A0
present
error
002
tank
properties
004
process
cond.
005
empty
calibr.
006
full
calibr.
008
dist./
meas value
051
check
distance
003
medium
property
052
range of
mapping
053
start
mapping
008
dist./
meas value
- envel. curve
- substracted signal
- mapping
- single curve
- cyclic
= 100: unlocked
¹ 100: locked
09A
plot settings
09B
recording
curve
0A1
previous
error
0A4
unlock
parameter
(333 = reset customer parameters)
0A3
reset
min. level
threaded
connection
1½
(G 1
:
reference point of
measurement
¾or BSP
¾orG ½)
¾or1½NPT
03
length
adjustment
030
end of
probe
031
probe
length
032
probe
033
probe
length
034
determine
length
- unknown
- 1.4 … 1.6
- 1.6 … 1.9
- 1.9 … 2.5
-4…7
-2.5…4
->7
0E
envelope curve
Contrast: +or +
- standard
- aluminium tank
- plastic tank
- bypass/pipe
- coax-probe
- concrete
wall
- standard
- fast
change
- test: no filter
- slow
change
- free
- tie down
isolated
- tie down
gnd.
If shortened
please enter probe length here.
reference point of
measurement

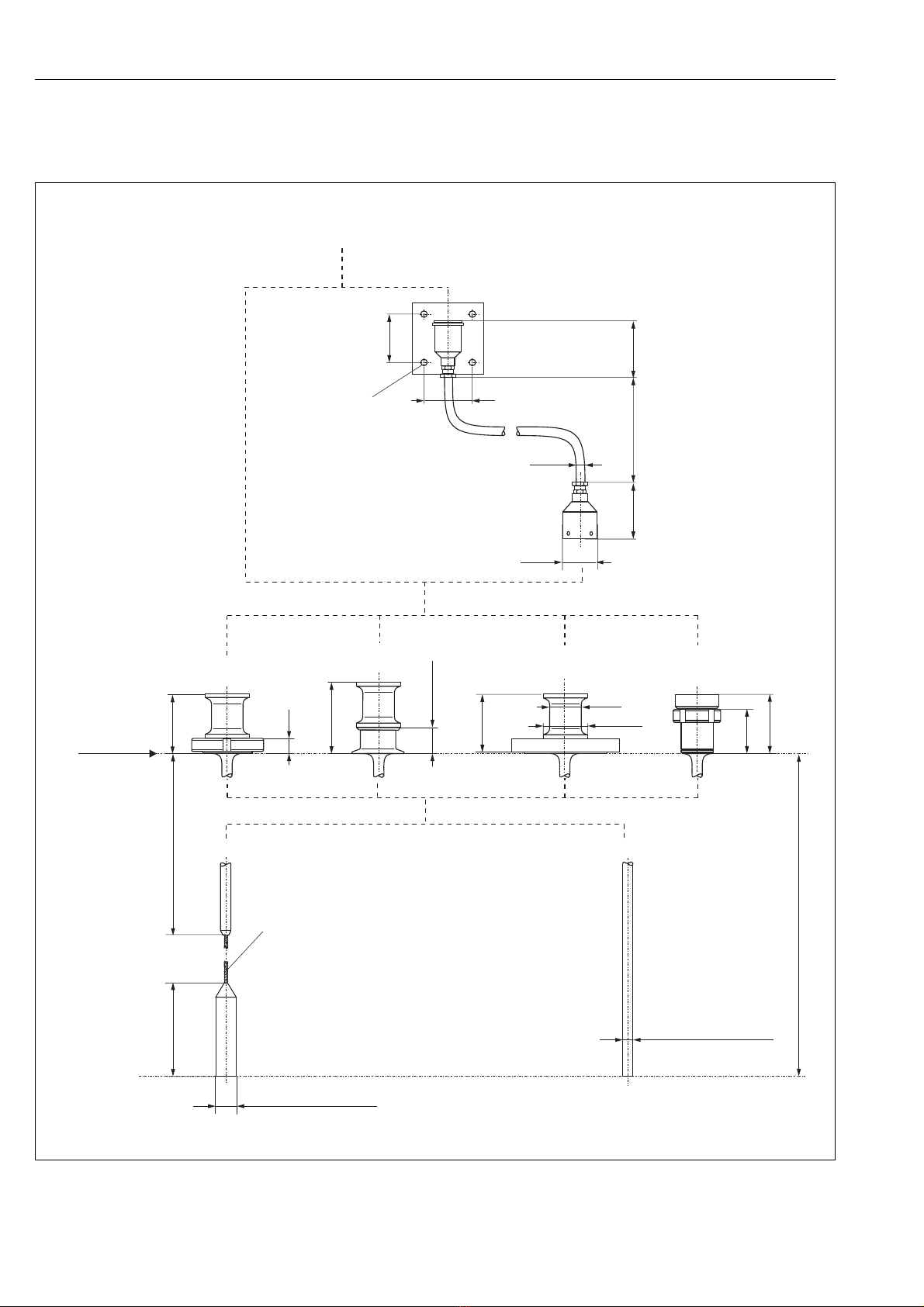

F = measuring span
E = empty distance (= zero)
UB = upper blocking distance
LN = probe length
L = level
D = distance

Brief overview Levelflex M FMP41C with FOUNDATION Fieldbus
4Endress + Hauser

Levelflex M FMP41C with FOUNDATION Fieldbus Table of contents
Endress + Hauser 5
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 6
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Installation, commissioning and operation . . . . . . . . 6
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Notes on safety conventions and icons . . . . . . . . . . . 7
2 Identification . . . . . . . . . . . . . . . . . . . . 8
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . 11
2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . 11
3 Installation . . . . . . . . . . . . . . . . . . . . . 12
3.1 Incoming acceptance, transport, storage . . . . . . . . . 12
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 13
3.3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.4 Turn housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.5 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 21
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 22
4.1 Quick wiring guide . . . . . . . . . . . . . . . . . . . . . . . . 22
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 25
4.3 Recommended connection . . . . . . . . . . . . . . . . . . 26
4.4 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 26
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 26
5 Operation . . . . . . . . . . . . . . . . . . . . . . 27
5.1 Quick operation guide . . . . . . . . . . . . . . . . . . . . . . 27
5.2 Display and operating elements . . . . . . . . . . . . . . . 29
5.3 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.4 Display and acknowledging error messages . . . . . . 34
5.5 FOUNDATION Fieldbus communication . . . . . . . . 36
6 Commissioning. . . . . . . . . . . . . . . . . . 51
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
6.2 Switching on the measuring device . . . . . . . . . . . . 51
6.3 Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
6.4 Basic Setup with the VU331 . . . . . . . . . . . . . . . . . 54
6.5 Blocking distance . . . . . . . . . . . . . . . . . . . . . . . . . 62
6.6 Envelope curve with VU331 . . . . . . . . . . . . . . . . . 64
6.7 Function "envelope curve display" (0E3) . . . . . . . . 65
6.8 Basic Setup with the ToF Tool . . . . . . . . . . . . . . . . 67
7 Maintenance. . . . . . . . . . . . . . . . . . . . 73
8 Accessories. . . . . . . . . . . . . . . . . . . . . 74
9 Trouble-shooting . . . . . . . . . . . . . . . . 78
9.1 Trouble-shooting instructions . . . . . . . . . . . . . . . . 78
9.2 System error messages . . . . . . . . . . . . . . . . . . . . . . 79
9.3 Application errors . . . . . . . . . . . . . . . . . . . . . . . . . 81
9.4 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
9.5 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
9.6 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
9.7 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
9.8 Contact addresses of Endress+Hauser . . . . . . . . . . . 89
10 Technical data . . . . . . . . . . . . . . . . . . . 90
10.1 Additional technical data . . . . . . . . . . . . . . . . . . . . 90
11 Appendix. . . . . . . . . . . . . . . . . . . . . . . 96
11.1 Operating menu FOUNDATION Fieldbus, ToF Tool . .
96
11.2 Description of functions . . . . . . . . . . . . . . . . . . . . . 98
11.3 Function and system design . . . . . . . . . . . . . . . . . . 98
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Safety instructions Levelflex M FMP41C with FOUNDATION Fieldbus
6Endress + Hauser
1 Safety instructions
1.1 Designated use
The Levelflex M FMP41C is a compact level transmitter for the continuous measurement of solids
and liquids, measuring prinziple: Guided Level Radar / TDR: Time Domain Reflectometry.
1.2 Installation, commissioning and operation
The Levelflex M has been designed to operate safely in accordance with current technical, safety
and EU standards. If installed incorrectly or used for applications for which it is not intended,
however, it is possible that application-related dangers may arise, e.g. product overflow due to
incorrect installation or calibration. For this reason, the instrument must be installed, connected,
operated and maintained according to the instructions in this manual: personnel must be authorised
and suitably qualified. The manual must have been read and understood, and the instructions
followed. Modifications and repairs to the device are permissible only when they are expressly
approved in the manual.
1.3 Operational safety
Hazardous areas
Measuring systems for use in hazardous environments are accompanied by separate "Ex
documentation", which is an integral part of this Operating Manual. Strict compliance with the
installation instructions and ratings as stated in this supplementary documentation is mandatory.
• Ensure that all personnel are suitably qualified.
• Observe the specifications in the certificate as well as national and local regulations.

Levelflex M FMP41C with FOUNDATION Fieldbus Safety instructions
Endress + Hauser 7
1.4 Notes on safety conventions and icons
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding symbol in the margin.
Safety conventions
#
Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal
injury, a safety hazard or destruction of the instrument
"
Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal
injury or incorrect functioning of the instrument
!
Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect
operation or may lead to an instrument response which is not planned
Explosion protection
0
Device certified for use in explosion hazardous area
If the device has this symbol embossed on its name plate it can be installed in an explosion hazardous
area
-
Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas. Devices located in and wiring
entering areas with the designation “explosion hazardous areas” must conform with the stated type
of protection.
.
Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas. Devices located in
safe areas still require a certificate if their outputs run into explosion hazardous areas
Electrical symbols
%
Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied
&
Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be applied or
supplied
)
Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by means of an
earth grounding system
*
Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to the
equipment
+
Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g. neutral star or
equipotential line according to national or company practice
Temperature resistance of the connection cables
States, that the connection cables must be resistant to a temperature of at least 85 °C.
t >85°C

Identification Levelflex M FMP41C with FOUNDATION Fieldbus
8Endress + Hauser
2 Identification
2.1 Device designation
2.1.1 Nameplate
The following technical data are given on the instrument nameplate:
L00-FMP4xxxx-18-00-00-en-001
Fig. 1: Information on the nameplate of the Levelflex M FMP41C (example)
2.1.2 Ordering structure
This overview does not mark options which are mutually exclusive.
Ordering structure Levelflex M FMP41C
Made in Germany
D-79689 Maulburg
Dat./Insp.:
Order Code:
IP68 / NEMA 6P
Ser.-No.:
4-wire
ENDRESS+HAUSER
t >85°C
TA > 70°C:
D01301-A
if modification
see sep. label
X= Patents
LEVELFLEX-M
90 …253 V AC 3,5VA
10,5 …32 V DC 1W
16 …3 V DC 0,8W
Profibus PA
Foundation Fieldbus
LN= PN=
4…20 mA HART 2-wire
Order No
(see Order Information)
Communication
variant and
supply voltage
Serial number
Reference to additional
safety-relevant documentation
Designation according to Directive 94/9/EC
and designation of protection
10 Approval:
A Non-hazardous area
F Non-hazardous area, WHG
1 ATEX II 1/2G EEx ia IIC T6
Note safety instruction (XA) (electristatic charging)!
3 ATEX II 2G EEx em (ia) IIC T6
Note safety instruction (XA) (electristatic charging)!
5 ATEX II 1/2G EEx ia IIC T6, ATEX II 1/3D
Note safety instruction (XA) (electristatic charging)!
6 ATEX II 1/2G EEx ia IIC T6, WHG
Note safety instruction (XA) (electristatic charging)!
7 ATEX II 1/2G EEx d (ia) IIC T6
Note safety instruction (XA) (electristatic charging)!
8 ATEX II 1/2G EEx ia IIC T6, ATEX II 1/3D, WHG
Note safety instruction (XA) (electristatic charging)!
G ATEX II 3G EEx nA II T6
S FM IS Cl.I,II,III Div.1 Gr.A-G N.I.
T FM XP Cl.I,II,III Div.1 Gr.A-G
N CSA General Purpose
U CSA IS Cl.I,II,III Div.1 Gr.A-D,G + coal dust, N.I.
V CSA XP Cl.I,II,III Div.1 Gr.A-D,G + coal dust, N.I.
K TIIS Ex ia IIC T4
L TIIS Ex d (ia) IIC T4
YSpecialversion
FMP41C- Product designation (part 1)

Levelflex M FMP41C with FOUNDATION Fieldbus Identification
Endress + Hauser 9
Ordering structure Levelflex M FMP41C (continued)
20 Probe:
A ..... mm, rope PFA>316, 150mm, Center rod, nozzle height max 150mm
B ..... mm, rope PFA>316, 300mm, Center rod, nozzle height max 300mm
C ..... mm, rope PFA>316, 450mm, Center rod, nozzle height max 450mm
D ..... inch, rope PFA>316, 6inch, Center rod, nozzle height max 6inch
E ..... inch, rope PFA>316, 12inch, Center rod, nozzle height max 12inch
G ..... inch, rope PFA>316, 18inch, Center rod, nozzle height max 18inch
K ..... mm, rod PFA>316L
M ..... inch, rod PFA>316L
YSpecialversion
30 Process Connection:
AEK 1-1/2" 150lbs, PTFE >316/316L flange ANSI B16.5
AFK 2" 150lbs, PTFE >316/316L flange ANSI B16.5
AGK 3" 150lbs, PTFE >316/316L flange ANSI B16.5
AHK 4" 150lbs, PTFE >316/316L flange ANSI B16.5
AJK 6" 150lbs, PTFE >316/316L flange ANSI B16.5
AQK 1-1/2" 300lbs, PTFE >316/316L flange ANSI B16.5
ARK 2" 300lbs, PTFE >316/316L flange ANSI B16.5
ASK 3" 300lbs, PTFE >316/316L flange ANSI B16.5
ATK 4" 300lbs, PTFE >316/316L flange ANSI B16.5
CEK DN40 PN16-40, PTFE >316L flange EN1092-1 (DIN2527 C)
CFK DN50 PN10-40, PTFE >316L flange EN1092-1 (DIN2527 C)
CGK DN80 PN10/16, PTFE >316L flange EN1092-1 (DIN2527 C)
CHK DN100 PN10/16, PTFE >316L flange EN1092-1 (DIN2527 C)
CJK DN150 PN10/16, PTFE >316L flange EN1092-1 (DIN2527 C)
CSK DN80 PN25/40, PTFE >316L flange EN1092-1 (DIN2527 C)
CTK DN100 PN25/40, PTFE >316L flange EN1092-1 (DIN2527 C)
KEK 10K 40, PTFE >316L flange JIS B2220
KFK 10K 50, PTFE >316L flange JIS B2220
KGK 10K 80, PTFE >316L flange JIS B2220
KHK 10K 100, PTFE >316L flange JIS B2220
30 Process Connection:
MRK DIN11851 DN50 PN40, PTFE >316L
TCK Clamp ISO2852 1-1/2", PTFE >316L
TDK Clamp ISO2852 2", PTFE >316L
TFK Clamp ISO2852 3", PTFE >316L
TJK Clamp ISO2852 1-1/2", PTFE >316L
TKK DRD 65mm PN40, PTFE >316L
TLK Clamp ISO2852 2", PTFE >316L, 3A EHEDG
TNK Clamp ISO2852 3", PTFE >316L, 3A EHEDG
UPK Universal adapter 44mm, PTFE >316L
UQK Universal adapter 44mm, PTFE >316L, EHEDG 3A
YY9 Special version
FMP41C- Product designation (part 2)

Identification Levelflex M FMP41C with FOUNDATION Fieldbus
10 Endress + Hauser
Ordering structure Levelflex M FMP41C (continued)
40 Power Supply; Output:
B2-wire;4…20mAHART
D2-wire;PROFIBUSPA
F 2-wire; FOUNDATION Fieldbus
G 4-wire 90...250VAC; 4...20mA HART
H 4-wire 10.5...32VDC; 4...20mA HART
YSpecialversion
50 Operation:
1 W/o display, via communication
2 4-line display VU331, Envelope curve display on site
3 Prepared for FHX40, Remote display (accessory)
9 Special version
60 Type of Probe:
1 Compact, basic version
3 Remote, cable 3m, top entry
9Specialversion
70 Housing:
A F12 Alu, coated IP68 NEMA6P
B F23 316L IP68 NEMA6P
C T12 Alu, coated IP68 NEMA6P, Separate conn. compartment
D T12 Alu, coated IP68 NEMA6P + OVP, Separate conn. compartment,
OVP = overvoltage protection
YSpecialversion
80 Cable Entry:
2 Gland M20 (EEx d > thread M20)
3ThreadG1/2
4ThreadNPT1/2
5PlugM12
6 Plug 7/8"
9Specialversion
90 Additional Option:
A Basic version
YSpecialversion
FMP41C- Complete product designation
⇓
Please enter probe length in mm or inch / 0.1 inch
mm
inch / 0.1 inch
probe length LN see Page 14

Levelflex M FMP41C with FOUNDATION Fieldbus Identification
Endress + Hauser 11
2.2 Scope of delivery
"Caution!
It is essential to follow the instructions concerning the unpacking, transport and storage of
measuring instruments given in the chapter "Incoming acceptance, transport, storage" on Page 12!
The scope of delivery consists of:
• Assembled instrument
• 2 ToF Tool - FieldTool®Package CD-ROMs
– CD 1: ToF Tool - FieldTool®Program
Program including Device Descriptions (device drivers) for all Endress+Hauser devices wich are
operable using ToF Tool
– CD 2: ToF Tool - FieldTool®Documentation
Documentation for all Endress+Hauser devices wich are operable using ToF Tool)
• Accessories (→Chap. 8).
Accompanying documentation:
• Short manual (basic setup/troubleshooting): housed in the instrument
• Operating manual (this manual)
• Approval documentation: if this is not included in the operating manual.
!Note!
The operating manual BA245F - "Description of Instrument functions" you can be found on the
enclosed CD-ROM.
2.3 Certificates and approvals
CE mark, declaration of conformity
The device is designed to meet state-of-the-art safety requirements, has been tested and left the
factory in a condition in which it is safe to operate. The device complies with the applicable
standards and regulations as listed in the EC declaration of conformity and thus complies with the
statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the
device by affixing to it the CE mark.
2.4 Registered trademarks
KALREZ®, VITON®, TEFLON®
Registered trademark of the company, E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP®
Registered trademark of the company, Ladish & Co., Inc., Kenosha, USA
HART®
Registered trademark of HART Communication Foundation, Austin, USA
ToF®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PulseMaster®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
Foundation™ Fieldbus
Registered trademark of Fieldbus Foundation Austin, Texas, USA

Installation Levelflex M FMP41C with FOUNDATION Fieldbus
12 Endress + Hauser
3 Installation
3.1 Incoming acceptance, transport, storage
3.1.1 Incoming acceptance
Check the packing and contents for any signs of damage.
Check the shipment, make sure nothing is missing and that the scope of supply matches your order.
3.1.2 Transport
"Caution!
Follow the safety instructions and transport conditions for instruments of more than
18 kg.
Do not lift the measuring instrument by its probe rod in order to transport it.
3.1.3 Storage
Pack the measuring instrument so that is protected against impacts for storage and transport. The
original packing material provides the optimum protection for this.
The permissible storage temperature is -40 °C…+80 °C.

Levelflex M FMP41C with FOUNDATION Fieldbus Installation
Endress + Hauser 13
3.2 Installation conditions
3.2.1 Dimensions
Housing dimensions
Dimensions for the process connection and the probe type see Page 14.
L00-F12xxxx-06-00-00-en-001
L00-T12xxxx-06-00-00-en-001
L00-F23xxxx-06-00-00-en-001
ENDRESS+HAUSER
65 78
max. 110
85
150
Ø129
(Aluminium)
F12 housing
ENDRESS+HAUSER
78
85
65
162
max. 100 94
Ø129
(Aluminium)
T12 housing
max. 94 104
Ø129
150
40
(316L)
F23 housing

Installation Levelflex M FMP41C with FOUNDATION Fieldbus
14 Endress + Hauser
Levelflex M FMP41C - process connection, probe type
Housing dimensions see Page 13
L00-FMP41xxx-06-00-00-en-001
Fig. 2: Dimensions Levelflex M FMP41C
88
88
123
2765
112
Ø76
4 x Ø8,5
118
24
Ø42
Ø60
Flange DN 40…200
or equivalent
Endress+Hauser
universal
adapter
reference point of
measurement
option:
remote electronic
rope:
Ø4 mm/0.20”
rope probe rod probe
Ø16/0.63”(incl. insulation)
Ø22/0.87”(incl. insulation)
probe length LN
F12 / T12 / F23 housing
1 ½"/2"/3"
Clamp
DN 50
dairy coupling
140/290/440 72
17.4 (1½")
18 (2"/3")
70.3 (1½")
70.5(2"/3")
70
60.5
80
Ø21.3

Levelflex M FMP41C with FOUNDATION Fieldbus Installation
Endress + Hauser 15
3.3 Installation
3.3.1 Mounting kit
In addition to the tool needed for flange mounting, you will require the following tool:
• 4 mm Allen wrench for turning the housing.
3.3.2 Mounting probes
"Caution!
If there is a risk of electrostatic discharge from the product, then both processconnection and rope
must be earthed before the probe is lowered into the silo.
Insert probe
• Uncoil rope and lower it slowly and carefully
into the silo.
• Do not kink the rope
• Avoid any backlash, since this mightdamage
the probe or the silo fittings.
•
!
Note!
– Flanges: bolt the flange in positionbefore
inserting the cable into the silo.
– Be sure to use unpainted metal bolts
toensure good electrical contact
betweenprobe flange and process flange.
L00-FMP4xxxx-17-00-00-en-056
Uncoil rope and lower
probe slowly and
carefully into the silo

Installation Levelflex M FMP41C with FOUNDATION Fieldbus
16 Endress + Hauser
3.3.3 General instructions
Normally use rod or coax probes for liquids. Rope probes are used in liquids for measuring ranges >
4m and with restricted ceiling clearance which does not allow the installation of rigid probes.
Minimum distance B of the probe to the container wall:
The wall clearance can be chosen as desired as long as the probe does not touch the tank wall.
!Note!
• There should be no metallic parts or persons moving when installation is made in plastic tanks,
also on the outside of the tank at a distance of 300 mm to the probe.
• There should no bridges to the wall created by build up or highly viscous media.
Mounting location
• Do not mount rod or rope probes in the filling
curtain (3).
• Mount rod and rope probes away from the
wall (B) at such a distance that, in the event of
build-up on the wall, there is still a minimum
distance of 100 mm between the probe and
the build-up.
• Mount rod and rope probes as far away as
possible from installed fittings. "Mapping "
must be carried out during commissioning in
the event of distances < 300 mm.
• Minimum distance of probe end to the
container floor (C):
– Rope probe: 150 mm
– Rod probe: 50 mm
• When installing outdoors, it is recommended
that you use a protective cover (1) see
Accessories on Page 74.
L00-FMP4xxxx-17-00-00-xx-007
B
C
12
Other installations
• Select the mounting location such that the
distance to internals (5) (e.g. limit switch,
struts) > is 300 mm over the entire length of
the probe, also during operation.
• Probe must within the measuring span not
touch any internals during operation.
Optimization options
• Interference echo suppression: Measurement
can be optimised by electronically tuning out
interference echoes.
L00-FMP41Cxx-17-00-00-xx-001
5

Levelflex M FMP41C with FOUNDATION Fieldbus Installation
Endress + Hauser 17
Type of probe mounting
The coupling nut must be tightened using a torque of 5 up to a maximum of 10 Nm when installing
the FMP41C in the universal adapter ("Welding boss for adapter 43 mm" see Page 74).
Supporting probes against warping
For WHG or Ex approval:
For probe lengths ≥3 m a support is required (see figure).
L00-FMP4xxxx-17-00-00-en-065
• When installing in plastic tanks, the nozzle
must have at least DN50/2". The appropriate
flange must be used as the process connec-
tion.
• For nozzles up to 450 mm high, select the
length of the centering rod appropriate for the
nozzle height when using rope probes.
• If the FMP41C is mounted using a flange,
place spring elements (e.g. cup springs) under
the flange screws to compensate any deforma-
tion of the PTFE or retighten the flange screws
from time to time.
L00-FMP41Cxx-17-00-00-en-004
≤450 mm
( 18)≤
installation in nozzle
Ø<25 mm
>50 mm
Probe rod c
(FMP 41 C)
oated
Short metal pipe
e.g. welded in place
Plastic sleeve
e.g. PTFE, PEEK or PPS
e.g. 3 mm

Installation Levelflex M FMP41C with FOUNDATION Fieldbus
18 Endress + Hauser
3.3.4 Special instructions
When installing in stirring tanks, observe lateral load of probes. Possibly check whether a non-
contact process, ultrasound or radar would not be better suited, above all if the stirrer generates
large mechanical loads on the probe.
Installation in horizontal cylindrical and
standing tanks
• Use a rod probe for measuring ranges up to 4
m. For anything over this or if there is too free
cover space use a rope probe.
• Any distance from wall, as long as occasional
contact is prevented.
L00-FMP4xxxx-17-00-00-yy-049
1
Installation in stilling well or bypass
• Rod and rope probes can also be installed in
pipes (stilling well, bypass).
• When installing in metal pipes up to DN 150/
6", the measuring sensitivity of the device
increases such that liquids as of DK 1.4 can be
measured.
• Welded joints that protrude up to approx. 5
mm/0.2" inwards do not influence
measurement.
L00-FMP4xxxx-17-00-00-yy-023

Levelflex M FMP41C with FOUNDATION Fieldbus Installation
Endress + Hauser 19
3.3.5 Notes on special installation situations
Installation at an angle
• For mechanical reasons, the probe should be
installed as vertically as possible.
• Installation with a deviation up to approx. 5°
from the vertical axis is permitted for probes
up to approx. 1 m in length.
L00-FMP4xxxx-17-00-00-de-048
0...5°
max. 1 m
Fixing rope probe
• The end of the probe needs to be secured if
the probe would otherwise touch the silo
wall, the cone or another part, or the probe
comes closer than 0.5 m to a concrete wall.
This is what the internal thread in the probe
weight is intended for:
– for 4 mm rope: M 14
– for 6 mm rope: M 20
• Preferably use the 6 mm rope probe due to the
higher tensile strength when fixing a rope
probe.
• The fixing must be either reliably grounded or
reliably insulated (see "Accessories" on
Page 77)! If it is not possible to mount the
probe weight with a safe earthed connection,
it can be secured using an isolated eyelet,
which is available as an accessory (see
Page 77).
• In order to prevent an extremely high tensile
load and the risk of rope crack, the rope has to
be slack. Make the rope longer than the
required measuring range such that there is a
sag in the middle of the rope that is ≥1cm/m
(1"/100") of the rope length.
L00-FMP4xxxx-17-00-00-de-019
sag of the rope:
1cm/m of the rope
length
≥

Installation Levelflex M FMP41C with FOUNDATION Fieldbus
20 Endress + Hauser
3.3.6 Installation for difficult to access process connections
Installation with remote electronic
• Follow installation instructions on Page 16 ff.
• Mount housing on a wall or pipe as shown in the diagram.
L00-FMP4xxxx-17-00-00-en-015
!Note!
The protective hose cannot be disassembled at these points (1).
The ambient temperature for the connecting line (2) between the probe and the electronics must
not be greater than 105°C. The version with remote electronics consists of the probe, a connecting
cable and the housing. If they are ordered as a complete unit they will be delivered assembled and
cannot be separated.
150
ENDRESS+HAUSER
Levelflex M
65 78
Ø129
85
150
ENDRESS+HAUSER
Levelflex M
65 78
Ø129
85
52
52
150
max. 80
min. 30
96
94
94
88
88
123
2765
112
190
³75
Ø76
1
1
4 x Ø8,5
1
2
Rohr
Wand
Min. Biegeradius
beachten!
Ø21,3
