Target Orbiting Thermometer User Supplement

User Supplement Target Orbiting Thermometer
Contents
1 About this Supplement 1
2 System 4 Target Orbiting Thermometers 1
2.1 Supplementary Specication 1
3 Principle of Operation 3
3.1 Suggested settings for use in 'Peak Picker' mode 4

Target Orbiting Thermometer User Supplement
Table 1 System 4 Thermometer accuracy change when tted with Target Orbiter
Accuracy
Accuracy for a ‘standard‘ System 4 M1 Thermometer = ±0.4%K
Accuracy for a ‘Target Orbiter’ System 4 M1 Thermometer = ±0.8%K
Accuracy for a ‘standard‘ System 4 M2 Thermometer = ±0.25%K + 1K
Accuracy for a ‘Target Orbiter’ System 4 M1 Thermometer = ±0.5%K + 1K
Temperature °C Specication ±°C
M2 M2 TO M1 M1 TO
300.0 Not Specied Not Specied
400.0 2.7 4.4
500.0 2.9 4.9
600.0 3.2 5.4 Not Specied Not Specied
700.0 3.4 5.9 3.9 7.8
800.0 3.7 6.4 4.3 8.6
900.0 3.9 6.9 4.7 9.4
1000.0 4.2 7.4 5.1 10.2
1100.0 Not Specied Not Specied 5.5 11.0
1200.0 5.9 11.8
1300.0 6.3 12.6
1400.0 6.7 13.4
1500.0 7.1 14.2
1600.0 Not Specied Not Specied

Page 1
User Supplement Target Orbiting Thermometer
1 About this Supplement
This supplement is gives the information necessary to understand the
principle of operation of the Target Orbiting (TO) option tted to your System
4 Thermometer.
This supplement must be used in conjunction with the System 4 Thermometer
User Guide, supplied as standard with all System 4 Thermometers.
2 System 4 Target Orbiting Thermometers
The System 4 Thermometers tted with the target orbiting option are listed
below:
Thermometer Field Of View
M1 600/1600 CV - TO 100:1
M1 600/1600 CS - TO 100:1
M1 1100/2900 FV - TO 100:1
M1 1100/2900 FS - TO 100:1
M1 800/2600 CV - TO 200:1
M1 800/2600 CS - TO 200:1
M1 1500/4700 FV - TO 200:1
M1 1500/4700 FS - TO 200:1
M2 300/1100 CV - TO 100:1
M2 300/1100 CS - TO 100:1
M2 600/2000 FV - TO 100:1
M2 600/2000 FS - TO 100:1
2.1 Supplementary Specification
The following specication is in addition to that quoted in the standard
System 4 Thermometer User Guide.
Half angle of conic of orbit: 2° (±10%)
Frequency of rotation: 3.0Hz (±10%)
Ambient temperature limits: 10 to 50°C / 50 to 122°F
(operation and storage)
Accuracy: The accuracy specication for System 4
thermometers tted with the Target Orbiting
option is given in Table 1 opposite.

Page 2
Target Orbiting Thermometer User Supplement
D = Distance to Target Plane
Optical Field of View (=D/d)
d = target spot diameter ≤ D/100 (D/200 for high temperature versions)
rad = D/29
D = Distance to Target Plane
d = target spot diameter (identical to a 'standard' thermometer)
2°
Optical Field of View (=D/d)

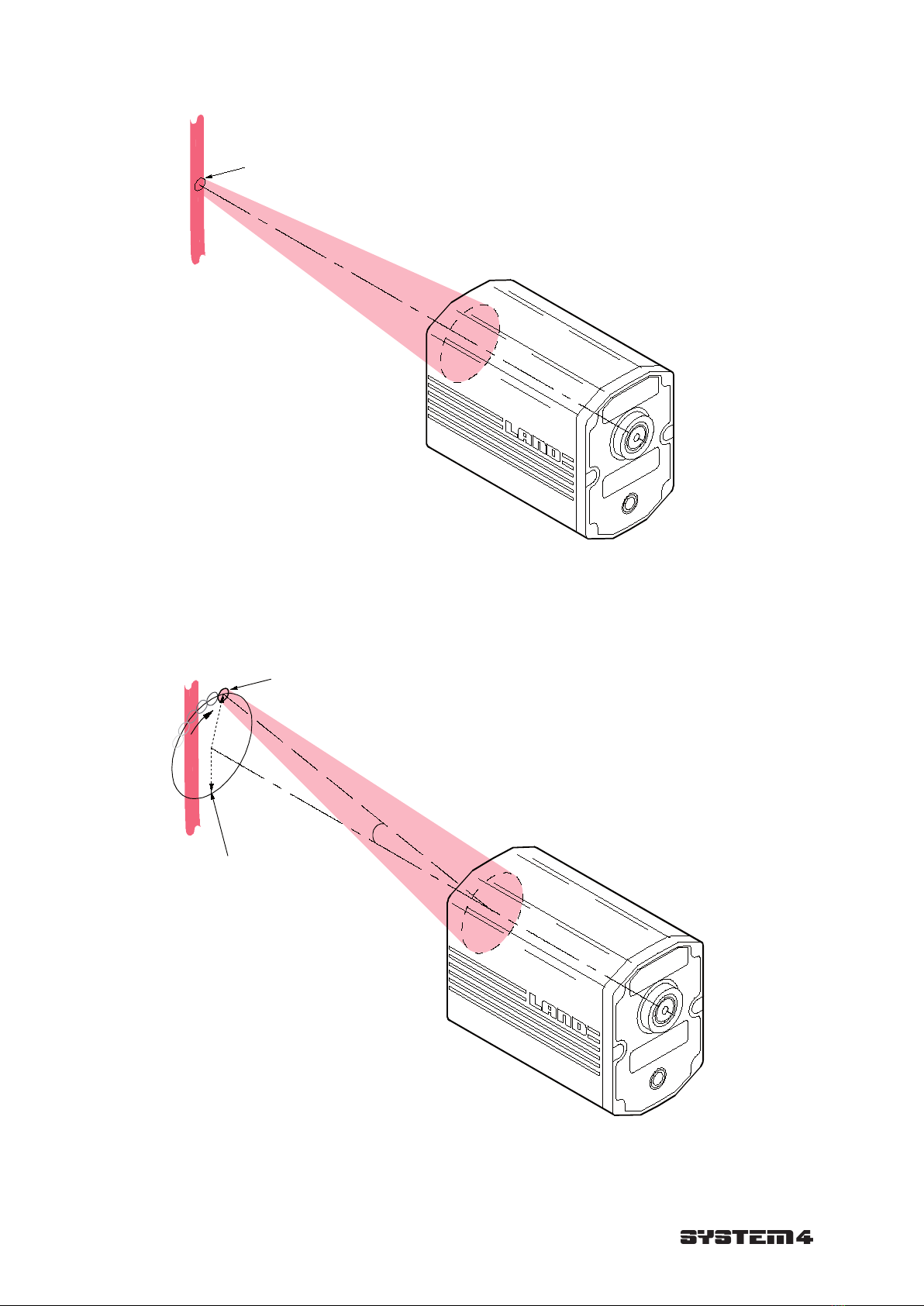

Fig. 1 Field of view of Standard System 4 Thermometer S4980253
Fig. 2 Field of view of Target Orbiting Thermometer S4980254

Page 3
User Supplement Target Orbiting Thermometer
3 Principle of Operation
Fig. 1 shows the eld of view for a standard System 4 Thermometer. The axis
of the eld of view is xed at the centre of the thermometer lens and is at
right angles to the front face of the thermometer.
Fig. 2 shows the eld of view for a Thermometer tted with the Target
Orbiting (TO) option. The target size at any given distance is identical to
that of the corresponding standard Thermometer. However, the eld of view
rotates about a cone of half-angle 2°, centred on the opto-mechanical axis
of the Thermometer. The frequency of rotation is 3Hz. The Target Orbiting
Thermometers achieve a peak temperature output in excess of 99.5% of
value (in degrees) for any target surface whose width is greater than, or
equal to, 1.2 times the target spot diameter (1.5 times for 200:1 eld of view
thermometers).
The Target Orbiting option is designed for use on moving or intermittent
targets. In a standard System 4 Thermometer, the eyepiece graticule denes
the target spot. In a Target Orbiting Thermometer, the graticule denes the
orbit of the centre of the target spot (refer to Fig. 3 overleaf). It can be
seen from Fig. 3 that, for a narrow object (e.g. wire), it is possible that the
target may not be covered by the graticule for considerable periods, due
to lateral movement of the product with respect to the thermometer. In a
Target Orbiting Thermometer, this is not a problem as the Thermometer can
be sighted so that the graticule covers the limits of lateral movement. This
means that an accurate, valid temperature reading will be obtained by the
thermometer at least three times per second. When used in conjunction with
the ‘Peak Picking’ function of either the Landmark Graphic, Landmark Classic
or Landmark Basic processor, the true temperature of the target can be
ascertained.
Non target orbiting
Thermometer
Target orbiting
Thermometer
Limits of lateral
movement
Limits of lateral
movement
Product direction of travel

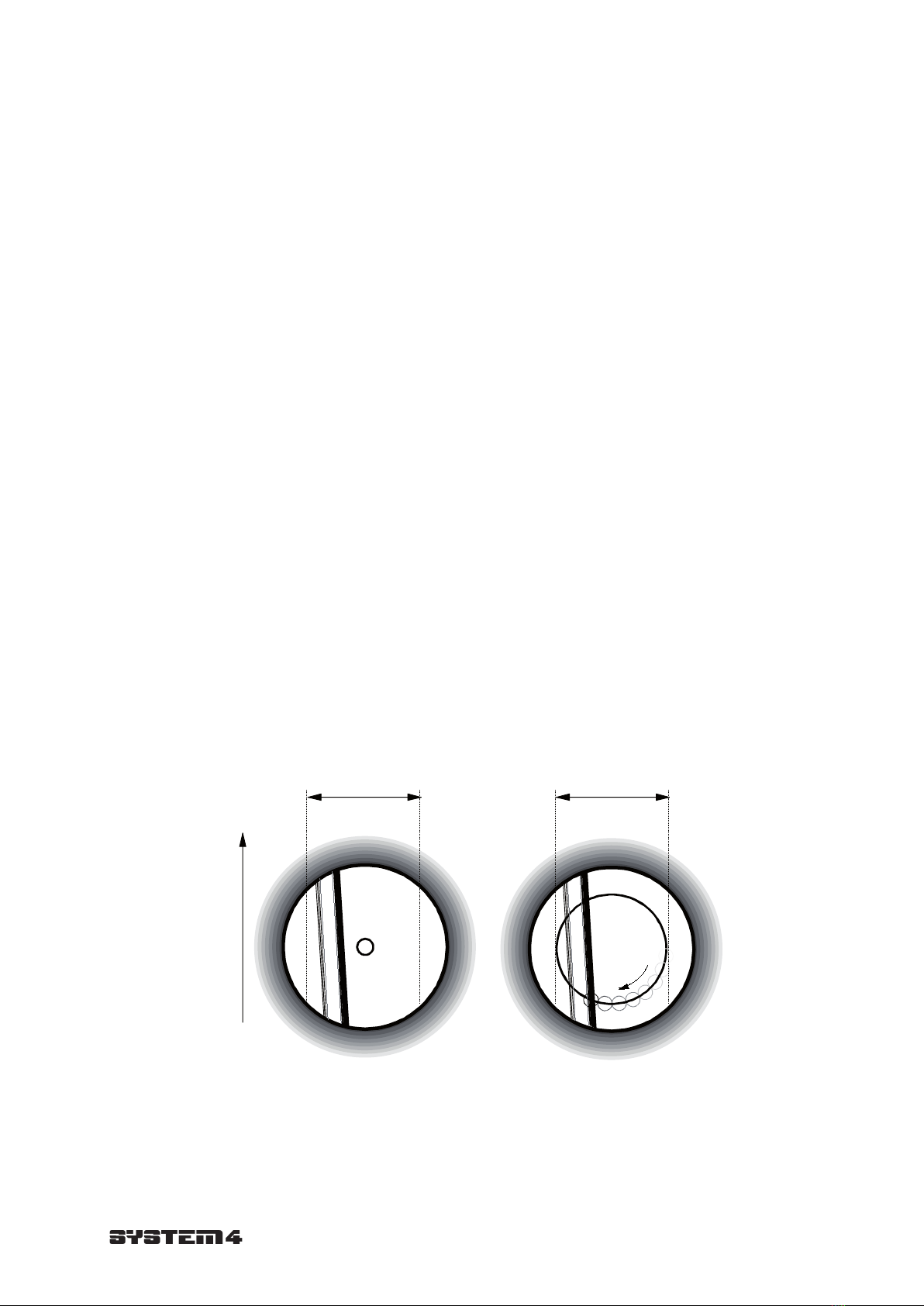

Fig. 3 Comparison of views through the eyepiece (Standard v Target Orbiting)
S4980255

Page 4
Target Orbiting Thermometer User Supplement
3.1 Suggested settings for use in 'Peak Picker' mode
1) Use the Landmark Graphic processor in Reset mode, to ensure that the
indication falls to zero when no hot material is within the target orbit.
2) The Threshold level for the Peak Picker is the temperature above
which the Peak Picker is active. The lowest selectable level is the span
minimum of the thermometer connected, but otherwise is decided
entirely by the user.
3) Set the On delay to zero.
4) Set the Off delay to >0.4s, to ensure that the indication does not reset
to span minimum within one orbit.
5) Set the Decay Rate to 1°C/s, so that genuine cooling of the target
may be tracked. Target surfaces that cool quickly (e.g. thin wires) may
require a faster decay rate to track the cooling accurately.

PRODUCT WARRANTY
Thank you for purchasing your new product from Land Instruments International. This Land
manufacturer’s ‘back-to-base’ warranty covers product malfunctions arising from defects in design
or manufacture. The warranty period commences on the instrument despatch date from the Land
Instruments International Ltd. factory in Droneld, UK.
36 MONTHS WARRANTY
Building upon the reputation for reliability and longevity that System 4 and UNO thermometers
have earned, Land are delighted to be able to provide our customers with an industry-leading
36 month warranty for the following products:-
• SPOT thermometers, accessories and mountings and special instruments based on SPOT.
• System 4 thermometers, processors, accessories and mountings and special instruments
based on System 4.
• UNO thermometers, accessories and mountings and special instruments based on UNO.
• Application-dedicated processors based on LANDMARK® Graphic.
• ABTS/S and ABTS/U
• FTS
• VDT/S and VDT/U
• DTT
• FLT5/A
This 36 month warranty is provided as standard for all orders for the products listed above received from
1st May 2002.
We believe that our customers expect us to set the standard in terms of performance, quality, reliability and
value for money. This 36 months warranty, as a part of an on-going program of continuous improvement,
is just one way in which Land strive to maintain our position as the temperature measurement partner of
choice.
24 MONTHS WARRANTY
The following Land Instruments International products are provided with a 24 months warranty:
• ARC.
• FTI-E
• NIR
12 MONTHS WARRANTY
All Land Instruments International products not provided with either a 36 month or 24 month warranty (see
lists above), are provided with a 12 months warranty.

PRODUCT WARRANTY
EXCLUSIONS FROM WARRANTY
It should be noted that costs associated with calibration checks which may be requested during the warranty
period are not covered within the warranty.
Land reserve the right to charge for service/calibration checks undertaken during the warranty period if the
cause is deemed to fall outside the terms of the warranty.
This Land manufacturer’s warranty does not cover product malfunction arising from:-
• incorrect electrical wiring.
• connection to electrical power sources outside the rating of the product.
• physical shock (being dropped, etc.) and impact damage.
• inappropriate routing, support, physical shock & strain protection, etc. of the lightguide (Fibroptic
thermometers only).
• environmental conditions exceeding the IP / NEMA rating of the product.
• environmental conditions outside the Ambient Temperature, Humidity and Vibration rating of the product.
• environmental contamination (solvent vapours, deposition of airborne contamination, cooling liquids of
non-neutral pH, etc.).
• overheating as a result of interruption of water/air ow through cooling jackets or of incorrect installation.
• inappropriate modication of product (drilling holes in thermometer bodies, etc.).
• inappropriate recalibration which results in product calibration being taken outside specication.
• improper resealing of thermometer following parameter adjustment (UNO, FLT5/A, etc.).
• attempted repair by a non-Land-authorised repair centre.
Land Instruments International Ltd • Dronfield S18 1DJ • England • Tel: [phone] • Fax: [phone]
Email: [email protected].uk • www.landinst.com
AMETEK Land, Inc. • 150 Freeport Rd. • Pittsburgh, PA 15238 • U.S.A. • Tel: [phone]
Email: [email protected] • www.ametek-land.com
For a complete list of our international offices, please visit www.landinst.com Issue 2: 27 July 2013
