WALL / CEILING
1250 COOPER LIGHTING
AMETRIX™
Vault
SMALL
• Extruded aluminum
housing
• Die-cast aluminum
end caps
• Integrated visor option -
solid, perf or opal window
• Die-formed 94% reflective
dual-finish anodized
aluminum reflector
• Gasketed hinging
doorframe - indoor
toolless entry, outdoor -
fasteners required
• PointGrab™adjustment
9-3/4" [247mm]
4-3/4"
[121mm]
3-3/4"
[95mm]
7"
[178mm]
See Lamp Chart
5"
[127mm]
9-1/4"
[235mm]
11-1/2" [292mm] See Lamp Chart

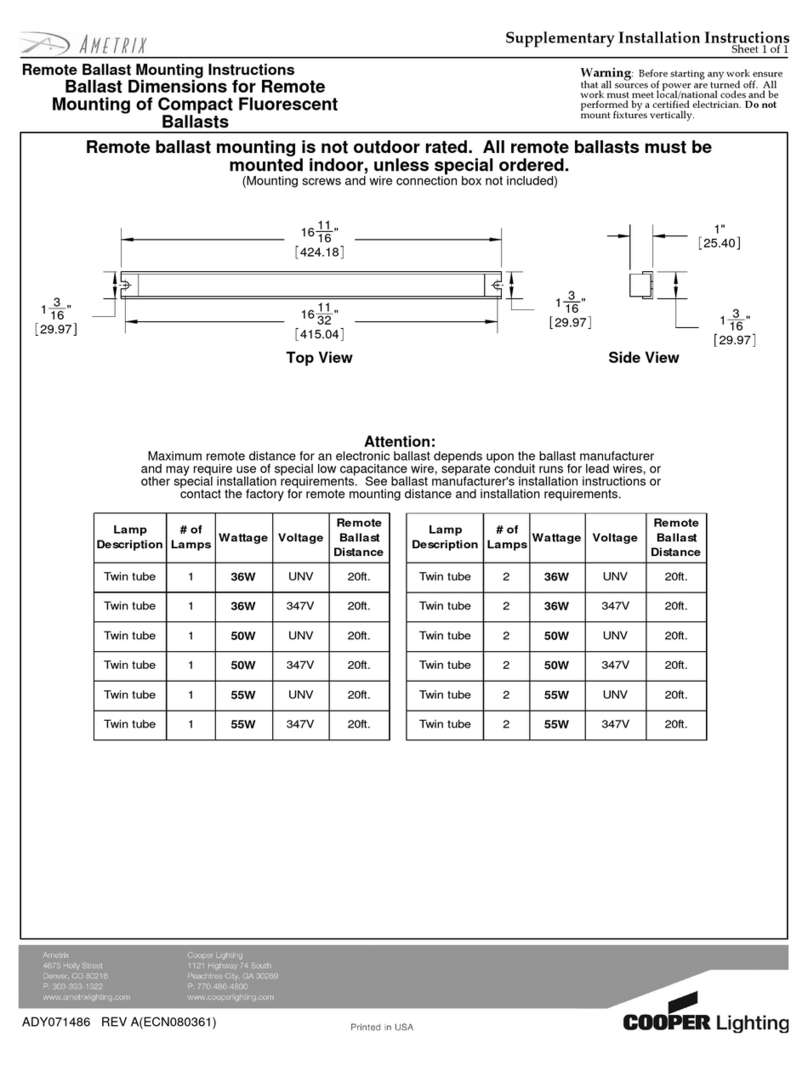

Remote (Consult factory for outdoor mounting)
Integral
Mounting Options
YI01 YI02 YI03 YI04 CR30
LAMP CHART - Integral
SOURCE WATTAGE LENGTH
Metal Halide 39 10-3/4"
70 13"
150 13"
Fluorescent 26 13"
ORDERING INFORMATION
SAMPLE NUMBER: VS-SO-P-1-E039-120-W-YI04
Product
❑VN
Vault
No Visor
❑VS
Vault
Solid Visor
❑VO
Vault
Opal Visor
❑VP
Vault
Square
Perf Visor
Voltage
❑120
120V (T)
❑277
277V
❑347
347V
Finish
❑W
White
❑S
Silver
❑B
Bronze
❑C
Custom
(Consult factory)
Mounting
❑YR
Yoke / Remote
❑CR30
Cantilever 30"
Remote
❑YI01
Yoke
Integral 01
❑YI02
Yoke
Integral 02
❑YI03
Yoke
Integral 03
❑YI04
Yoke
Integral 04
Modification
❑MOD
Provide description
of the modification.
(Consult factory)
Accessories
❑L45
45˚ Cross Blade
Louver
❑L25
25˚ Cross Blade
Louver
❑CF-color
Color Filter*
(Consult factory
for colors)
Size - Indoor/Outdoor
❑SI
Small Indoor
❑SO
Small Outdoor
Lens
❑C
Clear
❑P
Micro-prismatic
❑U
U.V.*
❑N
None**
No. of Lamps
❑1
1 Lamp
Lamp/Ballast Type
❑F
Fluorescent
(Electronic)
❑T
Tungsten
Halogen
❑E
Metal Halide
(Electronic)
❑M
Metal Halide*
(Magnetic)
Wattage
❑026
26W (F)
❑039
39W (E, M)
❑070
70W (E, M)
❑100
100W (T)
❑150
150W (E, M, T)
❑250
250W (T)
* Not available with
all sources or options.
(Consult factory)
** Only available for
fluorescent option.
Specifications and
dimensions subject to
change without notice.
LAMP CHART - Remote
SOURCE WATTAGE LENGTH
Tungsten 100 10-3/4"
150 13"
250 13"
Metal Halide 39 10-3/4"
70 13"
