AMG3684RN-DR-SF Instruction Sheet
D18232-02.doc
AMG3684RN-DR-SF
Instruction Manual
8 Channel Video Receive Unit with 1 Bi-directional Data
Channel and Dual Redundant Operation - includes AMG
NMS Network Management Interface
The AMG3684RN-DR-SF is a rackmount eight channel video receive unit designed to receive up to 8
video signals and transmit & receives one bi-directional data channel to/from a multimode optical fibre
ring with Dual Redundant operation.
The AMG3684RN-DR-SF is designed to plug into an AMG2009 or AMG2015 subrack, which in turn
fits into a 19" rack system. It also includes an AMG Management Interface to allow Management of the
system using the AMG SNMP enabled Management software.
The AMG3684RN-DR-SF is designed to operate with up to eight AMG3613-DR-SF single channel
video insert units. Each receiver will 'drop off' up to eight video channels which are being transmitted
around the fibre ring. The AMG3684RN-DR-SF may also be used with other combinations of single,
dual or four channel video and data insert units.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 2 of 12
AMG3684RN-DR-SF Instruction Sheet
D18232-02.doc
Contents
Introduction 3
Unit Functional Schematic.................................................................................................................. 3
Video Input Channel Configuration .................................................................................................... 3
Dual Redundant Operation................................................................................................................. 3
Optical Connections 4
Connections 5
Video Output Connections.................................................................................................................. 5
Optical Connections ........................................................................................................................... 5
Power Connection .............................................................................................................................. 5
Data and Audio Channel Connections ............................................................................................... 5
Data and Audio Channel Configuration 6
Data and Audio Channel Configuration.............................................................................................. 6
Data Interface Connections Channel A.............................................................................................. 6
Data Channel A Configuration............................................................................................................ 6
Front Panel Indicators 7
Power LED.......................................................................................................................................... 7
Video Output LED’s ............................................................................................................................ 7
Fibre Optic LED’s ............................................................................................................................... 7
Low Speed Data LEDs ....................................................................................................................... 7
Network Management 8
NMS Operation................................................................................................................................... 8
SNMP ................................................................................................................................................. 8
Network Alarm Port ............................................................................................................................ 8
The Management Interface ................................................................................................................ 8
Alarm Output and Reset Operation.................................................................................................. 10
Physical Information 11
Dimensions....................................................................................................................................... 11
Mounting Details............................................................................................................................... 11
Removal / replacement from / to the Case....................................................................................... 11
Safety 11
Maintenance and Repair 11

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 3 of 12
AMG3684RN-DR-SF Instruction Sheet
D18232-02.doc
Introduction

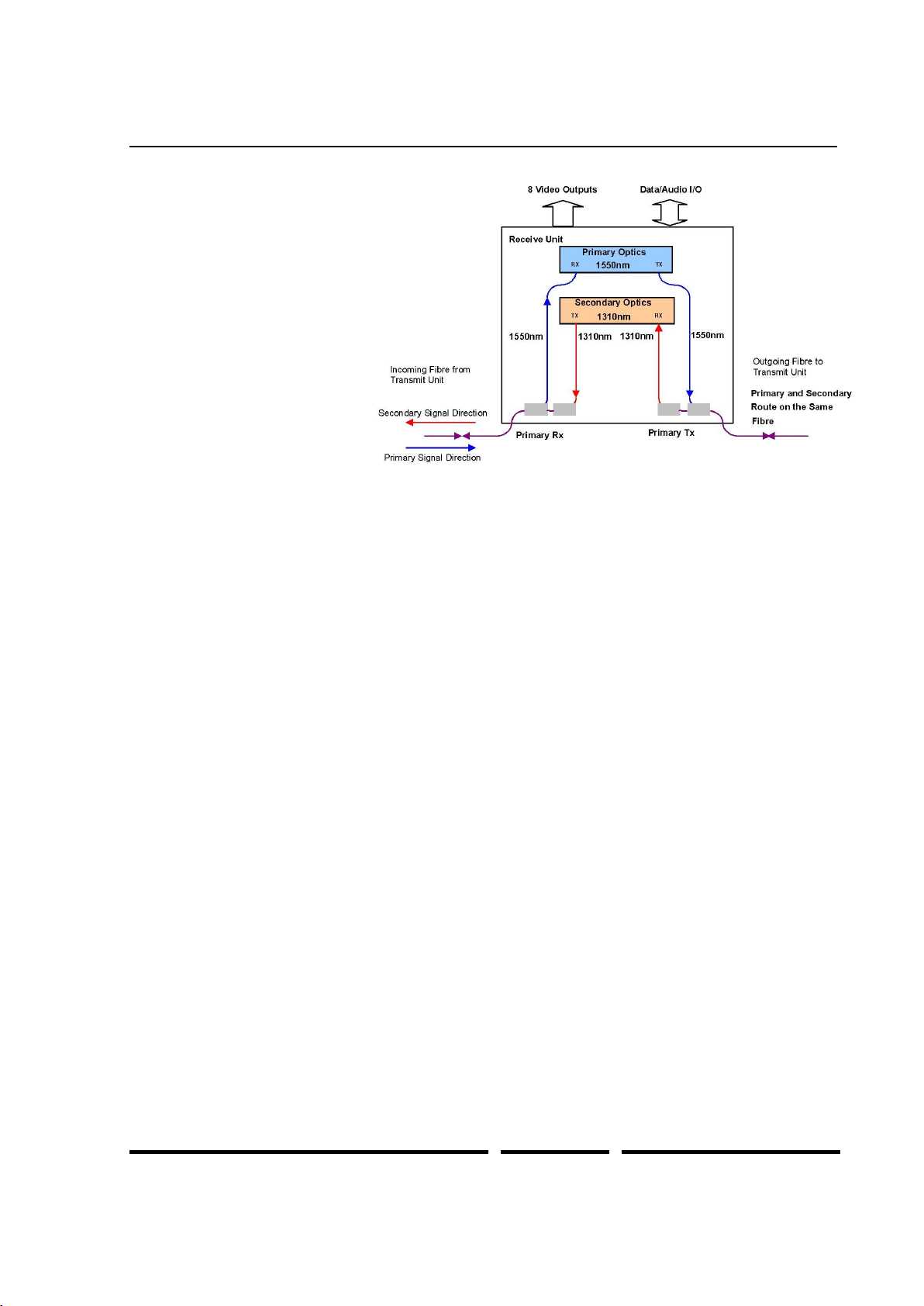

Unit Functional Schematic
The AMG3684RN-DR-SF
transmits and receives optical
signals from both a primary and
secondary optical channel. The
primary and secondary channels
operate at the same wavelength
(1550nm) and are transmitted on
separate optical fibres.
The AMG3684RN-DR-SF drops
off up to 8 video signals and one
data signal transmitted from the
AMG3613-DR-SF insert units.
As each unit regenerates the optical signal, the optical dynamic range between each optically
connected node is 17dB.
Video Input Channel Configuration
At the AMG3613-DR-SF or rackmount AMG3613R-DR-SF insert unit, video signals present at the
BNC inputs can be inserted on one to eight video channels transmitted on the optical fibre. The first
video channel number of each insert unit is set by the rotary switch on the front panel of the unit.
It is normal to set each insert unit to a different channel number. If the same number is used twice, an
insert unit connected 'down stream' on the primary optical route will 'over-write' any coincident video
channels coming from the previous insert unit and those video signals will be lost.
The switch channel numbers 1 to 8, correspond to video channels 1-8. Unused switch channel
numbers 0 & 9 duplicate video channel selections 1 & 8 respectively. i.e. setting switch to position 0 or
1 selects video channel 1 and setting switch to position 8 or 9 selects channel 8.
Dual Redundant Operation
In normal operation where optical connection to both the previous unit and subsequent insert units is
OK, video and data signals are transmitted on the primary output and data is received from the
primary input. The secondary optical input is independent and is regenerated on the secondary output.
If the primary input signal is not present, a unit will shut down the secondary output to inform the
previous unit that the signal route is not OK. The previous unit will then send out the video and data
signals on its secondary output in the opposite direction. This signal will be repeated around the ring to
get back to this unit on the secondary route. As the primary input is not present on this unit, the data
signal will now be taken from the secondary optical input thus maintaining integrity of the data
transmission.
If the secondary input signal is not present, an insert unit will assume that the route to the next unit is
not OK and send out the video and data signal on the secondary optical output. This video and data
will be transmitted to the next unit around the ring in the opposite direction on the secondary route.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 4 of 12
AMG3684RN-DR-SF Instruction Sheet
D18232-02.doc
Optical Connections

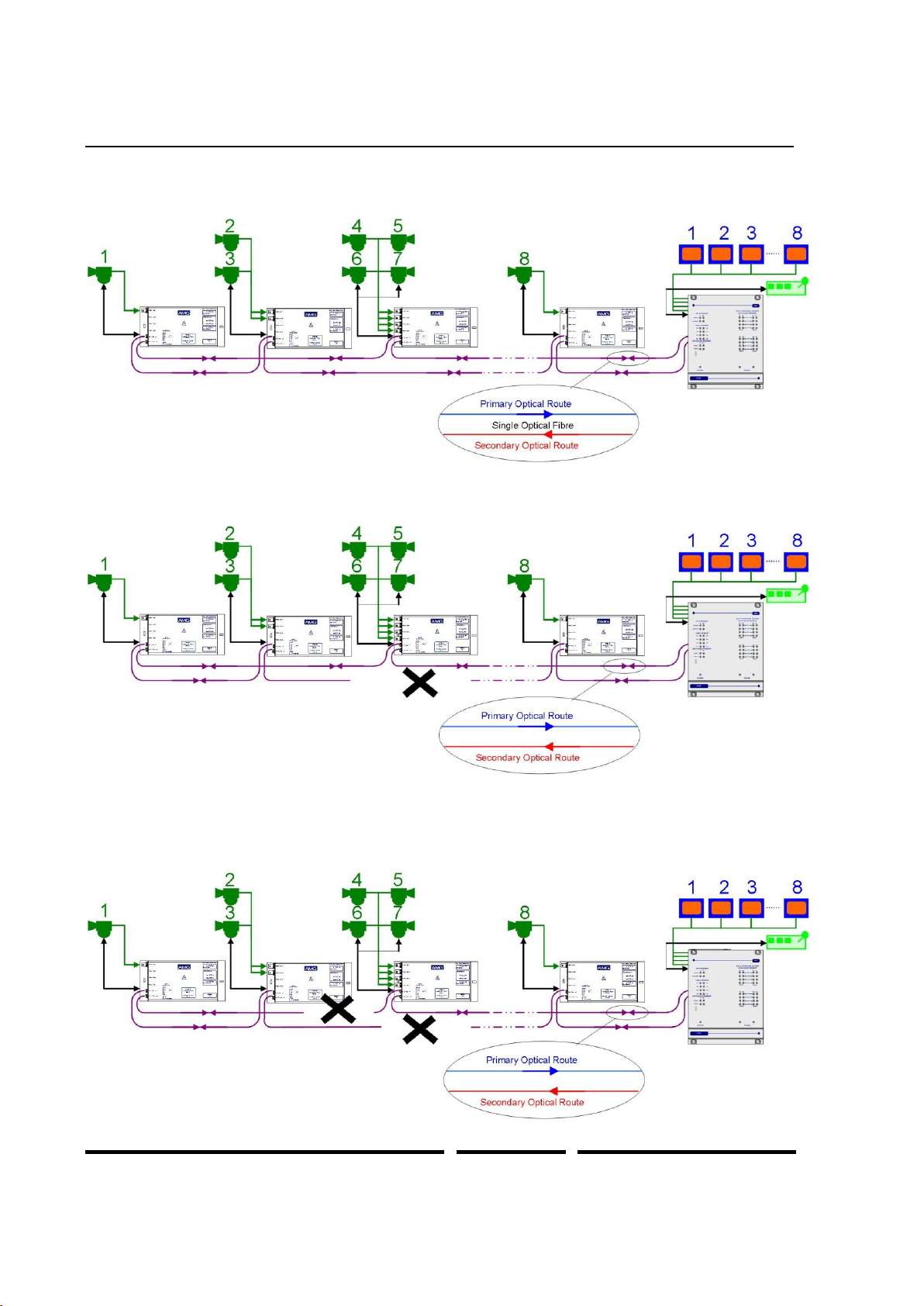

The AMG3684N-DR-SF or rackmount AMG3684RN-DR-SF is designed to be connected in a ring or
point to point system. In a ring system, single, dual and four channel insert units respectively can be
combined to make up an 8 channel video transmission system as illustrated below.
If a fibre link is broken, operation of the ring continues by making use of the secondary optical fibre
route as below:
If multiple breaks occur, operation is maintained with all the units still physically connected to the
receiver. For the scenario shown below camera signals and control would now be lost from cameras 1,
2 and 3 as there is now no physical connection between the transceivers and the receiver. However
operation of cameras 4,5,6,7 and 8 remains fully functional.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 5 of 12
AMG3684RN-DR-SF Instruction Sheet
D18232-02.doc
Connections
Video Output Connections
No. of channels....................................8
Connectors..........................................75 ohm BNC Socket.
Output Impedance...............................75 ohm terminated.
Output Level........................................1 Volt p-p nominal
Frequency Response ..........................10Hz to 7MHz.
Optical Connections
PRIMARY OPTO OUT
Connector............................................LC/PC
Primary Optical Launch Power............-5dBm
Wavelength..........................................1550nm
Secondary Optical Sensitivity..............-22dBm
Wavelength..........................................1310nm
PRIMARY OPTO IN
Connector............................................LC/PC
Primary Optical Sensitivity...................-22dBm
Wavelength..........................................1550nm
Secondary Optical Launch Power.......-5dBm
Wavelength..........................................1310nm
Optical Fibre........................................Multimode 50/125 or 62.5/125**
**Note: the transmission distance is limited by the bandwidth of the Multimode optical fibre. The optical
data rate is 1.25Gbits/s. The maximum bandwidth specification at this data rate for Multimode fibre is
500m, although in most cases the units will operate successfully over longer fibre lengths. It is
advisable however for distances greater than 500m, to have the optical fibre tested.
Power Connection
Power supply.......................................from plug in connection on the AMG2009 / AMG2015 subrack
Power consumption.............................15 Watts max.
Data and Audio Channel Connections
DATA CHANNEL A
Data Channel A...................................1 channel
Data Connector ...................................RJ45
Channel A Interface On Board Data Interface –RS232, RS422 or RS485. Selected by slide switch
above RJ45 connector.
RS485 –switch position - high (closest to BNC connections)
RS422 –switch position –middle
RS232 –switch position –low (furthest from BNC connections)
DATA CHANNEL B
Data Channel B...................................Not Present

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 6 of 12
AMG3684RN-DR-SF Instruction Sheet
D18232-02.doc
Data and Audio Channel Configuration
Data and Audio Channel Configuration
The AMG3684N-DR-SF and rackmount equivalent AMG3684RN-DR-SF sends and receives data
to/from Channel A. Channel B is not available. Channel A is a single data interface selectable by the
user with the slide switch on the rear panel.
Data Interface Connections Channel A
RJ45 Pin
No.
Channel A
Cat 5/6 Cable
Colour Code T568B
RS485
[switch high]
RS422
[switch mid]
RS232
[switch low]
1
IN + (A)
GND
White/orange
2
IN - (B)
IN
Orange
3
White/green
4
Blue
5
White/blue
6
Green
7
IN/OUT + (A)
OUT + (A)
N/A
White/brown
8
IN/OUT - (B)
OUT - (B)
OUT
Brown
Note: (A) or (B) in brackets in above table refers to RS485 / RS422 data specification, not Channel A,
Channel B.
Data Channel A Configuration
Channel A is always present and allows for a RS232, RS422 (full duplex, four wire) or RS485 (half
duplex, two wire) interface depending on the position of the switch located above the RJ45 connector.
The switch signifies the presence of the X16004 Low Speed Data/Audio Interface Board. If there are
LED's present on the RJ45 connector then an X16003 Ethernet Interface Board is fitted.
The data input for both the RS485 and the RS422 modes detects a tri-state input condition by
monitoring the differential voltage level across the input. A differential level below 600mV positive or
negative will be detected as a tri-state condition. A level above 600mV positive or negative will be
detected as a logic 1 or logic zero respectively. It is important therefore to terminate the RS485 bus or
the RS422 input bus using 120Ω if a pre-bias is present on the RS485 or RS422 bus.
A large number of third party equipment manufacturers apply a pre-bias on their RS485 bus. This pre-
bias is applied by pulling one arm of the RS485 bus high (+5 volts) and the other arm low (0 volts)
using high value resistors within the third party equipment. In order to ensure that the AMG equipment
detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party
bias resistors are less the 750Ω the bus can be double or triple terminated as required to ensure that a
tri-state level is detected.
Note: The Data Channel A is shipped from the factory set up for RS485 operation unless otherwise
requested.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 7 of 12
AMG3684RN-DR-SF Instruction Sheet
D18232-02.doc
Front Panel Indicators
Power LED
Power ..................................................Green - unit powered
Off - no power applied to unit
Video Output LED’s
Video Present CH1-8 ..........................Green - video signal present on output BNC
Org - channel present but no video on O/P BNC
Off - no video channel present
Fibre Optic LED’s
Primary Opto Sync TX.........................Green - optical channel transmitting
Off - optical channel not transmitting
Primary Opto Sync RX ........................Green - optical channel receiving
Org - optical channel receiving but not sync.
Off - optical channel not receiving
Secondary Opto Sync TX....................Green - optical channel transmitting
Off - optical channel not transmitting
Secondary Opto Sync RX ...................Green - optical channel receiving
Org - optical channel receiving but not sync.
Off - optical channel not receiving
Low Speed Data LEDs
Channel A
Data Present TX (RS485 or RS422)...Green - logic zero (+V, -V) present on IN+, IN-
Red - logic one (-V,V+) present on IN+, IN-
Off - tri-state off or no connection on IN+, IN-
Data Present TX (RS232) ...................Green - logic zero (+V) present on input IN+
Red - logic transitions present on input IN+
Off - logic one (-V) present on input IN+
This represents the data signals being transmitted on the optical fibre
Data Present RX (RS485 or RS422)...Green - logic zero (+V,-V) present on OUT+, OUT-
Red - logic one (-V,+V) present on OUT+, OUT-
Off - tri-state off or no connection on OUT+, OUT-
Data Present RX (RS232)...................Green - logic zero (+V) present on OUT+
Red - logic transitions present on OUT+
Off - logic one (-V) present on OUT+
This represents the data signals being received on the optical fibre

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 8 of 12
AMG3684RN-DR-SF Instruction Sheet
D18232-02.doc
Network Management
Network Management of the system is provided by the AMG Management Interface which allows
Management using the AMG SNMP enabled Management software.
NMS Operation
Requires Network Management "N" option in each Rx (Receive) or Tx (Transmit) unit.
Recommended for Dual Redundant Options to give knowledge of failure
Rx collects information regarding all attached Tx units
Interface
9 Way D-type management port on each Rx or Tx
RS-232 or RS-485 on Management Port
Multiple Rx/Tx units use RS-485 and effectively parallel all the RS-485 ports together
Connect to PC RS-232 Port via RS-485/RS-232 convertor
Proprietary GUI
Loss of unit
Loss of Optical Input
Loss of Video Input
SNMP
SMNP Compatibility: SMNP Version 1
AMG3700 Device do NOT act as SNMP Agents
PC running AMG NMS software is the only 'true' SNMP Agent
Provides Proxy access to all AMG devices
SNMP Community String used to differentiate between AMG devices
Network Alarm Port
Alarm Output: Normally Closed
Opens when loss of :
Video at any insert node
Primary optical input at any node
Secondary optical input at any node
Any node through a power down
Power at the receiver
Closed by: Reset
The Management Interface
The Management Interface is fitted to AMG receivers / transmitters and is signified by a 'N' in the part
number

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 9 of 12
AMG3684RN-DR-SF Instruction Sheet
D18232-02.doc
Each management interface, thus each receiver or transmitter, has an ID number with is identified
below the management port. This ID number is used by the AMG Network Management System
(NMS) to identify the unit.
The physical interface is a 9 way female D-type connector. It supports either RS-232 or RS-485.
Management Port Pin-out:
Pin Number
RS-232 Connection
RS-485 Connection
1
-
Data B (+)
2
RD (data out of port)
Data A (-)
3
TD (data into port)
-
4
Connect to DTR held –ve or shorted
to ground
-
5
SG (signal ground)
SG (signal Ground)
6
Alarm Output
Alarm Output
7
Alarm Output
Alarm Output
8
Alarm reset (Gnd)
Alarm reset (Gnd)
9
Alarm reset
Alarm reset
For multiple Management Ports it is recommended that the RS-485 interface is used with each RS-
485 pair connected in parallel. In this case an RS-485 to RS-232 / USB converter is required in order
to connect to a standard PC Comms. Port.
The time delay between receiving a data request and sending out a response from the port is 625µs.
Therefore any RS-485 converter should have a 'turn around' time or 'transmit dwell' time equal to or
less than 625µs.
Recommended RS-485 Converter's are:
RS-485 to RS-232
Dataforth DCP485-S: Available in the UK from http://uk.farnell.com/ Order No. 300-9348
Settings on the DCP485-S:
RS-485 Switch Settings: 1-UP, 2-DOWN, 3-DOWN, 4-UP, 5-DOWN, 6-DOWN, 7-DOWN,
8-UP
RS-232 Switch Settings: 1-DOWN, 2-UP, 3-DOWN, 4-UP
DCE/DTE set to DCE.
RS-485 to USB
B&B 485USBTB-2W: Available in Europe from http://www.bb-europe.com/ Order No. 485USBTB-2W
Connections to management port:
Management
Port
DCP485-S
485USBTB-2W
1
2 or 4
B+
2
3 or 5
A-
5
GND
GND
NOTES:
On the DCP485-S, pins 3 and 5 are connected together and pins 2 and 4 are connected together.
On the 485USBTB-2W, there are 2 pairs of terminals both labeled A-, B+, either pair may be used.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 10 of 12
AMG3684RN-DR-SF Instruction Sheet
D18232-02.doc
Alarm Output and Reset Operation
The alarm output and reset is designed to indicate a change of state of the fibre loop or spur attached
to the receiver. The Alarm output is a volts free contact relay output (rating: 0.5A at 125VAC or 1A at
24VDC). It normally open, which means that when not powered the contacts will be open circuit.
On power up the contacts will close and will remain closed for up to 5 seconds. During this time the
receiver will monitor and record the state of the AMG transmit units connected to the receiver.
The contacts will then remain closed until there is a change from this recorded state. A change of state
would be:
Addition or loss of video at any insert node
Addition or loss of primary optical input at any node
Addition or loss of secondary optical input at any node
Power up or down of any node
Loss of power at the receiver
Following a change of state the contacts will remain open, regardless of whether the alarm condition
reverts back to its previous state, until the a reset signal is presented to the alarm input connections.
The alarm reset input is biased at 5V via a 1kΩ resistor. To reset the alarm, the alarm reset is required
to be pulled to ground, either by a volt-free contact or an open collector output. The alarm output will
be held in a closed state whilst the alarm reset is connected to ground.
On release of the alarm reset, the alarm output will remain in a closed state until the next change of
state to the AMG transmit unit connected to the receiver. The alarm output may not register a change
of state which happens within 5 seconds of release of the alarm reset.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 11 of 12
AMG3684RN-DR-SF Instruction Sheet
D18232-02.doc
Physical Information
Dimensions
Height..................................................3U Plug-in
Width ...................................................21HP
Depth...................................................170mm excluding connectors
Weight .................................................1200grams
Mounting Details
The unit is designed to be mounted within an AMG2009 or AMG2015 Subrack on standard card
guides.
Removal / replacement from / to the Case
Note: - The AMG unit PCB's are static sensitive. Handle with proper care and use normal electrostatic
discharge (ESD) procedures. Use properly grounded protection (for example, wrist straps) when
handling the PCB.
To remove units from the case to access the data expansion boards and the daughter boards, remove
the 2 or 4 fixing screws on the rear panel and slide the PCB's out of the case.
Ensure that the fibres do not snag or get trapped.
To replace the PCB's into the case, slide the PCB's gently into the case aligning the boards with the
appropriate slots. Ensure that the fibre do not snag or get trapped.
Safety
AMG Optical Fibre Products use Class 1 laser systems in accordance with EN 60825-2:2000.
It is always advisable to follow good practice when working with optical fibre systems. This includes:
Do not stare with unprotected eyes or with any unapproved collimating device at fibre
ends or connector faces, or point them at other people.
Use only approved filtered or attenuating viewing aids
For other safety issues and advice on good practice associated with optical fibre systems, please see
EN 60825-2:2000 or your local safety officer.
Maintenance and Repair
There are no user serviceable parts within AMG products. See unit data sheet for full specification.
In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at
3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
Phone [phone]
Technical Support [phone]
Email [e-mail]

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 12 of 12
AMG3684RN-DR-SF Instruction Sheet
D18232-02.doc
This page is intentionally blank.
