Amica AFC5100WH/2 User manual

IO-CFS-1917 / 8510287
(08.2020 V1)
INSTRUCTION MANUAL
TYPE
508DCE2.10HmOW
508DCE2.10HmOC
MODEL
AFC5100WH/2
AFC5100SI/2
ELECTRIC COOKER
TWIN CAVITY

2
DEAR CUSTOMER,
The cooker is exceptionally easy to use and extremely ecient. After reading the instruction
manual, operating the cooker will be easy.
Before being packaged and leaving the manufacturer, the cooker was thoroughly checked
with regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the cooker until you have read this instruction manual.
The cooker is intended for household use only.
The manufacturer reserves the right to introduce changes which do not aect the
operation of the appliance.

3
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 9
Installation..........................................................................................................................11
Operation........................................................................................................................... 13
Baking in the oven – practical hints ............................................................................... 18
Cleaning and maintenance.............................................................................................. 20
Technical data................................................................................................................... 25
Product Fiche.................................................................................................................... 26
TABLE OF CONTENTS

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept
away unless continuously supervised.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the ha-
zards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by chil-
dren without supervision.
Warning: Unattended cooking on a hob with fat or oil can
be dangerous and may result in re.
NEVER try to extinguish a re with water, but switch o󰀨 the
appliance and then cover ame e.g. with a lid or a re blanket.
Warning: Danger of re: do not store items on the cooking
surfaces.
Warning: If the surface is cracked, switch o󰀨 the appliance
to avoid the possibillity of electric shock.
During use the appliance becomes hot. Care should be taken
to avoid touching heating elements inside the oven.
Accessible parts may become hot during use. Young children
should be kept away.

5
SAFETY INSTRUCTIONS
Warning: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
Warning: Ensure that the appliance is switched o󰀨 before
replacing the lamp to avoid the possibillity of electric shock.
You should not use steam cleaning devices to clean the
appliance.
Danger of burns! Hot steam may escape when you open the
oven door. Be careful when you open the oven door during
or after cooking. Do NOT lean over the door when you open
it. Please note that depending on the temperature the steam
can be invisible.
Always keep children away from the cooker.
While in operation direct contact with the cooker may cause burns!
Ensure that small items of household equipment, including connection leads, do not touch
the hot oven or the hob as the insulation material of this equipment is usually not resistant
to high temperatures.
 Do not leave the cooker unattended when frying. Oils and fats may catch re due to
overheating or boiling over.
Do not allow the hob to get soiled and prevent liquids from boiling over onto the surface
of the hob. This refers in particular to sugar which can react with the ceramic hob and
cause irreversible damage. Any spillages should be cleaned up as they happen.
Do not place pans with a wet bottom on the warmed up heating zones as this can cause
irreversible changes to the hob (irremovable stains).
 Use pans that are specied by the manufacturer as designed for use with a ceramic hob.
If any defects, deep scratches, cracks or chips appear on the ceramic hob, stop using the
cooker immediately and contact the service centre.
Do not switch on the hob until a pan has been placed on it.
Do not use pans with sharp edges that may cause damage to the ceramic hob.
Do not look directly at the halogen heating zones (not covered by a pan) when they are
warming up.
Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25
kg on the hob.
Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.

6
SAFETY INSTRUCTIONS
 Do not use the cooker in the event of a technical fault. Any faults must be xed by an
appropriately qualied and authorised person.
In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the cooker.
The appliance has been designed only for cooking. Any other use (for example for heat-
ing) does not comply with its operating prole and may cause danger.

7
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:

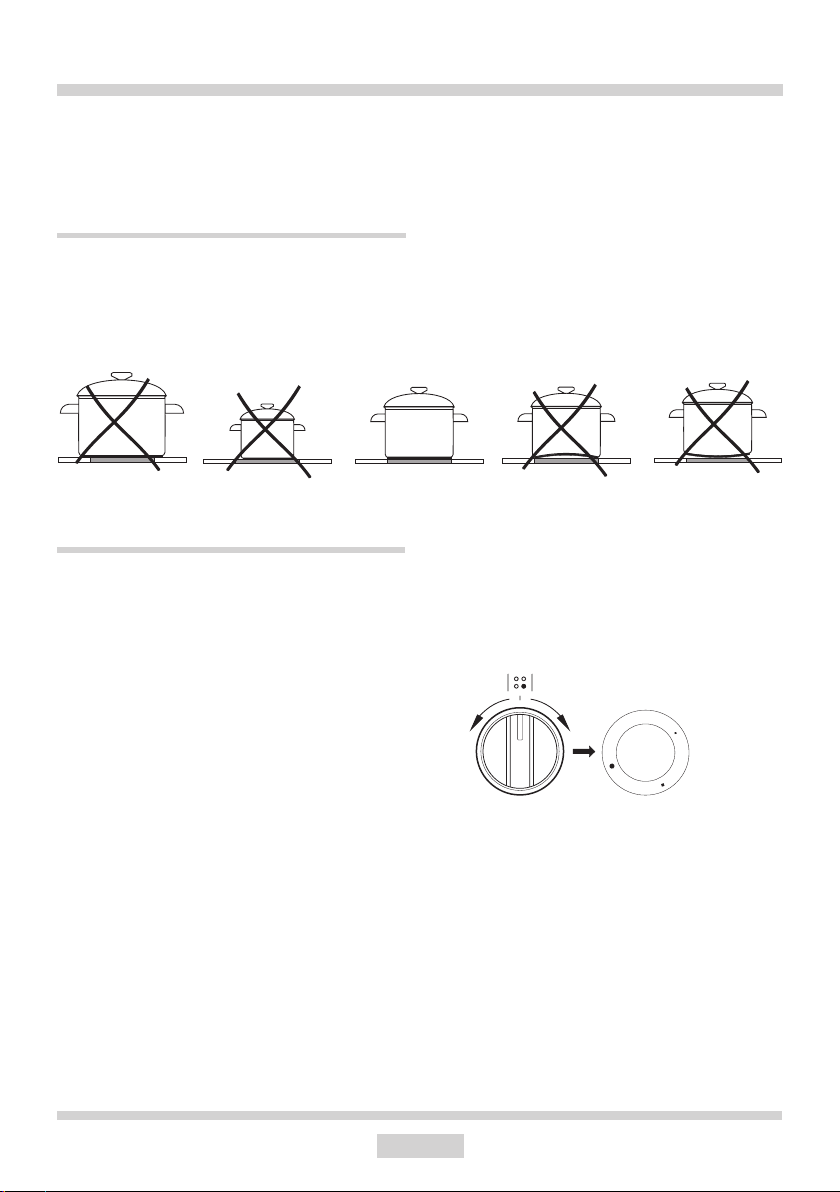

 Use proper pans for cooking.
Pans with thick, at bases can save up
to 1/3 on electric energy. Remember to
cover pans if possible otherwise you will
use four times as much energy!
 Match the size of the saucepan to the
surface of the heating zone.
A saucepan should never be smaller than
a heating zone.
Ensure heating zones and pan bases
are clean.
Soils can prevent heat transfer – and
repeatedly burnt–on spillages can often
only be removed by products which cause
damage to the environment.
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
 Switch o󰀨 the oven in good time and
make use of residual heat.
For long cooking times, switch o󰀨 heating
zones 5 to 10 minutes before nishing
cooking. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
HOW TO SAVE ENERGY
Make use of residual heat from the
oven.
If the cooking time is greater than 40
minutes switch o󰀨 the oven 10 minutes
before the end time.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the
door seals. Clean up any spillages im-
mediately.
Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.

8
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpacking,
please dispose of all elements
of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the in-
struction manual or the packaging shows that
it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
a signicant contribution to the protection of
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

9
DESCRIPTION OF THE APPLIANCE
1
7
3, 4
2
5, 6
9
12
1Temperature control knob - Main oven
2Temperature control knob - Top cavity
3, 4, 5, 6 Heating zone control knobs
7Red thermostat light - Main oven
8Red thermostat light - Top cavity
9 Yellow operation light
10 Top cavity door
11 Main oven door
12 Ceramic hob
8
10
11

10
*All images are for indication only; please refer to your individual unit for actual item.
Grill Deector
SPECIFICATIONS OF THE APPLIANCE
Cooker ttings:
Baking tray Wire Shelf

11
INSTALLATION
Installing the cooker
The kitchen should be dry and airy and
have e󰀨ective ventilation according to the
existing technical provisions.
The room should be equipped with a ven-
tilation system that pipes away exhaust
fumes created during combustion. This
system should consist of a ventilation
grid or hood. Hoods should be installed
according to the manufacturer’s instruc-
tions. The cooker should be placed so
as to ensure free access to all control
elements.
 Coating or veneer used on tted furniture
must be applied with a heat resistant
adhesive (100°C). This prevents surface
deformation or detachment of the coat-
ing. If you are unsure of your furniture’s
heat resistance, you should leave ap-
proximately 2 cm of free space around
the cooker. The wall behind the cooker
should be resistant to high temperatures.
During operation, its back side can warm
up to around 50°C above the ambient
temperature.
The cooker should stand on a hard, even
oor (do not put it on a base).
Before you start using the cooker it should
be leveled, which is particularly important
for fat distribution in a frying pan. To this
purpose, adjustable feet are accessible
after removal of the drawer. The adjust-
ment range is +/- 5 mm.
20mm
1
2
3

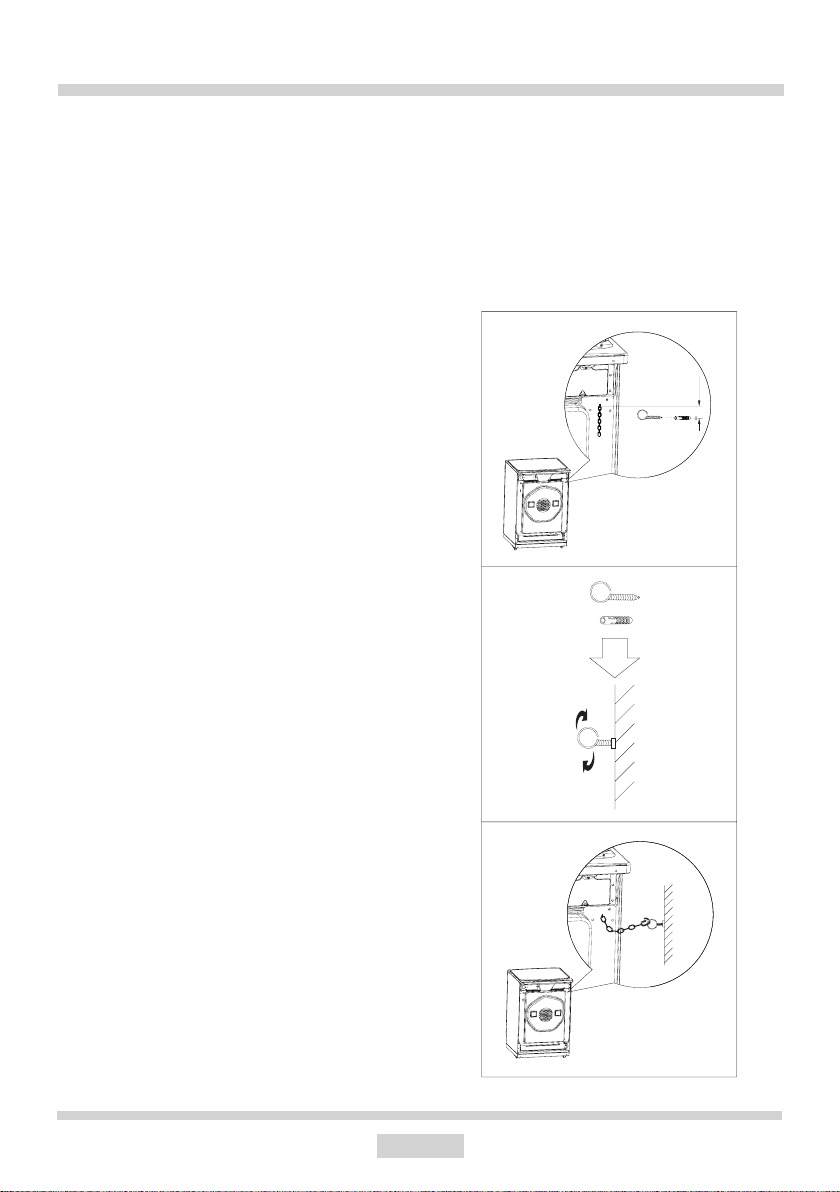

Anti-tilt protection
CAUTION! You must install the anti-tilt pro-
tection. If you do not install it, the appliance
can tilt.
The appliance must be secured by using
the safety chain (supplied and mounted to
cooker rear).
Fasten hook to the kitchen wall and connect
safety chain to the hook.

12
INSTALLATION
Electrical connection
Warning: This appliance must be earthed.
The appliance must be installed by a com-
petent electrician using a double pole control
unit of 40 Ampere minimum capacity with 3
mm minimum contact separation at all poles.
We recommend that the appliance is con-
nected by a qualied electrician who is mem-
ber of the N.C.E.I.C. and who will comply with
the I.E.E. and local regulation.
Access to the main terminal is gained by
opening the terminal block cover at the
rear of the appliance (use a small at-
bladed screwdriver).
Connection shuld be made with 4 mm2
twin and earth cable.
First strip the wires, then push the cab-
lethrough the cable clamp in the terminal
block cover.
Connect the cable to the terminal block
and tighten the cable clamp screw (see
diagram).
Ensure the cable exits through the cable
grip clamping on the outer sheath of the
cable and x in place by tightening the
xing screw.
Ensure all screws are adequately tight-
ened. Do not over tighten as you may risk
damaging the screw threads.
Close the terminal box, ensuring that the
cover is engaged on the locking tabs.
The supply cable must be positioned
away from any hot parts of the rear of
the cooker. If this cannot be done then
another method of protecting the supply
cable from the hot parts must be used i.e.
Heat resistant sleeving or high tempera-
ture cables.
L - Live (Red or Brown)
N - Neutral (Black or Blue)
PE - Earth (Green/Yellow or sleeving)
Grounding lead must be connected to screw
with symbol.
The power supply cable must have these
minimum requirements:
- Type: HO5VV-F (PVC insulated and
sheathed exible cable)
- 3 cores x 4 mm2.
230V 1N~

13
Remove packaging, clean the interior of
the oven and the hob.
 Take out and wash the oven ttings with
warm water and a little washing–up liquid.
Switch on the ventillation in the room or
open a window.
Heat the oven (to a temperature of 250°C,
for approx. 30 min.), remove any stains
and wash carefully; the heating zones
of the hob should be heated for around
4 min. without a pan.
Before rst use
OPERATION
Important!
To clean the oven, only use a cloth
well rang out with warm water to
which a little washing-up liquid has
been added.

14
OPERATION
Controlling the heating zones of the ceramic hob.
0 Switch o󰀨
MIN. Warming up
1Stewing vegetables, slow cooking
Cooking soups, larger dishes
2Slow frying
Grilling meat, sh
3MAX. Fast heating up, fast cooking, frying
incorrect correct incorrect
0
1
2
3
Choice of cookware
Choose a pan with a diameter that is at least as large as the heating zone. Do not use pans
with a concave or convex base. Always remember to put a proper cover on the pan. We
recommend the use of pans with thick, even bases.
If the heating zones and pans are solied it is impossible to make full use of the heat.
Heat level selection
The heating zones have di󰀨erent levels of heat. The level of heat can be adjusted gradually
by turning the appropriate knob to the right or left.

15
Zone heating indicator
OPERATION
Zone heating indicator
If the temperature of a heating zone exceeds
50°C this is signalled by an indicator which
lights up for that zone.
When the heating indicator lights up it warns
the person using the cooker against touching
a hot heating zone.
For about 5 to 10 minutes after a heating
zone is switched o󰀨 it will still have residual
heat that can be used, for example to warm
up or keep dishes warm without switching on
another heating zone.

16
OPERATION
Accessible parts may be-
come hot during use.
Young children should be
kept away.
Yellow operation light
Red thermostat light
Signal lights
Using top cavity and main oven
Each control knob has a sign above it, with a
brightened area denoting the oven it controls.
The top cavity control knob has this symbol
about it:
The main oven control knob has this symbol
about it:
To turn on the grill (top cavity).
0
1
2
3
Ensure the top cavity door is open (and
stays open in use).
Turn the top cavity control knob clocwise/
right, to the desired temperature position
(between min and max). The red ther-
mostat light next to the control knob will
illuminate and may extinguish once the
grill has reached the set temperature.
 Top cavity is turned o󰀨 when the control
knob is in 0 position.
Please note: The yellow operation light on
the right of the control panel will also illumi-
nate when the grill is in use.
Important: Always grill with the top cavity
door open. Put the Grill Deector on.
To turn on the main oven.
0
100
150
200
250
Turn the control knob clockwise/right,
to the desired temperature position
(between 100° and 250°C). The red ther-
mostat light next to the control knob will
illuminate and extinguish once the oven
has reached the set temperature. It may
cycle on and o󰀨 periodically as the oven
elements maintains the cavity tempera-
ture.
 Main oven is turned o󰀨 when the control
knob is in 0 position.

17
OPERATION
Yellow operation light
Red thermostat light
Oven lighting
The main oven lamp will be switched on after
the temperature has been set by the tempera-
ture regulator knob.
Please note: The yellow operation light on
the right of the control panel will also illumi-
nate when the main oven is in use.
Signal lights

18
BAKING IN THE OVEN – PRACTICAL HINTS
Baking
we recommend using the accessories which were provided with your cooker;
it is also possible to bake in cake tins and trays bought elsewhere which should be
put on the drying rack; for baking it is better to use black trays which conduct heat
better and shorten the baking time;
shapes and trays with bright or shiny surfaces are not recommended when using the
conventional heating method (top and bottom heaters), use of such tins can result in
undercooking the base of cakes;
when using the ultra-fan function it is not necessary to initially heat up the oven
chamber, for other types of heating you should warm up the oven chamber before
the cake is inserted;
before the cake is taken out of the oven, check if it is ready using a wooden stick (if
the cake is ready the stick should come out dry and clean after being inserted into
the cake);
 after switching o󰀨 the oven it is advisable to leave the cake inside for about 5 min.;
temperatures for baking with the ultra-fan function are usually around 20 – 30 degrees
lower than in normal baking (using top and bottom heaters);
the baking parameters given in Table are approximate and can be corrected based
on your own experience and cooking preferences;
 if information given in recipe books is signicantly di󰀨erent from the values included
in this instruction manual, please apply the instructions from the manual.
Roasting meat
cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on
the gas burners.
use heatproof ovenware for roasting, with handles that are also resistant to high
temperatures;
when roasting on the drying rack or the grate we recommend that you place a baking
tray with a small amount of water on the lowest level of the oven;
it is advisable to turn the meat over at least once during the roasting time and during
roasting you should also baste the meat with its juices or with hot salty water – do
not pour cold water over the meat.

19
BAKING IN THE OVEN – PRACTICAL HINTS
Type of
dish
Type
of heating
Temperature
ºC
Level Time
(min.)
Mu󰀩ns 155 - 170 1) 3 25 - 40 2)
Fish 160 - 180 2 - 3 45 - 60
Beef 160 - 180 2 120 - 160
Pork 160 - 190 2 90 - 120
Chicken 175 - 190 2 60 - 70
The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be
reduced by about 5-10 minutes.
1) Preheat
2) Baking smaller items
Note: The gures given in Tables are approximate and can be adapted based on your own experience
and cooking preferences.

20
CLEANING AND MAINTENANCE
By ensuring proper cleaning and mainte-
nance of your cooker you can have a sig-
nicant inuence on the continuing fault-free
operation of your appliance.
Before you start cleaning, the cooker must
be switched o󰀨 and you should ensure
that all knobs are set to the 0 position.
Do not start cleaning until the cooker has
completely cooled.
Scraper for cleaning the hob
Ceramic hob
The hob should be cleaned regularly after
each use. If possible, it is recommended
that the hob is washed while still warm
(after the heating zone indicator goes
o󰀨). Do not allow the hob to get heavily
stained; particualrly from burnt–on spill-
ages from boiled over liquids.
When cleaning do not use cleaning
agents with a strong abbrasive e󰀨ect,
such as e.g. scouring powders contain-
ing an abrasive, abrasive compounds,
abrasive stones, pumice stones, wire
brushes and so on. They may scratch the
hob surface, causing irreversible dam-
age.
 Large spillages that are rmly stuck to the
hob can be removed by a special scraper;
but be careful not to damage the ceramic
hob frame when doing this.
Caution! The sharp blade should always
be protected by adjusting the cover (just
push it with your thumb). Injuries are
possible so be careful when using this
instrument – keep out of reach of children.
Important!
Do not use any abrasive agents,
harsh detergents or abrasive ob-
jects for cleaning.
Only use warm water with a small
addition of dishwashing liquid to
clean the front of the appliance.
Do not use washing powders or
creams.
Caution!
Do not use cleaning products contain-
ing abrasive materials for the cleaning
and maintenance of the glass front
panel.
Oven
The oven should be cleaned after every
use. When cleaning the oven the lighting
should be switched on to enable you to
see the surfaces better.
The oven chamber should only be washed
with warm water and a small amount of
washing-up liquid.
