Amica EGSPV 593 910 User manual

OPERATING
INSTRUCTIONS
EN
IO-DWS-1734
(10.2019/1)
ONLY USE THE APPLIANCE WHEN YOU
HAVE READ AND UNDERSTAND
THE OPERATING INSTRUCTIONS
EGSPV 593 910

2
WE ARE ENVIRONMENTALLY FRIENDLY
BASIC INFORMATION
SAFETY INSTRUCTIONS
INSTALL THE APPLIANCE
DESCRIPTION OF THE APPLIANCE
CLEANING AND MAINTENANCE
INSTALL THE APPLIANCE IN A CABINET
3
5
6
13
16
33
38
In accordance with European Directive 2012/19/EU and Polish legislation regarding used
electrical and electronic goods, this appliance is marked with the symbol of the crossed-out
waste container.
This marking indicates that the appliance must not be disposed of together with other
household waste after it has been used. The user is obliged to hand it over to waste col-
lection centre collecting used electrical and electronic goods. The collectors, including local
collection points, shops and local authority departments provide recycling schemes. Proper
handling of used electrical and electronic goods helps avoid environmental and health haz-
ards resulting from the presence of dangerous components and the inappropriate storage
and processing of such goods.
CONTENTS

3
For many years, Amica has consistently pursued pro-ecological policy.
Concern for the environment is as important for us as the use of modern technology. That's why
we focus on energy-e󰘲cient appliances of the highest energy e󰘲ciency class — A+, A++ and
A+++.
The development of technology has enabled our factories to become more environmentally
friendly – we use less and less water, electricity and less waste water and solid waste is gener-
ated in the production.
A lot of attention is paid to materials used in production. We strive to use only those that do not
contain harmful substances and make recycling and safe disposal possible after use.
WE ARE ENVIRONMENTALLY
FRIENDLY

4
Dear customer!
Thank you for choosing an Amica product. For years we have deliv-
ered high-quality appliances, so that household chores become a real
pleasure. Before being packaged and leaving the manufacturer, this
appliance was thoroughly checked with regard to safety and func-
tionality. We also endeavour to make sure that modern technology in
Amica products always goes hand in hand with a unique design.
Before using the appliance, please carefully read these Operating
Instructions Follow these instruction to avoid improper use and ensure
long and reliable operation of the appliance. Learn the principles of the
safe use to avoid accidents.
Store these operating instructions in a safe place to use them for ref-
erence whenever needed. These Operating Instructions contain all the
necessary information that will make the use of your Amica appliance
simple and fun. We also encourage you to 󰘰nd out more about other
Amica appliances.
We hope using your new appliance is a pleasure.
MANUFACTURER’S DECLARATION

Carefully read the operating instructions before plugging dishwasher to a
power outlet and using the appliance. Operating instruction include tips
that will help you avoid the risk of injury and damage to the appliance.
Keep dishwasher documentation in a safe place for possible future use.
These operating instructions have been prepared for a range of applianc-
es and some features described herein may not apply to your appliance.
BASIC INFORMATION
The manufacturer hereby declares that this product
meets the requirements of the following European
directives:
Low Voltage Directive 2014/35/EU,
Electromagnetic Compatibility (EMC) Directive
2014/30/EE,
Eco-design Directive2009/125/EU,
RoHS Directive2011/65/EU,
and has been marked with the symbol and issued
with a declaration of compliance made available to
market regulators.
MANUFACTURER’S DECLARATION

SAFETY INSTRUCTIONS FOR USE
Before you install the
appliance
Check the appliance for transport
damage. Never install or use a dam-
aged appliance. If in doubt, contact
your seller.
Before rst use See installation notes (below).
Refer the grounding system instal-
lation to a qualied electrician.
The manufacturer shall not be liable
for any damage arising from the use
of a non-grounded appliance.
Before using the appliance, verify
that the data given on the rating
plate matches that of local power
outlets.
Do not plug in the appliance before
and during installation.
Always use the original plug that
came with the appliance.
Do not use an extension cord to con-
nect the appliance to the wall outlet.
Extension cords are not su󰀩ciently
safe (e.g. they may overheat).
Make sure the plug is easily acces-
sible after installing the appliance.
6

Before rst use This appliance can be used by
children aged 8 years and older
or persons with physical, mental
or sensory handicaps, or those
who are inexperienced or unfa-
miliar with the appliance, provided
they are supervised or have been
instructed how to safely use the
appliance and are familiar with
the associated risks. Ensure that
children do not play with the ap-
pliance. Children should not be
allowed to clean or maintain the
appliance.
Children less than 3 years of age
shall be kept away unless con-
tinuously supervised.
Child safety Do not allow children to play with
the appliance.
Dishwashing detergents can
be caustic and irritate the eyes,
mouth and throat. Read the
safety notes from detergent
manufacturer.
Never leave children unsuper-
vised when the appliance is open.
It can contain residue detergent.
SAFETY INSTRUCTIONS FOR USE
7

Child safety Dishwasher water is not suitable
for drinking. Danger of injury from
the caustic chemicals.
When you open the door during a
programme, be careful as water
temperature is high.
To avoid injury always place long
and sharp/pointed items (e.g.
forks, knives) in the cutlery bas-
ket, pointing down, or at on the
top basket.
Daily maintenance Use the appliance for household
dishwashing only.
Do not use solvents in the appli-
ance as there is a risk of explo-
sion.
Do not sit or stand on the open
door and do not place any objects
on it. The device may overturn.
Do not open the door when the
appliance is operating. Hot water
or steam can be released.
Do not leave the door open, be-
cause they it can pose a hazard.
8
SAFETY INSTRUCTIONS FOR USE

In case of problems Refer repair and modications of
the appliance to qualied techni-
cians only.
In the event of problems or re-
pairs, unplug the appliance from
the wall outlet:
Unplug the appliance by pulling
the plug,
Turn o󰀨 the circuit breaker.
Do not pull the power cord, pull
the plug only. Close the water
supply.
Recommendations To save energy and water, rinse
food residue of the dishes before
loading the dishes into the dish-
washer. Run the dishwasher with
full load.
Do not put dishes with food lefto-
vers in the appliance.
Use pre-wash programme only
when needed.
Load bowls, cups and mugs bot-
tom facing up.
Do not load in the appliance any
dishes that are not dishwasher
safe and do not load too many
dishes.
9
SAFETY INSTRUCTIONS FOR USE

Dishes and utensils that
are not suitable for dish-
washers.
Ashtrays, candles, cleaning
pastes, paints, chemicals, ferro-
alloys;
Forks, spoons and knives with a
handle made of wood, ivory or
Nacre, glued items, items con-
taminated with abrasive powders,
acid or base
Plastic dishes that are not resist-
ant to high temperature, contain-
ers made of copper or tin;
Aluminium and silver items (may
be stained or loose lustre)
Some delicate types of glass,
porcelain with decorative prints,
as prints may fade even after the
rst wash; some crystal dishes as
they may lose their transparency,
glued silverware sensitive to high
temperatures, lead crystal glass,
chopping boards, items made
with synthetic bres;
Absorbent objects such as a
sponge or kitchen cloths are not
suitable for the dishwasher.
Before buying dishes in the future
make sure they are dishwasher
safe.
10
SAFETY INSTRUCTIONS FOR USE

RECYCLING Packaging and some parts of the
appliance are made of materials
suitable for recycling. They are
marked with the recycling symbol
and information about the type of
material.
Before using the appliance re-
move all packaging and dispose
of it in accordance with the regu-
lations.
Warning!
The packaging can be dangerous
for children.
Recyclable materials can be
taken to local waste collection.
Additional information can be ob-
tained from local authorities and
at waste disposal points.
SCRAPPING OF AN OLD
APPLIANCE
In accordance with European
Directive 2012/19/EU and Pol-
ish legislation regarding used
electrical and electronic goods,
this appliance is marked with the
symbol of the crossed-out waste
container.
At the end of its useful life, this
product must not be disposed
of with normal municipal waste.
Instead, it should be taken to an
electronic waste collection and
recycling point. It is indicated by
the symbol on the product itself,
or on the Operating Instructions
or packaging.
11
SAFETY INSTRUCTIONS FOR USE

SCRAPPING OF AN OLD
APPLIANCE
The materials used in making of
this appliance can be reused, as
indicated. By reusing or recycling
the materials or parts, you will be
playing an important part in pro-
tecting our environment.
Information about the relevant
disposal points for worn-out elec-
trical goods is available from your
local authorities.
Thank you for your contribution to
environmental protection.
To avoid risks, prevent the ap-
pliance pending transport from
being used.
Disconnect the plug and cut the
power cord. Also damage the
door lock.
12
SAFETY INSTRUCTIONS FOR USE

13
When choosing the place of installation, make sure you will be able to easily load and remove
dishes and utensils from the dishwasher.
Do not place the appliance in a room where the temperature can fall below 0°C.
Before installing unpack the appliance following the instructions on the packaging.
When you move the appliance do not handle it by the door or control panel.
Leave some room on all sides to have convenient access to the dishwasher when cleaning.
Make sure that when you set the dishwasher you do not crush the water supply and drain hose.
Also, make sure that the appliance is not places on the power cord.
Level the appliance using the adjustable legs. Proper level ensures trouble-free opening and clos-
ing the dishwasher doors.
If the dishwasher door will not close properly, check that the appliance stands rmly on the oor, if
not, adjust using the adjustable legs.
Make sure that domestic water supply system is suitable for the dishwasher. It is recommended to
install a lter in the water supply line to avoid damage to the appliance due to impurities (such as
sand, clay, rust, etc.) that occasionally occur in water. This will also prevent accumulation of sedi-
ment after dishwashing.
Do not use the water supply hose from the old dishwasher. Use the new water supply hose pro-
vided with the appliance. Before connecting, rinse the hose with water. Connect the water supply
hose directly to the water feed valve. The domestic water system pressure should be
at least 0.03 MPa and up to 1 MPa. If the water pressure exceeds 1 MPa, install pressure
reducing valve.
When the connection is ready, open the valve completely and check for leaks.
For safety reasons, close the water supply tap after every wash.
INSTALL THE APPLIANCE
PLACE YOUR APPLIANCE
WATER SUPPLY CONNECTION
WATER SUPPLY HOSE

14
NOTE: Aquastop water supply is used in some dishwasher models. Dangerous voltage could
occur with Aquastop. Do not cut the Aquastop water supply. Do not allow it to bend or twist
Note:
For safety reasons, close the water tap after every wash
THE DRAIN HOSE
The drain hose can be connected directly to a water drain or kitchen sink stub pipe. You can also drain
the water directly into the sink using the special bracket (if available), placing the drain hose outlet on
the kitchen sink edge. The drain hose connection should be made at least 50 cm and up to 110 cm from
the oor.
min 50cm/max 110cm min 50cm/max 110cm
If the drain hose is longer than 4 m, dishes may not be washed properly. The manufacturer will
not be held responsible.
ELECTRICAL CONNECTION
Grounded plug must be connected to a grounded power outlet with a proper voltage. If there is no
grounding, refer this to a qualied electrician. If you operate the appliance without proper grounding,
the manufacturer does not assume any liability for the possible resulting damage.
Domestic electrical system must be protected with a 10-16A fuse.
The appliance must be supplied with 220-240 V AC. If the supply voltage is 110 V, use 3000W,
110/220 V set-up transformer to connect the appliance. Do not connect the appliance during
installation.

15
Always use the plug provided with the appliance. When you operate the appliance at lower
voltage the dishwashing eciency will deteriorate and may damage the appliance.
The power cord may only be replaced by authorized service or a qualied electrician. Failure to
comply with these rules may lead to an accident.
For safety reasons, you should always unplug the appliance after you have nished using it.
In order not to avoid electric shock, do not remove the plug from the wall outlet with wet
hands.
When you unplug the appliance from the wall outlet, always pull the plug. Never pull the power
cord.

16
The features and components of the appliance (g. 1):
DESCRIPTION OF THE APPLIANCE
FEATURES AND COMPONENTS
NOTE:
Figures are for illustrative purposes only Individual models may vary.
* on selected models: When you open the dishwasher door, the interior light will turn on
automatically. The appliance interior is well lit.
Bottom spray arm
Filter assembly
Conduit
Salt container
Dispenser
Cutlery basket Lower basket
Upper basket
Top spray
arm
Mugs and
cups shelf

17
DISPLAY AND CONTROL PANEL
Device operation (buttons)
1. On / O Press the button to turn on the dishwasher, the display will light up.
2. Delay Press this button to set the delayed hours for washing. You can delay the start of
washing up to 24 hours. One press on this button delays the start of washing by
one hour.
3. Half-load In the case of a small number of dishes, for energy saving can only be washed in
the upper or lower basket. Each press of the Half load button switches between
washing only in the lower or upper basket.
4. Program
indicator
Intensive
Heavily soiled dishes, including pots and pans with dried food leftovers.
ECO
This is a standard washing programme for normally soiled crockery, such as
pots, plates, glasses and lightly soiled pans.
90 min
For normally soiled loads that need quick wash.
Rapid
Short washing cycle suitable for lightly soiled dishes that do not require
drying.
5. Warning
indicator
Rinse aid
The indicator shows a low level of rinse aid in the dispenser. Add rinse
aid.
Special salt
The indicator shows a low level of special salt in the dispenser. Add
special salt.
NOTE:
Figures are for illustrative purposes only Individual models may vary.
12
3
4
5

18
Before using the appliance, verify that the data given on the rating plate matches that
of local power outlets.
Remove all packing materials from inside of the appliance.
Prepare special salt (water softener).
Pour water into the special salt dispenser and then add about 1.5 kg of special salt
(dishwasher salt).
Pour rinse aid into the dispenser.
1
Before rst use
PREPARE THE APPLIANCE FOR OPERATION
A dishwasher requires soft water (with low calcium content) to operate eciently. Other-
wise, white residue main remain on the dishes and inside the appliance. This has a negative
impact on the quality of dishwashing, rinsing and drying. When the water ows through
the softener, ions responsible for the water hardness are removed, and the water becomes
soft, for best dishwashing results. Depending on the degree of water hardness, the ions
responsible for water hardness accumulate quickly inside the water softener. Therefore,
the water softener must be regenerated to operate with the same eciency during the
next wash. This is why special salt is used in the dishwasher.
2
The importance of water descaling
Only use special salt intended for dishwashers.
Any other type of salt that is not intended for use in a dishwasher, especially regular
kitchen salt, will damage the water softener. In the event of damage caused by the use of
the wrong salt, the manufacturer’s warranty is void and we will not be liable for damage.
Fill with special salt before running the washing programme.
This will prevent spilled special salt or salty water from remaining on the bottom of the
device, which may cause corrosion.
3
Add special salt
Use only the special salt intended for dishwashers!
1. Remove the lower basket from the appliance and unscrew the special salt dispenser cap.
2. Place the end of the funnel (included) in the hole and pour about 1.5 kg of salt.
3. Pour water into the dispenser until full. It is normal that a small amount of water spills out
of the special salt dispenser.
4. After you ll the dispenser, screw the cap on.
5. When you l the dispenser with special salt, the add salt indicator goes out.
6. Start the washing programme immediately after lling the dispenser with special salt
(the quick wash is recommended). Otherwise, salty water can damage the lters, the pump
or other important appliance components This is not covered by the warranty.
NOTE:
Fill the special salt dispenser when the special salt indicator on the control panel lights
up. Depending on the rate of salt dissolution, the special salt indicator may still be on even
after lling the dispenser.
If there is no special salt indicator on the control panel (on some models), you can estimate
when to top up the dispenser based on the number of wash cycles performed.
If some special salt spills, run the soaking programme or a quick wash programme.

Use only the special salt intended for dishwashers!
4

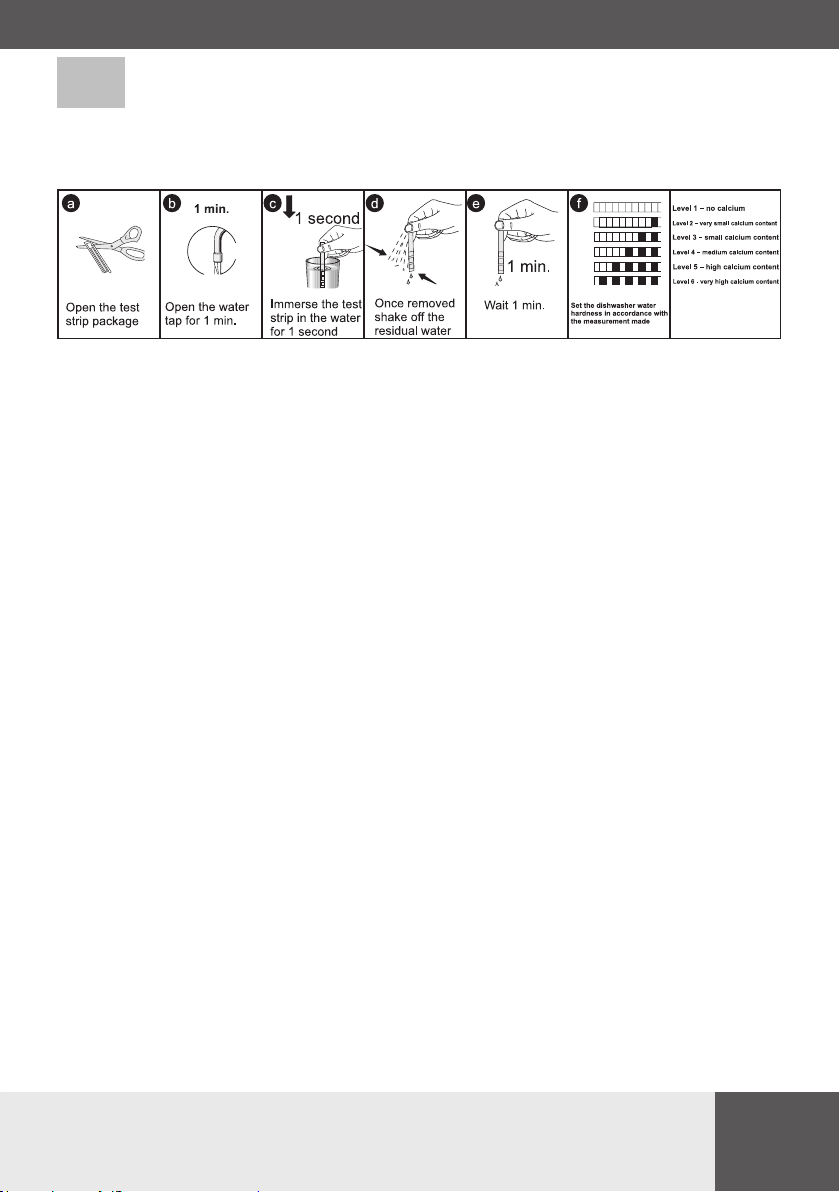

The test strip
19
The dishwashing eectiveness is linked to water hardness. Therefore, the appliance is
equipped with a system to reduce the hardness of the water supply. The dishwashing
eectiveness is improved when the system is set correctly. To check water hardness
contact the municipal water company or determined the water hardness using test strip
(if available).

20
5Fill the detergent dispenser
Open the detergent dispenser ap by pressing the detergent dispenser tab to release the
lock as shown in the gure. The detergent dispenser features volume marking. Using these
markings (lines) you can measure the correct amount of detergent. The dispenser can ac-
commodate a maximum of 30g of detergent.
Open the pack with dishwasher detergent and in the case of heavily soiled dishes pour 25
cm³ detergent into the main wash compartment (A) or 15 cm³ for less soiled dishes (B). If
the dishes remained unwashed for an extended period of time or if food has dried, pour 5
cm³ detergent into the pre-wash compartment and start the dishwasher. Depending on the
amount of soil and the water hardness you may need to add more detergent.
Please note that the setting may be dierent depending on the water contamination.
Follow the manufacturer's instructions on the detergent packaging.
