Amica UZ130.3 User manual

OPERATING MANUAL EN
UZ130.3

2
Note!
This freezer is intended for use at home only.
The manufacturer reserves the right to introduce modications, which do not affect the
operation of the appliance. The changes in the equipment, as well as the inside and
outside decoration, which do not affect its functionality and safety are permissible.
Dear Customer,
The Amica appliance is a combination of exceptional user-friendliness and excellent efciency.
Prior to dispatch, each unit was carefully checked for its safety and operating capabilities.
Before starting the appliance, please read this operating manual carefully.
GENERAL INFORMATION
EN

3
TABLE OF CONTENTS
Construction and equipment of the appliance...........................................................................3
Guidelines concerning the safety of use...................................................................................5
Installation.................................................................................................................................6
Operation and functions............................................................................................................8
Using the refrigerator efciently.................................................................................................11
Defrosting, washing and maintenance......................................................................................13
Trouble-shooting.......................................................................................................................14
Environmental protection..........................................................................................................16
Specication..............................................................................................................................17

4

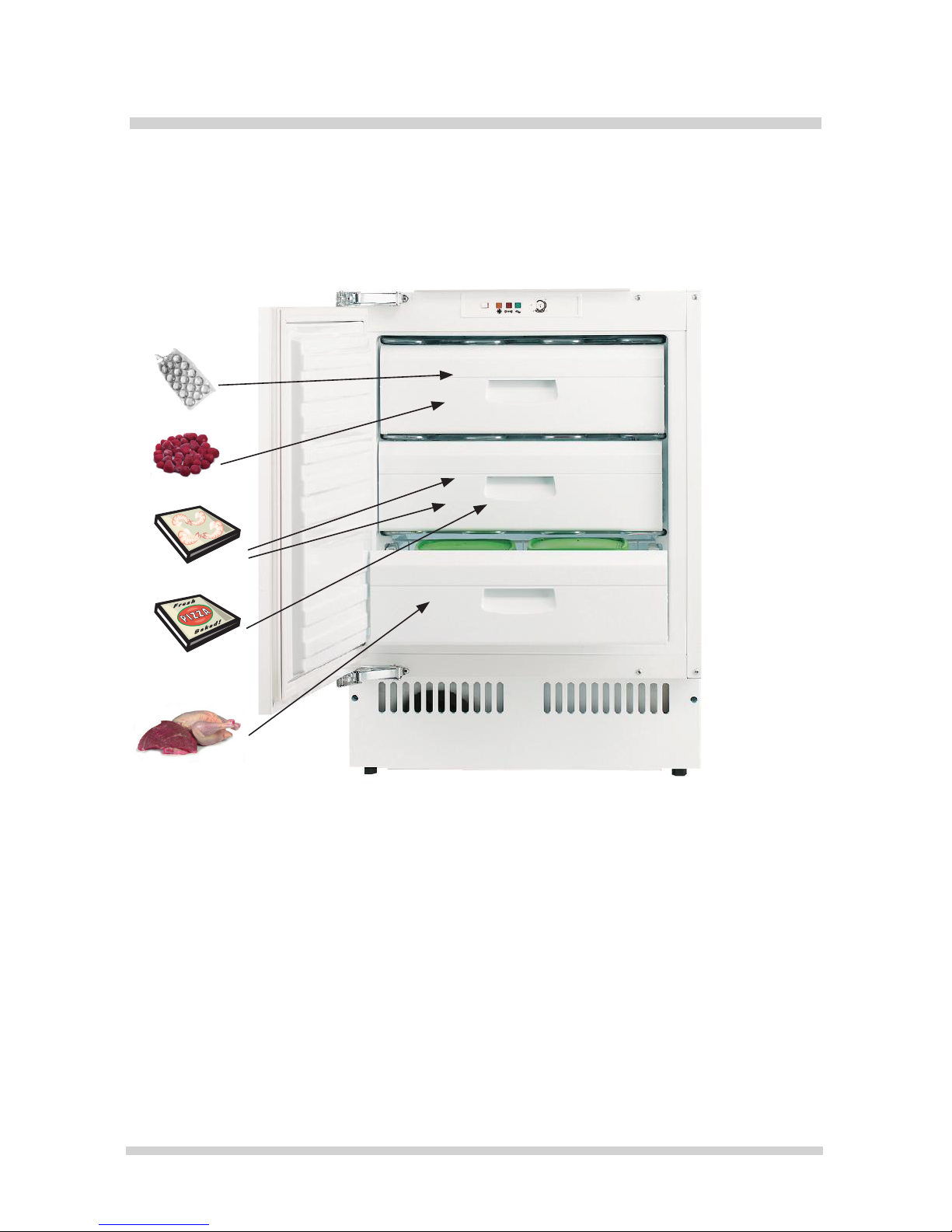

CONSTRUCTION AND EQUIPMENT OF THE APPLIANCE
Example
1Control panel
2Drawer
1
2
Items of equipment UZ130.3
Drawer 3
Ice cube tray 1

5
GUIDELINES CONCERNING THE SAFETY OF USE
lThe Manufacturer shall not be held
liable for the damage arising from
the failure to observe the principles
contained in this manual.
lKeep this manual for future re-
ference, or to pass it over to the
possible next user.
lThis appliance is not intended for
use by persons (including children)
with limited physical, sensual or
psychical capabilities and persons
who lack experience or familiarity
with the appliance, unless attended
or in accordance with the operating
manual for the appliance delivered by
persons responsible for their safety.
lDo not allow the unattended
children to use the appliance. Do
not allow them to play with the
appliance. They must climb insi-
de the drawers and swing on the
doors.
lThe freezer operates properly at the
N-ST ambient temperature. Do not
use it in the cellar, unheated summer
cottage during autumn and winter.
lWhen placing, moving, lifting the
appliance, do not hold the door han-
dles, pull the condenser at the rear
part of the refrigerator and touch the
compressor unit.
lWhen transporting, moving or
placing the freezer do not tilt it by
more than 40° from the vertical
position. Should such a situation
occur, the appliance may be swit-
ched on after minimum 2 hours
from its placement in the right
position (g.1).
1
lPull the plug out from the mains
socket before each maintenance
activity. Do not pull the cord, but hold
the body of the plug instead.
l The cracking-like sound, which the
appliance may emit is caused by
expansion and shrinking of parts as
a result of temperature variations.
l For safety reasons do not repair the
appliance on your own. Repairs car-
ried out by persons who do not have
required qualications may constitute
a serious hazard for the user of the
appliance.
l Air the room in which the appliance
is placed for a few minutes (the size
of the room for a product containing
isobuthane/R600a must be at least
4m3) in case of the damage of the
cooling system.
lMake sure you do not damage the
cooling system, by punching the
refrigerant pipes in the evaporator
or breaking the pipes. The refrigerant
splashes are ammable. Rinse the
eyes with clean water and call for me-
dical assistance immediately in case
of their contact with the refrigerant.
40
o

6
1.Take the product out of the package, re-
move the scotch tapes protecting the door
and the equipment. The possibly remaining
adhesive stains may be removed with a mild
washing agent.
2. Do not throw away the polystyrene ele-
ments of the packaging. In the case of the
necessity to transport the freezer, pack it in
the polystyrene elements and lm, as well
as protect it with a scotch tape.
3. Clean the interior surface of the freezer
and the elements of the equipment with a
washing agent dissolved in lukewarm water,
then wipe it dry.
4. Place the freezer on an even, at and stable
surface, in dry, aired and shadowy room,
far from the heat sources such as an oven,
cooktop, central heating radiator, central
heating pipe, hot water installation, etc.
Minimal distances from the heat
sources
- from the electric gas and other ovens
- 30 mm,
- from oil or coal red ovens - 300
mm,
- from in-built ovens - 50 mm
If there is no possibility to ensure the above-
mentioned distances, provide an appropria-
te insulation board.
INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE
Installation before using the applian-
ce for the rst time
2
5. Ensure that the product is level by adjusting
the 4 adjustable legs (g. 2).
The back of the appliance, particu-
larly the condenser and other parts
of the cooling system, must not be
touching other objects which could
damage them, particularly the cen-
tral heating pipe or the water pipe.
Observe minimum clearances and t
in recess appropriate for the applian-
ce dimensions (Fig. 3).

7
INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE
It is prohibited to readjust or modify
any parts of the unit. It is crucial not
to damage the capillary tube visible
in the compressor recess. The tube
may not be bent, straightened and
wound.
If the capillary tube is damaged by
the user the guarantee will be void
(g. 4).
lThe data is provided on the rated plate
located at the bottom of the wall inside the
chamber.
Mains connection
lThe appliance is intended for connection to
alternating current. The connection values
for voltage (V) and frequency (Hz) are given
on the nameplate in the cabinet.Power must
be connected via a wall socket with switch.
The wall socket should be easily accessible.
All earthing requirements stipulated by the
local electricity authority must be observed.
The cabinet plug and wall socket should
then give correct earthing. If in doubt,
contact your local supplier or an authorised
electrician.

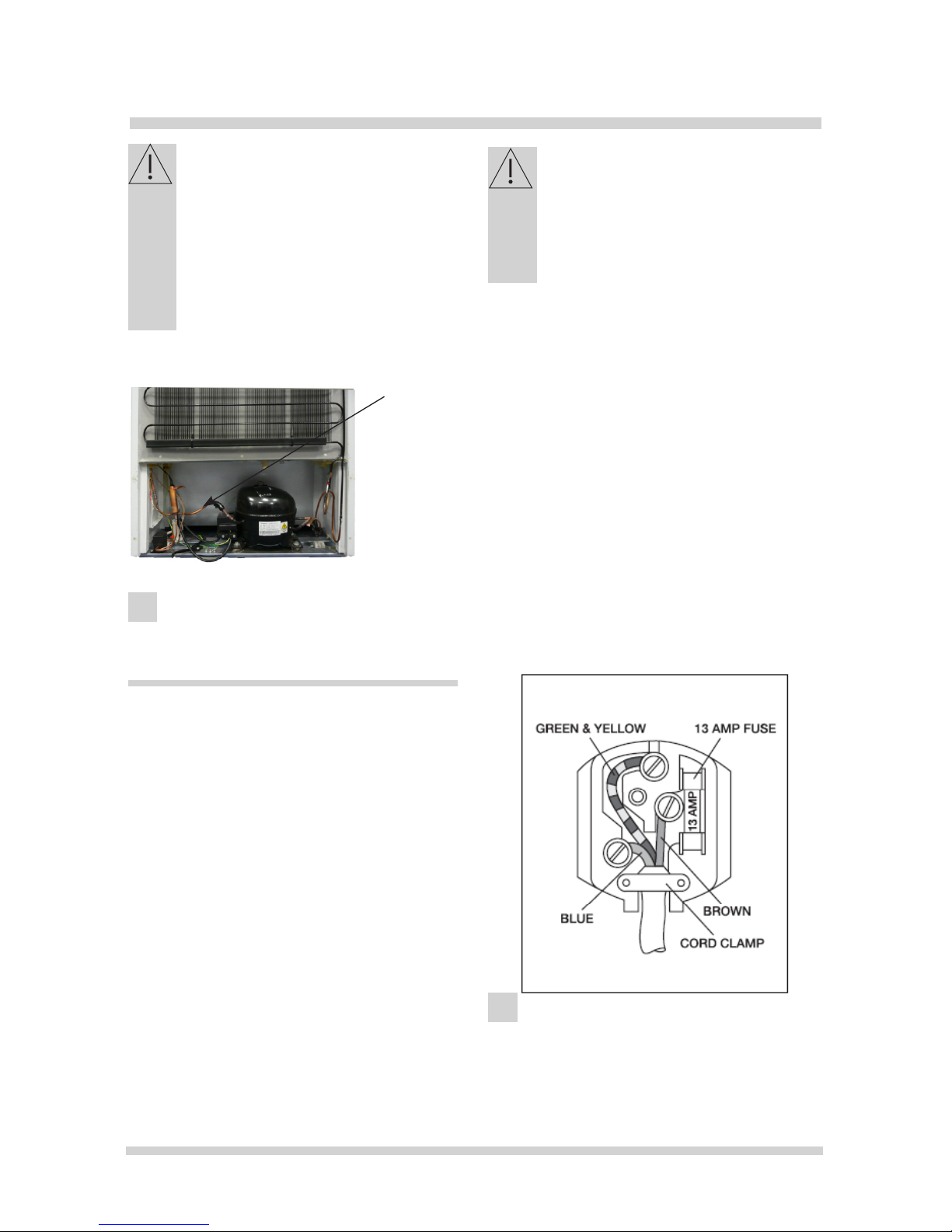

4
5
capillary
tube
This appliance must be earthed
The flexible cord (mains lead)
tted to this appliance has three
cores for use with a 3-pin 13-amp
plug. If a BS 1363 (13-amp) fused
plug is used, it should be tted
with a 13-amp fuse.
Important
The cores in this mains lead are coloured
in accordance with the following code:
GREEN-AND-YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
These colours might not correspond with
the colour markings identifying the termi-
nals in your plug.

8

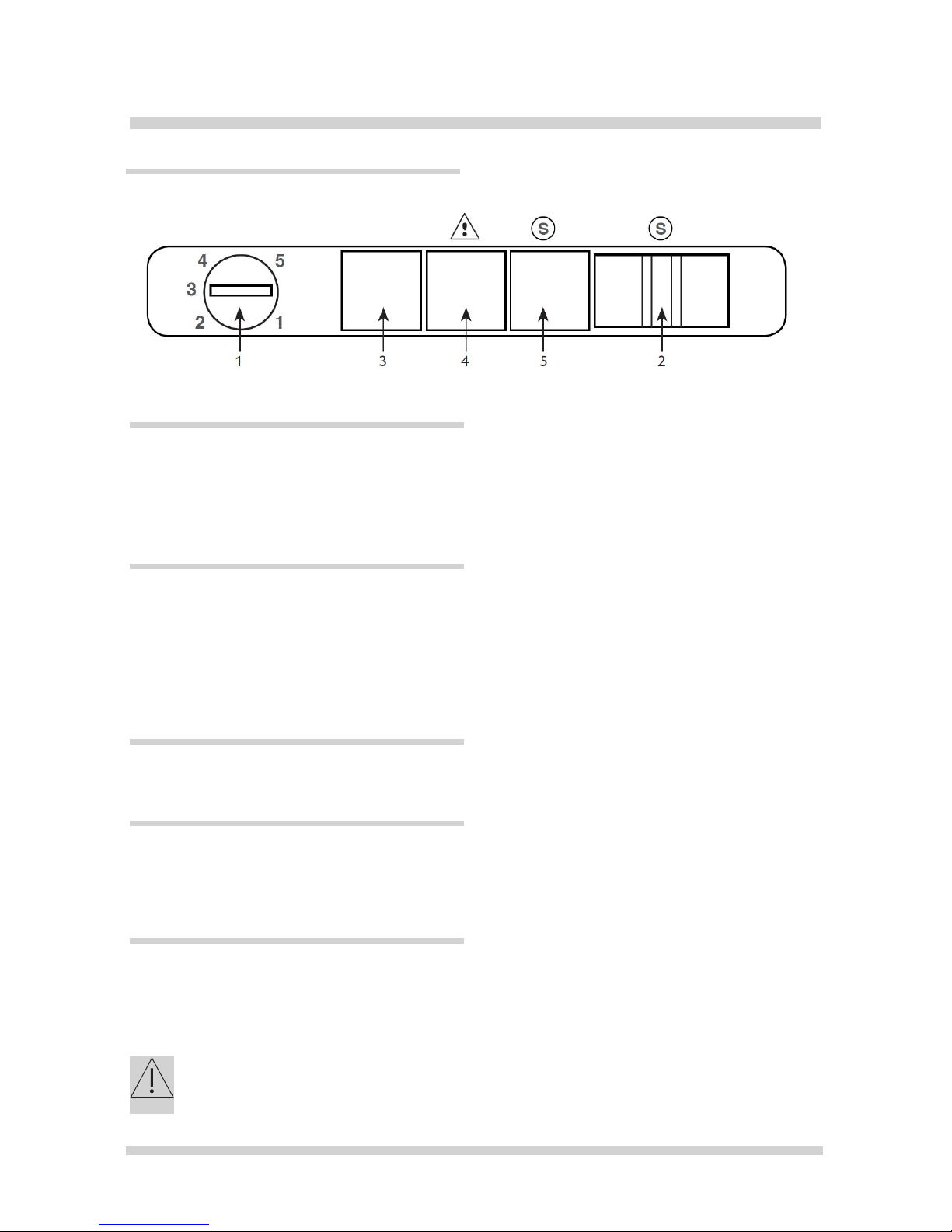

Control panel
OPERATION AND FUNCTIONS
Do not put food into the fridge freezer before it has reached its operating tem-
perature,
1. Thermostat dial
The thermostat automatically keeps the internal temperature at a constant level. The tempe-
rature is regulated by the thermostat dial, located on the freezer control panel. To change the
temperature, turn the dial anti-clockwise from 1 (highest temperature) to 5 (coldest temperatu-
re). We recommend that you start with the appliance set to position 3.
2. Super freeze switch
This freezer is equipped with a super freeze function. This allows the freezer compressor to
run continuously and so freezes food more quickly. To select this function, push the switch
across until the super freeze indicator light (5) illuminates. To switch the function off, then push
the switch back across until the indicator light goes out again.
Note that this should not be used for more than 24 hours.
3. Power indicator light
This green light will illuminate when the freezer is switched on.
4. Over temperature indicator light
This red light will illuminate when the temperature inside the freezer is too high. This may
illuminate after the door has been opened, or when fresh food is added and should switch off
again once the temperature within the freezer has stabilised.
5. Super freeze indicator light
This yellow light will illuminate when the super freeze function has been switched on with the
super freeze switch (2).

9
OPERATION AND FUNCTIONS
Storage of food in the freezer
Observe the following recommen-
dations to ensure the food remains
fresh.
Freezing food
lPractically all the food products, except for
vegetables consumed raw, such as lettuce
can be frozen.
l Only food products of the highest quality,
divided into small portions for single use,
should be frozen.
l Products should be packed in materials that
are odourless, resistant to air and moisture
penetration, and not susceptible to fat.
Plastic bags, polyethylene and aluminium
sheets are the best wrapping materials.
l The packaging should be tight and should
stick to the frozen products. Do not use
glass containers.
l Keep the fresh and warm foodstuff at am-
bient temperature away from the products,
which have already been frozen.
l We advise not to place more than 2 kg of
fresh food at a time to the freezer per day
(see table on page 59).
lIn order to maintain good quality of the
frozen food, reorganise the food that is in
the middle of the freezer, so that it does not
touch the products that are not frozen yet.
l It is recommended to move the already
frozen products to one side and place the
fresh products that are to be frozen to the
opposite side, as close to the rear and side
walls as possible.

10
OPERATION AND FUNCTIONS
The time of storage of the frozen products depends on their quality when fresh, before freezing
and on the storage temperature.
The following storage periods are recommended when the temperature of -18°C or lower is
maintained:
Products Months
Beef 6-8
Veal 3-6
Giblets 1-2
Pork 3-6
Poultry 6-8
Eggs 3-6
Fish 3-6
Vegetables 10-12
Fruit 10-12

11
USING THE REFRIGERATOR EFFICIENTLY
Practical everyday tips
lDo not place fridges or freezers next to
radiators, heaters, stoves or in direct sun-
light.
l Make sure that air vents are not covered up
and clean the dust off them once or twice
a year.
l Select the right temperature: 6 to 8°C
in your refrigerator and -18°C in your
freezer is sufcient.
l When on holiday, turn up the temperature
in your fridge.
l Only open your fridge or freezer when
necessary. It helps if you know what food
they contain and where it is located. Return
food to the fridge or freezer as soon as
possible after you have used it so that it
doesn't warm up too much.
l Wipe out the inside of your fridge regularly
with a cloth soaked in a mild detergent.
Appliances which are not self-defrosting
will require regular defrosting. Don't allow
frost layers thicker than 10 mm to form.
l Keep the seal around the door clean,
otherwise it won't shut properly. Always
replace broken seals.
Understanding the stars
*Temperature is at least -6°C; sufcient
to store frozen food for about a week.
Drawers or compartments marked with
one star used to be a feature of (mostly)
cheaper fridges.
** Food can be stored at -12°C or below for
1-2 weeks without losing their taste. Not
suitable for freezing food.
*** Mainly used to store foods at -18°C or
below. Can also be used to freeze up to
1 kilogram of fresh food.
****This appliance is suitable for storing foods
at -18°C or below and freezing larger
quantities of fresh foods.

12
USING THE REFRIGERATOR EFFICIENTLY

13
DEFROSTING, WASHING AND MAINTENANCE
You must not put an electric heater,
a heating fan or a hair dryer into the
freezer by any means.
Defrosting the freezer
lIt is recommended to combine defrosting
the appliance with washing it.
l Excessive accumulation of ice on the
freezing areas impairs the appliance’s
freezing capacity and increases the energy
consumption.
l Defrost the appliance at least once or twice
a year.
l If there is food in the freezer, set the knob
to the max. position about 4 hours before
the planned defrosting. This will ensure the
possibility of storing the food at the ambient
temperature for a longer time.
l After taking the food out of the freezer, put
it in a container, wrap it with several layers
of paper, a blanket and store it at a cool
place.
lThe defrosting operation should last as
short as possible. Long storage of food
at the ambient temperature shortens their
shelf life. 11
In order to defrost the freezer chamber,
you must take the following steps:
l Take out the plug from the mains socket.
lOpen the door and remove the food from
the freezer.
l After about 0.5 hours. easily from the smo-
oth surface of the walls to remove the layer

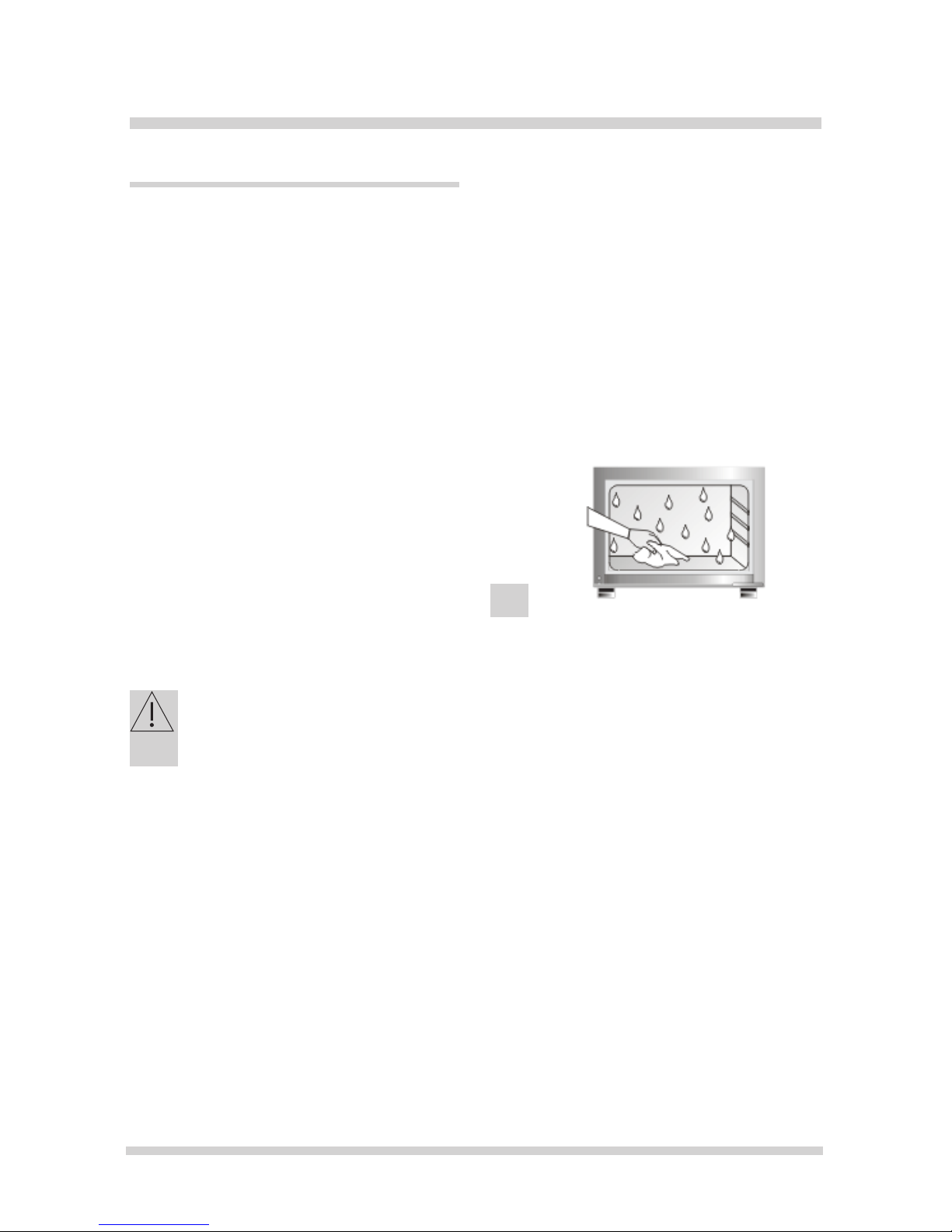

of frost and water (Fig. 11).
l Wash and dry the interior of the freezer.
l Switch on the freezer as described in the re-
levant section of its operating instructions.

14
TROUBLE-SHOOTING
Problems Possible causes Remedies
The appliance does
not work
Electric circuit rupture - check whether the plug is properly inserted
into the socket
- check whether the power cable of the
appliance is not damaged
- check whether there is voltage in the
socket, by plugging another appliance, e.g.
a night lamp
- check whether the appliance is switched
on by setting the thermostat to a position
above 0.
Temperature inside
the appliance is not
low enough
Incorrect setting of the
adjustment knob
- reset the knob to a higher position
The ambient tempera-
ture is higher or lower
than the N-ST climate
range
- the appliance is adapted to operation in
the N-ST climate range.
The appliance is located
at the sunlit place or
near the heat sources
- move the appliance to another place.
Observe the guidelines contained in the
manual
Too much warm food
loaded at a time
- wait 72 hours until the food becomes cool
(freezes) and the required temperature is
reached inside the chamber
Internal air circulation
hindered
- place the food and containers in such a
way that they do not touch the rear wall of
the fridge
The air circulation at the
back of the appliance is
hindered
- move the appliance min. 30 mm away
from the wall
Too much white frost
accumulated on the
freezing elements
defrost the freezer chamber
The door of the frid-
ge/freezer are opened
too often and/or remain
open for too long
- reduce the frequency of opening the door
and/or shorten the time when door remains
open
The door does not close
completely
- place the food and containers so that they
would not interfere with door closed

15
TROUBLE-SHOOTING
Problems Possible causes Remedies
The compressor is switched
on too rarely
- check whether the ambient
temperature is not lower
than 16°C
Door gasket inserted incor-
rectly
- press the gasket in
The appliance works conti-
nuously
Incorrect setting of the adju-
stment knob
- reset the knob to a lower
position
See. ”Temperature inside the
appliance is not low enough
for description of other possi-
ble causes
See. ”Temperature inside the
appliance is not low enough
for description of other possi-
ble remedies
The appliance generates
unusual noise
Incorrect levelling of the
appliance
- level the appliance properly
The appliance touches furni-
ture and/or other objects
- place the appliance at a
location that ensures proper
clearances around it
Certain sounds can be heard during normal use of the refrigerator, which do not affect its
correct operation.
Sounds, which can be easily prevented:
lnoise caused by the appliance which is not level - adjust the position with the adjustable turn-
in front feet. Alternatively, place pads made of soft material under the rear rollers, especially
when the appliance is placed on tiles.
ltouching the adjacent piece of furniture - move the refrigerator away.
lcreaking of the drawers or shelves - take out and put back the drawer or shelf.
lsounds of clinking bottles - move bottles apart.
Sounds heard during normal use are mainly due to operation of the thermostat, compressor
(switching on) and cooling system (thermal expansion and contraction of the radiator caused
by ow of the cooling agent).

16
Environmental protection
Ozone layer protection
The refrigerants and fo-
aming agents, which are
100% free of FCKW and
FKW have been used for
manufacturing our pro-
duct. Therefore we help
protecting the ozone layer
and prevent the greenho-
use effect increase. On the other hand, the
innovative technology and environmentally
friendly insulation help in reducing energy
consumption.
Recycling of the packaging
Our packaging are made
of environmentally friendly
materials, which can be
reused:
l The external packaging is made of card-
board/foil
lThe FCKW free shape of foamed poly-
styrene (PS)
lPolyethylene (PE) foils and bags
Elimination / disposal of the equip-
ment
If the appliance is no longer in use, cut the
connecting conduit off the used equipment
before its scrapping.
This appliance is marked with
a symbol of the crossed out
waste container in conform-
ance with the European Direc-
tive 2002/96/EC. Such mark-
ing informs that the equipment
may not be kept together with
other waste coming from the
household after the period of
its use. The user is obliged to dispose of the
appliance at the waste collection point. The
local waste collection points, shops and com-
munal units form an appropriate system ena-
bling the disposal of the equipment.
Handling the used electrical and electronic
equipment properly contributes to the avoid-
ance of consequences harmful to the human
health and natural environment, resulting
from the presence of hazardous substances
and improper storage and processing of such
equipment.

17
SPECIFICATION
TYPE UZ130.3
Manufacturer AMICA WRONKI S.A.
Type of the appliance freezer
Energy class1A+
Annual power consumption
kWh/year)2183
Net usable volume (l) 100
Freezing chamber star classi-
cation3*/***
Storage time (hrs), at no power
supply 11
Freezing capacity (kg/24h) 4,5
Climate range4N-ST
Noise level [dB(A) re1pW] 41
Supply voltage V/Hz 230V; 50 Hz
H x W x D 818-870 x 596 x 550
Appliance weight (kg) 35,15

18
Manufacturer’s declaration
The manufacturer hereby declares that the appliance fulls the requirements of the following
European directives:
lThe Low Voltage Directive 2006/95/EC,
l The Electromagnetic Compatibility Directive 2004/108/EC,
and therefore it has been marked with a and assigned a declaration of conformity, which is
made available to the market supervising authorities.
SPECIFICATION
Climate range Permissible ambient
temperature
SN from +10°C to +32°C
Nfrom +16°C to +32°C
ST from +16°C to +38°C
Tfrom +16°C to +43°C
The information about the climate range of the appliance is provided on the rated plate. It
indicates at which ambient temperature (that is, room temperature, in which the appliance is
working) the operation of the appliance is optimal (proper).
1)A++/A+ (=low consumption) to G (=high
consumption).
2)The energy consumption refers to the
yearly consumption in kWh, indicated
according to DIN EN 153. Deviations may
occur in the practical operation of the ap-
pliance, depending on the use and place
of its location.
3)*= storage room of approximately. -6°C
(**) = storage room of approximately. -12°C
(***) = freezing storage room of approxima-
tely -18°C
(*/***) = freezing storage room of approxima-
tely -18°C or below
4)Climate range means that your set tem-
perature is maintained at ”normal” ambient
temperature. Should the room temperture
drop signicantly below the dened scope,
the appliance does not work so often and
the undesirable temperature increase may
occure dojść do niepożądanego wzrostu
temperatury.

IOLS-1057/1
(04.2011)
Service Help Line
For the UK: please call 0844 815 8880
0818 46 46 46
For Ireland: please call
