Amica AWB612L User manual

WASHING MACHINE
Please read this User Manual carefully before using the appliance!
INSTRUCTION MANUAL
IO 00588/1
(11.2013)
AWB612L

2
CONTENTS
Basic Information.......................................................................................................................3
Notes on Safety..............................................................................................................4
Installing the Washing Machine...................................................................................................6
Understanding the symbols on clothes labels................................................................8
Description of control panel..........................................................................................9
Using the appliance................................................................................................11
Table of programmes.........................................................................................12
Troubleshooting..................................................................................................................14
Maintenance and Cleaning.......................................................................................15
Practical tips on washing.....................................................................................................16
Specification......................................................................................................19
Service and Warranty..................................................................................................19
Product Fiche........................................................................................................20
In accordance with European Directive 2002/96/EC and Polish legislation regarding
used electrical and electronic goods, this appliance is marked with the symbol of the
crossed-out waste container.
This marking means that the appliance must not be disposed of together with other
household waste after it has been used. The user is obliged to hand it over to a waste
collection centre collecting used electrical and electronic goods. The collectors, inclu-
ding local collection points, shops and local authority departments provide recycling
schemes. Proper handling of used electrical and electronic goods helps to avoid
environmental and health hazards resulting from the presence of dangerous components and the
inappropriate storage and processing of such goods.

3
BASIC INFORMATION
Dear customer,
From today, washing will be easier than ever before. The Amica washing machine combines
exceptional ease of use with excellent effectiveness. Once you have read the instructions,
operating the washing machine will not be a problem.
Before being packed and leaving the factory, the safety and functions of this washing ma-
chine were carefully tested. After these tests some moisture or water may remain in the
appliance.
We ask you to read the User Manual carefully before switching on the appliance. Following
the directions in this manual will ensure proper operation and safe use of the appliance.
Keep this User Manual and store it near at hand.
The instructions should be followed carefully to avoid any unfortunate accidents.
Important!
This washing machine is intended for domestic use only to wash textiles and clothes
designed to be machine washed in a detergent bath.
Before plugging the washing machine into the mains, remove the safety packaging and
ensure the machine is level.
The manufacturer reserves the right to make changes in the appliance, which do not affect
its operation.
Use
lCarefully read the instructions below before using the appliance
lNever use the machine outdoors or anywhere the temperature may fall below freezing.
lThe machine should not be operated by children or anyone who has not read the instruc-
tions.
Important! Temperatures below 0°C can damage the washing machine!
In the event of the machine being stored or transported in sub-zero temperatures, it should
be left to acclimatise in a temperature above zero for 8 hours before being used.
Manufacturer’s Declaration
The manufacturer hereby declares that this product meets the requirements of the follo-
wing European directives:
lLow Voltage Directive 2006/95/EC,
lElectromagnetic Compatibility (EMC) Directive 2004/108/EC,
lErP Directive 2009/125/EC,
and has been marked with the symbol and issued with a declaration of compliance
made available to market regulators.

4
Use only those detergents and additives which are designed for au-
tomatic washing machines, especially when using the COTTON 90°C
programme.
Do not use any agents containing solvents, as these may damage certain
parts of the machine, or cause them to emit poisonous gases. There may
also be a risk of ignition and explosion.
Ensure no unwanted objects are put inside the appliance. Completely
empty all pockets in the clothing to be washed and fasten buttons and
zips. Place small, loose objects in a washing bag, or inside a pillow case,
as they may be destroyed or else damage the drum or internal tank. Do
not exceed the recommended maximum load of washing.
NOTES ON SAFETY
lDetergents
lLoading the
Machine
lControl Panel
lTransport
lData Plate
Unplug the machine before preparing the machine for transport. Do not
transport the washing machine if drum locking bolts are not in place. See
the chapter INSTALLING THE MACHINE (page 6). Keep the appliance
in upright position when transported.
Data plate indicating basic information about the washing machine is
located at the top part of the rear casing.
The door glass of your washing machine is hot during operation. Do not
allow children in the vicinity of the appliance.
Protect the control panel from water spillage.

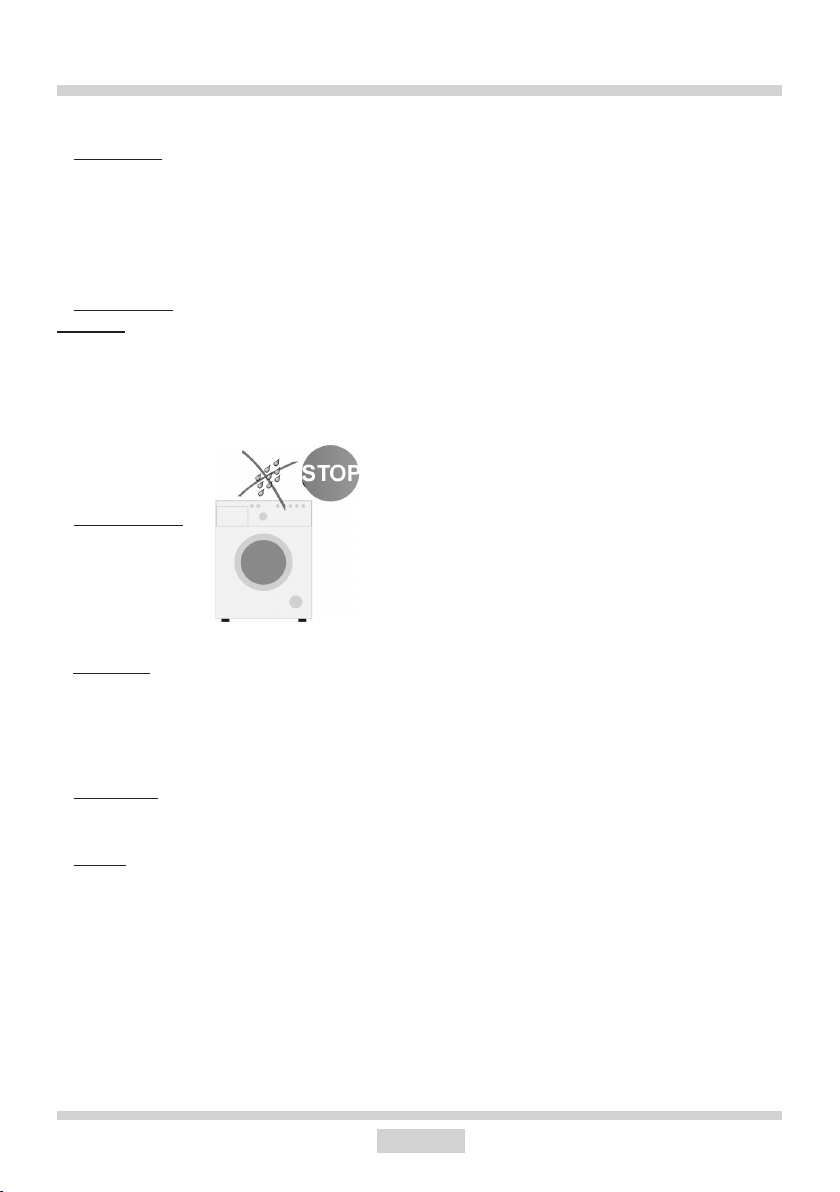

Do not put washed clothes on top of the machine!
lBurns

5
Checking stability
Once the washing machine is in position and levelled, it must be checked to ensure it is
standing in a stable position on all four legs.
In order to check this, press down each corner of the appliance in turn to see if it moves. The
safe, long-term and reliable operation of the washing machine depends on it being correctly
positioned and level.
Important! Level the appliance, remove the drum locking bolts and wait 3 hours
before using the appliance for the rst time.
Important! Incorrect levelling, especially instability, may cause the washing machine
to move around during operation.
NOTES ON SAFETY
Withdrawal from Use
To ensure safety, the washing machine must be disabled once its useful life comes to an end.
First unplug it and then cut off the power lead. Scrap the appliance in line with local waste
disposal legislation.
This appliance is not intended for use by persons (including children) with physical, mental
or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless
under supervision or in accordance with the instructions as communicated to them by persons
responsible for their safety.
Ensure that children do not play with the appliance.

6
INSTALLING THE MACHINE

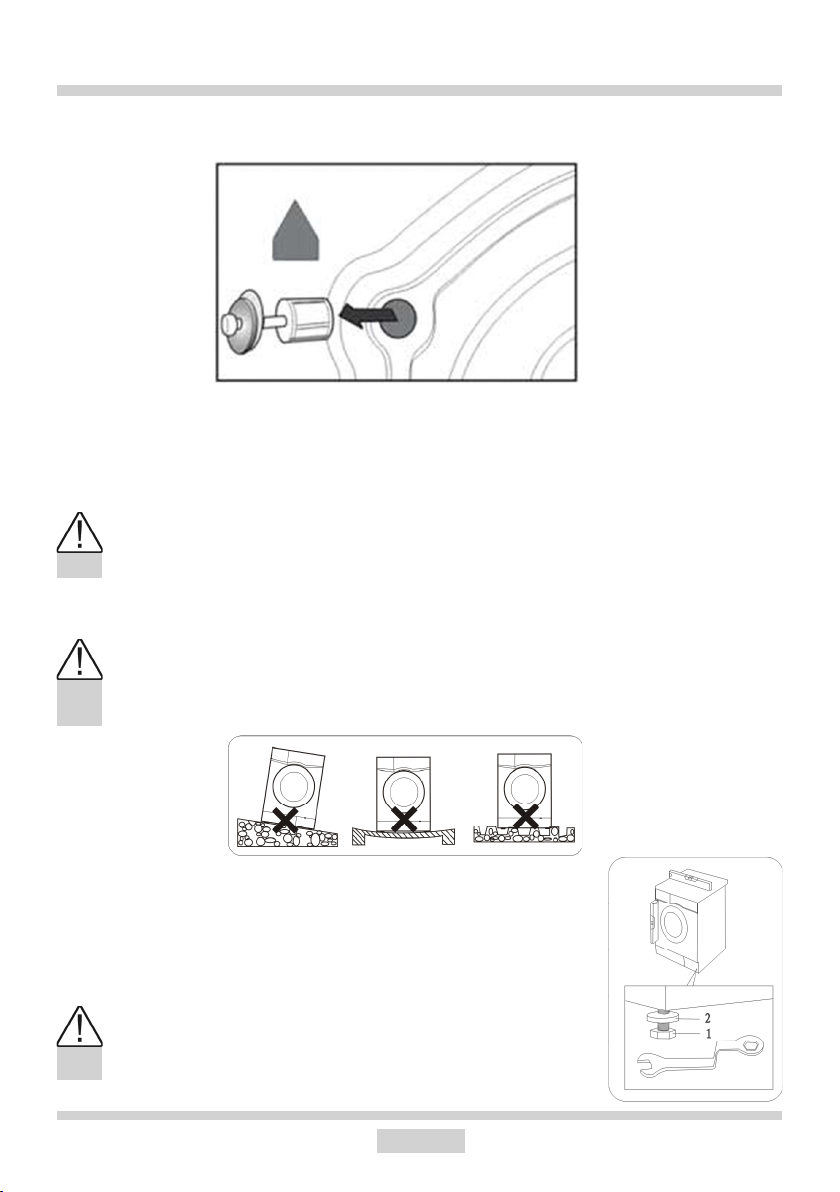

I. Remove the protection used for transporting the appliance (keep the locking bolts
for future use, e.g. when moving house).
lUnscrew the 4 locking bolts with a spanner.
lRemove the rubber and plastic transport
brackets from the sockets along with the wa-
shers and bolts.
The locking bolts MUST be removed before the washing machine is used!
lStop up the holes with the stoppers
enclosed in the accessories bag.
lDo not place the washing machine on a carpet!
lThe oor surface should not be either concave or sloping!
lAttention should be paid to the shape of the surface of the oor, so that the
entire weight of the appliance rests on its legs (not its body)!
II. Positioning and levelling the machine
After positioning and levelling the machine,
check that it is stable by pressing down each
corner and ensuring it does not move!
lPlace the washing machine on a solid, even surface.
lLoosen the plastic washer (2)
lLock with washers (2)
lLevel the machine by adjusting the legs (1)

7
The drain hose is at the back of the
machine. Fix the drain hose so that it
does not move while the machine is
in operation (use the elbow as shown
below). Do not place the hose too deep
into the outlet pipe!
max 100 cm
min 60 cm
III. Connecting the water supply
IV. Water drain
V. Connecting the electric power supply
A water supply hose with seals is inside the drum of the machine.
lOnly plug the machine into a properly installed socket
with an earth pin!
lDo not connect to an adaptor or an extension cord!
lIn the event of the power lead being damaged, it must be
replaced by an authorised technician.
lThe electrical system to which the appliance is to be
connected must be protected with a 10 A fuse.
INSTALLING THE MACHINE
Water pressure min. 0,03 MPa (0,3 bar), max.1 MPa (10 bar). Supply the machine
with cold water
lafter connecting, make sure the hose is not twisted
lafter connecting the hose and the valve, check they are sealed tight
lregularly check the condition of the supply hose.
Use the new hoses sup-
plied with the machine.
Do not re-use old hoses.
lThe appliance’s mains connection (electrical wall socket)
should be in a visible and accessible place!

8
Detergent Drawer
Drum
Pump lter
cover
Door
handle
Control panel
DESCRIPTION OF THE APPLIANCE

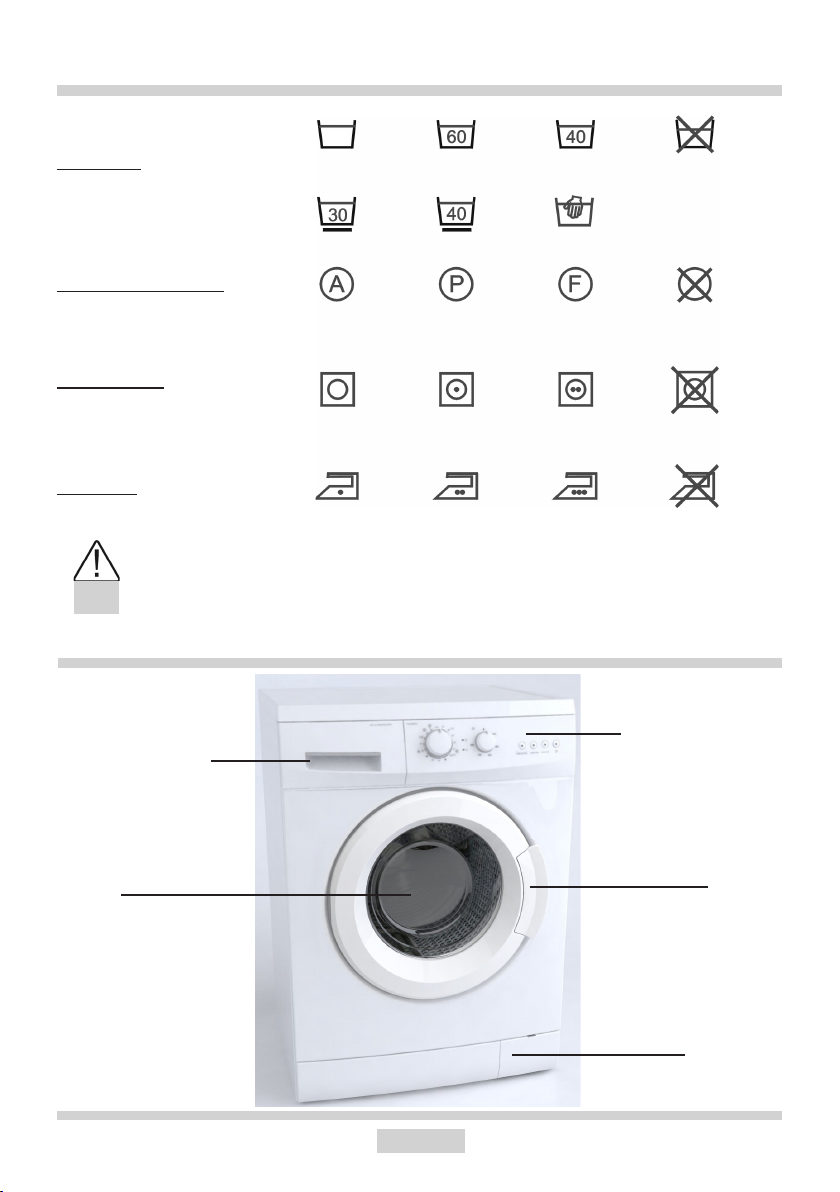

Always pay attention to the symbols on garments’ labels
when choosing a washing setting.
I. Washing
II. Chemical cleaning
III. Spin dryer
boiling
temp. 900
normal
temp 600C
normal
temp 400C
DO NOT
wash!
delicate handwash
all
solvents
all
except TRI
petrol
only
DO NOT
dry clean!
normal low high DO NOT
dry!
IV. Ironing
1100C1500C 2000CDO NOT
iron!
UNDERSTANDING THE SYMBOLS ON CLOTHES LABELS
90

9

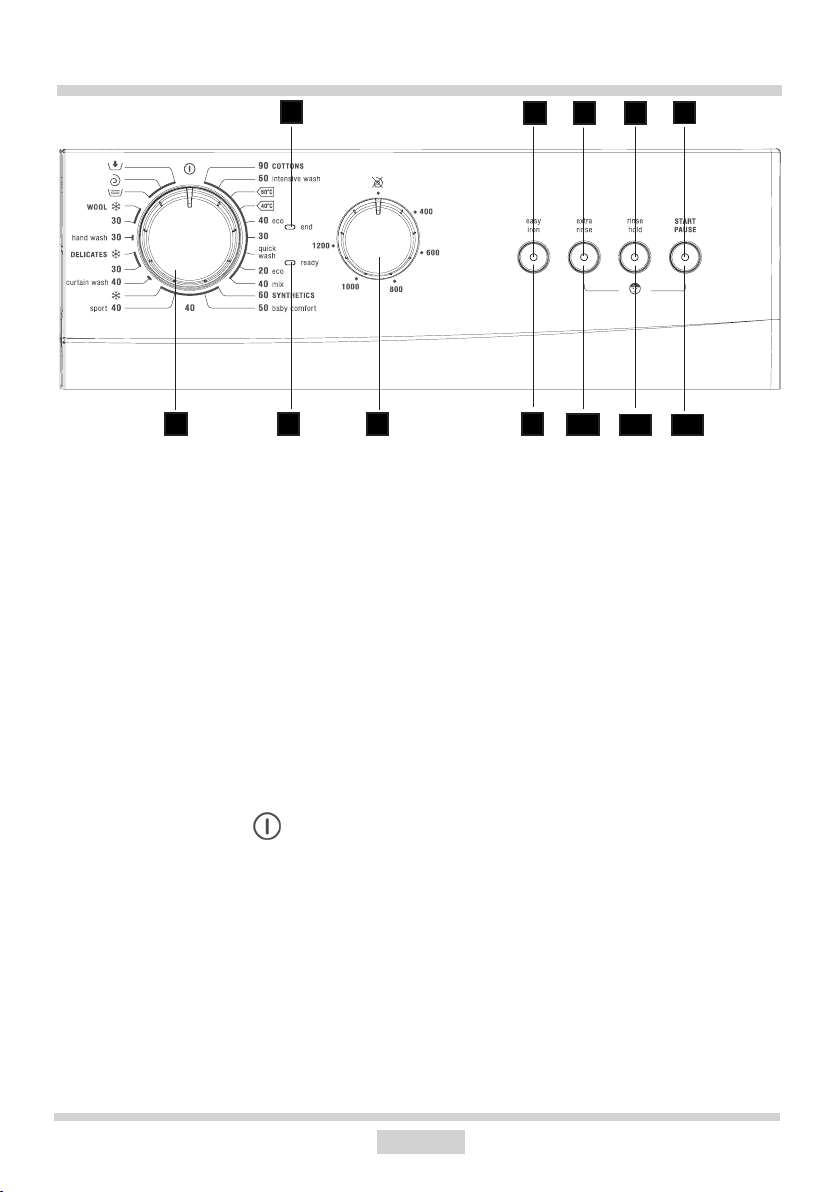

1. Programme selector knob
2. End Indicator
3. Ready Indicator
4. Spin speed selector knob
5. Easy iron Indicator
6. Extra rinse Indicator
7. Rinse hold Indicator
8. Start/Pauza Indicator
9. Easy iron button
10. Extra rinse button
11. Rinse hold button
12. Start/Pauza button
DESCRIPTION OF CONTROL PANEL
1. Programme selector knob
Choose the appropriate wash programme as required, depending on how dirty the clothes
are, and type and amount of laundry loaded, which ensures better results and more effecti-
ve washing. Once the wash programme is started, turning the programme selector knob to
another position (except ) does not change the previously selected programme.
2. End Indicator
Lights after the wash programme has ended.
1
2
3
3. Ready Indicator
Lights before the wash programme begins.
4 9
5678
10 11 12
4. Spin speed selector knob
Use this knob to set the spin speed when water is being pumped out of the washing machi-
ne. Turn the knob to the desired speed to change setting. Available spin speeds: Spin off
- 400 - 600 - 800 - 1000 - 1200
Note: Even when the maximum spin speed is selected, it will be automatically reduced for
delicates wash programmes (see max. spin speed in the Table of wash programmes).

10
DESCRIPTION OF CONTROL PANEL
5. Easy iron indicator
Lights when the function is active.
6. Extra rinse Indicator
Lights when the function is active.
8. Start/Pauza Indicator
Lights after wash programme starts. If you Pause the programme, indicator will ash.
7. Rinse hold Indicator
Lights when the function is active.
9. Easy iron button
Activation of function is indicated by a LED lighting up next to the function name.
The Easy Iron function reduces creases.
Note: Easy iron function is not available for all programmes (see Table of wash program-
mes.

11
10 + 12 Child Lock
This function locks the function buttons to prevent settings being changed or the operation
being interrupted by children. To set Child Lock, simultaneously press and hold (Extra
Rinse) and (Start/Pause) buttons for approximately 3 seconds. To release the Child
Lock, hold the same buttons down once more for around 3 seconds. Child Lock will be
automatically released after the wash cycle is completed.
Note: When the child lock is activated Easy Iron, Extra Rinse and Rinse Hold indicators
will ash a few times. When the child lock is release Start/Pause indicator will ash a few
times.
12. Start/Pause button
Press [Start/Pause] to start or pause a programme. When the washing machine operates,
START/PAUSE indicator light is on. When you PAUSE a programme, START/PAUSE
indicator ashes.
The Pause mode can be used to soak the laundry.
Once the selected programme has started wait for about 10 minutes and then press the
Start/Pause button. When the laundry is soaked as required, press the Start/Pause button
again to resume the programme. Soaking will improve washing results for heavily soiled
laundry.
10
10. Extra rinse button
Activation of function is indicated by a LED lighting up next to the function name.
Note: Extra Rinse function is not available for all programmes (see Table of wash pro-
grammes.
Extra Rinse function is especially useful when washing underwear and also clothes for
people with sensitive skin. Select this function for better laundry rinsing results by adding
one extra rinse.
11. Rinse hold button
Select this function to leave the laundry in water after the last rinse cycle. To continue the
programme press the Rinse Hold button again. This feature is especially recommended
when laundry will not be taken out of the washing machine immediately after the washing
programme has ended.
Note: To spin the washed laundry turn the programme selector knob to position wait a
few seconds and then turn the knob to Drain and then press Start/Pause.
Note: Rinse Hold function is not available for all programmes (see Table of wash program-
mes.
12
DESCRIPTION OF CONTROL PANEL

12
II. End of the wash cycle
1. End lights to indicate wash cycle has ended.
2. Turn off the water valve
3. Set the programme selection knob to .
4. Unplug the appliance from the mains.
5. Open the door and remove the laundry.
III. Cancelling and changing programme
Set the programme selector knob to position for several seconds to terminate a pro-
gramme. Then select the desired wash programme.
USING THE APPLIANCE
I. Programme selection
1. Set the programme selector knob to the desired programme (see the table further on),
Ready indicator will light.
2. Activate available additional functions to modify the programme to your individual needs.
3. Press the [Start/ Pause] button.

13

14
TABLE OF PROGRAMMES
* - standard programmes for washing cotton fabrics at 60°C and 40°C.
These programmes are suitable for washing normally soiled cotton fabrics. They are simultaneously the most effective pro-
grammes for washing these type of fabrics, taking into account the total energy and water consumption.
Note: Real water temperature may differ from the declared wash cycle temperature.
 Use detergent or fabric softener if necessary,
l Detergent required, without which washing will be ineffective
x Do not use detergent or fabric softener
Additional functions available
Rinse
hold
Option
Option
Option
Option
Option
Option
-
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
-
-
-
Extra
rinse
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
-
Option
Option
Option
-
-
Easy iron
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
Option
-
-
-
Option
Option
-
Max.
load
[kg]
6
6
6
6
6
6
3
3
6
3
3
3
3
3
2
2
2
2
2
2
6
6
-
Max. spin
speed [rpm]
1200
1200
1200
1200
1200
1200
800
1200
800
800
800
800
800
800
600
600
600
600
600
600
1200
1200
-
Max.
temp.
°C
90°
60°
60°
40°
40°
30°
30°
20°
40°
60°
50°
40°
40°
(cold
water)
40°
30°
(cold
water)
30°
30°
(cold
water)
-
-
-
Programme name
Cotton 90
Intensive wash 60
Cotton *
Cotton *
Eco 40
Cotton 30
Quick wash
Eco 20
Mix 40
Synthetics 60
Baby comfort 50
Synthetics 40
Sport 40
Synthetics cold
Curtain wash 40
Delicates 30
Delicates cold
Hand wash 30
Wool 30
Wool cold
Rinse
Spinning
Drain

15
TABLE OF PROGRAMMES
NOTE: Above-mentioned the time is an estimate and may differ from actual wash cycle time, depending on temperature, water pressure,
load size, etc. The time is automatically updated during wash cycle. Displaying the same time for an extended period or abrupt changes
are normal.
Type of laundry
Heavily soiled clothing, or an moderately so-
iled cotton and linen for children that requires
boiling.
Moderately or heavily soiled cotton clothes,
bed linen, table linen, linen, towels.
Moderately soiled cotton or linen clothes.
Lightly soiled cotton or linen clothes.
Lightly soiled, sweaty cotton clothes and
linen.
Lightly soiled, sweaty cotton and linen
clothes. Wash at 20°C
Lightly and medium soiled cotton and synthe-
tic clothing.
Moderately soiled delicate synthetics, or syn-
thetic and cotton compositions.
Children’s clothes.
Lightly soiled delicate synthetics, or synthetic
and cotton compositions.
Sportswear
Lightly soiled delicate synthetics, or syn-
thetic and cotton compositions (water is not
heated).
Curtains, tulle
Very delicate fabrics.
Delicate or wool clothing recommended for
hand washing.
Note: Do not machine wash woollen fabrics if
the cloth tag prohibits this.
Rinsing with improving agents, including. anti-
static or softening additives. Reduce the spin
speed when washing very delicate fabrics.
Spin-drying after hand washing.
Drain water - no spinning.
Num-
ber of
rinses
3
3
2
2
2
3
2
2
2
2
4
2
2
2
4
3
3
3
3
3
3
-
-
Water
con-
sump-
tion
(l)
85
93
49
55
53
65
53
44,2
58
55
91
53
53
53
73
73
82
65
75
70
54
+
-
Ener-
gy
con-
sump-
tion
(kWh)
2,59
1,56
1,02
0,82
0,38
0,28
0,09
0,19
0,55
0,8
1,03
0,53
0,47
0,13
0,9
0,38
0,12
0,28
0,15
0.03
0,06
0,05
-
Time
[h:min]
3:05
2:25
3:20
3:10
2:10
1:58
0:30
1:42
1:36
1:30
2:00
1:25
1:31
1:07
2:23
1:23
1:16
1:28
1:00
0:56
0:36
0:15
0:03
Detergent drawer
Fabric
softe-
ner





















x
x
Basic
wash
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
x
x
x
Pre-
wash
x

x
x
x
x
x
x
x
x
x
x
x
x

x
x
x
x
x
x
x
x

16
TROUBLESHOOTING
l Off
☼Flash
The fault indicator lights
The washing machine indicates error codes to help locate minor operating faults and iden-
tify their cause. An error is indicated by LEDs on the control panel [Ready/ Start/Pause].
The appliance interrupts operation upon encountering an error.
Error Code - The status
of individual LED indi-
cators
Reason Solution
Ready Start/Pauza
l☼Door is not closed
properly
Check that the door is locked; check
that laundry is not jammed in the door
☼lLow pressure, no
water in the drum
Unscrew the water valve, check the
water inlet hose and lter, check the
water pressure
☼ ☼ Water does not
drain properly
Check water drain pump and lter
Others Try to restart or contact the Service
Centre
tel. [phone]

17

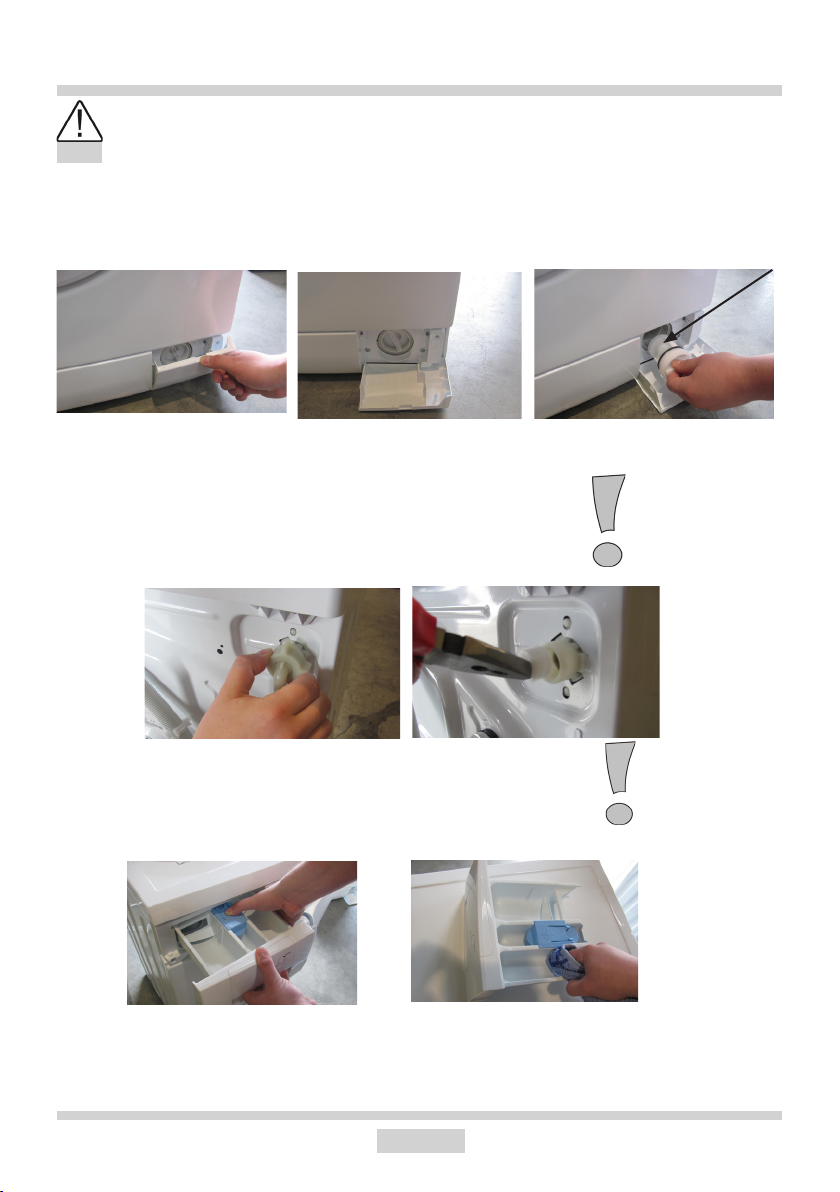

II. Cleaning the water supply valve
lUnplug the appliance from the
mains,
lTurn off the water valve,
lOpen the lter cover by hand
or using a at-head screwdriver.
lTurn on the water supply hose,
lUse forceps to grasp the lter mesh plunger,
lRemove and clean the lter (using a brush).
lUnscrew the lter. lRemove and clean the lter.
To replace the lter
following the pro-
cedure in reverse
order.
III. Cleaning the detergent drawer (at least once a month).
lRemove the drawer (while pressing
the stop).
lClean in running water (or using a
brush or piece of cloth).
lReplace the drawer.
Pump
lter
To replace the lter
following the pro-
cedure in reverse
order.
MAINTENANCE AND CLEANING
I. Cleaning the pump lter Clean the pump lter every 20 washes or so.
Neglecting to clean the lter causes difculties in emp-
tying the machine of water!
Never clean the product’s casing or plastic parts using solvents or strong, abrasive cleaning
agents (e.g. washing powders or creams)! Only use delicate liquid cleaning agents and soft
cloths. Do not use sponges.

18

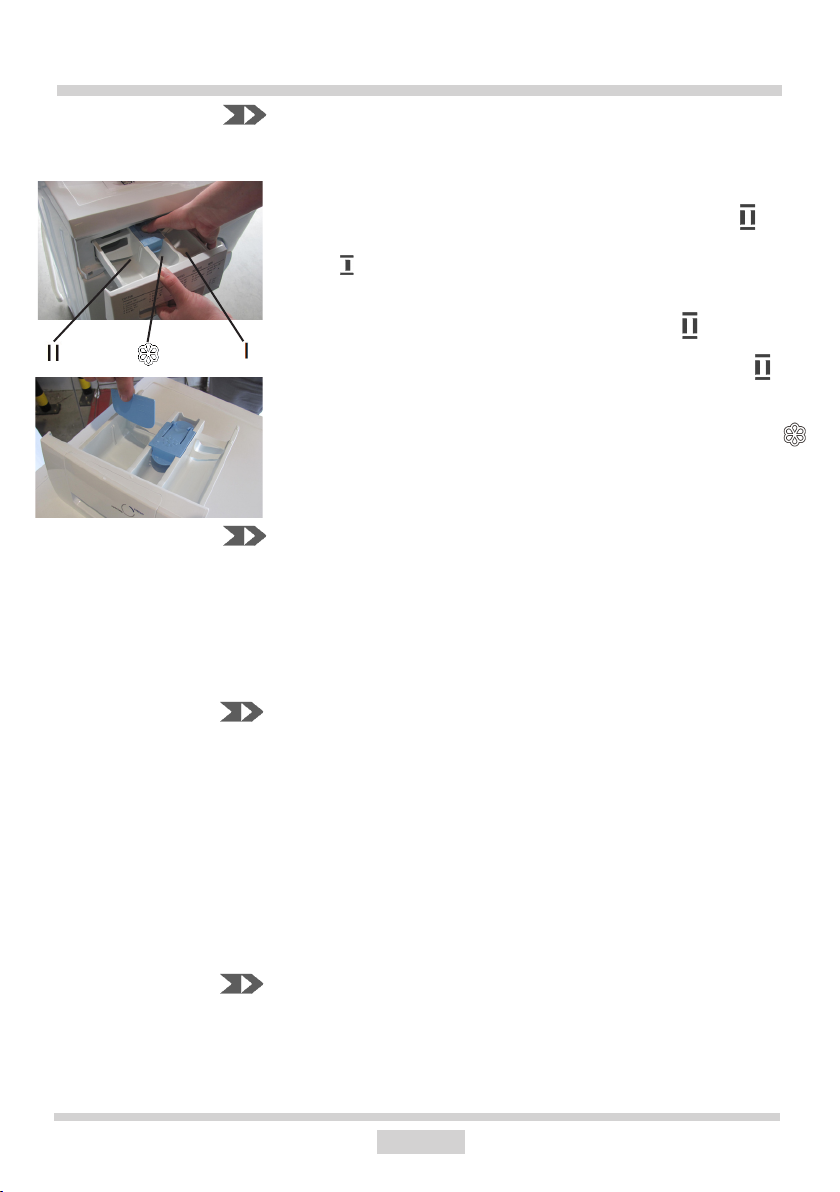

It is recommended to use powder or liquid general purpose
detergents for all temperatures in a range as per the deter-
gent Producer’s recommendations indicated on the product
packaging.
Detergents
lPour the detergent into the drawer compartment marked
lPour the pre-wash detergent into the drawer compartment
marked
Liquid detergents
lInstall the supplied partition in the compartment (gure be-
low).
lPour liquid detergent into the drawer compartment marked
Fabric softeners added to the rinse
lPour the fabric softener into the drawer compartment marked
lDo not exceed the maximum level marked on the drawer com-
partment. This detergent will be used for the nal rinse.
Before washing for the rst time, put it through one high tempera-
ture cycle without a load, according to the following procedure:
lConnect the washing machine to the electricity mains
lTurn on the water valve
lSet the programme selector knob to high temperature wash.
lAdd the appropriate detergent and press the [Start/ Pause]
button.
I. Cleaning and
purifying agents
II. First wash
Reducing energy and water consumption
Garments which are only lightly soiled should be washed using the
appropriate wash programme, i.e. ULTRA SHORT The washing
machine detects partial load. For partial load, when using the To-
wels and Cotton programmes, washing machine will reduce water
and energy consumption and shorten the wash cycle.
IV. Conservation
Stubborn stains
Before washing garments, apply an additional stain remover ac-
cording to the instructions for use
Heavily soiled:
lOne-off washing of smaller amounts of clothes
lAdd more detergent
lAfter washing heavily soiled clothes (e.g. working clothes) or
garments which are shedding bres, it is recommended that the
washing machine is rinsed out by running a programme cycle at
a temperature of 60°C, e.g. COTTON or SYNTHETICS, without
a load. Lightly soiled:
lSee pt. „Conservation”.
III. Soil
PRACTICAL ADVICE REGARDING WASHING

19
PRACTICAL ADVICE REGARDING WASHING
Hard water causes sediment to form.
Information about water hardness is available from your nearest
water works.
It is advised that water softeners are used for every wash.
V. Water hardness
VI. Power cut
(programme memory)
Power cuts or unplugging the machine does not cancel the set-
ting. This has been memorised and the cycle will continue once
the power is restored. Do not open the doors of the washing
machine during a power cut.
VII. Loading Maximum drum capacity 6 kg:
Load the washing into the drum according to the following in-
structions:
lcotton, denim, children’s clothes – max full drum (do not force clo-
thes into the drum as this will reduce the quality of the wash!).
lsynthetics - max 1/2 drum
lwool, silk, delicate fabrics - max. approx. 1/3 of the drum.
Important! Do not overload the machine! Overloading the machine
may cause damage to the clothes being washed!
The maximum load amounts depending on the program are
given in table of programs.
VIII. Even load
distribution control
The electronic control device includes a load distribution control
system. In the event that the system detects uneven distribution
of load in the drum, the washing machine will try to relocate it.
Sometimes the trials will not be sufcient for the proper location of
the clothes (in the case of frotte dressing gowns washed with other
types of clothes, ball-shaped sheets which closes several objects
inside it). The system may react in the following way:
lit may accept the uneven distribution of clothes but will decrease
the spin speed
lit may not allow spinning as the clothes are distributed
unevenly.)
In both cases, after the wash is over, open the door of the washing
machine, place the laundry manually, close the door and select the
spin programme again.

20
XI. Dosing According to the cleaning agent manufacturer’s instructions.
Too little cleaning agent
lThe washing turns grey.
lLumps of grease form, sediment builds up.
Too much cleaning agent
lStrong foaming.
lIneffective washing, detergent incompletely rinsed from fabrics.
PRACTICAL ADVICE REGARDING WASHING
IX. Door
interlock
The washing machine is equipped with an interlock which prevents
the door from being opened during washing. Once a washing cycle
is complete, the door interlock is automatically released. In order
to open the door during the wash program, press PAUSE button
and wait about 2 minutes to unlock the door.
IMPORTANT! If the temperature inside the drum is high, the
door may remain blocked until the water temperature has
dropped below 60°C.
IMPORTANT! Before opening the door of the washing machine
check whether there is water in the drum.
X. Delicate
fabrics
Programme:
lSelect the appropriate wash programme (SYNTHETICS,
WOOL, DELICATES)
Loading:
Do not overload the machine, max 1/3 of the drum, see Loading.
