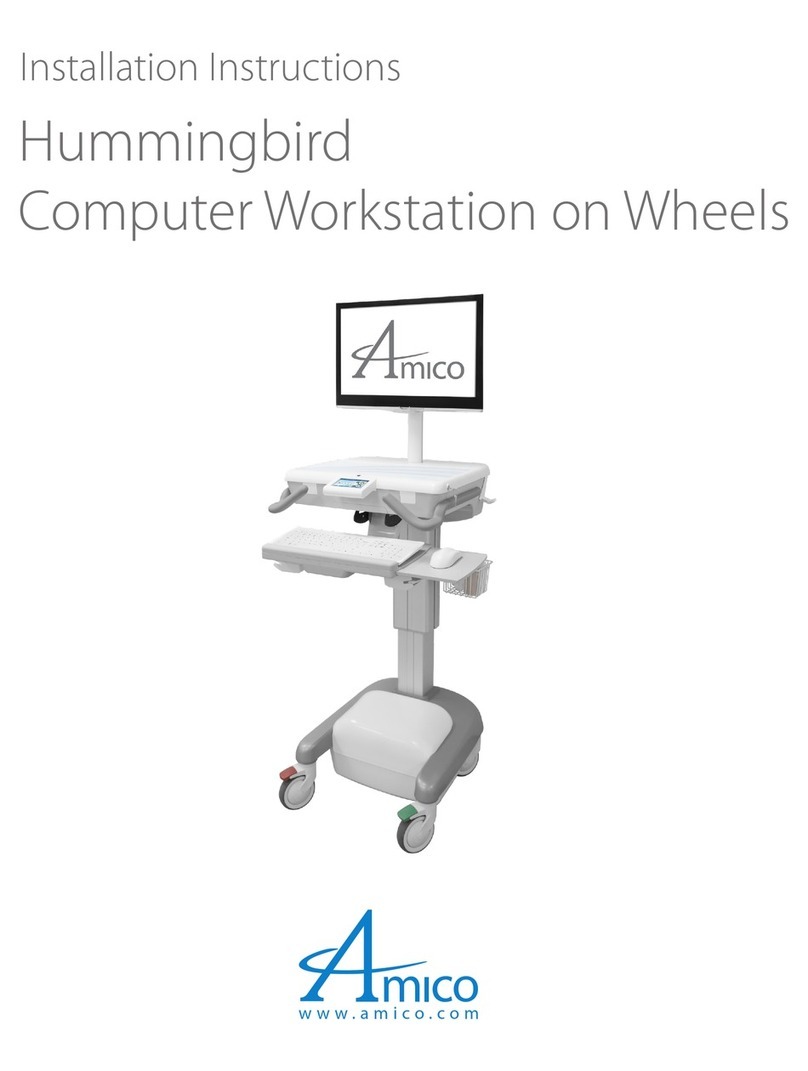

Amico Hummingbird Lite User manual

Installation Instructions
Hummingbird Lite
Workstation on Wheels

Preface
IMPORTANT, PLEASE READ CAREFULLY
Thank you for your purchase with Amico Accessories Inc.
This equipment is designed for long-lasting performance, providing the end user complies with assembly and
maintenance procedures. This Instruction Manual is your guide to ensure that you get the best performance out of the
equipment. Amico Accessories Inc. is not responsible for any damage as a result of (but not limited to) abuse and other
problems that may be a direct or indirect result of failure to comply with the instructions provided in this manual.
Please note these key words and symbols:
WARNING Steps where extra care should be taken to prevent injuries and damage.
NOTE Steps that point out helpful information.
Medical Facility Responsibilities
Preventive maintenance checks must be performed regularly to maintain the quality and performance of this product.
Any parts that may be broken, missing, worn, distorted, or contaminated in any way should not be used and all
affected parts should be replaced immediately. Should the necessity of any repair be suspected; please contact your
local distributor or call 1-877-264-2697.

Contents
Installation Preparation 4
Installation Tools 4
Installation Reference 4
Hardware Kit 4
Installation 5-8
Instructions 5-8
Device Installation 9
LCD/Display Mounting: VESA 75/100 9
Adjustments 10-16
Mounting a Laptop (Laptop Models Only) 10
LCD/Display Adjustments 11
Sliding Keyboard Tray Adjustments 12
Lockable Casters and Transport Position 13
Spring Adjustment (LCD/Display Models Only) 14
Worktop Height Adjustment 15
LCD/Display Mount Load Ranges 16
Cart Load Ranges 16
Cable Management (LCD/Display Models Only) 17
Mounting Keyboard and Mouse 18-19
Product Matrix 20
Laptop 20
Laptop with Security Bracket 20
LCD/Display 20
Troubleshooting, Maintenance and Product Classification 21-22
Specifications and Adjustments 21
Troubleshooting Guide 21
Maintenance 21
Cleaning 22
Warranty 23

4Amico Accessories Inc.
Installation Preparation
Installation Tools
Installation Reference
#2 & #3 Phillips Head
Screwdriver
Cordless Electric Screwdriver
with #2 & #3 Philips bits
WorktopLCD/Display Post Base
Column Hardware Kit Laptop Security Bracket
Hardware Kit
4x Phillips Pan Head
1/4-20UNC 1" Length
10x Phillips Pan Head
8-32UNC 3/16" Length
4x Hex Acorn Cap Nut
10-24UNC
4x #10 Washer
4x Phillips Pan Head
8-32UNC 9/16" Length
4x Phillips Pan Head
1/4-20UNC 1/2" Length
4x Phillips Pan Head
1/4-20UNC 3/8" Length
8x Mounting Saddle1x Spacer/Stopper
4x Phillips Pan Head
1/4-20UNC 1/4" Length
1x Phillips Pan Head
10-24UNC 1/2" Length
4x Reusable Zip Ties
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X
4x #14 Washer
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X
12x Dual Lock Pad
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X
4x #14 Lock Washer
10-24UNC
12X
8-32UNC 3/16" LENGTH
10X
MOUNTING SADDLE
8X
PHILLIPS PAN HEAD
PHILLIPS PAN HEAD
4X
#10 WASHER
4X
HEX ACORN CAP NUT
1/4-20UNC 1/4" LENGTH
4X 3X
PHILLIPS PAN HEAD
8-32UNC 1/2" LENGTH
PHILLIPS PAN HEAD
1/4-20UNC 1/2" LENGTH
4X
PHILLIPS PAN HEAD
1/4-20UNC 3/8" LENGTH
4X
PHILLIPS PAN HEAD
10-24UNC 1/2" LENGTH
1X
PHILLIPS PAN HEAD
4X
SPACER/STOPPER
1/4-20UNC 1" LENGTH
1X
#14 WASHER
4X
#14 LOCK WASHER
4X
REUSABLE ZIP TIES
DUAL LOCK
PAD
2
5431
4X

www.amico.com 5
Installation
Instructions
1. Unpack the boxes as per instruction layout printed on inside flap of the master box.
Figure 1
Figure 2
Figure 3
2. Place base with casters on the ground (Figure 2). Lock the casters by engaging the red brakes on the front casters.
3. Join the column with base by sliding the column into the opening on top of the base (Figure 3) and fasten four
1/4-20 x 1" long screws, four #14 lock washer and four #14 flat washer through the bottom of the base into the
column. Ensure the bottom of the vertical column is placed inside the collar (pre-installed in opening).

6Amico Accessories Inc.
a. Laptop with Security Bracket Model: Install the Laptop Security Bracket (Box B) to the worktop by placing
the Laptop Security Bracket on the backside of the worktop and fasten four 1/4-20 x 1/4" long screws
(Figure 6) from the bottom.
4. Laptop Model: Place the worktop on the column top plate and fasten four 1/4-20 x 3/8" long screws (Figure 4).
Fit the lever housing to the worktop with four 1/4-20 x 1/2" long screws (Figure 5).
Installation
Figure 4 Figure 5
Figure 6
Lever Housing

www.amico.com 7
b. LCD/Display Model: Install the LCD/Display Post (Box B) to the worktop, First place the LCD/Display bracket
(Box B) to the worktop bottom and fasten four 1/4-20 x 1/4" long screws (Figure 7) from the bottom.
Carefully insert the LCD/Display Post through the worktop opening on the top and align with the LCD/Display
bracket hole. Fasten with four 8-32 x 9/16" long screws (Figure 7).
c. LCD/Display with Sliding Keyboard Tray Model (outside North America only): First slide the keyboard
tray bracket (Box B) into the worktop keyboard tray track (Figure 8) and insert 10-24 x 1/2" long screws
through spacer/stopper into keyboard tray track to secure. Remove the bottom acorn nuts and #10 washers
from the Sliding Keyboard Tray (Box A) and align with keyboard tray bracket holes. Fasten back #10 washer
and acorn nuts (Figure 8).
Installation
Figure 7
Figure 8

8Amico Accessories Inc.
5. Install accessory mounts underneath the worktop
a. Install the power hook bracket to the worktop bottom plate with two 8-32 x 3/16" long screws (Figure 9).
b. Install the mounting saddles (maximum 4 per side) to the worktop bottom plate with four 8-32 x 3/16" long
screws (Figure 9).
6. To install the two reusable zip ties on the saddles, slide the zip tie through the two saddles slots as shown below
and repeat for the second zip tie. Place the power bar or laptop adapter symmetrically with the two zip ties and
secure.
Installation
Figure 9
Figure 10
Zip Tie Saddle

www.amico.com 9
LCD/Display Mounting: VESA 75/100
NOTE:4x M4 screws are provided for mounting the LCD/Display to the VESA Head. Different screws may be
needed if the provided screws are not the right size. Standoffs may be needed depending on the hole pattern on
the LCD/Display.
NOTE: Allow 90° rotation in both directions for excess cabling.
1. Determine the LCD/Display mounting configuration. VESA 75 (75 mm x 75 mm M4 thread) or VESA 100 (100 mm
x 100 mm M4 threads).
2. VESA 100 configuration: Partially thread two screws into the top 2 holes in the back of the LCD/Display. The LCD/
Display can then be hung up on the VESA Head through the two slots at the top. Insert 2 more screws through
the VESA 100 mounting holes at the bottom and tighten all screws (Figure 1).
3. VESA 75 configuration: Rotate the VESA Head so the 2 slots for the VESA 75 configuration are located at the top.
Partially thread two screws into the top 2 holes in the back of the LCD/Display. The LCD/Display can then be hung
up on the VESA Head through the two slots at the top. Insert 2 more screws through the VESA 100 mounting
holes at the bottom and tighten all screws.
4. When removing the LCD/Display, the LCD/Display arm and the LCD/Display should be placed at the highest
position (Figure 2). Remove the 2 bottom screws from the VESA plate, loosen the top 2 screws, and lift the LCD/
Display off the VESA plate.
Device Installation
+15
-15
+/- 90
180
47.5”
(120.65 cm)
62.3”
(158.12 cm)
34.5”
(87.67cm)
42.5”
(107.95 cm)
32.8”
(83.19 cm)
19.0”
(48.30 cm)
19.0”
(48.29 cm)
27.0”
(68.58 cm)
35.0”
(88.00 cm)
41.1”
(104.41 cm)
25.3”
(64.14cm)
27.5”
(69.85 cm)
22.0”
(55.88 cm)
20.0”
(50.80 cm)
14.6”
(37.10 cm)
6.5”
(16.51 cm)
6.5"
(16.51 cm)
14.6"
(37.1 cm)
Figure 1 Figure 2
+15
-15
+/- 90
180
47.5”
(120.65 cm)
62.3”
(158.12 cm)
34.5”
(87.67cm)
42.5”
(107.95 cm)
32.8”
(83.19 cm)
19.0”
(48.30 cm)
19.0”
(48.29 cm)
27.0”
(68.58 cm)
35.0”
(88.00 cm)
41.1”
(104.41 cm)
25.3”
(64.14cm)
27.5”
(69.85 cm)
22.0”
(55.88 cm)
20.0”
(50.80 cm)
14.6”
(37.10 cm)
6.5”
(16.51 cm)
M4 mounting
hole for VESA 100
M4 mounting
hole for VESA 75
Front of the VESA 75/100

10 Amico Accessories Inc.
Mounting a Laptop (Laptop Models Only)
WARNING: ENSURE THE LAPTOP SECURITY BRACKET IS FULLY OPEN BEFORE PLACING THE LAPTOP
DEVICE.
NOTE: Laptop Security Bracket is suitable for 13" to 17" laptops.
1. Place the key in the Laptop Security Bracket key slot (Back). Turn and hold the key to facilitate movement of the
adjustable glides.
2. Place the laptop on worktop between the adjustable glides and adjust the laptop screen and tilt the laptop
screen so that it makes contact with Laptop Security Bracket.
3. Shut the adjustable glides by pushing towards inside each other to secure the laptop and remove the key from
the key slot.
NOTE: Keep the Laptop Security Bracket Key in a safe location, separate from the workstation.
Adjustments
Figure 1
Security Bracket
Key Slot
1 2 3

www.amico.com 11
LCD/Display Adjustments
NOTE: You may need to remove the cap and cover on the LCD/Display Post.
WARNING: BE SURE TO SUPPORT THE LCD/DISPLAY IF ADJUSTING THE TILT ANGLE WITH THE LCD/
DISPLAY MOUNTED.
WARNING: AFTER THE LCD/DISPLAY IS INSTALLED, TIGHTEN THE LARGE AND SMALL TILT ADJUSTMENT SCREWS
TO THE TIGHTEST POSITION POSSIBLE WITH THE WEIGHT OF THE LCD/DISPLAY ATTACHED. ALTERNATE BETWEEN
TIGHTENING THE LARGE AND SMALL SCREWS UNTIL APPROPRIATE TENSION IS REACHED.
The LCD/Display (not included) can pan up to 180°, tilt up and down by +/- 15° and can be adjusted from portrait to
landscape orientation (Figure 1).
1. For panning adjustment, hold the LCD/Display and turn left or right until in the desired position.
2. For LCD/Display landscape or portrait orientation, hold the LCD/Display and rotate 90° (Figure 1).
3. To adjust LCD/Display height, hold LCD/Display and slide up or down until desired height is reached.
Independent adjustment height range: 6.5" (16.5cm).
Adjusting tilt tension: Tighten or loosen the tension screws on the mounting bracket.
NOTE: You may need to remove the cap and cover on the LCD/Display Post.
Adjustments
Figure 1
+15
-15
+/- 90
180
47.5”
(120.65 cm)
62.3”
(158.12 cm)
34.5”
(87.67cm)
42.5”
(107.95 cm)
32.8”
(83.19 cm)
19.0”
(48.30 cm)
19.0”
(48.29 cm)
27.0”
(68.58 cm)
35.0”
(88.00 cm)
41.1”
(104.41 cm)
25.3”
(64.14cm)
27.5”
(69.85 cm)
22.0”
(55.88 cm)
20.0”
(50.80 cm)
14.6”
(37.10 cm)
6.5”
(16.51 cm)
+/- 90°
+15
-15
+/- 90
180
47.5”
(120.65 cm)
62.3”
(158.12 cm)
34.5”
(87.67cm)
42.5”
(107.95 cm)
32.8”
(83.19 cm)
19.0”
(48.30 cm)
19.0”
(48.29 cm)
27.0”
(68.58 cm)
35.0”
(88.00 cm)
41.1”
(104.41 cm)
25.3”
(64.14cm)
27.5”
(69.85 cm)
22.0”
(55.88 cm)
20.0”
(50.80 cm)
14.6”
(37.10 cm)
6.5”
(16.51 cm)
+ 15°
- 15°
+15
-15
+/- 90
180
47.5”
(120.65 cm)
62.3”
(158.12 cm)
34.5”
(87.67cm)
42.5”
(107.95 cm)
32.8”
(83.19 cm)
19.0”
(48.30 cm)
19.0”
(48.29 cm)
27.0”
(68.58 cm)
35.0”
(88.00 cm)
41.1”
(104.41 cm)
25.3”
(64.14cm)
27.5”
(69.85 cm)
22.0”
(55.88 cm)
20.0”
(50.80 cm)
14.6”
(37.10 cm)
6.5”
(16.51 cm)
180°
+15
-15
+/- 90
180
47.5”
(120.65 cm)
62.3”
(158.12 cm)
34.5”
(87.67cm)
42.5”
(107.95 cm)
32.8”
(83.19 cm)
19.0”
(48.30 cm)
19.0”
(48.29 cm)
27.0”
(68.58 cm)
35.0”
(88.00 cm)
41.1”
(104.41 cm)
25.3”
(64.14cm)
27.5”
(69.85 cm)
22.0”
(55.88 cm)
20.0”
(50.80 cm)
14.6”
(37.10 cm)
6.5”
(16.51 cm)
6.5"
(16.51 cm)
14.6"
(37.1 cm)

12 Amico Accessories Inc.
Sliding Keyboard Tray Adjustments
The standard keyboard tray slides in and out of the cart (Figure 1).
WARNING: DO NOT TRANSPORT THE CART WITH KEYBOARD TRAY IN EXTENDED POSITION.
Mouse Tray Adjustments
The mouse tray slides in and out on both sides of the worktop or standard keyboard tray (Figure 1).
Adjustments
Figure 1
Figure 1
Laptop LCD/Display LCD/Display with Keyboard Tray
Safe for
Transport

www.amico.com 13
Adjustments
Figure 2
Figure 1
Lockable Casters and Transport Position
The Hummingbird Lite Mobile Workstation includes two Total Locking Casters (red) to prevent movement.
1. To lock the casters, step on the Locking Lever (on each caster) such that it clicks in the down position (Figure 1).
2. To unlock the casters, lift the Locking Lever up (on each caster) or push the back end of the caster down (Figure 1).
3. To steer the cart, unlock the Total Locking Caster (red) and grasp the 2 handles firmly while pushing the cart.
WARNING: PUSH THE CART TO TRANSPORT BETWEEN LOCATIONS, EXCEPT WHEN TRAVELLING OVER A
THRESHOLD. WHEN TRAVELLING OVER A THRESHOLD, PULL THE CART OVER TO PREVENT TIPPING AND
SUBSEQUENT DAMAGE OR INJURY.
4. The Directional Caster (optional) (Figure 2), and supports easier handling of the cart around turns. It is
recommended for turning when there is sufficient space (Figure 2).
Total Locking
Casters (Red)
Locking Lever
Unlock
Lock
Steering-Assist
Caster

14 Amico Accessories Inc.
Spring Adjustment (LCD/Display Models Only)
NOTE: The LCD/Display post uses a gas spring to support and facilitate vertical adjustment of the LCD/Display.
WARNING: THE LCD/DISPLAY POST INTERIOR CONTAINS SHARP EDGES. WEAR PROTECTIVE EQUIPMENT WHEN
PERFORMING THE FOLLOWING TASKS.
NOTE: Refer to page 16 for spring weight ranges.
WARNING: ENSURE THAT THE LCD/DISPLAY IS REMOVED AND THE VESA PLATE IS AT THE TOP POSITION PRIOR TO
BEGINNING.
1. The Gas Spring in the LCD/Display Post can be replaced if the LCD/Display weight changes, in order to maintain
the appropriate counterbalancing.
2. Remove the cap on the top of the LCD/Display Post to reveal the 2 screws. Use a Philips head screwdriver (#2) to
remove the 2 screws (Figure 1). Remove the LCD/Display Post Cover.
3. Remove the Top Plate and slide out the VESA Plate to reveal the Gas Spring underneath. Replace the Gas Spring
with the new Gas Spring. Ensure that there is a hex nut on the thin side of the replacement spring and the nut is
facing up (Figure 2).
4. Replace the VESA Plate, re-attach the Top Plate with the screws and replace the Top Cap and the LCD/Display Post
Cover.
HEX nutGas Spring
Figure 1 Figure 2
LCD/Display
Post
VESA plate
Screws LCD/Display
Post Cover
Top Cover Top Plate
Adjustments

www.amico.com 15
Worktop Height Adjustment
WARNING: ADJUST HEIGHT WITH CAUTION IF THERE IS NO LOAD ON THE CART, AS GAS SPRING MAY MOVE
UPWARDS SUDDENLY WHEN LEVER IS RELEASED. DO NOT ADJUST HEIGHT WHILE CART IS IN MOTION.
NOTE: At ideal operating height, the operator’s forearms should be parallel to the floor when using the keyboard/
mouse (90° bend at elbows).
WARNING: KEEP LOAD WITHIN SPECIFIED RANGE AS NOTED BELOW. FAILURE TO DO SO COULD RESULT IN
DAMAGE AND/OR INJURY.
1. Lift the Height Adjustment Lever to activate the vertical adjustment mechanism (Figure 1).
2. Grasp the sides of the Work Surface and push down while holding the Height Adjustment Lever to lower the
Work Surface.
3. Grasp the sides of the Work Surface and pull upwards while holding the Height Adjustment Lever to raise the
Work Surface.
4. Worktop Height adjustment range is 15" (38.1 cm) (Figure2).
Figure 1 Figure 2
Adjustments
15" (38 cm)
Worktop Height
Adjustment Range

16 Amico Accessories Inc.
NOTE: The combined total weight of all peripherals and accessories on the cart should fall within load range of
selected spring type.
Cart Load Ranges
Spring Type Load Range
165N 3.5 lbs - 13.4 lbs (1.59 kg - 6.1 kg)
210N 17 lbs - 22.5 lbs (10.21 kg - 17.71 kg)
255N 13.5 lbs - 27 lbs (6.12 kg - 12.25 kg)
LCD/Display Mount Load Ranges
Gas Spring in LCD/Display Post Load Range
T (For Tablet) 5.5-8 lbs. (2.5-3.6 kg)
35N 7.5-10 lbs. (3.4-4.5 kg)
50N 13-15.5 lbs. (5.8-7 kg)
60N 15.5-18 lbs. (5.8-7 kg)
75N 18 - 22 lbs. (8.1 - 19 kg)
A (For ALL-IN-ONE) 15.5-22 lbs. (5.8-19 kg)
L (For LCD/Display with small form factor CPU) 5.5-15.5 lbs. (2.5-7kg)
Adjustments

www.amico.com 17
WARNING: DO NOT BUNCH CABLES TOGETHER ON ONE CABLE GUIDE-CHANNEL. USE SEPARATE CHANNELS FOR
EACH CABLE.
1. Remove the cable access cover on the worktop near the LCD/Display Post by pressing in the center and pull up
(Figure 1).
2. Remove the bottom LCD/Display Post Cable cover by pulling through the top channel (Figure 2).
3. Push cables from the bottom of the worktop between column and Post bracket (Figure 3) and pull it from the
access door cutout (Figure 4).
4. There are 2 LCD/Display cable guide-channels in the LCD/Display Post (shown below), which is covered by the
LCD/Display Post Cable Cover and place the cables carefully into the guide channels (Figure 5).
5. Push-fit the LCD/Display Post Cable Cover so that the cables pass through the hole on the top and the 2 holes on
the bottom (or equivalent) of the LCD/Display Post Cable Cover (Figure 5).
6. Ensure there is sufficient slack in the cables to allow for normal LCD/Display adjustment (Figure 6).
Figure 1 Figure 3Figure 2 Figure 4
Figure 6Figure 5
CUSTOMER/PRODUCTION
PROJECT #:
FOR USE WITH: (INSERT VALID TOP LEVEL PART NUMBER GROUPING HERE)
INSERT INSTRUCTIONS HERE WITH CALLOUTS TO PART # AND TOP LEVEL PART # ONLY. 1.
[I.E. INSTALL [PART #] THROUGH [PART #] INTO [PART #]
5
4
3
2
1
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT.
OF
DRAWING NO:
NTS
11
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
DATE:
DATE:
-
-/-/-
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, Canada
Toll Free: 1.877.264.2697 (T)
Tel: [phone]
Fax: [phone]
[TOP LEVEL P.N.]
PROJECTION
www.amico.com
CUSTOMER/PRODUCTION
PROJECT #:
FOR USE WITH: (INSERT VALID TOP LEVEL PART NUMBER GROUPING HERE)
INSERT INSTRUCTIONS HERE WITH CALLOUTS TO PART # AND TOP LEVEL PART # ONLY. 1.
[I.E. INSTALL [PART #] THROUGH [PART #] INTO [PART #]
5
4
3
2
1
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT.
OF
DRAWING NO:
NTS
11
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
DATE:
DATE:
-
-/-/-
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, Canada
Toll Free: 1.877.264.2697 (T)
Tel: [phone]
Fax: [phone]
[TOP LEVEL P.N.]
PROJECTION
www.amico.com
CUSTOMER/PRODUCTION
PROJECT #:
FOR USE WITH: (INSERT VALID TOP LEVEL PART NUMBER GROUPING HERE)
INSERT INSTRUCTIONS HERE WITH CALLOUTS TO PART # AND TOP LEVEL PART # ONLY. 1.
[I.E. INSTALL [PART #] THROUGH [PART #] INTO [PART #]
5
4
3
2
1
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT.
OF
DRAWING NO:
NTS
11
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
DATE:
DATE:
-
-/-/-
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, Canada
Toll Free: 1.877.264.2697 (T)
Tel: [phone]
Fax: [phone]
[TOP LEVEL P.N.]
PROJECTION
www.amico.com
LCD/Display Post
Cable Access
Cover
LCD/Display
Cable Access
Cover
Worktop Cable
Access Cover
LCD/
Display Post
Cable Guide
Channels
Cable Management (LCD/Display Models Only)

18 Amico Accessories Inc.
Figure 2
Figure 3
Figure 1
Dual Lock Pads
1. Remove the backing on 6 (or half of given) dual locking pads and adhere to top and bottom of keyboard, spaced
evenly apart (Figure 1).
NOTE: Locking pads secure peripherals such as a keyboard to the cart to prevent movement during cart
transport.
2. Place the remaining 6 dual locking pads on top of the 6 dual locking pads adhere to the keyboard (Figure 2).
3. Now remove the backing on the dual locking coins.
4. Carefully position the keyboard on the keyboard tray and firmly press down while supporting the keyboard tray
from the bottom (Figure 3).
WARNING: DO NOT OVERLOAD OR LEAN ON THE KEYBOARD TRAY (MAX LOAD = 10 LBS).
Figure 4
Mounting Keyboard and Mouse
Cable Access
Door

www.amico.com 19
Figure 5 Figure 6
5. If the keyboard and mouse placed directly on the worktop for Laptop and LCD/Display cart without sliding
keyboard, remove the cable access door on the worktop (Rubber piece) near the LCD/Display Post by pressing in
the center and pull up (Figure 4).
6. Remove the bottom LCD/Display Post Cable cover by pulling through the top channel (Figure 4).
7. Tear off the bottom two tabs for the cable access door (Figure 5).
8. There are 2 cable guide-channels in the LCD/Display Post (shown below), which is covered by the LCD/Display
Post Cable Cover and place the cables carefully into the guide channels (Figure 6).
9. Push-fit the LCD/Display Post Cable Cover so that the cables pass through the hole on the top and the 2 holes on
the bottom (or equivalent) of the LCD/Display Post Cable Cover (Figure 6).
10. Ensure there is enough slack in the cables to allow for normal LCD/Display adjustment. Put back the cable access
door and allow the cables to pass through the channels (Figure 7).
CUSTOMER/PRODUCTION
PROJECT #:
FOR USE WITH: (INSERT VALID TOP LEVEL PART NUMBER GROUPING HERE)
INSERT INSTRUCTIONS HERE WITH CALLOUTS TO PART # AND TOP LEVEL PART # ONLY. 1.
[I.E. INSTALL [PART #] THROUGH [PART #] INTO [PART #]
5
4
3
2
1
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT.
OF
DRAWING NO:
NTS
11
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
DATE:
DATE:
-
-/-/-
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, Canada
Toll Free: 1.877.264.2697 (T)
Tel: [phone]
Fax: [phone]
[TOP LEVEL P.N.]
PROJECTION
www.amico.com
CUSTOMER/PRODUCTION
PROJECT #:
FOR USE WITH: (INSERT VALID TOP LEVEL PART NUMBER GROUPING HERE)
INSERT INSTRUCTIONS HERE WITH CALLOUTS TO PART # AND TOP LEVEL PART # ONLY. 1.
[I.E. INSTALL [PART #] THROUGH [PART #] INTO [PART #]
5
4
3
2
1
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT.
OF
DRAWING NO:
NTS
11
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
DATE:
DATE:
-
-/-/-
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, Canada
Toll Free: 1.877.264.2697 (T)
Tel: [phone]
Fax: [phone]
[TOP LEVEL P.N.]
PROJECTION
www.amico.com
CUSTOMER/PRODUCTION
PROJECT #:
FOR USE WITH: (INSERT VALID TOP LEVEL PART NUMBER GROUPING HERE)
INSERT INSTRUCTIONS HERE WITH CALLOUTS TO PART # AND TOP LEVEL PART # ONLY. 1.
[I.E. INSTALL [PART #] THROUGH [PART #] INTO [PART #]
5
4
3
2
1
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT.
OF
DRAWING NO:
NTS
11
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
UPON REQUEST AND WITH THE UNDERSTANDING THAT
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
DATE:
DATE:
-
-/-/-
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, Canada
Toll Free: 1.877.264.2697 (T)
Tel: [phone]
Fax: [phone]
[TOP LEVEL P.N.]
PROJECTION
www.amico.com
LCD/Display
Post
Cable Guide
Channels
Mounting Keyboard and Mouse
Figure 7
LCD/Display Post
Cable Access
Cover

20 Amico Accessories Inc.
Product Matrix
HL3-_ _ _-_ _-_ _
Pneumatic Lift LCD/Display Strength
Laptop
Laptop with Security Bracket
LCD/Display
Caster Mouse/Keyboard RFID Combinations
16
165N
3
35N
D
1 Directional Lock
M
Standard Mouse Tray
For different combinations
refer to slide 3
00
No RFID
S
Sliding Keyboard Tray with Mouse Tray
(* not available in North America)
M
2 Total Locking
0
None
T
2 Total Locking (Tente)
21
210N
5
50N
25
255N
6
60N
7
75N
T
For Tablet
25N (35N + 2.5 lbs Counter Weight)
L
For LCD/Display with Small form Factors
CPU 25N with spare 50N gas spring
A
For All In One
60N with spare 75N gas spring
HL1-_ _-_-_
Pneumatic Lift Caster Mouse
16
165N
D
1 Directional Lock
M
Standard Mouse Tray
M
2 Total Locking
0
None
T
2 Total Locking (Tente)
21
210N
25
255N
HL2-_ _-_-_
Pneumatic Lift Caster Mouse
16
165N
D
1 Directional Lock
M
Standard Mouse Tray
M
2 Total Locking
0
None
T
2 Total Locking (Tente)
21
210N
25
255N
