AMICUS EPO.D1-4 User manual

Please, read and follow the installation and operating instructions carefully, to ensure the long life and reliable
operation of this appliance.
Kospel S.A. may make minor changes if necessary, in the appliance, that will not be shown in the operating
instruction, so long as the main features of the heater remain the same.
KOSPEL S.A. 75-136 KOSZALIN UL. OLCHOWA 1
epo_d1v8_1

ENG-004DB/p.285 3
This appliance must not be
installed in a place which is
exposed to the dangers of frost
or explosion.
The EPO.D provides hot water wherever it is required whether it is in the home, in a workshop, a public facility
or in a laboratory. It is compatible with most taps available in the market. This pressure type heater has to be
installed with inlet and outlet pipes at the top of the heater. The temperature of the heated water depends on the
rate of flow and the power of its heating coils. The higher the rate of flow, the lower temperature of the water.
Turning the hot water tap on, automatically switches the heater on which heats the water in accordance with the
following technical specifications.
The heater features:
- covered (insulated) heating coils that assure maximum safety;
- materials resistant to corrosion and chemically inactive towards water (copper, brass and stainless steel).
Description
Technical data
( )* - if the appliance is supplied from 400V 2N~
EPO.D1 Water Heater 4 5 6
Rated Power kW 4 5 6
Power Consumption kW 2+2 2,5+2,5 3+3
Rated Voltage 230V~ or 400V 2N~
Rated current A 17,4 (8,7)* 21,7 (10,9)* 26,1 (13,0)*
Supply Water Pressure MPa 0,12 ÷ 0,6
Switching Point l/min 1,2 1,5 1,8
Effeciency at ∆t=30°C l/min 1,9 2,4 2,9
Overall dimensions mm 229 x 221 x 90
Weight kg ~2,4
Fuse rated current A 20 (10)* 25 (16)* 32 (16)*
Connecting wires section mm23 x 2,5 (4 x 1,5)* 3 x 4 (4 x 2,5)*
The maximum allowed network impedance Ω0,32 ( )* 0,29 ( )*
Inlet and outlet pipes section G 1/2"
Protection degree IP 24

4 Operating and installation instruction EPO.D
Picture 1 View
No filter[12] on water supply
(picture 3) can damage the
heater.
This appliance should be instal-
led and started-up by a profes-
sional person.
This heater must be installed
with the outlet and inlet pipes
at the top.
Electric and water supplies have
to be cut off during any installa-
tion work.
Diagram 2 Domestic water system
Diagram 3 Water connection
7 - inlet - cold water
8 - outlet - hot water
12 - filter
16 - screw
U - gasket
ZW - cold water feed
CW - hot water outflow
3
Recommendations
- as an economy measure the he-
ater should be installed close to
the most frequently used tap;
- the appliance can be connected
to a cold water supply pipe
only;
- a non-return valve cannot be in-
stalled on the supply pipe;
- inlet and outlet pipes should not
be made of plastic;
- the heater works in conjunction
with taps and mixers without a
thermostat.
Assembly
1. Bring the domestic water and
the electricity supply, observing
normal safety standards, to the-
point where the heater is to be
mounted. Diagram No.2 shows
how to connect the heater with
the water installation.
2. Remove the heater's outer case;
undo the screws [16], slide the
case off starting from the top.
3. Fix the heater on supplied hooks
after inserting the electric wires
through the entry access [14].
4. Connect cold water [ZW] to the
inlet pipe[7] inserting a filter
in between[12]; connect hot
water outlet[8] to a pipe [CW]
(picture 3).
5. Flood the heater with cold water
and check connections for le-
aks.
1
Installation
2

ENG-004DB/p.285 5
4b
4a
7. Connection to a three phase installation should be made in accordance with the diagram 4b
In this case the appliance is supplied from two phases. First, you have to take off the bridge M1.
8. Fixing the outer case: slide the case into position on the base. Start from the bottom, and push into place,
then secure with screws.
9. Make sure that the appliance has no access through the entry for electric wires at the back base to live
parts.

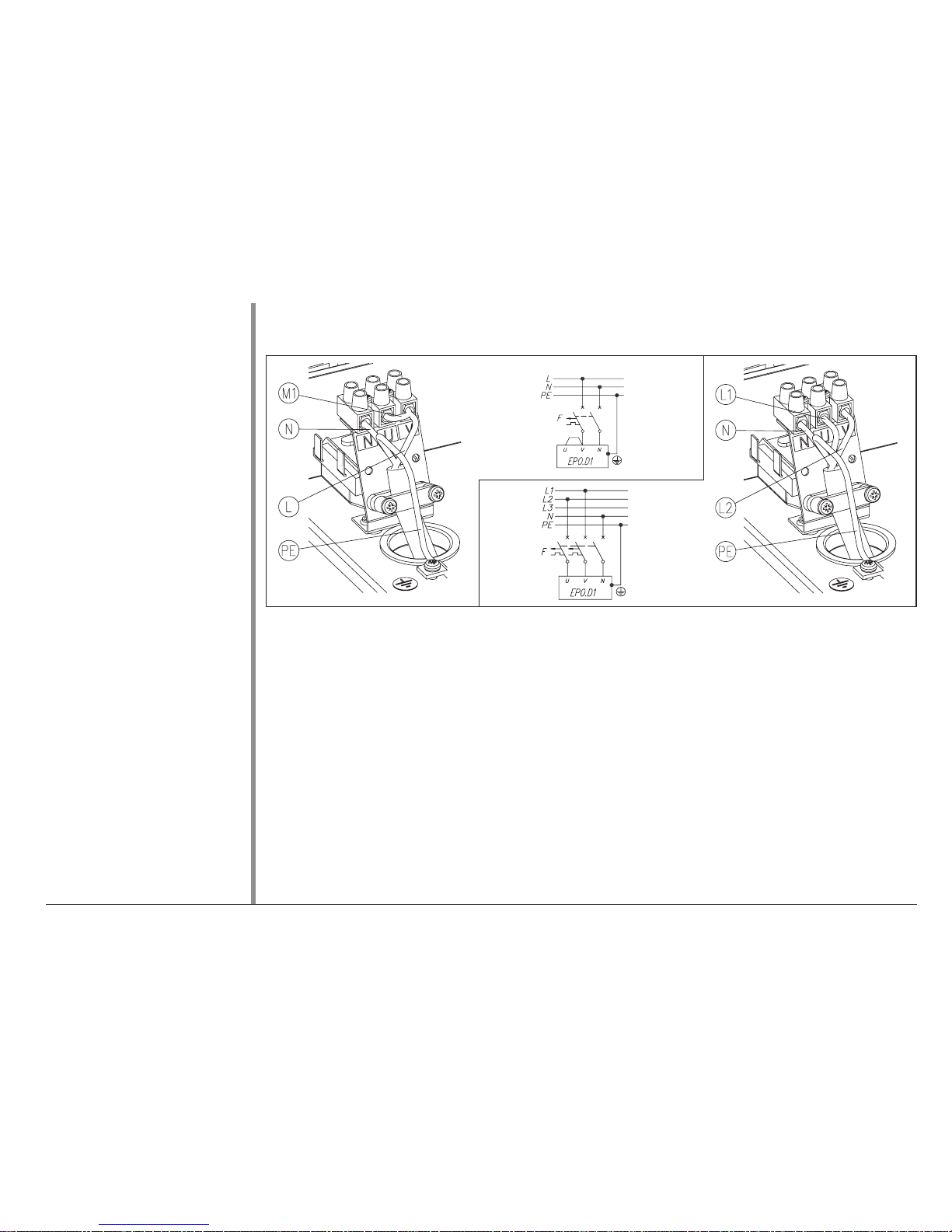

Diagram 4 Electric connection
a - electric connection to the 1-phase
installation
b - electric connection to the 3-phase installa-
tion
F - circuit breaker
M1 - a bridge connecting clamps U and
V
L - live wire
N - neutral wire
PE - earth wire
L1 - live wire 1
L2 - live wire 2
If the appliance is supplied from
two phases, the bridge M1 (con-
necting terminal clamps U and
V) installed by Kospel has to be
taken off.
6. The appliance is set at single phase supply (it is equipped with a bridge[M1] connecting terminal clamps U
and V).The single phase electric connection should be made according to the diagram 4a

6 Operating and installation instruction EPO.D
Picture 5 Flow regulation
9 - regulating valve
15 - spanner
Z W - cold water inlet
By the term "flow regulation" we mean the setting of the water temperature
to a comfortable level, by means of limiting/opening the rate of flow.
For this purpose carry out the following steps:
- set the hot water tap at maximum flow,
- insert the spanner [15] into the regulation valve [9],
- set optimum flow (check if the temperature is comfortable for you) using
the spanner
- take the spanner [15] out of the regulation valve [9],
- close water flow using the tap.
The reccommended maintenance
needs to be repeated each time
after a decay of water.
If the water installation is not
vented the appliance may be
damaged.
1. Cut off electric supply.
2. Open the hot water tap to vent the installation (15-30 seconds).
3. Switch power supply on.
5
Initial start-up
Flow regulation

ENG-004DB/p.285 7
Chart 6 Characteristics
The appliance has a differential pressure switch [2] (picture 8). It switches
heating when there is a proper water flow through the heater.
There are two indicators (LEDs) on the case:
- green - power supply,
- red - heating.
6
The characteristics (picture 6) shows dependence between temperature
rise and flow rate per minute.
1. Cut off water and electric supplies.
2. Undo the fittings on the inlet pipe [7].
3. Take the filter out [12] of the fittings at the cold water inlet.
4. Clean the filter [12].
5. Install the filter [12] in the former position.
6. Connect cold water supply pipe [ZW] with the inlet pipe [7].
7. Open cold water pipe on water supply - check connections for le-
aks.
8. Vent the installation and the heater according to START-UP instruc-
tions.
7
Picture 7 Filter cleaning
[7] - water inlet - cold water
[12] - filter
[ZW] - cold water connection
[U] - gasket
We recommend always cleaning
the filter after any repairs to the
water installation or if there are
any impurities in the water, or
as a part of its regular annual
service check.
To ensure the long and faultless work of this appliance, you should clean the filter [12] from time to time. To
clean it, do the following:
Use the attached spray-head to
raise the comfort of use.
Operating
Maintenance

8 Operating and installation instruction EPO.D
Diagram 8 Construction
[1] - heat exchanger
[2] - differential pressure switch
[3] - safety temperature limiter
[4] - indicators
[5] - back base
[6] - orifice
[7] - water inlet - cold water
[8] - water outlet - hot water
[9] - flow regulating valve
[11] - terminals
[14] - entry access for electric wire
This heater has an overheating
protection:
- its over-temperature cut-out goes
off (shuts off power supply) when
the temperature in the heating
box [1] goes over 95oC. Once the
cut-out gets off, further operation
is not possible.
8
Construction

ENG-004DB/p.285 9
Diagram 9 Wiring diagram
E1 - heating box
BV - differential pressure switch
F1 - safety limiter
X1 - terminals
A1 - indicator board
H1 - power supply indicator
H2 - heating indicator
The above failures are not covered by the guarantee.
In case the heater does not work properly and there is some cause other than the above given, please contact
the nearest service branch.
9
Faults If you notice any of the following signs of improper work, follow the instructions below:
- no or insufficient heating - a failure of the power supplies (for instance a fuse)
- rate of flow through the heater is too small (the filter might be blocked
with impurities or the flow regulating valve is set improperly)
- no bridge M1 (picture 4a, 4b), in case the heater works on one phase.
- the light indicators on the case
are off
- a fault in the power supplies (for instance a fuse)

10 Operating and installation instruction EPO.D
EPO.D1 - 1 piece
Gasket - 2 piece
Filter - 1 piece
Fixing screw with a pin - 2 pieces
Spanner for regulation - 1 piece
Set contents
This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities or
lack of experience and know-
ledge, unless they have been
given supervision or instruction
concerning use of the appliance
by a person responsible for their
safety.
Children should be supervised
to ensure that they do not play
with the appliance.
