Amperes MA2060 User manual

BASS
CH2 CH3 CH4 CH6CH5 TREBLE MASTER
O
I
CH1
Thank youfor choosing another quality product fromAmperes Electronics.
MA2000 Series of mixer amplifiers had been further improved for performance and durability featuring 3 output speaker
zoning with remote selection from PM Series of paging mic, priority muting over BGM sources as well as operation using
24V DC. The P prefix of the models includes an integrated media player for AM / FM tuner reception, USB and SD Card
Player.
We believe that this product shall be able to meet your demanding requirement with affordable pricing and uncompromised
features and quality. Though it is rather simple in the installation works, a brief read through the manual is recommended
and we are confident that you are getting a product of excellence.
INSTRUCTION MANUAL
MA2060 60W 100V
MA2012 120W 100V
MA2024 240W 100V
MA2024P With Media Player
Mixer Amp with 3 Zone Output
BASS
CH2 CH3 CH4 / MP3 CH6CH5 TREBLE MASTER
O
I
CH1
/ V- / V+ MODE
OFF/ON
FM
P

3456
1
7
2
8910 11 12
15
14 16 17
3. FRONT MIC INPUT JACK
Channel 1 balanced microphone input. Once inserted, it shall bypass the rear input connection.
4. INPUT LEVEL CONTROLS
Individual control knobs for input 1 to 6.
5. TONE CONTROLS
Bass and treble controls for mixed signals.
6. MASTER CONTROL
Master volume control for mixed signal ; speaker and line outputs.
7. POWER SWITCH
Mains switch for ac input. Switching off the switch shall not disconnect the DC supply to the unit if it is connected to
back up battery. It is recommended that the DC back up is connected to the battery charger's EM output instead of
directly to the batteries. This shall prevent drain age of the battery bank.
100V line output can be channeled into 3 output zones and each zone can be selected via these switches with ALL
CALL. Alternatively, selection can also be done via remote paging microphone, ie. PM1060.
1. SPEAKER ZONE SELECTOR
2. LED INDICATORS
MICLINE MICLINE MICLINE MICLINE
ON
BASS
CH2 CH3 CH4 CH6CH5
TREBLE
MASTER
O
I
CH1
Front View:
Rear View:
19
LED indicators for Power, Protect mode and 4 segment output level meter.
13
18
8. MAINS AC CORD
Mains AC cord comes with standard British 3 pin plug with fuse rating of 5A.
Parts Identifications
PAGE 2 MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT

9. XLR INPUTS
10. PHANTOM POWER SWITCH
11. MUTE LEVEL CONTROL
12. VENT FAN
14. RCA JACK
Inputs to the unit can be either mic or line level. Select the required input type by using these switches and plug the
input source to the appropriate jack. Stereo phone jack for balanced mic input whereas the RCA jack is for music
source unbalanced line input. It is recommended that at any one time, only one type of input source is connected to
the amplifier.
13. 24V DC POWER INPUT
15. MIC / LINE LEVEL SWITCH
16. AMPLIFIER OUTPUT TERMINALS
17. REMOTE PAGING ZONE SELECTION
18. DC 24V OUTPUT
Input to battery bank for back up supply with 10A rating at full load.
2 XLR balanced inputs are available for microphones.
12V DC phantom power is available for input channel 1 & 2, which is suitable for connection to condenser
microphones. The normal mic inputs, it is recommended that the phantom power features is turned off.
Input channel 1 & 2 has priority over other channels, such that the presence of the signal shall mute other input
sources. The level of mute or mixing is controlled by this knob, which can fully or partially mute or normal mix.
19. LINE OUTPUT
Line level output for external link. The output level is controlled by the Master volume controller.
The vent fan draws internally generated hot air & dispersed by the fan. The fan has dual speed which is determined
by the internal heat sink temperature. To allow proper cooling, please ensure that the ambient is properly ventilated.
For unbalanced line input sources such as CD player, etc.
Terminals for connecting external speakers and is available in 3 zones.
External control of speaker zone selection via negative triggering method. Connection to Amperes PM1060 is
recommended
This 24V DC for paging Mic power supply.
Parts Identifications
PAGE 3MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT

PAGE 4 MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT
Rear Connections
MICLINE MICLINE MICLINE MICLINE
ON
Power Input
(240V AC)
Dynamic / Condenser Mic
For Ch.1 Or 2
Paging Mic
Audio Output
( 2 Core Screen Cable )
PM1060
Remote Trigger
for Zone Selection
(6 Core Cable)
BC9740
MA2024
CD Player
RCA Cable
Tuner
Mic Cable
Dynamic Mic
with Phone Jack
Line Out to External
Link (Next Amplifier)
}
RCA Cable
Speaker
Zone 3 Speaker
Zone 1
Speaker
Zone 2
Back up Batt. E/M Output
From Battery Charger
MP 1020
amp e r e s
MIN MAX MIN MAX
CH1 CH2
/V- /V+ MODE
OFF/ON
FM
/V- /V+ MODE
OFF/ON
FM
DUAL CHANNEL DIGITALMEDIA PLAYER
MP1020
CD1001
External paging desk with or without zone selection can be connected to the unit, preferable with mic level output.
Connection can be done via the front panel 1/4" stereo phone jack or rear panel XLR jack. It is recommended that paging
desk with zone selection (Amperes PM1060) be connected via the rear panel jack.
The diagram below illustrates the connection of Amperes PM1060 paging desk with zone selection :
Connecting Paging Microphone
AMPERES PM1060 PAGING DESK Connection :
PM1060 MA2012
Pin 1 Remote SP1
Pin 2 Remote SP2
Pin 3 Remote SP3
Pin 13 - 24V DC
Pin 14 Remote PR
Pin 15 + 24V DC
MICLINE MICLINE MICLINE MICLINE
ON
Rear View
MA2024:
}
Paging Mic
Audio Output
(2 Core Screen Cable)
6 Core
Cable
Remote Zone Control
& Power Supply
amperes
AUTOMATICBATTERY CHARGER
MENU
ENTER
PREV NEXT
CHARGING
POWER
FAULT
BC 9740

PAGE 5MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT
Use the right connector for the appropriate
BGM source. At any one time, only one jack
shall be connected to the inputs of the same
channel to avoid interference. Also, please
switch to the right input level position for the
correspondence input source.
Very often BGM source shall have stereo
outputs whereas the mixer amp has only
mono input. Therefore, use either one output
of the BGM source to connect to the input. To
obtain better result of music stereo effect, use
a combiner jack (stereo to mono) before
inserting to the mixer amplifier.
Switch to the appropriate
input level attenuator. ie.
LINE for BGM source.
RCA JACK
STEREO PHONE JACK
Balanced input source
(Line / Mic level)
MICLINE LINE
Connecting BGM Sources
PHANTOM POWER SWITCH
Switch on when condenser microphone is used. In normal
usage, it is recommended that it is switched off
CH 1 and CH 2 are provided with phantom power
Two channels - 1 and 2 are provided with
switchable phantom power of 12V.
MICLINE MICLINE MICLINE MICLINE
ON
Phantom Power

PAGE 6 MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT
Operating the Unit ( AM / FM Tuner )
Player Module
/ V- / V+ MODE
FM
Radio Mode Display
/ V- / V+
MODE
To enter the radio mode, press Mode button & FM Radio reception mode shall be displayed.
Use the ‘Next’ or ‘Prev’ button to manually select the station.
Auto program select. Press this button briefly and the tuner shall automatically
search the stations.
OFF/ON
Operating the Unit ( Playing USB / SD )
Player Module
USB Input Port
/ V- / V+ MODE
OFF/ON
SD Card Reader
Song time lapsed
/ V-
/ V+
MODE
The top button for repeating the previous song and to decrease the song volume while the
bottom one shall skip to the next song and to increase the song volume.
Press this button to play or to stop.
The menu at the display would switch between :-
RADIO ---- USB ---- SD ---- RADIO
Insert a SD Card or USB into the slot and the unit shall automatically enter the playing mode.
Next, Prev & Volume Button
Play & Stop Button
Mode Button
OFF/ON
OFF/ON Button
Individual power OFF/ON for each module
USB

6 mic / line selectable input channels, with front mic jack, phantom power
Priority muting for mic input 1 with adjustable muting level
3 zone speaker output with ALL CALL and remote triggering port
100V line output with aux 4 Ohm speaker terminal
12
3
1 2
3
MIC/BALANCED INPUT XLR (F) MIXER BALANCED OUTPUT XLR (M)
1 - GROUND / SCREEN
2 - HOT ( +VE )
3 - COLD ( - )
FOR UNBALANCED, CONNECT
PIN 1 AND 3 TOGETHER FOR UNBALANCED, SPARE PIN 3
PHONE JACK
TIP : +VE / HOT SIGNAL
RING : -VE / COLD
SLEEVE : GROUND / SCREEN
Tone and bass controls
AC / DC operation for fixed and uninterrupted operation
Rating
Operating voltage
24V DC requirement
Current (Load / Standby)
Input channel
Input phantom power
Input sensitivity / impedance
Tone controls
Outputs
Output selection
Frequency response
Protections
Indicators
Cooling system
Dimensions (WxHxD)
Weight
60W 100V line 120W 100V line
230 ~ 240V ac / 24V DC
4A 8A
1.3A / 0.4A 2.2A / 0.4A
6 : 2 MIC ( XLR), 4 MIC/Line Selectable (RCA/Phone Jack)
Mic 1 and 2 ; 12V DC
2 x Mic (XLR) & 4 x Mic
(Phone jack) : 4 mVrms
4 x LINE (RCA) : 350 mVrms
Bass (100 Hz) ; Treble (10 KHz) +- 3 dB
3 Zone 100V line, 4 Ohm
Front and remote triggering
175 ~ 18 KHz
Thermal, short circuit, AC and DC fuse
AC mains, clip, protect, audio input level
Dual speed fan with heat sensing
424 x 88 x 300 mm
9.8 kg 10.9 kg
MA2060 MA2012 MA2024 / MA2024P
15A
240W 100V line
6.1A / 0.3A
70 ~ 15KHz
12.8 kg
2 x Mic (XLR) & 4 x Mic
(Phone jack) : 20 mVrms
4 x LINE (RCA) : 150 mVrms

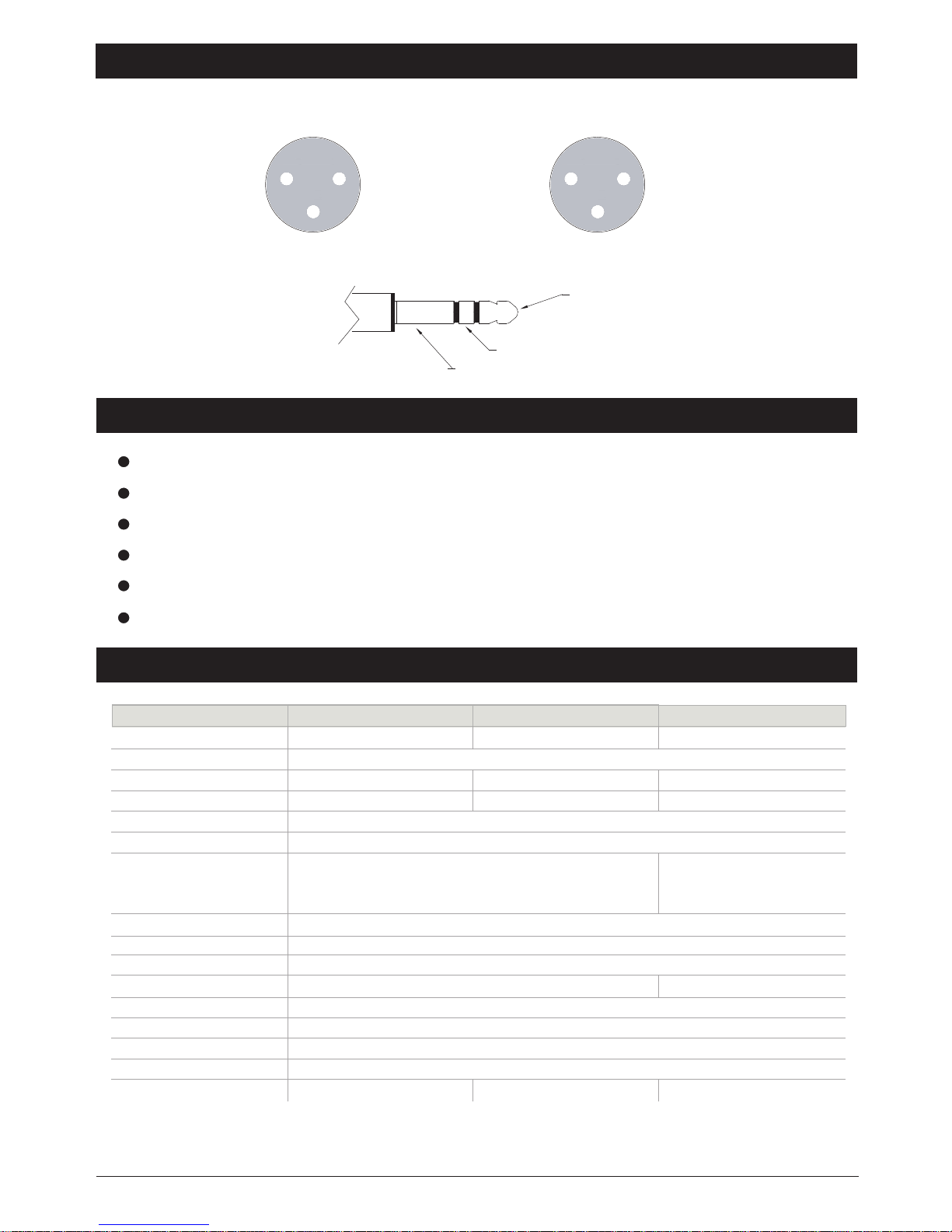

Connection of Jacks
Summary of Features
Technical Specifications
PAGE 7MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT
Note:
The above specifications are correct at time of printing but subjected to changes without prior notice due to product
improvements.
1
2
3
12
3

Warranty Conditions
Disclaimer
AMPERES ELECTRONICS SDN BHD
MADE IN MALAYSIA
Published : APRIL 2015
ISO 9001: 2008
Design & Manufacture of Public Address Equipment and Systems
Certicate No. 16895 / A / 0001 / UK / En
Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics
Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan
Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized
master distributor, TNT Links Sdn Bhd / MyPA Systems Sdn Bhd. This warranty is not valid if repairs are
performed by unauthorized personnel or service centres.
This warranty covers only repairs and replacement of defective parts ; cost and risks of transportation as well as
removal and installation of the product from the main system are for the account of the purchaser. This warranty
shall not extend to the replacement of the unit.
This warranty does not cover damages caused by misuse, neglect, accident of the product as well as using the
product with power supply voltage other than shown on the product, or any other power supply source / adaptor
not recommended by the manufacturer.
This warranty does not cover damages caused by fire, earthquakes, floods, lightning and every cause not directly
related to the unit.
This warranty does not include any indemnity in favor of the purchaser or the dealer for the period out of use of the
unit; moreover the warranty does not cover any damages which may be caused to people and things when using
the product.
This warranty certificate is valid only for the described product, and is not valid if modifications are made on this
certificate or on the identification label applied on the product.
This warranty covers all the material and manufacturing defects and is valid for a period of 12 months from the
date of purchase or for a longer period in countries where this is stated by a national law. In this case, the
extension is valid only in the country where the product is purchased.
Amperes Electronics Sdn Bhd is not obliged to modify previously manufactured products under warranty if the
design changes or improvements are made.
Information contained in this manual is subject to change without prior notice and does not represent a
commitment on the part of the vendor. AMPERES ELECTRONICS SDN BHD shall not be liable for any loss or
damages whatsoever arising from the use of information or any error contained in this manual.
It is recommended that all services and repairs on this product be carried out by AMPERES ELECTRONICS SDN
BHD or its authorized service agents.
AMPERES series must only be used for the purpose they were intended by the manufacturer and in conjunction
with this operating manual.
AMPERES ELECTRONICS SDN BHD cannot accept any liability whatsoever for any loss or damages caused by
service, maintenance or repair by unauthorized personnel, or by use other than that intended by the manufacturer.
