RJ-Switch
IP67/68 rugged Ethernet Managed Switch
RJSMLA 8MG APS
- Hardware User Manual -
ontents
Section 1 General Information Page 3
Section 2 Hardware Page 4
Section 3 Installation Page 5
Section 4 Wiring Page 7
Section 5 Management Page 11
Section 6 Features Overview Page 12
Section 7 Service Information Page 14
This manual applies to the following products:
•RJSMLAC 8MG CAPS (18-32 VDC powered)
•RJSMLAC 8MG CAPS VAC (90-265 VAC, 47-63 Hz)
Rugged IP67/68 Managed Ethernet Switch, with RJFTV reinforced 38999 connectors
Revision Date Modifications
1 November 07, 2012 Initial document
2 January 2013 Revised Warranty information
2.1 July 2013 Added connector P/N for console port
2.2 December 2014 Added connector rear view for console port
3 December 2015 Added version VAC (AC powered model)

RJSMLAC 8MG CAPS UM rev. 3 Page 2 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Amphenol Statement of Limited Warranty:
Products shall benefit from a legal guarantee of one year following the date of delivery in accordance with
the terms and conditions indicated hereunder.
In all instances, Seller’s guarantee shall be limited to free replacement, in identical quantities, of the
Product acknowledged as defective by Seller with the exclusion of any compensation or damages and
interests other than agreed in a specific contract.
The guarantee is subject that Client notifies Seller of defect immediately following discovery thereof by any
written means during the legal guarantee period. Defective Products shall be returned to Seller in
accordance with the same procedure as that applicable to Products which do not comply with orders as
indicated under article 9 hereinabove.
The following shall be excluded from the guarantees provided by Seller:
- Product defects resulting from inadequate maintenance, or supervision and, more widely, any use which
does not comply with written instructions of Seller and indicated in technical notices and/or product
specifications, or default in respecting applicable standards or professional customs and uses;
- Product defects resulting from an external cause or any modification or intervention by Client or third
party without the prior written consent of Seller;
- The guarantee shall not cover normal wear and tear of Products;
- Product defects resulting generally in whole or in part from damage or accidents attributable to Client or
a third party;
- More specifically whether the cover of the switch enclosure have been opened.
- Whether the components have been damaged in transit or have not been stored by the Customer in
conditions in accordance with the specification.
- The guarantee shall not cover any defects resulting from instructions given by Client to Seller ;
- Whether the components have been subjected to abuse (mechanical, electrical or thermal) on
installation or on use and, in the case of slices/dice, have been subjected to handing or such operations
as the welding of connecting wires mounting by soldering or sticking.
- Whether the unfitness or defectiveness of the components has resulted from exceeding the maximum
values for usage (temperature limit, maximum voltage, etc.) as defined by the Vendor, or from incorrect
choice of application.
- Damages resulting from force majeure, such as this is defined under article 11 of Amphenol Socapex
Sales Conditions hereunder, or resulting from any unpredictable event or natural disaster.
- Furthermore, the guarantee shall not cover consequential liability, direct or indirect which may result from
the failure of a component supplied by the Vendor.
Client shall retain sole and exclusive liability for the use of Products provided by Seller and the suitability
thereof for use.
Client should ensure that its premises and storage conditions are adequate for the due and proper storage
of Products and ensure all safety guarantees as stipulated by regulations in force. No guarantee shall be
provided by Seller in this regard.
CE Declaration of conformity:
This equipment complies with the requirements relating to electromagnetic compatibility and security.
EN55022 (Emissions);
EN55024 (EN50082-1 ou -2) et/ou EN61326-1 (Immunity);
EN61010-1 ou EN60950 (Electrical safety);
This meets the essential protection requirements of the European Council Directive 89/336/EEC on the approximation of the
laws of the Member States relating to electromagnetic compatibility.
Note: All information in this document is subject to change without notice.

RJSMLAC 8MG CAPS UM rev. 3 Page 3 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 1 General Information
Overview
This manual will help you install and maintain the Amphenol Rugged Ethernet Managed
switches. These products are extremely easy to install and operate.
Military applications can now take full advantage of 1000Mbps Gigabit Ethernet
performance.
The installation guide describes how to install and use the hardened compact Ethernet
RJSMLAC-8MG-CAPS Military Rugged Switch. Capable of operating at extreme
temperature of -35°C to +75°C and meet the toughest industrial and military environments
such as MIL-STD-810F, MIL-STD-1275B, MIL-STD-461E up to the highest levels. The
mentioned ability turns the RJSMLAC-8MG-CAPS to the optimal solutions switch of
choice for harsh environments constrained by space.
Developed for military and harsh mobile applications, the RJSMLAC-8MG-CAPS
features mechanical packaging enhancements designed for MIL-STD-810F airborne and
ground environmental compliance and high reliability. The unit has been especially
hardened to improve ingress, impact, and shock/vibration protection, as well as eliminate
all moving parts through passive cooling, and interface through sealed MIL-DTL-38999
RJFTV reinforced circular connectors.
Leveraging best-in-class switching technology, the RJSMLAC-8MG-CAPS serves as a
robust solution for providing local area network (LAN) connectivity to IP-enabled
computing and net-centric devices. Compact in size, the RJSMLAC-8MG-CAPS is
particularly useful for expanding port density to tactical IP routers in space-constrained
airborne and ground vehicle environments.
RJSMLAC-8MG-CAPS is specifically designed for Data Acquisition & Transmission,
Battlefield Communication C4ISR, Rugged Networks, Mobile Communications, Combat
vehicles and Avionic & Shipboard Systems.
Performance
Specifications
These general specifications apply to these switches. Refer to Section 6 for complete
technical specifications.
Ports 10/100/1000BaseT(x) (Shielded RJ45)
Voltage Standard P/N: 24Vdc Nominal (18-32V)
VAC models: 90-265 VAC, 47-63Hz
Power Consumption: 2,8W Typical
MIL standards MILSTD-1275, MILSTD-461E, MILSTD-810F GM, IP67
Electromagnetic MIL-STD-461E Electromagnetic compatibility
RE-02, RS-03
Operating Temp. -35ºC to +75ºC (-31ºF to +167ºF) – Cold Start-Up
Waterproof IP67/68

RJSMLAC 8MG CAPS UM rev. 3 Page 4 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 2 Hardware
Overview
The switches can be mounted directly to a flat surface or to a wall. Refer to the mechanical
drawing below. Its high protected enclosure makes it able to withstand immersion (IP67/68
rating).
The Ethernet connections come out from rugged MIL-DTL-38999 RJFTV connectors.
Front Panel
Display The following describes the front panel, and LED indicators of the RJSMLAC-8MG-
CAPS.
LED Indicators
The Single LED indicator on the front panel labelled PWR shows the operative status of the
switch.
Once the switch is powered, the LED PWR is turned on.
This LED will be on solid green when proper power has been applied to the unit.
Each port has 2 LEDs indication:
•Link / Activity (Off – there is no link, Steady Green – There is a device connected,
Flashing Green – there is data transmission)
•Speed (Green for 1000Mbps, Off for 10 or 100Mbps)

RJSMLAC 8MG CAPS UM rev. 3 Page 5 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 3 Installation
Selecting a
Site
As with any electronic device, you should place the switch where it will not be subject to
extreme temperatures, humidity, or electromagnetic interference that exceeds the
RJSMLAC-8MG-CAPS ‘s profile. Specifically, the site you select should meet the following
requirements:
•The ambient temperature should be between -35 to 75 degrees Celsius.
•The relative humidity is recommended to be less than 95% percent, non-
condensing.
•Surrounding electrical devices should not exceed the electromagnetic field (RFC)
standards for MIL-STD-461E.
CAPS for
unused
connectors
The switches are pre-equipped with caps on all ports, including power and Ethernet.

Make sure all connectors are protected with cap or sealed plug to ensure sealing
and prevent from deterioration of the contacts.
Mounting

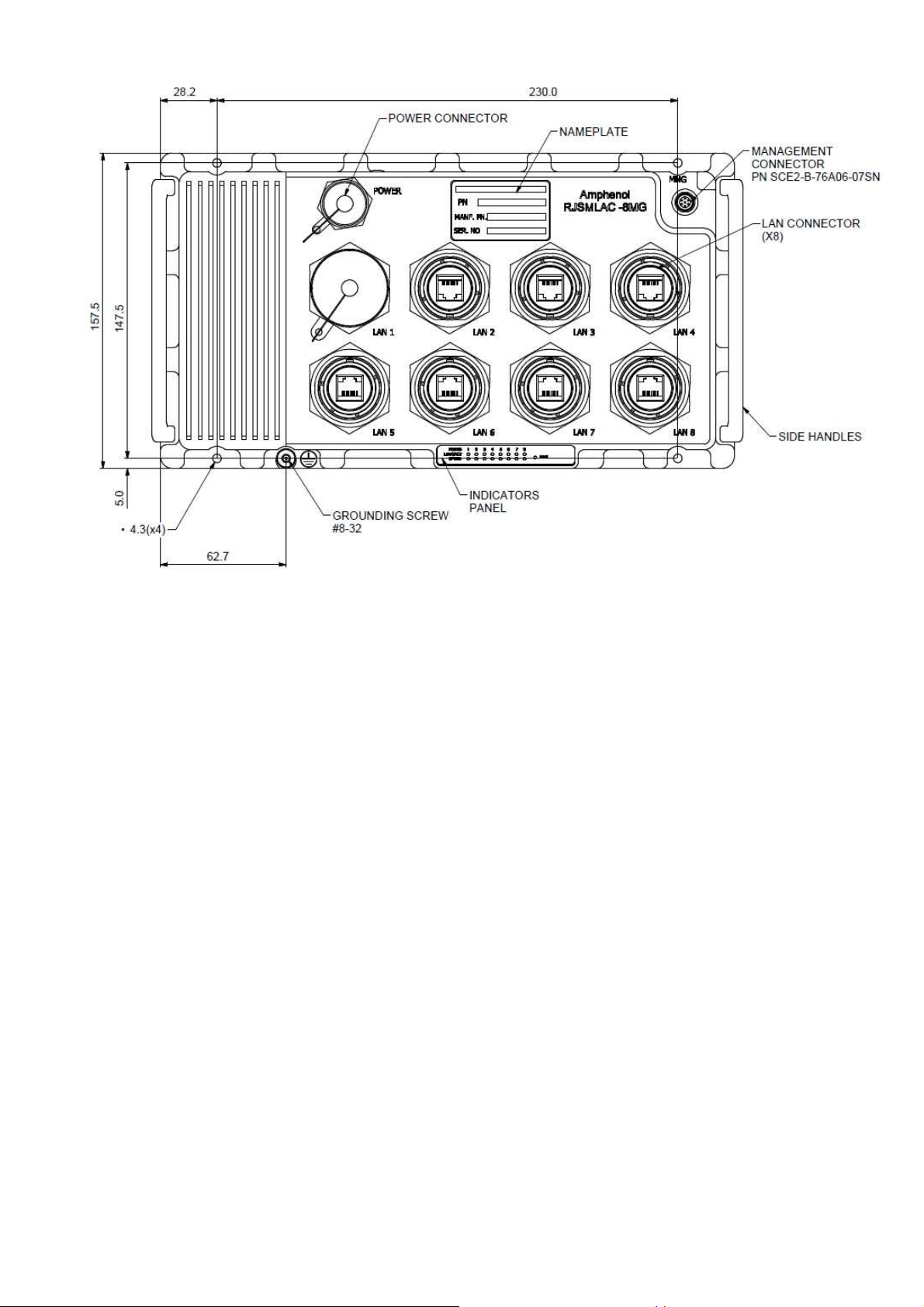

The RJSMLAC-8MG-CAPS Ethernet Switch can be fastened to any flat surface by mounting

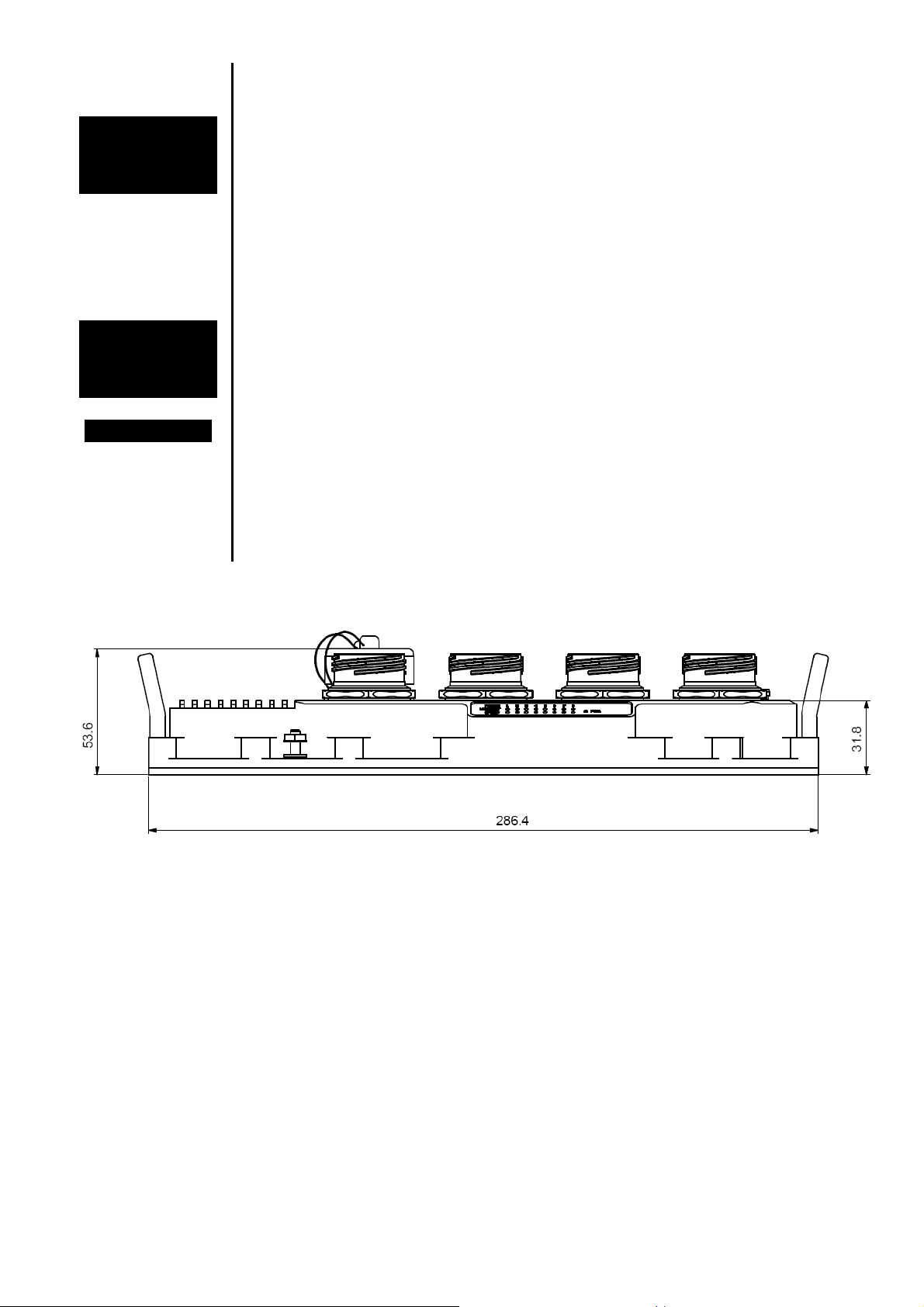

the box directly. Refer to the mechanical drawings below. Make sure to allow enough room
to route your Ethernet and power cables.
The RJSMLAC-8MG-CAPS weights 1.8 Kg and is mounted via its four 4x4.5 mm holes for
screws.
The external dimensions of the RJSMLAC-8MG-CAPS are given here after.

RJSMLAC 8MG CAPS UM rev. 3 Page 6 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com

RJSMLAC 8MG CAPS UM rev. 3 Page 7 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 4 Wiring
Overview
These switches provide connections to Ethernet devices in harsh environment. Typically
a port is used to connect to another Ethernet switch that is connected to the main Ethernet
backbone. The other Ethernet ports are then connected to Ethernet devices such as
communication systems, Ethernet I/O, or industrial computers. Electrical isolation is
provided on the Ethernet ports for increased reliability.
Please follow normal Ethernet wiring practices when installing these switches.
Power wiring
The switches should be powered using mating plugs and backshells compliant with MIL-
DTL-38999 series III. We suggest using hereunder accessories. Another backshell can be
used but it must ensure a correct sealing protection.
Power plug
part number
Military designation: JD38999/26WA98SA
Amphenol designation: TV06RW0998SA
This plug is size 9. It is coming with 3 contacts size 20 (designed for 7.5 A nominal
current).
Power plug
wiring
Power plug wiring for DC powered Ethernet switch
Input voltage: 18-32 VDC
Contact Signal Suggested Harness
Color Table
A 24 V (+) red
B 24 V (-) black
C GND white
Power plug wiring for AC powered Ethernet switch
Input voltage: 90-265 VAC, 47-63 Hz
Contact Signal Suggested Harness
Color Table
A LINE red
B NEUTRAL black
C GND white
Tooling
The plugs are using crimp contacts.
We suggest using hereunder tooling.

RJSMLAC 8MG CAPS UM rev. 3 Page 8 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com

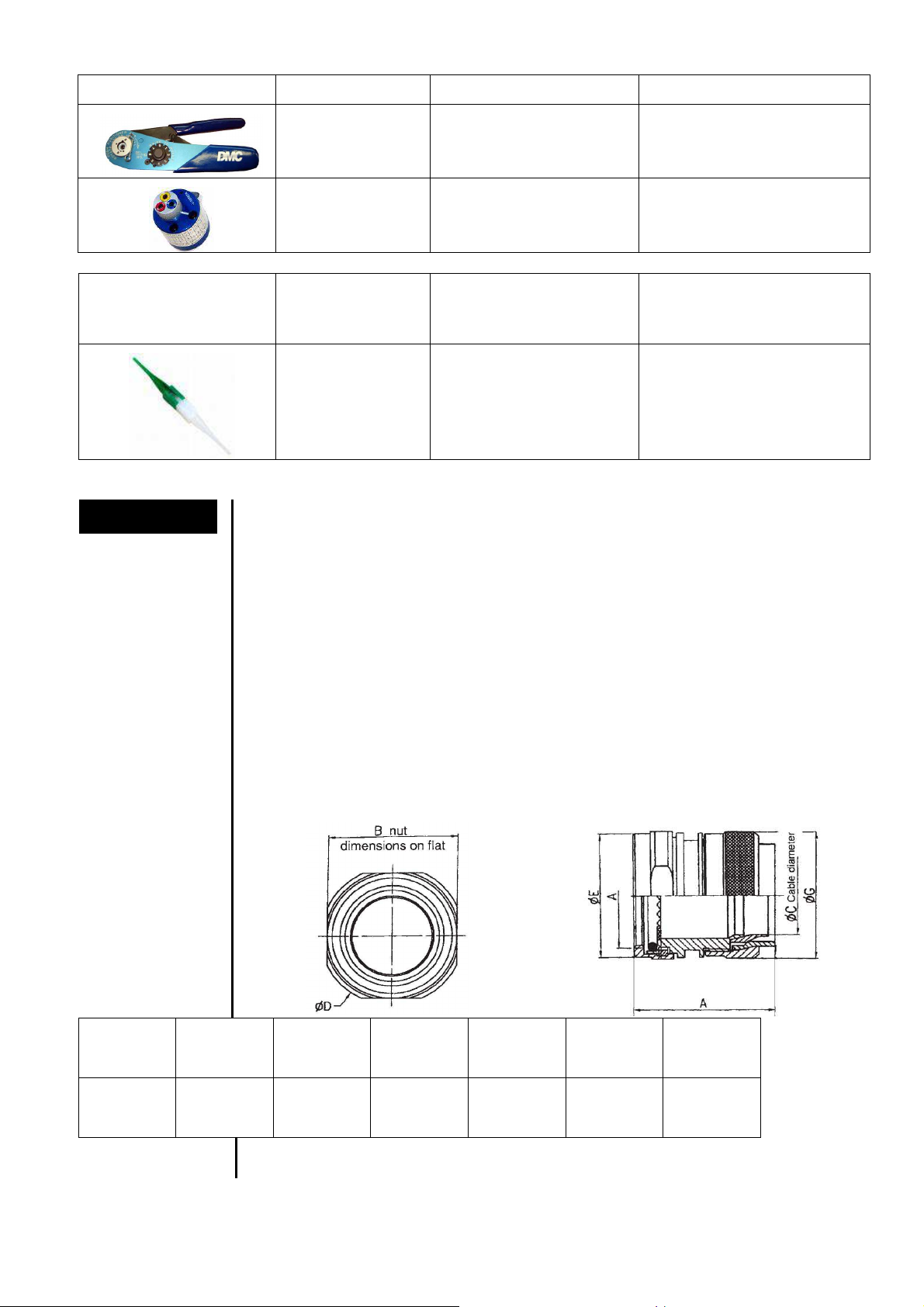

Crimping tools Amphenol No Military No
Crimping tool For #20: 809 857 For #20: M22520/1-01
Positioner For #20: 809 858 For #20: M22520/1-04
Plastic insertion and
removal tools
Contact size Amphenol No Military no
20 809 854 M81969/14-10
Backshell We suggest using TVNSA backshells with corresponding heat shrinks.
These backshells, providing an electrical continuity between cable and connector, ensure
a high level or of EMI/RFI protection. The sealing is ensured by straight heat shrink
molded piece at the rear of the backshell. NSA and SA backshells ensure the shielding
by clamping the braid with a screwing system. The free inner ring avoids twisting of the
braid during screwing.
Heat-shrinks are molded pieces for harsh environment, fluid resistant (with preinstalled
adhesive).
Backshell designation: TVNSA 09 014
Heat shrink designation: 804221
TVNSA backshell dimensions
Plug size A length
mm (in) A thread Metric B max
mm (in)
C max
mm (in)
Ø E max
mm (in)
Ø G max
mm (in)
9 (A) 35.60
(1.402) M12x1.0
-6H 16.70
(0.658)
6.90
(0.272)
15.62
(0.615)
16.50
(0.650)

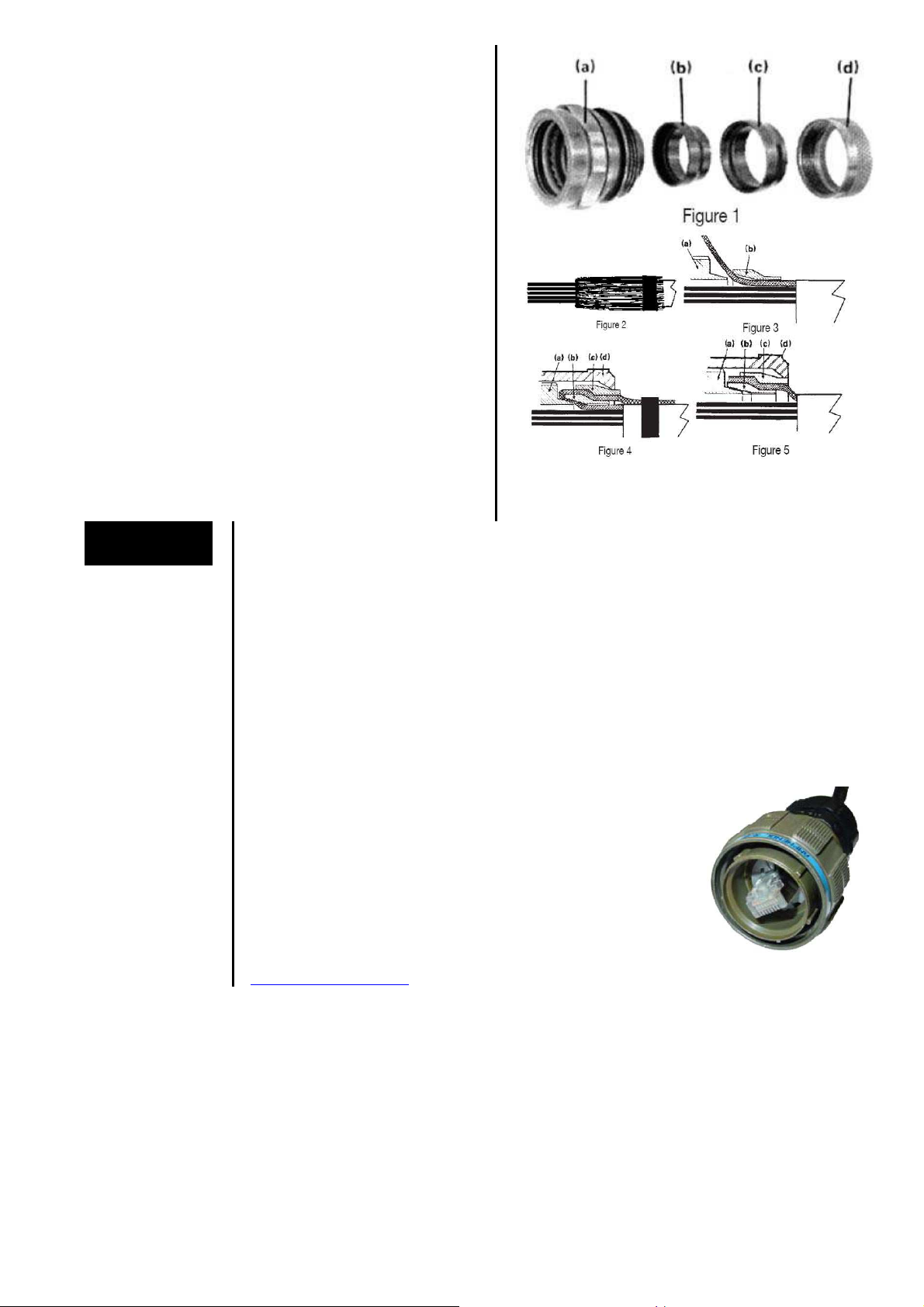

TVNSA backshell assembly instruction

RJSMLAC 8MG CAPS UM rev. 3 Page 9 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
1. Prepare the cable for termination process and slide onto
the cable the items in the order shown on figure 1.
2. Screw the backshell at the rear of the connector.
3. Fold back the braid on the outer jacket and fix it (figure
2).
4. Install the braid as shown on figures 3 and 4:
Release the braid and cover the backshell (a) and the
connector’s shell. Slide the first ring (b) over the braid.
Fold back the braid on the ring (b) and slide the second
ring (c) over the braid and the first ring (b). Screw the last
ring (d) at the rear of the backshell. If necessary, fix the
extra braid on the outer jacket of the cable. If this
installation (double folding of the braid) is not possible,
refer to figure 5: Slide the first ring (b).
Release the braid and cover the backshell (a) and the
connector’s shell. Cut the braid as shown. Slide the second
ring (c) over the braid and the first ring (b).
Screw the last ring at the rear of the backshell.
5. Install the heat-shrink molded piece.
Ethernet
wiring
These switches provide connections to Ethernet devices on the battlefield. Typically a
port is used to connect to another Ethernet switch or hub that is connected to the main
Ethernet backbone. The other Ethernet ports are then connected to Ethernet devices such
as communication systems, Ethernet I/O, or industrial computers. Electrical isolation is
provided on the Ethernet ports for increased reliability.
Please follow normal Ethernet wiring practices when installing these switches.
Use data-quality (not voice-quality) twisted pair cable rated category 5E (or better) with
standard RJ45 connectors. You can use all standard existing RJ45 Cat5E cordset and
transform it into an environmental connector, without any cabling operation, and without
any tool!
Ethernet plug
part number
The IP68 rated RJ45 plug is field installable and does not
require any special tools. It can be installed over any standard
Ethernet patch cable (though you may have to remove the
latch cover if it has an over-molded boot). Refer to the
diagrams for mechanical and assembly details.
Part number of the plug to be used: RJF TV 6 M G. This plug
may be assembled with 4 different coding. Use the coding A
to make your assembly. For more details, please consult:
http://www.rjfield.com .

RJSMLAC 8MG CAPS UM rev. 3 Page 10 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Plug Receptacle
Coding A
Ethernet RJ45
pins position

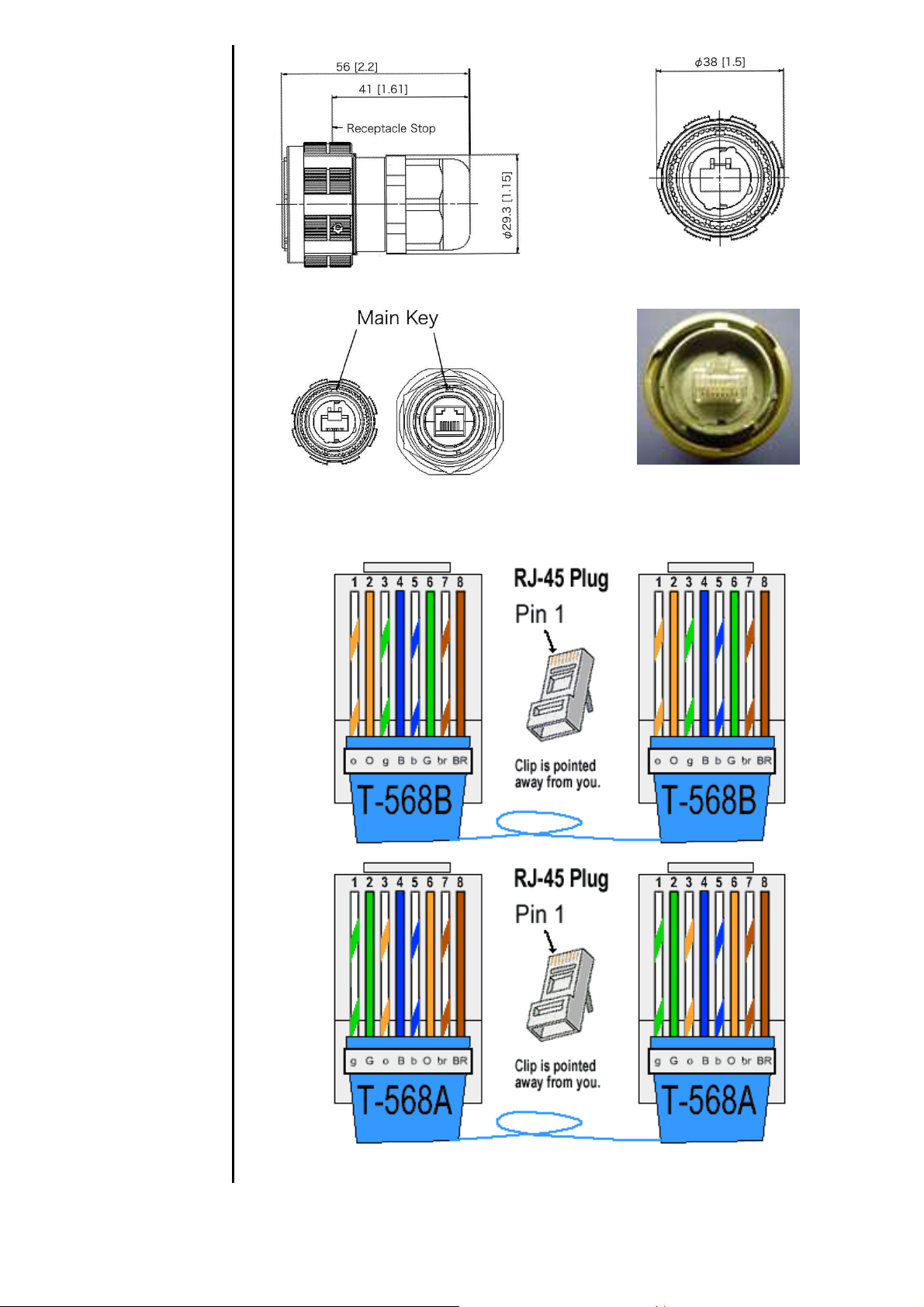

Most standard Ethernet cordsets follow one of the TIA-568 guideline given hereafter.

RJSMLAC 8MG CAPS UM rev. 3 Page 11 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 5 Management
Management
The switch is managed. It can be accessed either using the web interface or using RS-232
console port (port MNG).
Web
management
For in-band Ethernet management configuration use either one of the 8 ports.
Configure your computer with compatible IP address and access to the switch using a web
browser.
Switch default IP address: 192.168.1.111 (or 192.168.1.254 for previous models)
Mask: 255.255.255.0
Gateway: [empty].
Enter ‘admin’ for the password.
You have now access to the configuration settings. You can enter your desired IP address
and subnet, or enable DHCP.
Serial
management
There is one serial port associated with the Management Processor, MNG.
Accessory connector P/N: SCE2 L1K 06 07 PN
This port is RS-232 compatible and can operate only at:
• 115,200 baud rate
• 1 Stop Bits
• No Parity
• No Flow Control
The MNG port supports out-of-band configuration management of the switch.

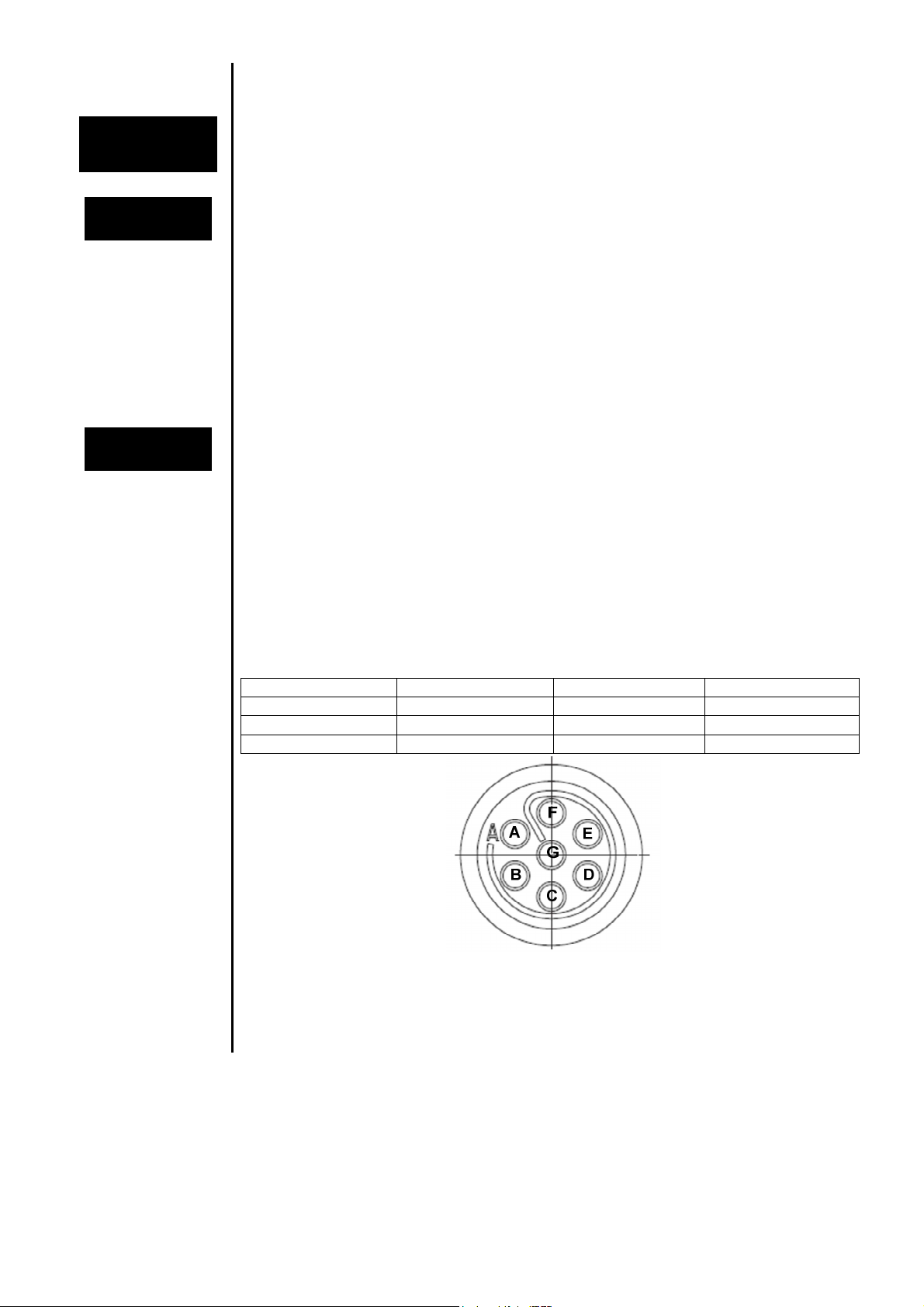

SCE Pinout Direction Type DB9 Pinout
TX (PIN: E) Output RS-232 PIN 2
RX (PIN: D) Input RS-232 PIN 3
GND (PIN: G) Reference Ground PIN 5
Rear view of the SCE2 L1K 06 07 PN

Consult the dedicated Command Line Interface User Manual for getting all details
regarding the commands description.

RJSMLAC 8MG CAPS UM rev. 3 Page 12 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 6 Features Overview
Switching
Features
Here’s a brief explanation of some of the features found in these switches documented by
this manual.
ETHERNET PORTS
•8 x switched 10/100/1000 (Gigabit Ethernet) ports
STANDARDS COMPLIANCE
•IEEE 802.1x MAC based Authentication
•IEEE 802.1Q Vlan Tagging
•IEEE 802.1P QoS
•IEEE 802.1S Multiple STP
•IEEE 802.1W Rapid STP
•IEEE 802.1AD Link Aggregation
•IEEE 802.1X
NETWORKING
•Spanning Tree (802.1d), RSTP (802.1w) and multiple Spanning Tree (802.1S)
for fast recovery rings
•Security via Radius Authentication 802.1x, Port Security, Port Mirroring
•Multicasting (IGMP Snooping), GARP, GMRP, and GVRP Broadcasting and
flooding Control up to 8K Groups.
•802.1q Tagged based VLAN up to 4K VLAN groups.
•QoS Multi-Layer Classifier, 802.1p, ToS/DSCP traffic classification. WFQ,
Strict Queuing.
•Bridge support for Q-in-Q.
•Link Aggregation 802.3AD.
•WEB, CLI, Telnet Management.
STANDARDS
•MILSTD-1275B
•MILSTD-461E
•MIL-STD-704A
•MILSTD-810F GM
•IP67 / 68

RJSMLAC 8MG CAPS UM rev. 3 Page 13 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
PERFORMANCE
•26.8 Mpps wire speed forwarding rate
•20 Gbps maximum forwarding bandwidth
•8K MAC Address
CHASSIS
•Low profile rugged aluminum extrusion
•Conductively cooled w/custom internal heat-sinks
•Ingress protection against sand, dust and moisture
•Epoxy-Polyamide Paint, Per MIL-C-83286, MATT texture, Nato green
POWER
•Exceed MIL-STD-1275B Surge and Spike protection
•Voltage Input:
Standard option: 18-32 VDC Nominal
VAC option: 90-265 VAC, 47-63 Hz
•Power Consumption: 2.8W Typical
•Ground: Grounding screw provided for connection to system chassis ground
ELECTROMAGNETIC
•MIL-STD-461E Electromagnetic compatibility
•RE-02, RS-03
SHOCK/VIBRATION/HUMIDITY
•MIL-STD-810F, 501.4I, 501.4II, 502.4I, 502.4II, 507.4, 500.4II, 514, 516I,
516Vi, 514.5, 512.4.
•IP67/68
PHYSICAL
•Weight: 1.8kg
•No Moving Parts. Passive Cooling
•Installation: Set of Four 4x4.5 mounting holes on bottom for mounting to any flat
surface.
OPERATING TEMP
•-35ºC to +75ºC (-31ºF to +167ºF) – Cold Start-Up
STORAGE TEMP
•-45ºC to +85ºC (-49ºF to +185ºF)

RJSMLAC 8MG CAPS UM rev. 3 Page 14 of 14 Last Rev: 14-Dec-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 7 Service Information
Service
Information
We sincerely hope that you never experience a problem with any Amphenol product. If
you do need service, call Amphenol at [phone] and ask for Applications
Engineering. A trained specialist will help you to quickly determine the source of the
problem. Many problems are easily resolved with a single phone call. If it is necessary to
return a unit to us, an RMA (Return Material Authorization) number will be given to you.
Amphenol tracks the flow of returned material with our RMA system to ensure speedy
service. You must include this RMA number on the outside of the box so that your return
can be processed immediately.
The applications engineer you are speaking with will fill out an RMA request for you. If
the unit has a serial number, we will not need detailed financial information. Otherwise, be
sure to have your original purchase order number and date purchased available.
We suggest that you give us a repair purchase order number in case the repair is not
covered under our warranty. You will not be billed if the repair is covered under warranty.
Please supply us with as many details about the problem as you can. The information you
supply will be written on the RMA form and supplied to the repair department before your
unit arrives. This helps us to provide you with the best service, in the fastest manner.
Normally, repairs are completed in two days. Sometimes difficult problems take a little
longer to solve.
We apologize for any inconvenience that the need for repair may cause you. We hope that
our rapid service meets your needs. If you have any suggestions to help us improve our
service, please give us a call. We appreciate your ideas and will respond to them.
For Your Convenience:
Please fill in the following and keep this manual with your Amphenol system for future
reference:
P.O. #:__________________ Date Purchased: ___________________
Purchased From:______________________________________________
Product
Support
To obtain support for Amphenol products:
Visit our website. http.//www.rjswitch.com
Phone: [phone]
Fax: [phone]
E-mail: mailto: [e-mail]
Mailing Address: Amphenol, Promenade de l’Arve, B.P.29, 74311 Thyez Cedex, France
For more
information
You will find all useful information on the RJ-Switch series on the dedicated website:
http://www.rjswitch.com
