Amphenol Socapex RJSMLAC 8UG CAPS Instructions for use

RJSMLAC 8UG CAPS UM rev. 1 Page 1 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
Amphenol
RJ-Switch
IP68 rugged Unmanaged Ethernet Switch
RJSMLAC 8U CAPS
- Hardware User Manual -
Contents
Section 1 General Information Page 3
Section 2 Hardware Page 4
Section 3 Installation Page 5
Section 4 Wiring Page 7
Section 5 Features Overview Page 11
Section 6 Service Information Page 13
This manual applies to the following products:
•RJSMLAC 8UG (CAPS)
Rugged IP67/68 Unmanaged Ethernet Switch, with RJFTV reinforced 38999
connectors
Revision Date Modifications
1 May 16, 2013 Initial document

RJSMLAC 8UG CAPS UM rev. 1 Page 2 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
Amphenol Statement of Limited Warranty:
Products shall benefit from a legal guarantee of one year following the date of delivery in accordance
with the terms and conditions indicated hereunder.
In all instances, Seller’s guarantee shall be limited to free replacement, in identical quantities, of the
Product acknowledged as defective by Seller with the exclusion of any compensation or damages and
interests other than agreed in a specific contract.
The guarantee is subject that Client notifies Seller of defect immediately following discovery thereof by
any written means during the legal guarantee period. Defective Products shall be returned to Seller in
accordance with the same procedure as that applicable to Products which do not comply with orders as
indicated under article 9 hereinabove.
The following shall be excluded from the guarantees provided by Seller:
- Product defects resulting from inadequate maintenance, or supervision and, more widely, any use
which does not comply with written instructions of Seller and indicated in technical notices and/or product
specifications, or default in respecting applicable standards or professional customs and uses;
- Product defects resulting from an external cause or any modification or intervention by Client or third
party without the prior written consent of Seller;
- The guarantee shall not cover normal wear and tear of Products;
- Product defects resulting generally in whole or in part from damage or accidents attributable to Client or
a third party;
- More specifically whether the cover of the switch enclosure have been opened.
- Whether the components have been damaged in transit or have not been stored by the Customer in
conditions in accordance with the specification.
- The guarantee shall not cover any defects resulting from instructions given by Client to Seller ;
- Whether the components have been subjected to abuse (mechanical, electrical or thermal) on
installation or on use and, in the case of slices/dice, have been subjected to handing or such operations
as the welding of connecting wires mounting by soldering or sticking.
- Whether the unfitness or defectiveness of the components has resulted from exceeding the maximum
values for usage (temperature limit, maximum voltage, etc.) as defined by the Vendor, or from incorrect
choice of application.
- Damages resulting from force majeure, such as this is defined under article 11 of Amphenol Socapex
Sales Conditions hereunder, or resulting from any unpredictable event or natural disaster.
- Furthermore, the guarantee shall not cover consequential liability, direct or indirect which may result
from the failure of a component supplied by the Vendor.
Client shall retain sole and exclusive liability for the use of Products provided by Seller and the suitability
thereof for use.
Client should ensure that its premises and storage conditions are adequate for the due and proper
storage of Products and ensure all safety guarantees as stipulated by regulations in force. No guarantee
shall be provided by Seller in this regard.
Note: All information in this document is subject to change without notice.

RJSMLAC 8UG CAPS UM rev. 1 Page 3 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
Section 1
General Information
Overview
This manual will help you install and maintain the Amphenol Rugged Ethernet Unmanaged
switches. These products are extremely easy to install and operate.
Military applications can now take full advantage of 1000Mbps Gigabit Ethernet
performance.
The installation guide describes how to install and use the hardened compact Ethernet
RJSMLAC-8UG-CAPS Military Rugged Switch. Capable of operating at extreme
temperature of -35°C to +75°C and meet the toughest industrial and military environments
such as MIL-STD-810F, MIL-STD-1275B, MIL-STD-461E up to the highest levels. The
mentioned ability turns the RJSMLAC-8UG-CAPS to the optimal solutions switch of choice
for harsh environments constrained by space.
Developed for military and harsh mobile applications, the RJSMLAC-8UG-CAPS features
mechanical packaging enhancements designed for MIL-STD-810F airborne and ground
environmental compliance and high reliability. The unit has been especially hardened to
improve ingress, impact, and shock/vibration protection, as well as eliminate all moving
parts through passive cooling, and interface through sealed MIL-DTL-38999 RJFTV
reinforced circular connectors.
Leveraging best-in-class switching technology, the RJSMLAC-8UG-CAPS serves as a
robust solution for providing local area network (LAN) connectivity to IP-enabled
computing and net-centric devices. Compact in size, the RJSMLAC-8UG-CAPS is
particularly useful for expanding port density to tactical IP routers in space-constrained
airborne and ground vehicle environments.
RJSMLAC-8UG-CAPS is specifically designed for Data Acquisition & Transmission,
Battlefield Communication C4ISR, Rugged Networks, Mobile Communications, Combat
vehicles and Avionic & Shipboard Systems.
Performance
Specifications
These general specifications apply to these switches. Refer to Section 6 for complete
technical specifications.
Ports 10/100/1000BaseT(x) (Shielded RJ45)
Voltage
24Vdc Nominal (18-32V)
Power Consumption: 2,8W Typical
MIL standards MILSTD-1275, MILSTD-461E, MILSTD-810F GM, IP67
Electromagnetic MIL-STD-461E Electromagnetic compatibility
RE-02, RS-03
Operating Temp. -35ºC to +75ºC (-31ºF to +167ºF) – Cold Start-Up
Waterproof IP67/68

RJSMLAC 8UG CAPS UM rev. 1 Page 4 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
Section 2 Hardware
Overview
The switches can be mounted directly to a flat surface or to a wall. Refer to the mechanical
drawing below. Its high protected enclosure makes it able to withstand immersion (IP67/68
rating).
The Ethernet connections come out from rugged MIL-DTL-38999 RJFTV connectors.
Front Panel

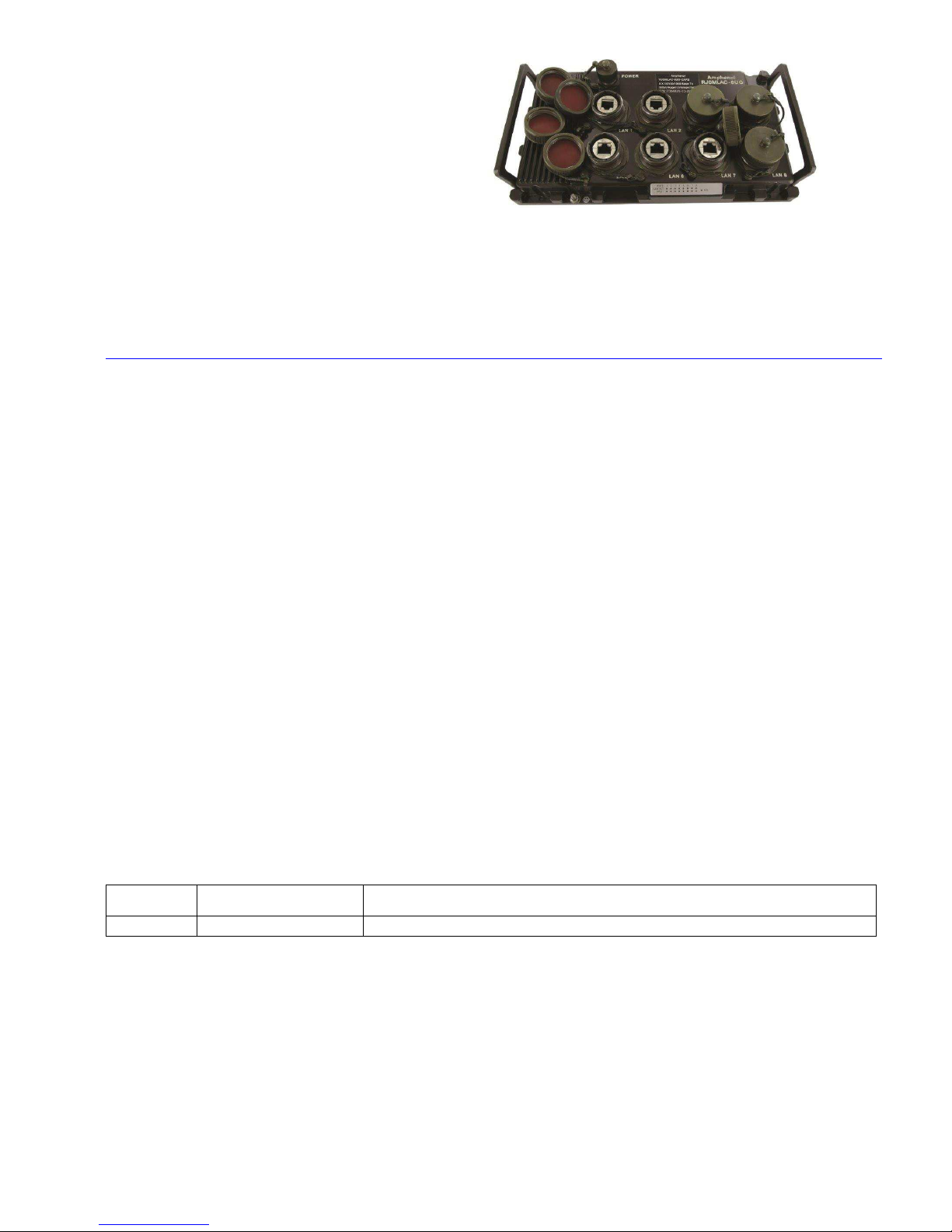

Display The following describes the front panel, and LED indicators of the RJSMLAC-8UG-CAPS.
LED Indicators
The Single LED indicator on the front panel labelled PWR shows the operative status of
the switch.
Once the switch is powered, the LED PWR is turned on.
This LED will be on solid green when proper power has been applied to the unit.
Each port has 2 LEDs indication:
•Link / Activity (Off – there is no link, Steady Green – There is a device connected,
Flashing Green – there is data transmission)
•Speed (Green for 1000Mbps, Off for 10 or 100Mbps)

RJSMLAC 8UG CAPS UM rev. 1 Page 5 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
Section 3 Installation
Selecting a
Site
As with any electronic device, you should place the switch where it will not be subject to
extreme temperatures, humidity, or electromagnetic interference that exceeds the
RJSMLAC-8UG-CAPS ‘s profile. Specifically, the site you select should meet the
following requirements:
•The ambient temperature should be between -35 to 75 degrees Celsius.
•The relative humidity is recommended to be less than 95% percent, non-
condensing.
•Surrounding electrical devices should not exceed the electromagnetic field (RFC)
standards for MIL-STD-461E.
CAPS for
unused
connectors
The switches are pre-equipped with caps on all ports, including power and Ethernet.


 Make sure all connectors are protected with cap or sealed plug to ensure sealing
and prevent from deterioration of the contacts.
Mounting
The RJSMLAC-8UG-CAPS Ethernet Switch can be fastened to any flat surface by
mounting the box directly. Refer to the mechanical drawings below. Make sure to allow
enough room to route your Ethernet and power cables.
The RJSMLAC-8UG-CAPS weights 1.5 Kg and is mounted via its four 4x4.5 mm holes for
screws.
The external dimensions of the RJSMLAC-8UG-CAPS are given here after.

RJSMLAC 8UG CAPS UM rev. 1 Page 6 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
147.5
157.5

RJSMLAC 8UG CAPS UM rev. 1 Page 7 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
Section 4 Wiring
Overview
These switches provide connections to Ethernet devices in harsh environment. Typically a
port is used to connect to another Ethernet switch that is connected to the main Ethernet
backbone. The other Ethernet ports are then connected to Ethernet devices such as
communication systems, Ethernet I/O, or industrial computers. Electrical isolation is
provided on the Ethernet ports for increased reliability.

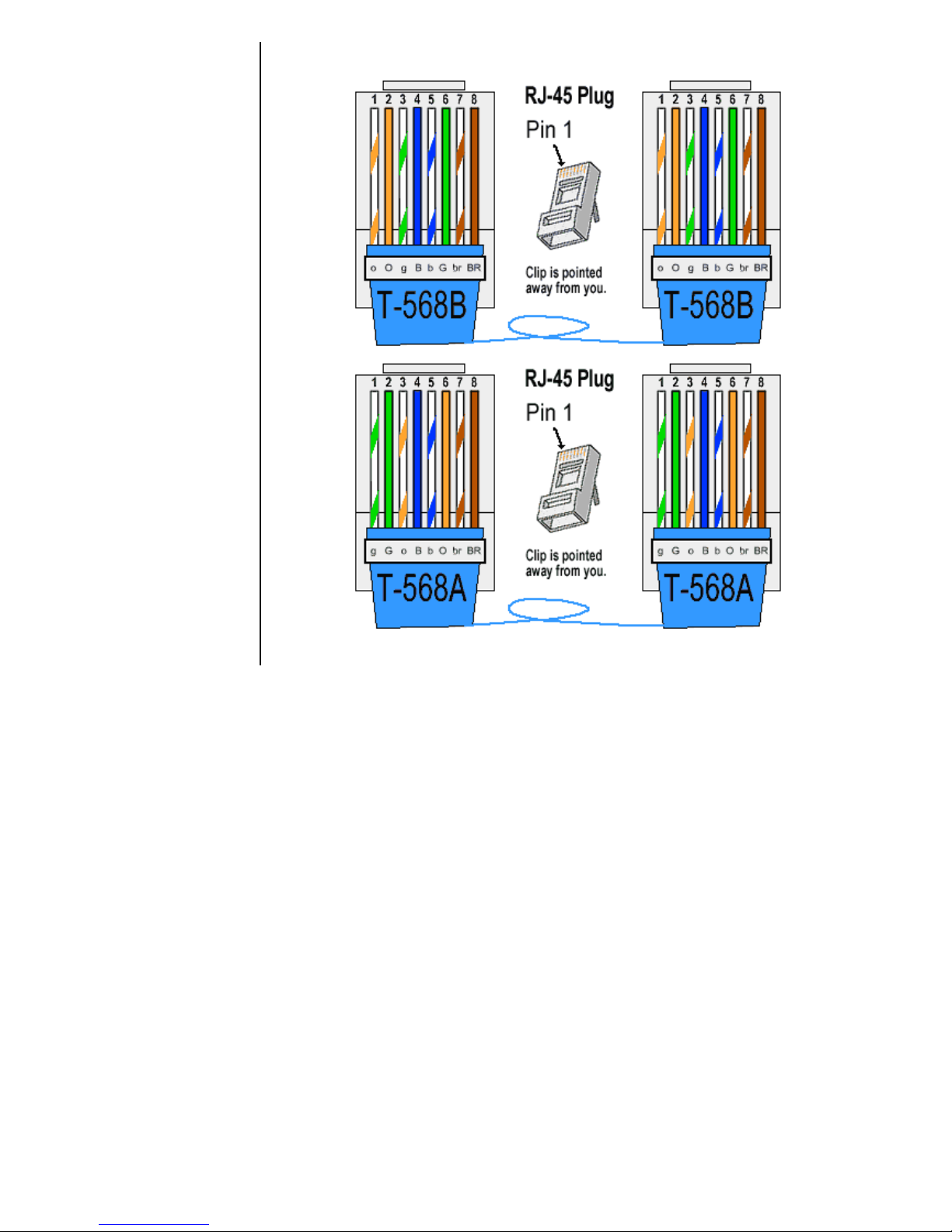

Please follow normal Ethernet wiring practices when installing these switches.
Power wiring
The switches should be powered using mating plugs and backshells compliant with MIL-
DTL-38999 series III. We suggest using hereunder accessories. Another backshell can be
used but it must ensure a correct sealing protection.
Power plug
part number
Military designation: JD38999/26WA98SA
Amphenol designation: TV06RW0998SA
This plug is size 9. It is coming with 3 contacts size 20 (designed for 7.5 A nominal
current).
Power plug
wiring
Contact Signal Suggested Harness
Color Table
A 24 V (+) red
B 24 V (-) black
C GND white
Tooling
The plugs are using crimp contacts.
We suggest using hereunder tooling.
Crimping tools Amphenol No Military No
Crimping tool For #20: 809 857 For #20: M22520/1-01
Positioner For #20: 809 858 For #20: M22520/1-04
Plastic insertion and
removal tools
Contact size Amphenol No Military no
20 809 854 M81969/14-10

RJSMLAC 8UG CAPS UM rev. 1 Page 8 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
Backshell We suggest using TVNSA backshells with corresponding heat shrinks.
These backshells, providing an electrical continuity between cable and connector, ensure a
high level or of EMI/RFI protection. The sealing is ensured by straight heat shrink molded
piece at the rear of the backshell. NSA and SA backshells ensure the shielding by
clamping the braid with a screwing system. The free inner ring avoids twisting of the braid
during screwing.
Heat-shrinks are molded pieces for harsh environment, fluid resistant (with preinstalled
adhesive).
Backshell designation: TVNSA 09 014
Heat shrink designation: 804221
TVNSA backshell dimensions
Plug size A length
mm (in) A thread Metric B max
mm (in)
C max
mm (in)
Ø E max
mm (in)
Ø G max
mm (in)
9 (A) 35.60
(1.402)
M12x1.0
-6H
16.70
(0.658)
6.90
(0.272)
15.62
(0.615)
16.50
(0.650)
TVNSA backshell assembly instruction
1. Prepare the cable for termination process and slide onto
the cable the items in the order shown on figure 1.
2. Screw the backshell at the rear of the connector.
3. Fold back the braid on the outer jacket and fix it (figure
2).
4. Install the braid as shown on figures 3 and 4:
Release the braid and cover the backshell (a) and the
connector’s shell. Slide the first ring (b) over the braid. Fold
back the braid on the ring (b) and slide the second ring (c)
over the braid and the first ring (b). Screw the last ring (d)
at the rear of the backshell. If necessary, fix the extra braid
on the outer jacket of the cable. If this installation (double
folding of the braid) is not possible, refer to figure 5: Slide
the first ring (b).
Release the braid and cover the backshell (a) and the
connector’s shell. Cut the braid as shown. Slide the second
ring (c) over the braid and the first ring (b).
Screw the last ring at the rear of the backshell.
5. Install the heat-shrink molded piece.

RJSMLAC 8UG CAPS UM rev. 1 Page 9 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
Ethernet
wiring
These switches provide connections to Ethernet devices on the battlefield. Typically a port
is used to connect to another Ethernet switch or hub that is connected to the main Ethernet
backbone. The other Ethernet ports are then connected to Ethernet devices such as
communication systems, Ethernet I/O, or industrial computers. Electrical isolation is
provided on the Ethernet ports for increased reliability.
Please follow normal Ethernet wiring practices when installing these switches.
Use data-quality (not voice-quality) twisted pair cable rated category 5 (or better) with
standard RJ45 connectors. You can use all standard existing RJ45 Cat5e cordset and
transform it into an environmental connector, without any cabling operation, and without
any tool!
Ethernet plug
part number
The IP68 rated RJ45 plug is field installable and does not
require any special tools. It can be installed over any standard
Ethernet patch cable (though you may have to remove the latch
cover if it has an over-molded boot). Refer to the diagrams for
mechanical and assembly details.
Part number of the plug to be used: RJF TV 6 M G. This plug
may be assembled with 4 different coding. Use the coding A to
make your assembly. For more details, please consult:
http://www.rjfield.com .
Plug Receptacle
Coding A

RJSMLAC 8UG CAPS UM rev. 1 Page 10 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
Ethernet RJ45
pins position
Most standard Ethernet cordsets follow one of the TIA-568 guideline given hereafter.

RJSMLAC 8UG CAPS UM rev. 1 Page 11 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
Section 5 Features Overview
Switching
Features
Here’s a brief explanation of some of the features found in these switches documented by
this manual.
ETHERNET PORTS
•8 x switched 10/100/1000 (Gigabit Ethernet) ports
STANDARDS COMPLIANCE
•IEEE 802.1x MAC based Authentication
•IEEE 802.3/u 10/100Mbps Fast Ethernet
•IEEE 802.3ab 1000Mbps Gigabit Ethernet
STANDARDS
•MILSTD-1275B
•MILSTD-461E
•MIL-STD-704A
•MILSTD-810F GM
•IP67 / 68
PERFORMANCE
•26.8 Mpps wire speed forwarding rate
•20 Gbps maximum forwarding bandwidth
•8K MAC Address
CHASSIS
•Low profile rugged aluminum extrusion
•Conductively cooled w/custom internal heat-sinks
•Ingress protection against sand, dust and moisture
•Anodize Coating, MIL-A-8625, Type II, Class 2
POWER
•Exceed MIL-STD-1275B Surge and Spike protection
•Voltage Input: 24Vdc Nominal (18-32V)
•Power Consumption: 2.8W Typical
•Ground: Grounding screw provided for connection to system chassis ground

RJSMLAC 8UG CAPS UM rev. 1 Page 12 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
ELECTROMAGNETIC
•MIL-STD-461E Electromagnetic compatibility
•RE-02, RS-03
SHOCK/VIBRATION/HUMIDITY
•MIL-STD-810F, 501.4I, 501.4II, 502.4I, 502.4II, 507.4, 500.4II, 514, 516I,
516Vi, 514.5, 512.4.
•IP67/68
PHYSICAL
•Weight: 1.5kg
•No Moving Parts. Passive Cooling
•Installation: Set of Four 4x4.5 mounting holes on bottom for mounting to any flat
surface.
OPERATING TEMP
•-35ºC to +75ºC (-31ºF to +167ºF) – Cold Start-Up
STORAGE TEMP
•-45ºC to +85ºC (-49ºF to +185ºF)

RJSMLAC 8UG CAPS UM rev. 1 Page 13 of 13 Last Rev: 27-Jun-13
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –
www.rjswitch.com
Section 6 Service Information
Service
Information
We sincerely hope that you never experience a problem with any Amphenol product. If you
do need service, call Amphenol at [phone] and ask for Applications
Engineering. A trained specialist will help you to quickly determine the source of the
problem. Many problems are easily resolved with a single phone call. If it is necessary to
return a unit to us, an RMA (Return Material Authorization) number will be given to you.
Amphenol tracks the flow of returned material with our RMA system to ensure speedy
service. You must include this RMA number on the outside of the box so that your return can
be processed immediately.
The applications engineer you are speaking with will fill out an RMA request for you. If the
unit has a serial number, we will not need detailed financial information. Otherwise, be sure
to have your original purchase order number and date purchased available.
We suggest that you give us a repair purchase order number in case the repair is not covered
under our warranty. You will not be billed if the repair is covered under warranty.
Please supply us with as many details about the problem as you can. The information you
supply will be written on the RMA form and supplied to the repair department before your
unit arrives. This helps us to provide you with the best service, in the fastest manner.
Normally, repairs are completed in two days. Sometimes difficult problems take a little
longer to solve.
We apologize for any inconvenience that the need for repair may cause you. We hope that
our rapid service meets your needs. If you have any suggestions to help us improve our
service, please give us a call. We appreciate your ideas and will respond to them.
For Your Convenience:
Please fill in the following and keep this manual with your Amphenol system for future
reference:
P.O. #:__________________ Date Purchased: ___________________
Purchased From:______________________________________________
Product
Support
To obtain support for Amphenol products:
Visit our website. http.//www.rjswitch.com
Phone: [phone]
Fax: [phone]
E-mail: mailto:[e-mail]
Mailing Address: Amphenol, Promenade de l’Arve, B.P.29, 74311 Thyez Cedex, France
For more
information
You will find all useful information on the RJ-Switch series on the dedicated website:
http://www.rjswitch.com
