AmpliVox S1468 User manual

Thank you for choosing the S1468 24-Volt Rechargeable Battery Kit from AmpliVox Portable Sound Systems.
We are excited in introducing this truly unique battery pack. Allows complete freedom from a power outlet for your
AmpliVox Lectern Sound System with the S806 Amplifier. Please refer to this user guide as you enjoy the unique
capabilities of another quality product from AmpliVox Portable Sound Systems.
We encourage you to visit our website www.ampli.com to register your product for its warranty coverage, sign up to
receive our newsletter, download our catalog, and learn more about the complete line of AmpliVox audio visual products,
including portable PA systems, and lecterns.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: [phone] • Fax: [phone] www.ampli.com
User Guide
S1468
24-Volt Rechargeable Battery Kit

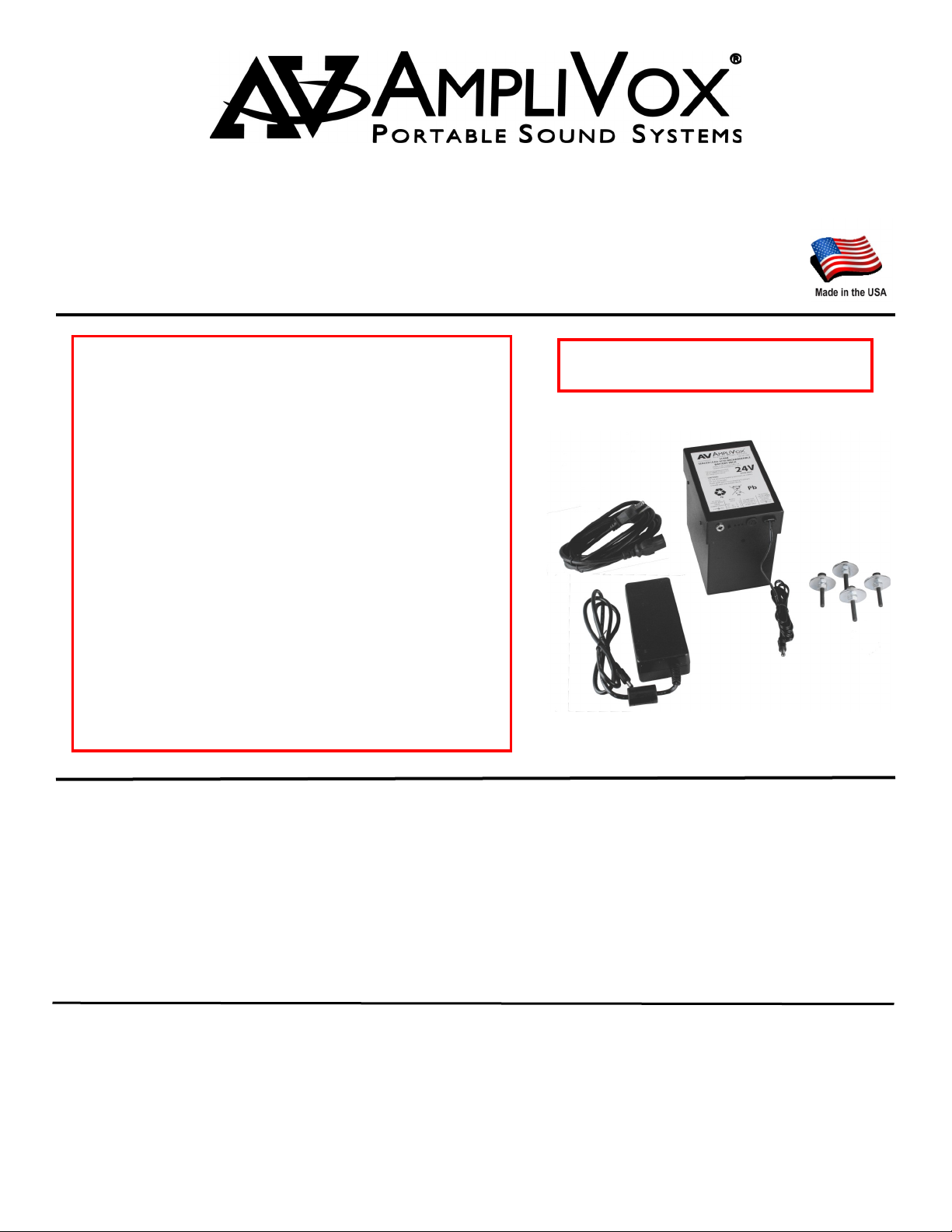

• Battery Pack with Two (2) SLA Batteries and attached connecting cord
• 24V AC Adapter / Charger with attached connecting cord
• Power Cord
• Mounting Hardware Kit (4 bolts, washers, nuts)
PACKAGE CONTENTS
READ FIRST ABOUT BATTERY OPERATIONS!
BY OBSERVING A FEW SIMPLE RULES, YOU CAN EXTEND THE
LIFESPAN OF THE SEALED LEAD ACID (SLA) BATTERIES THAT
OPERATE YOUR AMPLIVOX BATTERY POWERED MOBILE LEC-
TERN;:
• FOR LONG TERM STORAGE (OVER 1 MONTH) WE
RECOMMEND DISCONNECTING THE SLA BATTERIES TO
AVOID GRADUAL, CONTINUOUS DISCHARGE.
• ALWAYS STORE SLA BATTERIES IN A CHARGED
CONDITION WHEN REMOVED FROM SERVICE.
• FOR SLA BATTERIES IN STORAGE, APPLY A TOPPING
CHARGE EVERY SIX MONTHS.
• AVOID REPEATED DEEP DISCHARGES. THIS PRACTICE
WILL CUT THE LIFE OF THE BATTERY SIGNIFICANTLY.
• AVOID OPERATING SLA BATTERIES AT ELEVATED
AMBIENT TEMPERATURES.
To be only used with AmpliVox
LPA Amplifier Model S806

2
IMPORTANT SAFETY INSTRUCTIONS
Before using this product, read the instruction manual for important safety information. Please retain this manual for future
reference and warranty information.
Troubleshooting & Servicing
Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not attempt to
modify the device in anyway. Doing so could invalidate your warranty.
Cleaning
When cleaning the device, please use a soft, dry cloth. Never use benzene, paint-thinner, or other chemicals on the device.
Location
Place the device in stable location, so it will not fall causing damage to the device or bodily harm.
Intended use
The product may only be used with the original parts intended for it. The intended use includes adherence to the specified
installation instructions. The manufacturer accepts no liability for damage arising due to improper use.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance instructions in this owner’s guide.
WARRANTY
Limited One (1) -Year Warranty
AmpliVox warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period
of one (1) year from the date of purchase (“Warranty Period”).
During the Warranty Period, AmpliVox will repair or replace (at AmpliVox’s discretion) this product or any defective parts (“Warranty
Service”).
Repair or replacement under the terms of this warranty does not give right to any extension or a new beginning of the period of war-
ranty.
CLAIMS UNDER THE WARRANTY
To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Return Authorization number (RA#). After receiv-
ing a RA#, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of
protection. You will bear the cost of shipping the product to AmpliVox. If the product is covered by the warranty, AmpliVox will bear the
cost of shipping product back to you after the completion of service under this warranty.
Return shipping will be charged to you for products not covered by the warranty or requiring no warranty repair.
The following information must be presented to obtain Warranty Service: (a) the RA# must be clearly and legibility marked on the out-
side of shipping carton, (b) proof of purchase, which clearly indicates the name and address of the seller, the date of purchase and the
product type, which is evidence that this product is within the Warranty Period. Please further include (c) your return address, (d) day-
time telephone number, and (e) reason for return.
LIMITATION OF WARRANTY
This warranty is only valid for the original purchaser and will automatically terminate prior to expiration if this product is sold or other-
wise transferred to another party. The warranty provided by AmpliVox in this statement applies only to products purchased for use,
and not for resale. It does not apply to open box purchases, which are sold “as is” and without any warranty. Specifically exempt from
warranty are limited-life consumable components subject to normal wear and tear, such as microphone windscreens, ear cushions,
modular plugs, ear tips, decorative finishes, batteries, and other accessories. This warranty is invalid if the factory-applied serial num-
ber, date code label, or product label has been altered or removed from this product. This Warranty does not cover cosmetic damage
or damage due to misuse, abuse, negligence, Acts of Nature, accident, disassembling or modification of, or to any part of, the product.
This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other
than AmpliVox. Any unauthorized repairs will void this warranty.
REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUM-
ER. AMPLIVOX SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EX-
PRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS
EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHAT SOEVER, INCLUDING BUT NOT LIM-
ITED TO THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE.
NOTE! This warranty gives you specific legal rights. You may have other rights which vary from location to location. Some jurisdic-
tions do not allow the exclusion or limitation of incidental or consequential damages or implied warranties, so the above exclusions
may not apply to you. This warranty does not affect your legal (statutory) rights under your applicable national or local laws.

3

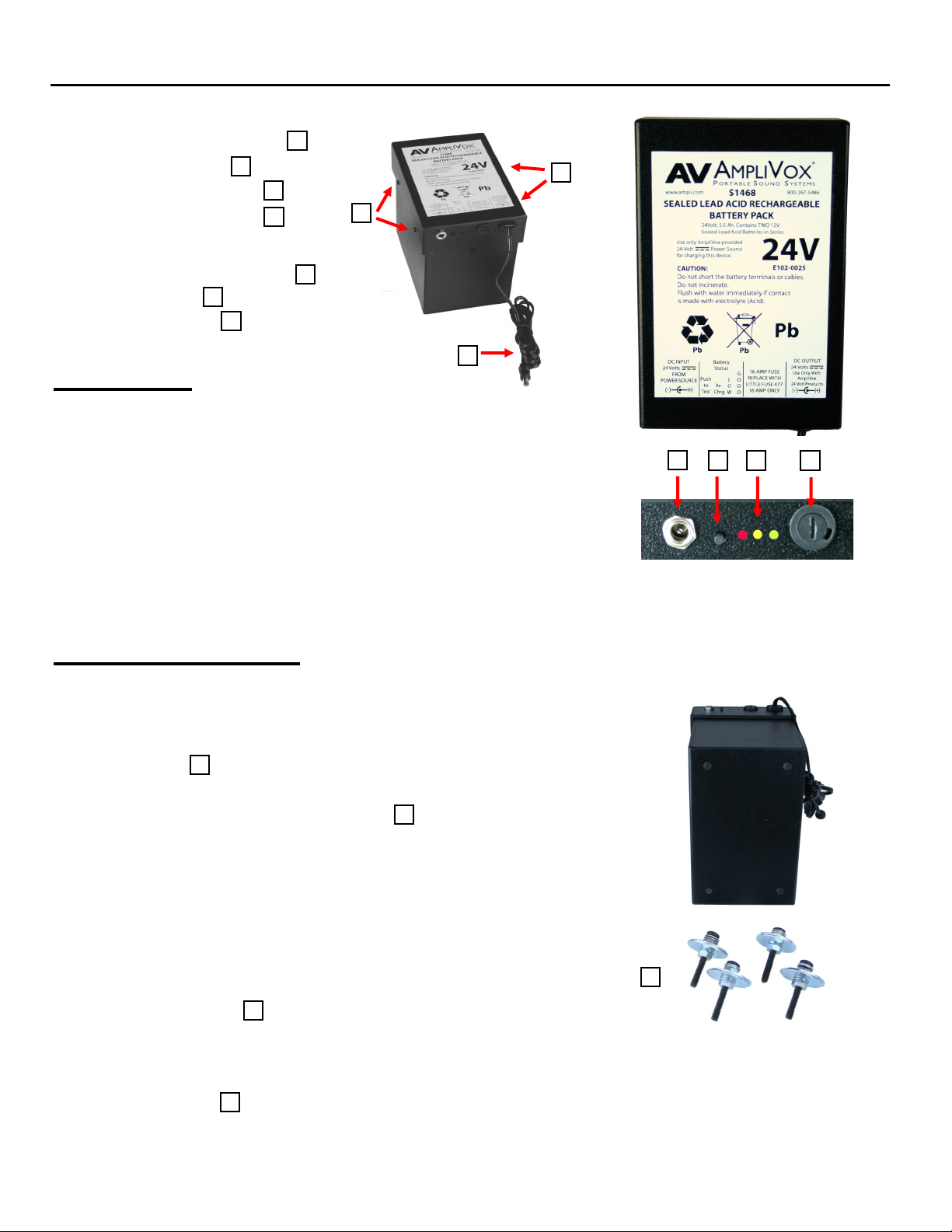

S1468 24 Volt Rechargeable Battery Pack
Battery Pack Features
• DC inlet jack, 24-Volts ONLY
• Battery Status Button
• Three battery status lights
• Fuse holder, 2AG 10 amp
• Output cable for connecting
to AmpliVox LPA amp sound kit or
approved AmpliVox accessory
• Cover Screws (4)
• Mounting Hardware
The S1468 rechargeable battery may be mounted to the lectern with the
enclosed bolt hardware, or it may be placed on a shelf or appropriate sur-
face within the lectern. Location should be within the distance needed when
connecting its power output cable to the AmpliVox LPA power amplifier:
• The S1468 must be placed upright, with the control panel side located
such that the controls and the cable interfaces are easily accessible.
• Placement should be located on an interior shelf or surface in such a
way that the S1468 could not easily slide out of the lectern.
• AmpliVox does not recommend locating the S1468 outside the lectern
during use.
E
A
B
C
D
E
ABCD
Permanent Installation
You can use the case bottom as a template for the four (4) bolt holes needed for
the mounting bolts. You will need to remove the two (2) batteries from the
case to do this.
• First, remove the four (4) case cover screws. Carefully lift off the cover.
• Disconnect the battery cables and remove the two batteries and foam pads
from inside the case. Set aside.
• Take the case bottom and position it in the chosen location. Make sure that
this location allows enough cable length for connection to amplifier. Remem-
ber you also need room to replace the cover screws located on the side.
• Using a pencil or sharp tool, mark the four (4) hole locations.
• Drill the four (4) holes using a 3/8 ʺ drill bit.
• Insert the four (4) bolts from inside the case bottom and then through the
four (4) holes in the lectern. On the bottom side of the lectern, place the four
(4) washers over the bolts and then tighten with the nut.
• Replace the foam pads, batteries, connect battery cable, battery cover and
the four (4) screws.
F
F
F
Tools Needed: ● 3/8” Drill Bit ● Drill ● 3/8ʺ socket, adjustable or
combination wrench
G
G
F
F
G
Setup
G

4
Charging Batteries
• Connect the AC Power Cord to the 24-Volt AC Adapter Pow-
er Supply, then plug the 24-Volt Power Supply Cable in-
to the S1468 Battery DC inlet jack.
• The yellow light of the Battery Status Lights will come on for
a few seconds as the charging circuit checks the charge level. The
yellow light will then start flashing to indicate that the batteries are
charging. The green light will come on when fully charged.
• If the batteries are already fully charged, the green light will come
on after the initial yellow light flashing.
If the red light comes on after the initial yellow flashing light,
unplug the Power Supply from the S1468 Battery for about 20
seconds and reconnect. If red light continues to stay on, call
AmpliVox Technical Support at 800-267-5486 between 9:00
am and 6:00 pm CST (USA).
ABCD
H
I
H
I
A
J
J
C
Battery Status Lights
GREEN: Indicates fully charged. Up to eight (8) hours of run time.
YELLOW: Indicates partially charged. Approximately 30—45 minutes of run
time left.
RED: Indicates that batteries are about to shut down and should be
connected to the power supply for recharge.
To check the charge status of the battery, press and hold the Battery Status
Button One of the three (3) lights will come on indicating the charge sta-
tus of the batteries.
B
Connecting To AmpliVox Sound Kit Amplifier Model S806
• Take the output cable of the Battery and
plug into the AmpliVox Amplifier S806, DC
connection on the back.
• Turn on AmpliVox Amplifier to check out sys-
tem.
It is always important to make sure your
batteries are fully charged before using. If
amplifier fails to turn on because of low
battery voltage, you can still use amplifier by con-
necting power supply directly to amplifier. Re-
move battery cable from S806 amplifier and con-
nect power supply cable to DC connection.
AMPLIFIER WILL NOT WORK
WHEN CHARGING BATTERIES
K
K
L
L
L
J
I
K
I
J
