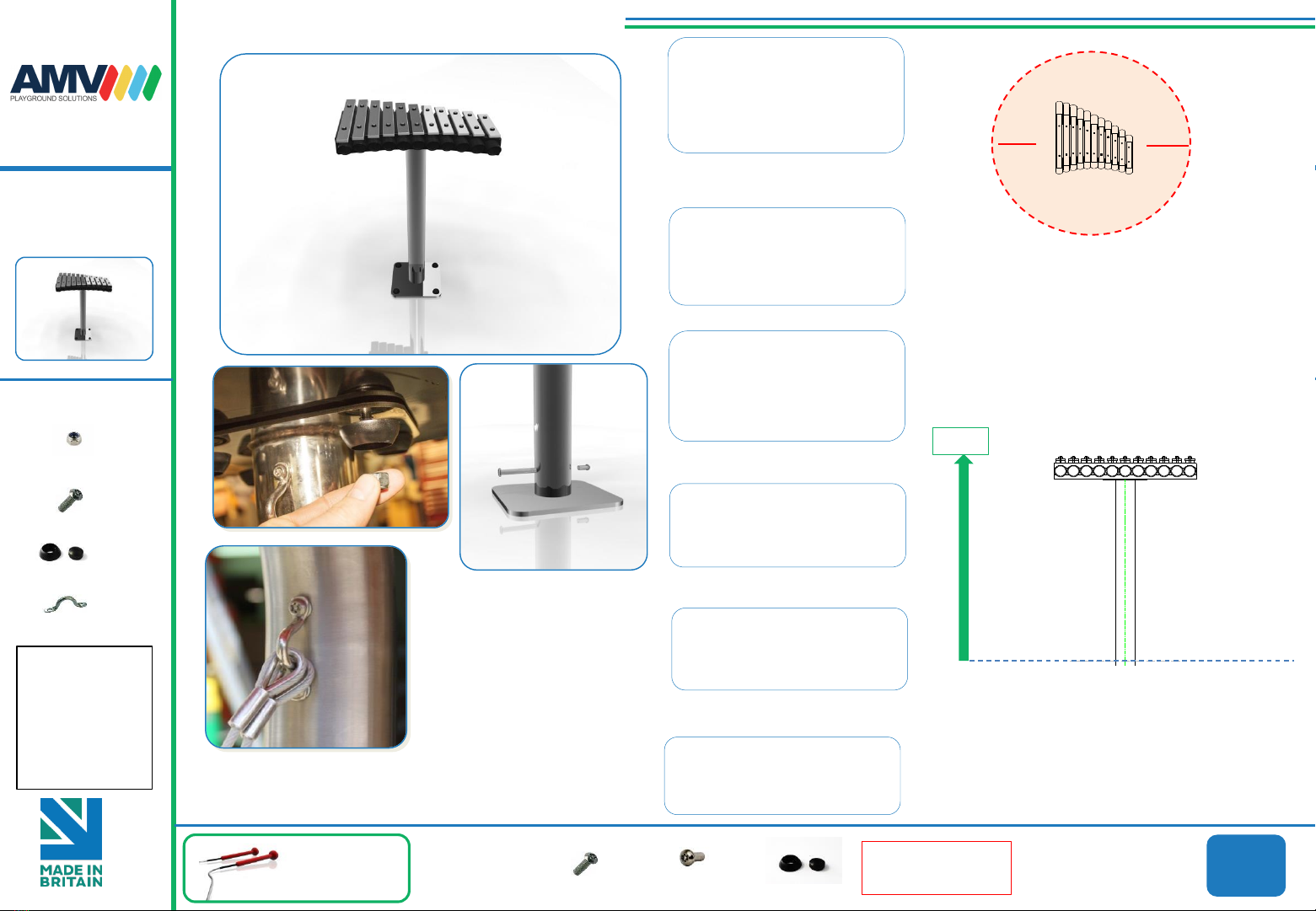

AMV Playground Solutions Cadenza User manual

1. Attach the steel legs to the
base of the instrument with
the M8 Nyloc Nuts and 2 part
security caps. (1.1) (See
Assembly Guide)
Install Instrument
with 1.5m free space
(from widest point)
around it.
1.5m
Surface Fixed
Ground Surface
KS1,2
KS1 –700mm
KS2 –850mm
Installation Instructions
(1.1) (1.2)
Instrument
Components:
6. Attach the 1 pair of beater
to the saddle strap on the leg.
(1.3)
Surface Fix
Components:
(1.3)
14 Kg
Pair Small Red
Beaters X1
Cadenza
Page 1 of 3
1.5m
Weight of heaviest part 7kg (Cadenza)
BS EN 1176
Metric
Conversion:
250mm/ 10”
300mm/ 12”
450mm/ 18”
700mm/ 28”
850mm/ 33”
1.5m/ 59”
M8 Nyloc Nut
x4
M6x20 Security Screw
x2
M6 Saddle Strap
x1
2 Part Cover
Cap
x4
M10 Barrel Nut
x1
M10x70 Security Screw
x1 Ground Anchors
not supplied
2 Part Cover Cap
x4
2. Attach Surface Fixing posts
to legs(1.2) (See Ground Fix
Post Installation Sheet)
4. Fix to Surface using
recommended ground
anchors not supplied
3.Locate Plate in desired
location and mark holes to fix
to desired surface.
5. Make sure all fixings are
covered and secure using
cover caps provided

COMPONENTS LIST:
2 Part Cover Cap X4
Saddle Strap X1
M6x20 Pin torx X2
M8 Nyloc nut X4
PPCADE FRONT PPCADE SIDE
M10x70 Pin torx X2
M10 Barrel Nut Pin torx X2
Surface Fixed
Assembly Guide PPCADE
(1.1)
Surface Fix
Components: 14 Kg
Pair Small Red
Beaters X1
Cadenza
Page 2 of 3
BS EN 1176
Thread Lock Solution
Required (Not Supplied)
Thread Lock Solution
Required (Not Supplied)
Instrument
Components:
M8 Nyloc Nut
x4
M6x20 Security Screw
x2
M6 Saddle Strap
x1
2 Part Cover
Cap
x4
TX 30 Driver Bit
x1
TX 40 Driver Bit
x1
Tools:
M10 Barrel Nut
x1
M10x70 Security Screw
x1 Ground Anchors
not supplied
2 Part Cover Cap
x4

Surface Fixed
Components:
Surface Fix Post Installation
Cadenza
Page 3 of 3
BS EN 1176
Metric
Conversion:
50mm/ 2”
250mm/ 10”
350mm/ 14”
400mm/ 16”
450mm/ 18”
TX 45 Driver Bit
Tools:
x2
(1.1)
Locate the Surface fix
Plate into the leg of the
instrument.
Fix instrument to Surface
fix plate using M10 bolt
and Barrel Nut and use
thread locking solution
to prevent fixings working
loose.
Fix Surface Plate to the
ground surface Ground
Anchors Not provided
cover fixings with caps
provided
12 3
Repeat Parts 1-3 for both legs
Thread Lock Solution
Required (Not Supplied)
M10 Barrel Nut
x1
M10x70 Security Screw
x1
Thread Lock Solution
Required (Not Supplied)
2 Part Cover Cap
x4
