AMX DAS-AMFM User manual

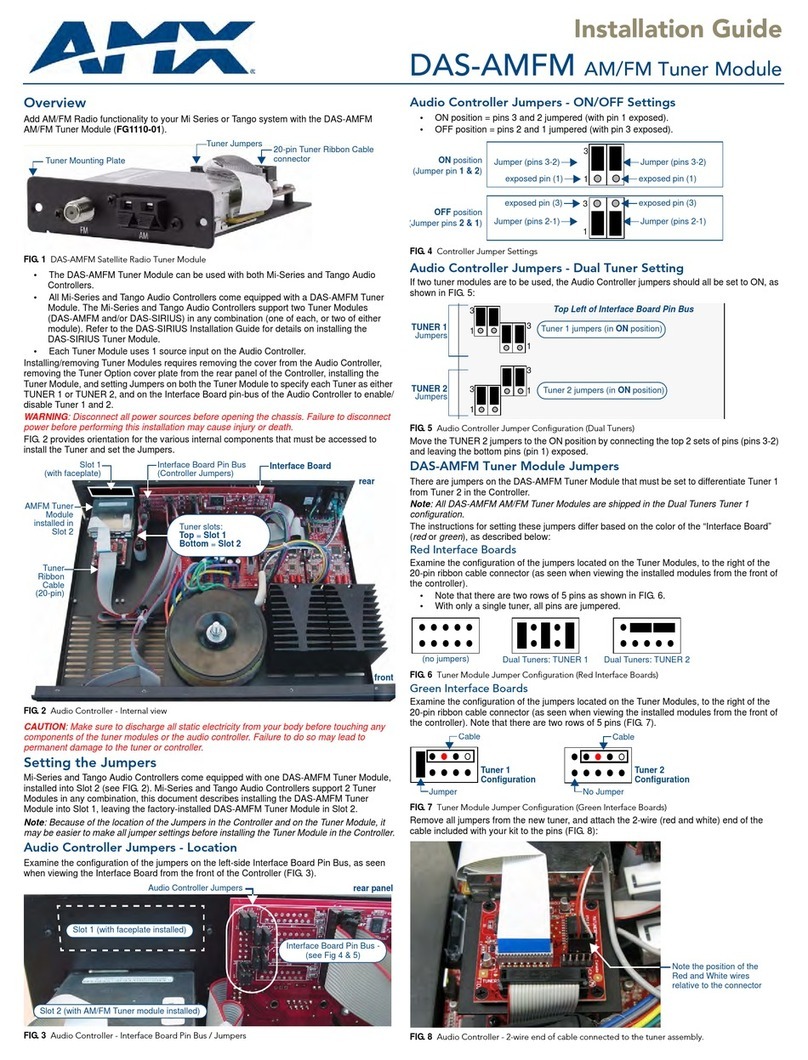

Installation Guide
DAS-AMFM AM/FM Tuner Module
Overview
Add AM/FM Radio functionality to your Mi Series system with the
DAS-AMFM AM/FM Tuner Module (FG1110-01).
• Up to two DAS-AMFM modules can be added to each Mi Series
controller.
• Each tuner module uses one source input on the audio controller.
WARNING: Disconnect all power sources before opening the chassis. Fail-
ure to disconnect power before performing this installation may cause injury
or death.
CAUTION: Make sure to discharge all static electricity from your body
before touching any components of the tuner modules or the audio control-
ler. Failure to do so may lead to permanent damage to the tuner or
controller.
Single Tuner Installation Instructions
Installing The Tuner Module in the Controller
1. Remove the cover from the controller.
2. With the back of the unit facing you, remove the screws from the
Tuner Option cover plate at the right top corner of the rear panel
(FIG. 1) and remove the plate. Retain the screws, as they will be used
to install the tuner.
3. Carefully insert the DAS-AMFM tuner module into the controller, with
the electronics facing up, and use the screws that attached the Tuner
Option cover plate to secure the tuner to the controller.
Note: Be careful not to damage the white ribbon cable on the top of
the Tuner module.
4. Place the Rear Panel connector at the end of the ribbon cable (FIG. 2)
on the rear board pin-bus, keeping the red stripe at the top.
5. Connect the "Tuner 1" connector on the ribbon cable to the Tuner 1
module (FIG. 3).
Note: The ribbon cable must be oriented so that the red stripe is con-
nected to Pin 1 on the connector.
• Be sure that both ends of the cable are securely plugged into their
respective boards through the 20-pin connectors (FIG. 4).
Setting the Jumpers in the Controller
Examine the configuration of the jumpers on the left end of the rear board,
as seen when viewing the rear board from the front of the controller.
The jumpers should be in the “Off” position, with the top pair of pins in each
configuration exposed and the jumpers connecting the second and third set
of pins.
Move the top set of jumpers to the “On” position, connecting the first two
sets of pins and leaving the third set exposed (FIG. 5).
• Reconnect power to the unit and turn it on to make sure that the tuner
is properly integrated with the controller.
• If the tuner is functioning properly, remove power and replace the unit
cover.
FIG. 1 Rear Panel Tuner with Tuner Option cover plate
FIG. 2 Tuner Ribbon Cable
Tuner 1 (installed)
Tuner Option
cover plate
Tuner 2
Tuner 1 Rear Panel
RED STRIPE (to Pin 1) not used
FIG. 3 Tuner 1 Module Connection
FIG. 4 20-Pin Connector and Ribbon Cable

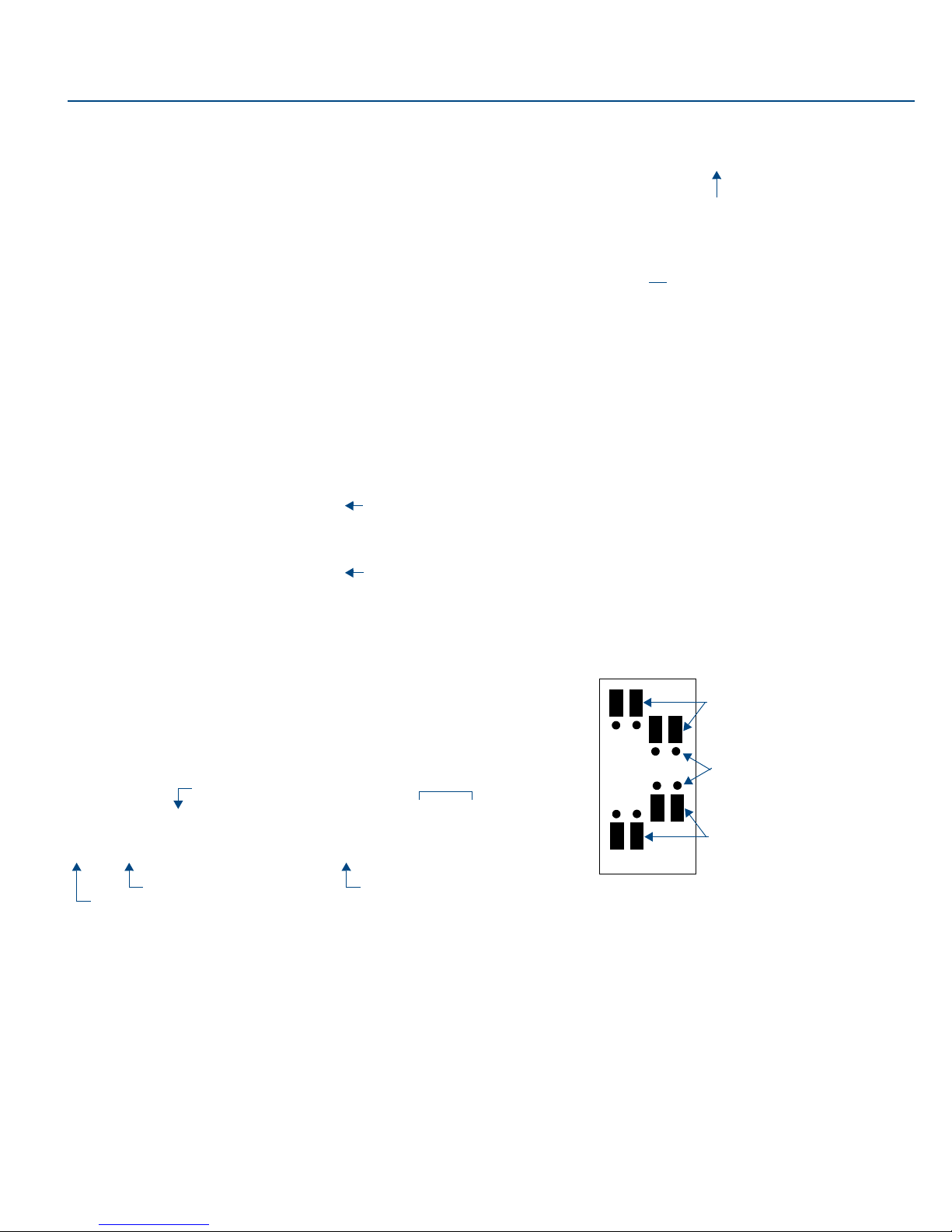

FIG. 5 Controller Jumper Configuration
Tuner 1 Connector
Rear of controller
Tuner 1 jumpers (in “On” position)
Tuner 2 jumpers (in “Off” position)
Exposed pair of pins

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
5/08
©2008 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
AMX reserves the right to alter specifications without notice at any time.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax [phone] • technical support 800.932.6993 • www.amx.com
93-1110-02 REV: C
Dual Tuner Installation Instructions
Installing The Tuner Modules in the Controller
1. Remove the cover from the controller.
2. With the back of the unit facing you, remove the screws from both
Tuner Option cover plates on the right side of the rear panel and
remove the plates. Retain the screws, as they will be used to secure
the tuners.
3. Carefully insert Tuner 2 in the lower slot, electronics facing up, and
secure with the screws from the Tuner Option plate.
Note: Make sure not to damage the white ribbon cable on the top of
the Tuner module.
4. Connect the Tu ner 2 connector on the ribbon cable to Tuner 2 (see
FIG. 2).
Note: The ribbon cable must be oriented so that the red stripe is con-
nected to Pin 1 on the connector.
5. Carefully insert Tuner 1 in the upper slot, electronics facing up, and
secure with the two remaining screws from the Tuner Option plates.
6. Connect the Tu ner 1 connector on the ribbon cable to Tuner 1 (see
FIG. 2).
7. Connect the Rear Panel connector on the ribbon cable to the rear
board pin-bus with the red stripe at the top (see FIG. 2).
The ribbon cable should be connected as shown in FIG. 6 and con-
nected to the Rear Panel as shown in FIG. 4.
Note: The ribbon cable must be oriented so that the red stripe is con-
nected to Pin 1 on the connector.
Setting the Jumpers in the Controller
Examine the configuration of the jumpers on the rear board (see FIG. 5).
The jumpers should be in the “Off” position, with the top pair of pins in
each configuration exposed and the jumpers connecting the second and
third set of pins.
Move the top and bottom set of jumpers to the “On” position,
connecting the first two sets of pins and leaving the third set exposed.
• Reconnect power to the unit and turn it on to make sure that the
tuners are properly integrated with the controller.
• If both tuners are functioning properly, remove power and replace the
unit cover.
Setting the Jumpers on the Tuner Modules
When installing two tuner modules, the jumper settings on the tuners
themselves must change as well as the rear panel jumpers (to identify
each Tuner module as Tuner 1 or Tuner 2).
Examine the configuration of the jumpers located on the Tuner Modules,
to the right of the 20-pin ribbon cable connector (as seen when viewing
the installed modules from the front of the controller).
• Note that there are two rows of 5 pins as shown in FIG. 7.
• With only a single tuner, all pins are jumpered.
Note: All DAS-AMFM AM/FM Tuner Modules are shipped in the single
tuner configuration.
Removing the Pre-Installed Tuner Module
Mi Series Audio Controllers include one DAS-AMFM Tuner Module as a
standard accessory. Since each tuner module uses one source input on
the audio controller, in some cases it may be desirable to remove the
tuner module in order to use that source input for other purposes.
WARNING: Disconnect all power sources before opening the chassis.
Failure to disconnect power before performing this installation may cause
injury or death.
1. Remove the cover from the controller.
2. Carefully remove the ribbon cable from the tuner module.
3. Remove the screws from the Tuner module cover plate at the right
top corner of the rear panel and slide the tuner module out of the
chassis.
4. Place all jumpers in the “Off” position (FIG. 8).
5. Replace the unit cover.
FIG. 6 Dual Tuner Cable Hook-Up
1
2
3
1 - Ribbon Cable
2 - Tuner 1
3 - Tuner 2

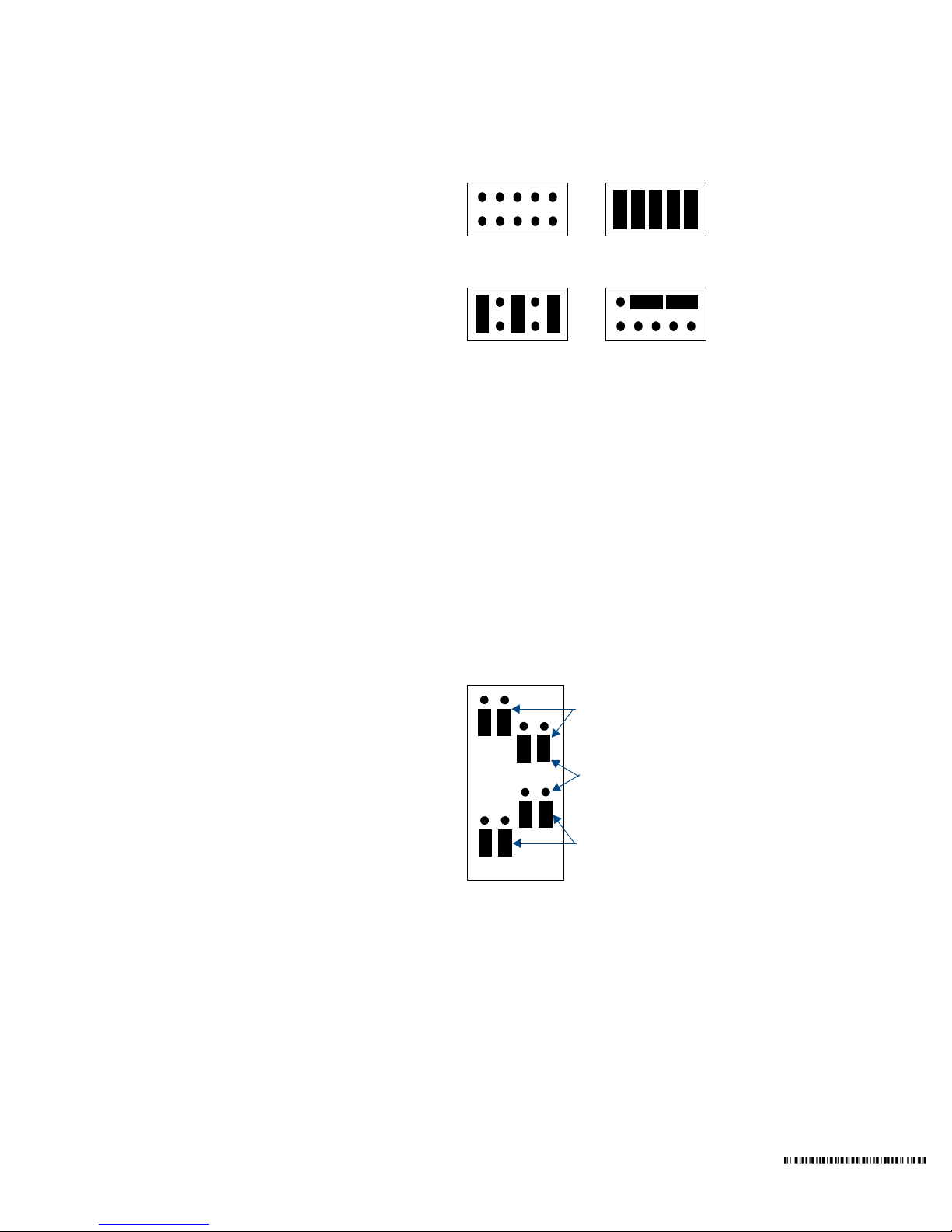

FIG. 7 Tuner Module Jumper Configuration
