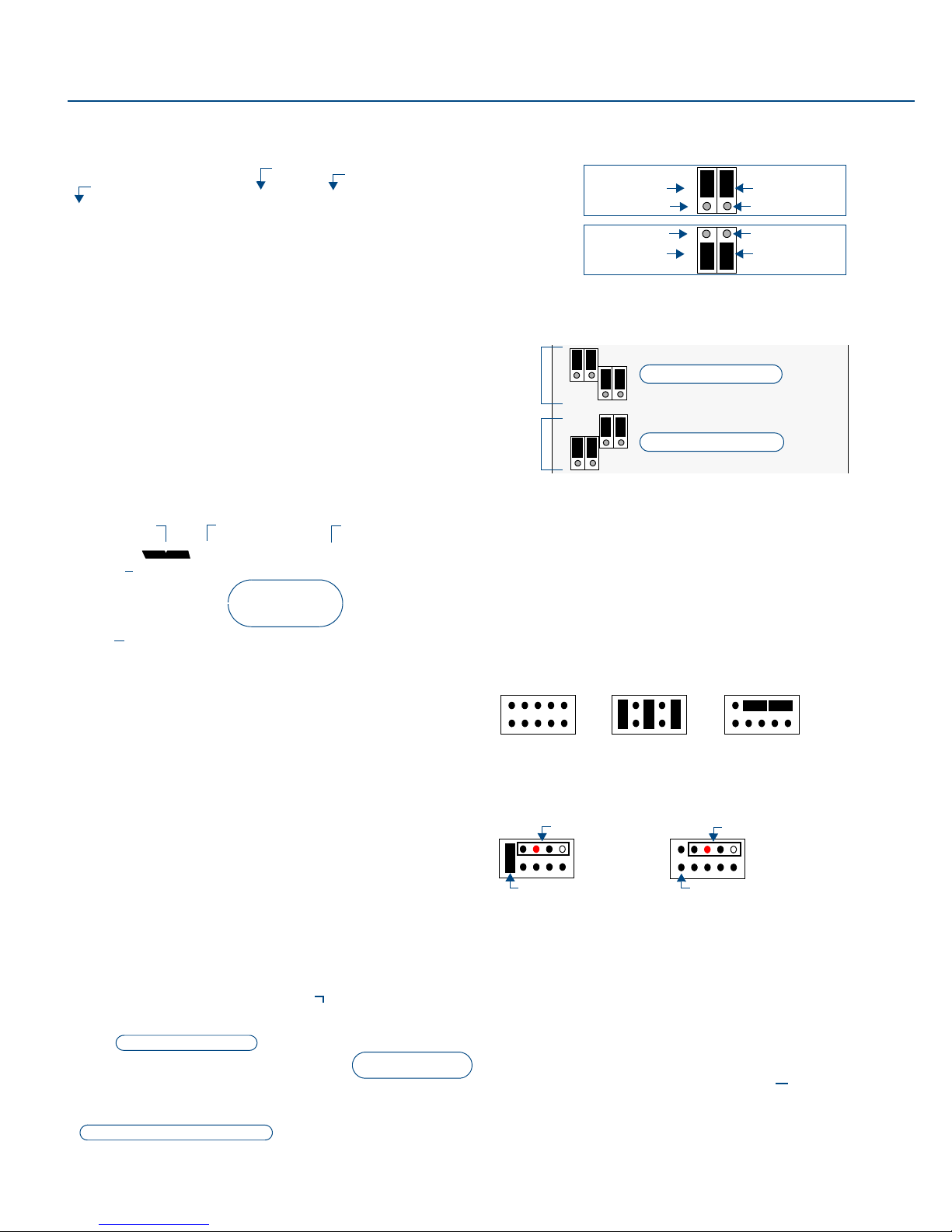

Installation Guide
DAS-AMFM AM/FM Tuner Module
Overview
Add AM/FM Radio functionality to your Mi Series or Tango system with the DAS-AMFM
AM/FM Tuner Module (FG1110-01).
• The DAS-AMFM Tuner Module can be used with both Mi-Series and Tango Audio
Controllers.
• All Mi-Series and Tango Audio Controllers come equipped with a DAS-AMFM Tuner
Module. The Mi-Series and Tango Audio Controllers support two Tuner Modules
(DAS-AMFM and/or DAS-SIRIUS) in any combination (one of each, or two of either
module). Refer to the DAS-SIRIUS Installation Guide for details on installing the
DAS-SIRIUS Tuner Module.
• Each Tuner Module uses 1 source input on the Audio Controller.
Installing/removing Tuner Modules requires removing the cover from the Audio Controller,
removing the Tuner Option cover plate from the rear panel of the Controller, installing the
Tuner Module, and setting Jumpers on both the Tuner Module to specify each Tuner as either
TUNER 1 or TUNER 2, and on the Interface Board pin-bus of the Audio Controller to enable/
disable Tuner 1 and 2.
WARNING: Disconnect all power sources before opening the chassis. Failure to disconnect
power before performing this installation may cause injury or death.
FIG. 2 provides orientation for the various internal components that must be accessed to
install the Tuner and set the Jumpers.
CAUTION: Make sure to discharge all static electricity from your body before touching any
components of the tuner modules or the audio controller. Failure to do so may lead to
permanent damage to the tuner or controller.
Setting the Jumpers
Mi-Series and Tango Audio Controllers come equipped with one DAS-AMFM Tuner Module,
installed into Slot 2 (see FIG. 2). Mi-Series and Tango Audio Controllers support 2 Tuner
Modules in any combination, this document describes installing the DAS-AMFM Tuner
Module into Slot 1, leaving the factory-installed DAS-AMFM Tuner Module in Slot 2.
Note: Because of the location of the Jumpers in the Controller and on the Tuner Module, it
may be easier to make all jumper settings before installing the Tuner Module in the Controller.
Audio Controller Jumpers - Location
Examine the configuration of the jumpers on the left-side Interface Board Pin Bus, as seen
when viewing the Interface Board from the front of the Controller (FIG. 3).
Audio Controller Jumpers - ON/OFF Settings
• ON position = pins 3 and 2 jumpered (with pin 1 exposed).
• OFF position = pins 2 and 1 jumpered (with pin 3 exposed).
Audio Controller Jumpers - Dual Tuner Setting
If two tuner modules are to be used, the Audio Controller jumpers should all be set to ON, as
shown in FIG. 5:
Move the TUNER 2 jumpers to the ON position by connecting the top 2 sets of pins (pins 3-2)
and leaving the bottom pins (pin 1) exposed.
DAS-AMFM Tuner Module Jumpers
There are jumpers on the DAS-AMFM Tuner Module that must be set to differentiate Tuner 1
from Tuner 2 in the Controller.
Note: All DAS-AMFM AM/FM Tuner Modules are shipped in the Dual Tuners Tuner 1
configuration.
The instructions for setting these jumpers differ based on the color of the “Interface Board”
(red or green), as described below:
Red Interface Boards
Examine the configuration of the jumpers located on the Tuner Modules, to the right of the
20-pin ribbon cable connector (as seen when viewing the installed modules from the front of
the controller).
• Note that there are two rows of 5 pins as shown in FIG. 6.
• With only a single tuner, all pins are jumpered.
Green Interface Boards
Examine the configuration of the jumpers located on the Tuner Modules, to the right of the
20-pin ribbon cable connector (as seen when viewing the installed modules from the front of
the controller). Note that there are two rows of 5 pins (FIG. 7).
Remove all jumpers from the new tuner, and attach the 2-wire (red and white) end of the
cable included with your kit to the pins (FIG. 8):
FIG. 1 DAS-AMFM Satellite Radio Tuner Module
FIG. 2 Audio Controller - Internal view
FIG. 3 Audio Controller - Interface Board Pin Bus / Jumpers
20-pin Tuner Ribbon Cable
Tuner Jumpers
Tuner Mounting Plate connector
front
Interface Board Pin Bus
(Controller Jumpers) rear
AMFM Tuner
Module
Tuner
Ribbon
Cable
(20-pin)
Slot 1
(with faceplate)
installed in
Slot 2 Tuner slots:
Top = Slot 1
Bottom = Slot 2
Interface Board
Audio Controller Jumpers rear panel
Interface Board Pin Bus -
Slot 1 (with faceplate installed)
Slot 2 (with AM/FM Tuner module installed)
(see Fig 4 & 5)
FIG. 4 Controller Jumper Settings
FIG. 5 Audio Controller Jumper Configuration (Dual Tuners)
FIG. 6 Tuner Module Jumper Configuration (Red Interface Boards)
FIG. 7 Tuner Module Jumper Configuration (Green Interface Boards)
FIG. 8 Audio Controller - 2-wire end of cable connected to the tuner assembly.
3
1
3
1
Jumper (pins 3-2)
exposed pin (1)
Jumper (pins 3-2)
Jumper (pins 2-1)
exposed pin (3)
Jumper (pins 2-1)
ON position
(Jumper pin 1 & 2)
OFF position
(Jumper pins 2 & 1)
exposed pin (1)
exposed pin (3)
Tuner 1 jumpers (in ON position)
Tuner 2 jumpers (in ON position)
Top Left of Interface Board Pin Bus
3
13
1
3
1
3
1
TUNER 1
Jumpers
TUNER 2
Jumpers
(no jumpers) Dual Tuners: TUNER 1 Dual Tuners: TUNER 2
Tuner 1
Jumper
Cable
Configuration Tuner 2
No Jumper
Cable
Configuration
Note the position of the
Red and White wires
relative to the connector

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
8/11
©2011 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
AMX reserves the right to alter specifications without notice at any time.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax [phone] • technical support 800.932.6993 • www.amx.com
93-1110-02 REV: F

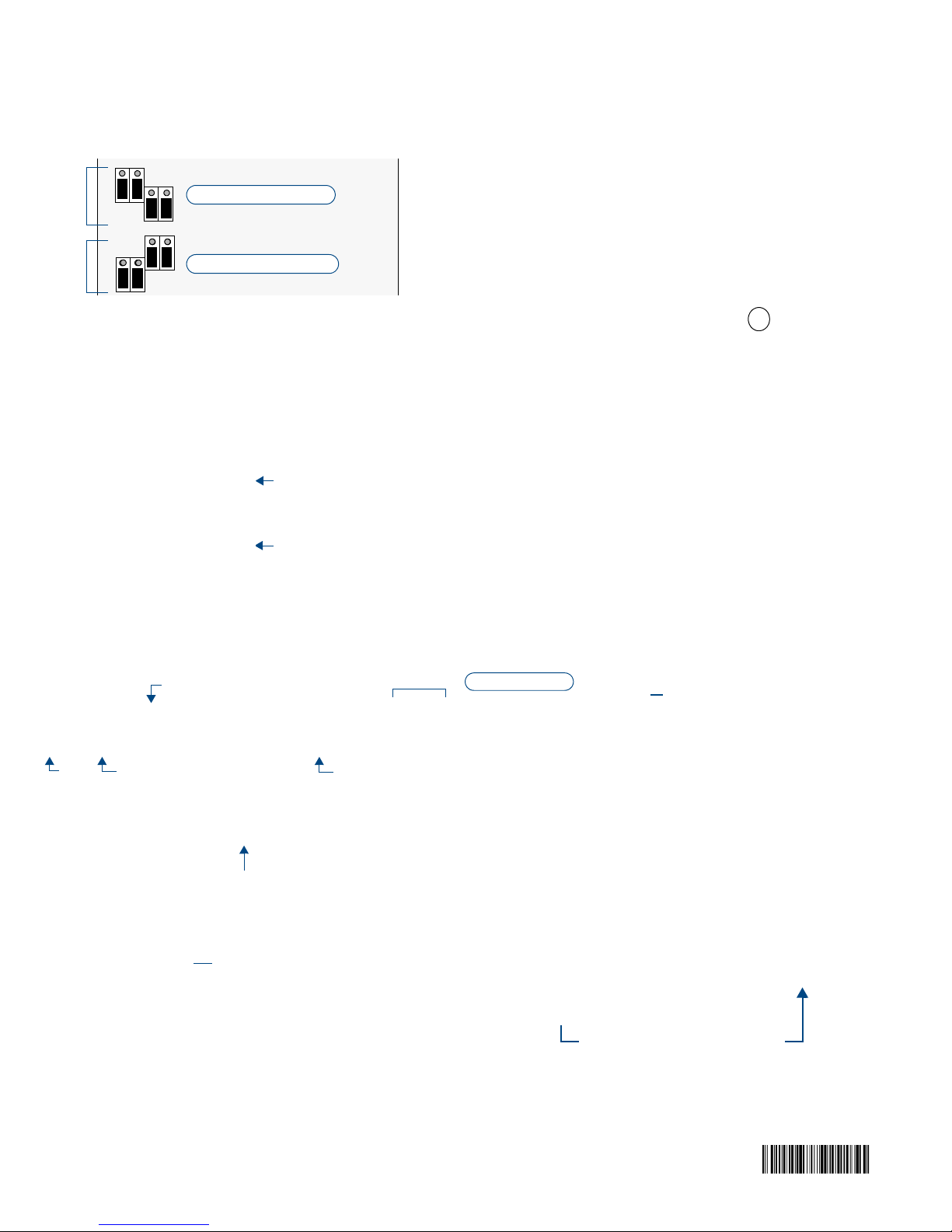

Removing the Pre-Installed DAS-AMFM Tuner Module
Mi Series Audio Controllers include one DAS-AMFM Tuner Module as a standard
accessory. Since each tuner module uses one source input on the audio controller, in some
cases it may be desirable to remove the tuner module in order to use that source input for
other purposes.
1. Remove the cover from the controller.
2. Carefully remove the ribbon cable from the tuner module.
3. Remove the screws from the Tuner module cover plate at the right top corner of the
rear panel and slide the tuner module out of the chassis.
4. Place all jumpers in the “Off” position (FIG. 9).
5. Replace the unit cover.
Installing a Second DAS-AMFM Tuner Module
The following steps describe installing a second DAS-AMFM tuner module into Slot 1 (in
addition to the DAS-AMFM module that comes pre-installed in Slot 2). In these instructions,
the second tuner is referred to as “Tuner 2”.
1. Remove the cover from the controller.
2. With the back of the unit facing you, remove the screws from the Tuner Option cover
plate at the right top corner of the rear panel (FIG. 10) and remove the plate. Retain
the screws, as they will be used to install the tuner module.
3. Carefully insert the second DAS-AMFM tuner module into Slot 1, with the electronics
facing up, and use the screws that attached the Tuner Option cover plate to secure
the tuner to the controller.
Note: Be careful not to damage the ribbon cable on the top of the Tuner module.
4. Place the Rear Panel connector at the end of the ribbon cable (FIG. 11) on the
Interface Board pin-bus, keeping the red stripe at the top.
5. Connect the "Slot 1" connector on the ribbon cable to the Tuner 2 module (FIG. 12).
Note: The ribbon cable must be oriented so that the red stripe is connected to Pin 1
on the connector.
• Verify that both ends of the cable are securely plugged into their respective boards
through the 20-pin connectors (FIG. 13).
6. Replace the two screws that were removed when the Tuner Option cover plate was
removed to secure the faceplate of the DAS-AMFM to the controller.
FIG. 14 provides a view of the inside of the controller, with two tuners installed.
Note: While it is recommended that you use the Slot 2 connector on the ribbon cable
to connect the Tuner installed in Slot 2 (in this case, the DAS-AMFM Tuner), the
ribbon cable itself does not determine which Tuner is Tuner 1 and Tuner 2.
This determination is set by the jumper settings on each Tuner Module (see “Dual
Tuner Installation Instructions” above).
Therefore, it is not required that the connections indicated in FIG. 11 are followed
exactly, as long as the Tuner Jumper Settings are set correctly for each Tuner Module
installed.
7. On units with green Interface Boards only: Connect the supplied cable from the tuner
to the Interface Board as shown in FIG. 15.
Note: The 3-wire end connects to the open pins on the Interface Board with the white
wire pointed up.
8. Use the supplied cable ties to secure the cable loosely as illustrated in FIG. 16:
FIG. 9 Audio Controller Jumper Configuration (Dual Tuners)
FIG. 10 Rear Panel - Tuner Slots 1 and 2
FIG. 11 Tuner Ribbon Cable
FIG. 12 Tuner 2 Module Connection
Tuner 1 jumpers (in OFF position)
Tuner 2 jumpers (in OFF position)
Top Left of Interface Board Pin Bus
3
13
1
3
1
3
1
TUNER 1
Jumpers
TUNER 2
Jumpers
Slot 1
Slot 2
(DAS-AMFM module pre-installed)
(Tuner Option cover plate installed)
Slot 2 Slot 1 Rear Panel
RED STRIPE (to Pin 1)not used
(see Note below)
20-pin connector on Tuner 2
Rear of controller
FIG. 13 20-Pin Connector and Ribbon Cable
FIG. 14 Dual Tuner Cable Connection
FIG. 15 Connection of the cable to the left-side pins on the back of the interface board.
FIG. 16 Cable Routing
1
2
31 - Ribbon Cable
2 - Tuner 2
3 - Tuner 1
New tuner connection
Cable tie Cable tie
