AMX TDS Parts list manual

Operation/Reference Guide
Television Distribution System
AMX TDS
Television Distribution System
ClearQAM / ATSC (High Definition)
Terrestrial/Satellite (Standard Definition)
Last Revised: 11/04/2011

AMX Limited Warranty and Disclaimer
This Limited Warranty and Disclaimer extends only to products purchased directly from AMX or an AMX Authorized Partner which
include AMX Dealers, Distributors, VIP’s or other AMX authorized entity.
AMX warrants its products to be free of defects in material and workmanship under normal use for three (3) years from the date of
purchase, with the following exceptions:
• Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch overlay compo-
nents are warranted for a period of one (1) year.
• Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one (1) year.
• AMX lighting products are guaranteed to switch on and off any load that is properly connected to our lighting products, as long
as the AMX lighting products are under warranty. AMX also guarantees the control of dimmable loads that are properly con-
nected to our lighting products. The dimming performance or quality there of is not guaranteed, impart due to the random combi-
nations of dimmers, lamps and ballasts or transformers.
• AMX software is warranted for a period of ninety (90) days.
• Batteries and incandescent lamps are not covered under the warranty.
• AMX AutoPatch Epica, Modula, Modula Series4, Modula CatPro Series and 8Y-3000 product models will be free of defects in
materials and manufacture at the time of sale and will remain in good working order for a period of three (3) years following the
date of the original sales invoice from AMX. The three-year warranty period will be extended to the life of the product (Limited
Lifetime Warranty) if the warranty card is filled out by the dealer and/or end user and returned to AMX so that AMX receives it
within thirty (30) days of the installation of equipment but no later than six (6) months from original AMX sales invoice date. The
life of the product extends until five (5) years after AMX ceases manufacturing the product model. The Limited Lifetime Warranty
applies to products in their original installation only. If a product is moved to a different installation, the Limited Lifetime Warranty
will no longer apply, and the product warranty will instead be the three (3) year Limited Warranty.
All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is obtained from the AMX
RMA Department. The RMA number must be clearly marked on the outside of each box. The RMA is valid for a 30-day period. After
the 30-day period the RMA will be cancelled. Any shipments received not consistent with the RMA, or after the RMA is cancelled, will
be refused. AMX is not responsible for products returned without a valid RMA number.
AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost
savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Autho-
rized Partner for a third party.
This Limited Warranty does not apply to (a) any AMX product that has been modified, altered or repaired by an unauthorized agent or
improperly transported, stored, installed, used, or maintained; (b) damage caused by acts of nature, including flood, erosion, or earth-
quake; (c) damage caused by a sustained low or high voltage situation or by a low or high voltage disturbance, including brownouts,
sags, spikes, or power outages; or (d) damage caused by war, vandalism, theft, depletion, or obsolescence.
This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort claim (including
negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by
any person. This limitation of liability will be effective even if AMX or an authorized representative of AMX has been advised of the
possibility of any such damages. This limitation of liability, however, will not apply to claims for personal injury.
Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or exclusion of inci-
dental or consequential damages for consumer products. In such states, the limitation or exclusion of the Limited Warranty may not
apply. This Limited Warranty gives the owner specific legal rights. The owner may also have other rights that vary from state to state.
The owner is advised to consult applicable state laws for full determination of rights.
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX MAKES NO OTHER WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AMX
EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT
MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED WARRANTY. EXCEPT AS OTHERWISE LIMITED
BY APPLICABLE LAW, AMX RESERVES THE RIGHT TO MODIFY OR DISCONTINUE DESIGNS, SPECIFICATIONS, WARRAN-
TIES, PRICES, AND POLICIES WITHOUT NOTICE.

Table of Contents
i
AMX TDS (Television Delivery System)
Table of Contents
AMX Television Distribution System (TDS) .........................................................1
Overview .................................................................................................................. 1
Network Considerations.................................................................................................. 1
System Diagram - TDS Distribution ................................................................................ 2
AMX TDS - ClearQAM/ATSC (High Definition) ...................................................3
Overview .................................................................................................................. 3
System Components ................................................................................................. 3

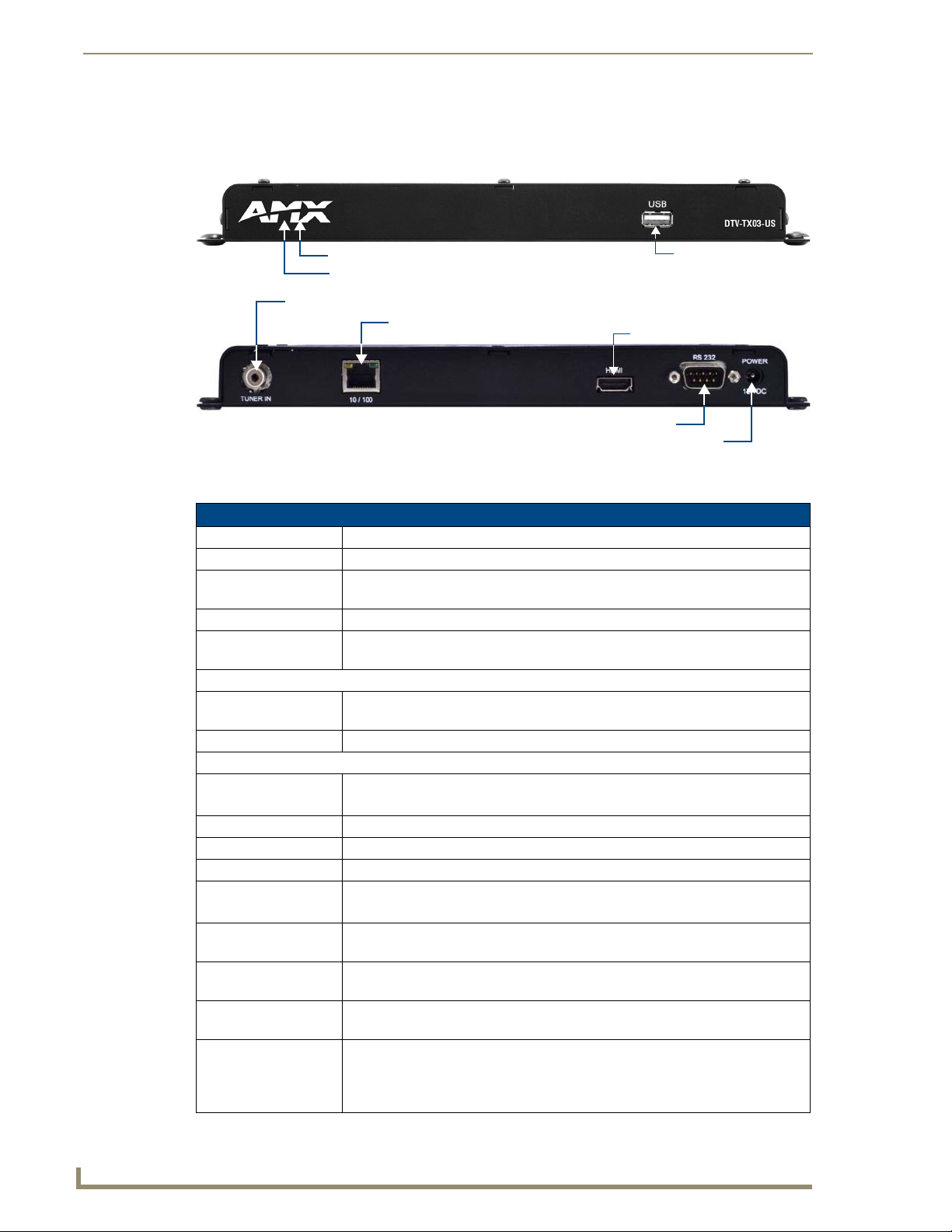

DTV-TX03-US Transmitters ....................................................................................... 4
Product Specifications..................................................................................................... 4

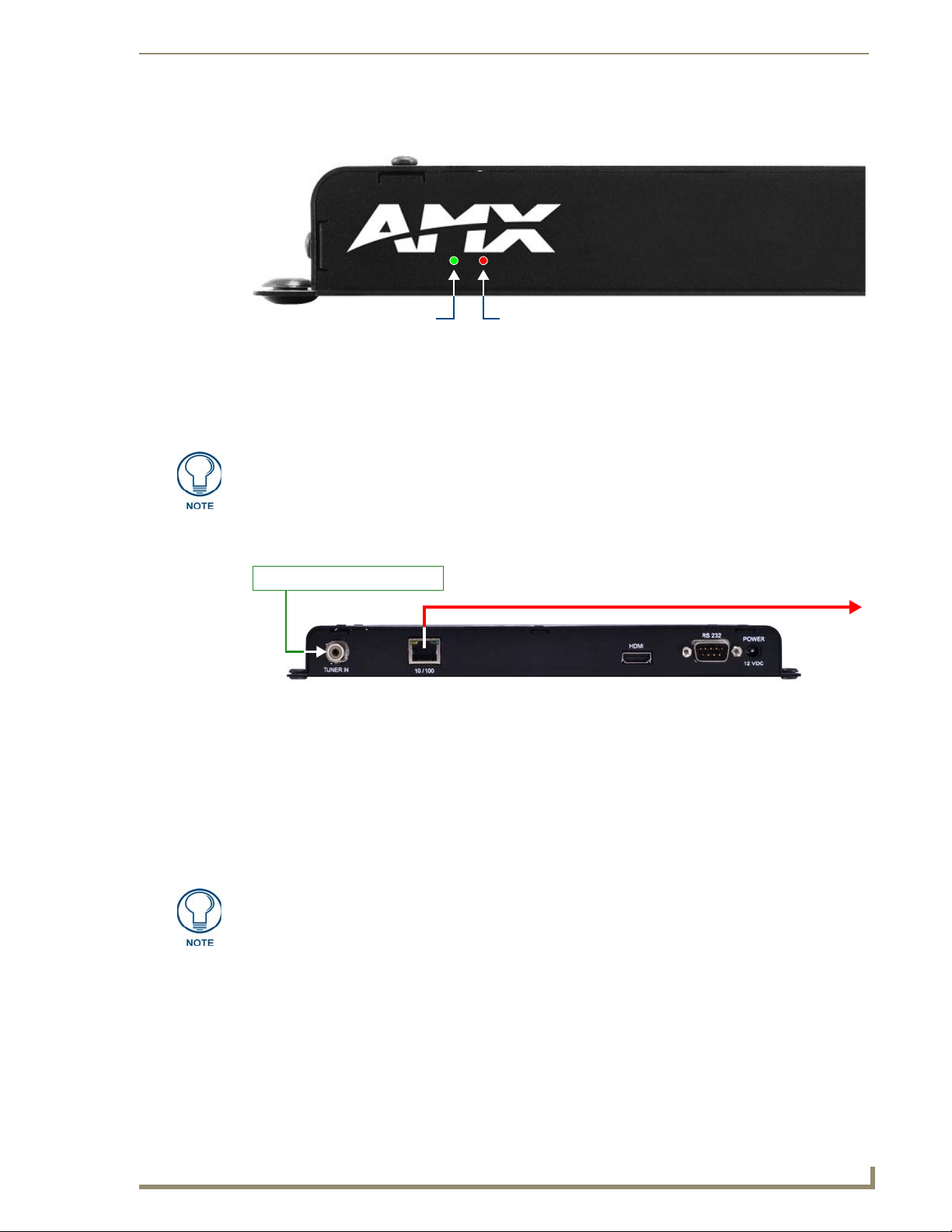

Front Panel - Status LEDs ................................................................................................ 5
Rear Panel - TUNER IN .................................................................................................... 5
Recommended Signal Levels ....................................................................................................... 5

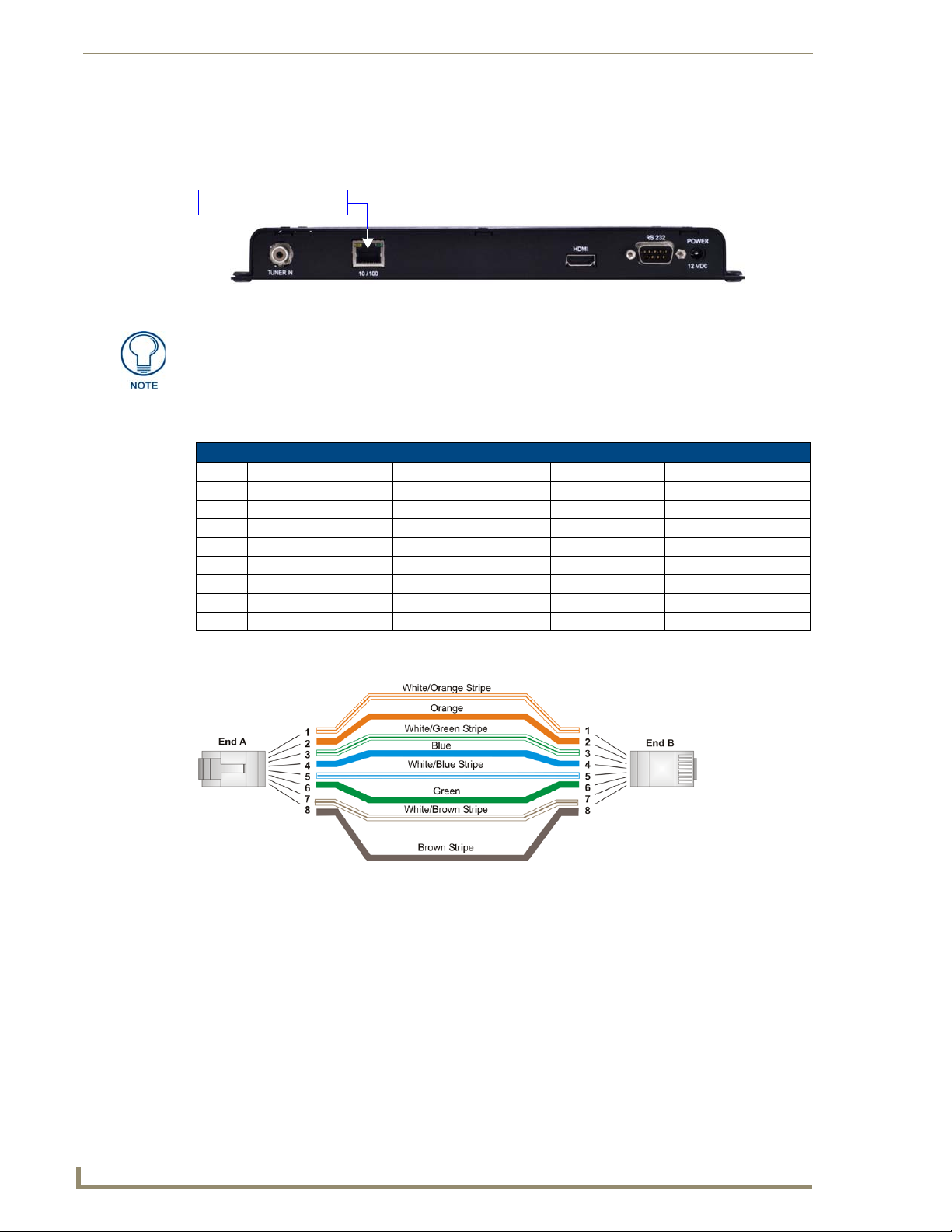

Rear Panel - 10/100 Network Port .................................................................................. 6
10/100 Network Port Pinouts and Signals................................................................................... 6
Ethernet LEDs ............................................................................................................................. 7
Default IP Address ...................................................................................................................... 7
Network Switch Requirements .................................................................................................... 7

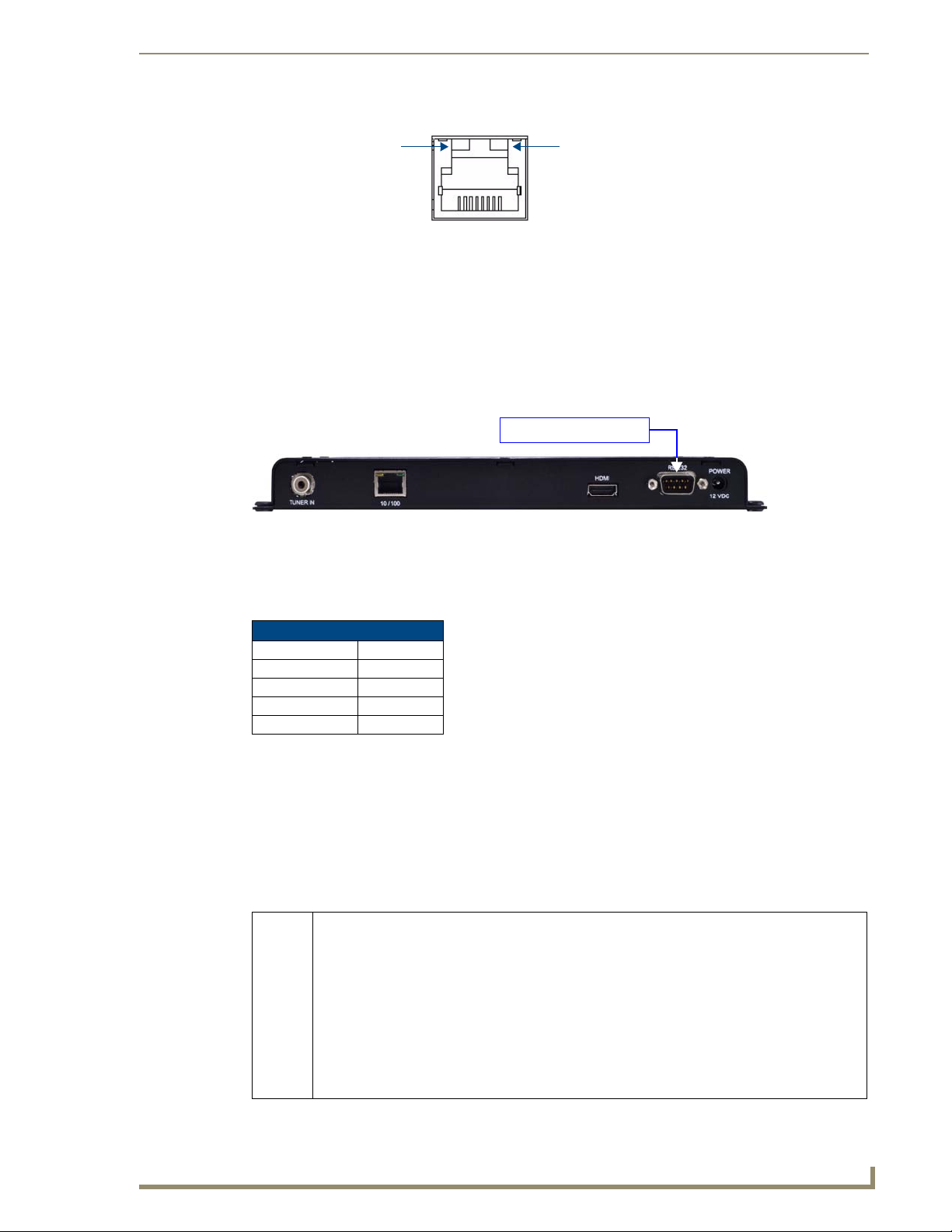

Rear Panel - RS-232 Port ................................................................................................. 7
Setting the Transmitter’s IP Address via the RS232 Port ............................................................ 7
setip lan ....................................................................................................................................7

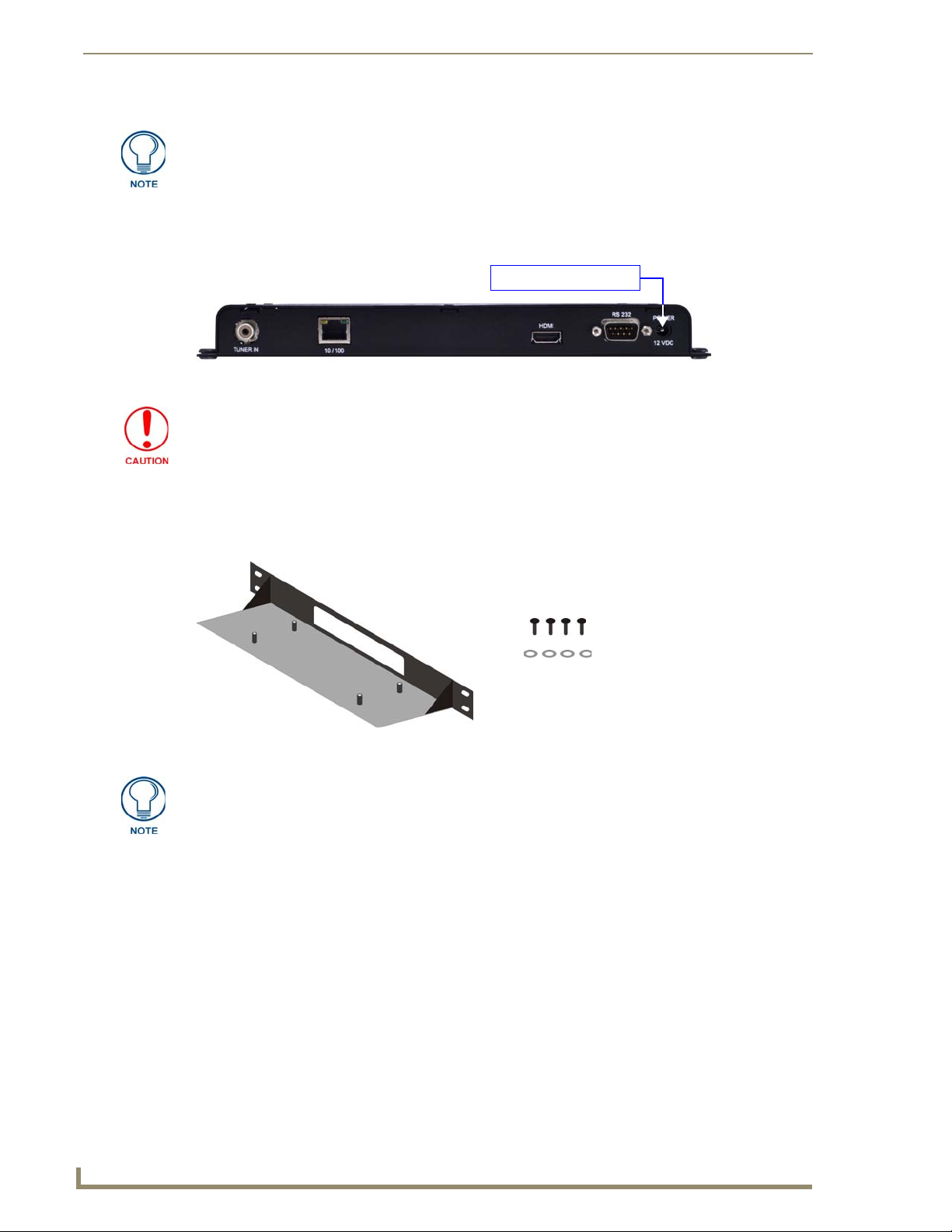

Rear Panel - POWER/12 VDC Connector......................................................................... 8

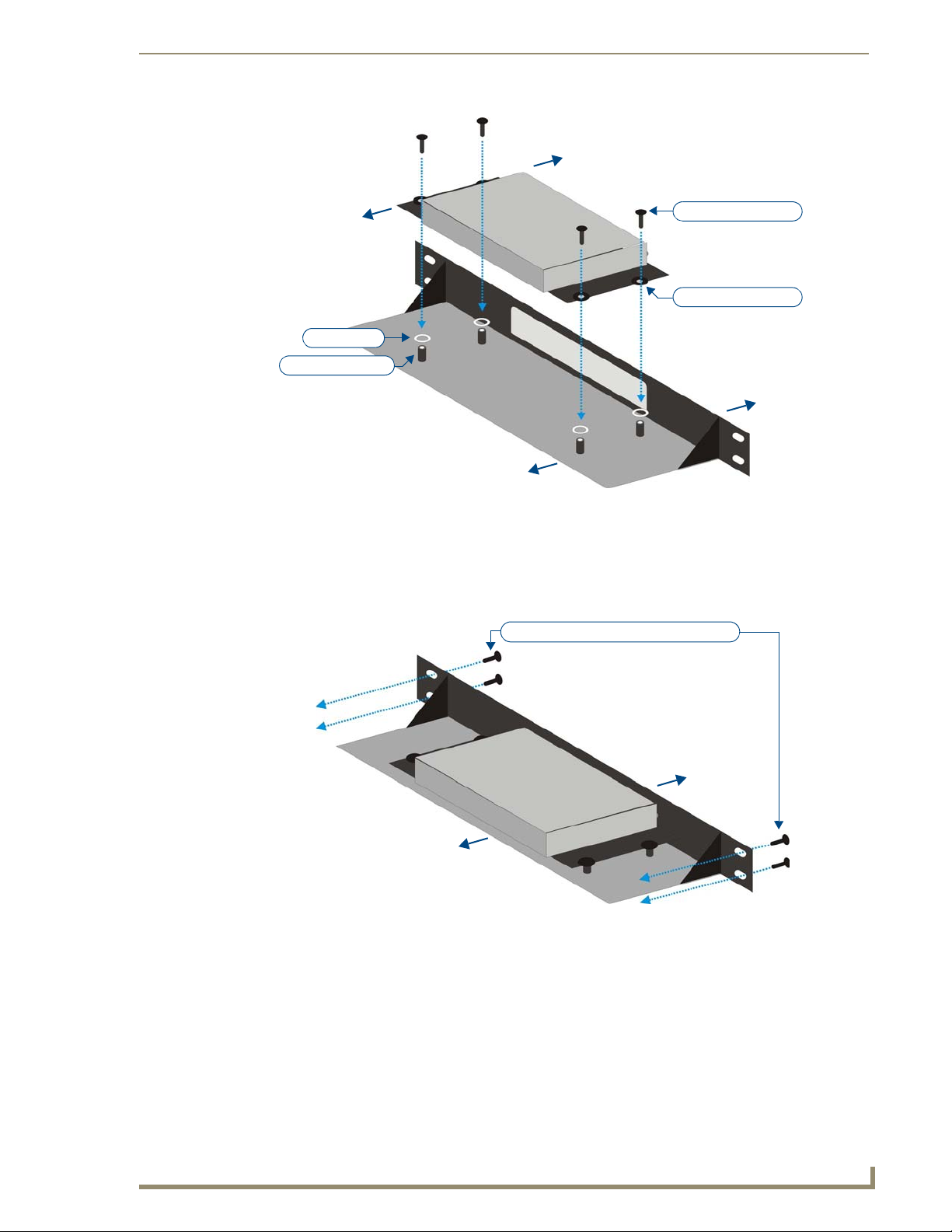

Rack-Mounting DTV-TX03-US Transmitters ..................................................................... 8

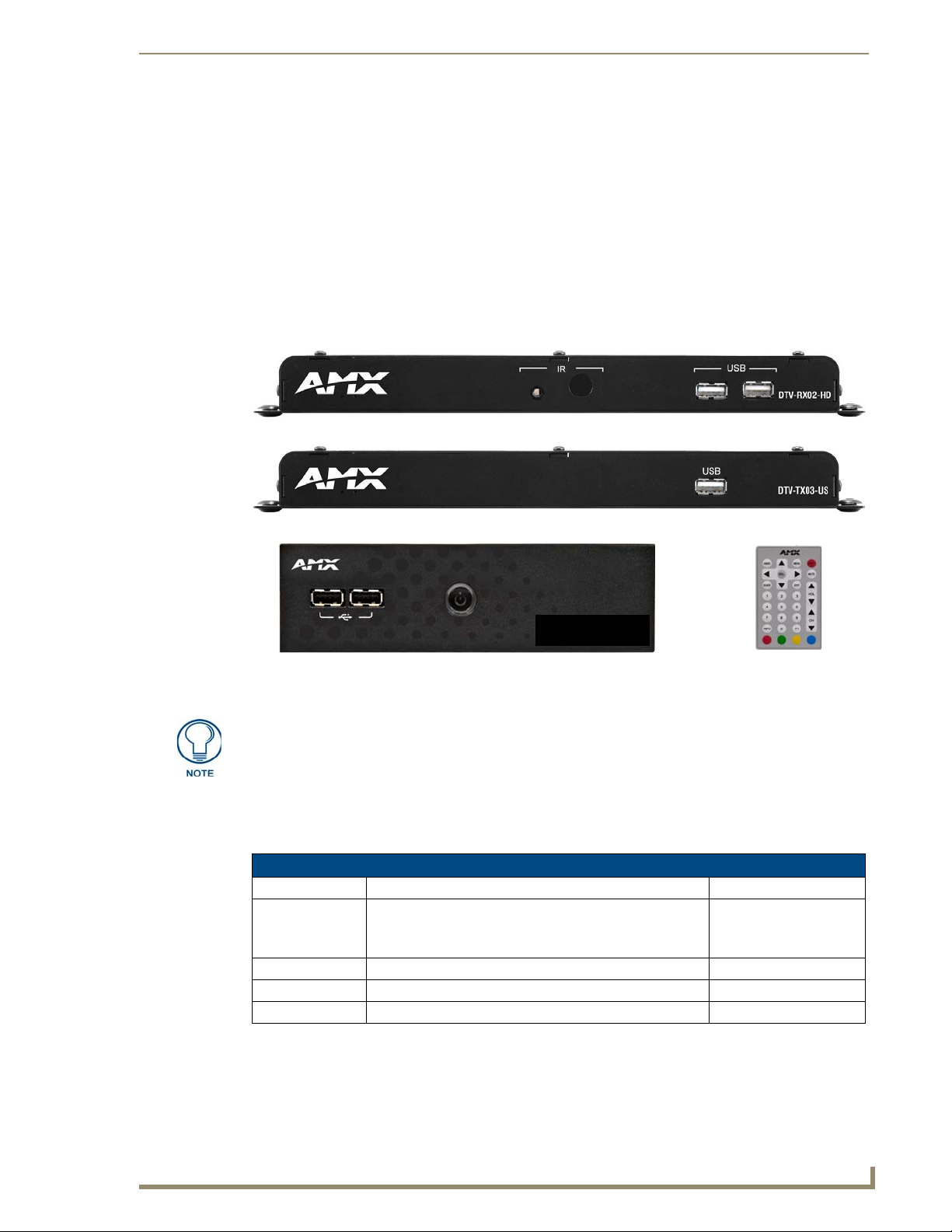

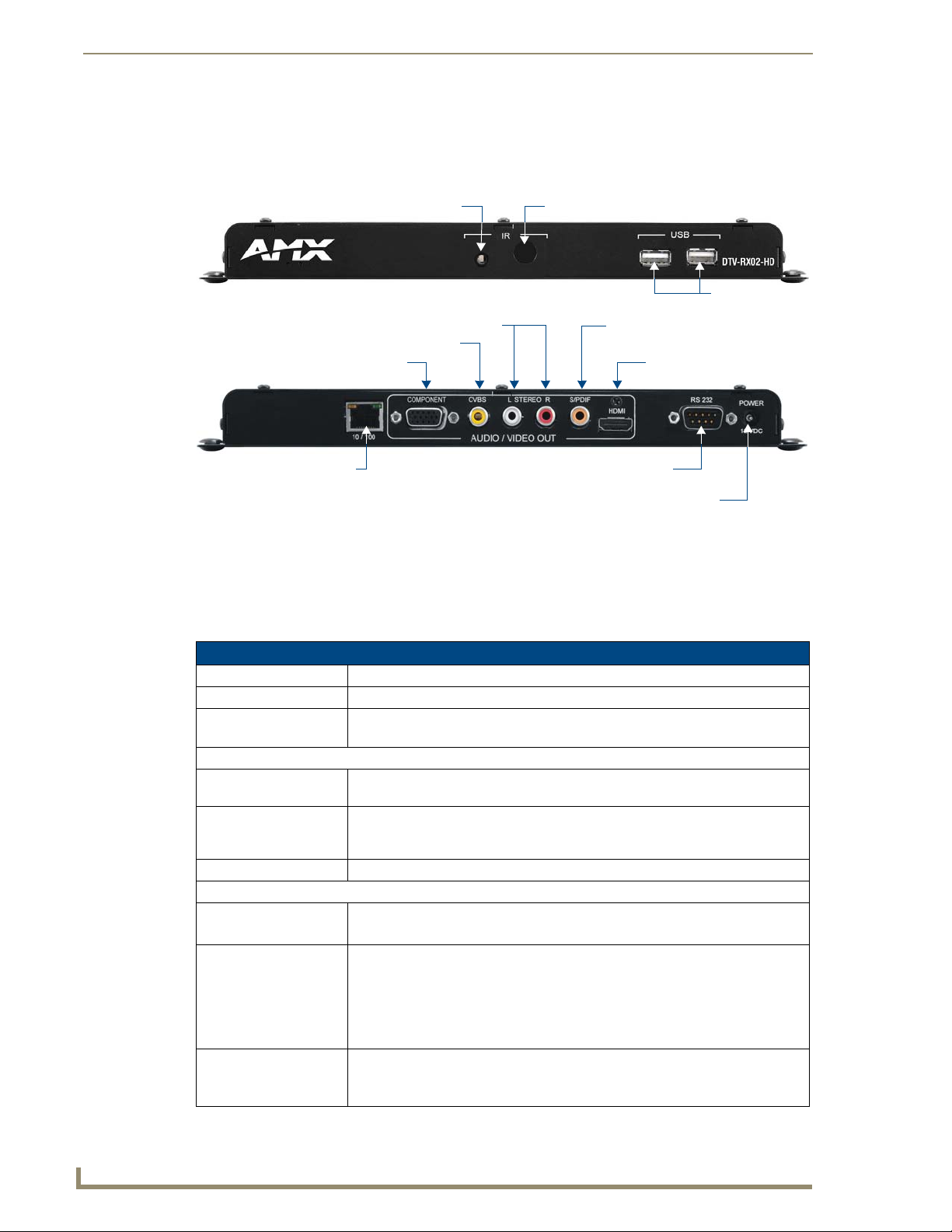

DTV-RX02-HD Receivers ......................................................................................... 10
Trademark Acknowledgement ...................................................................................... 10
Product Specifications................................................................................................... 10
Feature Comparison - HD vs SD Receivers.................................................................... 11
DTV-RX02-HD Receivers - Supported Output Resolutions ............................................ 11
Subtitle Support............................................................................................................ 11
Front Panel - External IR Receiver Socket ..................................................................... 12
Front Panel - IR Receiver ............................................................................................... 12
Rear Panel - 10/100 Network Port ................................................................................ 12
Default IP Address .................................................................................................................... 12
Network Port Pinouts and Signals............................................................................................. 12
Ethernet LEDs ........................................................................................................................... 12
Rear Panel - Video Output Connectors ......................................................................... 13
Rear Panel - Audio Output Connectors ......................................................................... 13
Rear Panel - RS 232 Port ............................................................................................... 13
Setting the Receiver’s IP Address via the RS 232 Port .............................................................. 14
setip lan ..................................................................................................................................14
Rear Panel - POWER/12 VDC Connector....................................................................... 14

ii AMX TDS (Television Delivery System)
Table of Contents
Wiring and Connections.......................................................................................... 15
Installing DTV-TX03-US Transmitters ...................................................................... 16
Applying Power to the Transmitters ............................................................................. 16
Connecting TV Sources to the Transmitter.................................................................... 16
Connecting a Digital Cable TV Source to DTV-TX03-US Transmitters....................................... 16
Recommended Signal Levels..................................................................................................... 16
Connecting the Transmitters to the Network................................................................ 17
Configuring DTV-TX03-US Transmitters ........................................................................ 17
Installing DTV-RX02-HD Receivers .......................................................................... 17
Applying Power to the Receivers .................................................................................. 17
Connecting DTV-RX02-HD Receivers to the Network ................................................... 18
Connecting an (Optional) Remote IR Receiver to DTV-RX02-HD Receivers................... 18
Configuring DTV-RX02-HD Receivers ............................................................................ 18
AMX TDS - Terrestrial/Satellite (Standard Definition) .......................................19
Overview ................................................................................................................ 19
System Components ............................................................................................... 19
DTV-TX Transmitters............................................................................................... 20
DTV-TX01-DVB-T Transmitter ................................................................................. 20
Product Specifications ................................................................................................... 21
DTV-TX02-DVB-S Transmitter ................................................................................. 22
Product Specifications ................................................................................................... 22
DTV-TX Transmitters - Front Panel Components .................................................... 23
Front Panel - ETHERNET 10/100 Port ........................................................................... 23
Network Port Pinouts and Signals ............................................................................................ 24
Ethernet LEDs ........................................................................................................................... 24
Default IP Address .................................................................................................................... 24
Front Panel - Status LEDs .............................................................................................. 25
Front Panel - Common Interface Slots........................................................................... 25
Front Panel - Reset Button ............................................................................................ 26
DTV-TX Transmitters - Rear Panel Components...................................................... 26
Rear Panel - RF IN 1 & 2 ................................................................................................ 27
Rear Panel - RF OUT 1 & 2 (DTV-TX01-DVB-T only)....................................................... 27
Rear Panel - Factory RESET Button ............................................................................... 27
Rear Panel - SERIAL Port ............................................................................................... 28
Setting the Transmitter’s IP Address via the CONSOLE Port.................................................... 28
Rear Panel - 12VDC PWR Connector ............................................................................. 28
DTV-RX01-SD Receivers.......................................................................................... 29
Product Specifications ................................................................................................... 29
Feature Comparison - HD vs SD Receivers .................................................................... 31
Rear Panel - CONSOLE (RJ12) Port ............................................................................... 31
Setting the Receiver’s IP Address via the CONSOLE Port ........................................................ 31

Table of Contents
iii
AMX TDS (Television Delivery System)
Rear Panel - IR Rx Port .................................................................................................. 32
Connecting an IR Receiver......................................................................................................... 32
Rear Panel - IR Tx Port .................................................................................................. 32
Connecting an IR Emitter .......................................................................................................... 33
Rear Panel - Reset Pushbutton ...................................................................................... 33
Rear Panel - Status LEDs ............................................................................................... 33
Rear Panel - Audio Output Connectors ......................................................................... 33
Rear Panel - Video Output Connectors ......................................................................... 34
Rear Panel - ETHERNET 10/100 (PoE) Port ................................................................... 34
Default IP Address .................................................................................................................... 34
Network Port Pinouts and Signals............................................................................................. 34
Ethernet LEDs ........................................................................................................................... 34
Performing a Full Factory Reset on the DTV-RX01-SD Receiver.................................... 35
Wiring and Connections.......................................................................................... 36
Installing DTV-TX-DVB Transmitters ....................................................................... 37
Applying Power to the Transmitters ............................................................................. 37
Connecting TV Sources to the Transmitters .................................................................. 37
Connecting a Terrestrial Source to DTV-TX01-DVB-T Transmitters ........................................... 37
Connecting a Satellite Source to DTV-TX02-DVB-S Transmitters .............................................. 38
Recommended Signal Levels ..................................................................................................... 38
Connecting the Transmitters to the Network................................................................ 38
Using Conditional Access Module (CAM) Modules........................................................ 39
Configuring DTV-TX-DVB Transmitters ......................................................................... 39
Installing DTV-RX01-SD Receivers .......................................................................... 40
Connecting DTV-RX01-SD Receivers to the Network.................................................... 40
Configuring DTV-RX01-SD Receivers ............................................................................ 40
DTV-MA01 TDS Management Appliance ..........................................................41
Overview ................................................................................................................ 41
Rear Panel Components.......................................................................................... 42
12 VDC Power Connector ............................................................................................. 42
Video Output Connectors ............................................................................................. 43
10/100 Network Port .................................................................................................... 43
10/100 Network Port Pinouts and Signals................................................................................. 43
Ethernet LEDs ........................................................................................................................... 44
Default IP Address .................................................................................................................... 44
Network Switch Requirements .................................................................................................. 44
Audio Output Connector............................................................................................... 44
DTV-RC01 Digital TV Remote Controller ..........................................................45
Overview ................................................................................................................ 45

iv AMX TDS (Television Delivery System)
Table of Contents
AMX TDS Installation Overview ........................................................................47
Overview ................................................................................................................ 47
1) Set a Static IP Address for the DTV-MA01.......................................................... 47
2) Access the TDS Configuration Pages .................................................................. 48
3) Configure the NetLinx Master for AMX TDS ...................................................... 48
Load the AMX TDS Module on the NetLinx Master ...................................................... 49
Modify the Master’s Source Code ................................................................................. 49
4) Install System Hardware ..................................................................................... 49
5) Configure the Transmitter(s) ............................................................................... 49
6) Configure the Receiver(s).................................................................................... 51
Scaling and Centering the Picture ................................................................................. 51
Assigning a DTV-RC01 Remote Controller To a Specific Receiver................................. 51
Digital TV Configuration Manager ....................................................................53
Overview ................................................................................................................ 53
Accessing the Digital TV Configuration Manager ................................................... 53
Transmitter Setup Pages......................................................................................... 54
Transmitter Setup - Network Settings........................................................................... 54
Transmitter Setup - Tuner Setup (DTV-TX03-US)........................................................... 56
Transmitter Setup - Tuner Setup (DTV-TX01-DVB-T) ..................................................... 58
Transmitter Setup - Tuner Setup (DTV-TX02-DVB-S) ..................................................... 61
Transmitter Setup - Firmware Upgrade......................................................................... 63
Transmitter Setup - Diagnostic Logs ............................................................................. 65
Receiver Setup Pages ............................................................................................. 66
Receiver Setup - Network Settings ............................................................................... 66
Receiver Setup - Channel Setup .................................................................................... 68
Receiver Setup - Output Settings (DTV-RX02-HD) ........................................................ 69
Receiver Setup - Output Settings (DTV-RX01-SD) ......................................................... 70
Receiver Setup - Firmware Upgrade.............................................................................. 72
Receiver Setup - Diagnostic Logs .................................................................................. 73
External AV Setup Page.......................................................................................... 74
System Setup Page ................................................................................................. 75
Serial Commands ..............................................................................................79
Overview ................................................................................................................ 79
Entering Command Mode....................................................................................... 79
DTV-RX02-HD High-Definition Receivers....................................................................... 79
DTV-RX01-SD Receivers ................................................................................................ 79
ClearQAM/ATSC (High Definition) Serial Commands ............................................. 79
boot ....................................................................................................................................... 79
setip ....................................................................................................................................... 79
setip lan .................................................................................................................................. 79

Table of Contents
v
AMX TDS (Television Delivery System)
Terrestrial/Satellite (Standard Definition) Serial Commands................................... 80
DHCPd,i.i.i.i,gw.gw.gw.gw,nm.nm.nm.nm .............................................................................80
IP? ...........................................................................................................................................80
STATUS ...................................................................................................................................80
setip wlan ...............................................................................................................................80
setip clear ...............................................................................................................................80
STATUS ...................................................................................................................................81
Firmware Upgrades ..........................................................................................83
Overview ................................................................................................................ 83
Upgrading Firmware On the DTV-MA01 ................................................................ 83
Upgrading Firmware on DTV Transmitters and Receivers ...................................... 85
Upgrading Firmware on DTV Transmitters.................................................................... 85
Upgrading Firmware on DTV Receivers ........................................................................ 86
Appendix A: FAQs and Recommendations .......................................................87
FAQs....................................................................................................................... 87
Recommendations .................................................................................................. 88
Appendix B: Network Recommendations .........................................................89
Products Applicability............................................................................................. 89
Introduction ............................................................................................................ 89
Introduction to AMX Television Distribution System .............................................. 89
Network Considerations ......................................................................................... 89
Network Switches ......................................................................................................... 89
Channel/Transport Stream Bandwidth .......................................................................... 89
IGMP ............................................................................................................................. 89
Power Over Ethernet .................................................................................................... 90
Multicast/UDP Port Settings ......................................................................................... 90
Network Distances ........................................................................................................ 90
DHCP Server ................................................................................................................. 90
Appendix C: LNB Recommendations for DTV-TX02-DVB-S Installations ..........91
Products Applicability............................................................................................. 91
Introduction ............................................................................................................ 91
Introduction To Satellite LNBs ................................................................................ 91
Recommendations for Installing DTV-TX02-DVB-S –
Large System With Quattro LNB ......................................................................... 92
Recommendations for Installing DTV-TX02-DVB-S –
Small System With Quad LNB or Multiswitcher ................................................... 93
Notes and Examples ............................................................................................... 95

vi AMX TDS (Television Delivery System)
Table of Contents

AMX Television Distribution System (TDS)
1
AMX TDS (Television Delivery System)
AMX Television Distribution System (TDS)
Overview
AMX Television Distribution Systems simplify the capture, storage and distribution of video content by
providing integrated solutions that support live video, pre-recorded video or TV signals. Using intuitive
interfaces, administrators can control incoming video or TV signals and determine where to project them,
either to a display, projector or PC. They support multicast, as well as most industry standard video file
formats plus audio. And our solutions can build on an existing video infrastructure to simplify the installation
and reduce costs in deploying a video content management system.
AMX Television Distribution System (TDS) products are designed to transmit digital TV content over
Ethernet using a multi-cast enabled LAN as opposed to a separate dedicated coaxial cable.
Television distribution is managed via the DTV-MA01 TDS Management Appliance. Use a PC to connect to
the DTV-MA01, to configure the transmitters and receivers in the system.
The AMX TDS Transmitters send a complete transport stream (MPEG2 and MPEG4, H264, as broadcast by
the service provider) which can include multiple individual channels of live programming to an AMX TDS
Receiver located at the TV display. It also sends control information over the same Ethernet network allowing
the ability to centrally manage the displays including powering them on and off. AMX TDS Receivers are
available both in High-Definition and Standard Definition models (FIG. 1).
Network Considerations
Because of the high bandwidth associated with A/V distribution, the TDS system is typically managed via a
separate IT infrastructure. However, content may be streamed over the main network if desired. Consult your
IT representative to determine the proper network configuration for the TDS system.
The AMX TDS system transmits audio/video using IP multicast. In order for this to work satisfactorily, it is
vital that the network switches are multicast-enabled in order to prevent unwanted flooding of traffic on the
network.
Within the context of AMX TDS documentation. the term “Multicast-enabled” means that all
network switches carry out IGMP snooping, and one switch must function as the IGMP querier.
AMX TDS supports version 2 of IGMP.
FIG. 1 AMX TDS System Components
DTV-TX03-US Transmitter
DTV-RX02-HD Receiver
DTV-MA01 TDS Management Appliance
DTV-RC01 Remote Control
High-Definition (ClearQAM/ATSC)
TDS Components Standard-Definition (DVB Terrestrial & Satellite) TDS Components
DTV-RX01-SD Receiver
DTV-TX01-DVB-T Transmitter
DTV-TX02-DVB-S Transmitter

AMX Television Distribution System (TDS)
2AMX TDS (Television Delivery System)
System Diagram - TDS Distribution
FIG. 2 AMX TDS System Diagram
NetLinx Central Controller
DTV-MA01
DTV-RX01
DTV-RX02
DTV-TX01 DTV-TX02DTV-TX03
Touch Panel
Touch Panel
PC
LAN

AMX TDS - ClearQAM/ATSC (High Definition)
3
AMX TDS (Television Delivery System)
AMX TDS - ClearQAM/ATSC (High Definition)
Overview
This section describes the QAM/ATSC (High Definition) version of the AMX TDS, intended primarily for use
within the USA. The High Definition TDS utilizes DTV-TX03-US Digital TV Transmitters (FG1410-03) and
DTV-RX02-HD High-Definition Receivers (FG1411-02).
Note that both the High-Definition and Standard Definition versions of the AMX TDS utilize the
DTV-MA01 TDS Management Appliance (FG1412-01) and (optionally) the DTV-RC01 Digital TV Remote
Controller (FG1411-70).
FIG. 3 shows the primary components of the AMX TDS (HD) system.
System Components
The AMX TDS system consists of several components, including a Receiver (and IR Remote Controller), and
Transmitter modules.
FIG. 3 AMX TDS System - Component Devices (QAM-High Definition TDS)
DTV-TX03-US Transmitter (front)
DTV-RX02-HD Receiver (front)
DTV-RC01 Remote Control
DTV-MA01 (front)
The Terrestrial/Satellite (Standard Definition) version of the TDS is described in the
AMX TDS - Terrestrial/Satellite (Standard Definition) section on page 19.
AMX TDS - ClearQAM/ATSC (High Definition) - Component Devices
Product Name Description FG#
DTV-TX03-US Digital TV Transmitter QAM/ATSC
• For use with QAM/ATSC digital TV broadcasts
• Provides one transport stream
FG1410-03
DTV-RX02-HD Digital TV Receiver High Definition FG1411-02
DTV-MA01 TDS Management Appliance FG1412-01
DTV-RC01 Digital TV Remote Control FG1411-70

AMX TDS - ClearQAM/ATSC (High Definition)
4AMX TDS (Television Delivery System)
DTV-TX03-US Transmitters
The DTV-TX03-US Digital TV Transmitter (FG1410-03) receives the incoming ClearQAM or ATSC signal
and sends the digital TV content to the DTV Receiver located at the display (FIG. 4).
Product Specifications
FIG. 4 DTV-TX03-US Transmitter
DTV-TX03-US Transmitter
Dimensions (HWD): 1" x 10.5" x 4.25" (2.54 cm x 26.67 cm x 10.76 cm)
Weight: 1 lb (0.45 kg)
Power: • Input Voltage 12VDC
• Power Dissipation 6~10 Watts
Tuners: 1 internal QAM/ATSC tuner
RF Input Level: • 950 - 2150 MHz
• -35 - -55 dBm
Front Panel Components:
Status LEDs: • Power Status LED (green):
• Communication Status LED (red):
USB Connector: not used
Rear Panel Connectors:
TUNER IN (RCA) Accepts incoming QAM/ATSC signals.
Note: Use the included Coax-to-RCA adapter on this connector.
10/100 (RJ45): Standard 10/100 Network (RJ45) connector (see Network Switch Requirements).
HDMI: Reserved for future implementation.
RS232 (DB9): Serial connector for local command line interface (RS232 only).
POWER: Barrel plug accepts 12VDC power from the included power supply.
Note: This connector is intended to be used only with the provided power supply.
Environment: • Operating Temperature: 32°F - 122°F (0°C to 50°C)
• Operating Humidity: 85% (Max relative humidity, non-condensing)
Certifications: • CE
• FCC part 15 Class A
Included Accessories: • 12V Power Supply
• Coax-to-RCA connector adapter
Other AMX Equipment: • DTV-MA01 TDS Management Appliance (FG1412-01)
• DTV-RX02-HD Receiver (FG1411-02)
• CC-232 Serial Communication Cable (FG10-752-04)
• DTV-RK-TX03 Rack-Mounting Kit (FG1410-61)
(front)
(rear) 10/100 (RJ45) Ethernet connector (to network)
RS232 Serial connector (DB9: for local device control only)
PWR connector
QAM/ATSC Tuner Input
Communication Status LED (red)
Power Status LED (green)
not used
not used

AMX TDS - ClearQAM/ATSC (High Definition)
5
AMX TDS (Television Delivery System)
Front Panel - Status LEDs
The two status LEDs are located on the front panel, directly beneath the AMX logo (FIG. 5):
Power Status (green): Lights to indicate that the Transmitter is receiving power and is functional. If
the LED fails to light, check your 12VDC Power connection (see the Applying Power to the
Transmitters section on page 16).
Communication Status (red): Lights to indicate that the Transmitter is connected to the network.
Rear Panel - TUNER IN
The TUNER IN (RCA) connector accepts incoming QAM/ATSC TV signals via coax cable (FIG. 6).
In order to use the TUNER IN (RCA) connector with coax cable, you must first install the included
Coax-to-RCA adapter (see FIG. 25 on page 16).
Refer to the Connecting TV Sources to the Transmitter section on page 16 for details.
Recommended Signal Levels
AMX TDS Transmitters require good quality input signals. The recommended signal levels for QAM
Transmitters are:
Signal to noise ratio (SNR): > 7 - 9 dB
Bit error rate (BER): < 2E-04
FIG. 5 Status LEDs
Communication Status LED (red)
Power Status LED (green)
The USB Port on the front panel is not used at this time.
FIG. 6 TUNER IN (shown with Coax-to-RCA adapter installed)
Video is distributed via
Ethernet to DTV Receiver(s)
Incoming Digital TV Signal
For best results, only stream QAM channels with a Strength rating of 201-255, as
indicated in the Tuner Setup page (see the Transmitter Setup - Tuner Setup (DTV-
TX03-US) section on page 56).

AMX TDS - ClearQAM/ATSC (High Definition)
6AMX TDS (Television Delivery System)
Rear Panel - 10/100 Network Port
The 10/100 (Ethernet RJ45) port on the front panel provides 10/100 BaseT network connectivity via
Cat5/5e/6 network cable (FIG. 7). Refer to the Connecting the Transmitters to the Network section on page 17
for more information.
10/100 Network Port Pinouts and Signals
The following table lists the pinouts, signals, and pairing for the 10/100 Network port.
FIG. 8 diagrams the pinouts and signals for the 10/100 Port RJ45 connector and cable. Note that while 568B
termination is shown in the figure, 568A can also be used, as long as both ends are terminated the same way.
Consult the Network Administrator for correct cabling from the DTV-TX03-US Transmitter onto the network.
For remote connectivity, the Firewall may have to be configured to open port 2008 for remote
connectivity over UDP.
Ports 5000 and 5001 are required for the Transmitters as well as any ports used for the TDS
Multicast stream.
Ports 5002 and 5003 are fixed as the multicast stream output ports.
FIG. 7 10/100 Ethernet Port
Cat5/5e/6 network cable
DTV-TX03-US Transmitters require Layer 3 switching. Therefore a Layer 3 Network
Switch (sometimes referred to as a "Multilayer Switch") is required to operate
properly.
10/100 Port Pinouts and Signals
Pin Signals Connections Pairing Color
1 TX + 1 --------- 1 1 --------- 2 Orange-White
2 TX - 2 --------- 2 Orange
3 RX + 3 --------- 3 3 --------- 6 Green-White
4 no connection 4 --------- 4 Blue
5 no connection 5 --------- 5 Blue-White
6 RX - 6 --------- 6 Green
7 no connection 7 --------- 7 Brown-White
8 no connection 8 --------- 8 Brown
FIG. 8 RJ45 wiring diagram

AMX TDS - ClearQAM/ATSC (High Definition)
7
AMX TDS (Television Delivery System)
Ethernet LEDs
Default IP Address
By default, DTV-TX03-US Transmitters are set to DHCP.
Network Switch Requirements
DTV-TX03-US Transmitters require a Layer 3 Gigabit Switch with multicast support,
IGMP Querier/Snooping and PIM.
Rear Panel - RS-232 Port
The RS-232 port on the rear panel provides a serial interface that provides basic diagnostics and the ability to
change the IP address, via a standard DB9 connector (FIG. 10).
Use a standard DB9 programming cable such as the CC-232 (FG10-752-04, not included) to
connect to a PC for Terminal communication.
Supported terminal commands are listed in the Serial Commands section on page 79.
Use hyper terminal with default serial settings to communicate with the DTV Transmitters:
Setting the Transmitter’s IP Address via the RS232 Port
In most cases, all setup and configuration for both Transmitters and Receivers is done via the Digital TV
Configuration Manager (see the Digital TV Configuration Manager section on page 53 for information).
However, the Transmitter’s IP Address can also be specified via serial command, using the RS232 port on the
rear panel (see FIG. 10).
In order to configure the network settings via the RS232 port, the Transmitter must be placed in command
mode. To place the Transmitter in command mode, press ’Enter’ while the unit is booting up. To reboot, re-
cycle power by disconnecting and re-connecting the 12VDC POWER connector on the rear panel.
Use the setip lan serial command to configure the network settings:
FIG. 9 Ethernet LEDs
FIG. 10 RS-232 Port
Default Serial Settings
Baud Rate: 115200
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None
setip lan Following prompts to configure LAN network settings. This setting takes effect immediately after the
unit boots up.
Enter DHCP option (0/1) >
Enter ipAddr:
Enter subnet:
Enter Gateway:
Enter priDNS:
Enter secDNS:
Enter DomainName:
Note: If DHCP is set, all other options to enter IP address setting will be skipped. If entry is not valid,
it will be prompted again. If second entry is still not valid, the configuration will exit without saving.
SPD - Speed LED
connection speed is 100 Mbps
and turns Off when speed is
lights (yellow) when the
L/A - Link/Activity LED
lights (green) when the
Ethernet cables are
connected and terminated 10 Mbps.
correctly.
DB9 programming cable

AMX TDS - ClearQAM/ATSC (High Definition)
8AMX TDS (Television Delivery System)
Rear Panel - POWER/12 VDC Connector
Connect the power adapter to the Transmitter, and plug the power adapter into an AC power outlet (FIG. 11).
Rack-Mounting DTV-TX03-US Transmitters
Use the DTV-RK-TX03 Rack-Mounting Kit (FG1410-61) to mount the DTV-TX03-US into a standard 19"
equipment rack. The DTV-RK-TX03 uses a single RU. The components of the Rack-Mounting Kit are shown
in FIG. 12:
The mounting base of the DTV-TX03-US Transmitter has four mounting holes that fit over the posts on the
mounting shelf.
1. Align the mounting holes on the Transmitter with the mounting posts on the Mounting Shelf (FIG. 13).
All DTV Transmitters and Receivers must have an assigned IP Address, Network
Mask, and Gateway Address in order for the DTV system to work correctly. This
applies to units that utilize DHCP and to units that have been assigned Static IP
addresses. If you are using DHCP, verify that these address assignments are
provided by the DHCP Server.
FIG. 11 POWER/12 VDC Connector
Supplied Power Adapter
Use ONLY the power adapter supplied with the Transmitter. Otherwise, the unit
may be damaged.
FIG. 12 DTV-RK-TX03 Rack-Mounting Kit Components
4 mounting screws
4 washers
mounting shelf
Rack-mounting the DTV-TX03-US Transmitter requires four plastic grommets, which
are not included with the Rack-Mounting Kit. Rather, they are included with the
Transmitter.

AMX TDS - ClearQAM/ATSC (High Definition)
9
AMX TDS (Television Delivery System)
2. Insert a washer between each Mounting Post on the shelf and matching Mounting Hole on the
Transmitter.
3. Use the supplied mounting screws to secure the Transmitter to the Mounting Shelf.
4. Once the Transmitter is secured to the Mounting Shelf, the entire assembly can be mounted into the
equipment rack using four rack screws (not included - FIG. 14).
FIG. 13 Placing the Transmitter on the mounting posts
FIG. 14 Placing the Transmitter on the mounting posts
front
rear
DTV-TX03-US Transmitter
Mounting Shelf
front
rear
Washer (x4)
Mounting Post (x4)
Mounting Hole (x4)
Mounting Screw (x4)
front
rear
Rack-mounting screws (x4, not included)

AMX TDS - ClearQAM/ATSC (High Definition)
10 AMX TDS (Television Delivery System)
DTV-RX02-HD Receivers
The DTV-RX02-HD High-Definition Receiver (FG1411-02) is located at the display and receives incoming
transmitted digital TV signal (from a DTV Transmitter), and converts it to a compatible format for a target
display in High Definition (FIG. 15).
Trademark Acknowledgement
The design of the DTV-RX02-HD was approved by Dolby™.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
Product Specifications
FIG. 15 DTV-RX02-HD Receiver
Product Specifications - DTV-RX02-HD Receiver
Dimensions (HWD): 1" x 10.5" x 4.25" (2.54 cm x 26.67 cm x 10.76 cm)
Weight: 0.90 lbs (0.41 kg)
Power: • Input Voltage 12VDC
• Power Dissipation 6~10 Watts
Front Panel Components
External IR Receiver
Socket: Connects to External IR Receiver (60-1411-01)
IR Receiver: The IR Receiver on the front panel allows the DTV-RX02-HD to use the DTV-RC01
Digital TV Remote Control for channel selection and control of local monitor
volume and power.
USB Ports: not used
Rear Panel Connectors
10/100 (RJ45): Standard 10/100 Network (RJ45) connector.
Note: The DTV-RX02-HD does not support PoE power.
AUDIO / VIDEO OUT
Connectors: • COMPONENT: 15-pin connector provides Component video output. • CVBS: RCA connector provides Composite video output.
• L / R Stereo: RCA connectors provide L /R Analog audio output.
• SPDIF: RCA connector provides Digital audio output.
• HDMI: HDMI connector provides HDMI video output.
Note: See for a listing of supported video output resolutions.
RS232 (DB9): Serial connector for local command line interface (RS232 only).
Mainly used for control of TV, and can be used for changing IP (see the Setting the
Receiver’s IP Address via the RS 232 Port section on page 14 for details).
CVBS digital video Out SPDIF digital audio OutAnalog audio Out (L/R)
(front)
IR Receiver
RS232 Serial connector
(DB9: for local device control only)
PWR connector
10/100 (RJ45) Ethernet
connector (to network)
Component video Out HDMI video Out
not used
(rear)
External IR Receiver socket

AMX TDS - ClearQAM/ATSC (High Definition)
11
AMX TDS (Television Delivery System)
Feature Comparison - HD vs SD Receivers
The following table provides a summarized feature comparison for the DTV-RX01-SD (Standard Definition)
Receivers and DTV-RX02-HD (High-Definition) Receivers:
Refer to the DTV-RX01-SD Receivers section on page 29 for detailed information on the Standard Definition
DTV Receivers.
DTV-RX02-HD Receivers - Supported Output Resolutions
The following table lists all video output resolutions supported by the DTV-RX02-HD Receivers:
Subtitle Support
DTV-RX02-HD Receivers do not support the display of subtitles.
Product Specifications - DTV-RX02-HD Receiver (Cont.)
Rear Panel Connectors (Cont.)
POWER: Barrel plug accepts 12VDC power from the included power supply.
Note: This connector is intended to be used only with the provided power supply.
Operating Environment: • Temperature: 35°F - 95°F (5°C - 35°C)
• Humidity: Max. relative humidity - 85% (non-condensing)
Certifications: • CE
• FCC part 15 Class A
Included Accessories: • 12 VDC Power Supply
• DTV-RC01 Digital TV Remote Control (FG1411-70)
• External IR Receiver (60-1411-01)
Other AMX Equipment: • DTV-MA01 TDS Management Appliance (FG1412-01)
• DTV-TX01-DVB-T Transmitter (FG1410-01)
• DTV-TX02-DVB-S Transmitter (FG1410-02)
• DTV-TX03-US Transmitter (FG1410-03)
• CC-232 Serial Communication Cable (FG10-752-04)
Feature Comparison - HD vs SD Receivers
Feature DTV-RX01-SD (FG1411-01) DTV-RX02-HD (FG1411-02)
Definition Standard (PAL or NTSC) High (to 1080p)
Video Decoding MPEG2 MPEG2, MPEG4pt2 and MPEG4pt10 (H.264)
Audio Decoding MPEG2 MPEG2, MPEG2layer3 (MP3), AC-3
Subtitles ETSI EN 300 743 EIA-608 (encoded line 21)
IP Stream decoding UDP UDP
PoE Yes No
IR Remote (SC-31) Yes Yes
IR Remote (SC-33) Yes No
Display Control - IR Yes No
Display Control - Serial Yes Yes
Control Menu Yes Yes
On Screen Display OSD Yes No
MAX CSE support No Yes
DTV-RX02-HD Receivers - Supported Output Resolutions
• 1920 x 1080p / 60Hz (*) • 1080p / 50Hz (*)
• 1920 x 1080i / 60Hz (*) • 1080i / 50Hz (*)
• 1280 x 720p / 60Hz (*) • 720p / 50Hz (*)
• 480p / 60Hz • 576p / 50Hz (*)
• 480i / 60Hz • 576i / 50Hz (*)
Note: The asterisk (*) indicates dual output with HDMI/Component

AMX TDS - ClearQAM/ATSC (High Definition)
12 AMX TDS (Television Delivery System)
Front Panel - External IR Receiver Socket
The IR Receiver socket on the front panel (FIG. 16) connects to the included External IR Receiver
(60-1411-01).
Front Panel - IR Receiver
The IR Receiver on the front panel allows the DTV-RX02-HD to use the DTV-RC01 Digital TV Remote
Control (included) for channel selection and control of local monitor volume and power (FIG. 17).
Rear Panel - 10/100 Network Port
The NETWORK (RJ45) port provides 10/100 BaseT network connectivity (FIG. 18). Refer to the Connecting
DTV-RX02-HD Receivers to the Network section on page 18 for more information.
Default IP Address
By default, DTV Receivers are set to DHCP.
Network Port Pinouts and Signals
Refer to the 10/100 Network Port Pinouts and Signals section on page 6.
Ethernet LEDs
Refer to the Ethernet LEDs section on page 7.
FIG. 16 External IR Receiver Socket
FIG. 17 IR Receiver
FIG. 18 10/100 Network Port
External IR Receiver
IR Receiver
Cat5/5e/6 network cable
The maximum distance that a Receiver can be mounted from the Network
Switch is 100m (328’).
Consult the Network Administrator for correct cabling from the DTV-RX02 Receiver
onto the network. For remote connectivity, the Receivers will use ports 2008, 5000,
5001, 5002 and 5003 for remote connectivity over UDP.
