Analogix SlimPort NANO.CONSOLE User manual

QUICK START GUIDE

Sharing your screen with your SlimPort
NANO·CONSOLE is as easy as using your phone.
Use this quick start guide to begin.
WELCOME TO YOUR
2

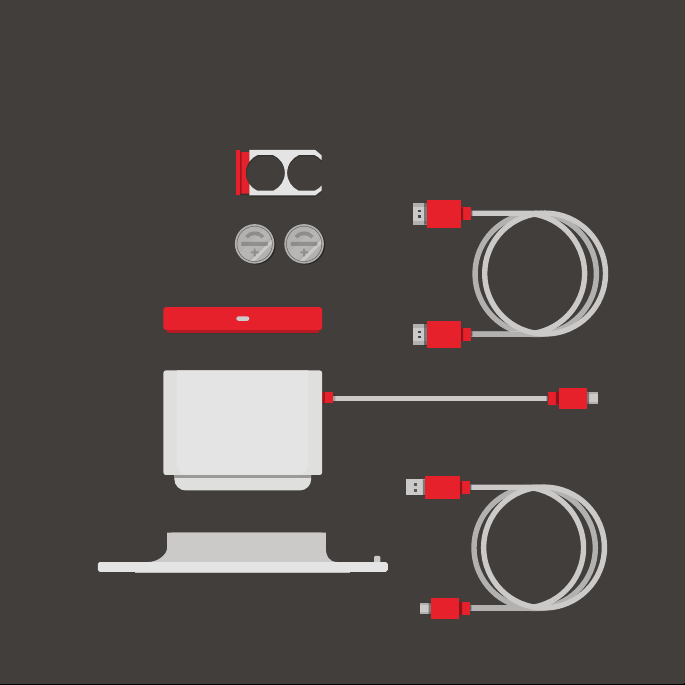

HERE’S WHAT COMES WITH YOUR NANO·CONSOLE.
Base
Tower
NANO
Remote
Battery Tray
(Inside the remote)
Batteries (2)
Type: CR2032 3V
(located inside the remote)
HDMI Cable
Micro-USB Charging Cable
3

SETTING UP YOUR NANO·CONSOLE
Your NANO·CONSOLE is designed to hold
your device as it connects to larger displays.
One side of the base has a raised lip.
Attach the tower to the base so the
writing on the top of the tower (“SlimPort
NANO·CONSOLE”) reads from left to right
when aligned with the lip.
The NANO Remote is designed to
rest on the surface of the tower.
See page 8 for more information
on how to use the NANO Remote.
Raised Lip
4

CONNECTING YOUR DEVICE TO THE NANO·CONSOLE
Plug the Micro-USB connector that
is permanently attached to the
NANO·CONSOLE into the Micro-USB port
on your SlimPort-enabled device.
Tip: You can also charge your device by plugging
the provided untethered Micro-USB cable into the
NANO·CONSOLE and then into your device’s USB
wall charger as normal.
5
