Ancar TD-700 User manual

DENTAL STOOLS
USER MANUAL
September 2015, QS4 692 v.1
TD-700
TD-600
TD-500

USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500
3
Antoni Carles, S.A.
Volta dels Garrofers, 41-42
Pol. Ind. Els Garrofers
08340-Vilassar de Mar
(Barcelona-SPAIN)
T. (34) 93 754 07 97
F. (34) 93 759 26 04
[e-mail]
www.ancar-online.com
EC Declaration of Conformity (Directive 93/42/EEC, annex VII)
Manufacturer’s Name
ANTONI CARLES, S.A.
With medical device manufacturing and assembly license number 2509-PS granted by the Health
Authorities of Spain
Name of device Type or Model:
Dental Stool
Code GMDNS: 11164 TD-500 / TD-600 / TD-700
Intended use: Equipment to facilitate support and height adjustment to user provided with casters,
and with or without backrest.
Device Class According to the intended use and the criteria of Annex IX of the Directive:
Class I (rule 12).
Scope of Application: All (including pieces and accessories)
This Declaration is based on Certicates issued by DNV:
# 171338-2015-AQ-IBE-NA, according to ISO 13485:2003 / NS-EN ISO 13485:2012.
# 171281-2015-AQ-IBE-ENAC, according to ISO 9001:2008
We, the undersigned, under our sole responsibility, certify and declare that the medical devices specied
above are in conformity with the essential requirements, which are applicable to them, of RD 1591/09,
transposition to the Spanish law of the directive 93/42/EEC, as it has been modied by 2007/47/EC. We
also declare that we comply with the design and construction requirements of the following standards:
ISO 7493:2006 Dentistry. Operator’s stool
EN ISO 14971 :2012 Medical Devices. Application of Risk Management to Medical Devices.
We also declare constructive materials fulll RD 219/13, transposition law of the directive RoHS II
(2011/65/EU).
Josep Álvarez Antoni Carles Bosch 29 September 2015
Regulatory & Safety Officer General Manager
ANTONI CARLES, S.A.
Pol. Ind. “Els Garrofers”
C/Volta dels Garrofers, 41-42.
08340 VILASSAR DE MAR
BARCELONA-SPAIN
ANTONI CARLES BOSCH
Authorized Signatory Stamp, Date

USER MANUALDENTAL STOOLS - QS4-692-01 / TD-700/600/500
4

USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500
5
1.- GENERALITIES 6
2.- GUARANTEE 6
3.- IDENTIFICATION 6
4.- PRECAUTIONS 7
5.- CLEANING AND DISINFECTING 7
6.- INTENDED USE 7
7.- TD-700 STOOL 8
7.1.- TD-700 PACKAGING 8
7.2.- TD-700 ASSEMBLY 8
7.3.- TD-700 USE 8
7.4.- TD-700 TECHNICAL SPECIFICATION 10
8.- TD-600 STOOL 11
8.1.- TD-600 PACKAGING 11
8.2.- TD-600 ASSEMBLY 11
8.3.- TD-600 USE 13
8.4.- TD-600 TECHNICAL SPECIFICATION 14
9.- TD-500 STOOL 15
9.1.- TD-500 PACKAGING 15
9.2.- TD-500 ASSEMBLY 15
9.3.- TD-500 USE 16
9.4.- TD-500 TECHNICAL SPECIFICATION 17
TABLE OF CONTENTS

USER MANUALDENTAL STOOLS - QS4-692-01 / TD-700/600/500
6
1.- GENERALITIES
Thank you for purchasing an ANCAR dental stool.
This instruction manual contains information on the dental stool models: Sd-700, Sd-600, Sd-500,
including their conguration and maintenance.
Notes
This symbol means ATTENTION, RECOMMENDATION or OBLIGATION
Before start using the dental stool you must have read and fully understood
content of this user manual.
Keep this manual in a safe place for future reference, for as long as you use it.
Follow all safety standards.
It is the user’s responsibility to keep the product in correct conditions of working
and cleanliness.
This dental stool is for the exclusive use of a professional, who should have the appropriate training
and be a member of a dental association to practise as a dentist.
This dental stool may only be installed and serviced by authorised technicians.
The stool must be placed in an environment with controlled conditions, including temperature
(+10˚C to +40˚C), humidity (30-75 %) and atmospheric pressure (700 a 1060 hPa), free from dust
and condensation and protected from direct sunlight.
Antoni Carles, S.A. reserves the right to make any improvements or modications to the dental
stool without prior warning.
The stool must be used in accordance with the use instructions.
2.- GUARANTEE
Ancar provides 2 year warranty. The Certicate of Guarantee must be completed. Please ll in form
through website (Distributor’s zone / Guarantee Certicate) within 8 days of delivery of the device.
3.- IDENTIFICATION
Every Ancar dental stool is identied with an information tag (Fig 1.)
TD-700 TD-600 TD500
Fig.1

USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500
7
0434
This symbol means the equipment is certied under Directive 93/42/EEC (modied in
accordance to 2007/47/EC).
This symbol is only applicable for member countries of the European Union.
In order to avoid potencial negative consequences for the environment or even
human health, this equipment should be disposed of (i) in EU member countries – in
accordance with the WEEE (Waste Electrical and Electronic Equipment) Directive, and
(ii) for all other countries, in accordance with local provisions and recycling laws.
4.- PRECAUTIONS
CLAUSES
Antoni Carles, S.A. will not assume responsibility for damages caused by re, natural disasters,
third party activities or other accidents caused by operator negligence or misuse, or from using the
equipment under unusual conditions.
Antoni Carles, S.A. will not assume responsibility for damages deriving from the improper use of
equipment, causing a loss of business or loss of earnings.
Antoni Carles, S.A. will not assume responsibility for results of diagnoses made by a doctor using
this equipment.
ENVIRONMENTAL PROTECTION
All packaging materials are produced in respect for the environment and are fully recyclable:
wooden pallets, cardboard, plastic bags and bubble-wrap. Collecting used materials helps
collection and recycling and reduces waste material.
ENVIRONMENTAL CONDITIONS
While it is in its packaging for transport and storage, the equipment can withstand being exposed
for no longer than 15 weeks to environmental conditions that do not exceed:
a) ambient temperature margin from -20˚C to +50˚C.
b) a relative humidity margin of 10 % to 100 %, including condensation.
c) an atmospheric pressure margin of 500 hPa to 1060 hPa (from 500 mbar to 1060 mbar).
-Functioning conditions:
d) ambient temperature margin from +10˚C to +40˚C.
e) a relative humidity margin of 30 % to 75 %, including condensation.
f) an atmospheric pressure margin of 700 hPa to 1060 hPa (from 700 mbar to 1060 mbar).
5.- CLEANING AND DISINFECTING
When cleaning your dental stool, it is essential to use neutral products. Cleaning products with high
chemical content can damage plastic parts or upholstery. Various specialists in the dental hygiene
industry offer a wide range of cleaning products for achieving optimum results.
6.- INTENDED USE
Stool is dened as stationary device exclusively to seat dental operator in order to obtain a better
work position and approach with respect patient.
Do not use for personnel or material transport purposes, nor to get on it when carrying out work
at height.
Only for one-off moment and for horizontal displacements provided oor is absolutely at and free
from any kind of obstacle.

USER MANUALDENTAL STOOLS - QS4-692-01 / TD-700/600/500
8

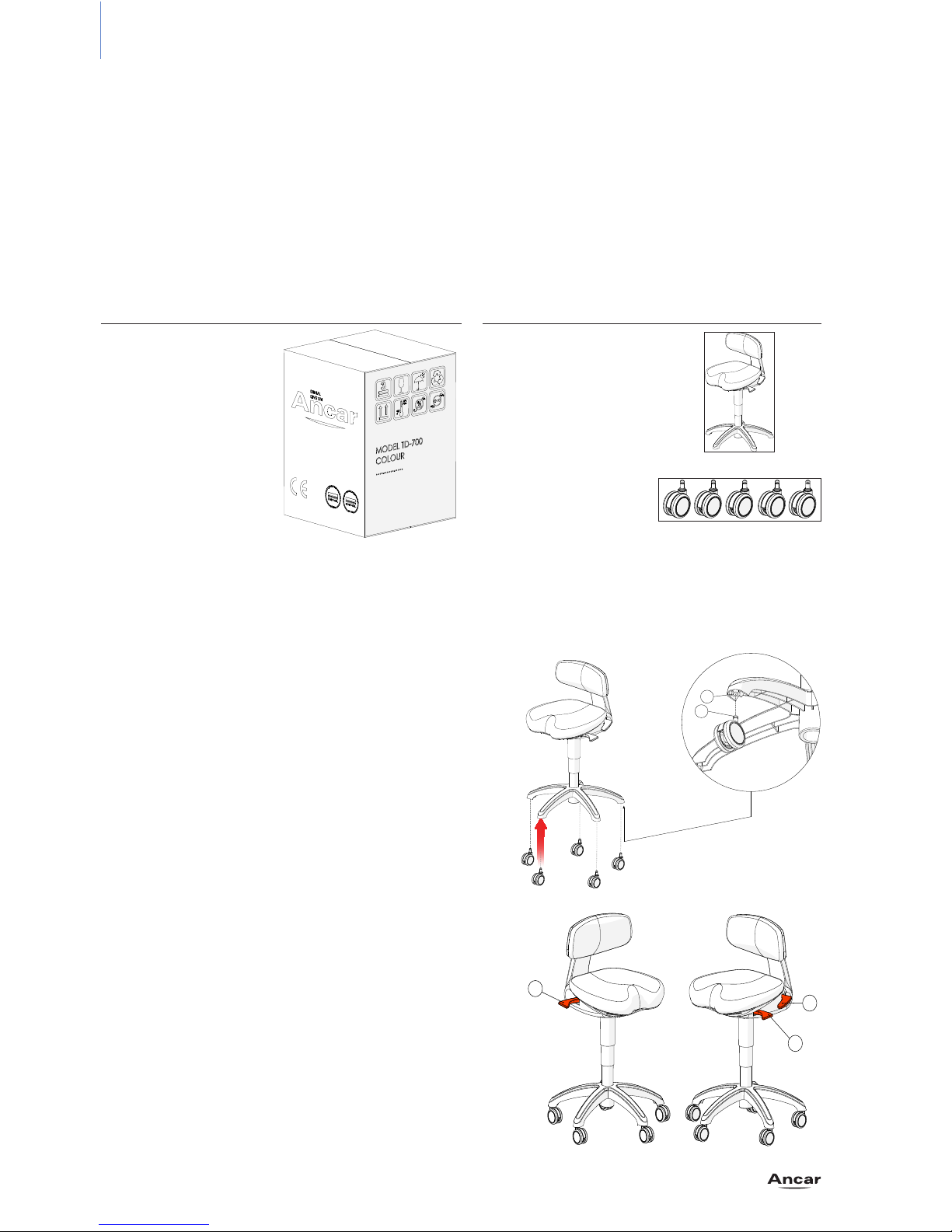

7.2.- TD-700 Assembly
UNPACK
Remove all the TD-700 components out of the packaging and place these on a horizontal surface.
7.- TD-700
The Td-700 is a dentist / assistant dental stool that the user can adjust the seat position (sitting
height and seat inclination) and the backrest position (height and inclination).
7.1.- TD-700 Packaging
The TD-700 is delivered with one single packaging with the Ancar identication, the stool model
name and the upholstery colour indicated on the box sides.
7.3.- TD-700 Use
ADJUSTMENT LEVERS
A- Seat tilting adjustment lever
B- Stool height adjustment lever
C - Backrest tilting adjustment lever
WHEELS INSTALLATION
- Mount the 5 wheels to the TD-700 aluminium foot
by introducing the wheels axle A (Fig.1) to the foot
holes B (Fig.1) and press rmly against the foot.
- Place the dental stool in standing position and
ensure a correct assembly by cheking a good
stool movement.
If the previous points have been done correctly,
the stool is ready to be used.
BOX DETAILS
x1 Package
Dimensions:
570x560x790 mm.
Net weight: 16Kg.
Gross weight: 19Kg.
BOX CONTENT
x1 Td-700 stool
x1 Wheels set:
x5 Wheels
Wheels set
Td-700
A
B
C
A
B
Fig.2
Fig.3

USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500
9
STOOL HEIGHT ADJUSTMENT
The seat stool height can be adjusted from
550 mm to 750 mm.
- Sit down on the stool.
- Pull up the lever B(Fig. 3).
- Decrease the pressure on the seat to go on
a high position or increase the presure to go
on a lower position.
- Release the lever.
SEAT TILTING ADJUSTMENT
The stool seat inclination can be adjusted
from -5˚ to +10˚ from the horizontal plane.
- Sit down on the stool.
- Pull down the lever A(Fig.3).
- Balance your body until you nd the
desired position.
- Pull up the lever A to x the position.
BACKREST TILTING ADJUSTMENT
The stool Backrest inclination can be
adjusted from -13˚ to +10˚ from the vertical
plan.
- Sit down on the stool and lay back.
- Pull down the lever C(Fig.3) and mantain
it down.
- Balance your back until you nd the
desired position.
- Pull up the lever C(Fig.3) to x the position.
BACKREST HEIGHT ADJUSTMENT
The stool backrest height can be 50mm
adjusted.
- Pull up gently the stool backrest until you
hear one click.
- The backrest has six height positions
(clicks), when you pas the last position 6
(Fig.7) the backrest returns to the position 0
(Fig.7).
1
0
2
3
4
5
6
Fig.4
Fig.5
Fig.6
Fig.7

USER MANUALDENTAL STOOLS - QS4-692-01 / TD-700/600/500
10

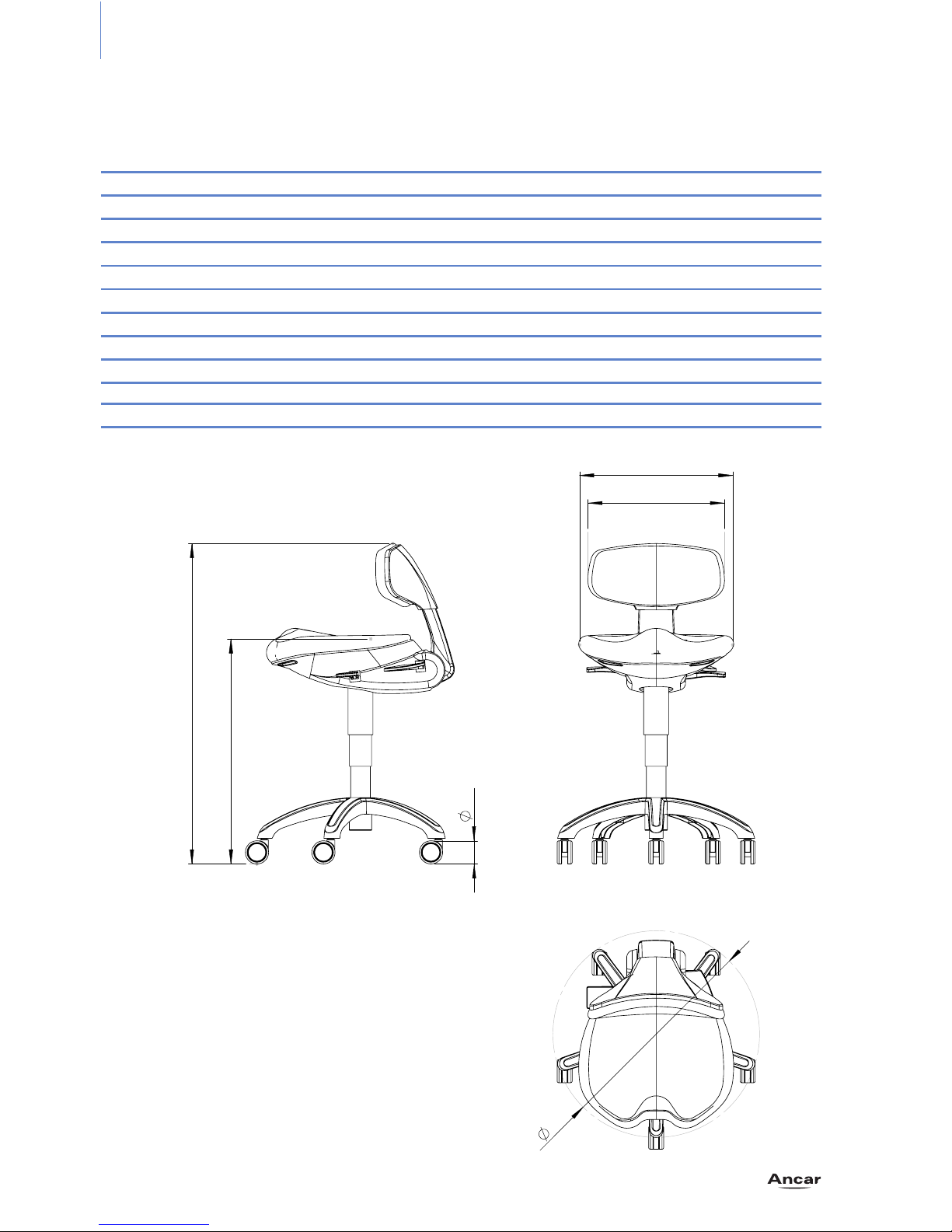

7.4.- Technical Specifications
Ancar Identication TD-700
Base outside diameter 600 mm
Seat height from the oor 550 to 750 mm
Seat height adjustment 200 mm
Seat tilting adjustment -5˚to +10˚
Backrest height adjustment 50 mm
Backrest tilting adjustment -13˚to 10˚
Wheels diameter 65 mm
Packaging dimensions 570 x 560 x 790 mm
Gros weight 19 Kg.
Net weight 16 Kg.
365
410
65
550 - 750
810 - 1040
580

USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500
11
8.- TD-600
The Td-600 is a dentist / assistant dental stool with height adjustment and an auxiliary support arm
that can also be height and position adjusted.
8.1.- TD-600 Packaging
The TD-600 is delivered with one single packaging with the Ancar identication, the stool model
name and the upholstery colour indicated on the box sides.
BOX DETAILS
x1 Package
Dimensions:
570x560x350 mm.
Net weight: 13Kg
Gross weight: 16Kg.
BOX CONTENT
x1 Td-600 Seat
x1 Support arm (upholstery)
x1 Tube (support)
x1 Piston
x1 Aluminium base
x1 Accessories bag:
x1 Aluminium ring
x3 M6 Grub screws
x1 Allen 3 key
Td-600 Seat Sup. arm (Upholstery)
Tube
Accessories
Aluminium basePiston
8.2.- TD-600 Assembly
UNPACK
Remove all the TD-600 components out of the packaging and place these on a horizontal surface.
WHEELS INSTALLATION
- Place the base on a easy to work surface with the 5
wheels in contact with the oor.
PISTON PLACEMENT
DO NOT push or actuate on the piston
top under any circumstance during all the
assembly process (Fig.9).
- Introduce the piston end A(Fig.10) to the top base hole
B(Fig.10).
Fig.8
Fig.9
AB
Fig.10

USER MANUAL
DENTAL STOOLS - QS4-692-01 / TD-700/600/500
12

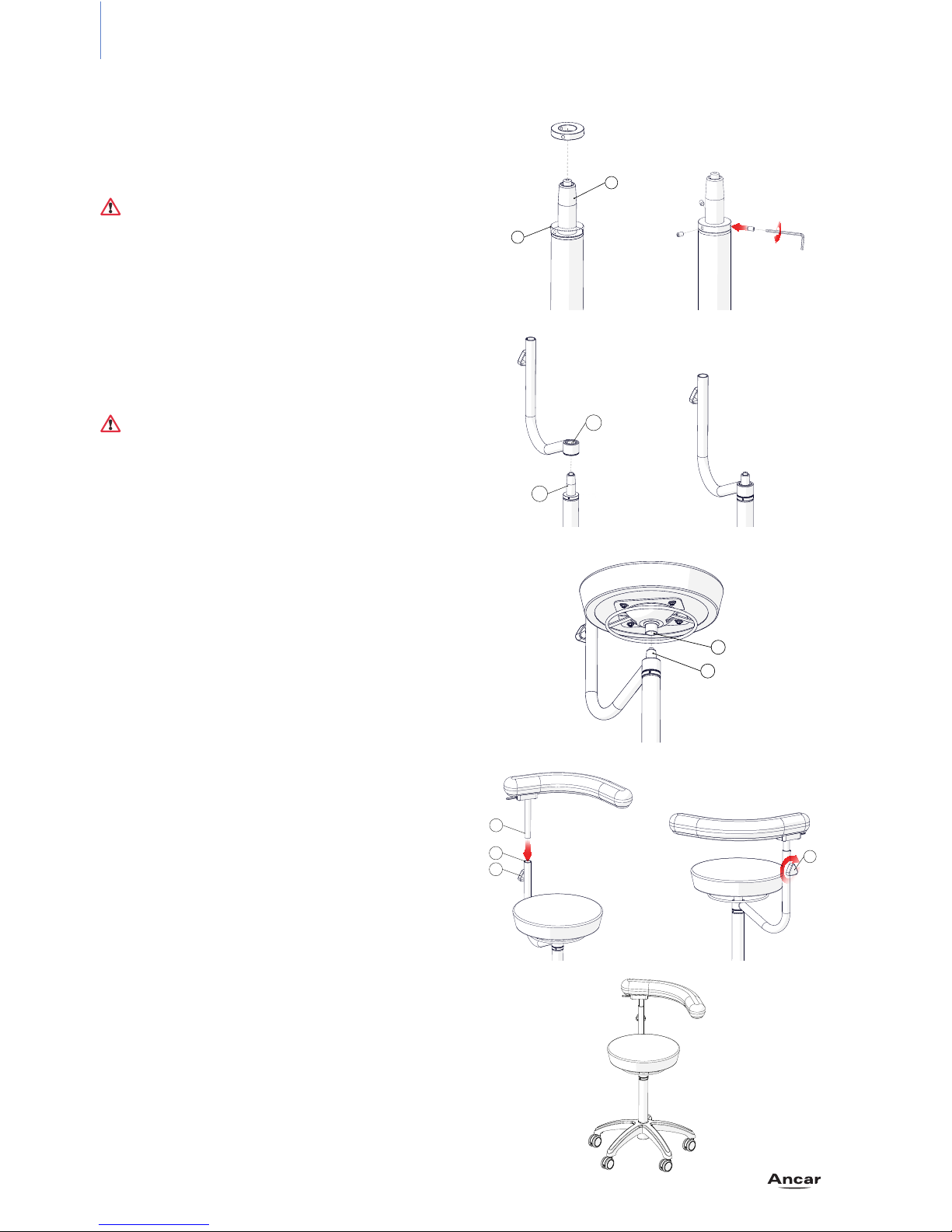

ARM SUPPORT RING PLACEMENT
- Introduce the metallic ring of the accessories
bag through the piston axle A(Fig.11) until the
position B(Fig.11).
DO NOT TOUCH THE PISTON CAP
- Insert and x the x3 M6 grub screw of the
accessories bag to the ring holes and x these
rmly (Fig.12).
FIRST ARM TRAM INSTALLATION
- Introduce the tube (support) hole B(Fig.13)
through the piston axle A (Fig.13) until it stops on
the ring (Fig.14).
DO NOT TOUCH THE PISTON CAP
SEAT PLACEMENT
- Introduce the TD-600 seat positioning hole B
(Fig.15) through the piston axle A (Fig.15).
- Sit down on the seat in order to ensure the
xation.
SUPPORT ARM PLACEMENT
- Introduce the support arm axle A(Fig.16) through
the hole B(Fig.16).
- Unscrew a little bit the knob C (Fig.16) and
ensure the axle Ais well installed.
- Turn the Knob A (Fig.17) until it locks the arm.
B
A
A
B
B
A
A
B
C
C
STOOL CHECKING
- Place the Td-600 on the working surface and
ensure a correct assembly by cheking a good
stool movement.
If the previous points have been done correctly,
the stool is ready to be used.
Fig.11 Fig.12
Fig.14
Fig.15
Fig.16 Fig.17
Fig.18
Fig.13

USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500
13

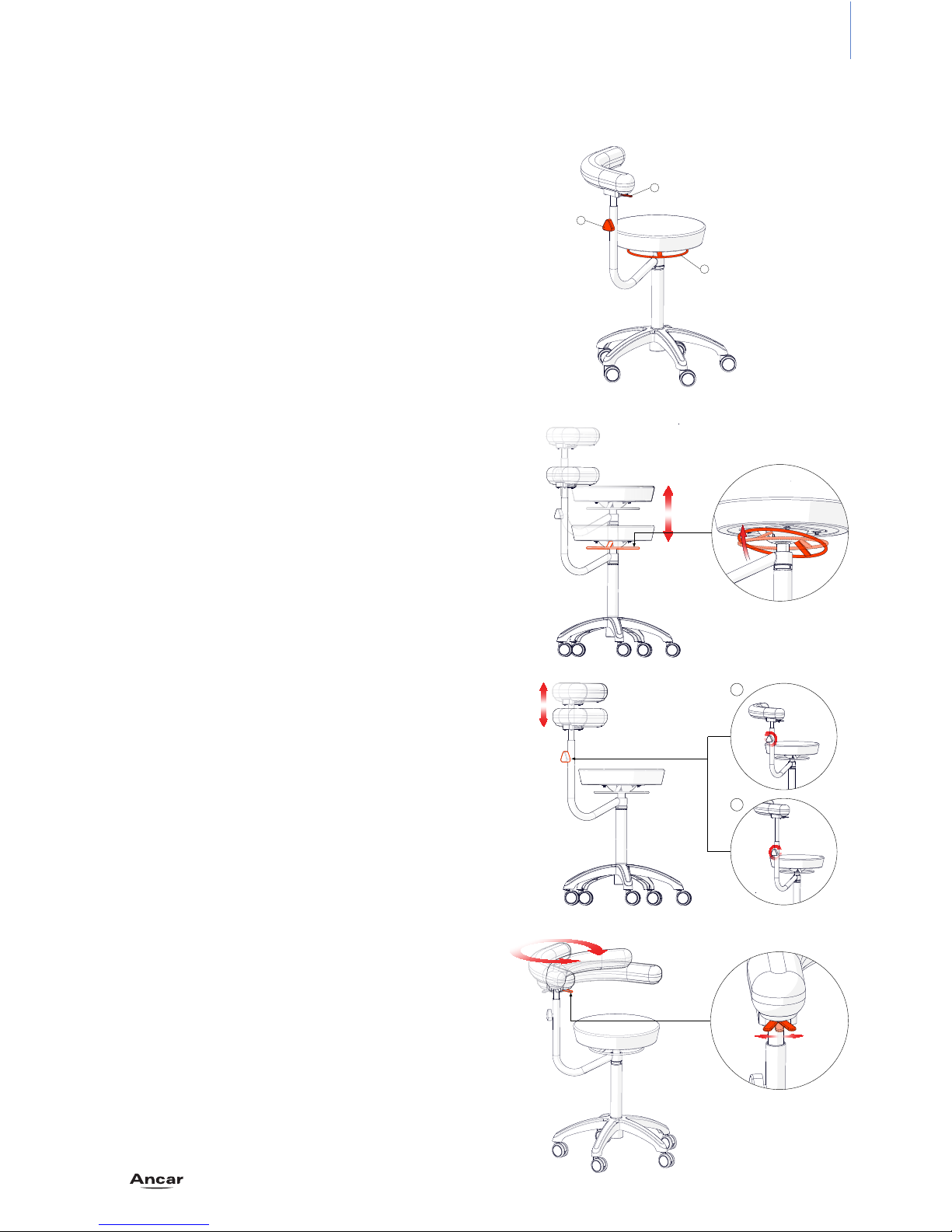

8.3.- TD-600 Use
ADJUSTMENT LEVERS
A- Stool height adjustment lever
B- Arm height adjustment lever
C- Arm turn adjusting lever
B
C
A
STOOL HEIGHT ADJUSTMENT
The seat stool height can be adjusted from
620 mm to 820 mm.
- Sit down on the stool.
- Pull up the lever A(Fig.19).
- Decrease the pressure on the seat to go on
a high position or increase the presure to go
on a lower position.
- Release the lever.
SUPORT ARM HEIGHT ADJUSTMENT
The stool suport arm height can be adjusted
100 mm.
- Unscrew the knob A (Fig.21) a little bit.
- Rise up the arm until the desired position.
- Screw the knob until the arm is xed B
(Fig.21).
SUPORT ARM POSITION ADJUSTMENT
The suport arm can turn arrown the stool
seat and also can be turn by itself 360˚.
- Move the lever C(Fig.19) and turn the s.arm.
- When you nde the desired position, leave
the lever and the possition will be locked.
A
B
Fig.19
Fig.20
Fig.21
Fig.22

USER MANUAL
DENTAL STOOLS - QS4-692-01 / TD-700/600/500
14
8.4.- Technical Specifications
Ancar Identication TD-600
Base outside diameter 600 mm
Seat height from the oor 620 - 820 mm
Seat height adjustment 200 mm
Arm rest tilting adjustment 360˚
Arm rest height adjustment 100 mm
Wheels diameter 65 mm
Packaging dimensions 570 x 560 x 530 mm
Gros weight 16 Kg.
Net weight 13 Kg.
71
65
620 - 820
900-1200
370
580
360°

USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500
15
9.- TD-500
The Td-500 is a dentist / assistant “saddle” type dental stool with adjustable height and seat tilting.
9.1.- TD-500 Packaging
The TD-500 is delivered with one single packaging with the Ancar name, the model name and the
upholstery colour indicated on the box sides.
BOX DETAILS
x1 Package
Dimensions: 540x525x380 mm.
Net weight: 8,5Kg.
Gross weight: 12Kg.
BOX CONTENT
x1 Td-500 Seat
x1 Piston
x1 Aluminium base
x1 Wheels set:
x5 Wheels
Wheels set
Aluminium basePistonTd-500 seat
9.2.- TD-500 Assembly
UNPACK
Remove all the TD-500 components out of the packaging and place these on a horizontal surface.
A
B
WHEELS INSTALLATION
- Place the stool aluminium base with the 5 base legs
upwards faced (Fig. 23).
- Introduce the wheel axle A(Fig.23) to the base legs hole
B(Fig.23) and press rmly against the foot.
PISTON PLACEMENT
- Rotate the base assembly.
DO NOT push or actuate on the piston
top under any circumstance during all the
assembly process (Fig.24).
-Introduce the piston end A(Fig. 25) to the base hole B(Fig.
25).
SEAT ASSEMBLY
- Introduce the mechanism seat hole B(Fig.26) through
the Piston axle A(Fig.26).
-Ensure a correct assembly by cheking a good stool
movement.
If the previous operations have been done correctly, the
stool is ready to be used.
Fig.23
Fig.25Fig.24
Fig.26
AB
B
A

USER MANUAL
DENTAL STOOLS - QS4-692-01 / TD-700/600/500
16
9.3.- TD-500 Use
ADJUSTMENT LEVERS
A- Stool height adjustment lever
B- Seat tilting adjustment lever
B
A
STOOL HEIGHT ADJUSTMENT
The seat stool height can be adjusted from
560 mm to 760 mm.
- Sit down on the stool.
- Pull up the lever A(Fig. 27).
- Decrease the pressure on the seat to go on
a high position or increase the presure to go
on a lower position.
- Release the lever.
SEAT TILTING ADJUSTMENT
The stool seat inclination can be adjusted
from -5˚ to +10˚ from the horizontal plane.
- Sit down on the stool.
- Pull down the lever B(Fig.27) and mantain
it down.
- Balance your body until you nd the
desired position.
- Pull up the lever B(Fig.27) to x the position.
Fig.27

USER MANUAL DENTAL STOOLS - QS4-692-01 / TD-700/600/500
17
9.4.- Technical Specifications
Ancar Identication TD-600
Base outside diameter 600 mm
Seat height from the oor 590 to 790 mm
Seat height adjustment 200 mm
Seat tilting adjustment -5˚to +10˚
Wheels diameter 65 mm
Packaging dimensions 540 x 525 x 380 mm
Gros weight 12 Kg.
Net weight 8,5 Kg.
340
65
420
560-760
580

Antoni Carles, S.A.
Volta dels Garrofers, 41-42 Polígono Industrial “Els Garrofers”
08340 Vilassar de Mar (Barcelona-SPAIN)
Tel. [phone] Fax [phone]
www.ancar-online.com / e-mail: [email protected]
QS4 692 v.1
September 2015
Subject to design and/or specication changes
without prior warning. Made in Europe.
