Ancona WPRO30 User manual

Wall Range Hood
User Manual
and
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the important information
regarding installation, safety and maintenance.
Keep these instructions for future reference.
MAAN1410-06
2020-11-27

— 2 —
INSTALLERS - Start Here
Safety Instructions are on pages 4 and 5 and
Installation Instructions are on pages 8to 13.
Please perform these steps:
1. Read the safety instructions.
2. Read all instructions in the Installation section of
this manual BEFORE installing the range hood.
3. Remove all packing materials.
4. When nished, make sure to leave these instructions with the consumer.
5. Installation is to be done by a qualied technician only. However, the
ultimate responsibility for proper installation falls to the owner.
6. Product failure due to improper installation is not covered under the Warranty.
CONSUMERS - Start Here
Safety Instructions are on pages 4 and 5 and
Operating Instructions are on pages 14 and 15.
Please perform these steps:
1. Read the safety instructions.
2. Read all instructions in the manual BEFORE
operating the range hood.
3. Remove all packing materials.
4. Installation is to be done by a qualied technician only. However, the
ultimate responsibility for proper installation falls to the owner.
5. Product failure due to improper installation is not covered under the Warranty.
Before You Begin
Hardware Note: For safety reasons, range hood mounting screws and anchors will not be
included due to the variation of cabinetry constructions and wall material. Please consult your
installation specialist regarding the optimal type of mounting screws and wall anchors to suit your
home’s construction.

— 3 —
Before You Begin............................................................................................................................... 2
Table of Contents
Table of Contents .............................................................................................................................. 3
Important Safety Information ............................................................................................................ 4
Included Parts ................................................................................................................................... 6
Range Hood Dimensions .................................................................................................................. 7
Specications.................................................................................................................................... 7
Installation......................................................................................................................................... 8
Step 1 - Read the Safety Instructions............................................................................................ 8
Step 2 - Unpack Range Hood and Prepare Tools.......................................................................... 8
Step 3 - Plan Desired Location ...................................................................................................... 8
Step 4 - Test Unit Functions .......................................................................................................... 8
Step 5 - Venting Installation Guidelines ......................................................................................... 9
Step 6 - Measuring ...................................................................................................................... 10
Step 7 - Installing the hood mounting bracket ............................................................................ 10

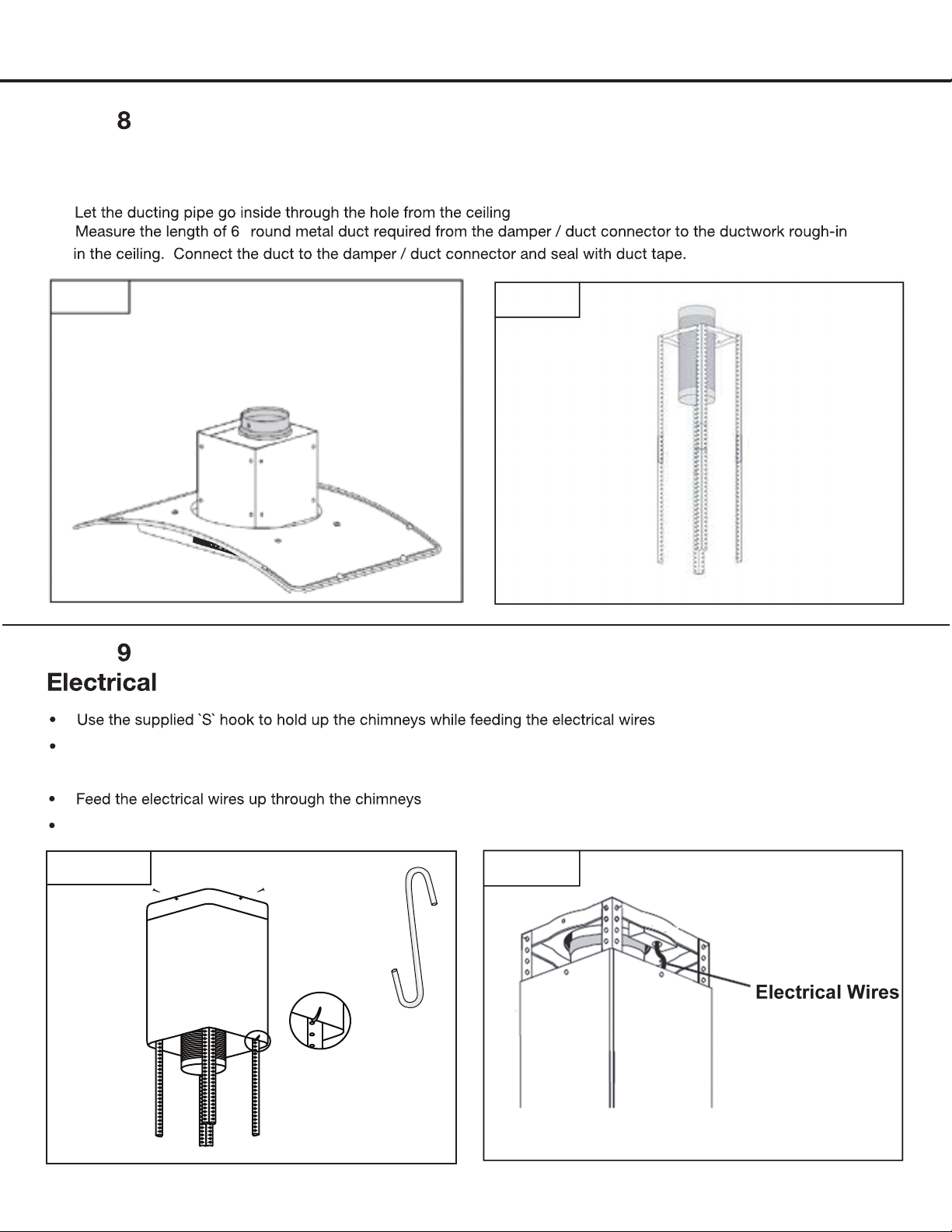

Step 8 - Venting ........................................................................................................................... 11
Step 9 - Electrical......................................................................................................................... 11

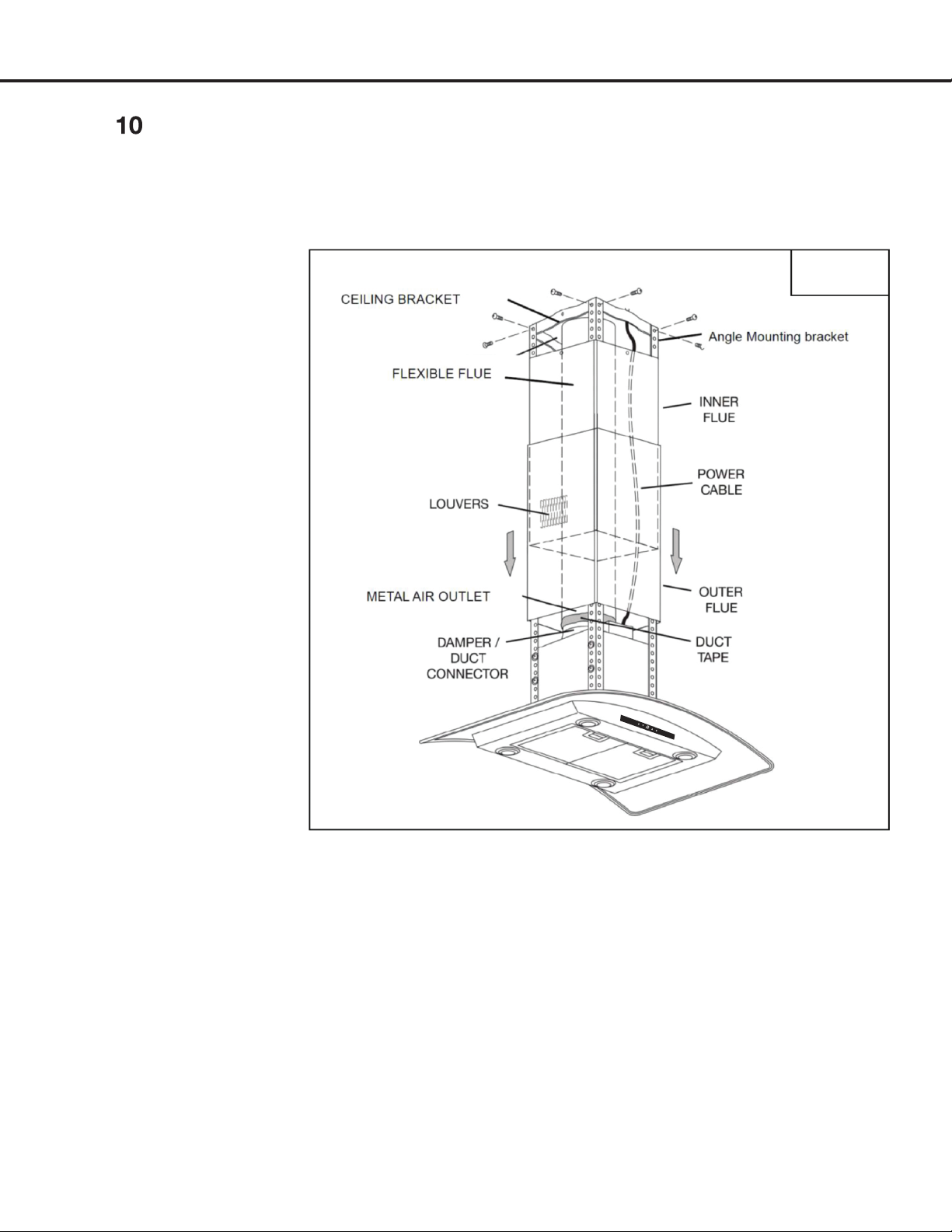

Step 10 - Finishing Installation..................................................................................................... 12
Step 11 - Install Filters ................................................................................................................ 13
Operation ........................................................................................................................................ 14

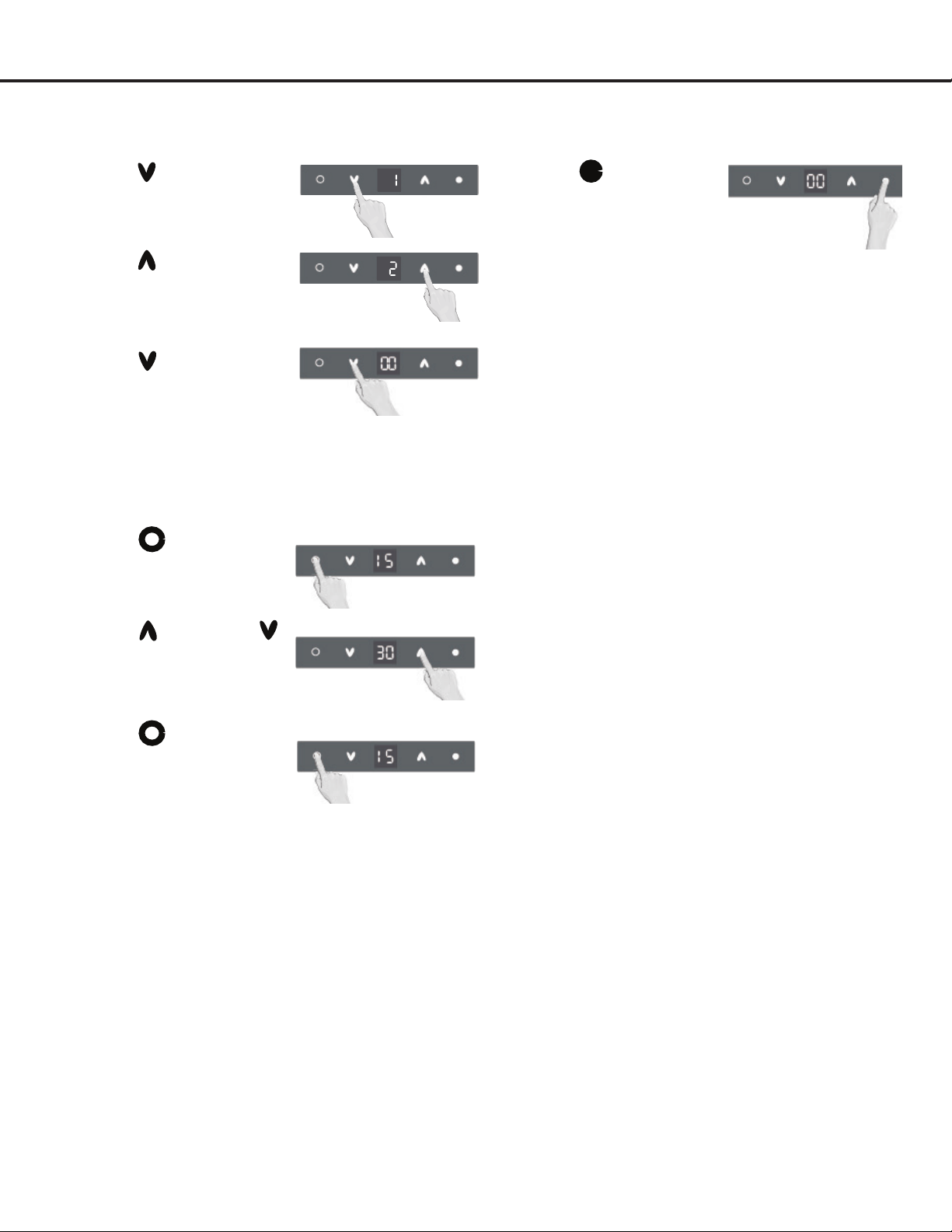

Using the Fan............................................................................................................................... 14
Using the Time Delay Function .................................................................................................... 14
Turning the Light On or Off........................................................................................................... 14
Maintenance.................................................................................................................................... 15

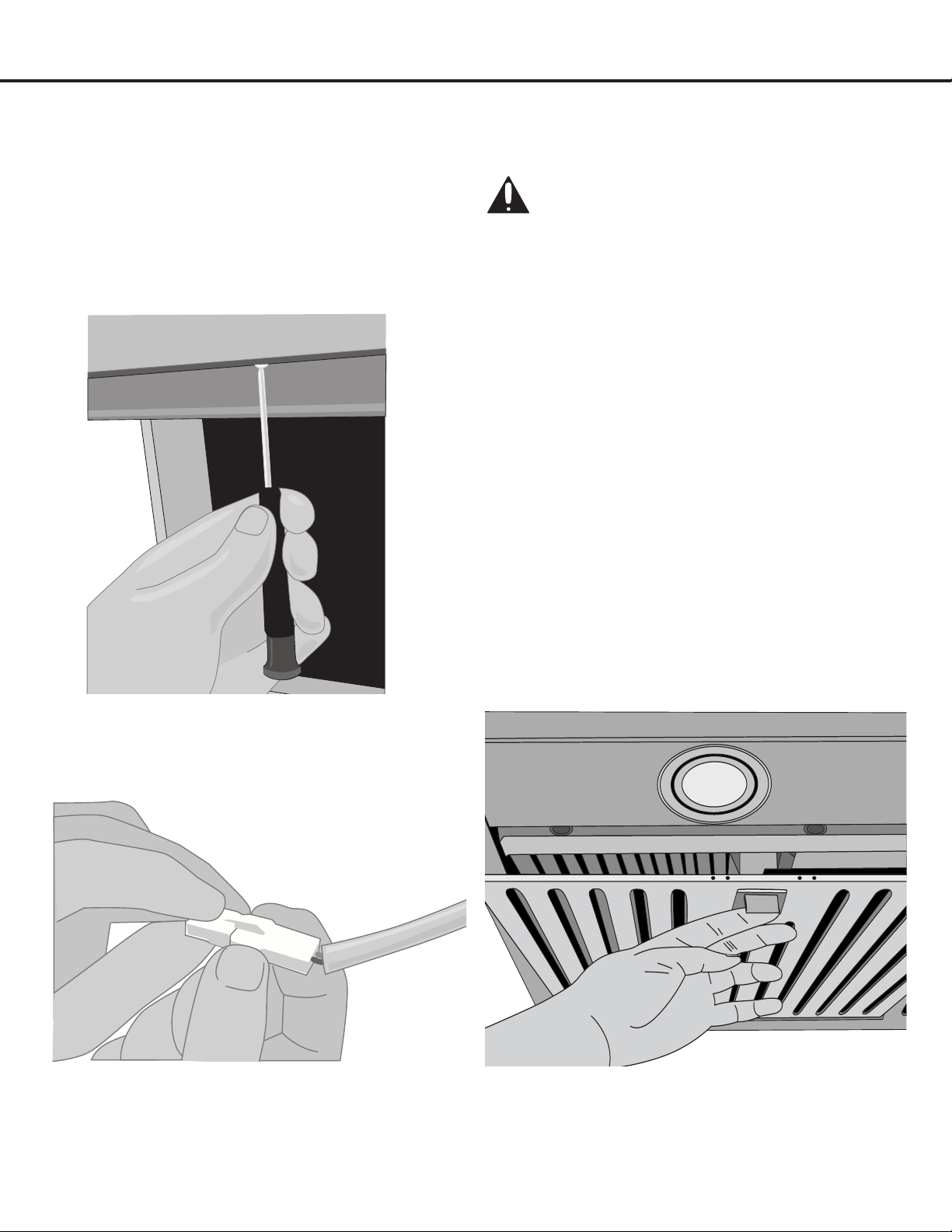

Replacing the Light Bulbs............................................................................................................ 15
Cleaning the Range Hood............................................................................................................ 15

— 4 —
Important Safety Information
• Theinstallationinthismanualisintended
for qualied installers, service technicians or
persons with a similar qualied background.
Installation must be done by qualied
professionals and in accordance with all
applicable codes and standards, including
re-rated construction.
• The range hood may have very sharp
edges; please wear protective gloves if it is
necessary to remove any parts for installing,
cleaning or servicing.
• Activating any switch to ON position before
completing installation may cause damage or
electric shock.
• Duetothesizeofthisrangehood,atwo
person installation is recommended.
To reduce the risk of re, electric shock, or
injury to persons:
• Forgeneralventilatinguseonly.DO NOT use
toexhausthazardousorexplosivematerials
and vapors.
•WARNING: To Reduce The Risk Of Fire Or
Electric Shock, Do Not Use This Fan With Any
Solid-State Speed Control Device.
• Thecombustionairowneededforsafe
operation of fuel-burning equipment may be
affected by this unit’s operation. Follow the
heating equipment manufacturer’s guideline
and safety standards such as those published
by the National Fire Protection Association
(NFPA), and the American Society of Heating,
Refrigeration and Air Conditioning Engineers
(ASHRAE), and other local code authorities.
• Beforeservicingorcleaningtheunit,switch
power off at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be
locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
• Cleangrease-ladensurfacesfrequently.To
optimizeperformanceandtodisperseair
properly, make sure to vent air outside. DO
NOT vent exhaust into spaces between walls,
crawl spaces, ceilings, attics or garages.
• Ducted fans MUST always be vented to
the outdoors.
• ThisunitMUSTbegroundedandusedwith
metal ductwork only.
• Sufcientairisneededforpropercombustion
and exhausting of gases through the duct to
prevent back drafting.
• Whencuttingordrillingintowallorceiling,be
careful not to damage electrical wiring or other
hidden utilities.
• Allelectricalwiringmustbeproperlyinstalled,
insulated and grounded.
• Old ductwork should be cleaned or replaced
if necessary to avoid the possibility of a
grease re.
• Check all joints on ductwork to ensure
proper connection; all joints should be
properly taped using a certied aluminum
or foil tape.
• Usethisunitonlyinthemannerintended
by the manufacturer. If you have questions,
contact the vendor.
READ AND SAVE THESE
INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Read and follow all instructions before using the range hood to prevent the risk of re, electric shock,
personal injury, or damage when using the range hood or appliances with the range hood. This guide
does not cover all possible conditions that may occur. Always contact your service technician or
manufacturer about problems that you do not understand.

— 5 —
Important Safety Information
WARNING: TO REDUCE RISK OF A RANGE
TOP GREASE FIRE:
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
b) Always turn range hood ON when cooking at
highheatorwhenambéingfood(i.e.Crepes
Suzette,CherriesJubilee,etc.).
c) Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or lter.
Before servicing or cleaning unit, unplug and
disconnect the hood from the power supply.
d) Useproperpansize.Alwaysusecookware
appropriateforthesizeofthesurfaceelement.
WARNING: TO REDUCE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING *
a) S MOTHER FLAMES with a close-tting
lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO PREVENT
BURNS.Iftheamesdonotgoout
immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may
be burned.
c) DO NOT USE WATER, including wet dishcloths
or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class A, B, C
extinguisher, and you already know how to
operate it.
2) The re is small and contained in the area
where it is started.
3) The re department is being called.
4) You can ght the re with your back to an exit.
*Based on “Kitchen Fire Safety Tips”
published by NFPA
To reduce the risk of injury to persons in the
event of a gas leaks:
• Extinguishanyopename.
• DO NOT turn on the lights or any type of appliance.
• Openalldoorsandwindowstodispersethe
gas. If you still smell gas, call the gas company
and re department.
Your safety and the safety of others is very
important. We have provided many important
safety messages in this manual and on your
appliance. Always read and obey all safety
messages. All safety messages outline any
potentialhazards,howtoreducethechanceof
injury, and possible risks if the instructions are not
followed.
READ AND SAVE THESE
INSTRUCTIONS

— 6 —
Included Parts
Range Hood
2 x Filters
Upper Chimney
Lower Chimney
Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to
the variation of cabinetry constructions and wall material. Please consult your installation specialist regarding
the optimal type of mounting screws and wall anchors to suit your home’s construction.
Ceiling Bracket
8pc Angle
Mounting Bracket
23.6 in. (600 mm)
Mounting screws
angle bracket
(24 + 1 pcs)
`S` mounting hook
(1 pc)
Nuts (24 + 1 pcs)
Damper 6 in.
12 pc Rubber pads
Damper screws
(4 + 1 pcs)
Mounting screws
Ceiling bracket
(20 + 1 pcs)

— 7 —

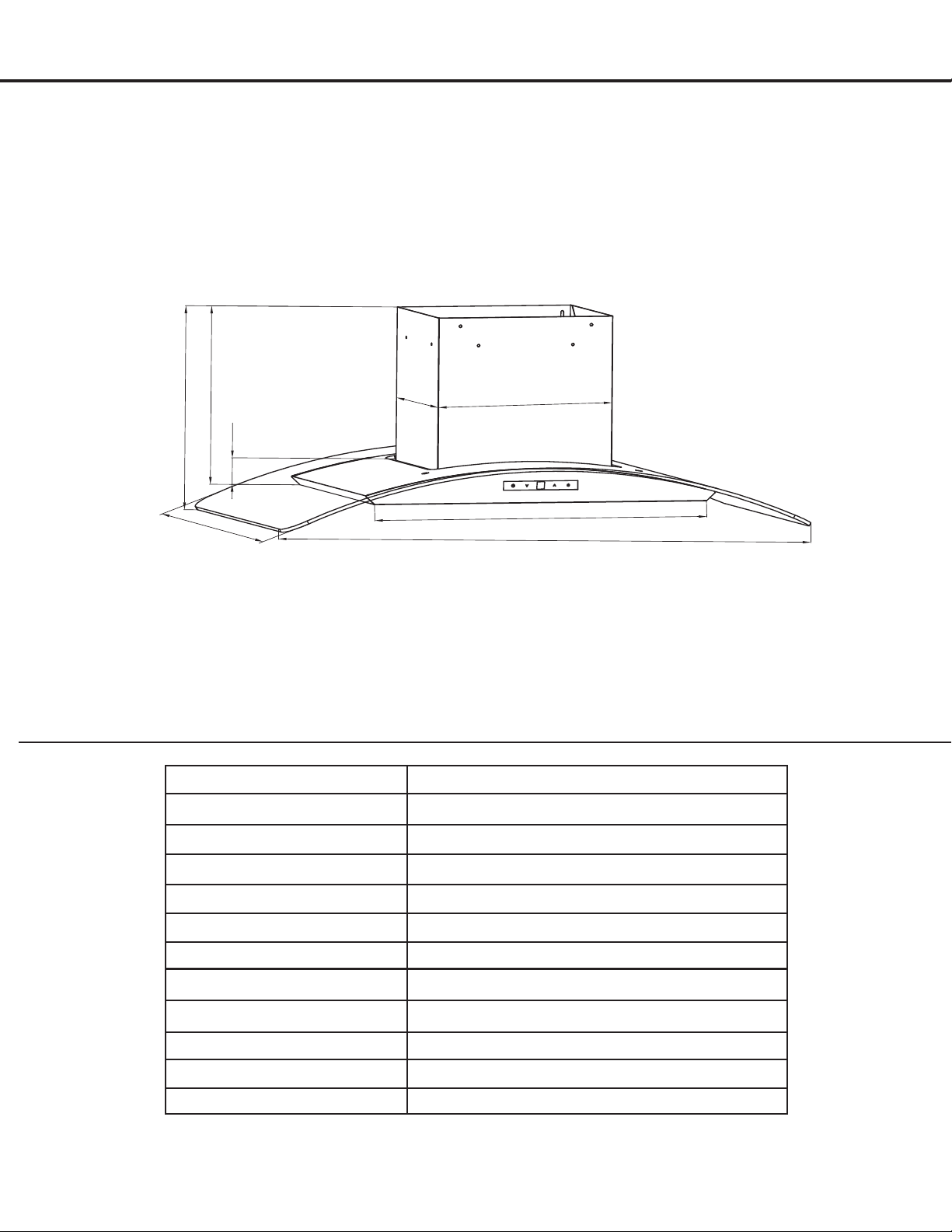

Range Hood Dimensions
Specications
Body Design Stainless Steel
Power Rating 120V/60Hz(cETLusCertied)
Total Input Power 472 W
Motor Input Power 460 W
Total Amps 3.8 A
Speed Control Levels 4 Levels
Interference Levels Radio Frequency Interference Protected
Motors Single Motor
Control Electronic Control Panel
Filtration Stainless Steel Filters
Illumination 4 x 3W LED
VentingSize Top Round 6 Inches (152 mm)
35.4“ (900 mm)
22.16“ (563 mm)
10.27 “
(261 mm)
11.63 “ (295.5 mm)
23.6 “ (600 mm)
2.42 “
(61.5 mm)
12.8 “ (325 mm)
14.56 “ (370 mm)

— 8 —
Installation
STEP 1
Read the Safety Instructions
• It is very important to read the safety instructions on pages 4 and 5.
IMPORTANT: It is the installer’s responsibility to
comply with installation clearances.
STEP 2
Unpack Range Hood and Prepare Tools
• Carefully unpack the range hood and parts. Make sure all parts are included as shown on page 6.
• DO NOT remove the protective film covering the appliance until the installation is fully completed
•Consult a qualified and trained installer or check local codes for makeup air requirement, if any.
STEP 3
Plan Desired Location
•Plan a desirable location that fits all requirements in the Safety and Installation sections of this manual. Plan where
and how the ductwork will be installed.
•A straight or short duct run will allow the unit to perform most efficiently. Long duct runs, elbows and transitions
willreducetheperformanceoftheunit.Eachelbowisequivalentto5to10feetofstraightrun.Propersizeduct
work should be 6” (152 mm) in diameter.
•To reach a 9 foot ceiling make sure hood is installed 30 inches from cooking surface. If you have a ceiling
greater than 9ft, please visit anconahome.com to order a chimney extension.
• If ductwork is already installed: ensure ductwork is free from debris and measures 6” (152 mm).
STEP 4
Test Unit Functions
• Plug the unit in and test all of the functions before installing.
WARNINGS:
•PleasemakesuretoreadALLsafetyinstructionsonpages4and5.
•Usetwoormorepeopletomoveandinstallrangehood.
• Failuretofollowtheseinstructionscanresultinseriousinjury.
NOTE: Use threaded drywall anchors only when mounting the hood on sheet rock. Mounting the hood
on wall studs or lumbars is highly recommended.
Only one flange is needed in the air duct system, either on top of the motor (provided) or outside.
•

— 9 —
Installation
Height and Clearance
C
B
A
A - Floor to ceiling height
B - Ceiling to cooking surface (center/plumb line height)
C - Cooking surface to bottom of hood height
STEP 5
Venting Installation Guidelines
• The following steps are for exterior ventilation.
• If you require a ductless installation, please visit
anconahome.com to purchase a recirculation kit.
WARNINGS:
•PleasemakesuretoreadALLsafetyinstructions
on pages 4 and 5.
•Usethreepeopletomoveandinstallrangehood.
• Failuretofollowtheseinstructionscanresultinserious
injury.
IMPORTANT:
• Vent system must terminate to the outside (roof or side wall).
•DONOT terminate the vent system in an attic or other
enclosed area.
•DONOTuse4”(10.2cm)laundry-typewallcaps.
•Usemetal/aluminumventonly.Arigidmetal/aluminum
vent is recommended.
•DONOTuseaplasticvent.
•Alwayskeeptheductcleantoensureproperairflow.
•Calculatethefollowingfiguresbeforeinstallation:
1. Distance from the floor to the ceiling
2. Distance between the floor and the countertop/stove
3. A distance of 24” to 30” is recommended between
stove top and the bottom of range hood. 30” minimum
is required for gas stove tops.
4. Height of hood and duct cover.
For the most efficient & quiet operation:
•Itisrecommendedthattherangehoodbevented
vertically through the roof through 6” (15.3 cm) or
bigger round metal/aluminum vent work.
•Thesizeoftheventshouldbeuniform.
•Usenomorethanthree90°elbows.
• Make sure there is a minimum of 24” (61 cm) of
straight vent between the elbows if more than one
elbow is used.
•DONOTinstalltwoelbowstogether.
• The length of vent system and number of elbows should be
kept to a minimum to provide efficient performance.
•Theventsystemmusthaveadamper.Ifrooforwall
cap has a damper, you may remove damper flaps from
damper to increase air flow.
•
Use silver tape or duct tape to seal all joints in the
vent system.
• Use caulking to seal exterior wall or roof opening
around the cap.
•
Only one flange is needed in the air duct system,
either on top of the motor (provided) or outside.

— 10 —
Installation
STEP
STEP
Figure #1
•Measure the distance between stove top and the bottom of the range hood. A distance of 24" to 30" is
recommended with a minimum of 30" for gas stove tops.
•To reach 9ft ceiling make sure hood is installed at 30" from cooking surface.
•visit anconahome.com
•Determine and mark the center line on the ceiling where the range hood will be installed. Make sure there is proper
clearance within the ceiling or wall for exhaust vent.
•The ceiling must be able to bear at least 40 kg (88 lbs.) of weight, and the thickness of the ceiling must be at least 300 mm
(1.8").
•Drill 1*170 mm (6.7") round hole in the ceiling.
•Run house electrical wires to the electrical box on the bracket. Black to Black, White to White, and Green to Green or
Bare Wires.
•In line with the hanging board, drill 12 holes in the ceiling (See Figure #1).
•Use supplied screws and nuts to attach the angle iron into the hanging board (See Figure #2).
•Calculate the total length of the angle iron required so that the overlap angle iron is no less than 100 mm (39.4") and
that the distance from the bottom of the range hood and the cooking surface is between 61 to 76 cm (24" to 30").
•Attach the 2 sections of the angle iron together for each corner using provided flat screws and nuts.
Figure #2

— 11 —
STEP
Remove the protective coating from the inner chimney. Carefully slide the inner chimney down into the outer
chimney. Slide the chimneys over the angle brackets.
Connect the electrical wires to the wiring box on the ceiling bracket.
.................
.................
Venting
•Fix the damper into the damper hole on top of the range hood motor box (see Figure #3).
•
•"
Figure #3
STEP
(see Figure #4).
Figure #4
(see Figure #5).
(see Figure #6).
Figure #5 Figure #6
Installation

— 12 —
Installation
STEP
Finishing Installation
•Slide the inner chimney up to the ceiling and attach it to the ceiling bracket using the screws (see gure #7).
•Remove the protective coating from the hood body and outer chimney.
•Installation is nished.
Figure #7

— 13 —
Installation
STEP 11
Install Filters
•Place two rubber pads on opposite side of each filter
handle.
IMPORTANT:
• Observeallgoverningcodesandordinances.
•It is the customer’s responsibility to contact a qualified electrical installer.
• Ifcodespermitandaseparategroundwireisused,itisrecommendedthataqualifiedelectriciandeterminethat
thegroundpathisadequate.A120-Volt,60Hz,AC-only,fusedelectricalsupplyisrequiredonaseparate15-amp
circuit, fused on both sides of the line.
• DONOTgroundtoagaspipe.
• Checkwithaqualifiedelectricianifyouarenotsurethattherangehoodisproperlygrounded.
• DONOThaveafuseintheneutralorgroundcircuit.
IMPORTANT: Save this Installation Guide for electrical inspector’s use.
GROUNDING INSTRUCTIONS:
• Thisappliancemustbegrounded.Intheeventofanelectricalshort-circuit,groundingreducestheriskofelectric
shock by providing an escape wire for the electric current.
• Thisapplianceisequippedwithacordhavingagroundingwirewithagroundingplug.Theplugmustbeplugged
into an outlet that is properly installed and grounded.
WARNING: Improper grounding can result in a risk of electric shock.
• Consultaqualifiedelectricianifthegroundinginstructionsarenotcompletelyunderstood,orifdoubtexistsasto
whether the appliance is properly grounded. DO NOT use an extension cord. If the power supply cord is too short,
have a qualified electrician install an outlet near the appliance.
•Angle the lter into the slots at the back of the hood.
•Open handle on the lter.
•Release the handle once the lter ts into a resting
position.
•Repeat to install the other lter.
• Thebafelterschannelgreasereleasedbycooking
foodsintothegreasetraysandpreventamingfoods
on the cook top from damaging the inside of the range
hood.Forthisreason,thebafeltersmustALWAYS
be installed during range hood use.
• Thebafeltersshouldbecleanedonceamonth,or
as needed. See page 15 for cleaning instructions.

— 14 —
Operation
Using the Fan
Press to begin low
speed. Screen will display
1.
Turning the Light On or Off
Press to turn light on
and again to turn light
off.
Press again to decrease
suction. Screen will display
3, 2, 1, 00.
Press to increase speed
suction. Screen will display
increments as 2, 3, 4.
uu
Using the Time Delay Function
Press to increase or
to decrease the time
period for the Time Delay
Function.
Press to activate the
Time Delay Function.
Screen will display
“15 minutes”.
Press to cancel the
Time Delay Function.
w
v
u
xThe light will turn off at the end of the set time period if
Time Delay Function is activated while the light is on.

— 15 —
uUnplug the unit from the AC outlet.
vRemove ve screws from the light panel, then remove the light bulbs by popping them out.
wDisconnect the light clip.
xReverse the removal procedures to install the new light bulbs and plug the unit back in.
Be sure electrical power is off and all surfaces are cool
before cleaning or servicing any part of the hood.
Range Hood Body
•Do not use a steel wool pad; it will scratch the surface.
•To clean the stainless steel surface, use warm soapy
water or a stainless steel cleaner. Closely follow the
cleanser label instructions. DO NOT use corrosive or
abrasive detergents, ammonia products, abrasives or
oven cleaners. Always wipe the surface in the direction
of the grain.
Filters
•The saturation of greasy residue in the fan and lters
maycauseincreasedinammability.Keepunitclean
and free of grease and residue build-up at all times to
prevent possible res.
•Filters can be cleaned in a standard dishwasher or by
using a mild cleaner. DO NOT use corrosive or abrasive
detergents, ammonia products, or oven cleaners.
•To remove, first drain and wipe all excess grease with a
drypapertowel.Graspthebafflefilter handleandpull
them up, forward and out.
Maintenance
Replacing the Light Bulbs Cleaning the Range Hood
•When cleaning is completed, replace the filters as
shown in Step 11.

— 16 —
Please register your product warranty by visiting the Ancona Home website.
Canada & USA
Phone: [phone]
Fax: [phone]
Email: [email protected]
Website: www.anconahome.com
Ancona is in association with Mr Appliance for all after sales service calls.
Please contact their service provider or visit their website:
Phone: [phone]
Website: www.mrappliance.com
MAAN1410-06
