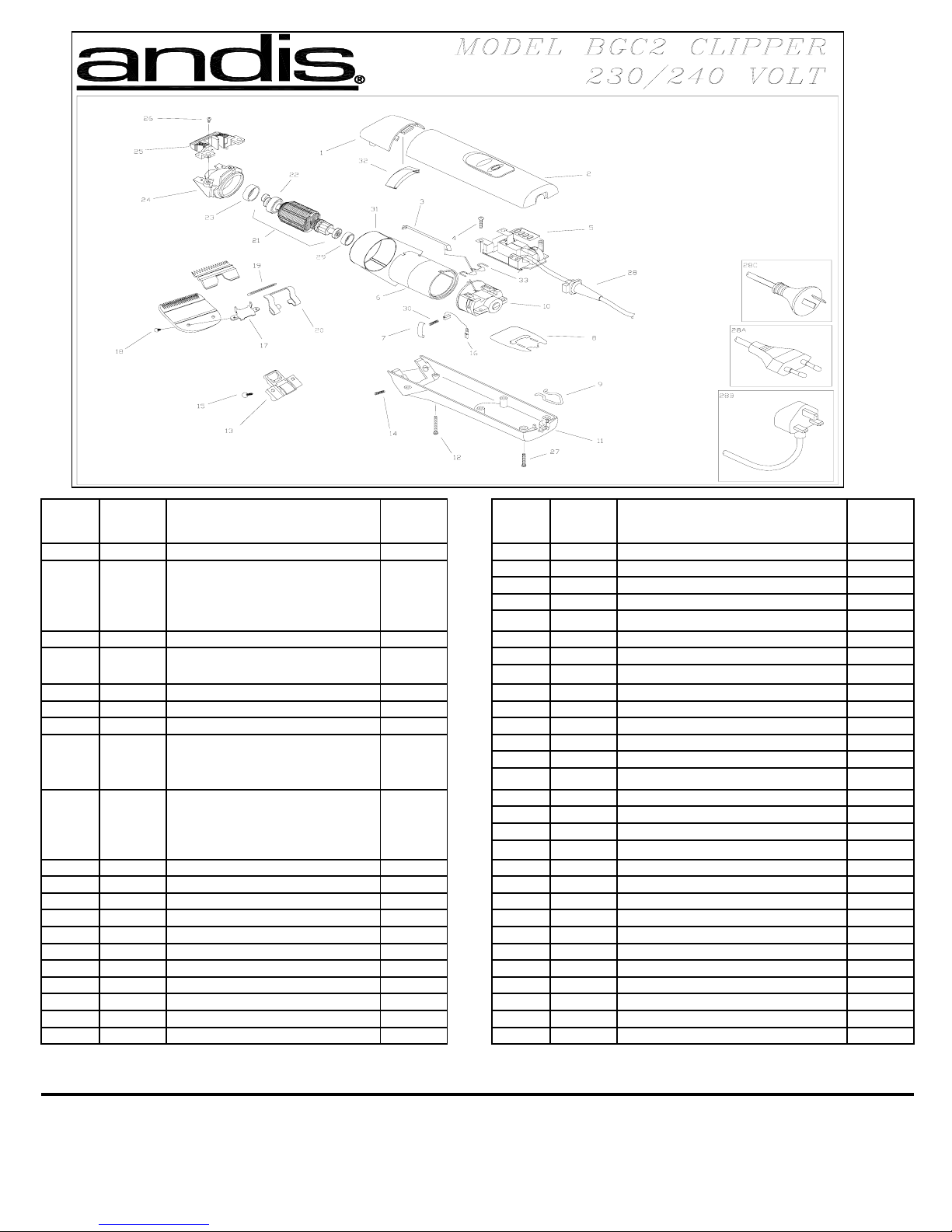

Andis BGC2 User manual

ITEM
NO. PART NO. DESCRIPTION
QTY.
REQ'D
ITEM
NO. PART NO. DESCRIPTION
QTY.
REQ'D
165267 Drive Cap - Black 1 12 64606 Front Housing Screw 2
2 13 Hinge Assembly
13a S21743 Hinge Assembly 1
13b S27091 Hinge Assembly (Oster 10,22,111) 1
14 22909 Blade Retaining Spring 1
2a 22961 Upper Housing Assembly 1 15 27861 Blade Hinge Screw 2
2b 23878 1 16 27847 Carbon Brush With Shunt 2
17 64003 Blade Bracket 1
327198 Motor Frame Clip 1 18 64139 Blade Screw 2
465828 Screw 2 19 64027 Blade Guide 1
5Circuit Board 20 64013 Tension Spring 1
5a 63143 1 21 21977 Armature Assy (w/ Plastic Cam) 1
22 27854 Plastic Cam & Bearing Assy. 1
23 21068 Large Bearing Cup 1
5b ----- * 24 65013 Front Motor Frame 1
25 S20651 Blade Drive Assembly 1
26 15766 Blade Drive Screw 2
27 22086 Rear Housing Screw 2
627352 Field Assembly 1 28 Cord Set
765805 Brush Retaining Clip 2 28a 65033 Cord Set (230V CE) 1
865829 Insulator 1 28b 65803 Cord Set (240V BS) 1
9Hanger Bail 28c 64778 Cord Set (240V SAA) 1
9a 22267 (for units after 7/3/03) 1 29 21067 Small Bearing Cup 1
9b 25061 (for units before 7/3/03) 1 30 65806 Brush Spring 2
10 64945 Rear Motor Frame 1 31 64991 Oil Seal 1
11 Lower Housing 32 17091 Self-Adhesive Foam Pad 1
11a 65232 Lower Housing (CE 230V) Black 1 33 22686 RFI Capacitor Assembly 1
11b 65229 Lower Housing (BS 240V) Black 1
11c 65231 Lower Housing (SAA 240V) Black 1
REV. G 9-5-07
IMPORTANT INFORMATION
When ordering repair parts, include part number, part name and model of trimmer. For best performance, trimmer blades should be CLEANED and OILED with Andis
Clipper Oil before and after use, If repair is necessary, return to any Andis Authorized Repair Service Station, or to Andis Company, 1800 Renaissance Blvd.,
Sturtevant, Wisconsin, 53177 U.S.A.. Pack carefully, mail either Insured Parcel Post, or U.P.S. , attach a letter to outside of package explaining difficulty.
Upper Housing Assembly - Black
(Includes Upper Housing, switch
Actuator, switch button, and switch
button lock)
Upper Housing Assembly (To be used
with circuit board 63143)
Circuit Board - Orange Switch Buttons
(To be used with Upper Housing
Assembly 23878)
Circuit Board - White Switch Buttons
(Must be replaced with circuit board
63143 and Upper Housing Assembly
23878)
* This part is only servicable by replacing with circuit board 63143 (5a) and Upper Housing Assembly 23878 (2b)
FORM 12692 Rev-G.xls SERVICE CENTER
