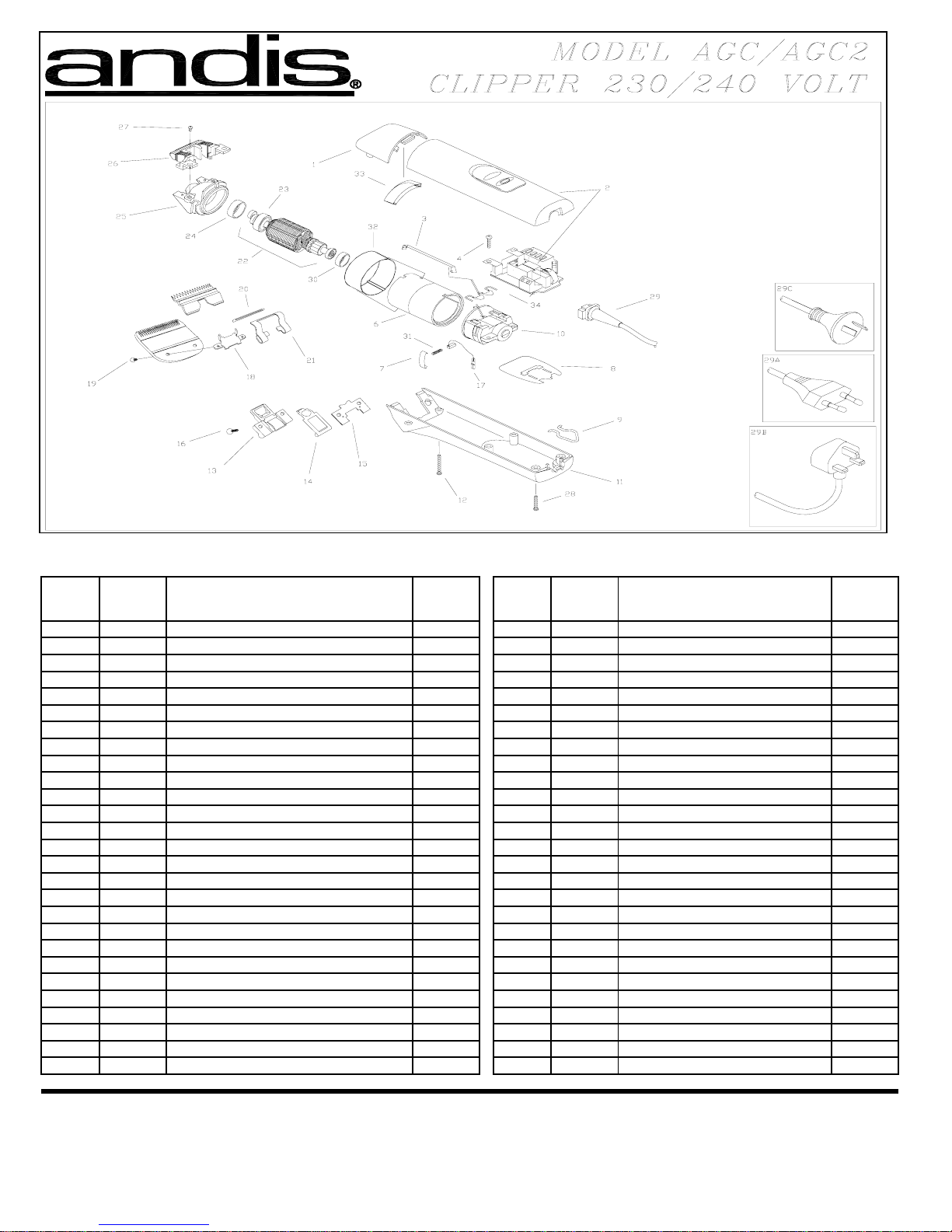

ITEM
NO. PART NO. DESCRIPTION QTY.
REQ'D ITEM
NO. PART NO. DESCRIPTION QTY.
REQ'D
165267 Drive Cap - Black 1 15 64535 Lock Keeper 1
2Upper Housing Assembly 16 27861 Blade Hinge Screw 2
2a 65237 Upper Housing Assy - Blk 2 Spd 1 17 27847 Carbon Brush With Shunt 2
2b 65228 Upper Housing Assy - Blk 1 Spd 1 18 64003 Blade Bracket 1
2c 24421 Upper Housing Assy - Burgundy 2 Spd 1 19 64139 Blade Screw 2
327198 Motor Frame Clip 1 20 64027 Blade Guide 1
465828 Screw 2 21 64013 Tension Spring 1
5- - - 22 21977 Armature Assy (w/ Plastic Cam) 1
627352 Field Assembly 1 23 27854 Plastic Cam & Bearing Assy. 1
765805 Brush Retaining Clip 2 24 21068 Large Bearing Cup 1
865829 Insulator 1 25 65013 Front Motor Frame 1
9Hanger Bail 26 S20651 Blade Drive Assembly 1
9a 22267 (for units after 7/3/03) 1 27 15766 Blade Drive Screw 2
9b 25061 (for units before 7/3/03) 1 28 22086 Rear Housing Screw 2
10 64945 Rear Motor Frame 1 29 Cord Set
11 Lower Housing 29a 65033 Cord Set (230V CE) 1
11a 65224 AGC Lower Housing CE - Black 1 29b 65803 Cord Set (240V BS) 1
11b 65226 AGC Lower Housing SAA - Black 1 29c 64778 Cord Set (240V SAA) 1
11c 65227 AGC Lower Housing BS - Black 1 30 21067 Small Bearing Cup 1
11d 65247 AGC2 Lower Housing SAA - Black 1 31 65806 Brush Spring 2
11e 24426 AGC Lower Housing BS - Burgundy 1 32 64991 Oil Seal 1
11f 24424 AGC Lower Housing VDE - Burgundy 1 33 17091 Self-Adhesive Foam Pad 1
11g 24422 AGC Lower Housing SAA - Burgundy 1 34 22686 RFI Capacitor Assembly 1
11h 24426 AGC Lower Housing CSA - Burgundy 1
12 64606 Front Housing Screw 2
13 S63897 Hinge Assembly 1
14 64537 Blade Lock 1
REV. H 5-3-07
IMPORTANT INFORMATION
When ordering repair parts, include part number, part name and model of trimmer. For best performance, trimmer blades should be CLEANED and OILED with Andis
Clipper Oil before and after use, If repair is necessary, return to any Andis Authorized Repair Service Station, or to Andis Company, 1800 Renaissance Blvd.,
Sturtevant, Wisconsin, 53177 U.S.A.. Pack carefully, mail either Insured Parcel Post, or U.P.S. , attach a letter to outside of package explaining difficulty.
FORM 12691 Rev-H.xls SERVICE CENTER
