Angelo Decor AD40251 User manual

TROUBLESHOOTING
Always disconnect the pump from the power supply before handling.
If the pump, nozzles or optional water feature fail to operate:
Check to make sure the power cord is plugged in and the receptacle has
power running to it.
Check to ensure pump is fully submersed in water.
Check the tubing for kinks or obstructions, and pump outlet is clear of objects.
Check if water features or fountain nozzles are clean and clear.
Check the spray nozzles for obstructions or a loose connection
Check water inlet for any obstructions.
If water flow has not returned:
Remove front cover and impeller cover to access rotor area.
Rotate the rotor to ensure it is not broken or jammed. Remove the
rotor to check it is free from any debris.
Rinse the cover and re-assemble.
LIMITED WARRANTY
These components are warranted to the original user against defective materials and
workmanship for a period of 12 months. Our limited warranty does not cover any costs
associated with the installation or removal of products subject to warrantyclaims or the cost
of return. The warrantywill commence from the date of purchase. Replacement liability is
limited to anypart or parts of the unit which have failed due to defective material or
workmanship. Proof of purchase is required for all claims against the limited warranty. This
warranty does not extend to damage of the product or part resulting from accident, misuse,
alteration, neglect, abuse, improper installation or normal wear and tear to the product(s).
This limited warrantyextends only to the original user of the product.
250gph Pump and Nozzle Kit Instructions
THANK YOU FOR BUYING APOND BUILDING SERIES™PRODUCT.

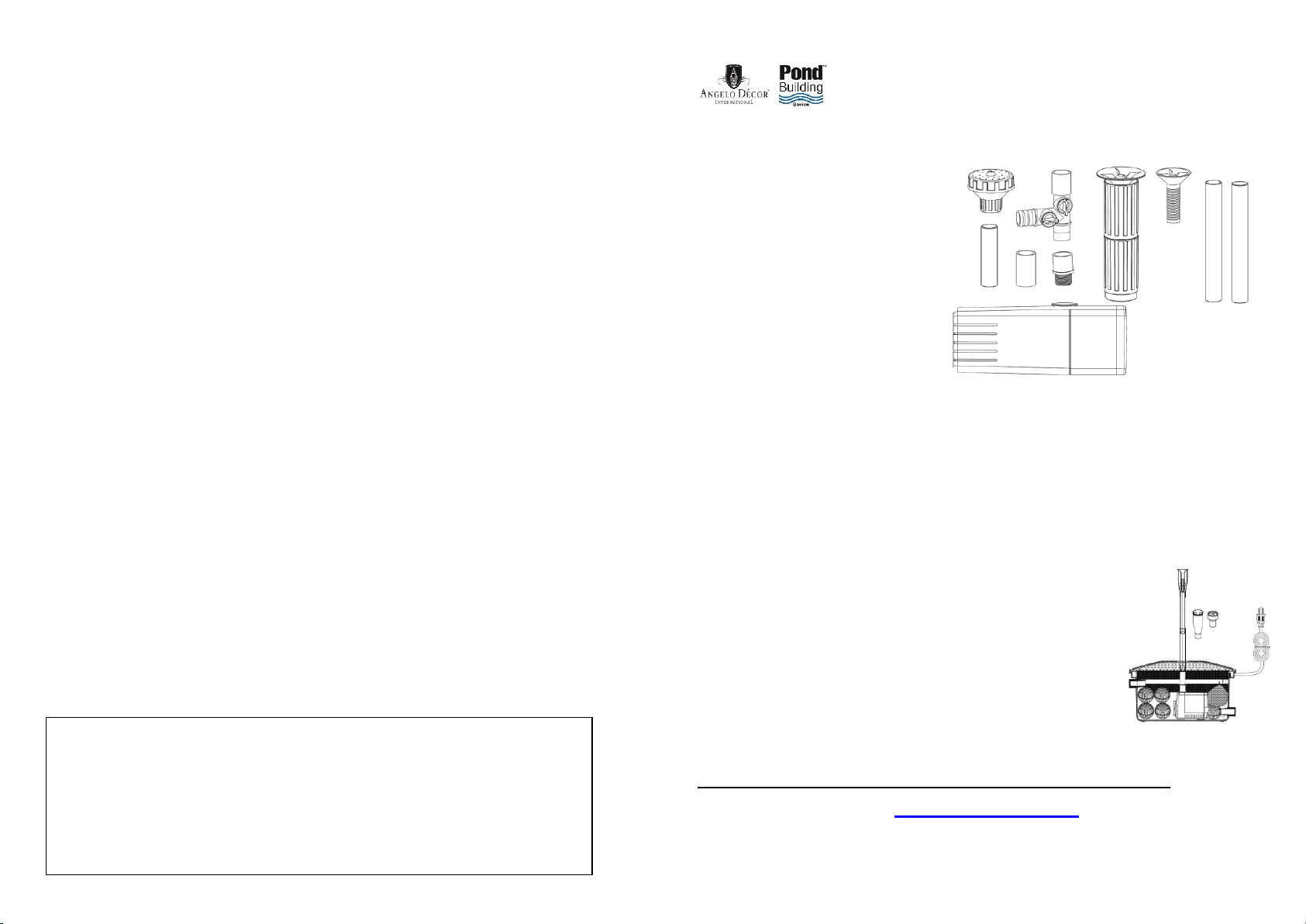

PACKAGE CONTENTS
01. Tiered Spray Nozzle
02. Bell Spray Nozzle Head
03. Trumpet Spray Nozzle Head
04. Bell and Trumpet Nozzle Base
05. Connector
06. Extension tubes
07. Pump Output
08. Dual Feature Diverter
09. 250gph Pump with Pre-Filter
IMPORTANT! - BEFORE YOU BEGIN
This pump is designed for use in “clean water applications”when using ONLY the
integrated pre-filter cartridge. It is not compatible with salt water.
Using this series of pump in an outdoor functional pond environment without using proper
filtration will cause increased maintenance and could result in pump failure due to a
build-up of debris. This type of improper pump care is not covered under warranty.
We strongly recommend the use of a filter box for use
in any pond application.
Pond Filter Box 600 using
The Included Pump Pre-filter Diverter and Trumpet Nozzle
provides basic filtration, however this
filter box should be used with any pond
application that includes fish and plants.
QUESTIONS?
PLEASE DO NOT RETURN THIS ITEM TO THE STORE.
Please visit our website www.angelodecor.com for more information
and videos on how to assemble and properly use your product.
For more information on this and other products, please visit our web site:
www.angelodecor.com
PLEASE DO NOT RETURN THIS UNIT TO THE STORE.
To contact us regarding this unit, your options include:
Email:[e-mail] | Phone: (780) 453 - 6646 | Fax: [phone]
Angelo Décor International Inc. | 15840 –118th Avenue | Edmonton, AB |T5V 1C4
01
08
02
03
09
04
05
07
Diagram #1
06
Diagram # 2
AD40251

WARNING: SAFETY AND ELECTRICAL CONNECTIONS
The pump is supplied with 10 feet of 3 core electrical cable, permanentlyconnected and sealed
to the motor. The cable cannot be replaced. Pump should be discarded if cord is damaged.
Pump must be connected to an approved ground fault circuit interrupter (GFCI)
receptacle. Do not connect to anyvoltage other than that stated on the pump.
Warning: Always unplug or disconnect from the electricity supplybefore putting
hands in the water, while equipment is being handled in any way.
Do not use the supply cable to lift the pump as this maycause damage.
Do not operate or leave the pump in freezing conditions.
Do not allow the pump to run dry. The pump must be fully submerged.
PRE-ASSEMBLY PREPARATIONS
Identify the height of riser and / or other elevation required to feature the
nozzle at the desired level in your pond.
Assess the parts required from diagram #1, to determine what you will need
to properly mount the chosen assembly to your pump.
These three popular spray patterns provide you
visual and functional options that suit most pond sizes and environments.
ASSEMBLY INSTRUCTIONS
Single Feature use
1. Attach the threaded connector to the pump output
2. Attach Riser Tube (s), and your Fountain Nozzle choice.
Dual Feature use, Fountain Nozzle with Spouting
Statue (not supplied)
1. Attach threaded connector to pump output
2. Attach the diverter
3. Attach Riser Tube (s),
and your Fountain Nozzle choice
4. Use 3/4”ID Tubing (not supplied)
to attach to your water feature.
Fountain Nozzle Head Assembly:
Spray nozzle heads should be
assembled and connected as
shown in Diagram # 5.
Please Note: Trumpet and Bell Nozzle
share the same base unit. The feature
piece is threaded into the base to allow
adjustment of the water spray diameter.
INSTALLATION IN POND
Place pump on top of a flat brick or stone approximately 2” from bottom of
pond to help prevent debris from interfering with the pump’s performance.
Make sure the cable is securely routed to the GFCI electrical supply and is
protected against abrasion and damage.
CARE AND MAINTENANCE
Before cleaning, always disconnect the pump from the power supply and
remove from pond.
Do not pump heated liquids. Unit is tested for fresh water use only.
Pond water must be kept clean using proper filtration components.
Always operate the pump completely submerged.
Disassemble the unit periodically to clean mineral deposits and build up of
debris inside the impeller and rotor.
Clean components when visibly soiled or a drop in performance is noted.
Use a cloth or soft brush with warm soapy water when cleaning.
Do not operate this pump below 0oC, as FREEZING DAMAGE MAY OCCUR.
Diagram # 3
Diagram # 5
Diagram # 4
Diagram # 6
Diagram # 3
