Anjon Aqua Marine AQF15000 User manual

Aqua Marine Floating Fountain
Classic V Trumpet Lily
OWNERS’S MANUAL
866-831-6558info@halfoponds.com www.halfoponds.com
AQF15000

Thank You and Congratulations!
AQF15000 FOUNTAIN FEATURES:
• Easy to assemble, install, and maintain
• Includes 3 different spray patterns
• 15,000 GPH ½HP Pump oxygenates the pond,
inhibits algae growth, improves pond habitat,
and promotes sh health
• Provides aeration for ponds up to a ½ acre
3'-6' deep, larger ponds will need subsurface
aeration (see Lifeline subsurface aeration kits)
• Operates in as little as 24" of water
• Available in 100', 150' and 200' foot cords
• Asynchronous drive motor can be controlled with
variable speed controller (not included) that
permits you to increase or decrease pump ow
as needed
• Vortex impeller passes solids to 0.25"
• Engineered for 24-hour continuous use; over-
load sensor prevents burnout
• Contains no oil; completely safe for sh, wildlife
and aquatic plants
• 2-year manufacturer’s warranty
Enjoy years of beauty and performance your new Floating Fountain!
This Aquamarine Floating Fountain provides aesthetic beauty, necessary oxygen to enhance
aquatic health and de-straties thermal layers and assembles in three easy steps!

Thank You and Congratulations!
800-553-5605 • www.anjonmfg.com
Making a Difference
PUMP AND FOUNTAIN SPECIFICATIONS AQF15000
Pond Size (Surface Acres) Up to ½ Acre
Range of Fountain Pattern Heights (Ft.) 6' - 14'
Range of Fountain Pattern Widths (Ft.) 8' - 32'
Minimum Operating Depth 24"
Max Flow (GPH) 15,000
Watts (120V) 624
Amps 5.2
Volts 120
Cord Length (Ft.) 100,150,200
Dimensions (L x W x H) 27" x 27" x 24"
Pump Weight (Lbs.) 12
Please read all instructions thoroughly and understand them prior to installation or use. If you have any
questions or are missing pieces, do not contact or return to place of purchase; please call 866-831-6558.

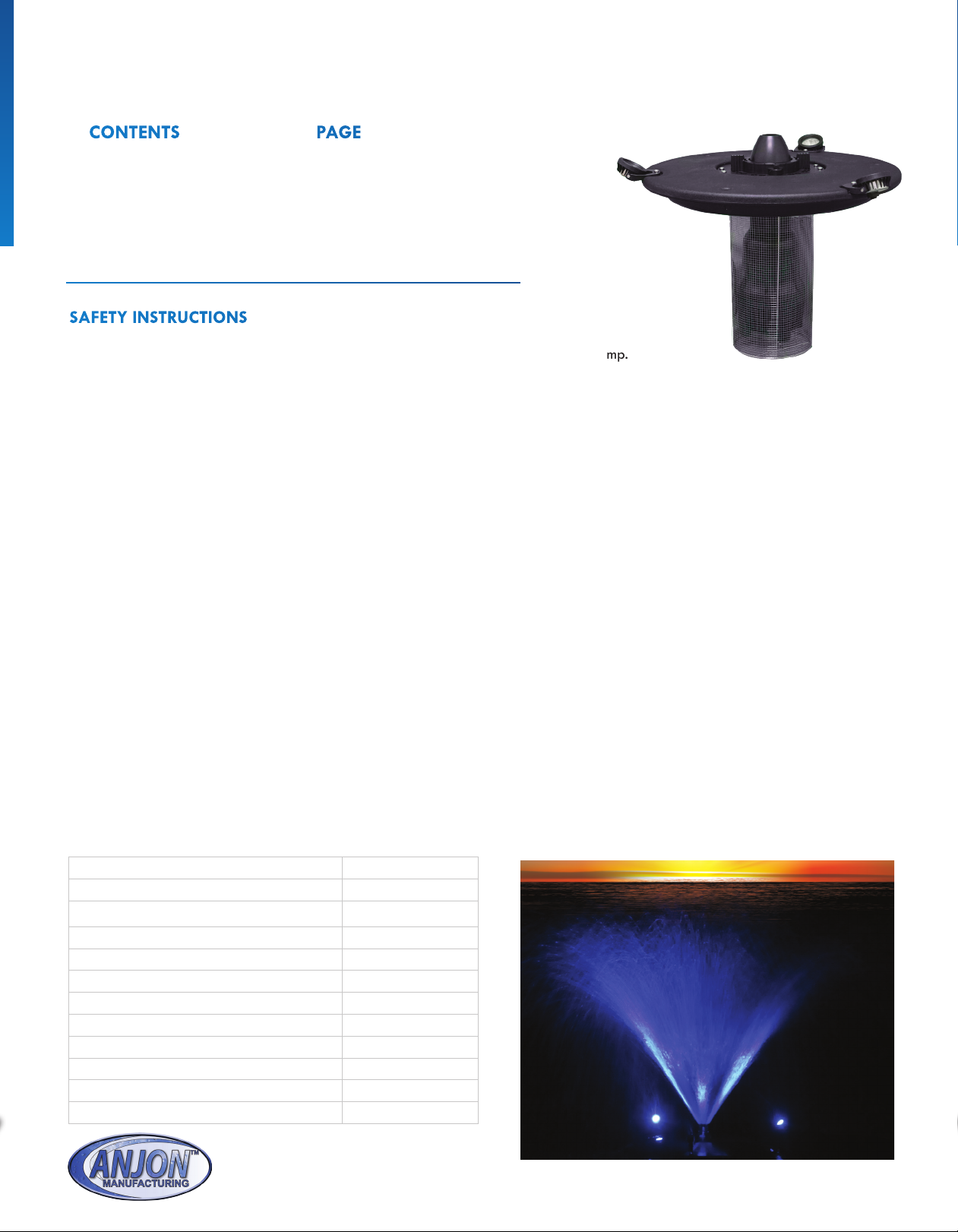

CONTENTSPAGE
Components 4
Nozzle Assembly 4
Optional Light Assembly 5
Optional Accessories 5
Mooring Rope Assembly 6
Warranty Info 7
SAFETY INSTRUCTIONS
• Read and observe all the instructions supplied with the pump and on the pump.
• Ensure that your outlet voltage corresponds to those stated on the rating label of the pump.
• Ensure that the pump is securely installed before operation.
• The electrical connection should be in a waterproof area and should be at least 6 feet away from the edge of the pond.
• Keep the electrical connections dry! Droop the electrical cord below the electrical outlet to form a "Drip Loop" (see g. 8). This will
prevent water from running down the cord into the electrical outlet.
• Always unplug the pump from its power source before installing or removing parts, cleaning the pump, or performing
any work on the fountain or water feature.
• The pump must not be used when people or wildlife are in the water.
• Do not operate any appliance with a damaged cord or plug, or in abnormal state.
• The supply cord of the pump cannot be replaced. If the cord is damaged, the pump should be discarded. Replacement pumps are
readily available.
• Do not cut the plug end off the cord for any reason. Cutting the cord voids the warranty and may create an electrical hazard.
• For safety reasons, routine cleaning, maintenance or repair work should only be done with the power cord disconnected from the power source.
• To disconnect the pump from the power source, pull the plug by the molded end; never pull the plug by the wire.
• Never hang or transport the pump by means of pulling the power cord!
• Close supervision is necessary when the pump is used by or near children.
• Never use any accessories which are not recommended by the pump manufacturer. This may result in re, electric shock,
personal injury and/or voided warranty.
• The pump is to be supplied power through a dedicated 15A breaker with a Ground Fault Circuit Interrupter (GFCI) with a rated residual
operating current not exceeding 30mA.
• To protect against the risk of electrical shock, do not immerse the plug in water or other liquid.
• Do not plug the pump in if it is not submerged in water, doing so damages the pump and voids the warranty.
• The pump power cable needs to be ran through conduit from your water feature to the GFCI outlet.
• Do not sh around the fountain, this can damage the power cord.
• Use extreme caution when operating fountain in freezing temperatures. The fountain will keep the ice thin.
• Do not walk on ice. Thin ice will break, creating the risk of hypothermia or drowning (recommend posting thin ice sign).
• We recommend removing the fountain in freezing conditions, if the pump gets ice-packed it would void the warranty.
3

REVIEW COMPONENTS
1. Remove all components from packaging.
2. Inspect all fountain kit components for damage or missing pieces. Call us at 866-831-6558 if anything is missing or damaged.
3. Once it is determined that all components are undamaged, you are ready to assembly your Floating Fountain.
FIG 1
FIG 3
Connecting Debris Basket Connecting Hub
Attaching Float Attaching Nozzles
6. Mooring Rope x2
7. Debris Basket

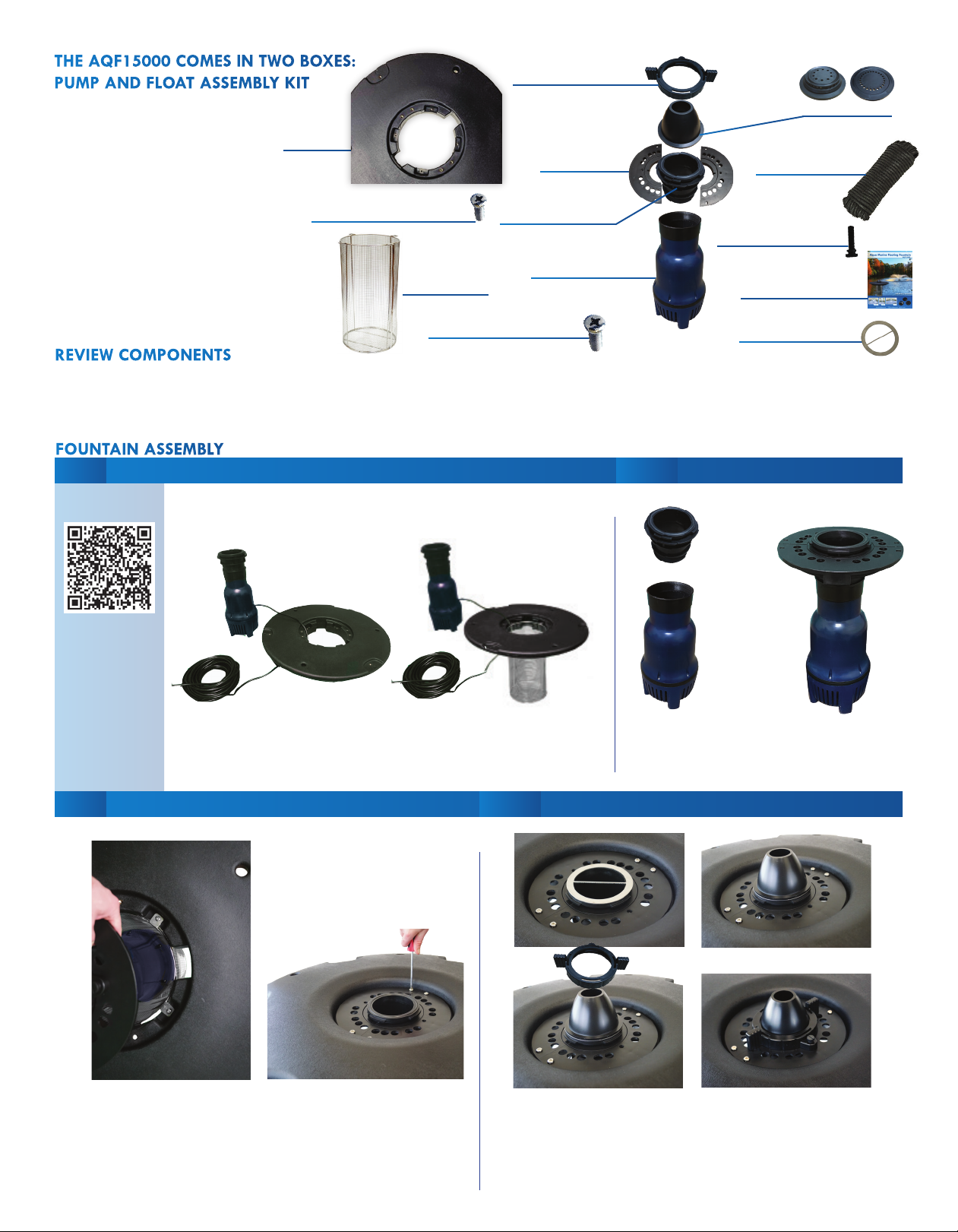

THE AQF15000 COMES IN TWO BOXES:
PUMP AND FLOAT ASSEMBLY KIT
1. 27" Float (RAF27-001)
2. Nozzle Quick-Release (RAEF-0025)
3. 3 Fountain Nozzles (AEF-NOZZLE-KIT)
4. 2 Pieces Float Flange (RAEF-0030)
5. Fountain Nozzle Hub (RAEF-0032)
6. 2 X 25' Mooring Rope (RAEF-0225)
7. Debris Basket (RAF27-002)
8. Operation Manual (IW27AQFN)
9. 15000 Pump (AP-15000100/200-AFL27)
10. 4 Pieces M6 1" Machine Screws (RAF27-003)
11. 4 Pieces M8 1" Machine Screws (RAEF-0070)
12. 1 Plastic Locking Screw (RAEF-0071)
13. Classic V Steel Plate (RAEF-0111)
5. Fountain Nozzle Hub
4. Float Flange x2
2. Nozzle Quick Release
1. 27" Float
3. Nozzles x 3
9. 15000 Pump
11. M8 1" Machine Screws x4
10. M6 1" Machine Screws x4
1. Screw fountain nozzle hub on pump
2. Slide the two ange halves around the hub
1. Feed pump cord through oat
2. Place debris basket in oat, lift oat and attach it to the debris basket
with four provided screws
1. Lift pump and place into the debris basket
2. Line up the ange with the oat and attach to the oat using
the four M8 1" Screws provided
1. When using Classic V Nozzle place stainless Steel Ring onto the
Nozzle Hub
2. Then place Classic V Nozzle on over the Steel Ring
3. Slip the Nozzle Quick-Release down over the nozzle and twist it
to lock into place
4. Install the Plastic Locking Screw to the Quick-Release
12. Plastic Locking Screw
8. Operation Manual
13. Classic V Steel Plate
1.
1.
1.
1. 2.
3. 4.
2.
2.
FIG 2
FIG 4
FOUNTAIN ASSEMBLY
(RAEF-0134 RAEF-0124)
( R A E F - 011 0 )
( R A E F - 0111)
2.
Scan QR
code for
assembly
instructions
and video.
4

Classic V Trumpet Lily

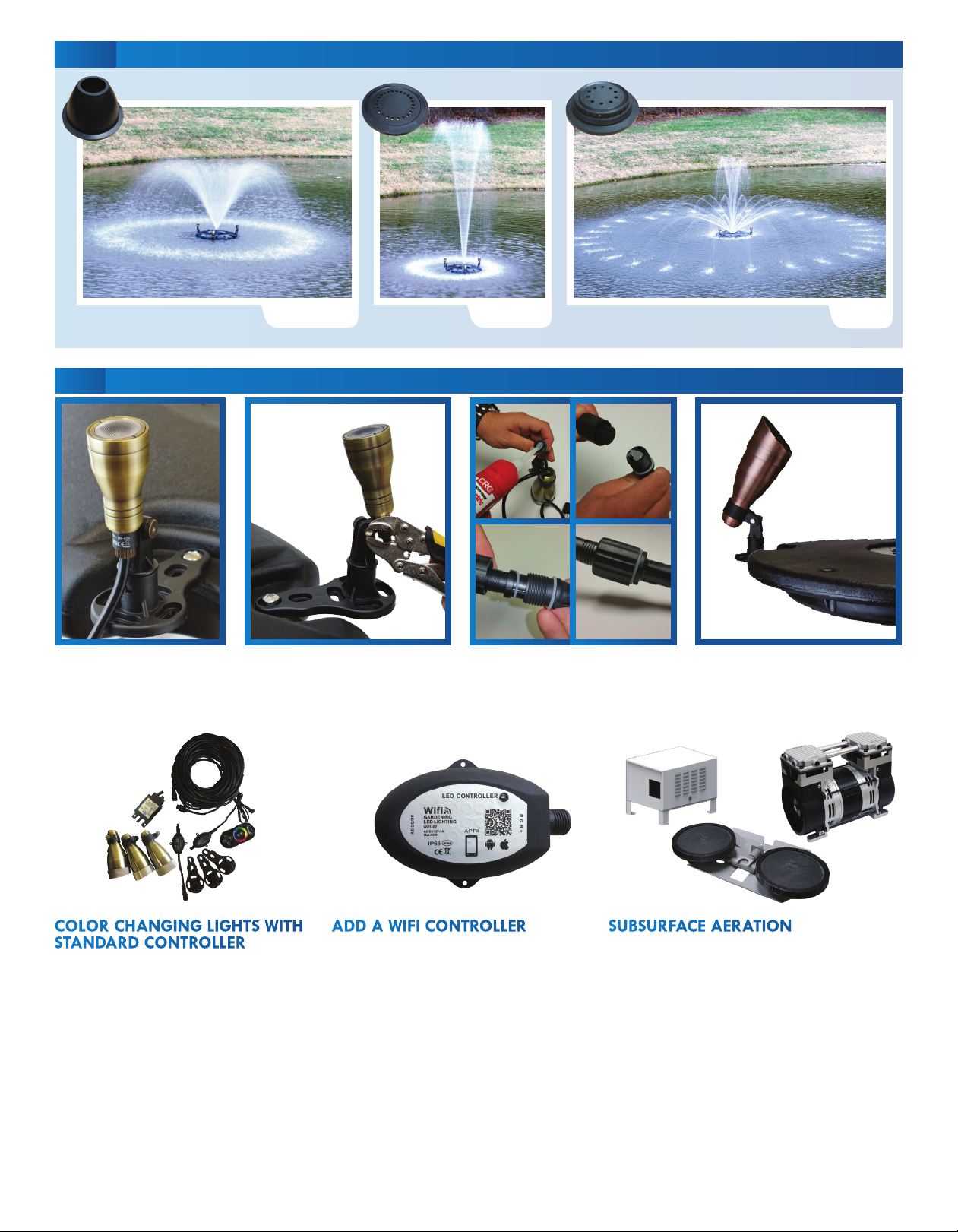

FOUNTAIN NOZZLE OPTIONS FOR MODELS: AQF15000
6' Tall X 16' Wide 8' Tall Center Trumpet / 4' Tall X 32' Wide14' Tall X 7' Wide
FIG 5
COLOR CHANGING LIGHTS WITH
STANDARD CONTROLLER
Our RGB LED Brass Light kits come in 3 or
9 watts. They are available in standard
white or remote color-changing. They are
also offered with a 100' or 200' power
cord option. Lighting kits include a remote
which allows you to select solid colors or
color patterns, a photo cell which turns the
unit on automatically at night and off during
daylight hours, and the transformer to power
the unit. These LEDs are energy efcient and
extremely bright. Lighting kit allows you to
extend the time you get to enjoy your water
fountain. Choose any setting you want to
keep your feature fresh and exciting.
ADD A WIFI CONTROLLER
This unit controls your lighting through an app
on your smart phone! The WiFi controller will
take any lighting display to the next level.
Choose from many different modes that
automatically color change, fade, strobe,
etc. You can take a picture of a color and
the lights will match that color. You can also
play music on your phone and the lights
will change colors and modes along with
the music. Also use the timer function to
automatically turn the lights off when you
will not be home to enjoy your feature. Your
oating fountain will look great during the
day, this controller gives you an even more
dramatic display at night.
SUBSURFACE AERATION
Aerate your pond with one of our LifeLine
Air Pumps. Our Aeration Kits come with
an air pump, diffuser(s), and hose. The
benets of aerating your pond are found in
preventing mosquito hatches, keeps a hole
in the ice open to protect sh, boats, and
docks, speeds up organic decomposition by
increasing oxidation at the bottom, will keep
thermocline from forming and help prevent
turnovers and winter-kills. The LifeLine Air
Pump is whisper quiet, reliable and oil-free,
extremely low-energy, and good for indoor
and outdoor use. This will keep your pond
healthy and looking beautiful.
1. Attach the light clips to
with provided M8 x 12mm
screws. Do not over tighten
as this can crack the oat.
2. Attach the LED lights to the light
clips. Aim the lights toward the
fountain display.
3. Apply a light coat of waterproof
grease and assemble the
lighting harness.
4. Read and follow the
instructions included with the
fountain light kit.
FIG 6 INSTALLING OPTIONAL IGNITE FOUNTAIN LIGHTING KIT (Light kits are sold separately.)
P a r t # : R A E F - 0110 Pa rt #: RAEF- 0124 Part#: RAEF-0134
5

Attach mooring ropes and secure to anchors or weights. Place the anchors gently into the pond at opposite edges of the oat. Set one
anchor near the edge of the pond to make it easier to retrieve the fountain for servicing. Be sure to not use sharp rocks, as they can
damage your liner. Make sure the ropes are secured to the oat.
Important: Always retrieve the fountain using mooring ropes. Never retrieve with the power cord.
Position the oating fountain in the desired location and set the anchors. To keep fountain stationary, place the anchors 2' – 4' away
from fountain for every foot of pond depth.
FIG 7 Mooring Rope Instalation
Position the oating fountain in the desired location and set the anchors. To keep fountain stationary, place the anchors 2' – 4' away
from fountain for every foot of pond depth.
1. Securely attach mooring ropes to the fountain oat. We
recommend using a carabiner to make fountain-removal
simple. After unhooking fountain, you can clip to a oat so that
you can easily nd the mooring rope for reinstallation.
2. Use mushroom anchors or concrete blocks to hold the foun-
tain in position You can also use stakes to secure lines closer
to the pond edge so that a boat is not needed for fountain
service.
FIG 8
Drip Loop
6

WARRANTY
These products, distributed by Half Off Ponds are warranted to the original user only to be free of defects in material and
workmanship for a period of 24 months from the date of purchase, but not more than 30 months from the date of manufacture.
Half Off Ponds’s liability under this warranty shall be limited to repairing or replacing, at Half Off Ponds’s discretion, without
charge, F.O.B. Half Off Ponds will not be liable for any cost of removal, installation, transportation, or other charges which may
arise related to a warranty claim.
FOUNTAIN MODELS
Reference the pump manual and light manual for warranty details on products.
To obtain service under this warranty, the defective product must be returned to Half Off Ponds together with proof of purchase
and installation date, failure date, and supporting installation data. Any defective product to be returned to Half Off Ponds or a
service center must be sent freight prepaid: documentation supporting the warranty claim and/or an Authorized Warranty Return
(AWR) must be included if instructed. In the absence of suitable proof of purchase date, the effective date of this warranty will be
based upon the date of manufacture.
Any replacement product may be either new or like-new, provided it has functionality at least equal to that of the product
being replaced. No requests for service under this warranty will be accepted if received more than 30 days after the term
of the warranty. Correction of defects, in the manner and for the duration of the warranty described in this warranty, shall
constitute complete fulllment of all liabilities and responsibilities of Half Off Ponds to the user with respect to the product, and
shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. Except for the
obligations specically set forth in this warranty, in no event shall Half Off Ponds be liable for direct, indirect, special, incidental, or
consequential damages, whether based on contract, tort, or any other legal theory and whether advised of the possibility of such
damages.
Half Off Ponds reserves the right to change or improve its products or any portions thereof without being obligated to provide such
a change or improvement for units sold and/or shipped prior to such a change or improvement.
THERE ARE NO EXPRESS OR IMPLIED WARRANTIES, INCLUDING MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
WHICH EXTEND BEYOND THOSE WARRANTIES DESCRIBED OR REFERRED TO ABOVE EXCEPT AS EXPRESSLY HERIN PROVIDED THE
GOODS ARE SOLD “AS IS”, THE ENTIRE RISK AS TO QUALITY AND FITNESS FOR A PARTICULAR PURPOSE, AND PERFORMANCE
OF THE GOODS IS WITH THE BUYER, AND SHOULD THE GOODS PROVE DEFECTIVE FOLLOWING THEIR PURCHASE, THE BUYER
AND NOT THE MANUFACTURER, DISTRIBUTOR, OR RETAILER ASSUMES THE ENTIRE RISK OF ALL NECESSARY SERVICING AND
REPAIR.
7

IW27AQFN
Scan QR code
for assembly
instructions and
more information.
