ANMEATE SM935E User manual

BABY MONITOR SM935E
USER MANUAL
CATCH EVERY PRECIOUS MOMENT OF YOUR BABY
(Digital Wireless Video Baby Monitor With 3.5 inches Color Screen)

THANK YOU FOR PURCHASING ANMEATE BABY MONITOR.
PLEASE ACTIVE AND EXTEND YOUR WARRANTY NOW.
(Register within 7 days after receiving your product)
To register your product
Visit https://anmeate.com/warranty
Finished the form on the website
That is it! Your product is now active and extend warranty!
If you are unsatisfied with your product, please contact us via
[e-mail] or anmeate.com
before leaving a negative review.
We will definitely give you a satisfactory solution.
[e-mail]

[e-mail]
Congratulation!
Now you can take care of your babies anywhere and anytime!
Please read the user manual before use!
Please retain your original dated sales receipt for your to records.
For warranty service of your baby monitor, you will need to provide a
copy of your dated sales receipt to confirm warranty status. Registration
is not required for warranty coverage.
Before you use the product, we recommend you fully charge the battery
in the parent unit, so that it continues to work so that it continues to
work even when disconnected from the power supply for transferring
to another location.
Please read the safety instructions.
Please make sure you have the following in the packing.
1. Parent unit x 1
2. Baby unit x 1
3. Adapter x 2
4. User manual x 1
5. Wall mount shim x 1
- 01 -

[e-mail]
- 02 -
1. SAFETY INSTRUCTIONS :
CAUTION: Keep small parts away from children.
Strangulation Hazard: Children can become entangled in cords. Power
cords should be kept more than 3 feet away from the crib and baby's
reach all the time. Baby monitors and cameras with power cords should
never be hung on or near the crib. This product is not a toy and should be
kept out of children's reach. This product contains small parts. Be care
when unpacking and assembling the product.
Read and keep instructions: All the safety and operating instructions
should be read before the video baby monitor is operated.
This product cannot replace responsible adult supervision.
Water and moisture: This product is designed for indoor use only. The
unit should not be exposed to rain, moisture, dripping or splashing. No
objects filled with liquid should be placed on top of, or beside the product,
such as a glass or vase. This item should not be used near water.
DO NOT USE THE APPLIANCE:
- If the cord or plug is damaged .
- If your baby monitor is not operating properly or has suered any damage.
Contact service: The service center to request inspection and repair it in
order to avoid any possible risk.
DO NOT: Attempt to repair or adjust any of the electrical or mechanical
functions of the unit since, if you do, the guarantee will be made void.
Ventilation: This baby monitor should not be used on a bed, sofa, rug or
similar surface that may block the ventilation openings, or be placed in an

[e-mail]
- 03 -
enclosed area, such as a bookcase or drawer that may impede air flow.
Keep away from sources of heat: This unit should not be exposed to direct
heat sources such as a candle, replace, radiator, heat register, stove or other
appliance that emits heat. The unit should not be left in direct sunlight.
Power source: This unit should only be used with the adapter included in this
package.
Damage requiring service: This unit should be serviced by qualified
personnel .
WARNING: IR emitted from this product. Do not stare at operating lamp !!
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
FCC STATEMENTS:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
thatmay cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and

[e-mail]
- 04 -
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user's authority to
operate the equipment.
FCC WARNING
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particu-
lar installation. If this equipment does cause harmful interference to radio or

[e-mail]
- 05 -
television reception, which can be determined by turning the equipment
of and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet dierent from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
IC STATEMENTS:
This device complies with Industry Canada licence-exempt RSS
standard(s):
Operation is subject to the following Two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that
may cause undesired operation of the device.

[e-mail]
2. WARRANTY TERMS
We take quality very seriously. This is why all of our products come with
one year warranty from the original purchase date against defects in
workmanship and materials. If you have warranty or support issues please
contact [e-mail]. We will definitely give you a satisfactory
solution.
3. Important guidelines for installing your baby monitor
To use your parent unit and baby unit together, you must be able to
establish a radio link between them, and the range will be aected by
environmental conditions.
Any large metal object, like a refrigerator, a mirror, a filling cabinet, metallic
doors or reinforced concrete between the baby and parent unit may block
the radio signal.
The signal strength may also be reduced by other solid structures, like
walls, or by radio or electrical equipment, such as TV, computers, cordless
or mobile phones, fluorescent lights or dimmer switches.
Use of other 2.4GHz product, such as wireless networks (Wi-Fi routers),
Bluetooth systems, or microwave ovens, may cause interference with this
product, so keep the baby monitor away at least 5ft(1.5m) from these types
of products, or turn them o if they appear to be causing interference.
- 06 -

[e-mail]
4. PRODUCT OVERVIEW
4.1 What’s included:
1. Parent unit x 1
2. Baby unit x 1
3. Adapter x 2
4. User manual x 1
5. Wall mount shim x 1
- 07 -

[e-mail]

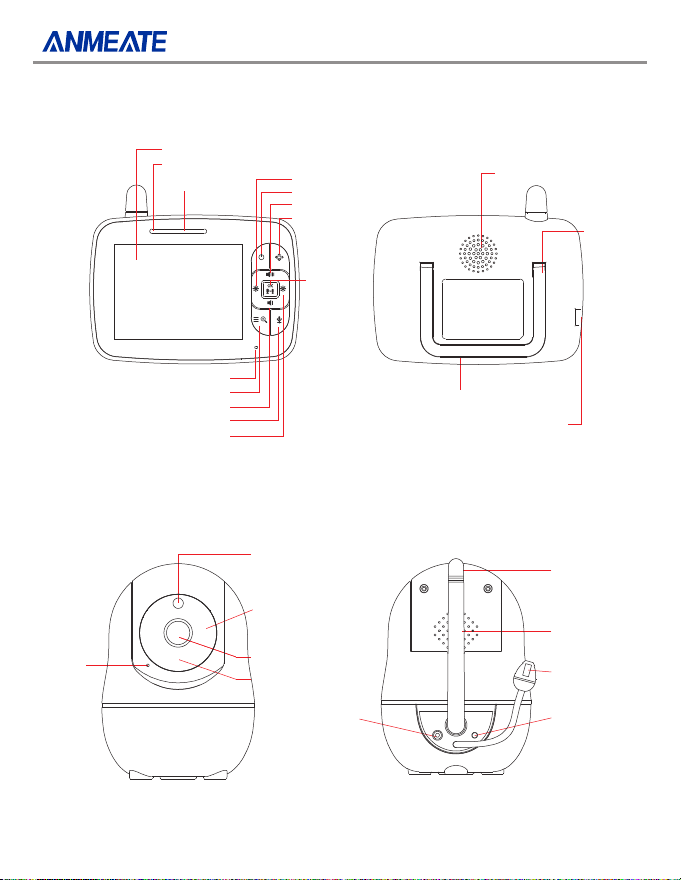

4.2 Parent Unit (Monitor)
4.3 Baby Unit (Camera)
LCD screen
Brightness-/Left
Light sensor
Infrared LEDs
CMOS senor
Power LED
Speaker
Speaker
Antenna
Pair Key
Temperature
sensor
Reset(under stand)
DC-Jack
DC-Jack
Stand
Mic
Mic
Menu/Exit
Volume-/Down
Talk to Baby
Brigthess+/Right
Power on/o
Volume+/Up
Pan/Tilt
OK
Volume Indicator
Power/Charging Indicator LED
- 08 -

[e-mail]
Signal
Alarm
Lullaby
Camera
Volume
Brightness
ECO
Battery
Zoom
Night vision
Talk to baby
Temperature
4.4 Icons Overview:
- 09 -

[e-mail]
5. PLACEMENT OF THE BABY MONITOR
Aim to provide the viewing area: Select a location for the baby unit that
provides a clear view of the area you want to monitor, which is free from
dust, and is not in line -of- signt to a strong light source or direct sunlight.
Avoid installing the baby unit where there are thick walls or obstructions
between the camera and the monitor.
STRANGULATION HAZARD--keep cord out of child’s reach.
Never place camera or cords within 3 feet of crib or playpen.NEVER use
extension cords with adapter, only use the adapter provided.
- 10 -

[e-mail]
6. USING THE BABY MONITOR
6.1 TURN ON THE BABY UNIT:
Only use the adapter included in this package.
Use the provided adapter to connect the wall outlet with the baby unit.
Once the adapter connects then the unit will turn on automatically and the
power LED will light up.
6.2 TURN ON THE PARENT UNIT:
Only use the adapter included in this package.
The parent unit is supplied with a built-in rechargeable Li-ion battery. We
suggest connecting the monitor to the adapter plugged into the mains
whenever possible to keep the battery charged.
Press and hold the power key 5 seconds on the Parent Unit.
Once parent unit turned on , the power LED will light up and the image will
display on the LCD screen.
6.3 CHARGING THE PARENT UNIT:
Connect the adapter to the Parent Unit.
Plug the adapter into the wall outlet.
When Parent Unit is turned o, charging LED on the Parent Unit will light in RED.
When Parent Unit is turned on, the charging LED will light in ORANGE and battery
charging icon(charging bars) will appear at the top right corner of the LCD screen.
It takes about 8 hours to fully charge the battery.
Full battery indicator(4 fixed bars) will appear at the top right corner of
the LCD screen, indicating the battery is fully charged.
Note: Before the first use or after a long product storage, it is recommended
to fully charge the Parent Unit battery prior to operating the monitor.
- 11 -

[e-mail]
- 12 -
7. OSD MODE OPERATION
7.1 PARENT UNIT SCREEN ON/OFF
Under the boot state, short press the power key to turn on / o the
screen.
7.2 VOLUME ADJUSTMENT
Under the boot state, press the UP key to increase the volume.
Under the boot state, press the DOWN key to decrease the volume.
7.3 BRIGHTNESS ADJUSTMENT
Under the boot state, press the Left key to decrease the brightness.
Under the boot state, press the Right key to increase the brightness.
7.4 DIGITAL ZOOM & PAN / TILT
Press and hold Menu/Eixt key around 2 seconds to operate.
At the Zoom mode, press the LEFT key RIGHT key UP key
DOWN key to Pan/Tilt the image.
During digital zoom mode, the zoom icon will be displayed on the top of
screen.
Warm reminder: If you want to adjust the Volume/Brightness, you have to
exit the Zoom mode before you operate it.

[e-mail]
- 13 -
7.5 CAMERA VIEW / SCAN
(This function is only available when two or more cameras paired)
Press OK key to view / scan camera.
During scan mode, the scan icon will be displayed on the top of
LCD screen and each paired camera(when more than one camera is
paired) will be displayed on the screen for approx 10 seconds and then
will automatically change to the next paired camera.
7.6 TALK TO BABY
To talk, press and hold the talk key on the front of the monitor.
Release the button when you finish talking to start listening to the sound
from your baby's room.
While the “TALK TO BABY” function is in use, there is no possibility to
hear the sounds from the Baby Unit. Releasing the talk key, allows hearing
the sounds from the baby’s room again.
7.7 INFRARED NIGHT VISION (Automatic)
The infrared night vision function allows the camera to pick up images of
your baby or the monitored area in dark or low light conditions.
In this mode, only black and white images will be displayed on the
monitor, the optimum image is 6 feet distance between baby unit and
object.

[e-mail]

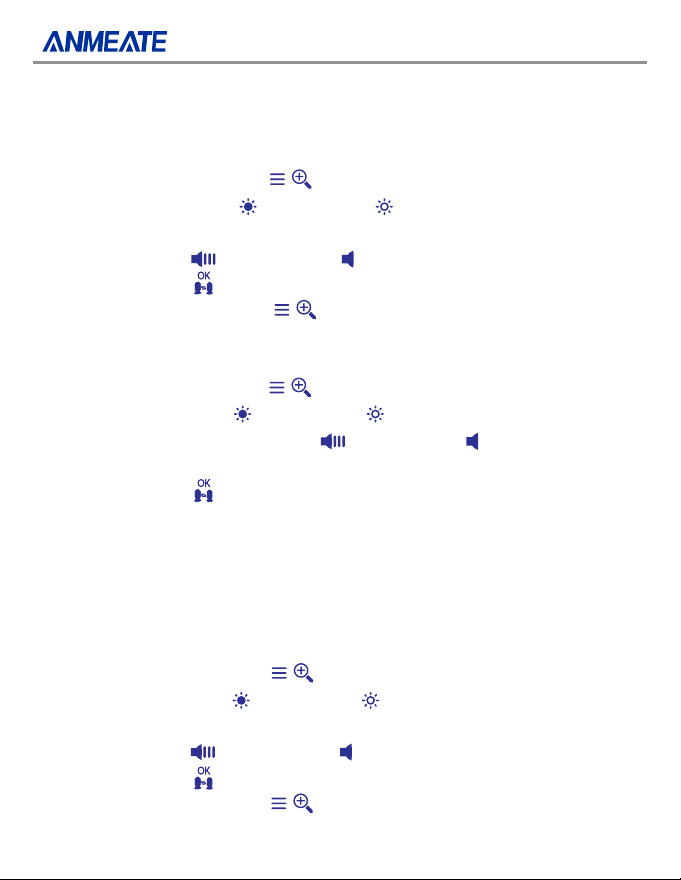

8. MENU OPERATION
8.1 ECO SETTING
This mode allows you to control the sound activation of your baby monitor.
The ECO default setting is OFF. If there is no sound around the camera within
30 Seconds, it will stops transmitting.
The monitor screen turns o when the camera is not transmitting.
When the camera detects the sound is louder than set sensitivity level, it will
start transmitting the signal to the monitor again.
To change the ECO level, please follow the next instructions:
1. Press the Menu/Eixt key and the menu will pop up.
2. Press the LEFT key or RIGHT key until the the ECO icon is
highlighted then press UP key or DOWN key to select desired level.
3. Press OK key to confirm.
4. Press the Menu/Exit key to Exit.
8.2 ALARM SETTING
You can use the alarm to remind yourself to feed baby /change diapers /
sleep, etc.
1. Press the Menu/Eixt key and the menu will pop up.
2. Press the LEFT key or RIGHT key until the alarm icon is
highlighted.
3. Press UP key to increment or press DOWN key to decrement.
4. Press OK key to confirm.
5. Press the Menu/Exit key to Exit.
Note: If the alarm is ringing and no one answers, the ringing will last 1 minute,
after 3minutes the ringing will start again.
The ringing will sound up three times total if no one answers.
- 14 -

[e-mail]
8.3 LULLABY SETTING
You can soothe the baby to sleep by playing a gentle lullaby from the
baby unit.
1. Press the Menu/Exit key and the menu will pop up.
2. Press the LEFT key or RIGHT key until the lullaby icon is
highlighted.
3. Press UP key or DOWN key to select.
4. Press OK key to confirm.
5. Press the Menu/Exit key to Exit.
8.4 PAIRING THE CAMERA AND MONITOR
1. Press the Menu/Exit key then the menu will pop up.
2. Press the LEFT key or RIGHT key until the camera icon is
highlighted then press UP key or DOWN key to select the
desired camera to pair.
3. Press OK key to start the pairing.
4. While the LED is flashing then press the PAIR button on the back of
camera.
5. Once paired, then the screen will display the image from the camera.
6. If unsuccessful, please repeat above steps.
8.5 TEMPERATURE UNIT SETTING
1. Press the Menu/Exit key and the menu will pop up.
2. Press the LEFT key or RIGHT key until the temperature icon is
highlighted.
3. Press UP key or DOWN key to select between °C or °F.
4. Press OK key to confirm.
5. Press the Menu/Exit key to Exit.
- 15 -

[e-mail]
8.6 Video Pan/Tilt
1.Press the shot-cut key enter into the Pan/Tilt mode.
2.Press or key to Tilt the video.
3.Press or key to Pan the video.
4.Press the shot-cut key to exit the Pan/Tilt mode.
Note: During the Pan/Tilt mode can not use the navigation key to
adjust Volume and brightness.
- 16 -

[e-mail]
9. TECHNICAL DATA
9.1 System General
Frequency
Operation Environment
Operating Range
Power adapter
LCD
Rechargeable battery for monitor
Operating time with battery fully
charged (parent unit)
Image sensor type
IR LED Type
2.4GHz FHSS
Indoor use only; Temperature: 0-40 °C ;
Humidity: 5% to 90% rh. ( relative humidity)
Up to 900 feet (straight line and open space)
Input: 100-240VAC 50 / 60Hz, 300mA Max
Output: 5V, 700mA
3.5'' LCD Screen
Model: 503450; 3.7V, 1200 mAh
Up to 12 hours (ECO on)
1/6.5'’ Color CMOS image sensor
940 nm
- 17 -

[e-mail]
No reception on
the monitor
Interference or Poor
Reception
1. The power adapters may not be properly connected.
Confirm that the camera and monitor are ON.
See item 2 “Getting started”, connect the baby unit in the right way.
If it is still unconnected, choose another baby unit to connect.
2. The baby unit may be too far from the parent unit.
Keep the distance between the baby unit and the parent unit with
900 feet (open space).
3. The baby unit and parent unit may not be properly paired.
Following the Pairing instructions.
4. If the above strategies do not work, restart the parent unit.
At the back of the parent unit(under the stand) you will see a small
black hole marked “Reset”. Just take a sharp object and press the
reset button for a few seconds.
1. The baby unit may be too far from the parent unit.
Keep the distance between baby unit and parent unit in 900 feet
(open space).
2. The baby unit or the parent may be placed too close to metal objects.
Keep the metal objects at least 5 feet away from the parent unit. In
most cases it is even enough to move them about 8-10 inch away
3. Other electronic devices may be interfering with signal.
Keep the electronic devices at least 5 feet away from the parent unit.
In most cases it is even enough to move them about 8- 10 inches away.
4. The battery power may be to low.
Full charge the parent unit with AC adapter provided
5. If the above strategies do not work, restart the parent unit.
10. TROUBLE SHOOTING
- 18 -
