Anova P101 Instruction Manual

4T sprayer truck
Instructions and user manual
P101
Millasur SL
Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro
15688 - Oroso - A Coruña - 981 696 465 - www.millasur.com
EN

IT IS
2
Anova wishes to congratulate you for choosing one of our products and
guarantees the assistance and cooperation that has always distinguished
our brand over time.
This machine is designed to last for many years and to be of great use if
used in accordance with the instructions contained in the user manual. We
therefore recommend that you read this instruction manual carefully and
follow all our recommendations.
For more information or doubts, you can contact us through our web
supports such as www.anova.es
INFORMATION ABOUT THIS MANUAL
Please pay attention to the information provided in this manual and on the
appliance for your safety and that of others.
- This manual contains instructions for use and maintenance.
- Take this manual with you when you go to work with the machine.
- The contents are correct at the time of printing.
- The rights to make changes at any time are reserved without
affecting our legal responsibilities.
- This manual is considered an integral part of the product and must
remain with it in case of loan or resale.
- Ask your dealer for a new manual in case of loss or damage.
READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE
To ensure that your machine provides the best results, please
read the usage and safety regulations carefully before using it.
OTHER WARNINGS:
Incorrect use could cause damage to the machine or other objects.
The adaptation of the machine to new technical requirements could cause
differences between the content of this manual and the purchased
product.
Read and follow all instructions in this manual. Failure to follow these
instructions could result in serious personal injury.

IT IS
3
INDEX
1. USER WARNINGS
2. TECHNICAL SPECIFICATIONS
3. INSTRUCTIONS FOR USE OF THE ENGINE
3.1. Security warnings

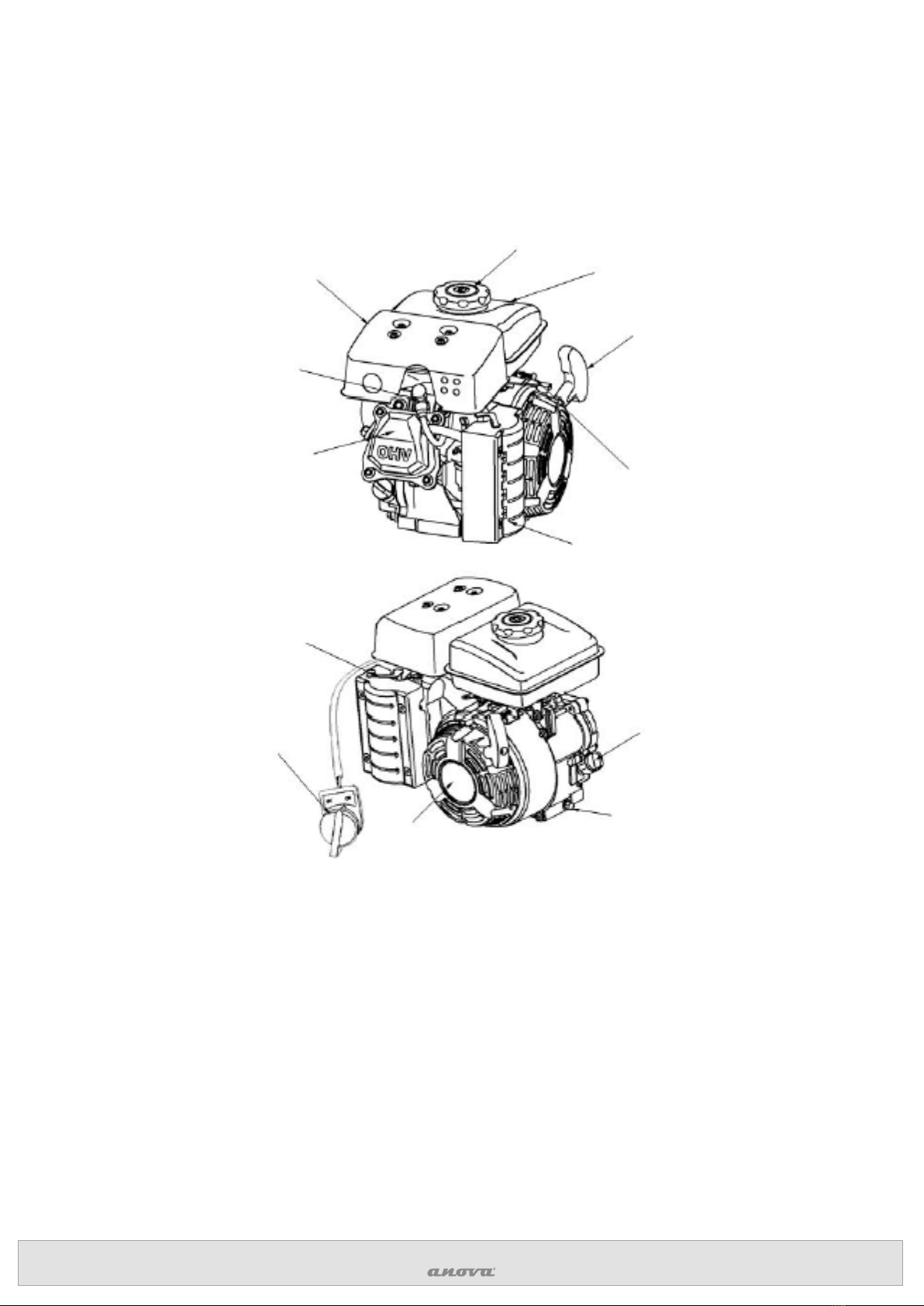

3.2. Identification of engine parts
3.3. Engine use
3.4. Pre-Operation Checks
3.5. Engine start
3.6. Engine stop
3.7. Engine maintenance
3.8. Engine storage
3.9. Problem solving
3.10. Engine technical data
3.11. Wiring diagram
4. INSTRUCTIONS FOR USE OF THE P100-187 PUMP
4.1. Security warnings
4.2. Expected use
4.3. Unintended uses
4.4. Preliminary checks
4.5. Controls in the installation
4.6. Installation, commissioning and shutdown
4.7. Pump maintenance
4.8. Troubleshooting the pump
5. MAINTENANCE AND STORAGE
6. WARRANTY
7. ENVIRONMENT
8. EXPLODED

IT IS
4

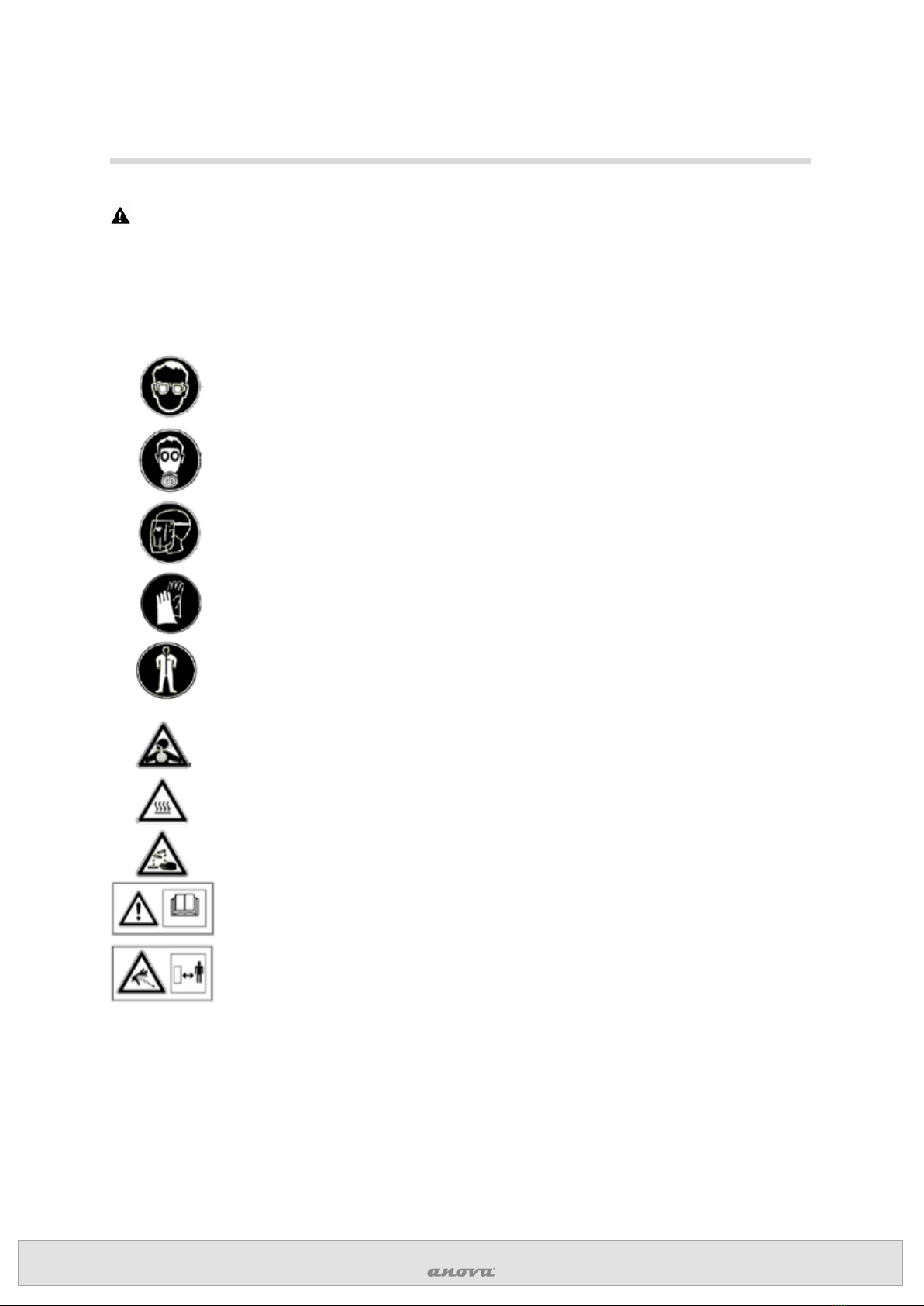

1. USER WARNINGS
Warning
Read carefully the recommendations included in this instruction manual that comes with your
equipment.
During the entire spraying process (product mixing, application, cleaning, etc.) protect yourself
with the following personal protective equipment: gloves, helmet, respirator, safety glasses and
adequate clothing that prevents contact with the product.
respiratory protection
vision protection
face protection
hand protection
Body protection with adequate PPE
Danger due to inhalation of toxic vapors
Danger of burns (indication of hot parts)
corrosive materials
General danger, read instructions
Danger of projection of pressurized fluid, keep a safe distance.

IT IS
5
1.1. Operation safety warnings
- Always make sure, before using the machine, that there are no people or animals in
the work area.
- Keep hands and feet at a safe distance from moving and/or rotating parts.
- Especially in areas with low temperatures, to prevent the pump from being damaged
when trying to start it with the pipes blocked by ice, let the pump work until no water
comes out to empty it completely.
- Never touch any part of the pump if it has not cooled down, there is a risk of burns.
- Wash and change your clothes after every job.
- Wash used tools susceptible to contamination.
- Do not eat, drink or smoke during spray work.
- Do not work in rain or wind.
- When filling tanks with chemical products, have clean water nearby for later washing
of the face and hands. In any case, avoid direct skin contact with these devices.
- In case of poisoning go to the doctor, provide the label of the product that caused it.
- Carefully read the information on the product to be applied and its consequences in
case of poisoning or contact with the body.
- Control possible unwanted reactions between different pesticides stored, next to each
other or mixed.
- Keep the products in their original packaging with their labels, in a dry and ventilated
place, away from the manipulation of children or inexperienced people. After use,
destroy the containers according to the manufacturer's instructions.
- If a product spill accidentally occurs, apply the safety measures on the spilled product
according to the manufacturer's instructions.
- It should not enter the treated field until a reasonable time has elapsed since its
application.
1.2. Additional security warnings
- Be sure to cover the spray tank well once it is full.
- The tank will always be filled in ventilated places, leaving part of the tank capacity
unfilled.
- Never use the tank of the equipment to transport drinking water or fuel.
- After using the equipment, you must wash it with plenty of clean water and run the
pump with the keys open in order to keep it clean of products that may be corrosive.
These types of operations must be carried out in places prepared for this purpose,
where there is no risk of contamination for people, animals or plants.
- Do not clean the nozzles by blowing.
- Before your overhaul, take the pressure off the machine.
- Never check the machine when it is running.
- After your review, install the security covers again.
- Before carrying out any revision, maintenance or action that is not completely safe,
contact your official distributor.

IT IS
6
2. TECHNICAL SPECIFICATIONS
P101/P102
Engine
Anova 4 stroke – MA81
Displacement
79cc
Deposit
100L
Bomb
Anova P100-187
Flow
23L/min
Pressure
25 bar
Long hose
10m
3. INSTRUCTIONS FOR USE OF THE ENGINE
3.1. Security warnings
3.1.1. User Responsibility
Please read and follow the instructions carefully before using the motor, otherwise it will result
in personal injury or damage to the motor.
Learn how to quickly stop the engine and familiarize yourself with all control operations. Never
work with the engine unattended. Keep children and pets away from the area of use.
3.1.2. Carefully refuel
Gasoline is flammable. Carry out the operation in an outside, well-ventilated area, stop the
engine completely and refuel.
Do not smoke during refueling, keep away from fire and other sources of sparks.
It is forbidden to start the engine when there are gasoline splashes in the work area and they
are not completely dry.
3.1.3. Hot exhaust gas
The exhaust will be very hot during engine operation, even after a period of inactivity.
Be careful not to touch the hot exhaust so as not to cause burns. Shut off the engine and let it
cool down.
To prevent fire, keep the motor at least 1 meter away from walls and other equipment while
the motor is running.
Flammable products must be kept away from the engine.
3.1.4. Carbon monoxide poisoning
Exhaust gases produce toxic carbon monoxide. Inhalation of exhaust fumes should be
avoided.

IT IS
7
Do not use in closed places without proper ventilation. Do not run the engine in a closed garage
or enclosed area.
3.2. Identification of engine parts
3.3. Engine use
3.3.1. Engine switch
The engine switch is for turning the ignition circuit on and off: The engine can only be operated
when the engine switch is in the "open" (ON) position; it can be moved to the "OFF" position
to stop the motor.
Gas exhaust
Spark plug
OHV rocker cover
Fuel tank cap
Fuel tank
Starter puller
Throttle adjustment
Air filter
Throttle lever
Engine switch
oil plug
Drain screw for oil

IT IS
8

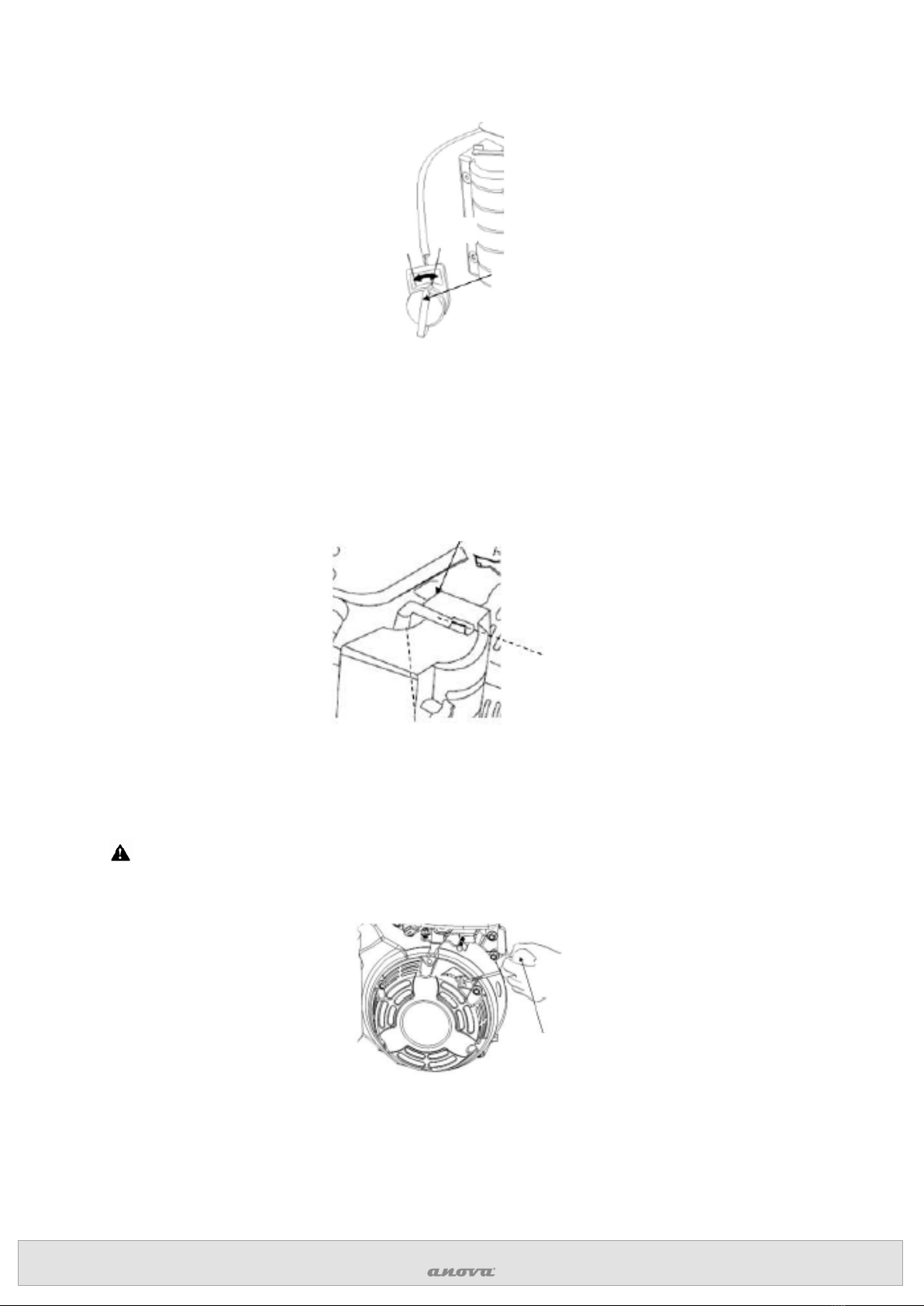

3.3.2. Throttle control (choke)
The purpose of the choke lever is to open the throttle control and close the choke.
The choke handle must be placed in the "closed" position when the engine is started.
After starting the engine, the choke must be placed in the "open" position.
3.3.3. Starter handle
Pulling the starter handle causes the system to drive the engine crankshaft to start the engine.
Warning
Do not let the starter handle jump back after starting, gently return the pull handle to its original
position.
OFF
Engine switch
ON
Throttle lever
Closed
Open
Starter puller

IT IS
9

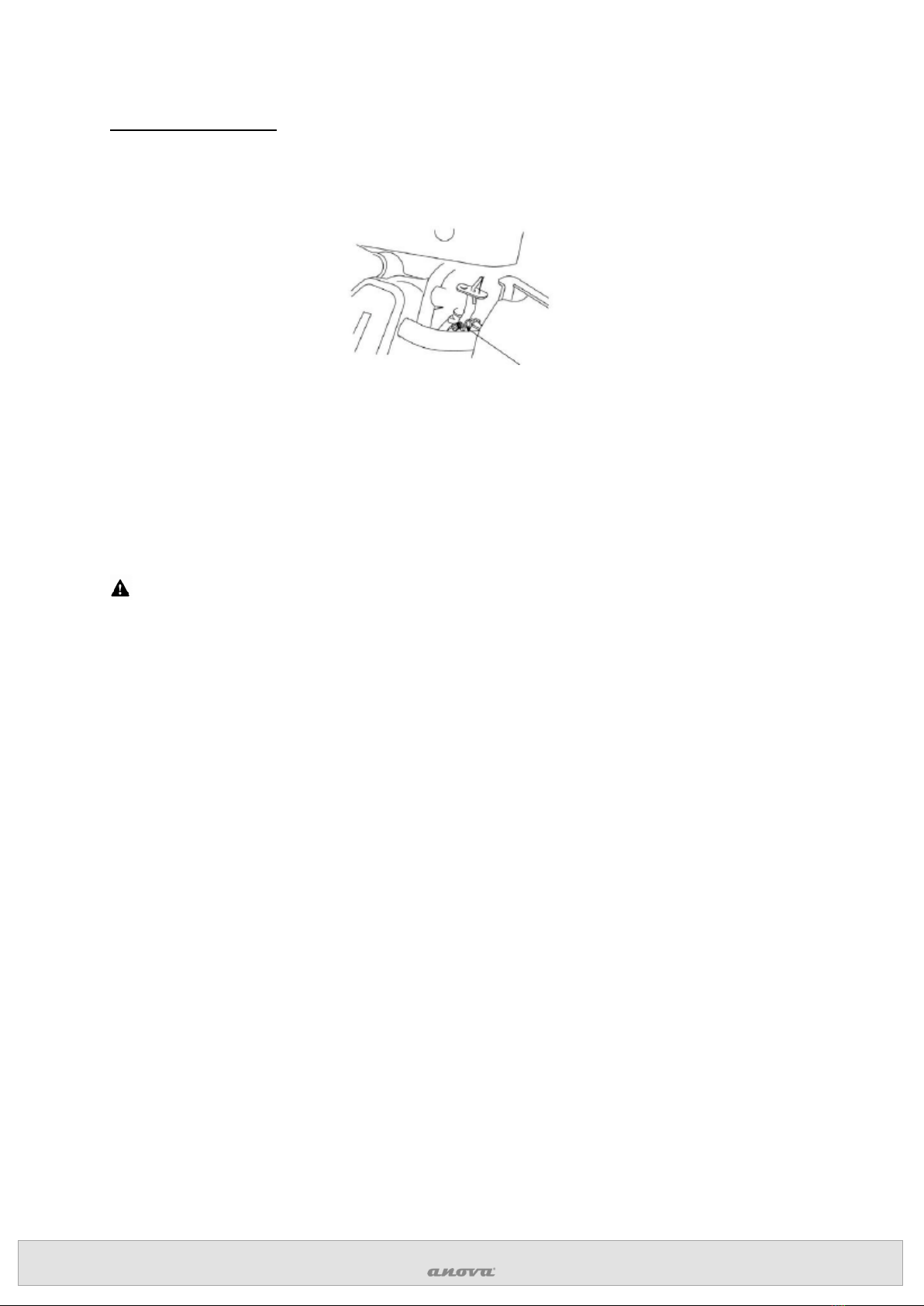

3.3.4. Speed control handle
Adjust the position of the speed control lever to achieve the desired engine speed.
3.4. Pre-Operation Checks
3.4.1. Routine inspection
- Check for possible oil and gasoline leaks.
- Check for signs of damage or deterioration in any of the engine parts.
- Check all parts of the covers, tighten the screws, nuts and cables.

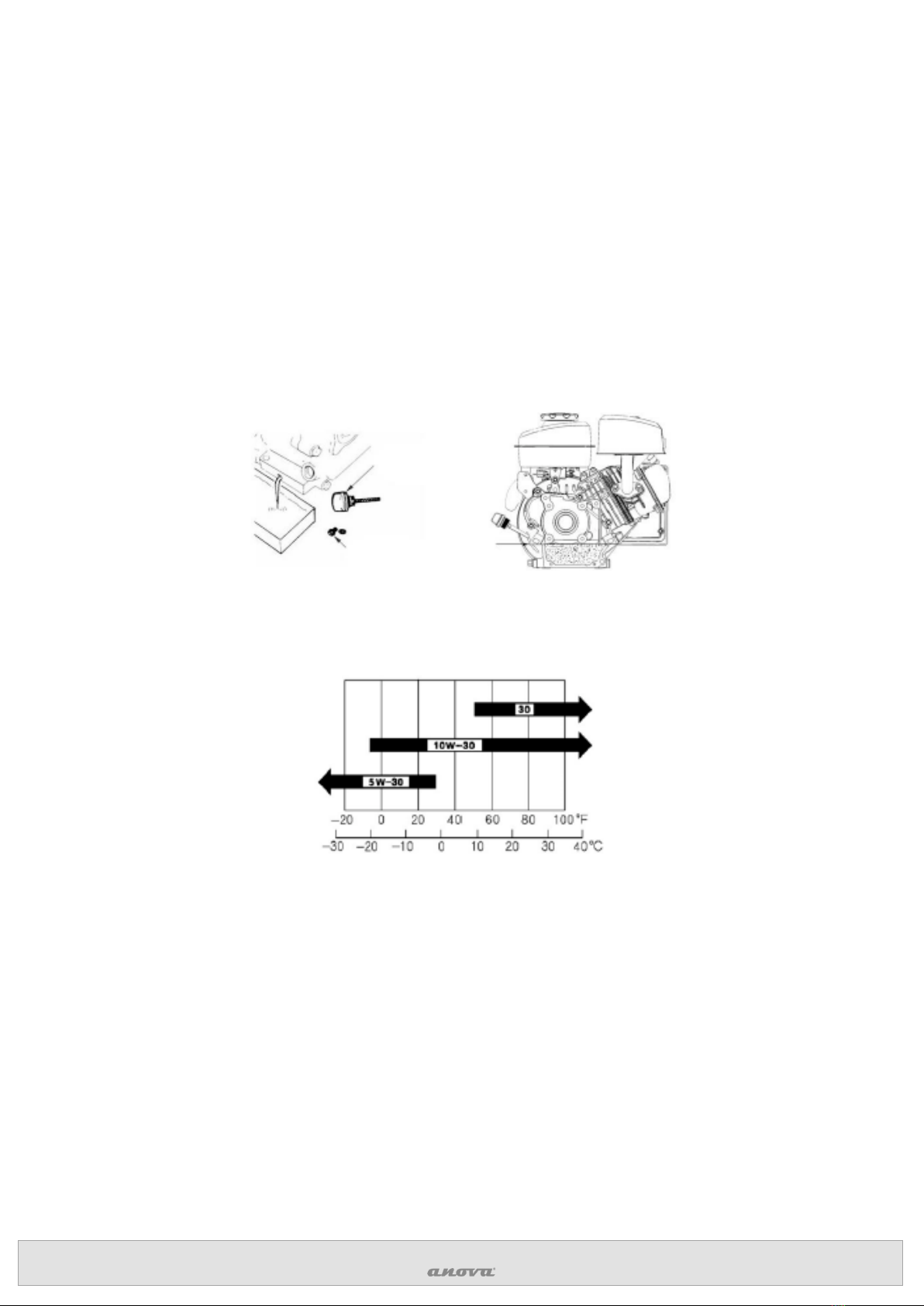

3.4.2. Oil level
After stopping the engine, place it in a horizontal position and check the oil:
1. Remove the oil gauge from the oil plug and clean it.
2. Reinsert the oil gauge and check the oil level without tightening the plug or gauge.
3. If the oil level is too low, add the recommended oil to the upper limit.
4. After adding the oil, remember to install and tighten the oil plug properly.
When the oil level is lower than the safety line, the oil protection system will automatically stop
it. To avoid unexpected downtime, check the oil level before every start.
3.4.3. Fuel level
First turn off the engine completely, then unscrew the fuel tank cap and check the fuel level. If
the fuel level is too low, fill the fuel tank. After adding fuel, tighten the fuel tank cap.
throttle lever
Oil plug/gap
Oil upper limit
Lower oil limit

IT IS
10
Warning
When filling the fuel, the level must not exceed the top of the fuel
filter (highest fuel).
Fuel Tank Capacity: 1.6L
It is recommended to use unleaded gasoline with an octane
number greater than or equal to 92#. Unleaded gasoline can
reduce carbon deposits and extend the life of the exhaust
system.
It is strictly forbidden to use rancid or contaminated or mixed
organic oil. Prevent dust or water from entering the fuel tank.
3.4.4. Air Filter Check
Remove the air filter housing and check the filter element. Clean the filter element when it is
dirty. If it is damaged, replace it with a new one.
3.5. Engine start
1) When starting the cold starter, put the choke lever in the "off" position. When the heat
engine is started, the choke handle must be placed in the "open" position.
2) Move the speed control lever from "low speed" to "high speed", about 1/3 of "high
speed".
maximum fuel limit
Nut M6
Screw
Air filter cover
Air filter
Filter cover
support
Closed
Control
Open
Filter seat

IT IS
11
3) Place the engine switch in the "on" position.
4) Gently pull the starter lever until you feel resistance, then pull quickly and firmly until
the rope is fully extended.
Warning
Do not allow the starter handle to back up after starting, gently reinsert it without letting go of
it suddenly.
5) If the engine is started with the choke lever in the "off" position, the choke lever should
be moved slowly to the "open" position when the engine warms up. If a warm engine
starts, place the choke lever in the "open" position.
Throttle lever
Max.
Min.
engine switch
Starter puller
Joystick
Open

IT IS
12

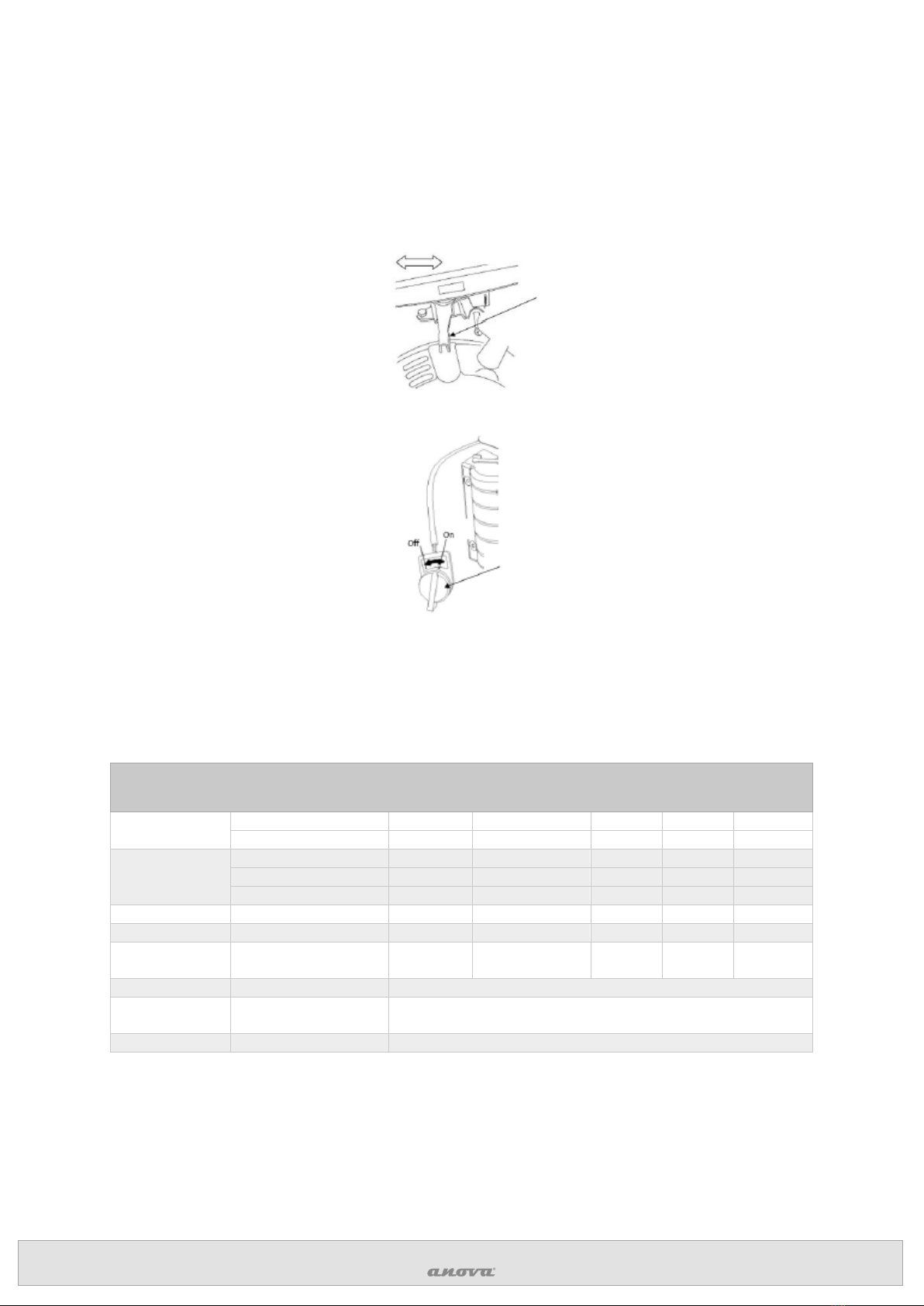

3.6. Engine stop
In an emergency, an easy way to stop the engine is to turn the engine switch to the "off"
position. Under normal circumstances, the shutdown steps are as follows:
1) Move the speed control lever to the "low speed" position.
2) Turn off the engine switch.
3.7. Engine maintenance
3.7.1. Maintenance program
Maintenance Period
(whichever comes first)
Regularly
Every 20h /
first month of
first use
Every
50h / 3
months
Every
100h /6
months
Every
300h / 1
year
Oil
Check level
x
Replace
x
x
Air filter
check status
x
Cleaning
x(1)
Replace
fuel remains
clean sediment
x
Spark plug
Clean up
x
Replace
Valve
adjustment
adjust/check x(2)
rocker cover
Cleaning
Every 300 hours (2)
Fuel tank and
fuel filter
Cleaning Every 2 years (2)
fuel tubes
Replace
Every 2 years (2)
(1): Use in dusty areas means more frequent maintenance will be required.
(2): Must be performed by your after-sales service provider. Unless you have the right tools and
experience.
Max. speed
Minimum speed
Joystick
Engine switch

IT IS
13
3.7.2. Replace crankcase oil
Let the engine warm up and then drain the oil, this will ensure that the oil drains quickly and
cleanly.
1) Place a suitable container under the engine to collect the used oil. Then remove the oil
plug/gap, remove the oil drain bolts and gaskets.
2) After completely draining the oil, reinstall the oil bolts and washers and tighten them.
From the perspective of environmental protection, please properly dispose of used
motor oil after use. We strongly recommend that you pour your used oil into a sealed
container and send it to your local service station or used oil recycling center.
Remember not to throw it in the dumpster or throw it on the ground or in a ditch in an
uncontrolled way.
3) Place the engine in a horizontal position and add the recommended oil to the upper
limit.
Engine oil quantity: 0.35L
4) Install the oil plug/gap and tighten it.
Recommended oil: Four-stroke gasoline engine oil. API classification of SE, SF or equivalent
to grade SG SAE 10W -30.
Use this motor oil grading chart if the temperature change in your region/work area is within
the temperature range listed for each oil grade in the chart.
3.7.3. Air Filter Maintenance
When the air filter element gets dirty, it will affect the quality of the intake air and the power of
the engine. If the work area is dusty, maintenance should be performed more frequently than
the basic maintenance schedule.
The absence of a filter element or the use of a damaged filter element can cause dust to enter
the engine, resulting in rapid engine wear.
drain bolt
Oil plug/gap
Oil level
Room temperature

IT IS
14

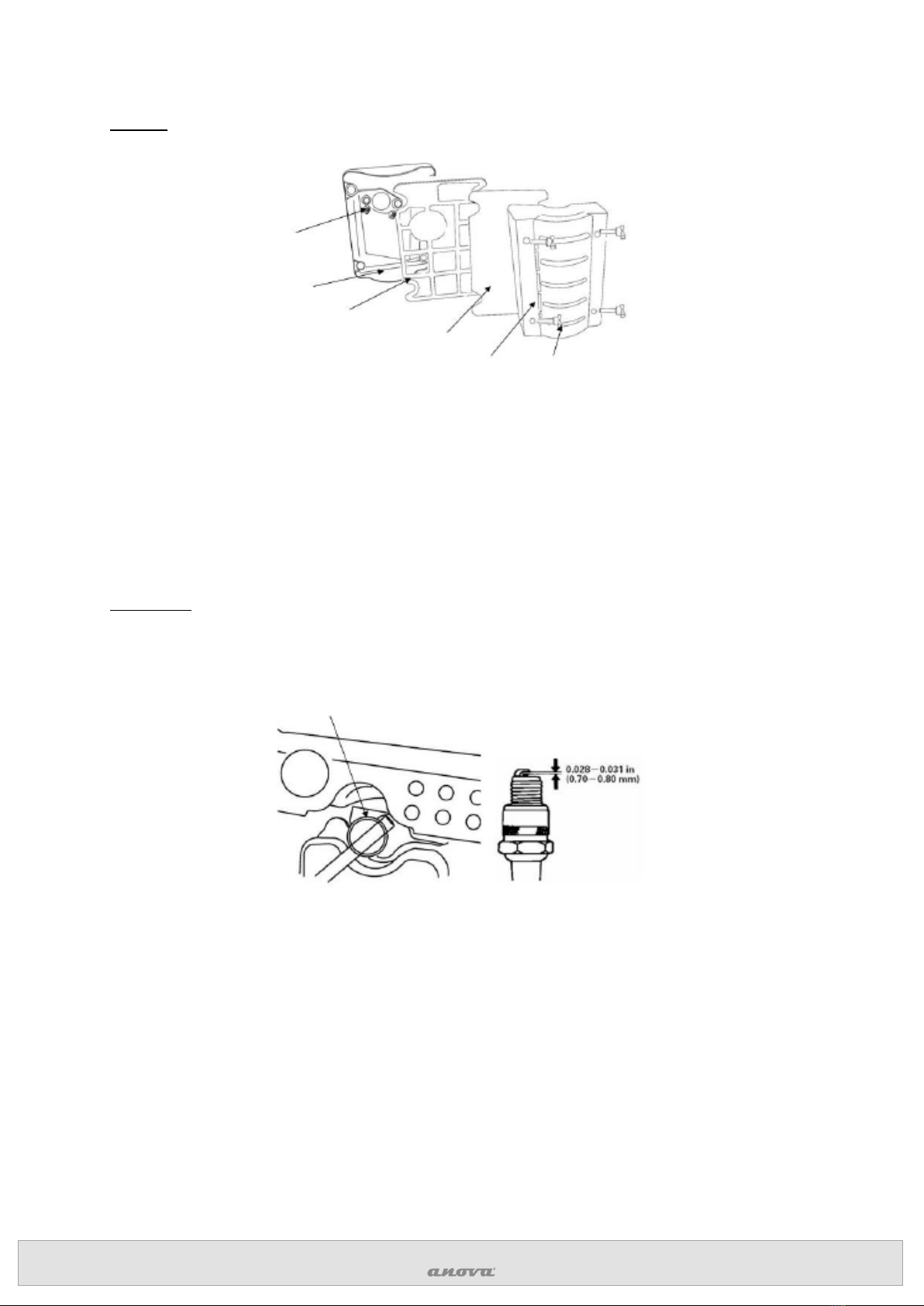

Air filter
1) Unscrew the air filter fixing bolt and remove the outer casing.
2) Remove the foam filter.
Check the filter element and replace it if it is damaged. Foam filter cleaning:
- Rinse in hot water with detergent, or in a non-flammable solvent;
- After drying, dip in clean oil and squeeze out excess oil.
3) Clean the lower body of the air filter, the outer cover and the rubber pad. Dust must be
prevented from entering the carburetor inlet.
4) Reassemble the foam filter and note that the pad is placed under the filter.
5) Install the outer casing and tighten the air cleaner mounting bolts.
Spark plug
Recommended spark plug: NGK BP5HS or equivalent spark plug. The wrong type of spark
plug can damage the engine.
1) Remove the spark plug cap and remove the dust from the spark plug.
2) Unscrew the spark plug with a spark plug socket wrench.
3) Check the spark plug. Replace the spark plug if the electrode is damaged or the
insulator is broken. The gap between the spark electrodes is 0.70mm to 0.80mm.
Adjust the side electrodes if necessary.
4) Carefully screw in the spark plug by hand to avoid stripping the cylinder head threads.
5) When the spark plug is seated, tighten and compress the washer with a spark plug
socket wrench.
If reinstalling old plug, when plug is seated, tighten 1/8 to 1/4 turn.
If installing a new spark plug, tighten 1/2 turn when plug is seated.
6) Install the spark plug cap.
Nut M6
Closing screw
Filter cover
Air filter
Filter cover support
Filter seat
Special spark plug wrench
Electrode space

IT IS
15
Idle speed adjustment
1) Start the engine in the open air and allow it to warm up.
2) Set the speed control lever to the lowest speed position.
3) Use the tool to adjust the idle adjusting screw so that the speed is within the standard
idle speed range.
Standard idle speed: 1800 rpm ± 150 rpm.
3.8. Engine storage
After turning off the engine, let it cool down for at least half an hour.
Clean all exterior surfaces, repair damaged paint, and apply a light coat of rust preventative oil
to other areas that may rust.
Warning
Pressurized water can enter the air filter and muffler and even enter the cylinder along the air
passage, causing rust damage.
Splashing water can damage a hot engine. Therefore, cleaning should be done after the engine
has cooled down completely.
Steps for proper long-term engine storage:
1) Change the oil.
2) Remove the spark plug.
3) Fill a tablespoon (5-10 ml) of clean oil into the cylinder head.
4) Pull the actuator to rotate for several weeks to spread the oil in the cylinder head.
5) Replace spark plug.
6) Pull the starter handle slowly until you feel resistance. At this point, the intake and
exhaust valves are closed, preventing moisture from entering the cylinder head. Then
gently replace the starter handle.
7) Put a dust-proof cover on the motor cover and store it in a dry and ventilated area.
Idle adjustment screw

IT IS
16
3.9. Problem solving
3.9.1. Difficulty starting
Situation probable cause Required action
If the normal pressure in the cylinder
Spark plug normal
Faulty fuel system
There is no fuel flow
There is no fuel in the tank refuel
Hole in fuel cap vent blocked Clean up
Fuel tap blocked clean key
Carburetor needle or float blocked Repair or replace
there is fuel circulation to
the engine
Fuel too dirty or with impurities Replace fuel
Presence of water in the fuel Replace fuel
Excessive fuel in cylinder Drain and dry the spark plug
Fuel grade is wrong Add the correct fuel
normal fuel system
Spark plug normal
Weak spark plug
Carbon deposits or dirty electrode Remove carbon deposits and clean
spark plug
Spark plug insulator damage Replace spark plug
Spark plug electrode breakage Replace spark plug
Wrong electrode gap Set the correct electrode gap
regular spark plug
There is no spark
in the ignition
system
Power cord damage Replace the cables
damaged coil Replace the coil
Insufficient magnetic field strength Repair or replace flywheel magneto
If the pressure in the cylinder is
abnormal
normal fuel system
system on normal
regular spark plug
The piston ring is worn and
broken Replace
Dirt deposits on the piston rings Clean carbon deposits
Spark plug without cap or loose Install the cap or tighten the spark
plug
Rocker cover leaks Replace the rocker cover gasket
Valve sealing leaks Repair gasket or seal

IT IS
17
3.9.2. Insufficient power
Situation
probable cause
Required action
When throttle speed is increased, engine speed
increases very slowly or even decreases or engine
shuts off
Switched on The coil calibration is incorrect Replace coil
fuel system
Presence of air in the ducts purge the air
Incorrect fuel outlet setting fit correctly
Hole in the carburetor needle blocked Clean up
Fuel tap blocked
Clean or replace the
defective part
Dirt deposits in the system
Clean dirt in the fuel
system
Air intake in
the engine
Blocked air inlet Clean or replace the filter
Leaks in engine air intake system repair or replace
Weak engine
compression
Loss or wear in piston, cylinder or piston
rings
replace components
Rocker cover leaks
Replace valve cover
gasket
Incorrect valve adjustment reset correctly
Incorrect valve sealing repair or replace
3.9.3. Sudden stop
Situation
probable cause
Required action
Sudden shutdown during engine use
Fuel system
fuel exhausted refuel
Carburetor lock
Check fuel circuit; clean
up
Leaks in the carburettor Repair
blocked needle
Repair the carburetor
needle
Ignition system
spark plug failure Replace spark plug
Spark plug electrode failure Replace spark plug
Wiring damage Replace or repair
Ignition coil failure Replace ignition coil
Others Valve failure or cylinder collapse
Repair or replace
damaged parts
3.9.4. Engine overheating
Situation
probable cause
Required action
The motor overheats during use
Wrong coil setting Replace the coil
fuel exhausted refuel
blocked exhaust pipe Clean fuel lines
Leaks in the ventilation system Repair the faulty component
Dirt in the air system Clean up
Damaged starter fan Replace the damaged part
Piston ring failures causing cylinder wear Replace worn parts
Engine speed too high Reset engine speed
Damaged crankshaft bearings Replace or repair

IT IS
18
3.9.5. Abnormal sound
Situation
probable cause
Required action
bumps or rattles
Piston, worn piston rings Replace worn parts
Worn connecting rod, piston pin and pin hole Replace worn parts
wear on crankshaft bearings Replace worn parts
Piston ring breakage Replace damaged parts
metallic noises
and explosions
Excessive carbon deposits Clean carbon deposits
Spark plug electrode gap too small Adjust electrode spacing
Fuel mixture too rich Check carb adjustment
Wrong fuel grade Replace fuel
engine overheating See point 4 of this section
Other abnormal
sounds
Incorrect valve adjustment reset valves
The flywheel magneto is loose or poorly connected
to the crankshaft
Adjust correctly
3.10. Engine technical data
MA80/MA81/MA82
Engine type
Single-cylinder, four-stroke, air-ventilated, overhead valve
(OHV)
Average power (kW/3600rpm)
1.2
Maximum power (kW/3600prm
1.4
Max Torque (Nm/rpm)
3.8Nm/3800rpm
Fuel tank capacity (L)
1.4
Oil tank capacity (L)
0.35
Piston dimensions (stroke) mm
52x37
Displacement
79
Lubrication system
Splash lubrication
System on
Manual
Direction of rotation of the motor
Clockwise (according to transmission axis)
Valve adjustment (mm)
Input 0.10~0.15 // Output 0.15~0.20
Spark plug electrode gap (mm)
0.7~0.8
Ignition system
Magnetic with coil
Measurements (mm)
Length
335
Width
290
Tall
350
Net weight / kg)
10

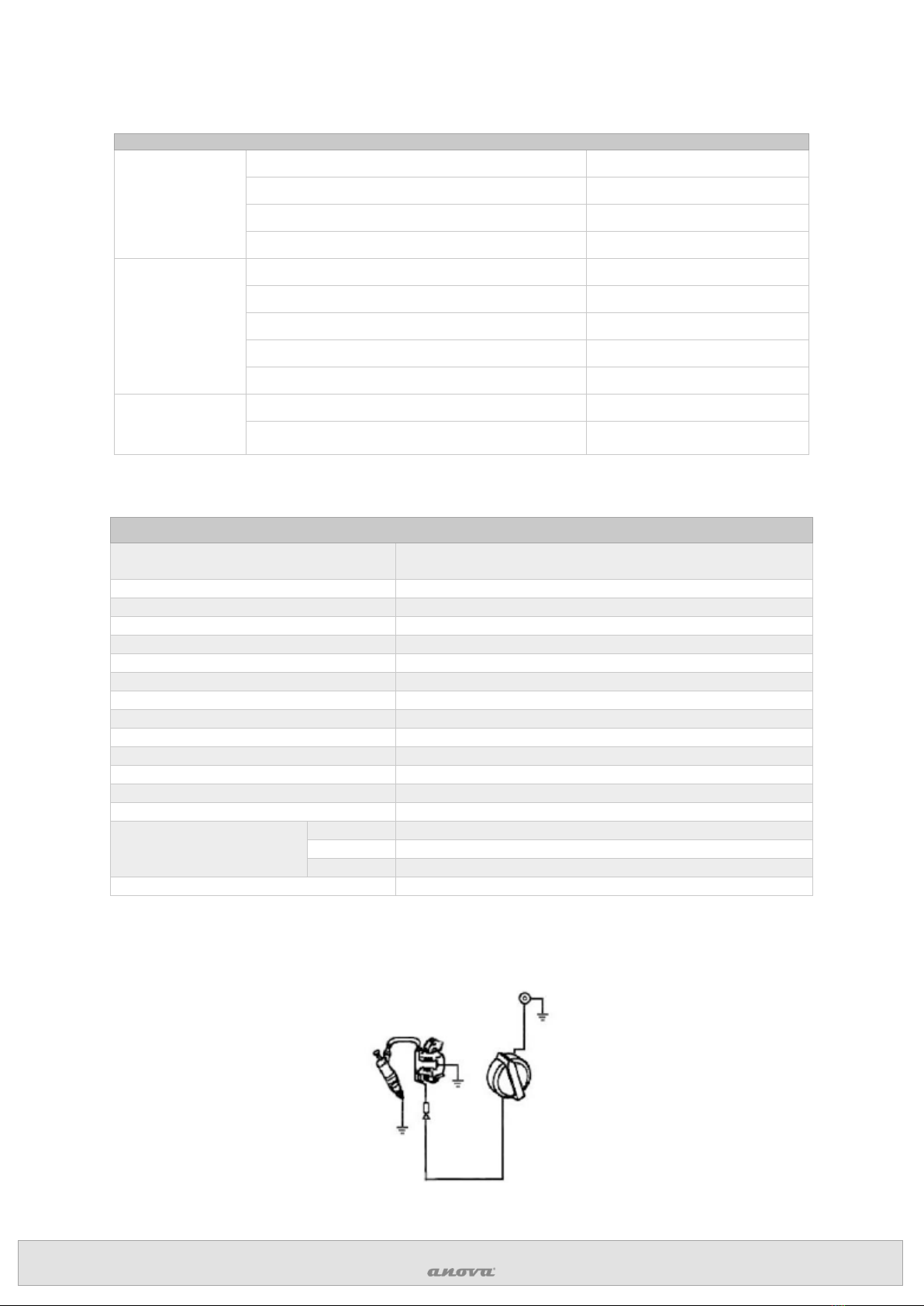

3.11. Wiring diagram

IT IS
19
4. INSTRUCTIONS FOR USE OF THE P100-187 PUMP
Membrane Pumps, with radial piston kinematic mechanism, are
designed and manufactured to pump or transfer water or antiparasitic
liquids and herbicides in aqueous solution to be used according to
the indicated specifications. They are generally driven by: electric
motors, endothermic gasoline or diesel engines, hydraulic motors,
tractor power take-offs. The couplings can be made by means of a
transmission shaft, direct flanged, reducer or multiplier, joints,
sleeves, pulleys and belts.
4.1. Security warnings
Read this manual carefully before using the pump, in particular the safety warnings. Keep it in
a suitable place and keep it unaltered.
Situations and/or problems related to the correct operation of the Pump.
The "DANGER" symbol shown to the side draws attention to situations and/or problems that
may endanger people's safety.
- Never start the pump under pressure.
- Constantly check the state of wear of the pipes and the corresponding joints, especially
those that are under pressure. The tubes that present abrasions and that do not
guarantee a perfect tightness must be replaced.
- Protect the rotating parts with a protection in order to prevent their contact.
- The Pump is intended to be part of a machine or installation, with different power
systems, which can even substantially vary the noise emitted. It is the task of the
manufacturer of said machine or installation to assess the level of noise emitted by the
assembly and communicate it to the user in a timely manner, including in relation to the
use of adequate Personal Protection Equipment.
4.2. Expected use
Membrane Pumps are intended to be used inside machines or installations for the
pressurized transfer of water or antiparasitic and herbicide liquids, such as: Atomizers,
Nebulizers, Herbicide Bars, Gardening, Civil and industrial cleaning, Drainage, Firefighting,
Antifreeze.
The working environment temperature must be between: Min. 0°C (32°F) - Max. 45°C (113°F).
The Pump cannot be used submerged in a liquid.
4.3. Unintended uses
The characteristics of the liquid to be used are described in detail below: do not use for other
liquids; in particular, it is not possible to use the Pumps in the following conditions:
- In the presence of water with a high salt concentration, such as, for example, sea water.

IT IS
20
- In environments with corrosive or explosive atmosphere.
- In the presence of any liquid not compatible with the manufacturing materials of the
Pump.
- To pump paints, solvents, fuels and any flammable liquid (not suitable for ATEX
environments).
- For food use.
- To wash people, animals, electrical or electronic devices with live electrical current.
- To wash the Pump itself.
4.4. Preliminary checks
4.4.1. Usable liquids
The pump has been designed and manufactured for the transfer of clean water, non-
aggressive aqueous solutions or antiparasitic liquids and herbicides in aqueous solution, to be
used in accordance with the instructions of the corresponding manufacturers.
- The aspirated liquid must not contain sand or other solid particles in suspension.
- The aspirated liquid must have viscosity and density characteristics similar to those of
water.
- The temperature of the liquid to be pumped must be between 5°C (41°F) and 38°C
(100°F).
- Any other use is prohibited, except in writing from the Technical Service.
4.4.2. Pump inlet and outlet
The inlet mouth of the liquid to be pumped, also called suction or supply, is generally larger in
diameter than the outlet mouth, also called impulsion.
Warning
The Pump Inlet and Outlet can NOT be reversed with each other.
4.4.3. Feed conditions (suction)
Check that the power line is correctly connected and that it meets the following requirements:
- Have, at each of its points, a minimum internal diameter equal to the internal
diameter of the inlet of the Pump.
- Be perfectly hermetic in order to avoid harmful air infiltrations.
- Not present, throughout its length, any strangulation or narrowing of the ducts.
- Avoid all kinds of turbulence near the pump inlet and the feed tank.
- Any filter must have a minimum capacity of at least 2 times the flow rate of the
Pump and must not cause bottlenecks or pressure drops. The recommended
filtration degree is 32 ÷ 50 and its efficiency must be maintained by cleaning the
filter every time it is necessary.
- Maximum allowable suction pressure: 0.5 bar (7 PSI).
- Maximum allowed negative pressure in suction: -0.2 bar (-3 PSI) [-6 inch. Hg].
- Maximum allowable height difference between the Pump and the power source
located below: 2 m (6.5 ft.).
4.4.4. Output conditions (discharge)
Check that the impulse line and all the accessories are correctly connected, securely fastened
and leak-tight and that the pipes have the correct dimensions.
