Antari DarkFX Spot 670 User manual

1
DarkFX Spot 670
User Manual
English
©2015 Antari Lighting and Effects Ltd.

3
User Manual – English
Safety Information
Please read the following safety information carefully before operating the fixture.
Information includes important safety information about installation, usage, and
maintenance. Pay attention to all warning labels and instructions in this manual
and printed on the fixture.
HIGH INTENSITY 365nm ULTRAVIOLET LIGHT
RISK OF EXPOSURE TO ULTRAVIOLET RADIATION
AVOID DIRECT EYE AND SKIN EXPOSURE
DO NOT OPERATE FIXTURE WITHOUT EXTERNAL COVER AND
PROTECTIVE LENS INSTALLED.
DO NOT OPERATE FIXTURE WITH DAMAGED EXTERNAL COVER AND/OR
PROTECTIVE LENS.
If you have questions about how to operate the fixture safely, please contact your local
Antari dealer for help.
․ Keep this device dry. For indoor use only.
․ Never look directly into the light source.
․ Always connect to a grounded circuit to avoid risk of electrocution.
․ Install only in well ventilated area.
․ Do not connect device to dimmer pack.
․ Make sure power cord is never crimped or damaged.
․ Do not attempt to remove or break off the ground prong. The ground prong is provided
for your safety.
․ Before connecting fixture to power, always check voltage indicate on fixture match to
CAUTION

4
your local AC voltage. Do not use the fixture if AC power voltage does not match.
․ Disconnect the fixture from AC power before servicing and when not in use.
․ No user serviceable and modifiable parts inside. Never try to repair this product,
unauthorized repair may lead to fixture damage and or malfunction.
․ Protect power cord from being walked on or pinched particularly at plugs.
․ Make sure there are no flammable materials close to the fixture while operating.
․ If the fixture fails to work, unplug the fixture and stop operation immediately. Contact
your local Antari dealer for advise.
Unpacking and Inspection
Immediately upon receiving the fixture, carefully unpack the carton, check all content to
ensure that all parts are present and have been received in good condition. If any parts
appear damaged or mishandled from shipping, notify the shipper immediately and retrain the
packing material for inspection.
What is included: 1 x DarkFX Spot 670 UV Light
1 x Power Cord
1 x User Manual
Product Dimension

5
Product Overview
Setting Up
AC Power Connection
This fixture includes an auto sensing power supply ranging from AC100-240V, 50-60Hz.
Only connect fixture to AC power within this range.
This fixture can be powered through daisy chaining method. Connecting power output to
power input, all fixtures in the chain will draw power via the first fixture. Total current draw of

6
all fixture must not exceed 8 amps maximum.
Data Linking
Serial data links is required when operating the fixture through DMX controller. When
planning the data link please consider following:
․ Maximum recommended length of data link is 500 meters.
․ Maximum recommended number of data linked fixtures is 32 units.
․ Fixture must be daisy chanined by linking data output to next data input.
․ Data output must be terminated on last fixture of each chian using a termination plug.
․ Avoid long parallel run of AC power and data cables as it may cause interference on the
data link.
DMX Connector Pin Assignment
The fixture provides 5 pin XLR connector for DMX connection. Diagram below indicate pin
assignment information
Pin
Function
1
Ground
2
Data-
3
Data+

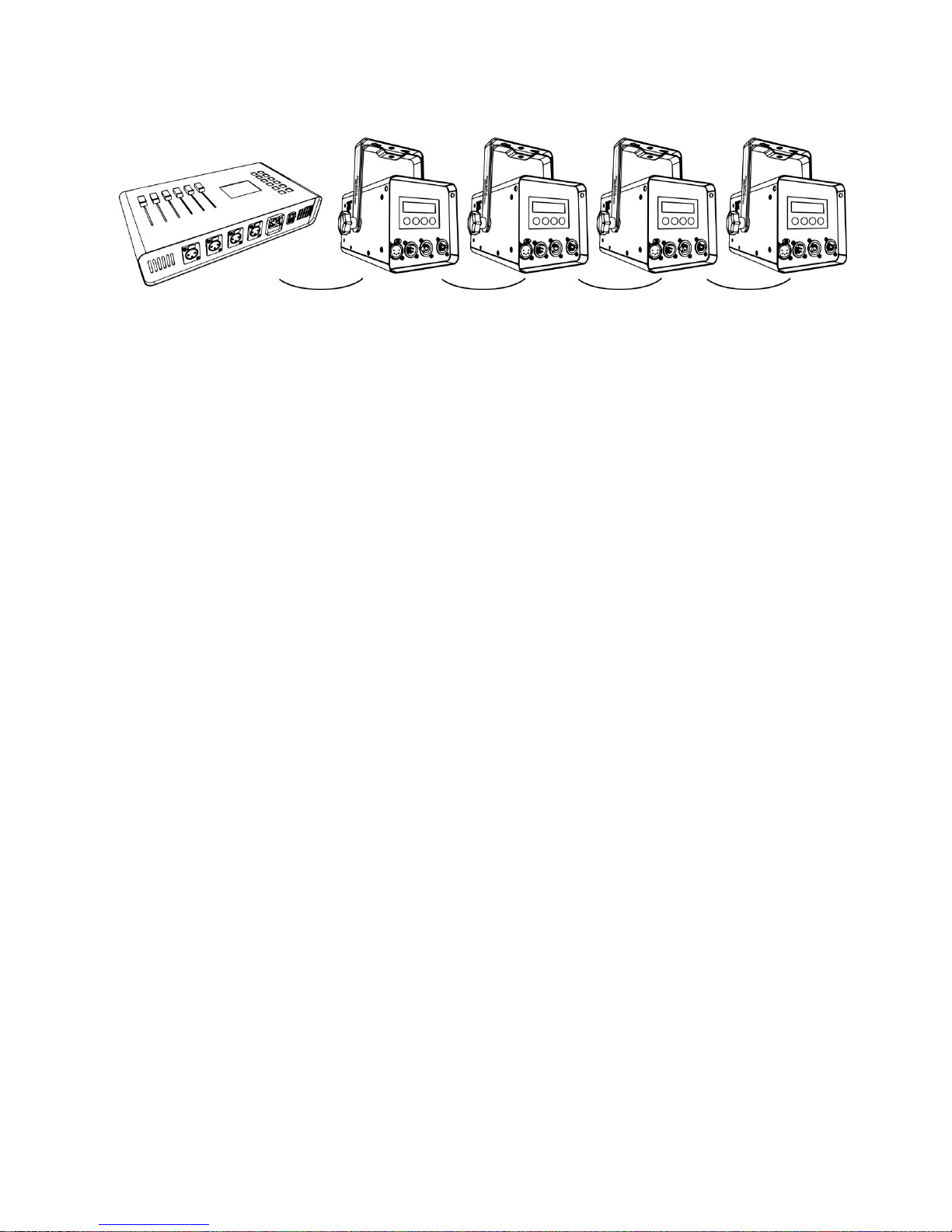

DMX Connection
When using standard DMX controller, connect the DMX output of the controller directly with
the DMX input of the first fixture in the DMX chain. Connect the DMX output of the first fixture
in the chain with DMX input of the next fixture.

7
Physical Installation
Important
․ Use supplied mounting bracket or rigging clamp to install fixture.
․ Make sure installation location, fastening connecting, and rigging hardware can hold at
least 10 times the weight of the fixture.
․ Make sure no combustible or flammable material nearby.
․ Secure each fixture with an approved safety cable that can hold at least 10 times the
weight of fixture.
․ Make sure fixture installed in a well ventilated area.
․ Consider lamp replacement and routine maintenance access when selecting installation
location.

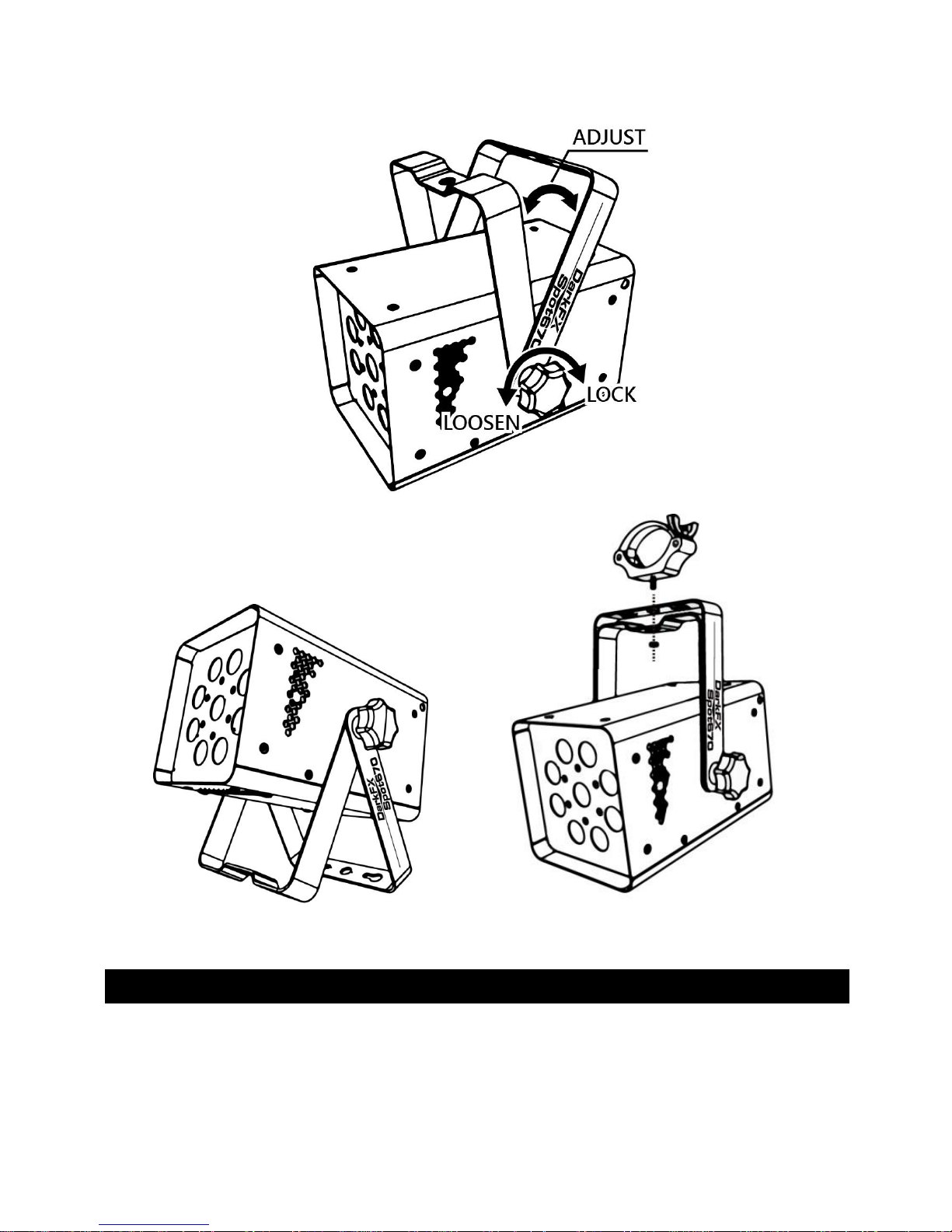

Adjustable Mounting Bracket
Adjust mounting bracket by loosening gear screw, set the fixture to desire angle and tighten
the gear screw to finish adjustment. Illustration below demonstrates how to adjust mounting
bracket.
Mounting
Use screws for surface mounting or clamps for truss mounting.

8
For surface mounting
For truss mounting
Operation

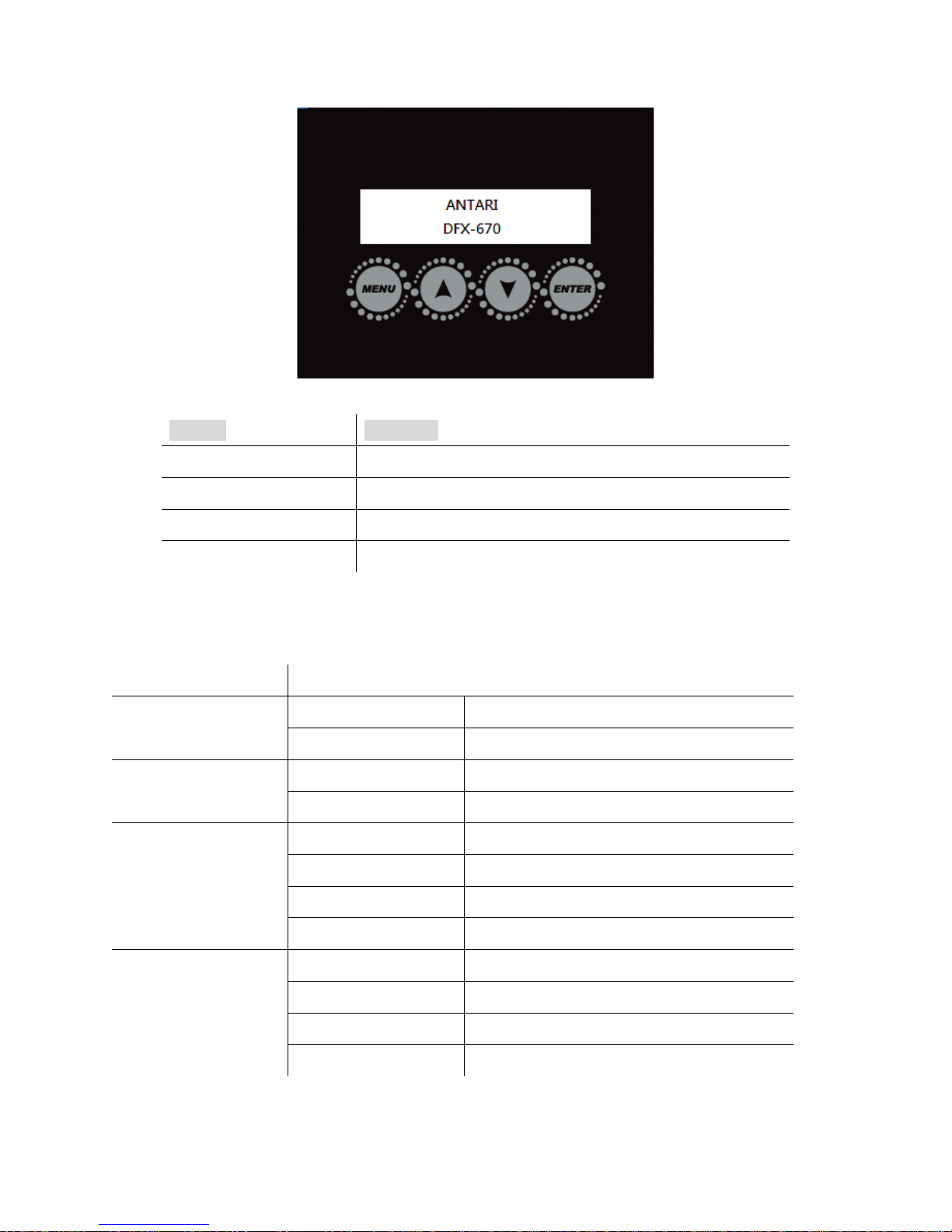

Control Panel Operation
The fixture can be operated with onboard digital control interface

9
Button
Function
[MENU]
Scroll through setting menu
▲[UP]
Up
▼ [DOWN]
Down
[ENTER]
Deactivate Timer/Volume function
Control Menu
Main Menu
Option
DMX Mode
DMX Address
001-512
DMX Channels
01/02
Static Mode
Dimmer
0-100%
Strobe
0-20Hz
Option
Dimming Curve
Linear/Square/Inverse Square/S-Curve
Display
Auto/On
Fan Speed
Auto/Low/Medium/High
Default Setting
Restore
Info
Serial Number
Show machine serial number
Usage Time
Show machine total usage hour
Current Temp
Show current LED temperature
Software Version
Show machine software version

10
DMX Mode
DMX Address Setting
Assign DMX address manually when fixture needs to be assign to specific address or use
with other fixture.
i. Press “MENU” button to find DMX Mode menu, press “ENTER” to enter submenu.
ii. Use “UP” or “DOWN” button to find DMX Address menu, press “ENTER” to edit
iii. Use “UP” or “DOWN” button to set DMX address from 001 to 512. Press “ENTER” to
store setting.
DMX Channels
Set desire DMX control channel mode to gain require control function when control fixture by
DMX desk.
i. Press “MENU” button to find DMX Mode menu, press “ENTER” to enter submenu.
ii. Use “UP” or “DOWN” button to find DMX Channels menu, press “ENTER” to edit
iii. Use “UP” or “DOWN” button to set DMX Channel mode 01 or 02. Press “ENTER” to
store setting.
DMX Channel Function
Channel Mode
Channel
Value
Function
1
1 Dimmer
0-255
Dimmer 0-100%
2
1 Dimmer
0-255
Dimmer 0-100%
2 Strobe
0-5
Off
6-255
1-20Hz
Service and Maintenance
Important! Smoke fluid residue, dust and any excessive particle residue will
degrade product performance, cause overheating and damage fixture. Damages
caused by inadequate cleaning or maintenance are not covered by product
warranty.
