Description:

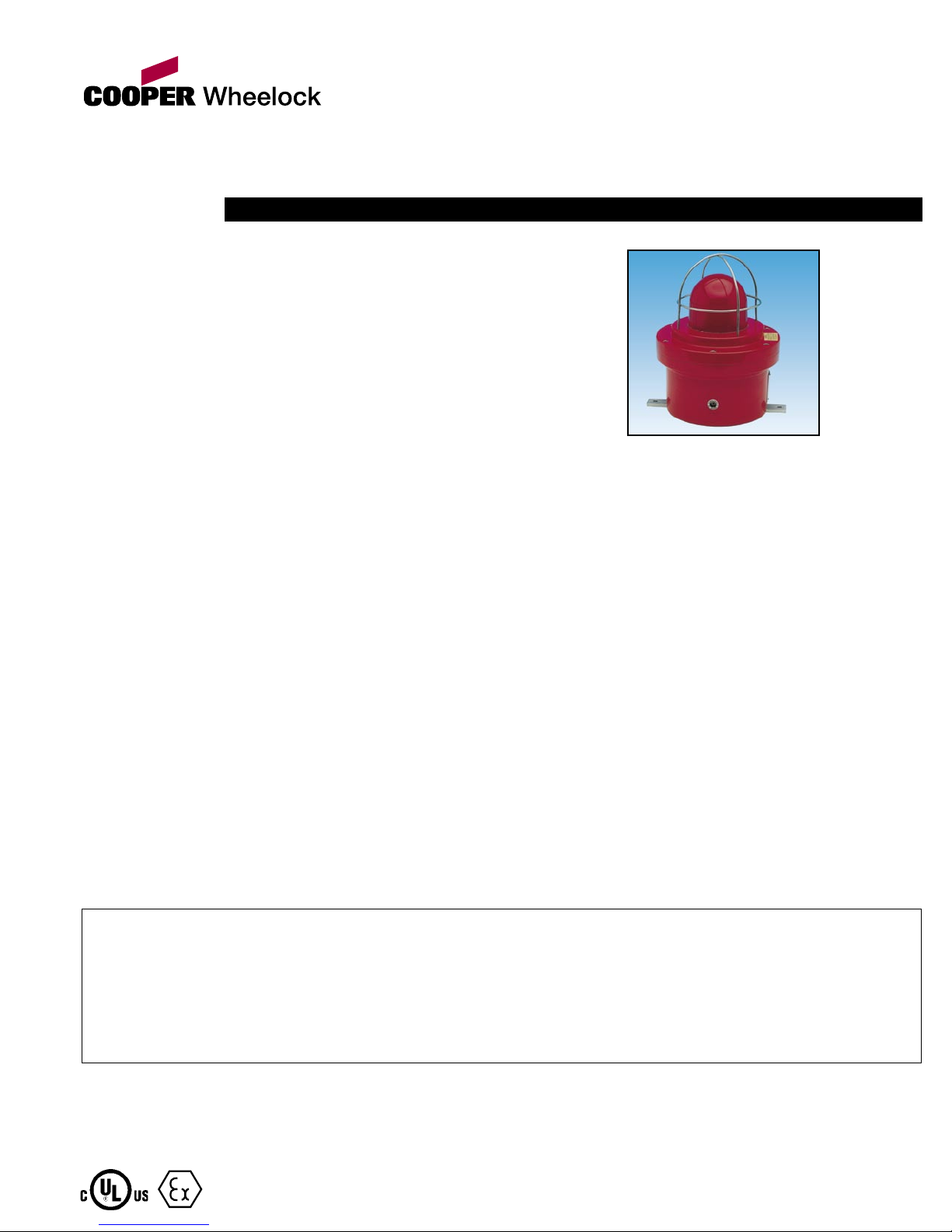

These high output certified strobes have been designed for
use in potentially explosive atmospheres and harsh
environmental conditions. The enclosures are suitable for use
offshore or onshore, where light weight combined with
corrosion resistance is required.
The strobe housing is manufactured completely from a U.V.
stable, glass reinforced polyester. Stainless steel screws and
mounting bracket are incorporated ensuring a totally corrosion
free product.
Units can be painted to customer specification and supplied
with identification labels.
★ UL Listed for USA and Canada
– Hazardous locations:
Class I, Div 2, Groups C & D.
Class I, Zones 1 & 2, AExd IIB T4 & T5.
– Ordinary locations: Visual-Signal Device
★ ATEX approved
★ High Output 355 candela with clear lens
★ NEMA 4x & 6, IP66 and IP67
★ Certified temperature –67°F to +158°F (–55°C to
+70°C)
★ Corrosion resistant GRP
★ Optional stainless steel backstrap
★ Various lens colors
★ Optional lens guard
★ 4 wire monitored connection
★ 24 VDC, 110 & 240 VAC
★ Xenon
★ Twin replaceable tubes
ATEX
Architects and Engineers Specifications
Strobe - 355 candela, Hazardous Location
XB12
Features*:
Strobes for hazardous locations and harsh environments shall be UL and cUL listed for Class I, Division 2, Groups C&D,
and Class I, Zones 1&2, AExd IIB T4/T5 applications and shall be listed under UL Standard 1638 for Indoor/Outdoor
use. They shall be constructed of lightweight, UV stable glass reinforced polyester, shall be corrosion resistant, and
shall meet NEMA 4x, NEMA 6, IP 66 & IP 67 environmental requirements over a temperature range of -67°F to +158°F
(-55°C to +70°C).
The strobes shall be rated to flash at 1 Hz with 355 candela per flash. Rated current draw shall not exceed 1400 mA
at 24 vdc. The strobe shall be capable of direct surface mounting in any direction.
Note: Due to continuous development of our products, specifications and offerings are subject to change without notice in accordance
with Cooper Wheelock standard terms and conditions.

DC AC50/60 Hz
Voltage 24 110 240
XB12
Tube Energy
(Joules) 21 21 21
Peak Current
Consumption
(mA) 1400 350 185
Effective
Intensity (Cd) 355 355 355
Peak Intensity (Cd ) 123691 123691 123691
Power Consumption
(Watts) 33.6 38.5 44.4
NOTE: The Cd figures are for a clear lens
@ 1Hz flash rate.
Continuity Code
None N
Voltage Code
24V d.c. 024
110V a.c. 110
240V a.c. 240
Guard Code
None N
Yes Y
Options Code
Blanking Plug P
None N
Label Code
None N
Yes Y*
*(Please specify)
Finish Code
Natural Black N
Red R
Blue B
Yellow Y
Grey G
White W
Special Finish S
Certification Voltage Flash Rate Lens Color Lens Guard Unit Fixing Earth Continuity Tag/Duty Label Options Unit Finish
Color Code
Red R
Blue B
Green G
Amber A
Yellow Y
Clear C
Configuration Options:
The following code is designed to help in the selection of the correct unit. Build up the reference number by inserting the code for each
component into the appropriate box.
For Colored Lenses
Color Red Blue Amber Green Yellow
Multiplying
Factor 0.15 0.12 0.51 0.49 0.86
The photometric data has been verified by BSI. A report is available if required.
XB12
Flash Rate Code
60/min 06
Other flash rates
available, please specify.
Certification Code
UL UL
UL (ordinary locations) UW
Unit Fixing Code
Direct Mounting D
Backstrap B
WE ENCOURAGE AND SUPPORT NICET CERTIFICATION
3 YEAR WARRANTY
Made in USA
273 Branchport Avenue
Long Branch, NJ 07740
Phone: [phone]
Fax: [phone]
www.cooperwheelock.com
XB12 10/06
Series Model Number Order Code Decription
XB12 XB12UL02406RNBNNNR 109204-001 Strobe, Red Lens, 355 candela, 24 VDC, Red finish
XB12 XB12UL02406CNBNNNR 109204-002 Strobe, Clear Lens, 355 candela, 24 VDC, Red finish
XB12 XB12UL02406RNBNNNN 109204-003 Strobe, Red Lens, 355 candela, 24 VDC, Black finish
Standard Models
Weight: 15-1/2lb./7.0Kg.
Certified Temperature: –67°F to +158°F (–55°C to +70°C) hazardous
locations
–67°F to +131°F (–55°C to +55°C) ordinary
locations
Ingress Protection: NEMA 4x & 6, IP66 & IP67.
Terminals: 6 off suitale for up to 10 AWG conductor size
Labels: Duty/Tag Label optional.
Entries: 2 x 1/2" NPT
Specification
Certification: UL Listed for USA and Canada:
– Hazardous locations:
Class I, Div 2 Groups C & D.
Class I, Zones 1 & 2 AExd IIB T4/T5.
UL Listing No: E187894.
– Ordinary locations: Visual-Signal Device.
UL listing No. S8128.
ATEX approved: EExd IIB T4/T5
Cert. No. 99 ATEX 2196
Material: Body: – Glass reinforced polyester (GRP).
Lens: – Toughened Glass.
Cover Screws + Backstrap: – Stainless steel 316.
Finish: Natural black or painted to customer specification.
