The piping connection should be installed
according to the local legal laws and regulations
as well as the profession standard.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
2
I. Preface
II. Brief introduction of product
III. System schematic diagram
IV. Performance parameter table
V. Overall size of unit
VI. Electrical control and installation
VII. Operation of controller
VIII. Installation Instructions
IX. Operation and debugging
X. Maintenance
XI. Common faults and solutions
XII. Electrical schematic diagram
CONTENT

AIR MAGNA 100
GREEN ENERGY SYSTEMS
3
I. PREFACE
Our Low-ambient temperature air-source heat pumps strictly comply with the design and
production standards during the production, which intends to provide the high quality
operating state, high reliability and excellent adaptability of machine.
The manual contains information required for the correct installation, commissioning, run-
ning, and servicing of the machine.
Please read the manual carefully before running or troubleshooting the machine.
The coverage of warranty must comply with the following conditions:
• The installation must be performed by the trained professionals. Maintenance of
machine must be carried out by professional maintenance personnel from a
professional maintenance service center or personnel from a special company
designated by the company.
• Only the original various spare parts provided can be used. All machine operation and
maintenance items specified in the manual must be carried out in strict accordance with
the specified time and frequency.
• If any of the above conditions are violated, the warranty will be automatically invalidated.
The company shall not be liable for any injury to persons or damage to machinery caused by
improper installation, commissioning, unnecessary maintenance, failure to comply with the
provisions and instructions in this manual.
All illustrations and information in this manual are for reference only.
The manufacturer reserves the right to make necessary changes for sales or production rea-
sons at any time without prior notice.
1.The device should be installed in accordance with the national wiring rules, while it shall
ensure that the unit input voltage matches the nameplate.
2.The device should be used in the ambient temp of -30°C-43°C and environmental
humidity < 85%.
3. If the power cord is damaged, in order to avoid danger, you must notify the company or
similar department of professionals to replace it.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
4
I. PREFACE
4.The device must have reliable grounding measures, and the connected power supply must
be reliable grounding.
5.The device is a fixed type of appliance, for which a rigid foundation or concrete base
without deformation shall be provided by the user.The size of foundation refers to the size
of the four positioning holes of the unit.The frame structure can also be adopted by a foun-
dation of the unit, the frame is mounted on a load-bearing beam or column and is provided
with a suitable location for the indoor floor, which is capable of carrying 130% more than the
weight of the appliance and the flatness of the foundation.The following factors should also
be considered:
a) The installation position is horizontal and can support 1.3 times the unit weight.
b) A sufficient space should be reserved around and on the top of device to facilitate air
circulation and equipment maintenance.
c) Do not install the unit in a place where fallen leaves, insects or other contaminants are
easy to gather, to prevent the blockage of air-side heat exchanger.
d) When the device is installed, the position of the air-side heat exchanger should be adju-
sted to avoid direct sunlight.
e) Drains should be set around the device to drain the defrosting condensed water.
6.The machine must be transported and stored vertically.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
5
I. PREFACE
2.3 Important Notice for Antifreeze to Avoid heat pump broken!(Must be Read)
1. Water flow switch MUST be installed during installation for heat pump air
conditioning side to ensure proper water flow.
2. Must check if there is enough water flow after finish installation.You can check the
inlet and outlet water temp difference must be about 5°C when compressor is working in
highest speed in heating mode.
3. Water filter MUST be installed before water go into heat pump water heat exchanger.
The water filter need to be cleaned at least half an year.
4. If the air temp is once lower than 0°C, you must use enough brine(glycol) as the fluid
in the heat pump water system instead of pure water.
5. MUST keep the electricity power supply always connected even when you don‘t use
the heat pumps. Our heat pump has antifreeze function. So If without glycol or other anti-
freeze liquid and if the electricity is cut off by accident for more than 30 minutes when air
temp<0°C, you need to drain out all water to protect the heat pump from being frozen.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
6
II. BRIEF INTRODUCTION OF PRODUCT
Features of product
• Easy installation and flexible layout
The air cooling method could save cooling water systems such as cooling towers and
cooling water pumps, with quick and convenient installment. It can be directly installed on
the ground, balcony, roof and other open places without a dedicated computer room, which
saves space and reduces one-time investment costs.
• Safety and environmental protection, low cost
The heat pump unit can be used for both cooling and heating. It is a one-machine with
dual-use. Heating can be provided by heat pump, it is low operating cost, safe and clean for it
is not required to build a boiler room, to reduce the cost and avoid environmental pollution.
Meanwhile, no freon enters into the indoor for the application of indoor water system, which
can reduce the possibility of refrigerant leakage.
• Reliable performance
The core components of the unit, such as compressors, high-efficiency tank heat exchangers,
four-way valves, expansion valves and others adopt internationally renowned brand products.
Coupled with reasonable and perfect production technology and strict quality inspection
methods, the performance of unit can be completely guaranteed.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
7
II. BRIEF INTRODUCTION OF PRODUCT
• Easy to operate, safe and reliable intelligent operation
The unit is designed with a variety of protection measures, such as over-current, high and
low voltage, overheating, reverse phase and open phase, water flow switch and others, and
has multiple controls such as automatic freeze-proofing, automatic defrost and others, which
ensure the safe and reliable operation and simpler operation of unit.
• Wide application
It is suitable for the air conditioning needs of hotels, villas, residences, hospitals,
entertainment centers, office buildings, shopping malls and other buildings. It is used with
fan coils, air handling units and other indoor air conditioning terminals, with the mature and
reliable technology.
• Silent operation
The low-speed large-blade axial fan, the fully enclosed compressor and shock absorber, and
the perfect system piping design can effectively reduce the operating noise and reduce the
impact on the surrounding environment.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
8
III. SYSTEM SCHEMATIC DIAGRAM

AIR MAGNA 100
GREEN ENERGY SYSTEMS
9
IV. PERFORMANCE PARAMETER TABLE
Model AM100-9 AM100-16
Rated refrigerating capacity kW 7.2 11.5
Rated heating capacity kW 8.8 14.6
Heating capacity with low
temperature
kW 5.9 10.2
Rated input power Cooling (kW) 2.73 4.43
Rated heating (kW) 2.45 4.17
Low temperature
heating (kW)
2.45 4.35
Max input current A 18 28
Rated input power kW 4.0 6.0
Suggested connection wires mm2 It is not less than
3×2.5mm2
It is not less than
3×4.0mm2
Refrigerant R410A
Ambient temperature °C -30 - 43
Power supply 230V - 50Hz
Compressor Type Rotor type
Number of units 1 1
Fixed frequency /
variable frequency
Variable frequency Variable frequency
Fans Type DC fan motor with Low noise axial flow fan
Number of units 1 2
Power (W) 85 85*2
Operation control method Fully automatic
Safety protection High and low pressure / water shortage / freeze-proofing / overheating /
overload protection
Water side heat exchanger Type High efficiency tube in shell heat exchanger
Air side heat exchanger Type Internal thread copper tube sleeve hydrophilic
aluminum fins
Water flow m3/h 1.5 2.5
Water resistance kPa 60 50
Pipe connector DN25 DN25
Dimensions (Outside machine) Depth (mm) 960 960
Width (mm) 380 380
Height (mm) 820 1270
Unit noise dB(A) 56 58

AIR MAGNA 100
GREEN ENERGY SYSTEMS
10
IV. PERFORMANCE PARAMETER TABLE
• Rated working conditions:
Cooling: outdoor air inlet temperature 35°C, inlet water temperature 12°C/ outlet water
temperature 7°C;
Heating: outdoor air inlet temperature 7°C, inlet water temperature 40°C/outlet water
temperature 45°C;
Low temperature heating: outdoor air inlet temperature is -12°C, and water outlet
temperature is 41°C.
• The company reserves the right to change product design for improving product
performance without prior notice;
• During the actual usage, 5% cooling heating capacity loss should be considered for
pipes, pumps, valves and dirt reason after unit is installed.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
11
V. OVERALL SIZE OF UNIT
Model W L H A B C D
AM100-9 380 960 820 635 415 132 310
Note: In the above outline diagram, the split machine only has shut-o valves, and the
compact type machine only has water connectors.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
12
V. OVERALL SIZE OF UNIT
Model W L H A B C D

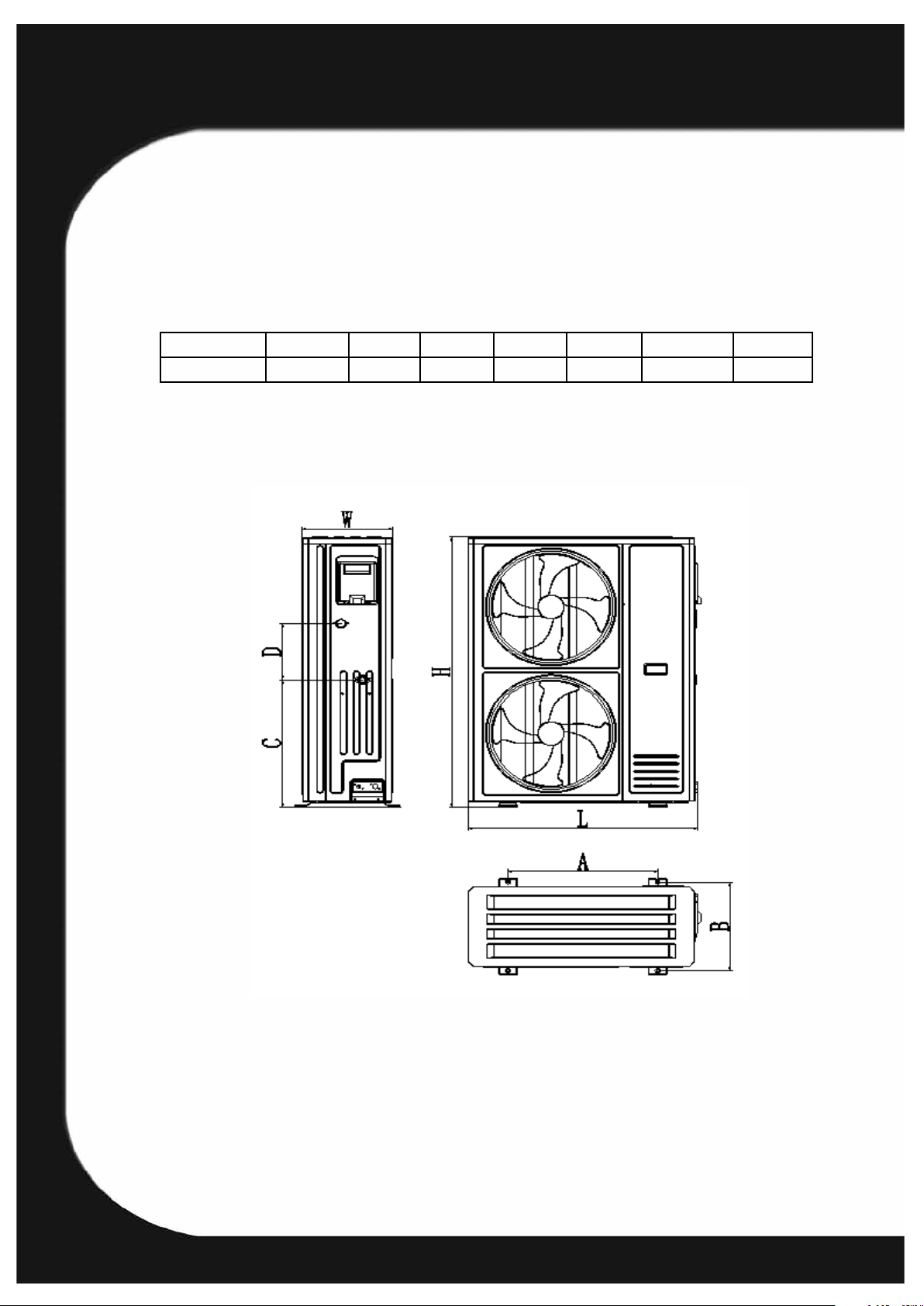

AM100-16 380 960 1270 635 415 598 265
Note: In the above outline diagram, the split machine only has shut-o valves, and the
compact type machine only has water connectors.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
13
VI. ELECTRICAL CONTROL AND INSTALLATION
1. Electrical installation requirements
1) The unit should be equipped with a dedicated power supply, the power supply voltage
fluctuates range -10% to +10%, and an automatic air switch should be used. Its rated current
is 1.5 times the operating current of unit. Circuit breaker is absolutely prohibited;
2) The unit should be grounded reliably, and the power supply of the unit should be checked
regularly;
3) Do not operate the host switch frequently, which should not exceed four times per hour.
The electric control box should be protected from moisture;
4) If the provided power cord is damaged, it must be replaced by the manufacturer, agent or
equivalent technical personnel to avoid danger;
5) The installation of the unit should comply with local electrical regulations;
6) Before the unit is installed, the parameters that need to be set have been set by
manufacturer. Generally, users are not allowed to modify the parameters by themselves.
If necessary, please contact the agent or the technical service personnel of manufacturer.
2.Wiring precautions
All wire connections must be firm.
Regularly maintain and check whether there are any hidden dangers such as looseness,
damage, moisture and others shall be conducted.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
14
VII. OPERATION OF CONTROLLER

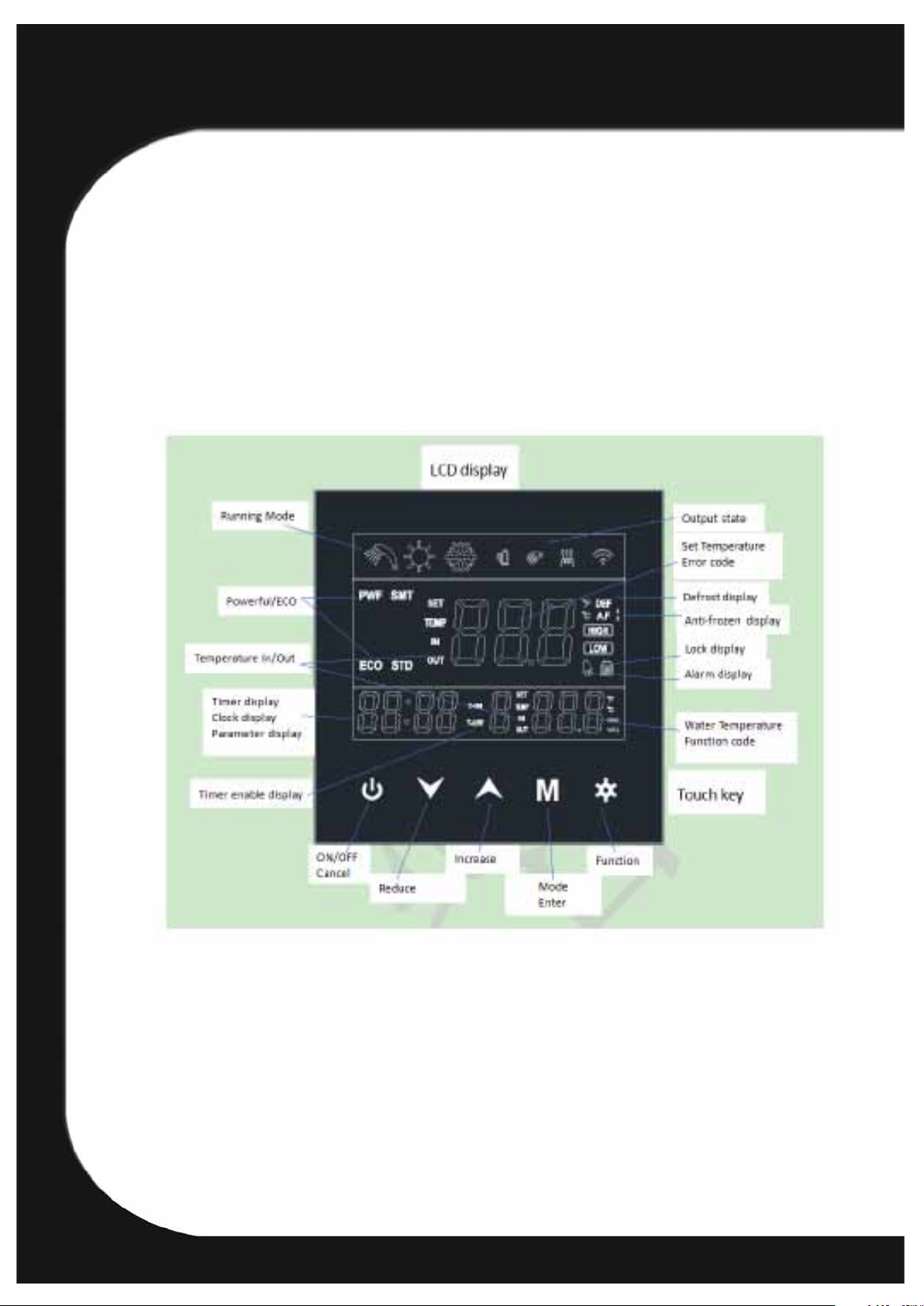

The appearance and button function of the wire controller

AIR MAGNA 100
GREEN ENERGY SYSTEMS
15
VII. OPERATION OF CONTROLLER
1. Display Icon
Mode Meaning Key Picture Meaning
Heating mode Standard
Hot water mode ECO
Cooling mode Powerful
+
Heating and Hot water
Mode(Hot water function is
priority)
ON/OFF key
+
Cooling and Hot water
Mode(Hot water function is
priority)
UP key
Compressor working Down key
Electric heater working MODE/Confirm key
Defrosting Menu key
Antifreezing
+
Timing key
Error alarm
+
Defrost key, Long press
this with 3 seconds, it will
defrost
Key locking
+
Lock key

AIR MAGNA 100
GREEN ENERGY SYSTEMS
16
VII. OPERATION OF CONTROLLER
2. ON/OFF and Working Mode
Light is on when power on.
Press “ ”to change dierent working mode.
Room heating will show“ ”
Room cooling will show“ ”
Domestic hot water will show“ ”
Press the “ “ when the heat pump is o, the corresponding mode will ash, and it will
turn o after 5 seconds.
Press “ ”, the heat pump will turn on, light the corresponding mode symbol, and display
relevant status information
Press “ ” again, the heat pump will turn o and the mode symbol will go out.
Power on and o, all data will be stored. With power o memory function.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
17
VII. OPERATION OF CONTROLLER
3. Time Setting
If its not in the “query” or “set” state, press the“ + ”to enter the time setting. The time
is adjusted as follows:
Clock (hours) clock (minutes)
Press “ ” and “ ”to adjust the corresponding time value.
Press the “ ”to change“hours”and “minutes”At the same time save the adjusted value ,
Press“ ”to save and exit.
30 seconds without any key press to exit automatically.
Press “ ”during setting, exit without saving.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
18
VII. OPERATION OF CONTROLLER
4. ON/OFF Timer
If its not in the “query” or “set” state, long press“ + ” with 3seconds, enter the timing
setting. Then press“ ” to adjust in the following order:
Period 1 turn on Hours Period 1 turn on Minutes Period 1 turn o Hours Period 1
turn o Minutes
Period 2 turn on Hours Period 2 turn on Minutes Period 2 turn o Hours Period 2
turn o Minutes
Period 3 turn on Hours Period 3 turn on Minutes Period 3 turn o Hours Period 3
turn o Minutes
Press“ “ and “ “ to adjust the corresponding time value
When the time of timing on or timing o is set to “00:00”, it means that the timing on or
timing o function is invalid .
Press “ ” during setting, exit without saving
After setting, Long press“ ” key for 3 seconds to enter the timer mode; Long press
“ ”again for 3 seconds to exit the timer mode.

AIR MAGNA 100
GREEN ENERGY SYSTEMS
19
VII. OPERATION OF CONTROLLER
5. Operation Mode Adjustment
At the state of power-on, press “ ” key, display controller modes are changed among
“Normal”, “Query”, “Set”.
At the state of“Normal”, the display shows the setting temp on the top, and indicate“SET
TEMP”, And it shows actual water temp at the key, and indicate “TEMP”.
If the controlled temp is outlet water temp, corresponding area indicate “OUT”. If the
controlled temp is inlet water temp, corresponding area indicate“IN”. if the controlled
temp is water tank temp, then the corresponding area doesn’t indicate “IN/OUT”.
At the state of“Query”:
a. In the middle of key, it shows “c”, at the right of key, it shows serial no.“XXX”, The “XXX”
represents serial no.
b. Query parameters are displayed on the left 4 digits
At the state of“SET”
a. The character in the middle of key shows “d”, at the right of key, it shows serial no.“XXX”,
the “XXX” represents serial no
b. The setting parameters are displayed on the left 4 digits.
If no press operation after entering into“SET” mode for 5 minutes, then exit automatically.
After entering into“Query” mode, no matter with/without operation, it doesn’t quit
automatically. Only press “ ” to reselect operation mode.
At the state of“SET”, press “ ” to exit to the operating state

AIR MAGNA 100
GREEN ENERGY SYSTEMS
20
VII. OPERATION OF CONTROLLER
Section 2 - 1. Parameters Query
Press “ ” , enter into parameters query state, press “ “ “ “ to query status and
parameters, Press “ ” again to exit the query status parameter status. Status or
parameters are displayed showing at the clock.
*Parameters Status Query Table
Code Name Description Remark
c01 version no. display version No. -
c02 ambient temp. display ambient temp, display Et1
in case of error
°C
c03 water tank temp display water tank temp., display
Et2 in case of error
°C
c04 outlet water temp. display outlet water temp., display
Et3 in case of error
°C
c05 inlet water temp. display inlet water temp., display
Et4 in case of error
°C
c06 evaporator coil temp display evaporator coil temp., dis-
play Et5 in case of error
°C
c07 exhaust gas temp. display exhaust gas temp., display
Et6 in case of error
°C
c08 condenser coil temp
(after throttling)
display condenser coil temp., dis-
play Et7 in case of error
°C
c09 suction temp display suction temp., display Et8
in case of error
°C
c10 module temp display module temp., display E24
in case of error
°C
c11 main valve opening
degrees
display main valve opening de-
grees
c12 auxiliary valve open-
ing degrees
display auxiliary valve opening
degrees
c13 exhaust gas valve
opening degrees
display exhaust gas valve opening
degrees
