Anton/Bauer Titon Series User manual

Titon
USER GUIDE

2
Original Instructions:
English
Disclaimer
Trademarks
Published by:
Copyright © 2019
Vitec Production Solutions Inc.
All rights reserved
All rights reserved throughout the world. No part of this document may be stored in a retrieval system, transmitted, copied
or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior
agreement and permission in writing of the Vitec Group plc.
The information contained in this manual is believed to be correct at the time of printing. Vitec Production Solutions Inc.
reserves the right to make the changes to the information or specifications without obligation to notify any person of such
revisions or changes. Changes will be incorporated in new versions of the publication.
We are making every eort to ensure that our manuals are updated on a regular basis to reflect changes to the product
specifications and features. Should this manual not contain information on the core functionality of your product, please let
us know. You may be able to access the latest revision of this manual from our website.
Vitec Production Solutions Inc. reserves the right to make changes to product design and functionality without notification.
All product trademarks and registered trademarks are the property of Vitec Production Solutions.
All other trademarks and registered trademarks are the property of the respective companies.
Vitec Production Solutions Inc.
Email: [e-mail]

3
Titon LCD ................................................................................................................................................................... 8
Powertap®and USB ............................................................................................................................................... 10
Components and connections

4
The Anton/Bauer Titon Series Lithium-ion battery
is specifically designed and optimized to be
charged with current Anton/Bauer chargers. The
Titon battery Series are compatible with Anton/
Bauer chargers and have been tested on industry
recognized competitive chargers as well. For
optimal performance and enhanced battery
longevity, we recommend using Anton/Bauer
chargers.

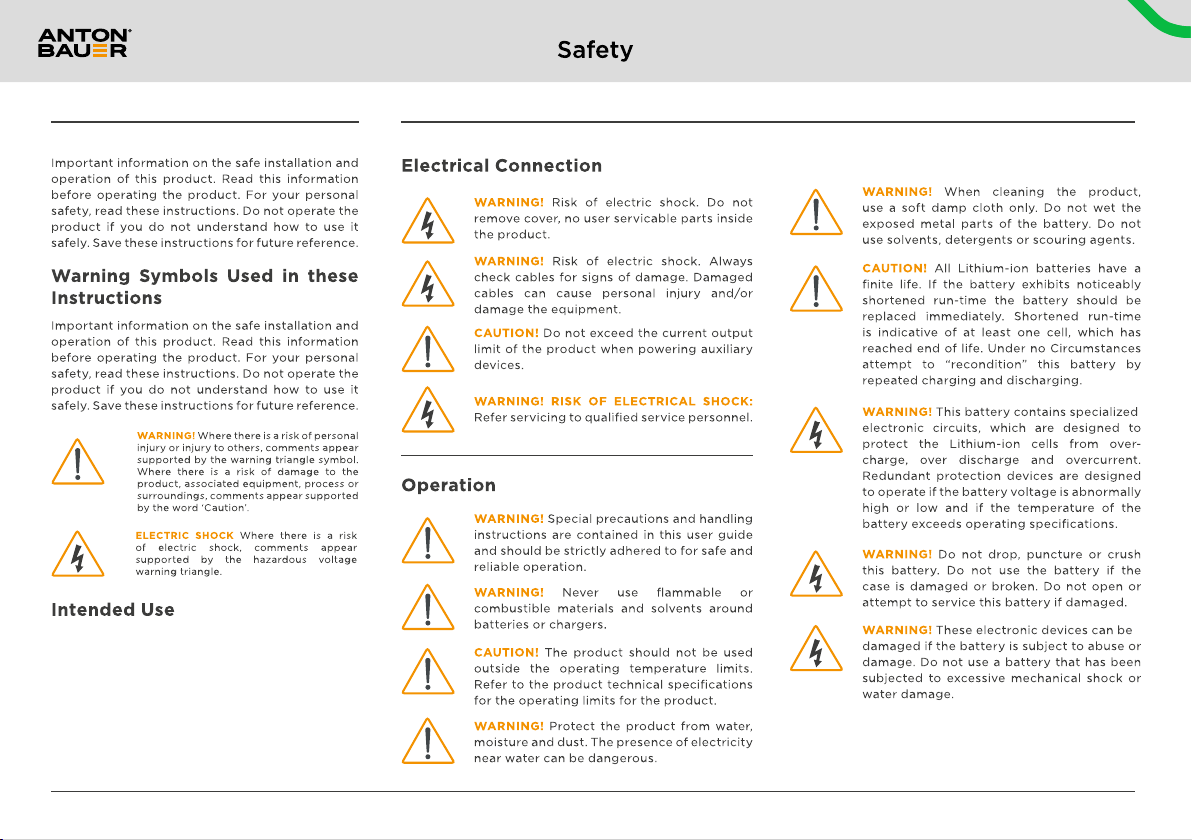

5
Weekly, or as needed - Clean the device,
associated components, and accessories
as needed with a damp, non-saturated
cloth or paper towel. Do not wet the
exposed metal part of the battery charge
terminals. Do not use solvents or scouring
agents. Examples of approved solvents
are Cidex® and Windex®. Consult Anton/
Bauer Customer Support Group for
approved list of cleaning agents.
Periodic cleaning of both the charger
terminals and battery terminals will
ensure continued reliable operation.
Clean the terminals occasionally with a
pencil eraser or lightly scrape the surface
with a blunt instrument to help reduce
the likely hood of build up causing poor
communication or charging.
Contact Anton/Bauer Customer Support
Group with additional inquires as to
maintenance.

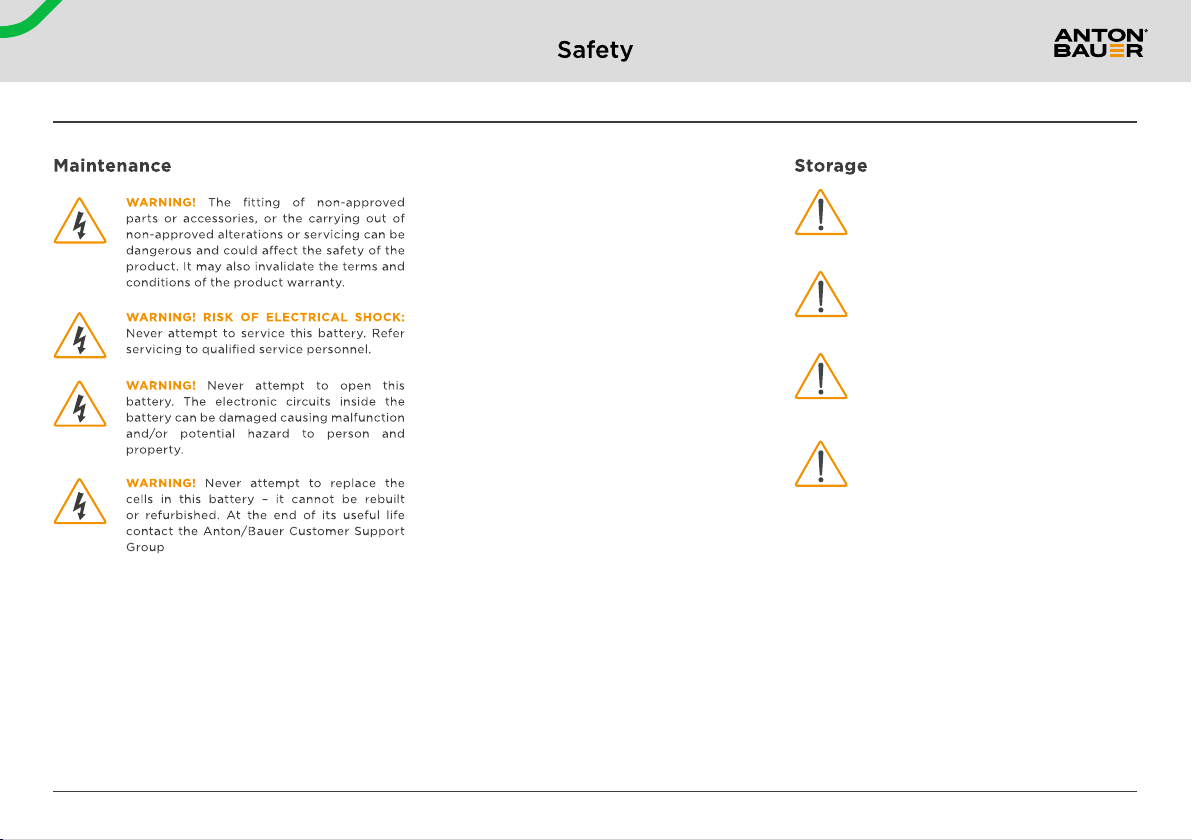

CAUTION! Keep batteries cool or at room
temperatures whenever possible. Sustained
elevated temperatures are the primary reason
for premature failure of Lithium-Ion batteries.
CAUTION! Charge batteries at room
temperature. In warm climates keep
chargers in air conditioned rooms for best
performance.
CAUTION! Although Lithium-ion has good
selfdischarge characteristics, batteries
should be stored for long term storage in a
fully charged condition.
CAUTION! Batteries should always be stored
in a fully charged state and kept cool. If
batteries must be stored for a long period
(over 30 days), the battery electronics will
enter a “deep sleep” mode. The battery will
“wake up” when placed on a charger. It is
always a good idea to submit the battery to a
discharge/charge cycle from time to time
during storage.

Air Transportation Regulation
1. US Code of Federal Regulations Title 49 Subtitle B.
2. International Air Transport Associations (IATA)
Dangerous Goods Regulation (DGR).
3. International Civil Aviation Organization (ICAO)
regulations apply to all Lithium-Ion battery transport.
Air Transportation Declaration
Vitec Production Solutions, declares that the
Anton/Bauer Titon Lithium-Ion battery packs contain
equivalent Lithium content (ELC) in a quanity
exceeding 8 grams and therefore is considered
and must be handled and transported as a class 9
Hazardous article and is subject to regulation under
Dangerous Good Regulations.
49CFR PARTS 100-185
Since the interpretation and application of
regulations may vary with the aviation company,
the transport of the Anton/Bauer Titon Series
battery may be disallowed even when the conditions
described above are satisfied. Anton/Bauer therefore
strongly recommends that you consult with your
transportation company prior to transporting the
battery pack.
6

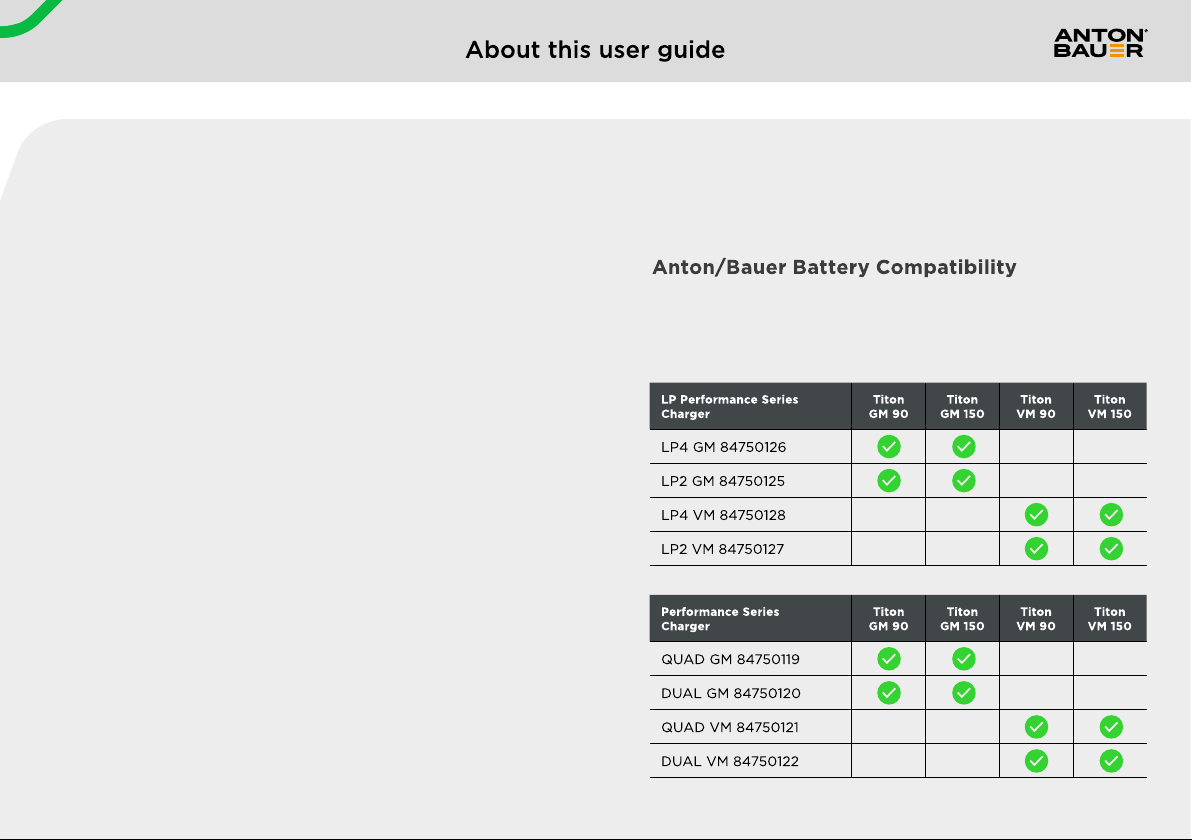

Anton/Bauer Titon Series batteries are compatible with all LP Perfor-
mance and Performance Series chargers. For questions on product
compatibility please contact the Anton/Bauer Customer Support Group.
LP Performance Series
Charger
Titon
GM 90
Titon
GM 150
Titon
VM 90
Titon
VM 150
LP4 GM 84750126
LP2 GM 84750125
LP4 VM 84750128
LP2 VM 84750127
Performance Series
Charger
Titon
GM 90
Titon
GM 150
Titon
VM 90
Titon
VM 150
QUAD GM 84750119
DUAL GM 84750120
QUAD VM 84750121
DUAL VM 84750122
7
The Anton/Bauer Titon Series batteries contain a proprietary IP that
increases run-time and lengthens life cycle, eliminating the negative
eects incurred when running digital technology with traditional battery
circuitry. All with Anton/Bauer’s balanced, high-quality cells that deliver a long
performance life.
This user guide covers the safe and reliable operation of the Titon Series
batteries.
Special precautions and handling instructions are contained in this user
guide and should be strictly adhered to for safe and reliable operation.
Contact Anton/Bauer Customer Support Group with any questions
regarding this product.
Introduction
Important

8
Every Titon Series battery has an easy to read LCD which conveniently reports battery information in one of two ways.
Titon Series LCD
2.
When the battery is sitting idle (no load is applied) the LCD will
show remaining capacity as percentage of full.
When the battery is powering an item (a load is applied), the LCD will
dispaly remaining run-time in Hours/Minutes.
1.

9
The Titon Series features an Integrated PowerTap®and USB ports on the side of the battery to power camera accessories.
The PowerTap®allows for convenient deployment of up to 10 Amps of DC current for various parallel devices. The USB port supplies a regulated 5
volts and maximum 2 Amps current and may be used for charging mobile devices.

10
Will deliver a high rate charge matched to the
capabilities of the battery (typically a one or two
hour rate, depending on battery type). During
this stage, six separate cuto methods are in
operation, simultaneously, ensuring the fastest,
safest charge for that battery.
Charging is a BALANCING or “stabilizing” mode
which calculates each battery pack type to oset
any imbalance of the battery’s cells, created by
unequal self-discharge or any capacity mismatch
of the individual cells in the pack. This stage can
vary in duration from zero to as much as 16 hours,
depending on the condition of the battery. The
Stage Two charge reduces current automatically
as the battery charges maintaining the cells at a
safe voltage level. A battery will typically leave
Stage Two in 2-4 hours under average operating
conditions.
Charging is the Anton/Bauer exclusive Lifesaver®
maintenance mode. This patented pulse routine
keeps batteries fully charged, free from self-
discharge - indefinitely - without damaging heat
associated with a so-called “trickle charge”. The
Stage Three programming monitors the self-
discharge of the battery, providing charge only
when the battery self-discharges to about 95% of
its capacity.
Mount any Titon Series battery to any open position on an Anton/Bauer charger and
the charger will automatically determine the appropriate charge routine and execute it.
In some cases a battery may be discharged to a very low voltage level
causing the battery to be unrecognizable to the charger when first attached.

11

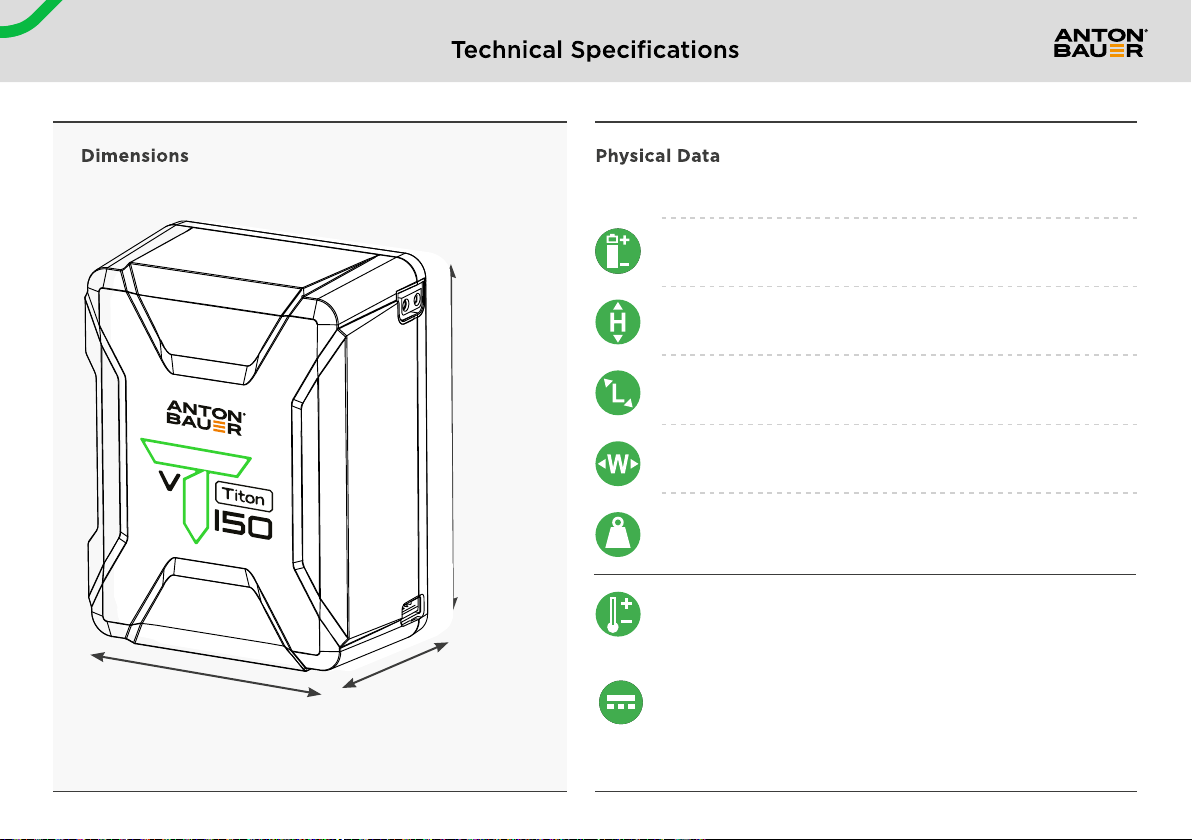

Titon 90G: 2.27 inches (5.8 cm)
Titon 90V: 2.06 inches (5.2 cm)
Titon 150G: 2.81 inches (7.2 cm)
Titon 150V: 2.60 inches (6.6 cm)
Capacity
Environmental Data - All Variants
Electrical Data
Height
Length
Width
Weight
92Wh Nominal
5.15 inches
(13.08 cm)
2.27 inches
(5.8 cm)
3.88 inches
(9.86 cm)
1.76 lbs
(0.8kg kg)
Operating temperature range
Charge 0°C to +45°C (-32°F to +113°F)
Discharge -20°C to +60°C (-4°F to 140°F)
90 Wh: Max. Discharge Rate 163W or 10A
Output Voltage Nominal 14.2V Operating 10.0~16.3V
150 Wh: Max. Discharge Rate 168W or 10A
Output Voltage Nominal 14.4V Operating 10.0~16.8V
1.76 lbs
(0.8 kg)
24 lbs
(1.1 kg)
2.4 lbs
(1.1 kg)
5.15 inches
(13.08 cm)
2.06 inches
(5.2 cm)
3.88 inches
(9.86 cm)
5.15 inches
(13.08 cm)
2.81 inches
(7.2 cm)
3.88 inches
(9.86 cm)
5.15 inches
(13.08 cm)
2.60 inches
(6.6 cm)
3.88 inches
(9.86 cm)
92Wh Nominal 156Wh Nominal 156Wh Nominal
Titon 90G Titon 150VTiton 90V Titon 150V
3.88 inches (9.86cm)
5.15 inches (113.08cm)
Titon 90G / 90V / 150G / 150V

12

13
This equipment has been tested and found to comply with the limits
for a Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interference at their own expense. This equipment has been approved
by one or more agencies. All changes and/or modifications not expressly
approved by Anton/Bauer could void the users’ warranty and authority to
operate this equipment. There are no serviceable parts in this equipment.

14
This warranty for the product specified in this document (“Product”)
is given by Vitec Production Solutions (“Anton/Bauer”), 14 Progress
Drive, Shelton, Connecticut 06484. If you (the purchaser of the
Product from Anton/Bauer, or the person for whom the Product was
purchased, if it was a gift) have any questions regarding Product
applications, Product specification, or to obtain warranty service on
this or any Anton/Bauer product, contact the company at the address
above.
THIS PRODUCT MUST BE REGISTERED WITH ANTON/BAUER WITHIN
30 DAYS OF PURCHASE TO ASSURE WARRANTY COVERAGE.
REGISTER ONLINE AT:
www.antonbauer.com
Warranty registration, including the serial numbers of Anton/
Bauer chargers used with this battery, must be supplied to Anton/
Bauer. Anton/Bauer will warranty the Product only against defects
in material and workmanship for the period as follows from the date
of purchase, in accordance with the terms set forth below, and then,
only if the Product is used exclusively in conjunction with compatible
Anton/Bauer chargers. If this charger is returned to Anton/Bauer for
warranty service it will be required that you provide model names and
serial numbers of compatible Anton/Bauer chargers with which
this product was used.
MAXX II Warranty 24 months: Anton/Bauer will repair or replace the
Product at Anton/Bauer’s option and cost.
This warranty shall be eective only if Anton/Bauer receives notice
of such defects in materials or workmanship during the period of the
warranty. The liability of Anton/Bauer hereunder is expressly limited
to a claim for repair or replacement of the Product or as otherwise
stated herein at Anton/Bauer’s sole discretion. Notice of any claim
under this warranty shall be delivered to Anton/Bauer during the
period of the warranty and the Product shall be returned with its
packaging promptly, at your expense, to an Anton/Bauer Customer
Support Center or to the address above. Upon receipt of the Product
and a record of your compliance with the conditions of this warranty,
Anton/Bauer will repair or replace the Product and return it to you, or
issue a credit, as applicable. You are responsible for all shipping and
handling charges to and from authorized facility.
THIS WARRANTY DOES NOT APPLY TO AND IS VOID IN THE CASE OF
DEFECTS OR DAMAGE RESULTING FROM ACCIDENTS, DISASTER,
NEGLECT, MISUSE, IMPROPER INSTALLATION, IMPROPER OR
UNAUTHORIZED SERVICE OR MAINTENANCE, UNAUTHORIZED
REPLACEMENT PARTS OR ATTACHMENTS; OR DYSFUNCTION OR
MALFUNCTION OF, OR CAUSED BY, ANY OTHER PRODUCT OR
DEVICE.
Misuse includes any use of the Product in other than its intended
application, including the use of this Product with any charging
device or accessory not manufactured by and/or specified by Anton/
Bauer. This warranty does not cover, and Anton/Bauer assumes no
responsibility for, any equipment or devices used in conjunction with
the Product.
ANTON/BAUER DISCLAIMS ANY LIABILITY FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY WRITTEN
OR IMPLIED WARRANTY OF THE PRODUCT. UNDER NO
CIRCUMSTANCES WILL ANTON/BAUER BE RESPONSIBLE FOR ANY
SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
This Warranty is to be construed and enforced in accordance with the
law of the State of Connecticut, including the provisions of the Uniform
Commercial Code as adopted and from time to time amended in the
State of Connecticut, and not the Convention for the International
Sale of Goods. This choice of Connecticut law is exclusive of any
Connecticut law that would require reliance on any law foreign to
Connecticut.

15

Part No. 7595-0465
