Anton/Bauer Titon SL Series User manual

USER GUIDE
Lithium-ion Battery
8675-0115 - Titon SL 90 Gold Mount
8675-0157 - Titon SL 150 Gold Mount
8675-0116 - Titon SL 90 V-Mount
8675-0158 - Titon SL 150 V-Mount

2
Original Instructions:
English
Disclaimer
Trademarks
Published by:
Copyright © 2019
Vitec Production Solutions Inc.
All rights reserved
All rights reserved throughout the world. No part of this document may be stored in a retrieval system, transmitted, copied or reproduced in any
way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec
Group plc.
The information contained in this manual is believed to be correct at the time of printing. Vitec Production Solutions Inc. reserves the right to make
the changes to the information or specications without obligation to notify any person of such revisions or changes. Changes will be incorporated
in new versions of the publication.
We are making every e󰀨ort to ensure that our manuals are updated on a regular basis to reect changes to the product specications and features.
Should this manual not contain information on the core functionality of your product, please let us know. You may be able to access the latest
revision of this manual from our website.
Vitec Production Solutions Inc. reserves the right to make changes to product design and functionality without notication.
All product trademarks and registered trademarks are the property of Vitec Production Solutions.
All other trademarks and registered trademarks are the property of the respective companies.
Vitec Production Solutions Inc.
Email: [email protected]

Safety. .... .... .... .... .... .... .... .... .... .... .... .... .. 4
Introduction. .... .... .... .... .... .... .... .... .... .... .. 7
About This User Guide... .... .... .... .... .... .... .. 7
Components and Connections .... .... .... .... .. 8
Technical Specications .... .... .... .... .... .... .. 10
After Sales Support... .... .... .... .... .... .... .... .. 12
General Notices .... .... .... .... .... .... .... .... .... .. 13
Warranty . .... .... .... .... .... .... .... .... .... .... .... .. 14
3Contents

4
The Anton/Bauer Titon SL Series Lithium-ion battery is specifically designed and op-
timized to be charged with current Anton/Bauer chargers. The Titon battery Series
are compatible with Anton/Bauer chargers and have been tested on industry recog-
nized competitive chargers as well. For optimal performance and enhanced battery
longevity, we recommend using Anton/Bauer chargers.
Safety
Important information on the safe installation and operation of this
product. Read this information before operating the product. For
your personal safety, read these instructions. Do not operate the
product if you do not understand how to use it safely. Save these
instructions for future reference.
Warning Symbols Used in these Instructions
Safety cautions are included in these instructions. These safety
instructions must be followed to avoid possible personal injury
and avoid possible damage to the product.
WARNING! Where there is a risk of personal injury
or injury to others, comments appear supported by
the warning triangle symbol. Where there is a risk
of damage to the product, associated equipment,
process or surroundings, comments appear
supported by the word ‘Caution’.
ELECTRIC SHOCK Where there is a risk of electric
shock, comments appear supported by the hazardous
voltage warning triangle.
Electrical Connection
WARNING! Risk of electric shock. Do not remove cover,
no user servicable parts inside the product.
WARNING! Risk of electric shock. Always check cables
for signs of damage. Damaged cables can cause personal
injury and/or damage the equipment.
CAUTION! Do not exceed the current output limit of the
product when powering auxiliary devices.
WARNING! RISK OF ELECTRICAL SHOCK: Refer
servicing to qualified service personnel.
Operation
WARNING! Special precautions and handling instructions
are contained in this user guide and should be strictly
adhered to for safe and reliable operation.
WARNING! Never use flammable or combustible materials
and solvents around batteries or chargers.
CAUTION! The product should not be used outside the
operating temperature limits. Refer to the product technical
specifications for the operating limits for the product.
WARNING! Protect the product from water, moisture
and dust. The presence of electricity near water can be
dangerous.
WARNING! When cleaning the product, use a soft damp
cloth only. Do not wet the exposed metal parts of the
battery. Do not use solvents, detergents or scouring
agents.
CAUTION! All Lithium-ion batteries have a finite life. If the
battery exhibits noticeably shortened run-time the battery
should be replaced immediately. Shortened run-time is
indicative of at least one cell, which has reached end of
life. Under no Circumstances attempt to “recondition” this
battery by repeated charging and discharging.

5Safety
WARNING! This battery contains specialized electronic
circuits, which are designed to protect the Lithium-ion
cells from over-charge, over discharge and overcurrent.
Redundant protection devices are designed to operate
if the battery voltage is abnormally high or low and
if the temperature of the battery exceeds operating
specifications.
WARNING! Do not drop, puncture or crush this battery. Do
not use the battery if the case is damaged or broken. Do
not open or attempt to service this battery if damaged.
WARNING! These electronic devices can be damaged if
the battery is subject to abuse or damage. Do not use a
battery that has been subjected to excessive mechanical
shock or water damage.
Maintenance
WARNING! The fitting of non-approved parts or
accessories, or the carrying out of non-approved
alterations or servicing can be dangerous and could affect
the safety of the product. It may also invalidate the terms
and conditions of the product warranty.
WARNING! RISK OF ELECTRICAL SHOCK: Never
attempt to service this battery. Refer servicing to qualified
service personnel.
WARNING! Never attempt to open this battery. The
electronic circuits inside the battery can be damaged
causing malfunction and/or potential hazard to person and
property.
WARNING! Never attempt to replace the cells in this
battery – it cannot be rebuilt or refurbished. At the end of
its useful life contact the Anton/Bauer Customer Support
Group
Weekly, or as needed - Clean the device, associated components,
and accessories as needed with a damp, non-saturated cloth or
paper towel. Do not wet the exposed metal part of the battery charge
terminals. Do not use solvents or scouring agents. Example s of
approved solvents are Cidex®and Windex®. Consult Anton/Bauer
Customer Support Group for approved list of cleaning agents. Periodic
cleaning of both the charger terminals and battery terminals will ensure
continued reliable operation. Clean the terminals occasionally with a
pencil eraser or lightly scrape the surface with a blunt instrument to
help reduce the likely hood of buildup causing poor communication or
charging.
Contact Anton/Bauer Customer Support Group with additional inquires
as to maintenance.
Storage
CAUTION! Keep batteries cool or at room
temperatures whenever possible. Sustained elevated
temperatures are the primary reason for premature
failure of Lithium-Ion batteries.
CAUTION! Charge batteries at room temperature. In
warm climates keep chargers in air conditioned rooms
for best performance.
CAUTION! Although Lithium-ion has good self-
discharge characteristics, batteries should be stored
for long term storage in a fully charged condition.
CAUTION! Batteries should always be stored in a
fully charged state and kept cool. If batteries must be
stored for a long period (over 30 days), the battery
electronics will enter a “deep sleep” mode. The
battery will “wake up” when placed on a charger.
It is always a good idea to submit the battery to a
discharge/charge cycle from time to time during
storage.

Air Transportation Regulation
US Code of Federal Regulations Title 49 Subtitle B.
International Air Transport Associations (IATA)
Dangerous Goods Regulation (DGR).
International Civil Aviation Organization (ICAO)
regulations apply to all Lithium-Ion battery transport.
Since the interpretation and application of regulations may vary with the aviation
company, the transport of the Anton/Bauer Titon Series battery may be
disallowed even when the conditions described above are satisfied.
Anton/Bauer therefore strongly recommends that you consult with your transportation
company prior to transporting the battery pack.
6
Safety

Anton/Bauer Titon Series batteries are compatible with all LP
Performance and Performance Series chargers. For questions on product compatibility please contact the Anton/Bauer Customer Support Group.
LP Performance Series
Charger
Titon 90, 150 and
240
Gold Mount
LP4 Quad 8475-0126
LP2 Dual 8475-0125
Perfomance Quad 8475-0119
Perfomance Dual 8475-0120
Dionic 26V LP4 Quad 8475-0138
Tandem 70 8475-0067
Twin 8475-0073
GM2 8475-0143
P-Tap charger 8475-0142
LP Performance Series
Charger
Titon 90, 150 and
240
V- Mount
LP4 Quad 8475-0128
LP2 Dual 8475-0127
Perfomance Quad 8475-0121
Perfomance Dual 8475-0122
VM2 8475-0141
P-Tap charger 8475-0142
7
The Anton/Bauer LP and Performance chargers contain a proprietary IP that increases run-time and lengthens life cycle of batteries.
Titon SL uses Anton/Bauer’s balanced, high-quality cells that deliver a long performance life.
This user guide covers the safe and reliable operation of the Titon SL Series batteries.
Special precautions and handling instructions are contained in this user guide and should be strictly adhered to for safe and reliable operation.
Contact Anton/Bauer Customer Support Group with any questions regarding this product.
Introduction
Important
About This User Guide

8
Every Titon Series battery has an easy to read LCD which conveniently reports battery information in one of two ways.
Titon Series LCD
2.
When the battery is sitting idle (no load is applied) the LCD will
show remaining capacity as percentage of full.
When the battery is powering an item (a load is applied), the LCD will
display remaining run-time in Hours/Minutes.
1.
Components and Connections

9

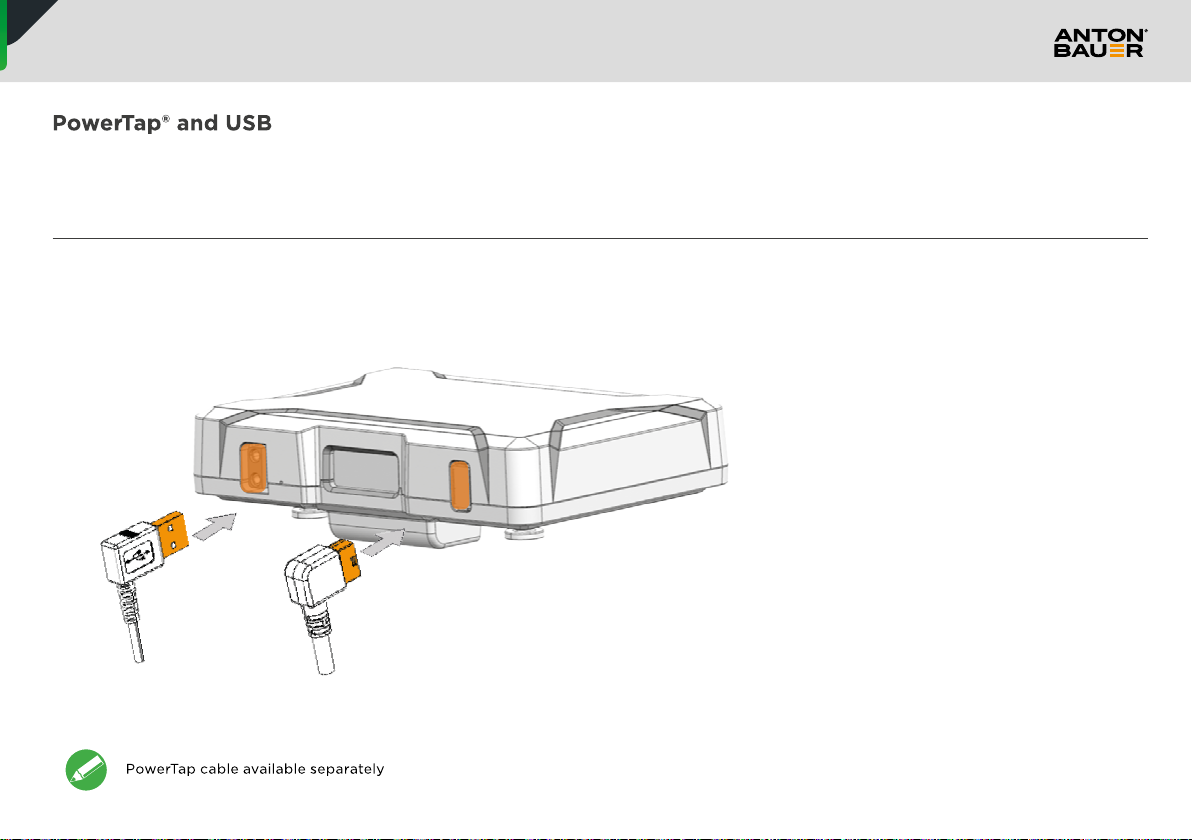

The Titon Series features an Integrated PowerTap® and USB ports on the side of the battery to power camera accessories.
The PowerTap® allows for convenient deployment of up to 10 Amps of DC current for various parallel devices.
The USB port supplies a regulated 5 volts and maximum 2 Amps current and may be used for charging mobile devices.
Components and Connections

10
Environmental Data - All Variants
Electrical Data
Operating temperature range
Charge 0°C to +45°C (-32°F to +113°F)
Discharge -20°C to +60°C (-4°F to 140°F)
90 Wh: Max. Discharge Rate 115W or 10A
Output Voltage 10V-16.8V or 14.4V Nominal
150 Wh: Max. Discharge Rate 168W or 10A
Output Voltage 10V-16.8V or 14.4V Nominal
Technical Specications
Physical Data Titon SL 90 Gold Mount Titon SL 90 V Mount Titon SL 150 Gold Mount Titon SL 150 V Mount
Capacity 95Wh Nominal 95Wh Nominal 143Wh Nominal 143Wh Nominal
Height 5.63 inches
(14.29 cm)
5.63 inches
(14.29 cm)
5.15 inches
(13.08 cm)
5.1 inches
(13 cm)
Depth 1.57 inches
(3.98 cm)
1.38 inches
(3.52 cm)
2.27 inches
(5.76 cm)
2.06 inches
(5.23 cm)
Width 3.98 inches
(10.10 cm)
3.98 inches
(10.10 cm)
3.88 inches
(9.86 cm)
3.88 inches
(9.86 cm)
Weight 1.35 lbs
(0.61kg)
1.4 lbs
(0.63 kg)
1.85 lbs
(0.84 kg)
0.9 lbs
(0.86 kg)

11

12
After Sales Support
At Vitec Production Solutions we take great pride in the quality of our products and we also recognize that your experience with our products
will be even more positive and productive with strong, effective support to back them up.
Vitec Production Solutions Service Centers are there to provide technical support for customers and partners, via telephone or email. For more
information, including complete contact details, please go to: vitecsupport.com

13
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency and, if not
installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the
interference at their own expense. This equipment has been approved
by one or more agencies. All changes and/or modications not expressly
approved by Anton/Bauer could void the users’ warranty and authority to
operate this equipment. There are no serviceable parts in this equipment.
General Notices

14
Warranty
This warranty for the product specied in this document (“Product”) is
given by Vitec Production Solutions (“Anton/Bauer”), 14 Progress Drive,
Shelton, Connecticut 06484. If you (the purchaser of the Product from
Anton/Bauer, or the person for whom the Product was purchased, if it
was a gift) have any questions regarding Product applications, Product
specication, or to obtain warranty service on this or any Anton/Bauer
product, contact the company at the address above.
This product must be registered with Anton/Bauer within 30 days of
purchase to assure warranty coverage. Register online at:
www.antonbauer.com
Warranty registration, including the serial numbers of
Anton/Bauer chargers used with this battery, must be supplied to Anton/
Bauer. Anton/Bauer will warranty the Product only against defects in
material and workmanship for the period as follows from the date of
purchase, in accordance with the terms set forth below, and then, only
if the Product is used exclusively in conjunction with compatible Anton/
Bauer chargers. If this battery or product is returned to Anton/Bauer
for warranty service it will be required that you provide model names
and serial numbers of compatible Anton/Bauer chargers with which this
product was used.
Warranty 12 months: Anton/Bauer will repair or replace the Product at
Anton/Bauer’s option and cost.
This warranty shall be e󰀨ective only if Anton/Bauer receives notice
of such defects in materials or workmanship during the period of the
warranty. The liability of Anton/Bauer hereunder is expressly limited
to a claim for repair or replacement of the Product or as otherwise
stated herein at Anton/Bauer’s sole discretion. Notice of any claim
under this warranty shall be delivered to Anton/Bauer during the period
of the warranty and the Product shall be returned with its packaging
promptly, at your expense, to an Anton/Bauer Customer Support Center
or to the address above. Upon receipt of the Product and a record of
your compliance with the conditions of this warranty, Anton/Bauer will
repair or replace the Product and return it to you, or issue a credit, as
applicable. You are responsible for all shipping and handling charges to
and from authorized facility.
This warranty does not apply to and is void in the case of defects or
damage resulting from accidents, disaster, neglect, misuse, improper
installation, improper or unauthorized service or maintenance,
unauthorized replacement parts or attachments; or dysfunction or
malfunction of, or caused by, any other product or device.
Misuse includes any use of the Product in other than its intended
application, including the use of this Product with any charging
device or accessory not manufactured by and/or specied by Anton/
Bauer. This warranty does not cover, and Anton/Bauer assumes no
responsibility for, any equipment or devices used in conjunction with the
Product.
Anton/Bauer disclaims any liability for incidental or consequential
damages for breach of any written or implied warranty of the product.
Under no circumstances will Anton/Bauer be responsible for any
special, incidental or consequential
Damages.
This Warranty is to be construed and enforced in accordance with the
law of the State of Connecticut, including the provisions of the Uniform
Commercial Code as adopted and from time to time amended in the
State of Connecticut, and not the Convention for the International
Sale of Goods. This choice of Connecticut law is exclusive of any
Connecticut law that would require reliance on any law foreign to
Connecticut.

15 Warranty
Should any action of law or in equity be brought by any person under
this Warranty, such action shall be brought only in the United States
District Court for the District of Connecticut, or in any Superior
Court in Fairfield County, Connecticut, USA. Some states do not
allow limitations on how long a warranty lasts, so the time period
limitation herein may not apply to you. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you. This warranty
gives you specific legal rights and you may have other legal rights
which may vary from state to state. Use of unauthorized equipment
in conjunction with Anton/Bauer products constitutes misuse under
our warranties and may limit or void those warranties. Anton/Bauer
does not authorize, condone, recommend, or otherwise assume
any liability or responsibility resulting from the use of any battery,
charger, or accessory made by Anton/Bauer with any battery,
charger or accessory not manufactured, produced or sold by Anton/
Bauer. Anton/Bauer only authorizes the use of original Anton/Bauer
products with this Product. Use only original Anton/Bauer equipment
with this Product.

Publication No.7595-0472 V0.1
