ANTUMBRA 6MIX Instruction Manual

ANTUMBRA
6MIX
BUILDING INSTRUCTIONS
PCB V1.1

01. BUILD NOTES
Before you start building look through the build manual
so that you’ll be familiar with the building process and
you won’t run into any surprises!

02. BUILD
00. Orient the PCB as seen on the left
01. Solder the three TL072s
(Check their orientation)
02. Solder the two 1n5819 diodes
(Check their orientation)
03. Solder the 20x 100k resistors
TL072 TL072 TL072 TL072 TL072 TL072 TL072 TL072 TL072
104 104
104 104
104
104 104
104
104
104
104
104
104 104
104 104104
104
104104
00 01 02 03

02. BUILD
04. Solder the two 180R resistors
05. Solder the two 470R resistors
06. Solder the two 1k resistors
07. Solder the two 10R resistors
TL072 TL072 TL072
104 104
104 104
104
104 104
104
104
104
104
104
104 104
104 104104
104
104104
181 181
TL072 TL072 TL072
104 104
104 104
104
104 104
104
104
104
104
104
104 104
104 104104
104
104104
181 181
471 471
TL072 TL072 TL072
104 104
104 104
104
104 104
104
104
104
104
104
104 104
104 104104
104
104104
181 181
471 471
102 102
TL072 TL072 TL072
104 104
104 104
104
104 104
104
104
104
104
104
104 104
104 104104
104
104104
181 181
471 471
102 102
100 100
04 05 06 07

02. BUILD
08. Solder the 6x 100nF capacitors
09. Solder the two 10uF capacitors
(Make sure to match up it’s orientation with the silk-
screen drawing)
10. Solder the eight SMD LEDs (this is optional)
(The marker on the LED should point to the line on
the PCB)
11. Solder the 2x5 pin power header
TL072 TL072 TL072
104 104
104 104
104
104 104
104
104
104
104
104
104 104
104 104104
104
104104
181 181
471 471
102 102
100 100
TL072 TL072 TL072
104 104
104 104
104
104 104
104
104
104
104
104
104 104
104 104104
104
104104
181 181
471 471
102 102
100 100
TL072 TL072 TL072
104 104
104 104
104
104 104
104
104
104
104
104
104 104
104 104104
104
104104
181 181
471 471
102 102
100 100
TL072 TL072 TL072
104 104
104 104
104
104 104
104
104
104
104
104
104 104
104 104104
104
104104
181 181
471 471
102 102
100 100
08 09 10 11

02. BUILD
12. Solder 1x3 pin header (this is optional)
13. Solder 2x3 pin link header
14. Turn the PCB around
DO NOT SOLDER YET!
15. Place the eight jacks
TL072 TL072 TL072
104 104
104 104
104
104 104
104
104
104
104
104
104 104
104 104104
104
104104
181 181
471 471
102 102
100 100
TL072 TL072 TL072
104 104
104 104
104
104 104
104
104
104
104
104
104 104
104 104104
104
104104
181 181
471 471
102 102
100 100
12 13 14 15

02. BUILD

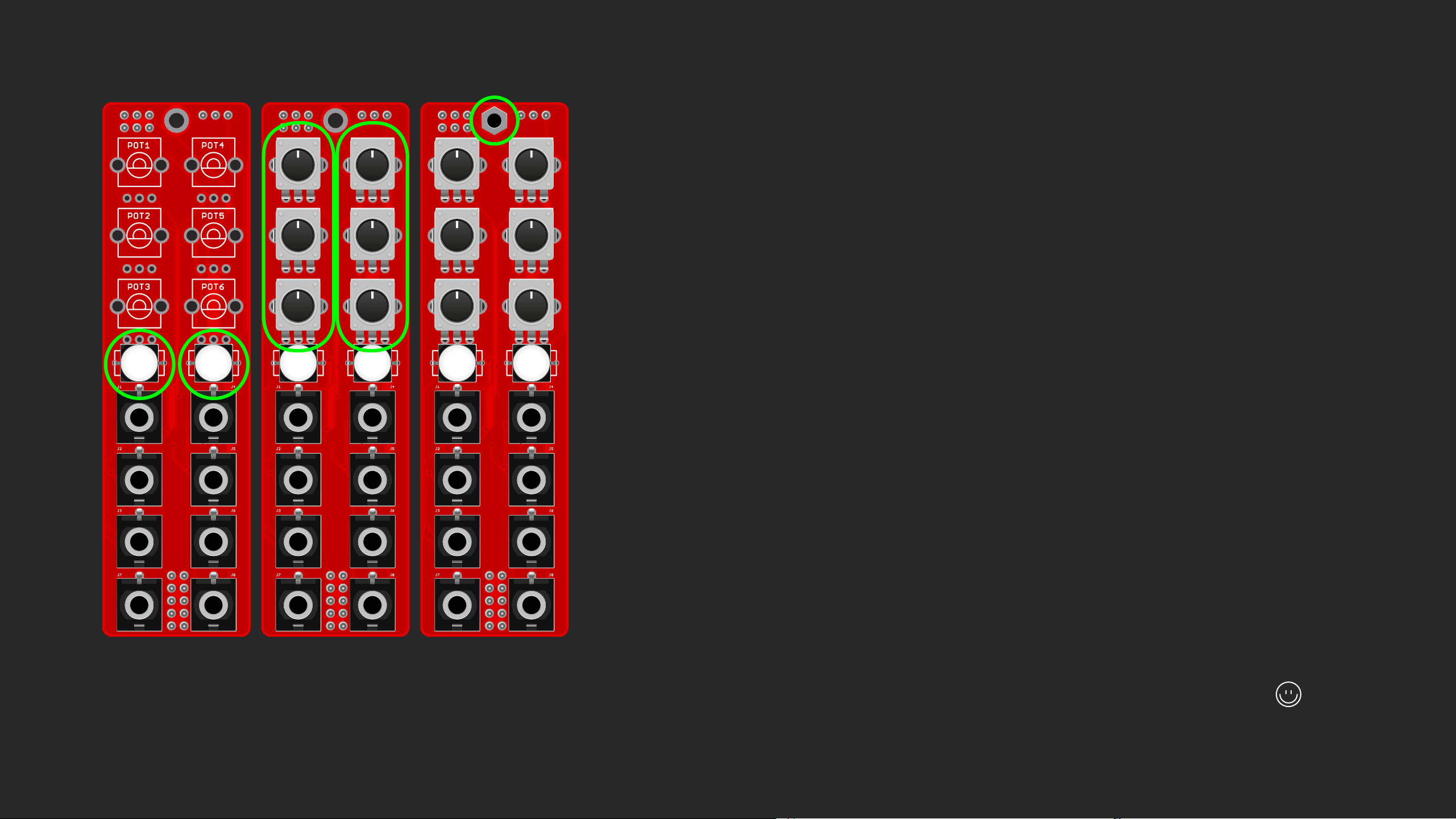

16. Place the two buttons
(Their orientation is important, there are two notch-
es on one side, they should align up with the notches
on the drawing. Alternatively, the dot on it should
point towards the - sign on the PCB)
17. Place the six B10k pots
18. Place the spacer and screw a screw in it from the
other side.
19. Now place the front panel on top, put the nuts on the
jacks, align everything nicely, and screw in a screw
from the front in the spacer as well. If you like how
it looks, solder everything on the other side!
You are done with building! Congratulations!
16 17 18

6MIX is designed by David Szebenyi under Antumbra.
www.antumbra.eu
Manual by David Szebenyi (www.aman.hu)
2019 • All rights reserved!
