Aobosi JC-85C User manual

1
INSTRUCTION MANUAL
BEVERAGE COOLER
MODEL: JC-85C / JC-145C
This manual contains important information including safety and installation instructions
of the appli ances. Please read it carefully before use and follow all safety information &
instructions. It is recommended to keep this manual for easy reference so that you can
be familiar with the operation of the appliance.

2
CONTENTS
WARNING----------------------------------------------------------------------------------------------------------2
IMPORTANT SAFETY INSTRUCTIONS-------------------------------------------------------------------3
INSTALLATION INSTRUCTIONS----------------------------------------------------------------------------4
UNPACKING AND INSTALL THE DOOR HANDLE ----------------------------------------------------4
TEMPERATURE SETTING------------------------------------------------------------------------------------6
CARE & MAINTENANCE---------------------------------------------------------------------------------------10
TROUBLESHOOTING GUIDE--------------------------------------------------------------------------------10
WARRANTY-------------------------------------------------------------------------------------------------------12
WARNING
To prevent damaging the door gasket, make sure to have the door all the way
opened when pulling shelves out of the rail compartment.
The appliance must be positioned so that the plug is accessible. Release the electric
cord. Move your cabinet to its final location. Do not move your Cabinet while
loaded with wine. You might distort its body. The Beverage Cooler should be installed
in a suitable place in order to avoid touching the compressor with hand.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
If the supply cord is damaged, it must be replaced by manufacturer of its Service
agent or a similarly qualified person in order to avoid a hazard.
PLEASE DON’T TRY TO PLUG INTO OR EXTENSION THE CABLE IN ANY
CASE.

3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock, or
injury when using your appliance, follow
these basic precautions:
Read all instructions before using the Beverage Cooler.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous even if they will “just sit in the garage a few days”.
Before you throw away your old Beverage Cooler: Take off the door. Leave the
shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or
explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion. Do not store
explosive substances such as aerosol cans with a flammable propellant in this appliance.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction;
WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those Recommended by the manufacturer;
To avoid a hazard due to instability of the appliance, it must be fixed in accordance with
the instructions.
WARNING: Do not damage the refrigerant circuit;
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are the type recommended by the manufacturer.
If the refrigerant of these appliances are R600a , Flammable and explosive articles
should not be put in or near the cabinet, to avoid the fire or explode caused.
-Save these instructions-

4
UNPACKING AND INSTALL THE DOOR HANDLE
Remove the exterior and interior packing materials.
Install the door handle provided with the appliance by following these steps:
Step 1 －Remove the gasket at the inner side of the door
to expose the two screw holes.
Step 2 －Install the handle tightly with the screws
and washers provided.
Step 3 －Tidy and restore the gasket.
INSTALLATION INSTRUCTIONS
Before Using Your Beverage cooler
Remove the exterior and interior packing.
Before connecting the Beverage cooler to the power source, let it stand upright for
approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system
from handling during transportation.
Use a soft cloth to clean the interior surface with lukewarm water.
This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
When disposing your appliance, please choose an authorized disposal site.
Installation of Your Beverage cooler
This appliance is designed to be for free standing installation or built-in (fully recessed)
(Refer to sticker location the back of this appliance).
This appliance is intended to be used exclusively for the storage of wine or
beverages.
Place your Beverage cooler on a flat floor that is strong enough to support it when it is fully
loaded. To level your Beverage cooler, adjust the front leveling leg at the bottom of the
Beverage cooler.
This appliance is using flammability refrigerant. So never damage the cooling pipework during
the transportation. Locate the Beverage cooler away from direct sunlight and sources of heat
(stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources
may increase electrical consumption. Extreme cold ambient temperatures may also cause the
unit not to perform properly.
Avoid locating the unit in moist areas.
Plug the Beverage cooler into an exclusive, properly installed-grounded wall outlet. Do not cut
or remove the third (ground) prong from the power cord under any circumstances. Any
questions concerning power and/or grounding should be directed toward a certified electrician
or an authorized Products service center.
Attention
Store wine in sealed bottles;
Do not overload the cabinet;
Do not open the door unless necessary;
Do not cover shelves with aluminum foil or any other shelf material which may prevent air

5
circulation;
Should the Beverage cooler be stored without use for long periods, it is suggested to leave the
door ajar to allow air to circulate inside the cabinet after a careful cleaning,avoiding possible
formations of condensation, mold or odors.
Ambient Room Temperature Limits
This appliance is designed to operate in ambient temperatures specified by its temperature class
marked on the rating plate.
Class
Symbol
Ambient Temperatures range (℃ / ℉)
Extended Temperate
SN
﹢10℃/ 50 ℉to﹢32℃/ 89.6℉
Temperate
N
﹢16℃/ 60.8℉to﹢32℃/ 89.6℉
Subtropical
ST
﹢16℃/ 60.8℉to﹢38℃/ 100.4℉
Tropical
T
﹢16℃/ 60.8℉to﹢43℃/ 109.4℉
Description of product model
Model
Description
JC-85C
94 cans single zone beverage cooler
JC-145C
164 cans single zone beverage cooler
The standard can as below:
The stated loading capacity is
based on the standard-size
soda drink with 2.6” in
diameter and 4.84” in height.
WINE STORAGE
● To prevent damaging the door gasket, make sure to have the door opened fully all
the way before pulling the shelves out.
● Please store wine in sealed bottles.
● Should the wine cooler be left empty for long periods it is suggested that the
appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to
circulate inside the cabinet in order to avoid possible condensation, mold or odours
forming.
● Recommended Temperatures for chilling/storage your wines.

6
Beverage
4-6 ºC / 39-42.8℉
Dry/White Wines
9-14ºC / 48.2-57.2℉
Sparkling Wines
5-8ºC / 41-46.4℉
OPERATING YOUR BEVERAGE COOLER AND SETTING THE TEMPERATURE
CONTROL
FOR JC-85C /JC-145C Beverage Cooler
Control System Instruction
Power switch : After the unit is power on, press for 3 seconds to turn on or off the
unit.
Touch the button ,you can interchange the Fahrenheit (℉) and Celsius(℃) display
Temperature setting button : Press before adjust temperature. When press it first
time, the display flashes and shows the setting temperature. After 5 seconds it shows the
measured interior temperature. Press to increase the setting temperature and press
to decrease the setting temperature.
Display window: 2-digit LED display to show setting temperature or actual interior temperature.
Light button : Press to turn on or off. When open door, the light will be switched on
automatically, and when close the door, the light will turn off automatically. To keep the light
stay on for 10 mins, please turn the light off first after opening the door and then turn the light
on.
Lock screen function: If there is no any operation with digital control for 3 minutes, it will be
locked automatically. Press and at the same time for 3 seconds to unlock.
Setting The Temperature Controls
You can set the temperature as you desire by pushing the “+”or “-”button. When you push the
two buttons for the first time, the LED readout will show the original temperature set at previous
time.
The temperature that you desire to set will increase 1ºC/33.8℉if you push the“+”button once,
on the contrary the temperature will decrease 1ºC/33.8℉if you push the “-” button once.
To view the “set” temperature. (anytime) press and hold the corresponding button for
approximately 5 seconds, the “set” temperature will temporarily “flash” in the LED display for 5
seconds.
After the unit is unplugged, the system will return to default setting temperature, which set
by factory. The default setting temperature as below:

7
Model
Temperature range
JC-85C BEVERAGE COOLER
/ JC-145C BEVERAGE COOLER
The temperature setting can be adjusted from 2℃/35.6℉to
10℃/50℉.
T The temperature preset at the factory is 6℃/42.8℉.
Attention
If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restart
the unit. If you attempt to restart before this time delay, the Beverage Cooler will not start. If first
time use or longer absence of using, the temperature will be different between setting and LED
display temperature. After running a period, the temperature will be reverting back.
Shelves
If need to take out any shelf, move the shelf towards the gap on the both sides. Then lift
upwards the shelf and pull out it from the cabinet once the shelf support disengaged from the
gap.
Door open alarm
If the door is open or is not closed tightly within 2 mins, the alarm will “beep” to remind
you.

8

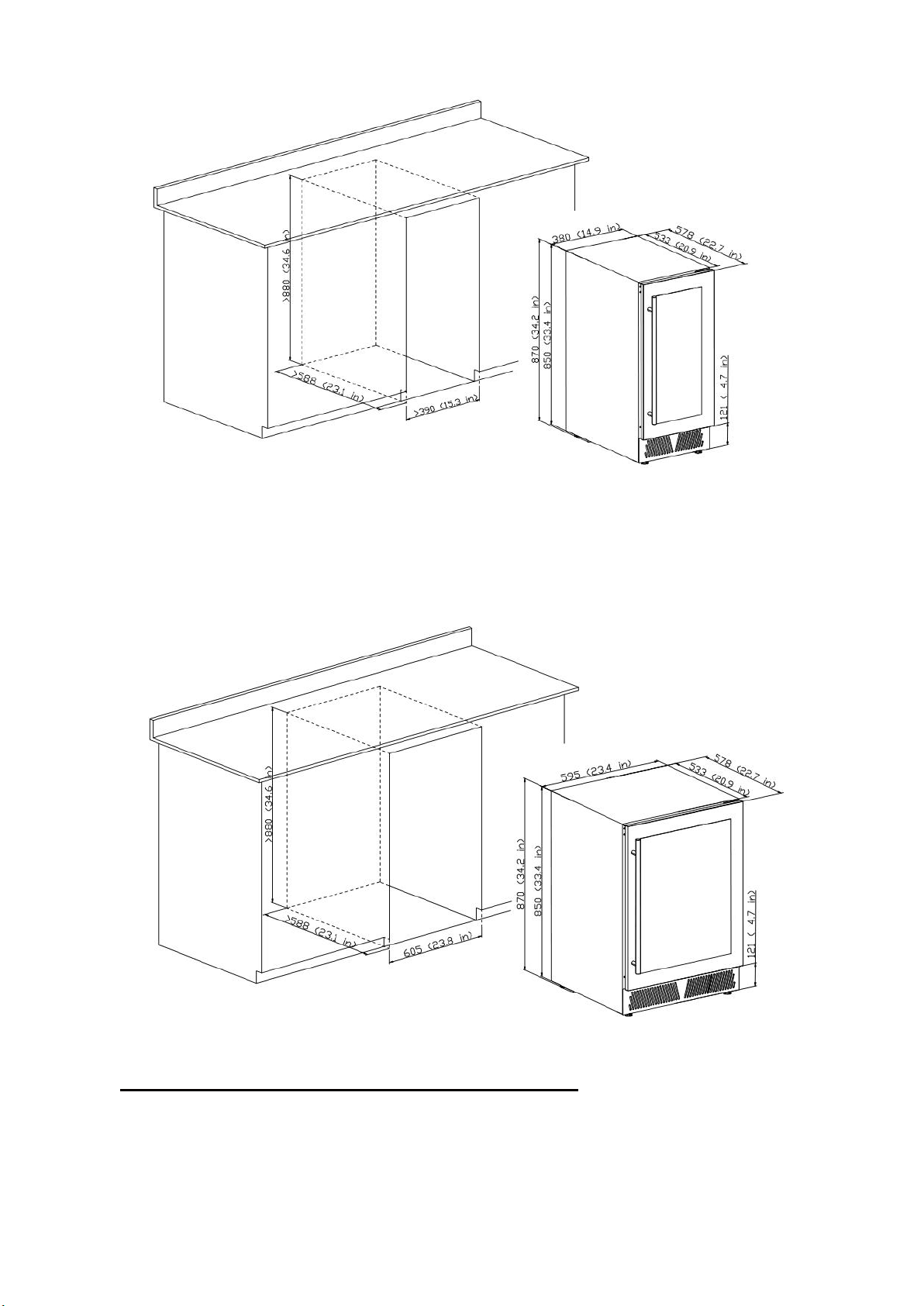

BUILT-UNDER SERIES (Built under a kitchen table top)
Remark: The above picture is for reference only. Please refer to the actual product.
Installation specifications for built-in purposes
JC-85C

9
JC-145C
LOCK & UNLOCK THE DOOR (FOR OPTION)
Lock is an optional function. If your Beverage Cooler has such function, a key should be
attached inside the packing of this Manual.
Insert the key into the lock and turn it counter-clockwise to unlock the door. To lock it, please
follow the reversed operation. Please save the key well.

10
CHARCOAL FILTRATION SYSTEM
Your wine is a living object that breathes through the cork of its bottle. In order to preserve the
quality and taste of your fine wines, they must be stored at the ideal temperature and ambient
conditions. Your cellar is equipped with an active charcoal filtration system to ensure air purity,
cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines. The
filter assembly is located at the rear panel inside your cellar.
Keep in mind, that this filter must be changed every 12 months and purchase the new one from
the distributor.
To replace your filter:
1
Remove the bottles of wine stored on the two (2)
shelves in front of the filter.
Turn Left to remove filter.
2
Remove the shelves and set aside to be
replaced once you have changed the filter
3
Hold the filter and turn it at 45 degrees in the
counter-clockwise direction and then pull it out.
4
Remove the existing filter and replace with a
new one.
5
Put the new filter into the hole and then turn the
filter at 45 degrees in clockwise direction.
CARE & MAINTENANCE
Clean your Beverage Cooler
Turn off the power, unplug the appliance, and remove all items including shelves and rack.
Wash the inside surfaces with a warm water and mild solution.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe
dry with a clean soft cloth.
Power failure
Most power failures are corrected within a few hours and should not affect the temperature
of your appliance if you minimize the number of times the door is opened. If the power is
going to be off for a long period of time, you need to take the proper steps to protect your
contents.
Vacation Time
Short vacations: Leave the Beverage Cooler operating during vacations of less than three
weeks.
If the appliance will not be used for several months, remove all items and turn off the
appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave
the door open slightly: blocking it open if necessary.
Moving your Beverage Cooler:
Remove all items.
Take out the loose items inside the Beverage Cooler (such as shelf), or fix the loose items
with the foam.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. Also
protect outside of appliance with a blanket or similar items.

11
Energy saving tips
The Beverage Cooler should be located in the coolest area of the room, away from
producing appliances, and out of the direct sunlight.
TROUBLESHOOTING GUIDE
If you feel the appliance is out of order, follow these instructions to try to see if you
can solve the problem simply by yourself before calling for service.
Problem
Possible Cause
Beverage Cooler does not operate
No plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Beverage Cooler is not cold
enough
Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently
The room temperature is hotter than normal.
Overload of the cabinet
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work
Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The light button is “OFF”
Vibrations
check to sure that the Beverage Cooler is level.
Too much noise
The rattling noise may come form the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The Beverage Cooler is not level.
The door will not close properly
The Beverage Cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
The control panel does not work
Not plug in
The control panel is locked. Please press
and at the same time for 3 seconds to unlock.
The unit beeps.
The door is open or is not closed tightly.
The system of door open alarm is not connect
well. Please contact support email:
[e-mail].

12
Before disposal of the appliance.
1. Disconnect the main plug from the main socket.
2. Cut off the main cable and discard it.
WARRANTY
Thank you for purchasing our product, which has been made to meet high
quality standards. The manufacturer's warranty covers the product for a period
of 12 months from the date of purchase against manufacturing faults.
All Aobosi warranties are automatically kept track of in our system, so there is
no need to register your product.
For 6month extra free of charge warranty, please register at website
www.iaobosi.com or fill in and take picture of bellow Warranty Card sending to
[email protected].

13
Due to continuous product improvement, we reserve the right to change the
product specification without prior notice.
