Aobost AO-CA70 Plus User manual


1/10

AO-CA70 Plus
Cell Phone Signal Booster
User Manual


2/10

Introduction
With the popularity of mobile communications, people want to make a call anytime, anywhere,
so the coverage requirement of communication network is higher and higher, but the reality is
not so, sometimes mobile phone signal is not very good, you want to make a smooth call, even in
some places cell phone cannot dial out. in this cases, cell phone signal booster can solve this
problem in a certain extent.
Features
■ AGC(Automatic Gain Control): When the downlink output signal is too strong or self- oscillated,
the uplink and downlink can automatically reduce the gain and reduce the interference signal
■ Self- Oscillation elimination: The system detects self- Oscillation, first reduces the link
gain, then detects the loop, and finds that the self- oscillation is eliminated, the system returns
to normal working state, otherwise, the power is turned off to prevent interference signal.
■ Inactivity Mode: When no user calls, the device is in standby mode, the uplink power amplifier
is switched off, and the static power is decreased by 30%, so as to achieve the purpose of energy
saving.
SAFETY WARNINGS
WARNING:
This equipment should be installed and operated with minimum
distance 20cm （8 inches）between the radiator& your body.
FCC Cautions:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instruction
for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other
Antenna or transmitter.
SAFTY WARNING:
End users must follow the specific operating instruction for satisfying RF exposure


3/10

compliance.
Do not remove the covers during working.
Do not try to repair or replace any components inside of the equipment. Alteration
or abuse of the equipment or other components will void this product’s warranty,
and could be dangerous to the user.
PACKAGE CONTENTS
1 2

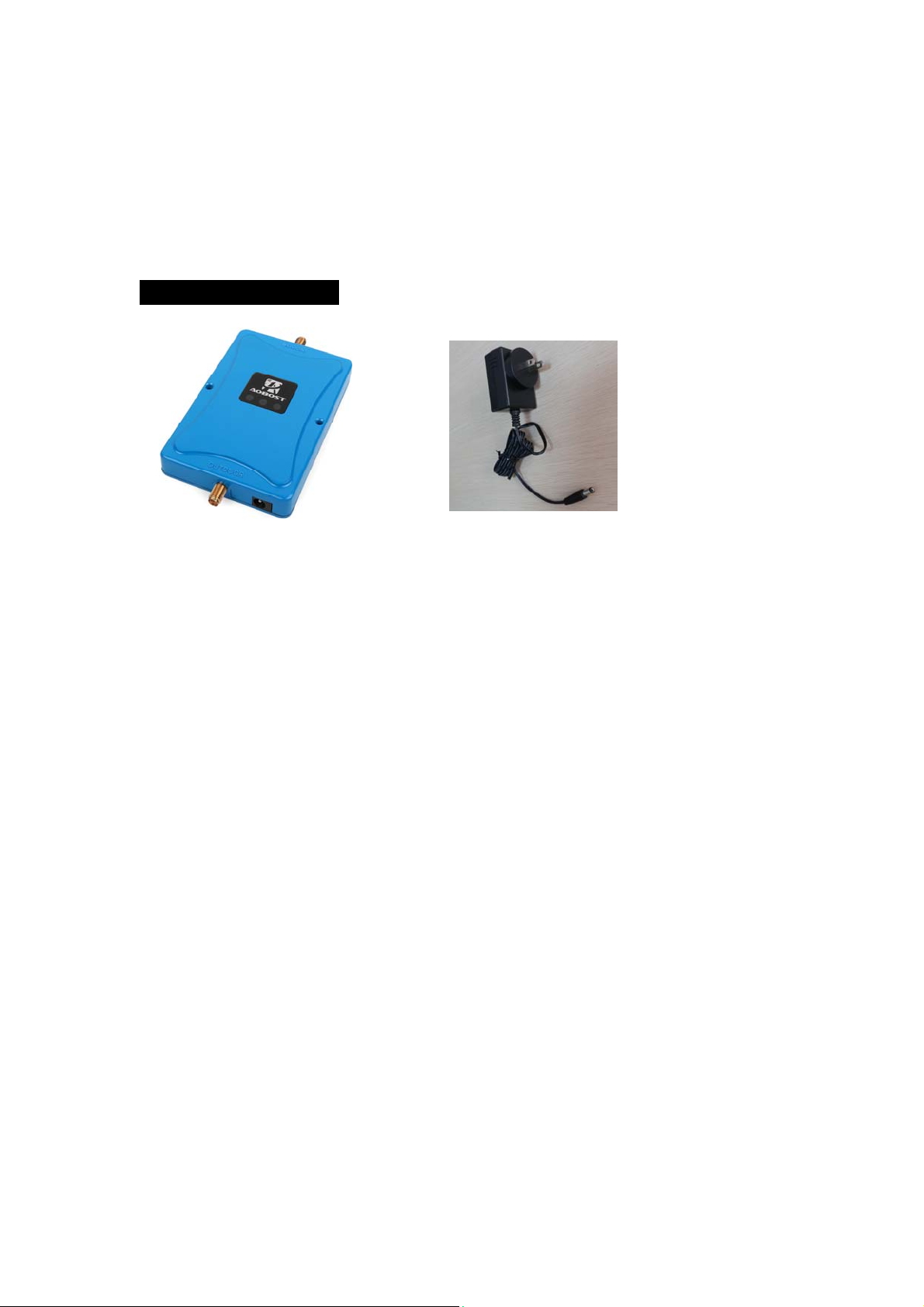

1. 1Pcs AO-CA70 Plus Booster with SMA Female connectors.
2. AC/DC Power Adaptor.
3. Screws Mounting Kits.
4. User manual (this document).
5. Indoor antenna
6. Outdoor Antenna
7. Indoor Cable
8. Outdoor Cable


4/10

Antennas and Cables:
Authorized antennas and cables kitting information are as follows
Name Model Gain/Loss
Indoor Antenna Rubber Antenna PTE-RB-800-2100 3dBi @824-894MHz
3.5dBi @1710-2155MHz
Ceiling Antenna PTE-CI-800-2500 3dBi @824-894MHz
4.5dBi @1710-2155MHz
Indoor Panel Antenna PTE-PN-800-2500 7dBi @824-894MHz
8.5dBi @1710-2155MHz
Outdoor Antenna YAgi Antenna PTE-YG-800/1900 8dBi @824-894MHz
10dBi @1710-2155MHz
LPDAAntenna PTE-LO-700-2500 9dBi @824-894MHz
10.5dBi @1710-2155MHz
Omni directional glass
fiber Antenna
PTE-GF-700-2500 3dBi @824-894MHz
5dBi @1710-2155MHz
Indoor Cable 20 feet 3D-FB Coaxial
cable with N male/SMA
male connector
PTE-3D-FB-5NB 2.29dB @824-894MHz
2.86dB @1710-2155MHz
Outdoor Cable 50 feet 3D-FB Coaxial
cable with N male /SMA
male connector
PTE-3D-FB-10NB 5.49dB @824-894MHz
5.89dB @1710-2155MHz
Notes：The above model antennas are suitable for AO-CA70 Plus booster.
Warning：Unauthorized antennas，cables and/or coupling devices are prohibited
by FCC rules. Please contact FCC for details：1-888-CALL-FCC
The antenna, cables, and other accessories of the booster kits shall not be
modified without the approval of the AOBAO company, otherwise it shall be
deemed invalid.
INSTALLATION INSTRUCTIONS
（1）Installation of Outdoor Antenna
The booster’s main function is to improve weak RF signals of an area. A simple formula:
Input power+ Gain= Output power. The signal strength from the outdoor antenna directly
affects the efficiency of the indoor coverage. It is very important to choose the outdoor
antenna location in order to get the best signals.


5/10

Testing the signal strength received from outdoor antenna mounted in site by
mobile phone:
Please select the top of building to install the outdoor antenna if total floors are less
than 7 floors, and shall try your best to select places like balcony or platform lower
than 7th floor for outdoor antenna if the buildings are over 7 floors, because the
mobile signals are clean at less than 7th floor.
The mobile phone shall display full bar signals in location where the outdoor
antenna is installed
The phone calls or data transmission shall be smooth and stable by 3 times testing
in location where the outdoor antenna is to be installed
As shown from the above illustration, testing the signals from A to E, and select a
best place that displays full bar signals to install the outdoor antenna.
Selecting the installation direction of outdoor antenna.
The outdoor antenna shall point to the direction of the tower, and it would be much
better to keep line of sight.
Please select the opposite directions for outdoor antenna and indoor antenna. If
outdoor and indoor antennas have to be installed in the same direction, please
install them only after the signal quality is tested and the self-oscillation is avoided.
If the directional antenna is selected, the main directional angle should point to the
tower antenna.
If the performance is poor due to weak signals or poor phone call quality, please
adjust the direction of outdoor antenna or change its position in order to obtain the
best calling effect.
The wide band booster supports all mobile operators or different mobile systems,
so please adjust the outdoor antenna direction to have balance between signals of
different mobile operators or various mobile systems.
Connect the outdoor antenna to the booster connector marked OUTDOOR with 10
meters 3D-FB Coaxial cable with N male connector.
Important: Outdoor antenna installation ---Notes:
In order to avoid interference, please note that the outdoor antenna should be far
away from the following objects of metal, high-voltage line, RF antenna and
high-voltage transformer.
Booster is a two-way signal Booster. So proper isolation between outdoor antenna
and indoor antenna is necessary in order to avoid self-oscillation.
The minimum distance between outdoor antenna and indoor antenna shall be more
than 10 meters; again the direction of outdoor and indoor antennas shall be opposite.
As shown in the below illustration, the booster the downlink signal rfrom the tower


6/10

and send to the indoor antenna hereafter. If the distance between outdoor antenna
and indoor antenna is less than the required distance, the amplified signal Rwill go
back from indoor antenna to outdoor antenna. So it will lead to self-oscillation and
reduce the coverage area, also the bad calling quality could happen at the same time,
and the worse is that the mobile network could be influenced badly and the operators
will finally come to shut off the booster system.
If isolation can’t be achieved by the limited distance, the roof of the building or any
other barriers can be used in between to increase isolation.
Fix the donor antenna after selecting the best position, and adjust slightly its height
or angles in order to get the signals with suitable input power level and calling
quality.
WARNING:
The Outdoor Antennas for fixed installations must be installed no higher than 10 meters above
ground.
（2）Installation of Indoor Antenna
Proper antennas shall be selected according to the site conditions and the
requirement.
Omni antenna (Indoor ceiling omni antenna or whip antenna), is suitable to be
installed in the center and radiate all directions.
Indoor antenna must be operated at a fixed location inside a building, it is better to
use a directional panel antenna when the coverage building is long and narrow.
Connect the indoor antenna to the booster connector marked INDOOR with 5 meters


7/10

3D-FB Coaxial cable with N male connector.
Notes：Indoor antenna must be operated at a fixed location inside a building.
（3）Booster Installation
Do not place the equipment in direct sunlight or in an area that has abrupt
temperature and humidity changes.
it is suggested that the booster is installed in a cool，dry and ventilated room without
erosive gas and smoke.
Connect power adaptor to the booster，connect The other end of power adaptor to the
power outlet.
WARNING:
The input voltage for the booster is +5V DC. DO NOT use this Booster with a regular
power supply that NOT +5V . otherwise, it will be damaged and the user may also be
injured.
TROUBLESHOOTING AND SUPPORT
Problem Resolution
LED is not light 1.Find an alternate power adaptor and try again.
2.Check the power outlet, the power adapter plug maybe is poor
connected.
3.If the problem is still not solved, please contact our company support
at [email protected]
Booster has no
effect
1. Check whether the direction of the booster is worng connected.
2. Make a call to your mobile phone operator to determine if the
frequency band is correct.
3. Check whether the indoor and outdoor antenna is installed correctly
4. At the location where the outdoor is installed, if your mobile phone is
able to receive a stable 3 bars cell phone signal, If not, find a location
where the mobile phone can receive a better signal to install the outdoor
antenna.
5. Whether or not your house is a metal roof. If so, you will need to set
up your outdoor antenna at least 3 meters above the roof.
Booster has
effect ,but the
effect is not ideal
Check if your outdoor signal is very weak. If you can only receive one or
two bars cell phone signal in the outdoor.
If so, contact our customer service and ask to replace the booster or
antenna with a higher gain alternative.


8/10

Mobile phone
can receive full
signal, but can
not normally
make a call
It Usually means that the booster is self-oscillated, please make the
distance between the indoor and outdoor antenna as far as possible, it is
better to use a wall or metal to Separate the indoor antenna and the out
door antenna.
During using your Booster, if the Booster interferes with your radio or other electronic
device, move the Booster further away from those devices, you might be able to solve it
yourself.
If necessary，please contact your local dealer or send e-mail to our support team by the
following methods:
E-mail: [e-mail]
If you want to know about AOBAO Company and products for more information, please
visit at: www.AOBAO.com
Consumer booster warning label:
Asubscriber must have the consent of a wireless provider to operate a Consumer Signal
Booster. Subscribers may obtain provider consent in a variety of ways. For example,
AT&T, Sprint, T–Mobile, and Verizon Wireless have voluntarily committed to allow their
subscribers to use properly certificated Consumer Signal Boosters (i.e., boosters that
meet the new rules) on their networks. Also, a signal booster manufacturer could seek


9/10

authorization for use of a particular booster model on behalf of all subscribers of
individual providers. Alternatively, a provider may specify a testing protocol that if
satisfied would result in licensee consent to specific booster models. A subscriber may
also seek a licensee’s express consent to operate a signal booster, e.g., by phone call or
e-mail
The following selected information about wireless providers’ Consumer Booster
registration mechanisms supplements the requirements and information，and the FCC
Signal Boosters website (http://wireless.fcc.gov/signal-boosters/).
Sprint Nextel will allow consumers to register their signal boosters by calling their
toll-free number. They have already trained their calling center and have designated an
engineer to handle inquiries. They may eventually allow consumers to register on their
website but they want to gauge how the process works via phone first.
●T-Mobile online registration link: (www.T-Mobile.com/BoosterRegistration);
(https://saqat.t-mobile.com/sites/SignalBooster#).
●Verizon’s online registration link:
(http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html).
●AT&T will allow online registration and will inform OET Lab with the weblink when it is
ready.
●U.S.Cellular :
(http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp).
WARRANTY
Warranty information applicable to your Booster
Warranty Period: 2 year.
Type of Warranty Service: Customer Replaceable Unit and Customer Carry-In or
Mail-In Service.
AOBAO Company is not responsible for Shipping Cost.
For Warranty service consult the telephone list at www.AOBAO-tech.com/contact us.
What this Warranty Covers
AOBAO warrants that each Machine 1) is free from defects in materials and
workmanship and 2)conforms to AOBAO's Official Published Specifications which are
available on request.
The warranty period for the Machine starts on the original date of installation. The date


10/10

on your invoice or sales receipt is the date of installation unless AOBAO or your reseller
informs you.
This warranty does not cover the following:
Failure resulting from misuse, accident, modification, unsuitable physical or operating
environment, or improper maintenance by you;
The warranty is voided by removal or alteration of identification labels on the Machine or
its parts.
Copyright Information
© 2017 Copyright AOBAO Technology (Shenzhen) Co., Ltd.
The information contained in this document is subject to change without notice.
Edition 8, 5/2017
