19" LCD Color Monitor AOC 197Va
6

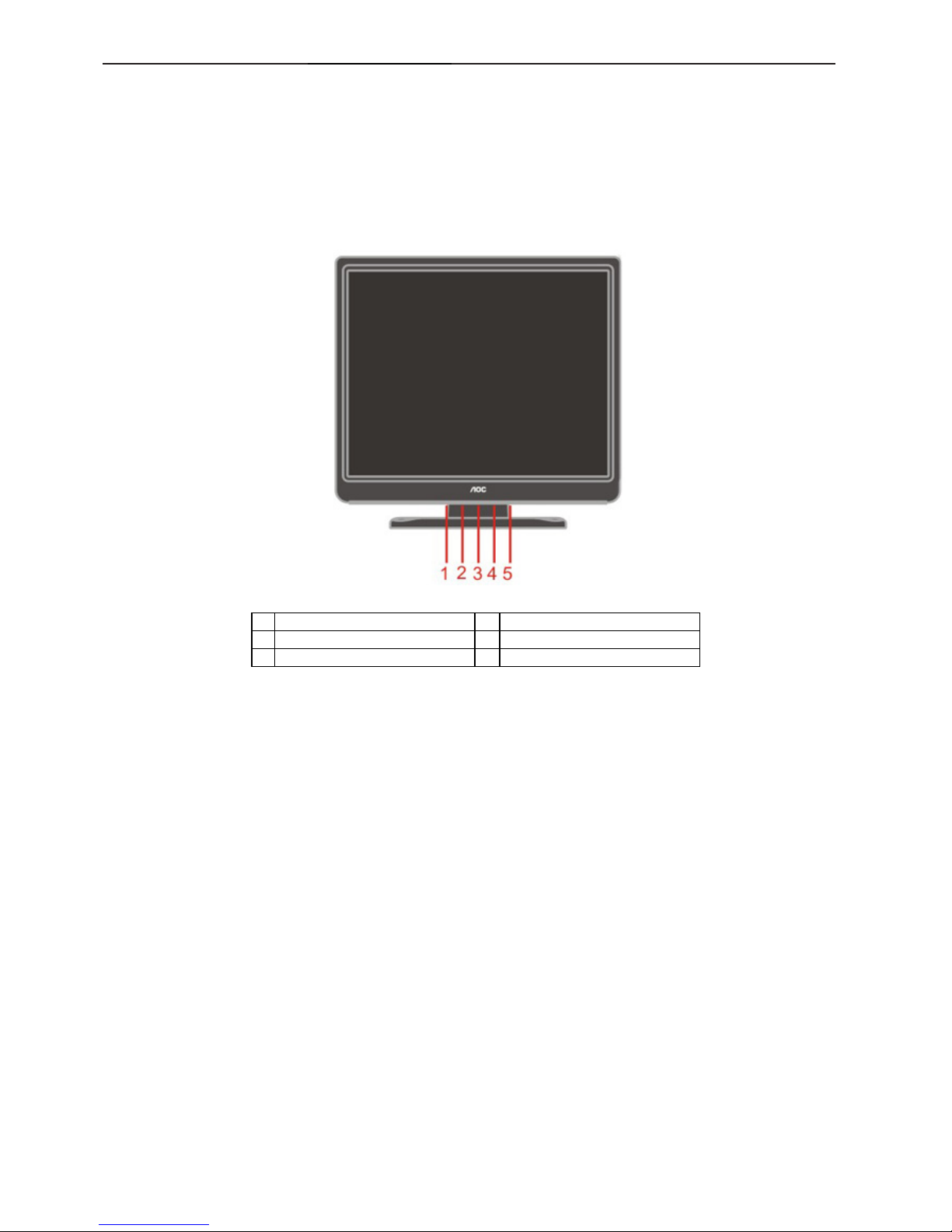

3.3 Adjusting the Picture
· Press the MENU-button to activate the OSD window.
· Press+ or - to navigate through the functions. Once the desired function is highlighted, press the MENU-button
to activate it. If the function selected has a sub-menu, · press or again to navigate through the sub-menu functions.
Once the desired function is highlighted, press MENU-button to activate it.
· Press+ or - to change the settings of the selected function. To exit and save, select the exit function. If you want
to adjust any other function, repeat steps 2-3.
· OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press
power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off
and then press power button to turn the monitor on.
Main Menu
Item
Main Menu
Icon
Sub Menu
Item
Sub Menu
Icon Description
Contrast Contrast from Digital-register.
Luminance
Brightness Backlight Adjustment
Focus Adjust Picture Phase to reduce Horizontal-Line noise
Image Setup Clock Adjust picture Clock to reduce Vertical-Line noise.
H. Position Adjust the horizontal position of the picture.
Image Position V. Position Adjust the vertical position of the picture.
Warm N/A Recall Warm Color Temperature from EEPROM.
Cool N/A Recall Cool Color Temperature from EEPROM.
sRGB N/A Recall sRGB Temperature from EEPROM.
User / Red Red Gain from Digital-register.
User / Green Green Gain Digital-register.
Color Temp.
User / Blue Blue Gain from Digital-register.
Analog N/A Select input signal from analog source (D-Sub)
Input Select Digital N/A Select input signal from digital source (DVI)
H. Position Adjust the horizontal position of the OSD.
V. Position Adjust the vertical position of the OSD.
OSD Setup
OSD Timeout Adjust the OSD timeout.
Language Language N/A Set OSD language
Information Information N/A Show the resolution, H/V frequency and input port of
current input timing.
Yes N/A Clear each old status of Auto-configuration
Reset No N/A Do not execute reset, return to main menu.
Exit N/A N/A Exit OSD
