ALED BSW CMY 400
USER MANUAL
KEEP THIS USER MANUAL FOR FUTURE NEEDS

Thank you for your patronage!
We are confident that our excellent products and service can satisfy you.
For your own safety, please read this user manual carefully before installing the device.
In order to install, operate, and maintain the lighting safety correctly.
We suggest that the installation and operation should be done by the verified technician
and follow the instruction strictly.
CAUTION!
Keep this device away from rain and moisture!
CAUTION!
Unplug mains lead before device’s installation,cleaning and maintenance!
Every person involved with the installation, operation and maintenance of this device has
to:
-be qualified
-follow carefully the instructions of this manual
INTRODUCTION
Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the carton box you should find:
1. One power in cable
2. One 3 Pin DMX cable(5 Pin optional)
3. Two mounted brackets
4. One safety rope
5. One English user manual
（Flight case, Clamps are optional, please contact your dealer）
Please check carefully that there is no damage caused by transportation. Should there be
any questions, please consult your dealer and don’t install this device.
GENERAL GUIDELINES
This device is a lighting effect for a professional use on stages, TV, in discotheques,
theaters, etc., The device was designed for indoor use only.
This fixture is only allowed to be operated with the max alternating current which stated in
the technical specifications in 6th page of this manual.
Lighting effects are not designed for permanent operation. Consistent operation breaks
may ensure that the device will serve you for a long time without defects.
Do not shake the device. Avoid brute force when installing or operating the device.
While choosing the installation-spot, please make sure that the device is not exposed to
extreme heat, moisture or dust. Please don’t project the beam onto combustible
substances. The minimum distance between light-output from the projector and the
illuminated surface must be more than 0,5 meter.
If you use the quick lock cam in hanging up the fixture, please make sure the quick lock
fasteners turned in the quick lock holes correctly.

Operate the device only after having familiarized with its functions. Do not permit
operation by persons not qualified for operating the device. Most damages are the result
of unprofessional operation.
Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are forbidden. If
this device will be operated in any way different to the one described in this manual, the
product may suffer damages and the guarantee becomes void. Furthermore, any other
operation may lead to short-circuit, burns, electric shock, crash, etc.
SAFETY INSTRUCTIONS
CAUTION!
Be careful with your operations. With a dangerous voltage you can suffer a
dangerous electric shock when touching wires!
This device has left the factory in perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
1. In order to guarantee the product’s life, please don’t put it in the damp places or even
the environment over 60degress.
2. Always mount this unit in safe and stable matter.
The qualified professionals are allowed to carry out the lamp installation, operation and
maintenance, but they must guarantee to operate in strict accordance with the instructions
referred to.
▲Important:
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems.
If the device has been exposed to temperature changes due to environmental changes,
do not switch it on immediately. The arising condensation could damage the device. Leave
the device switched off until it has reached room temperatures.
This device falls under protection-classⅠ. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be
the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does
not necessarily mean that the device is defective, it should decrease gradually.
Please don’t project the beam onto combustible substances.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order to
avoid a hazard.

CAUTION!
Never touch the device during operation!
The housing may heat up!
CCAUTION!
NNever look directly into the light source,
AAs sensitive persons may suffer an epileptic shock.
Please be aware that damages caused by manual modifications to be the device are
not subject to warranty. Keep away from children and non-professionals.
CLEANING AND MAINTENANCE
1. To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
2. Do not spill water or other liquids into or on to your unit.
3. During long periods of non-use, disconnect the unit’s main power.
4. It should be installed in a well-ventilated place, at a distance of 50 centimeters or more
with the walls. At the same time, please check if the fan and ventilation holes are
unobstructed.
The following points have to be considered during the inspection
1) All screws for installing the devices or parts of the device have to be tightly connected
and must not be corroded.
2) There must not be any deformations on the housing. Fixations and installations
spots(ceiling, suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not rotate
with unbalances.
4) The electric power supply cables must not show any damage, material fatigue or
sediments. Further instructions depending on the installation spot and usage have to
be adhered by a skilled installer and any safety problems have to be removed.
CAUTION!
Disconnect from mains before starting maintenance operation!
In order to make the lights in good condition and extend the life time, we suggest a regular
cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights due
to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make sure
that the circuit contacts are in good condition, prevent the poor contact of circuit from
overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth.
Never use alcohol or solvents.

TECHNICAL PARAMETERS
POWER SUPPLY
Input voltage: AC110V-240V/50-60HZ
Power consumption: 430W
LIGHT SOURCE
Light source specification: Imported new LED Module engine 350W
Light source life: 50000 hours
Lumen illuminance: 5 meters 100,000 lm
Color temperature: 8000K CRI>85
OPTICS
Dimming system: 0-100% linear adjustment
Focusing system: linear adjustment from 4 meters to 50 meters
Frost: 1 independent frost filter, soft and natural light spot
Spot zoom angle: 4-35 degrees
Wash angle:10-50 degrees
High-speed strobe: 0-30 times/sec. Adjustable speed strobe effect. Strobe macro function.
CONTROL AND PROGRAMMING
Channel mode: 22 channels

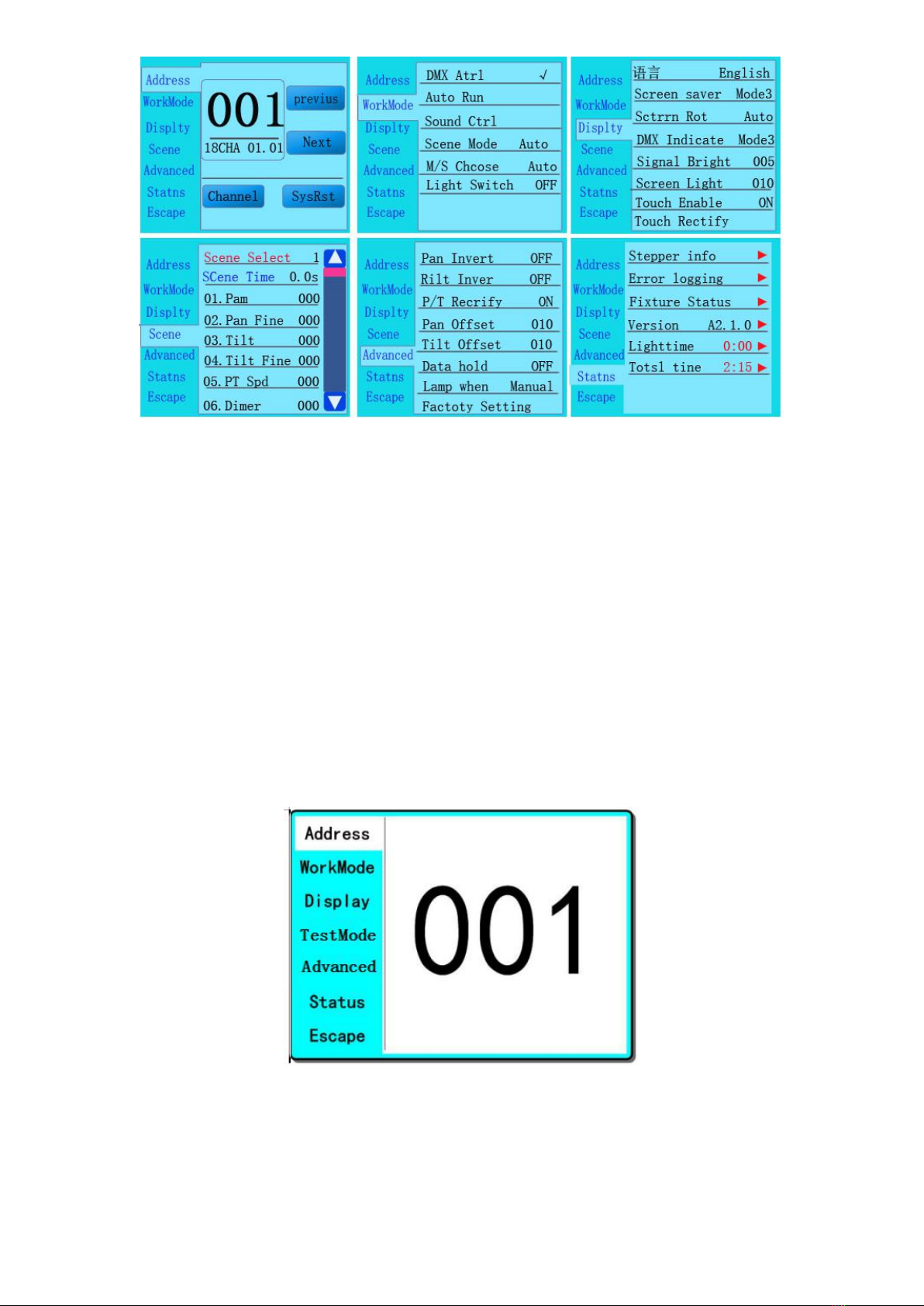

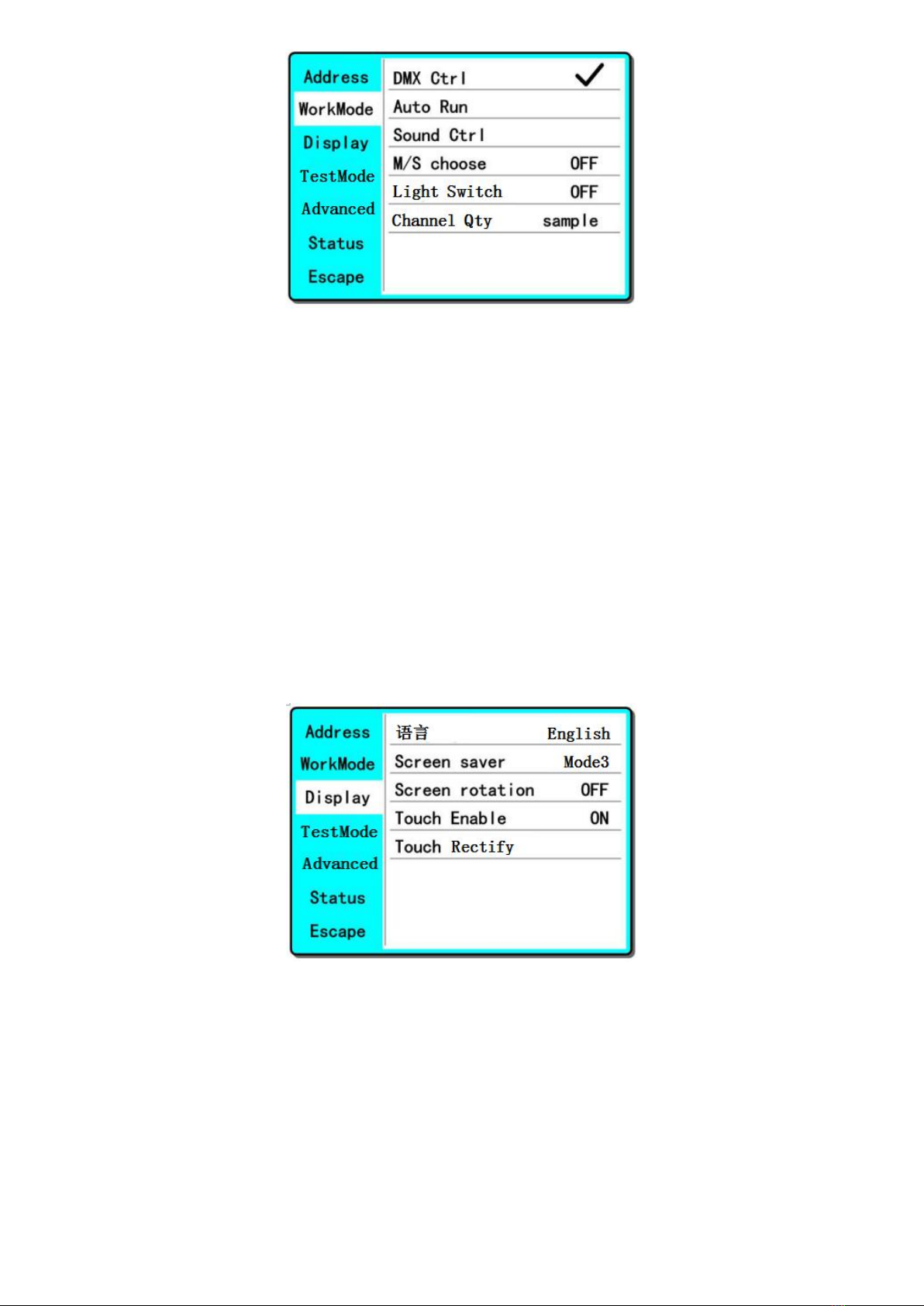

Display mode: LCD display, key + touch dual operation mode
Control signal: International standard DMX512. With RDM function, online software upgrade is
available, dial address code
EFFEC SECTION
Color: 8 colors + open. Color half-color function
Color mixing system: linear CMY+CTO color mixing system
Fixed gobos: 12 fixed patterns + ioen
Rotating gobos: 7 glass patterns, each glass pattern can be independently forward and reverse
Prism system: standard single 3-facet prism and 8 prism, each prism can be independently
forward and reverse
Macro function: console reset function, self-propelled mode, master-slave mode
MOVING BODY
Horizontal scan: 540 degrees (16bit precision scan) electronic error correction
Vertical scanning: 270 degrees (16bit precision scanning) electronic error correction
Cooling method: Adopt axial fan to enhance cooling
Safety device: with electronic temperature control overheating protection,electronic temperature
control automatic power-off protection when the overheating system fails
Appearance material: high temperature resistant plastic
Working environment: -20 degrees - 40 degrees
Protection level: IP20
WEIGHT&DIMENSION
Product net weight: 22.5KG
Product size: 38*27*65CM (L*W*H)

DRAWING
COLOR WHEEL FIXED GOBO WHEEL

ROTATING GOBOS
CMY FILTER
CHANNEL LIST
26CH
22CH
FUNCTION
VALUE
DESCRIPTION
CH1
CH1
PAN
0-255
0-540 Degree
CH2
CH2
PAN FINE
0-255
0-2 Degree
CH3
CH3
TILT
0-255
0-270 Degree
CH4
CH4
TILT FINE
0-255
0-1 Degree
CH5
P/T SPEED
0-255
From fast to slow
CH6
CH5
DIMMER
0-255
0-100% Dimmer
CH7
CH6
STROBE
0-3
Close
4-103
Pulse strobe from slow to fast
104-107
Open
108-155
Open strobe from slow to fast
156-207
Close strobe from slow to fast
208-212
Open
213-251
Random strobe
252-255
Open
CH8
CH7
COLOR
0-9
White
10-19
Color 1
20-29
Color 2
30-39
Color 3
40-49
Color 4
50-59
Color 5
60-69
Color 6
70-79
Color 7
80-89
Color 8
90-99
White+Color 1
100-109
Color 1+Color 2

110-119
Color 2+Color 3
120-129
Color 3+Color 4
130-139
Color 4+Color 5
140-149
Color 5+Color 6
150-159
Color 6+Color 7
160-169
Color 7+Color 8
170-179
Color 8+Color 9
180-215
Fast to slow positive rainbow
216-220
Stop
221-255
Slow to fast negative rainbow
CH9
CH9
C
0-255
0-100%
CH10
CH10
M
0-255
0-100%
CH11
CH11
Y
0-255
0-100%
CH12
CH8
CTO
0-10
No function
11-255
0-100%
CH13
CH12
FIXED GOBO
0-4
White
5-9
Gobo 1
10-14
Gobo 2
15-19
Gobo 3
20-24
Gobo 4
25-29
Gobo 5
30-34
Gobo 6
35-39
Gobo 7
40-44
Gobo 8
45-49
Gobo 9
50-54
Gobo 10
55-59
Gobo 11
60-64
Gobo 12
65-69
Gobo 1 shaking slow to fast
70-74
Gobo 2 shaking slow to fast
75-79
Gobo 3 shaking slow to fast
80-84
Gobo 4 shaking slow to fast
85-89
Gobo 5 shaking slow to fast
90-94
Gobo 6 shaking slow to fast
95-99
Gobo 7 shaking slow to fast
100-104
Gobo 8 shaking slow to fast
105-109
Gobo 9 shaking slow to fast
110-114
Gobo 10 shaking slow to fast
115-119
Gobo 11 shaking slow to fast
120-127
Gobo 12 shaking slow to fast
128-190
Fast to slow positive rainbow
191-192
Stop
193-255
Slow to fast negative rainbow
CH14
CH13
ROT GOBO
0-9
White

10-19
Gobo 1
20-29
Gobo 2
30-39
Gobo 3
40-49
Gobo 4
50-59
Gobo 5
60-69
Gobo 6
70-79
Gobo 7
80-89
Gobo 1 shaking slow to fast
90-99
Gobo 2 shaking slow to fast
100-109
Gobo 3 shaking slow to fast
110-119
Gobo 4 shaking slow to fast
120-129
Gobo 5 shaking slow to fast
130-139
Gobo 6 shaking slow to fast
140-149
Gobo 7 shaking slow to fast
150-200
Fast to slow positive rainbow
201-205
Stop
206-255
Slow to fast negative rainbow
C15
CH14
GOBO
ROTATING
0-127
0-400 degree
128-190
Fast to slow positive rainbow
191-192
Stop
193-255
Slow to fast negative rainbow
CH16
ROT FINE
0-255
CH17
CH15
PRISM 1
0-63
Close
64-127
Open
CH18
CH16
PRISM 1 ROT
0-127
0-400 degree
128-187
Fast to slow positive rainbow
188-195
Stop
196-255
Slow to fast negative rainbow
CH19
CH17
PRISM 2
0-63
Close
64-127
Open
CH20
CH18
PRISM 2 ROT
0-127
0-400 degree
128-187
Fast to slow positive rainbow
188-195
Stop
196-255
Slow to fast negative rainbow
CH21
CH19
FROST
0-127
No function
128-255
Frost
CH22
RESERVED
0-127
No function
128-255
Frost
CH23
CH20
ZOOM
0-255
Small to big
CH24
CH21
FOCUS
0-255
Far to near
CH25
FOCUS FINE
0-255
CH26
CH22
RESET
210-215
6 seconds to reset motors
220-235
6 seconds to reset motors
240-255
6 seconds to reset all

Cable connection（DMX）
Usea cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance,
22-24AWG,low capacity. Do not use microphone cable or other cable with characteristics differing from those
specified. The end connections must be made using XLRtype3 or 5-pin male/female connectors. A terminating
plug must be inserted intothelast projector witha resistance of 120Ohm (minimum 1/4W) between terminals 2
and3.
IMPORTANT: Thewiresmustnot make contact witheachotheror withthe metal casing of the connectors.
The casing itself must be connected to the shield braid and to pin 1 of the
connectors.
Figure 1 DMX Cable connection
Rigging (Optional)
This equipment can be positioned and fixed by clamp in every direction of the stage. Locking
system makes it easy to fasten to the bracket.
Attention! Two clamps is needed to fix the equipment. Every clamp is locked by fastener of 1/4
kind. Fastener can only be locked clockwise.
Attention! Fasten a safety string to the additional hole of side aluminum piece. The secondary
accessory can not hang on the delivery handle. Nip the equipment on bracket.
Check if rigging clamp (not including the one inside) damaged or not? If stand ten times
weight as the equipment. Make sure the architecture can stand ten times weight as all the
equipments, clamps, wirings and other additional fixtures.
Screws for clamping must be fixed firmly. Take one M12 screw (Grade 8.8 or higher) to clamp
bracket, and then screw the nuts.
Level the two hanging points at the bottom of clamp. Insert fastener to the bottom, lock the
two levers by 1/4 rotating clockwise; then install another clamp.
Install on safety string which stands at least ten times weight as equipment. Terminal of the
accessory is designed for clamps.
Make sure pan/tilt lock unlocked or not. Keep the distance more than 1M from equipment
to flammable material or lighting source.

Figure 2 Installation
Brief
The light panel diagram show as Figure 3, Left area is TFT Displayer, support touch, and right area
is KEY, both of touch and KEY can operate light and setting.
Display & operation just like ‘Android operation system’, touch the item will set or modify setting.
Note: Prevent damage the touch or TFT displayer, Can not use sharp objects chick displayer.
Figure 3 Panel diagram
2.2 Operation
2.2.1 Operate light with touch or KEY
The left area is TFT Displayer and touch, chick item or value with finger will to complete
operation of set light setting(parameters) or view light state.
The area on the right hand side is 4 KEY, As auxiliary input interface, if disable touch

function,, the KEYr can been choose to set the parameter.
2.2.2 Parameter value setting
When the selected item is value need to been modified, the dialog shown in Figure 4 will popup.
Figure 4 Dialog of value setting
Modify value：Can quickly modify value via pull the slider to the desired position, or click
the button of ‘up’ or ‘down’ whit finger on the right side to set the exact desired value,
another way is roll encoder on the right hand side of panel.
Apply value：When Value had been modified, Then press the bottom of ‘apply’ in the left
corner to apply to the light, but hav’t saved；
Save Value ：Any time, click on the lower right corner of the "OK" button, the setting will
been saved into internal memory.
2.2.3 Boolean parameter setting
when the selected parameters is a Boolean value (such as ON or OFF), can directly modify
setting by chick corresponding item, the setting will been saved right now.
When the parameter is a key item, chick corresponding item, a dialog shown in Figure 5 will
been popup ask for the confirm. Chick ‘sure’ to confirm.
Figure 5 Dialog of confirm
2.2.4 Sub Menu（Parameter）
Chick item of main menu, enter corresponding sub menu, shown in Figure 6, total 6 sub menu,
includes class of parameter and status:
ADDRESS：Set light DMX address.
WORKMOD：Set light work mode, master or slave mode when in auto run mode.
DISPLAY：Set display parameter, eg. select language.
TEST：Used for test light, modify DMX channel data to test function，the corresponding
function of reference channel function table.
ADVANCE：Set light running parameter.
STATUS：view light current status.

Figure 6 Parameter menu
Operation and parameter instruction
Via following operation, enter sub menu(parameter menu) shown in Figure 6
In main menu, chick 1/6 function button into corresponding parameter menu.
In sub menu(page), chick main item on the left side of displayer, can shift to corresponding
sub menu(page) quickly.
2.3.1 ADDR--> Address: Set DMX Address
Click and select the "ADDR", can enter the page of DMX address setting, range from 1 to 512, the
address code shouldn’t is not greater than (512- channels quantity), otherwise the light will not
been controlled. Following is the operation:
Enter the page of DMX address, as shown in Figure 7, click the blank area in right side of display
will pop-up diglog as in Fig. 4, modify value, then click ‘ENTER’ to confirm and save DMX address
code.
Figure 7 page of DMX Address
2.3.2 MODE--> WorkMode: Set Light work mode
Enter the page of ‘WorkMode’ as shown in Figure 8 and modify setting. Can set light work mode,
control lamp and DMX channel mode.

Figure 8 page of work mode
◆DMX Ctrl: Choose to set DMX Mode,
◆Auto Run: Choose to set Auto Mode,
◆Sound Ctrl: Choose to set Sound Mode,
◆M/S Choose:Available just in ‘AUTO RUN’ or ‘SOUND Ctrl’ mode.
ON--> Master. (Data will be send to other slave lamp immediately.)
OFF--> Slaver.(NOT send data to other lamp via DMX Cable).(Default)
◆Light Switch:
ON--> Turn on the light,
OFF--> Turn off the light.
◆Channel Qty: Light support 2 DMX Channel mode: sample or extend。
Simple --> 16CH.(Default)
Expand--> 20CH(or null).
DISP-->DISPLAY: Set display
Light support 2 language, rotation display ，Enter page as shown in Figure9 to set parameter
following:
Figure9 page of display
◆Language: English / 中文.
◆Screen Saver: when panel is idle(these is no operation in 10 second), displayer will enter
saver status.
OFF--> No screen saver.
Mode1--> Power-saving mode, turn off the display.
Mode2--> Displays the current address.
Mode3--> Displays the icon and the current working mode.(Default)
◆Screen Rotion: To turning display.
ON--> Normal display.(Default)

OFF--> 180° turning display.
◆Touch enable：Disable or enable touch function,.
ON--> Enable touch function.(Default)
OFF--> Dosable touch function.
◆Touch adjust：Adjust touch function. Normally, not enter this item.
2.3.4 TEST--> TestMode
Enter the page as shown in Figure 10, Light will into test mode, in this mode, the light does not
receive the data for DMX controller.:
Figure 10 page of Test
◆PAN: range for 0 to 255;
◆TILT: range for 0 to 255;
◆FOCUS: range for 0 to 255;
◆COLOR: range for 0 to 255;
◆GOBO: range for 0 to 255;
◆PRISM: range for 0 to 255;
◆FROST: range for 0 to 255;；
◆STROBE: range for 0 to 255;
2.3.5 ADVA-->Advanced: Set light run parameter
Enter the page as shown in Figure 10, set the parameter of light:
Figure 11 page of run parameter
◆Pan Invert:Reverse PAN move
OFF--> Pan Normal move.(Default)
ON--> Reverse PAN move.
◆Tilt Invert: Reverse TILT move

OFF--> Tilt Normal move.(Default)
ON--> Reverse Tilt move.
◆P/T Rectify: Disable or enable position rectify function.
OFF--> Disable P/T rectify
ON--> Enable P/T rectify-(Default)
◆Pan Offset: Set PAN original position. Default: 10
◆Tilt Offset: Set TILT original position. Default: 10
◆Lamp when:
PowerON--> Turn on the lamp when power on.(Default)
RstDone--> Turn on the lamp after reset.
Manual--> Manually turn on the lamp.
◆Data hold:
OFF--> When no DMX signal,return to middle position.(Default)
ON--> When no DMX signal,stop in the final position.
◆Factory Setting: Restore all parameter to factory setting.
2.3.6 STAT-->Status: View status
Enter the page as shown in Figure 12:
Figure 12 page of status
◆Work Mode: Show the current working mode.
◆Address: Show the current address.
◆Version: Show the version of the lamp.
◆Elapse: Working hours after turn on.
◆Tatol: Cumulative hours of operation
Common faults and use attention
1. Common fault handling
The lamp contains professional components such as microcomputer circuit board and
high-voltage power supply. For your safety and product life, non-professionals should not
disassemble the lamp and related accessories without authorization.
When <Data hold> set <ON>,click to
clear DMX data, and make the lamp
return to themiddle position.
Click to reset.

1. The bulb does not light up (except LED light source)
Possible cause: The bulb is not completely cooled, or the bulb has reached the end of its life,
the treatment is as follows：
Due to abnormal operation, the bulb is not completely cooled down, so let the lamp body
cool down for more than 10 minutes to make the inside completely return to normal state,
and then turn on the power again.；
Check whether the bulb has reached the end of its life, and replace it with a new one；
Check whether the bulb and the lighter circuit are leaking, falling off, or having poor
contact；
Replace with a new lighter.
2. The light beam appears dim
Possible cause: The bulb has been used for a long time or the light path is not clean, the
treatment is as follows：
Check whether the bulb has reached the end of its life, and replace it with a new one；
Check whether the optical components or bulbs are clean, and whether there is dust on the
bulbs and other optical components. Regular cleaning and maintenance of the bulbs and
components in the lamps are required.
3. Fuzzy pattern projection
Check whether the electronic focus channel value is suitable for the current projection
distance.
4. The lamps work intermittently
Possible cause: The internal circuit enters the protection state, and the treatment is as
follows：
Check whether the fan is operating normally or whether it is dirty, causing the internal
temperature of the lamp to rise；
Check whether the internal temperature control switch is closed；
Check whether the bulb has reached the end of its service life, and replace it with a new
one.
5. After the lamp is reset normally, it does not accept the control of the console
Possible cause: signal line failure or abnormal lamp parameter setting, the treatment is as
follows：
Check the start address code and check the connection of the DMX signal line (whether the
signal line cable is intact, and whether the connection of the head is loose)；
Add signal amplifier, add 120 ohm terminal resistance；
6. The lamp can't start
Possible cause: bad power line, the treatment is as follows：
Check whether the fuse on the power input socket is fused, replace the fuse；
Lamps have poor line contact due to vibration during long-distance transportation
Check the input power, computer board and other plug-in devices.
2. Precautions for use
Check whether the local power supply meets the requirements of the rated voltage of the

product, and the leakage protector, overcurrent protector, etc. meet the requirements of the
load；
Do not use power cords with damaged insulation, and do not overlap power cords with
other wires；
The lamp adopts strong air cooling, which is easy to accumulate dust. It must be cleaned
once a month, especially the heat dissipation vent, otherwise it will be blocked by the
accumulation of dust, resulting in poor heat dissipation and abnormalities in the lamp.
When installing the lamp, the fixing screws must be fastened, with safety cables, and regular
inspections；
When installing and positioning the luminaire, keep a minimum distance of 10 meters
between any point on the surface of the luminaire and any flammable and explosive object,
and the distance from the irradiated object is 2.5 meters. Please do not install the luminaire
directly on the surface of combustible materials.；
It is recommended that the continuous working time of the lamp should not exceed 10
hours, and the interval between continuous starting of the lamp should not be less than 10
minutes, otherwise it will not be triggered normally due to the lamp overheating
protection；
The closing time using the on-off valve should not exceed 5 minutes. If you need to close the
light for a long time, you should use the console (lighting control channel) to turn off the
light.；
In order to ensure that multiple luminaires better comply with the scene effect, the
luminaire should not be in the unfinished current scene all the time, that is, start the next
scene action, it is best not to exceed 3 minutes in this state to ensure that multiple
luminaires can run simultaneously；
During use, if there is an abnormality in the lamp, stop using the lamp in time to prevent
other malfunctions.
3. Precautions for using RDM
RDM is an extended version of the DMX512-A protocol. It is a remote device management
protocol. The traditional DMX512 protocol communication is one-way communication. The
protocol is based on the RS-485 bus. RS-485 is a time-sharing multi-point, half-duplex protocol.
Only allowed at the same time One port is the output of the host, so, pay attention to the
following points when using RDM：
To use a console or host device that supports the RDM protocol host；
To use a two-way signal amplifier, the traditional one-way signal amplifier is not suitable for
the RDM protocol, because the RMD protocol requires feedback data, and the use of a
one-way amplifier will block the returned data, resulting in the search for lamps and
lanterns；
All lamps must be set to DMX mode to ensure that there is only one host on the signal line；
A 120ohm impedance matching resistor must be inserted between terminals 2 and 3 of the
terminal plug. When the signal line is relatively long, the use of differential signals will be
more stable when the signal line is relatively long, which is conducive to the quality of
communication；
When it appears that the lamp accepts DMX control, but cannot search for the lamp by RDM, first
check the signal amplifier, and then check whether there is a bad connection between the 2 and
3 lines of the signal line.

REMARK
The product has perfect performance and intergrity packing. All users should be strictly comply with the
warning and operating instructions as stated. Or we aren’t in charge of any result by misusing.
Any damage resulting by misuse is not within the Company’s warranty.
Any fault or problem caused by neglecting the manual is also not in the charge of dealers.
Errors and omissions for every information given in this manual excepted.
All information is subject to change without prior notice.
