AOLBEA R310M-F User manual

AOLBEA
R310M-F
GPS
Module
G-Sensor HD DVR
Built-in
Twin-Lens
Dual Dash Camera
User Manual

Aolbea-01
Introduction
• Thank you for purchasing this R310M-F dashcam made by
JWKG Co., Ltd.
• This instruction manual contains information on how to
operate your dashcam.
• Before using your dashcam, we recommend that you read
through this manual to ensure correct usage.
• To improve the performance of the product, the contents
of this manual are subject to change without prior notice.
• AOLBEA does not warrant that this document is error-free.
• AOLBEA assumes no liability for any loss or damage
incurred directly or indirectly from internal data loss caused
by incorrect operation of software and hardware, self-
disassembly of the product, or other accidents.
Important safety information
For user safety and to avoid property damage, read through this
manual and follow these safety instructions to use the product
correctly.
Failure to observe the following directions could result in death or
property damage:
DANGER
● Do not disassemble, repair, or modify the product
yourself.
Doing so may cause fire, electric shock, or malfunction. For
internal inspection and repair, contact the service center.

Aolbea-02
● If any foreign matter gets inside the product, detach the
power cord immediately.
Contact the service center for repair.
● Do not adjust the product while driving.
Doing so may cause an accident. Stop or park your car in a
safe place before installing
and setting up the product.
● Do not install the product in a location where the
product can Interfere with the driver's field of vision.
Doing so may cause an accident.
● Do not use a damaged or modified power cord. Only use
the cords provided by the manufacturer.
Damaged or modified power cords may cause an explosion,
fire, or malfunction.
● Do not operate the product with wet hands.
Doing so may cause electric shock.
● Do not install the product in an environment with high
humidity or combustible gases or liquids.
Doing so may cause an explosion and/or fire.

Aolbea-03
● Do not leave the product near infants, children, or pets.
There is a risk of them swallowing small components, and/or
their saliva may get into the product, causing an explosion due
to a short circuit
● Do not leave the product near infants, children, or pets.
There is a risk of them swallowing small components, and/or
their saliva may get into the product, causing an explosion due
to a short circuit
● Do not spray water or wax directly onto the product while
cleaning the inside of the car
Doing so may cause fire, electric shock, or malfunction
● If smoke or an unusual smell is emitted from the power
cord, detach the power cord
immediately.
Contact the service center or your distributor
● Keep the terminals of the power cord clean.
Failure to do so may cause excessive heat and fire.
● Use the correct input voltage.
Failure to do so may cause explosion, fire, or malfunction.
● Plug in the power cord firmly so that It cannot easily be
disconnected
Failure to do so may cause a fire.
● Do not cover the product with any material.
Doing so may cause external deformation of the product or
fire. Use the product and peripherals in a well-ventilated
location.
Failure to observe the following directions could result in death or
serious injury:
WARNNING

Aolbea-04
● Do not spray cleaning products directly onto the product.
Doing so may cause discoloration, cracks, or malfunction.
● If the product is used outside the optimal temperature range
(-20℃ C-70C/-4F-158° F), performance can decline, or malfunctions may
occur.
● Make sure that the product is installed properly.
If installed incorrectly, vibrations may cause the product to fall and may
cause physical injury.
● When entering or exiting a tunnel, when directly facing into bright
sunlight, or when recording at night without lighting, the quality of
recorded video may deteriorate.
● If the product is damaged or the power supply is cut due to an
accident, video may not be recorded.
● Excessively tinted windshield glass can distort the recorded video or
cause recorded video to be indistinct.
● Prolonged use of the product can increase the interior temperature.
● microSD cards are consumables, so replace microSD cards after
prolonged use.
microSD cards may not record video correctly after extended use, so
check the microSD card's recording capability periodically and replace it
as necessary
● Clean the lens regularly.
Foreign material attached to the lens can affect the recording quality.
● Do not remove the MicroSD card while the MicroSD card is saving or
reading data.
The data can be damaged, or malfunctions may occur.
● It is recommended that you remove the power cord if the product is
not used for an extended period.
● Do not press the LCD screen with a sharp object.
● Do not press the LCD screen too firmly.
Failure to obs erve the following directions could result in injury or
property damage:
CAUTION

Aolbea-05
Overview
What is in the Box?
Check the box for each of the following items before installing the
AOLBEA dashcam.
?
Front & Inside
Dual Dash
Camera
GPS Module
(Optional)
Power Cord
Suction Cup
Mounting
Bracket
Quick Start
Guide
After-sale
Service Card
Note
● The illustrations in this manual may differ from the product.

Aolbea-06
AT A GLANCE
The following diagrams explain each part of the AOLBEA
dashcam:
Front & Interior Camera
Gps Port
TF card slot
DC-IN Power Port
Front Camera Mount connect hole
Speaker
Interior Camera
Indicator Light: Long bright green
light till the camera
is fully charged.
Interior
Camera
Photosensitive
sensor
IR LED
2.7 inch Display Screen
Reset
DOWN
UP
OK
Menu
Mode
Power Button
Front Camera
Emergency Lock
Button
Blink red slowly when
recording

Aolbea-07
Mount Connect Hole
Install Suction Cup Mounting Bracket
Screw 1
② Loosen Screw 1 so that the bracket
can be rotated to the right angle.
After adjusting the Angle, tighten
screw 1
① Connect the bracket screw to the screw
hole on the back of the camera and
rotate to tighten
③ Clean Windshield ④ Loosen screw 2
and adjust the
appropriate
sucker angle
⑤ Peel off the adhesive mount
cover ,find a location which
does not obstruct your view
when driving. Press the
mount firmly against the
glass.
Screw 2

Aolbea-08
GPS Module(sold separately)
• The microSD card needs to get formatted
on the computer first and then get formatted
on the camera to ensure compatibility with
the camera.
• It is recommended to format sd card on
a computer before you insert the micro sd
card into the device, see picture on the right.
(FAT32 for SD within 64GB, exFAT for SD over
64GB)
Formatting SD card on computer
1
1
2
3
Prepare for Installation

Aolbea-09
2
3
Insert MicroSD card
Formatting SD card on camera
• You must insert a memory card (not
supplied) before you can start recording.
The dashcam supports the Class 10 & above
memory cards with 8 GB-128 GB capacity.
(Note: It is recommended to use a Samsung
Micro card.）
• Hold the card (MicroSD) by the edges and
gently insert it into the slot, as shown in the
illustration. To remove a card, gently push
the card's top edge inwards to release it and
pull it out of the slot.
After inserting the card into the camera and turning on the camera, press
the OK button to stop recording. Press Menu to enter to setting interface,
press menu to select General Settings, press up (or “bvdown) to find
“Format SD -Card”,press OK and click Yes to confirm and format the
microSD card (all data will be erased).
• DO NOT apply pressure to the center of the memory card.
• AOLBEA does not guarantee the product's compatibility with memory cards
from all manufacturers.
• Before you start recording, please format the memory card to avoid
malfunction caused by the dashcam files not created.
• Turn the device off before removing the memory card to avoid missing
important files.
Note
F
F
3/4
1
2
F
F
Parking Monito r
Motion Detectio n
Time Zone Select
Setup Reset
Format SD-Card
3/4
YES
NO
3
General Settings
Parking Monitor
Motion Detection
Time Zone Select
Setup Reset
Format SD-Card
Format Card?
All data will be deleted.
General Settings

Aolbea-10
• The installation illustrations are for your reference only. The placement of
thedevices and cables may vary depending on the vehicle model.
• If you encounter any problems during installation, contact us or a skilled
installer (such as the vehicle's service personnel) for assistance.
Installation
1. Connect the car charger to the dashcam and then plug it into
the cigarette lighter.
2. Attach the GPS module (sold separately) to the holder,and
connect the GPS module to the dashcam.
(if you didn’t buy a Gps module,please skip step 2.)
3. Adjust the view angle of the front camera to get a good view.
When adjusting the mounting angle, ensure that the camera’s
view is parallel with the level ground and the ground/sky ratio
is close to 6/4.
4. Route the cables through the top ceiling and the A-pillar so
that it does not interfere with driving. Make sure that the cable
installation does not interfere with the vehicle's airbags or
other safety features.
DC-IN
GPS
Gps module
(sold separately) Car charger
SD Card
Note

Aolbea-11
Start to use dash cam
•Charge the battery
•Adjust the lens angle
•Restarting the dash cam
•Power On/Off
Power button
- When charging the camera, the indicator light
will emit green light.
- When charging is complete,the light will turn off.
- It takes about 3 hours to charge the battery fully.

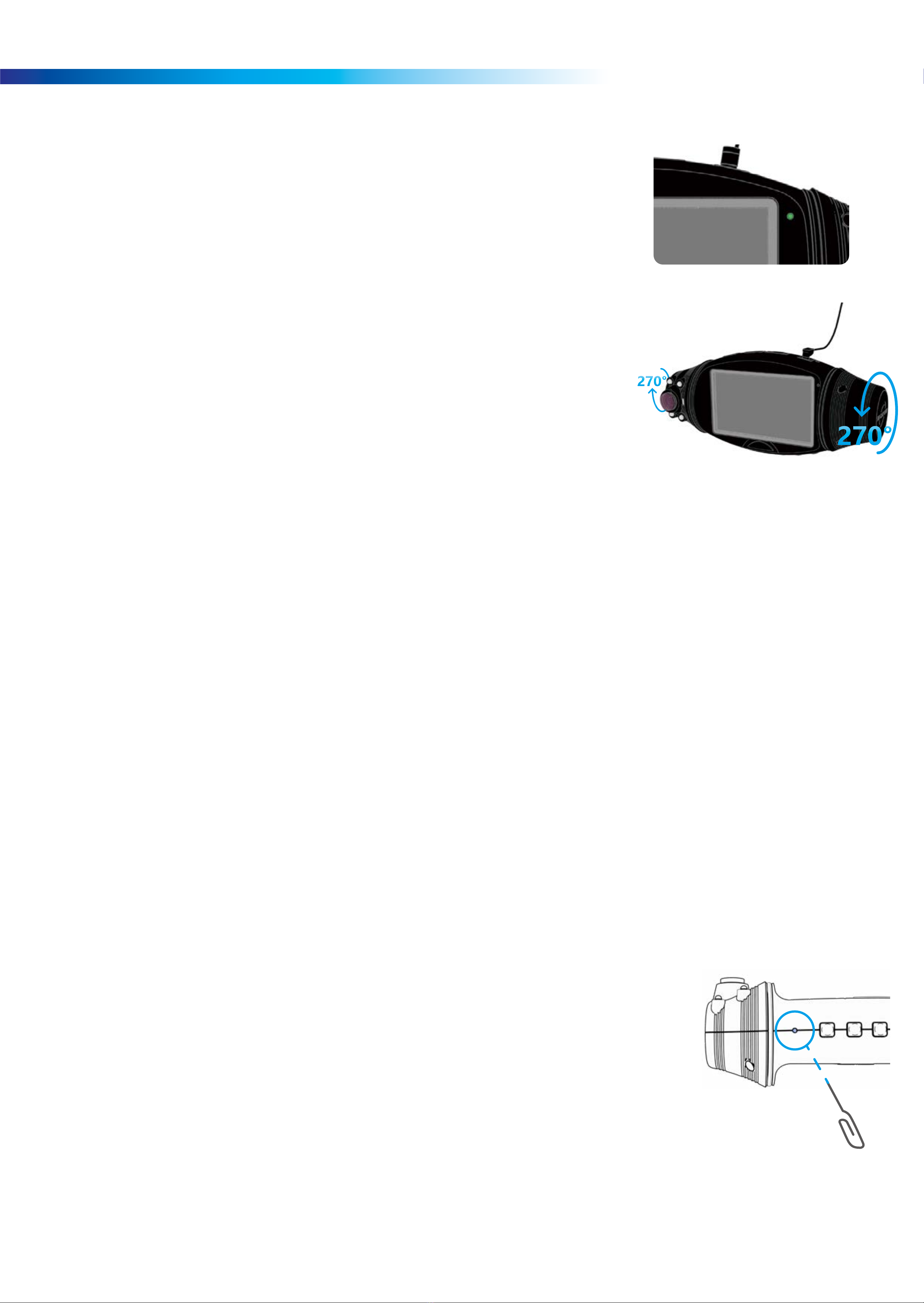

-Both front and interior lenses can be rotated
270 ° vertically.You can get the best recording
viewing angle by rotating them to a suitable angle.
- Complete the installation according to the instructions in the previous
section. Once the vehicle engine is started, the dashcam automatically turns
on. The system indicator blinks red when the dashcam is powered on and
recording.
-Press and hold the Power button for 3 seconds to manually turn the dashcam on
and off.
-When the dashcam is turned on, please press to switch the LCD screen on and off.
-You can still press “ok” to start or stop recording video when the screen is off.
-Occasionally, you may need to perform a hardware reset when
the dashcam stops responding or if it appears to be “frozen”or
unresponsive. To restart the dashcam, press and hold the Power
button until the system powers off; press the Power button
again to turn the dashcam on.
-If the system does not shut down by keeping the Power button
pressed, you can force it to shut down by inserting a small
rod(such as a straightened paperclip) into the Reset button on
the device.
-You can also reset the camera by unplugging the power cord
and plugging it back in.
R

Aolbea-12
Operate the dash cam
The device provides six function keys to control the dash camera. The
keys' functions may vary in different modes.
Standby Mode
Recording Mode
Menu Mode
- Short press to switch between the front camera view, interior
camera view, and picture-in-picture.
- ① Short press to start/stop recording video
② Long press to take a photo
- Press to bring up and switch the menu.
- Press to switch between video, picture file, and exit.
- Short press to switch between the front camera view,
interior camera view, and picture-in-picture.
- Short press to turn on and off the audio record.
- ① Short press to start/stop recording video.
② Long press to take a photo.
- Press to Lock/unlock Current file mode.
- Press to Lock/unlock Current file mode.
- Scroll down
- Scroll up
- Act as CONFIRM button
- Act as BACK button
- Press to switch between video, picture file, and exit.
r
Recording
Indicator Lock
Current file
Current GPS
Car speed
Recording time/Residual spaceResidual space
Parking monitor
Video Clip time
Motion Detection
GPS sign
Exposure
Microphone Status
Power status
Date Time
Protect Level
SD card status
DOWN
UP
OK
MENU
MODE
DOWN
UP
OK
MENU
MODE
DOWN
UP
OK
MENU
MODE

Aolbea-13
View Mode
To select a video or photo for playback:
1. Press the Mode Button, enter the Playback File.
2. Select the desired type.
3. Press UP/DOWN to select the desired file from the list and then press
OK to start playback.
4. During playback, you can:
● While playing videos, press UP/DOWN to reverse/fast forward video.
● While viewing photos, press UP/DOWN to display the previous/next
photo.
● Press MODE to return to the list.
● Press MENU to display the pop-up playback menu,press MENU again
to switch different menus, or turn back the list.
5. Switch Front file list and Rear’s: Long press MENU switch between
front video/photo file and rear video/photo file during list mode. You
can see“rear” on the left bottom of the list when entering rear video/
photo file.
6. In setting > playback > video type, you can switch to general/
emergency folder, return to the list to view the corresponding folder's
contents.

Aolbea-14
Video Resolution FHD 30fps
Video Clip Time
Sets the length of each video clip for a continuous
recording.
(off/1min/2mins/3mins(default)/5mins/10mins).
Note
Files protected by gravity sensing will not be overwritten by new
files generated by loop recording.
Delayed Power
Off
Set the length of the delayed shutdown time after the car
is turned off
(0 min/5 sec(default)/30 sec/1 min/3 mins)
Audio record Turn the sound recording on or off during recording video.
(On(default)/Off)
Exposure
Sets the exposure level (-2 – +2) to adjust the brightness of
the image.
The default setting is 0.
Changes the settings of recording, including:
Settings
By default, the system will automatically begin with continuous recording in
a few seconds after start-up. The System indicator flashes in red while the
recording is in progress.
When continuous recording is in progress, you can manually stop recording
by pressing OK. Press OK again to return to the recording screen.
•Movie Mode

Aolbea-15
•Playback
Volume : Adjust the volume level of playback video.
Delete :
Delete the file. Select One to delete the video/photo
in the current list; Select All to delete all videos/photos
on the current list.
Protect : Moves the file to the “Event” category or “Normal”
category
Video Type : Switch between normal and event files.
Changes the settings of current playback list, including:

Aolbea-16
Keytone Turn On/Off the keytone.
Auto Power Off The device will shut down automatically at the specified time.
(Never/1 min/5 min).
Time Setting Sets the system date and time
Date Format Year month day,Month day year,Day month year for optional;
Default is Year month day.Set the date format you prefer.
Time Format 12-hour clock,24-hour clock (default).
Set the time format you prefer.
Stamp
Date + Logo,Date,Logo,off.
Sets the information (date and device model) displayed on the
recorded video/photo.
•General Settings:
Changes the settings of General Settings, including:

Aolbea-17
Language Sets the language.
Filcker 50HZ(defaul),60HZ.
Screen Timeout
Selects Off to keep the LCD on, or sets the timer for the LCD to
turn off automatically (1 min/3 min). Selecting Screen timeout will
turn off the LCD (in the specified time).After turning off, the screen
will reduce power consumption; the camera still works and records
under the display off. Press Power , it will turn on.
Protect Level
Off / Low / Middle / High for optional, default is Low.
When enabled,any collision will activate the camera to lock the
current video, which will never be covered by new files generated
by loop recording.When driving, if the road is bumpy, please adjust
it to low or turn it off directly to prevent the camera doesn’t work
because the memory card is full. When parking, recommend you to
adjust it to medium.
Parking Monitor
Off / Low / Middle / High for optional, default is Off.
The camera will be turned on automatically and start recording if
there is a car hit during parking. The video will be saved,and the
camera automatically shuts down after 30 seconds.
Motion Detection Sets the sensitivity level of motion detection to Low,Medium,High,
or turn off
Time Zone Select Set up the time zone.
Setup Reset Restore factory default settings.
Format SD-Card
Format the microSD card.
Note
① All data will be deleted. Before formatting your microSD card,
please remember to backup your important data on your other
devices.
② Every time you insert a microSD card, please format it in the
camera to ensure that the microSD card is compatible with the
camera.
FW Version Check the camera’s version information.

Aolbea-18
GPS Module and GVPlayer
After plugging in the GPS module, you can see the GPS logo (in red) show up on
the screen's left side. After a few minutes, the logo will turn green , which means
your camera successfully receives the GPS signal, and you can see the current speed
at the bottom of the screen. After successfully connecting, the dash camera will
automatically update the date and time according to the current time zone you set.
• The external GPS receiver is required to obtain GPS data.
• GPS data is not recorded during the parking mode. Map data cannot be displayed for
parking mode recordings.
• GPS satellite signals cannot pass through solid materials (except glass). When you are
inside a tunnel or building, GPS positioning is not available. Signal reception can be
affected by situations such as bad weather or dense overhead obstacles (such as trees,
tunnels, viaducts, and tall buildings).
• The GPS positioning data is for reference only.
● Checking the GPS data:
Google browser MediaFire Share Baidu Pan
You can check the GPS data of the recorded video in GVPlayer while videos
are playing back. The driving speed and coordinates are displayed above the
map frame.
You can enter the URL below or scan the QR code to download a GVPLAY :
Google browser:
https://drive.google.com/open?id=1Igs5EHaCsY5kkyYMKSmogYC6J5HtqrdA
MediaFire Share :
http://www.mediafire.com/file/ca199784cl7xdsz/GVP_GPS_Player_English.msi/file
Baidu Pan :
https://pan.baidu.com/s/1nD2xUB1vgXBbPzZGhPROtA
password: gpxm
Note

Aolbea-19
Warranty & Support
After you finish installing, Gvplayer should be found on your desktop. Double-click to
Start. Insert sd card into the computer.
Click “open files”
on the left bottom.
Select “disk” , and find your Removable Drive,
then click “ok”.
Wait for the files to Process; this will take a few minutes based on the number/quality
of files. A progress bar will indicate when the files are ready. When done, the first file
will begin to play.
1. Warranty
We provide customers with a warranty of 12 MONTHS from the date of purchase.
2. Support
For any inquires with Aolbea products, please feel free to contact us, we will respond within
24 hours.
E-mail: [e-mail]
Or find us through "Account service" → "Order Information" → "Contact Seller"
