AOpen i945Ga-PHS User manual

1
Table of Contents
Table of Contents ................................................................................... 1
1.1 A Thank-you Note Before You Get Start..........................................................4
1.2 Features of This Manual ...............................................................................5
1.3 Safety Information ......................................................................................5
Chapter 2 Introduction to This Motherboard ............................................... 6
2.1 How does your motherboard look like?...........................................................6
2.2 Specification ...............................................................................................7
2.3 Block Diagram ............................................................................................8
Chapter 3 Hardware Installation ............................................................... 9
3.1 Quick Installation Procedure .........................................................................9
3.2 Installation You Have to Know..................................................................... 10

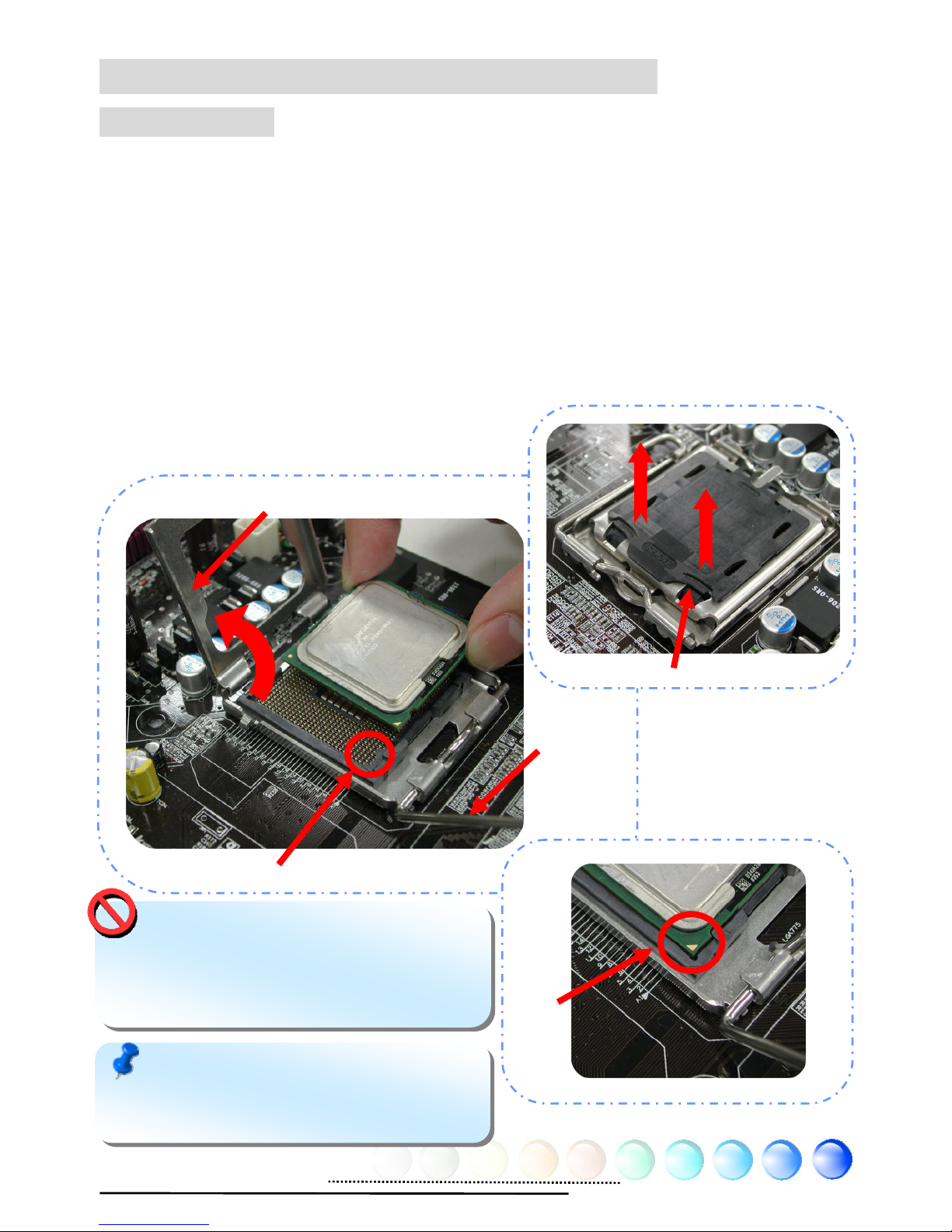

Installing CPU ...........................................................................................10

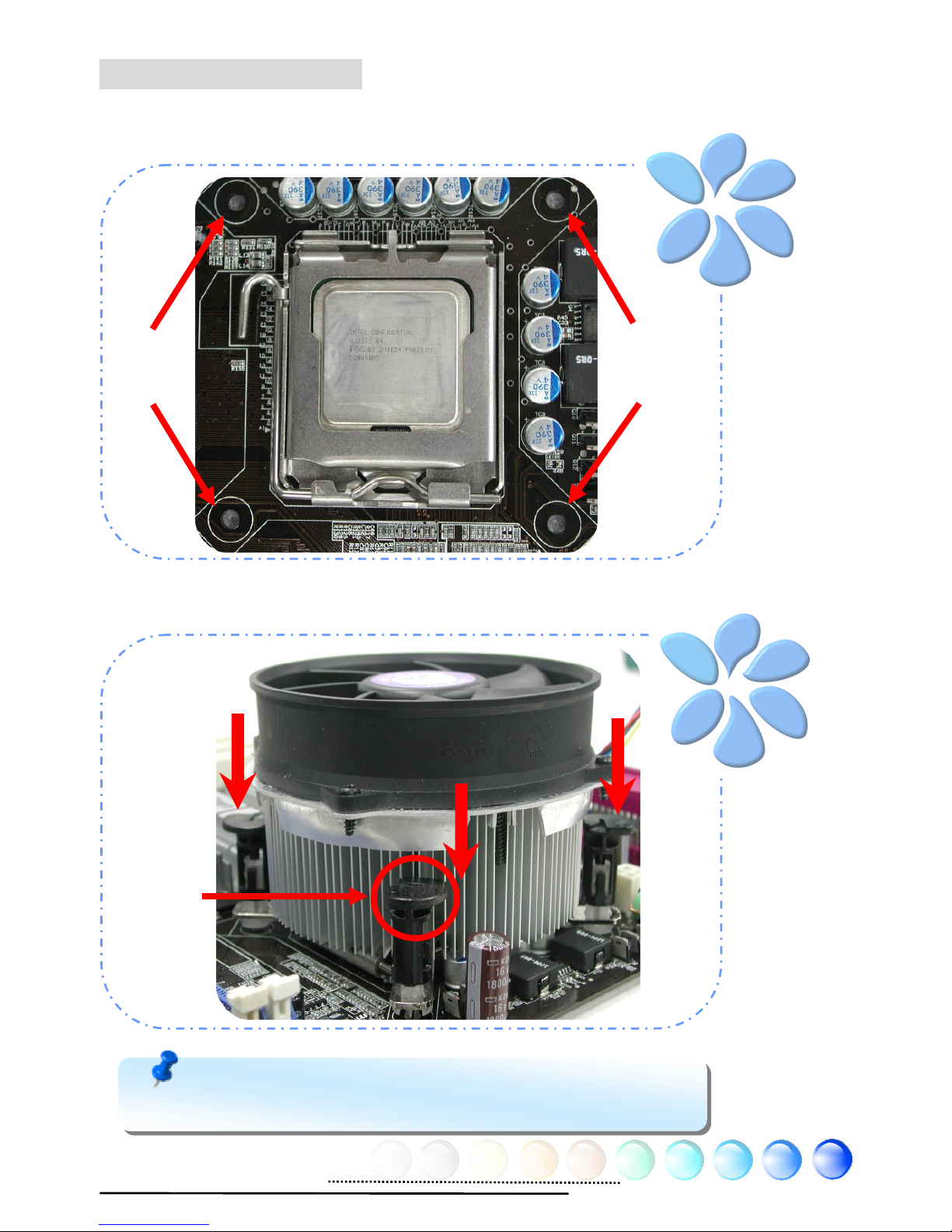

Installing CPU Cooler .................................................................................11

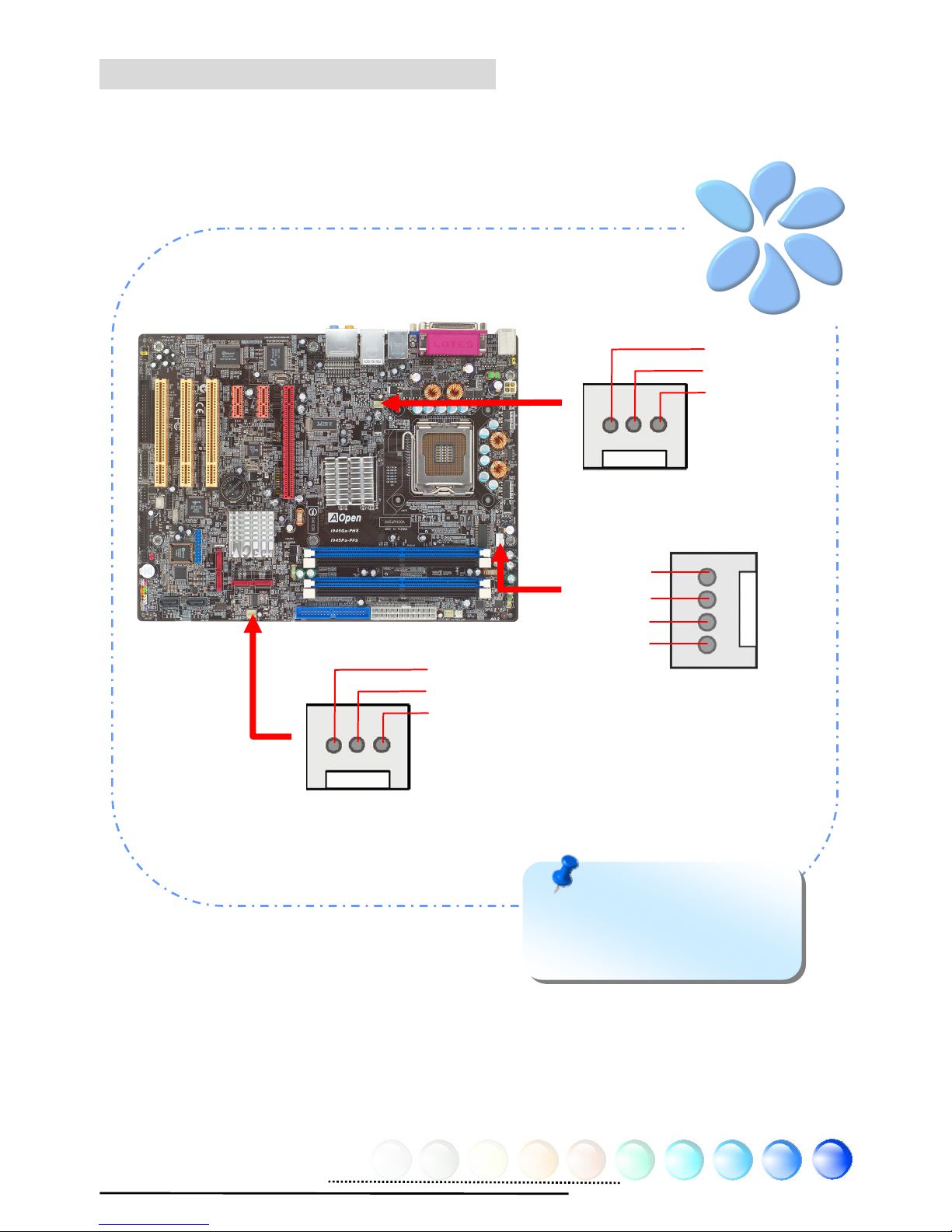

Installing CPU and System Fans ..................................................................12

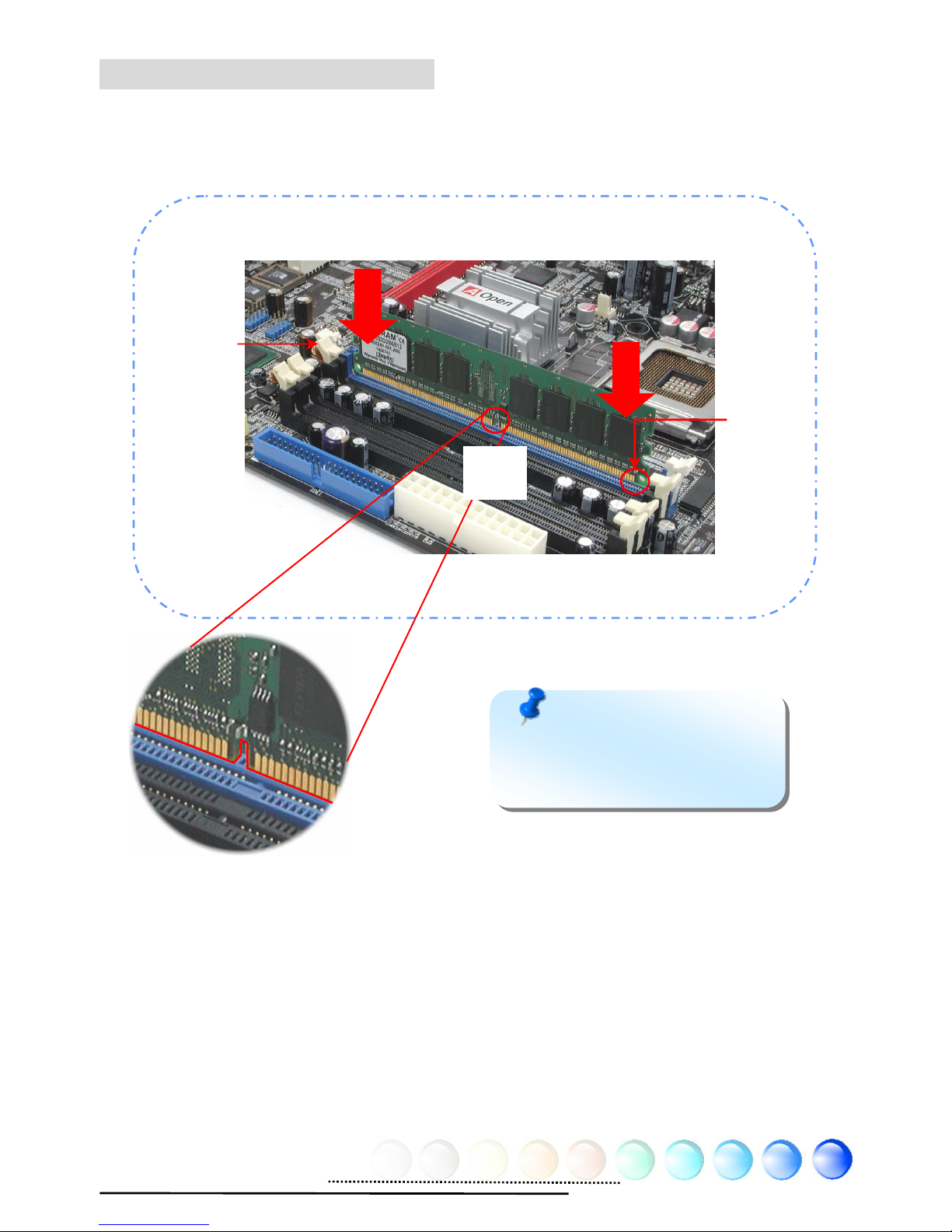

Installing Memory Modules .........................................................................13

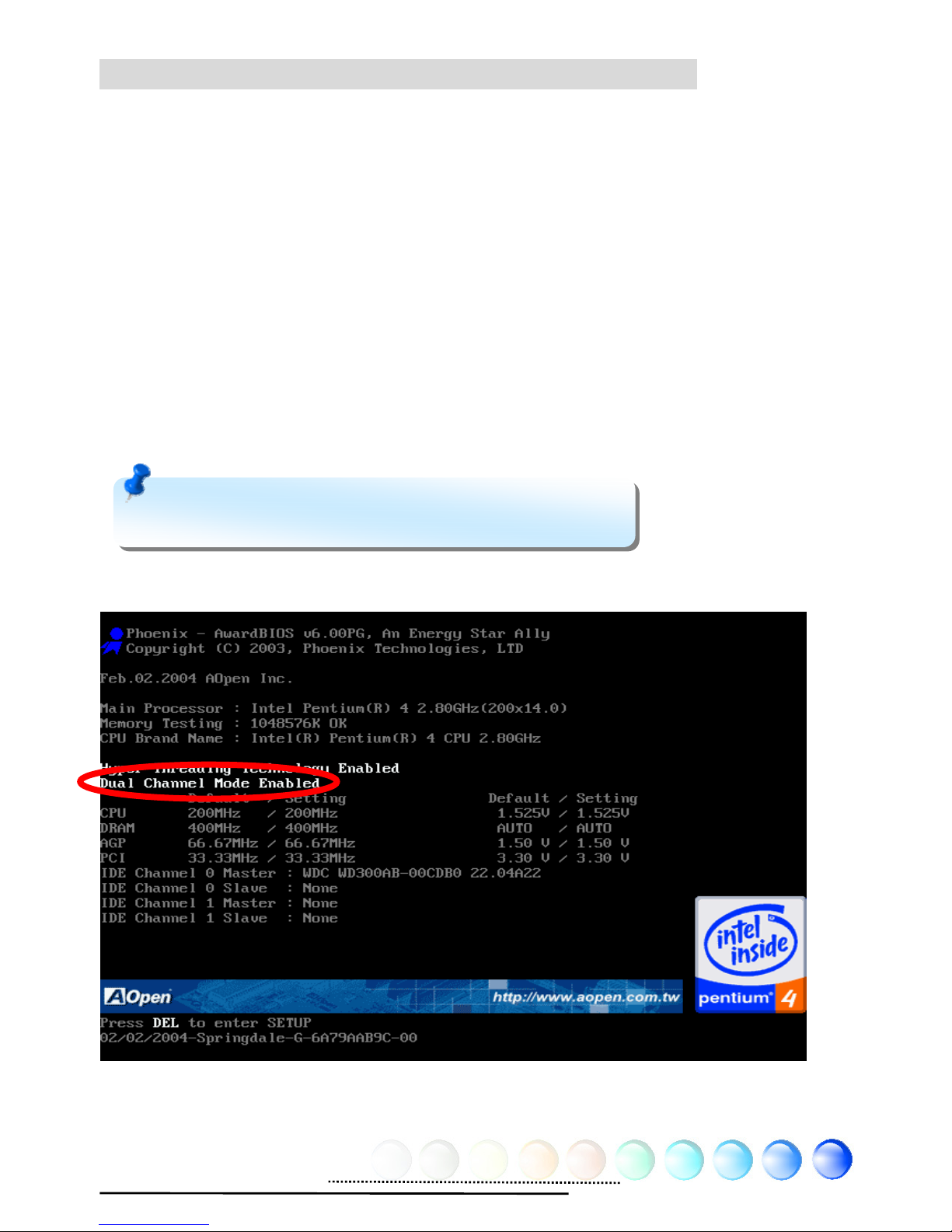

Maximum The Performance of the Dual Channel............................................14
Connecting IDE and Floppy Cables ..............................................................15
Connecting Front Panel Cable .....................................................................16

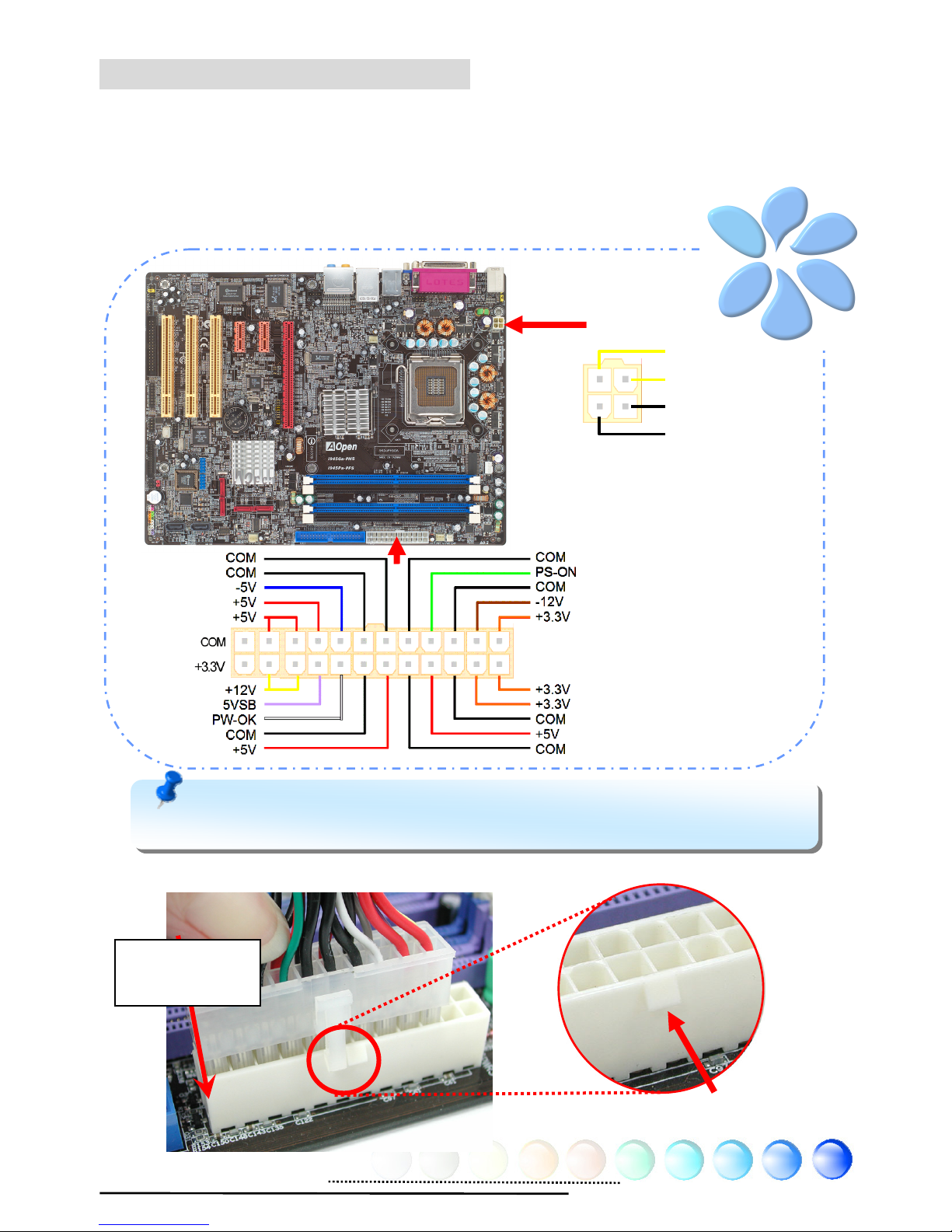

Connecting ATX Power Cables .....................................................................17
3.3 Other Installation for Your Reference ........................................................... 18

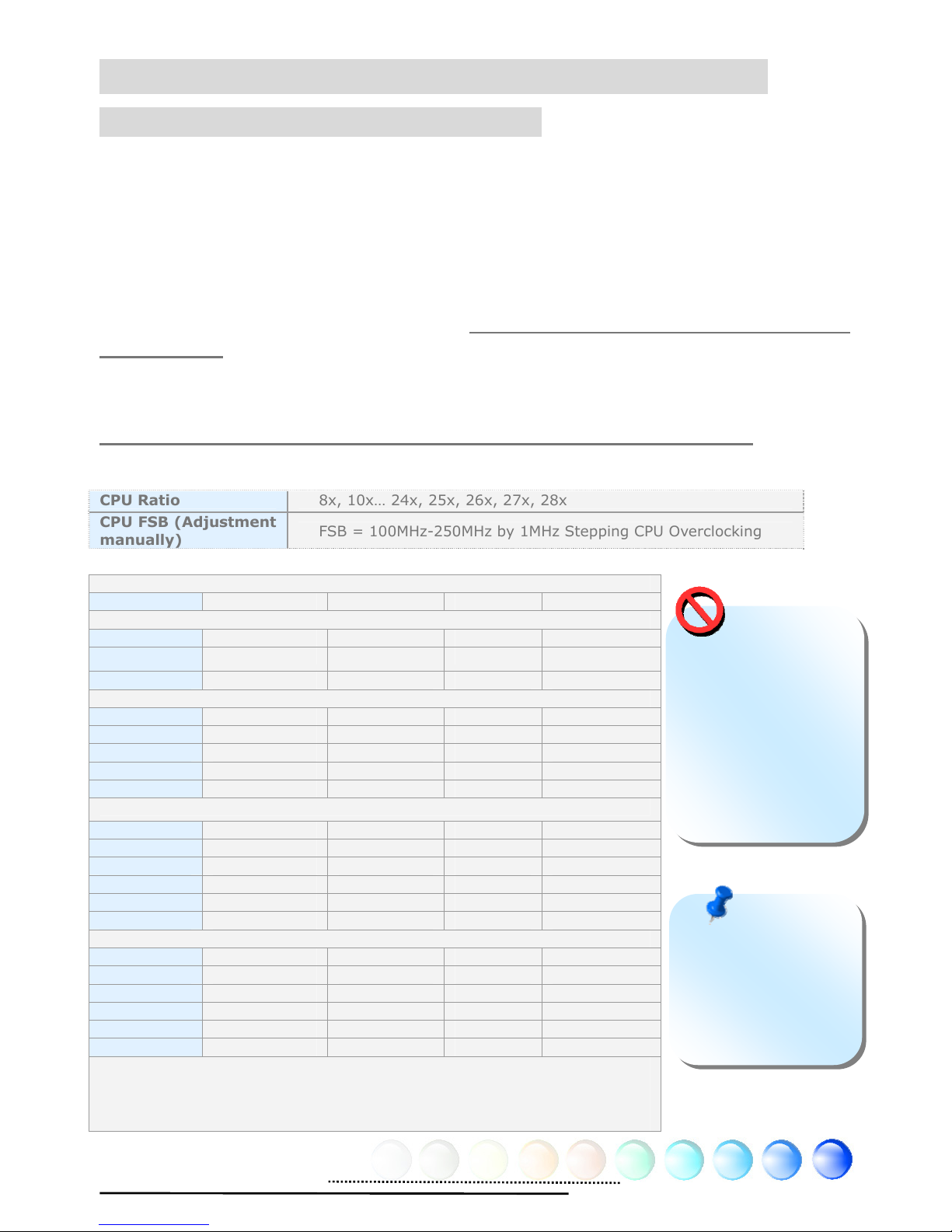

Setting CPU Voltage and Frequency .............................................................18

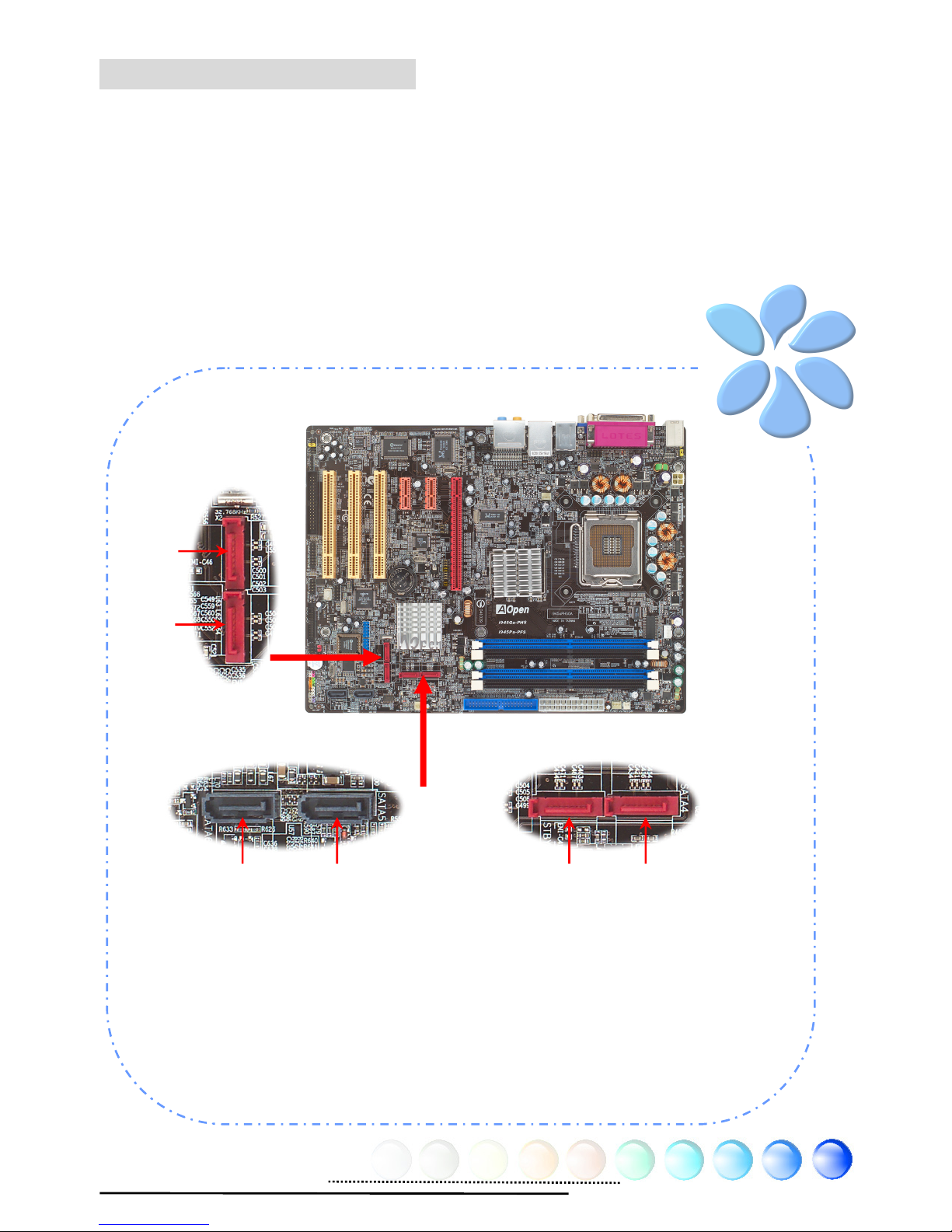

Connecting Serial ATA II ............................................................................19
Adjusting your Hard Disk Setting.................................................................20
Connecting PCI Express x16 Graphics Slot....................................................22
Connecting PCI Express x 1 Slot..................................................................23
Connecting IrDA........................................................................................24
Connecting Game Port ...............................................................................25
Tab
l
e
o
f
Co
n
te
n
ts

2
Gigabit LAN Supported...............................................................................26
Connecting USB2.0....................................................................................27
Connecting 1394 .......................................................................................28
Super 7.1 Channel Audio Effect ...................................................................29
Connecting Front Audio ..............................................................................30
Connecting CD_IN .....................................................................................31
Connecting COM Port .................................................................................32
Connecting Case Open ...............................................................................33
Connecting S/PDIF (Sony/Philips Digital Interface) ........................................34
Colored Coded Back Panel (for i945Ga-PHS) .................................................35
Colored Coded Back Panel (for i945Pa-PFS) ..................................................36
LED Indication ..........................................................................................37
3.4 Jumper Settings ........................................................................................ 38
Chapter 4 Special Features and Utilities................................................... 39
4.1 Other Useful Features ................................................................................ 39
Chapter 5 Setting BIOS......................................................................... 40
5.1 Introduction ............................................................................................. 40
5.2 How To Use Phoenix-Award™ BIOS Setup Program ........................................ 41
5.3 How To Enter BIOS Setup ........................................................................... 41
5.4 Definition of Power Master.......................................................................... 42
Automatic Mode ........................................................................................43
Performance Mode.....................................................................................43
Silent Mode ..............................................................................................44
Normal Mode ............................................................................................44
5.5 BIOS Upgrade under Windows environment.................................................. 45
5.6 Vivid BIOS technology ............................................................................... 47
Chapter 6 Installing Drivers ................................................................... 48
6.1 Installing Drivers....................................................................................... 49
6.2 Installing Utilities ...................................................................................... 50

3
Chapter 7 Troubleshooting..................................................................... 51
Chapter 8 Technical Support .................................................................. 52
Model Name and BIOS Version....................................................................53
Register Your Motherboard .........................................................................53
Technical Support......................................................................................54

4
1.1 A Thank-you Note Before You Get Start
First of all, we would like to express our gratitude for purchasing AOpen products.
Once again, this motherboard is designed uniquely to meet all your personal
needs with our great industry-designing ability and our everlasting perseverance
to the quality of all our products.
This manual will introduce you how this motherboard is installed. Please keep it
well for your future reference. If you lost your printed manual, you may also go to
our website at http://www.aopen.com to download the updated file.
Now, we would like to invite you to personally experience this user-friendly
manual and all of the powerful functions this AOpen product offers.
The logos of Adobe and Acrobat are the registered trademarks of Adobe Systems
Incorporated.
The logos of AMD, Athlon, and Duron are the registered trademarks of Advanced Micro
Devices, Inc.
The logos of Intel, Intel Celeron, Pentium II, III, Pentium 4 and Pentium M are the registered
trademarks of Intel Corporation.
The logos of nVidia are the registered trademarks of nVidia Corporation.
The logos of Microsoft, Windows are the registered trademarks of Microsoft Corporation in
America and other countries.
All the titles of the products and the trademarks mentioned in this manual are for the
purpose of illustrative conveniences and are possessed by their respective firms.
We regret not informing about any changes in usage standards and other related
information. AOpen reserves the right of altering or modifying the content of this manual. In
case of any mistakes or incorrect descriptions, which include those on the products, AOpen
makes no guarantee or commitments.
This document is based on the copyright laws in order to protect our company and reserve
all rights.
Under no circumstances are any types of duplicating and loading this brochure in any
databases and media permitted except the permission signed on formal document by
AOpen Company.
1996-2005 Copyrights, AOpen Ltd. All rights reserved.

5
1.2 Features of This Manual
To help you grab the useful information of this motherboard and aware of certain
conditions that you might need to know, you will see the icons below frequently:
1.3 Safety Information
This contains knowledge you should know in process
of assembling, or some helpful tips.
This tip tells you some useful information that will
make your installation smoothly.
Please be careful when you see this mark. It
highlights mistakes that occur often during
assembling, or something you need to pay attention
to.
Please wear a wrist strap and attach it to a metal part of the system unit
before handling a component. Alternatively, you can also touch an object
that is of ground connection or with metal surface.
Always unplug the power before you make any jumper setting.
Before you install or remove any components on the motherboard, please
make sure to disconnect the power first in case of damaging motherboard
or other components.
Note
Warning
Warning / Caution
Warning
Tip

6
Chapter 2 Introduction to This Motherboard
2.1 How does your motherboard look like?
1. COM1 Connector (i945Ga-PHS only) 18. Front Audio Connector
2. JP28 PS2 KB/Mouse Wakeup Jumper 19. S/PDIF Connector
3. 4-pin 12V ATX Power Connector 20. Realtek Gigabit LAN Chip
4. SYSFAN1 Connector 21. FDD connector
5. PCI Express x1 Slot X 2 22. 32-bit PCI Expansion Slot x 3
6. PCI Express x16 Graphics slot 23. Game port
7. LGA775 CPU Socket supporting Intel FC-LGA4 .
CPU
24. IEEE 1394 Connector X 1
8. Intel 945G / ICH7 (i945Ga-PHS)
Intel 945P / ICH7 (i945Pa-PFS)
25. COM2 Connector
9. 240-pin DDRII DIMMs x 4 26. USB 2.0 Connector x 2
10. CPU FAN connector 27. Case Open Connector
11. BOOT LED 28. IrDA connector
12. ATX Power Connector 29. JP14 CMOS Data Clear Jumper
13. PWRFAN Connector 30. Serial ATA II connector x 6
14. Power Temperature Connector 31. Front Panel Connector
15. ATA100 Connector 32. Stand By LED
16. CD_IN Connector 33. SYSFAN2 Connector
17. Realtek AC’97 CODEC
Chapter 2 Introduction to This Motherboard
3
10
1
4
5
6
2
7
13
14
16
21
17
19
20
18
22
23
25
26
28
29
30
24
27
12
8
9
15
31
32
33
11

7
2.2 Specification
Here is the main function of your motherboard.
Models i945Ga-PHS i945Pa-PFS
CPU
Intel FC-LGA4 CPU
Socket T
533/800/1066MHz
Intel FC-LGA4 CPU
Socket T
533/800/1066MHz
Chipset Intel 945G/ICH7 Intel 945P/ICH7
Main
Memory
Dual Channel Mode DDRII
DDRII 400/533/667
DDR DIMM x 4
DIMM Type : 128/256/512MB & 1GB
Max Memory : 4GB
Dual Channel Mode DDRII
DDRII 400/533/667
DDR DIMM x 4
DIMM Type : 128/256/512MB & 1GB
Max Memory : 4GB
Graphics
Integrated VGA Engine in Chipset
PCI Express x 16 Graphics Slot
Support ADD2 card
PCI Express x 16 Graphics Slot
IDE
Integrated ATA100 and Serial ATA II
Controller
Silicon Image External Serial ATA II
Control Chip
Max Disk: 144,000,000GB [by 48 bits
LBA Spec.]
Integrated ATA100 and Serial ATA II
Controller
Silicon Image External Serial ATA II
Control Chip
Max Disk: 144,000,000GB [by 48 bits
LBA Spec.]
LAN Realtek Gigabit PCI LAN Chip Realtek Gigabit PCI LAN Chip
Sound Intel High Definition Audio on-board
Support 7.1 Channel and above
Intel High Definition Audio on-board
Support 7.1 Channel and above
USB Integrated in Chipset, USB 2.0 x 8 Integrated in Chipset, USB 2.0 x 8
IEEE 1394 Agere 1394 Control Chip Agere 1394 Control Chip
Slots
PCI Express x 1 Slot x 2
PCI Express x 16 Graphics Slot x 1
PCI Slot x 3
PCI Express x 1 Slot x 2
PCI Express x 16 Graphics Slot x 1
PCI Slot x 3
Back
Panel I/O
PS/2 Keyboard x 1, PS/2 Mouse x 1
USB Port x 4, LAN Port x 1, VGA Port x 1
Printer Port x 1, IEEE 1394 x 1,
Standard Video Port x 1
Speaker_Out x 1, Line_In x 1, MIC_In x 1
Side SUR x 1, Rear SUR x 1
Center/Subwoofer x 1
PS/2 Keyboard x 1, PS/2 Mouse x 1
USB Port x 4, LAN Port x 1, COM Port x 1
Printer Port x 1, IEEE 1394 x 1
Speaker_Out x 1, Line_In x 1, MIC_In x 1
Side SUR x 1, Rear SUR x 1
Center/Subwoofer x 1
On Board
Connector
Floppy Drive Connector x 1
IDE Channel: ATA100 x 1
Serial ATA II Channel x 6
Front Panel x 1
Front Audio x 1
CPU FAN x 1, System FAN x 2
Power FAN x 1
Power Temperature Connector x 1
Case Open Connector x 1
CD_IN x 1, IrDA x 1, S/PDIF x 1
COM Connector x 2
Game Connector x 1
IEEE 1394 x 1
USB2.0 Connector x 2
Floppy Drive Connector x 1
IDE Channel: ATA100 x 1
Serial ATA II Channel x 6
Front Panel x 1
Front Audio x 1
CPU FAN x 1, System FAN x 2
Power FAN x 1
Power Temperature Connector x 1
Case Open Connector x 1
CD_IN x 1, IrDA x 1, S/PDIF x 1
COM Connector x 1
Game Connector x 1
IEEE 1394 x 1
USB2.0 Connector x 2
BIOS Award PnP 4Mb Flash ROM BIOS Award PnP 4Mb Flash ROM BIOS
Board Size 305 mm x 230 mm 305 mm x 230 mm

8

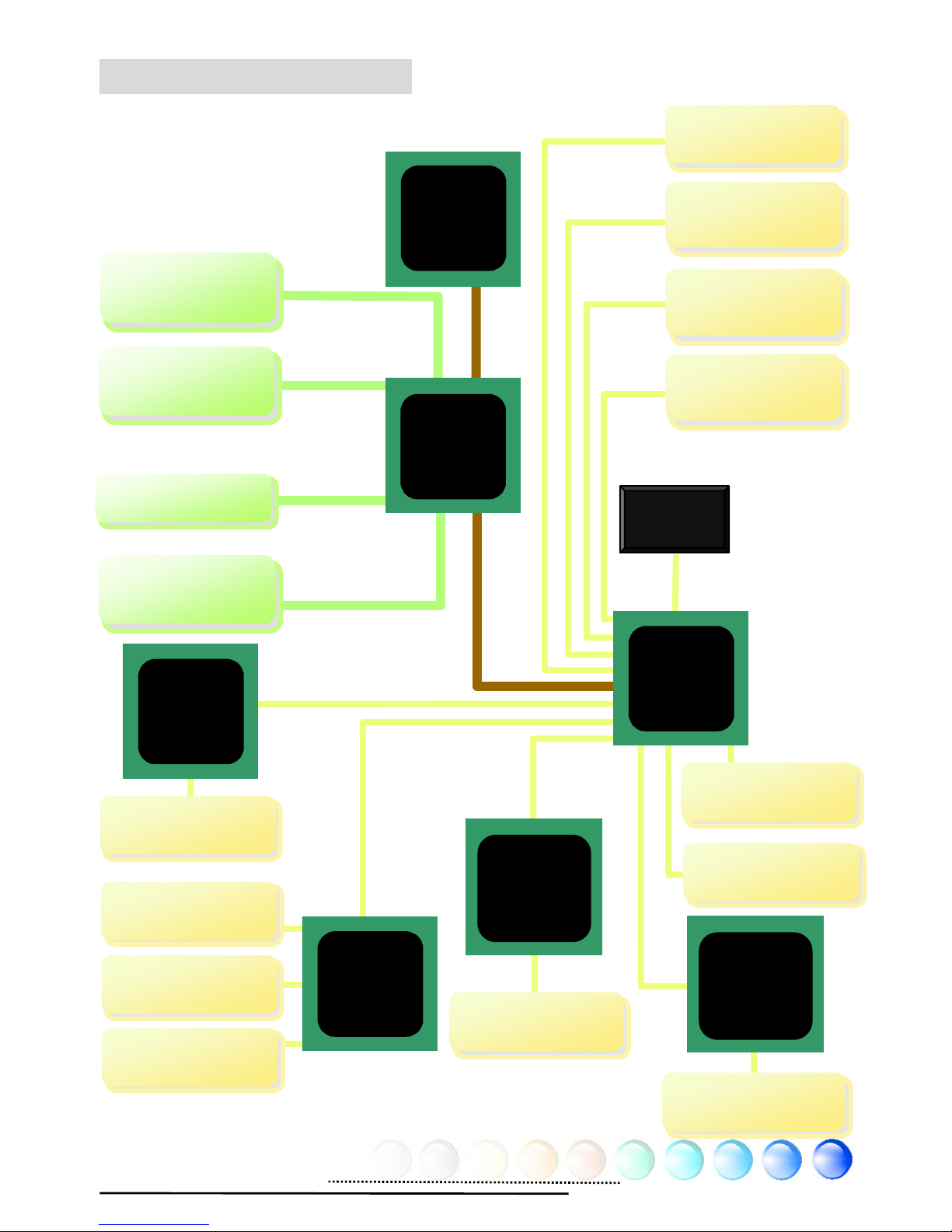

2.3 Block Diagram
Intel
945G / 945P
Chipset
DDRII DIMM x 4
Dual Channel DDRII
400/533/667 SDRAM
Up to 4GB
LGA775
Socket
Intel
FC-LGA4
CPU
533/800/1066 MHz
System Bus
Support ADD2 Card
(for i945Ga-PHS)
ICH7
PCI Bus
300MB/s
IDE Drive x 2
AC’97
CODEC
ATA 66/100/133
4Mbits Flash
EEPROM
USB 2.0 x 8
LAN connect
Com
p
onent
PCI Express x 1
Slot x 2
Realtek
Gigabit
LAN Chip
32-bit PCI Slot x
3
Serial ATA II Port
x
4
500MB/s
Agere
IEEE
1394
Controlle
r
Winbond
Super I/O
Parallel Port
Floppy Disk
Drive
Serial Port x 2
IEEE 1394 x 2
VGA Onboard
(i945Ga-PHS)
PCI Express x16
Graphics Slot
Standard Video
Silicon
Image Serial
ATA II
Controlle
r
Serial ATA II Port
x 2
300MB/s

9
Chapter 3 Hardware Installation
3.1 Quick Installation Procedure
C
h
ap
t
e
r
3
H
a
r
d
w
a
r
e
In
s
t
a
ll
a
ti
o
n
1. Installing CPU
2. Installing CPU
Fan & System Fan
3. Installing
Memory Module
4. Installing HD,
CD-ROM and
SATA Disk, etc
6. Connecting ATX
Power Cable
5. Connecting Front
Panel Cable
7. Installing PCI
Express x16 Graphics
cards & PCI Express x 1
cards & PCI Cards
8. Installing Other
Devices (USB, Front
Audio, etc)
9. Connecting
Back Panel Ports
(Keyboard,
Mouse, etc)
10. Loading
Default BIOS,
Setting CPU
Fre
q
uenc
y
11. Installing
Operating System
(such as, Windows
XP)
12. Installing Drivers &
Utilities

10
3.2 Installation You Have to Know
Installing CPU
This socket supports FC-LGA4 CPU, which is the latest CPU package developed by
Intel. Other forms of CPU package are impossible to be fitted in.
1. Pull CPU socket lever and plate up.
2. Remove plastic cap from CPU socket plate.
3. Locate Pin 1 in the socket and look for a golden arrow on the CPU upper
interface. Match Pin 1 and golden arrow. Then insert the CPU into the
socket.
4. Press down the CPU socket plate and lever to finish CPU installation.
Note: It’s strongly recommended by
Intel to use thermal paste properly to avoid
over-heat generated from Prescott CPU.
CPU socket plate
Socket Pin 1
Golden
arrow
CPU socket
lever
Plastic cap
Warning: If you do not match the CPU
socket Pin 1 and CPU golden arrow well,
you may damage the CPU. And please don’t
touch CPU socket pins when installing CPU.
Plastic cap

11
Mounting
hole
Mounting
hole
Installing CPU Cooler
1. Gently put down the CPU fan on CPU socket with four sticks aiming correctly
to the four mounting holes.
2. Press down four fixing sticks into the holes one by one. Make sure the
sticks are firmly fixed into the holes.
Note: The picture above may look different from the product
you purchased.
Fixing
stick

12
Installing CPU and System Fans
Plug the CPU fan cable to the 4-pin CPUFAN connector. If you have chassis fan,
you can also plug it in SYSFAN1 or SYSFAN2 connector.
Note: Some CPU fans
do not have sensor pin so
that they cannot support fan
monitoring.
SYSFAN1 Connector
+12V
Sensor
GND
CPUFAN Connector
PWM
SENSOR
GND
+12V
SYSFAN2 Connector
+12V
Sensor
GND

13
Installing Memory Modules
DIMM slots are designed in black and navy blue which are very easy to recognize.
Insert the module straight down to the DIMM slot with both hands and press down
firmly until the DIMM module is securely in place.
Note: The tabs of the
DIMM slot will clip to hold the
DIMM in place when the DIMM
touches the slot’s bottom.
Tab
Pin 1
Key

14
Maximum The Performance of the Dual Channel
To obtain the highest performance of Dual Channel, the configuration of DIMM
must meet the following conditions.
Matched DIMM configuration in each channel
●Same density (128MB~1GB)
As long as you insert memory modules of same density into Channel 1 (DIMM
A1 & DIMM A2) and Channel 2 (DIMM B1 & DIMM B2), dual channel mode will
be enabled.
DIMM A1 + DIMM A2 = DIMM B1 + DIMM B2
Ex: if you insert 1GB memory module into DIMM A1 and DIMM A2, dual channel
mode will be enabled when DIMM B1 + DIMM B2 = 1GB
●Same DRAM bus width (x8 or x16)
●Either single-sided or double-sided
When dual channel mode is successfully enabled, the screen will show “Dual
Channel Mode Enabled” while entering POST screens.
Note: Using memory modules of different chip will
cause system unstable.

15
Primary
Slave (2nd)
Pin 1
Primary
Master (1st)
Connecting IDE and Floppy Cables
Connect the 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy
connector and IDE connector. Be careful of the pin1 orientation. Wrong
orientation may cause system damage.
ATA 33/66/100 IDE Connector
FDD Connector
Pin 1

16
Connecting Front Panel Cable
Attach the power LED, speaker and reset switch connectors to the corresponding
pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED
will keep flashing while the system is in suspend mode.
Locate the power switch cable from your housing, which is a 2-pin female
connector from the housing front panel. Plug this connector to the soft-power
switch connector marked SPWR.
Power Switch
1
Front Panel Connector
GND
Power LED-
GND
Power LED+
GND
NC
GND
RESET
GND
NC
NC
+5V
HDD LED
HDD LED
+5V
+5V
GND
NC
SPEAKER

17
Connecting ATX Power Cables
This motherboard comes with a 24-pin and 4-pin ATX power connector as shown
below. Make sure you plug them in the right direction. We strongly recommend
you to insert the 4-pin connector before connecting the 24-pin connector.
Aiming at the
left side
Foolproof
Note: Please aim the power plug at the left side of the 24-pin ATX power
connector when the foolproof design faces you as shown.
+12V
+12V
Ground
Ground

18
3.3 Other Installation for Your Reference
Setting CPU Voltage and Frequency
Setting CPU Core Voltage
This motherboard supports Voltage ID (VID) function to detect CPU voltage
automatically during power-on. It’s not necessary to set CPU core voltage.
Setting CPU Frequency
This motherboard is CPU jumper-less design; you can set CPU frequency by 1MHz
stepping CPU Overclocking in the BIOS. CPU Core Frequency = CPU FSB clock
x CPU Ratio. However, all CPU now sold in market belong to "Fixed Multiplier".
That means users can not adjust the CPU Ratio but change CPU FSB clock to
achieve overclocking only.
BIOS Setup > Frequency / Voltage Control > CPU Speed Setup
Extreme Edition Processor
- 3.73G 1066MHz 14x 2MB L2
8 Series
840 3.20G 800MHz 16x 2 x 1MB L2
830 3.00G 800MHz 15x 2 x 1MB L2
820 2.80G 800MHz 14x 2 x 1MB L2
6 Series
670 3.80G 800MHz 19x 2MB L2
660 3.60G 800MHz 18x 2MB L2
650 3.40G 800MHz 17x 2MB L2
640 3.20G 800MHz 16x 2MB L2
630 3.00G 800MHz 15x 2MB L2
5 Series
570 3.80G 800MHz 19x 1MB L2
560 3.60G 800MHz 18x 1MB L2
550 3.40G 800MHz 17x 1MB L2
540 3.20G 800MHz 16x 1MB L2
530 3.00G 800MHz 15x 1MB L2
520 2.80G 800MHz 14x 1MB L2
3 Series
355 3.33G 533MHz 25x 256K L2
350 3.20G 533MHz 24x 256K L2
345 3.06G 533MHz 23x 256K L2
340 2.93G 533MHz 22x 256K L2
335 2.80G 533MHz 21x 256K L2
330 2.66G 533MHz 20x 256K L2
Note: With CPU speed changing rapidly, there might be faster CPU on the
market by the time you received this installation guide. This table is kindly
for your references only.
(Users will do the overclocking at their own risks!!)
CPU Ratio 8x, 10x… 24x, 25x, 26x, 27x, 28x
CPU FSB (Adjustment
manually) FSB = 100MHz-250MHz by 1MHz Stepping CPU Overclocking
Warning:
Intel 945G / 945P
chipset support
maximum
1066MHz
(266MHz*4)
system; higher
clock setting may
cause serious
system damage.
Note: Some
CPU fans do not
have sensor pin
so that they can’t
support fan
monitoring.

19
Connecting Serial ATA II
To connect a serial ATA II disk, you have to have a 7-pin serial ATA cable. Connect
two ends of the serial ATA II cable to the serial ATA II header on the motherboard
and the disk. Like every other traditional disk, you also have to connect a power
cable. Please be noted that it is a jumper free implement; you don’t need to set
jumpers to define a master or slave disk. When serial ATA II hard disks are
installed on serial ATA II ports, the one connected on Port0 (SATA1) will be set as
the first boot device automatically. Please note that it doesn’t support
Hot-Plug in function.
SATA1
SATA3
SATA2
SATA4
SATA5SATA6

20
Adjusting your Hard Disk Setting
Except its original 1 set of parallel IDE, this motherboard supports the latest serial
ATA hard disk. If you are unable to find your newly installed serial ATA hard disks
on your operating system after having them installed, the problem may lie in the
BIOS setting. You can simply adjust BIOS settings to have them work properly.
After installing your hard disks properly, you can directly go to BIOS setting
screen for adjustment. Simply pressing “Integrated Peripherals ÆOnChip
IDE Device ÆOn-Chip Serial ATA” to choose your preferable mode. If you
have no intention of changing its original setting, the default would be Auto.
