aoyue FEK-01 User manual

Instruction Manual
Thank you for purchasing the Aoyue FEK-01 Soldering Fume
Extractor.
Please read the manual before using the unit.
Keep manual in accessible place for future reference.
Fume
Extractor
FEK-01
AOYUE
®

2
This manual is designed to familiarize and instruct the
technician with the proper operation and maintenance
of the equipment. Please read carefully and observe the
guidelines in order to maximize usage and minimize the
risk of injury or accidents .
TABLE OF CONTENTS
Warnings …....…………………………………… 3
Safety Precautions …....…………………………………… 4
Product Description …....…………………………………… 5
Package Inclusion …....…………………………………… 6
Box Contents …....…………………………………… 7
Specifications …....…………………………………… 8
Control Panel Guide …....…………………………………… 9
Operating Guidelines ……………………………… …. 10-16

3

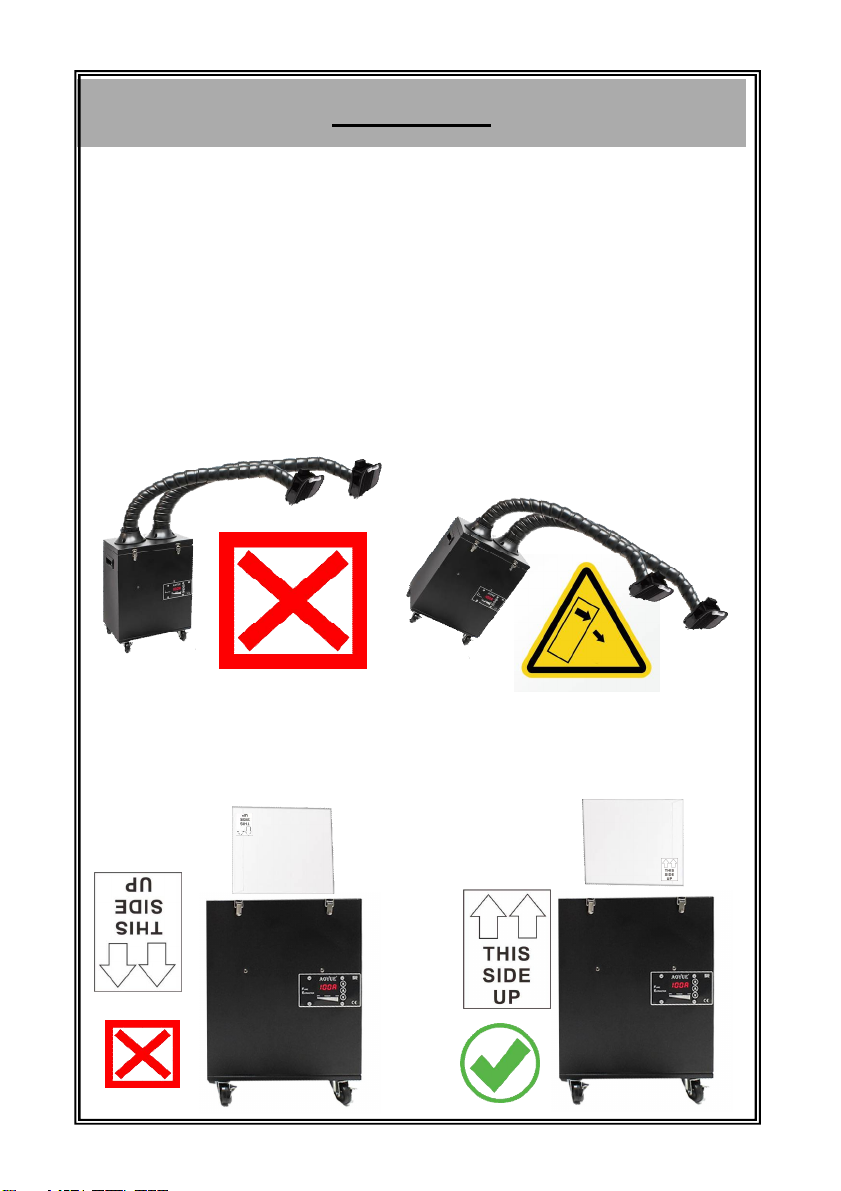

WARNING!!!
◆ REMOVE ALL PLASTIC COVERING FROM FEK-01 SYSTEM,
PARTS AND COMPONENTS, CARBON FILTER AND HEPA FILTER.
!RISK OF FIRE IF PLASTICS ARE NOT
REMOVED!
◆ WARNING OVER EXTENDING ARM MAY UNBALANCE AND
TOPPLE FEK-01 SYSTEM.
◆ When placing the HEPA filter into the unit make sure to place
filter in the center of the unit and take note of the “This side
up “ and arrow pointing upwards sign.

4
CAUTION: Improper usage can cause serious injury to personnel and/
or damage to equipment and work area.
For your own safety, please observe the following precautions.
SAFETY PRECAUTIONS
● Check each component after opening the package to make
sure everything is in good condition. If there are any sus-
pected damage, do not use the item and report the issue to
your vendor.
● Turn OFF the main power switch and unplug the device from
power source when moving the device.
● Do not strike or subject the main unit (and all its compo-
nents) to physical shock. Use carefully to avoid damage to
any part.
● Handle with care.
- Never drop or sharply jolt the unit.
- Contains delicate parts that may break if the unit is
dropped.
● Make sure the equipment is always grounded. Always con-
nect power to a grounded receptacle.
● Disconnect the plug from the power source if the unit will
not be used for a long period.
- Turn off power during breaks, if possible.
● Use only genuine replacement parts.
- Turn off power and let the unit cool down before replacing
any part.
● Do not alter the unit, specifically the internal circuitry, in any
manner.

5
PRODUCT DESCRIPTION
◆ Portable Fume Extraction System with Integrated
Filter Module includes HEPA Filter (High Efficiency
Particulate Air filter) For Removing the Dust
Particles and Enhanced Activated Carbon filtration
system.
◆ With actual Carbon filter beads that trap odor and
toxins .
◆ Activated carbon beads are utilized to it’s optimum
efficiency.
◆ Powerful suction, Quiet operation.
◆ Electronic Control Panel with Variable airflow
adjustment.
◆ Excellent cost performance filters.
◆ HEPA filter filters out 97% of particles greater than
0.3μm
◆ Sub-filters extend the life of main filters.
◆ Free standing arms .
◆ Includes special nozzle with integrated LED lamp
and activated carbon sub-filter pads.
◆ Portable with wheels for easy relocation
◆ Arms can be bent as desired and maintain their
shape after adjustment.

6
PACKAGE INCLUSION
1 unit Station with Main filter and Carbon filter
2 pc. Extra activated carbon sub-filter pads
2 pc. Exhaust arm kit
2 pc. Filter hood with LED lamp and activated
carbon sub-filter pads
1 pc. Air inlet cover for single arm operation
1 pc. Instruction Manual
4 pc. Wheels with breaks
1 pc. Power Cord
Notes:
● LED lamp batteries not included. Due to shipping reg-
ulations batteries are not included in the package for
safety. Please use a 9V battery for the LED light.
● Main filter and carbon filter are inside the station
please remove the plastic covering of these filters be-
fore usage.
Filter part numbers:
FEK-MF –Main filter
FEK-CF—Carbon filter

7
BOX CONTENTS
1 pc. Main external box (BOX A)
1 pc. FEK Station box (BOX B)
2 pc. Filter hood box (BOX C)
1 pc. Parts box (BOX D)
BOX A Main external box contents
1. Arm x2
2. FEK Station box (Box B) x1
3. Filter hood box (Box C) x2
4. Parts box (Box D) x1
BOX B FEK station box contents
1. FEK station x1
2. User manual x1
BOX C Filter hood box contents
1. LED nozzle x1
2. Sub filter x1
BOX D Parts box contents
1. Wheels x4
2. Air inlet cover x1
3. Power cord x1
A
B
C
D

8
SPECIFICATION
Voltage Input : available in 110V / 220V
Dimensions: 320(w) x450 (h) x 260 (d) mm
Weight: 8.5Kg
Power Consumption: 80-200W
Filter: HEPA Filter / Carbon Filter
LED DISPLAY
AC
Connector
Exhaust Air
duct Power Switch
Controls
CARBON FILTER
Arm
Filter hood

9
SPECIFICATION
CONTROL PANEL GUIIDE
1. Selected power display
2. ON/OFF button (long press to activate,
long press to deactivate).
3. Increase button
4. Decrease button
1
3
5
4

10
OPERATING GUIDELINES
Assembly:
A. Attach Wheels
+ Attach wheels
Pull out FEK-CF carbon
filter and remove plastic
covering before usage.
B. Remove Plastic coverings of the carbon filter and HEPA filter.
Unlock top cover and
pull out the FEK-MF
HEPA filter. Remove
plastic covering from
HEPA filter.

11
OPERATING GUIDELINES

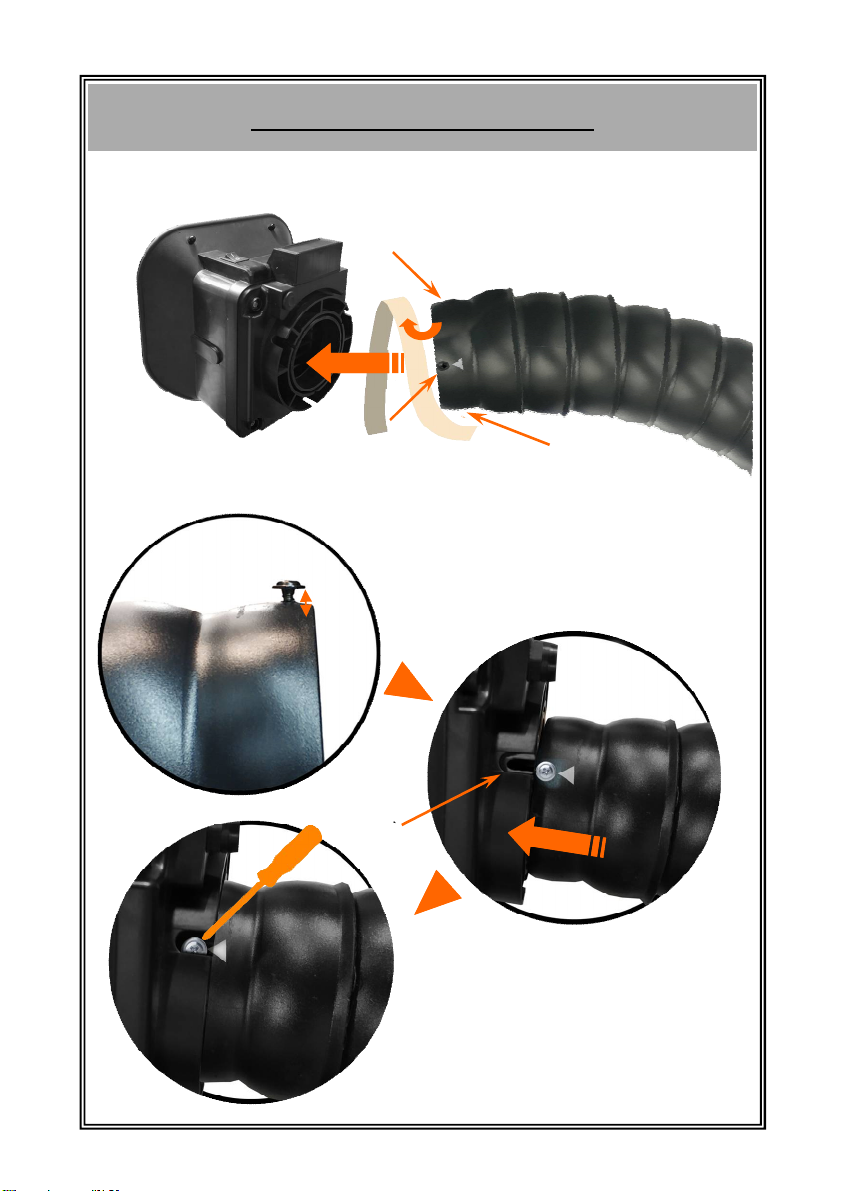

C. Attach filter hood with securing screw.
Remove tape to reveal three 3x6mm
screw attached to the arms
(an arrow points to the screws)
Filter Hood
There is around 3mm space between
the arm and the screw head to be able
to slide into the provided u-slot
Push arm fully into the hood then
tighten the screws. Some force is
needed to push the arm into the hood.
Please secure all three screws.
Screw in fully flushed on the filter
hood to provide best grip.
3mm
U-Slot

12
Single Fume
Extraction
operation
OPERATING GUIDELINES
D. Attach Arm for single or double fume extraction operation.
Dual Fume Extraction
operation
Simply slide in the arm
Attach air inlet cover for single
fume extraction operation

13
OPERATING GUIDELINES
LED Switch Battery
cover
Unlock to access
HEPA filter
Unlock to access
HEPA filter
Pull out carbon filter using
the two white tabs.
F. Fully assembled
E. Insert Battery for filter hood
Slide open battery cover
to insert battery

14
OPERATING GUIDELINES
REMINDERS:
1. Make sure the equipment is placed on a flat stable surface and
do not over extend arm as there is risk of unit toppling.
2. Ensure all function switches are in the OFF position.
3. Ensure all terminal connections are properly secured.
IMPORTANT: Please refer to the CONTROL PANEL
GUIDE page for button switches.
A. PROCEDURES
1. Plug the power cord into a grounded wall socket. The station is
protected against electrostatic discharge and must be grounded
for full efficiency.
2. To switch on the unit, the display will show “OFF” signifying it is
in the stand-by mode.
3. Attach arms to the exhaust connector.
4. The arms can be positioned such that maximum suction is
reached.
5. To turn on the suction press the * button.
6. To adjust the fan speed press increase or decrease button.
7. Fan speed is adjustable from 20 to 100 percent.
8. Fan speed is programmed into memory when the * button is
pressed again to switch to the “OFF” standby mode.
9. The integrated suction hood’s LED lamp needs a 9V battery to
work.
10.Slide open the battery cover and insert a 9 Volt battery into the
compartment. Put battery cover back in place.
11.Press the LED switch to turn ON the LED lamp, To turn OFF the
LED lamp press the LED switch again. Turn OFF LED lamp when
not in use to conserve battery life.

15
OPERATING GUIDELINES
B. HEPA FILTER and CARBON FILTER REPLACEMENT
1. HEAPA and Carbon filter may need replacement after 3
months depending on usage, It is recommended to replace car-
bon filter and heap filter at the same time for best perfor-
mance.
2. Signs that the filter needs replacement:
◆ The HEPA filter has turned yellow or light brown in color due to
all the particles and smoke trapped in the filter.
◆ The fume filtration capability has deteriorated due to all the par-
ticles and smoke trapped in the filter.
◆ Fume suction feels weaker this may be due to clogged filters.
3. To replace HEPA filter simply unlock the top cover and pull out
the old HEPA filter, before placing the new HEPA filter remove
all plastic coverings of the new HEPA filter, inset HEPA filter in
the center of the unit with the arrow pointing upwards.
4. Lock top cover firmly to prevent air leakage and loss of suction.
5. To replace carbon filter simply pull out the old filter via the
two white pull tabs, before placing the carbon filter remove all
plastic coverings of the new carbon filter, slide the carbon filter
in the unit.
C. FILTER REPLACEMENT ADVISORY
1. The unit may display the word FLT meaning the filter may need
replacement, replace the filter based on above instructions.
2. If there is no need to replace filter or if the filter had been re-
placed simply reset the filter replacement advisory display by
pressing and holding both increase and decrease buttons.

OPERATING GUIDELINES
D. LINE FREQUENCY SWITCHING
The system is design to operate either on 50Hz or 60Hz line
frequency. This frequency is set accordingly at the factory, however
this line frequency can be manually set by following the procedures
below.
1. Turn main power switch to “OFF” position.
2. Press and hold both increase and decrease button while turning
the power switch to “ON” position .
3. The display will show 50 or 60 indicating the frequency it is
currently set to.
4. Repeat above steps to switch to correct frequency.
Warning: If wrong frequency is selected the system’s air suction
controls will behave erratically or be uncontrollable. Select to correct
line frequency to enable normal usage.
