APDM Moveo Explorer User manual

Moveo Explorer
by APDM
Version 1
May 24, 2018

2
WELCOME
to Moveo Explorer
Using APDM’s advanced wearable sensors, Moveo Explorer makes it easy to collect,
analyze, and store kinematic data. Attach sensors to your subject, and instruct them
to perform a task. A report is then automatically generated featuring joint angles,
spatiotemporal gait and balance metrics, and raw data.
web: www.apdm.com
email: [e-mail]
phone: 888-988-APDM (2736)

3
TIPS
TROUBLESHOOTING
SPECIFICATIONS
APPENDIX
INFORMATION
CONTENTS
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
PARTS 10
16
18
20
4
40
42
44
38
HARDWARE SETUP
MOVEO EXPLORER
INSTALLATION
USING YOUR SYSTEM

4
INFORMATION
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

5
Indications
The Moveo Explorer and Mobility Lab systems, known hereafter collectively as Moveo Explorer, is intended to monitor and quantify
kinematics of movement disorder symptoms such as Parkinson’s disease, tremor, and Multiple Sclerosis.
The Moveo Explorer system is intended to be used by professionals and caregivers, including, but not limited to, clinicians, clinical assistants,
researchers, research assistants, and nurses. There are no required qualications to use the Moveo Explorer system. All users should be
familiar with the operation of the Moveo Explorer system by reading and familiarizing themselves with the Moveo Explorer User Guide.
The Moveo Explorer system is intended to be used in professional environments, including, but not limited to, clinical facilities, laboratories,
hospitals, and senior living facilities.
Contraindications
Do not apply Opals or the Opal straps to broken or otherwise non-intact skin.
Opals and straps should not be used in conjunction with an MRI.
Warnings and Precautions
The Moveo Explorer system Opal is a Type B Applied Part, i.e., a part of the system which comes into contact with the patient. The Moveo
Explorer system Docking Station, Access Point, USB cables, and Docking Station power supply are not applied parts, and are not intended to
come into contact with the patient. Opals should be cleaned in between subjects. SeeTips section on page 39 for cleaning directions.
Do not open any Moveo Explorer hardware enclosures; there are no user serviceable parts inside. The Opals contain a rechargeable lithium
ion battery which is not intended to be replaced by the user.
The Moveo Explorer Docking Station should only be powered by the provided 12V 2A center positive power adapter. Do not use other power
adapters with the Docking Station.
The Moveo Explorer Docking Station has a spare USB Type A port. Only attach USB peripherals and cables that comply with the USB 2.1
specication. The Moveo Explorer system can only be connected to a host PC via the USB Micro-B connector.
The Opal wearable sensor may become warm during use and rise as much as 5 °C (9 °F) above ambient temperature. At the Opal’s
maximum operational temperature of 50 °C (122 °F), the Opal could reach 55 °C (131 °F). Discontinue use if wearing the sensor becomes
uncomfortable.
INFORMATION
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

6
The Moveo Explorer system is designed to be stored and transported in a standard indoor environment: a temperature of +10° C (50 °F)
without relative humidity control and +50° C (122 °F) at relative humidity up to 93% non-condensing.
The Opals are designed to be operated in either an indoor or outdoor environment, with an operating temperature of -10 to +50 °C (14
to 122 °F), 0 to 100% relative humidity, and an atmospheric pressure of 64.4 to 106.6 kPa. Opals are rated water resistant up to IP64,
but are not waterproof. Do not submerge Opals in water.
The Access Point and Docking Station are designed to be stored, operated and transported in a standard indoor environment: a
temperature of 0 to 30 °C (32 to 86°F), 0 to 100% relative humidity, and an atmospheric pressure of 80 to 106.6 kPa (at an altitude of
less than 2000 m). The Access Point and Docking Station are not water resistant or waterproof.
Do not unplug the Access Point when in use during testing; this may result in lost data. If using a laptop, always make sure that your
laptop is plugged into a power outlet when testing during test mode. A low battery during a test session may cause the test data to be
lost.
It is recommended that you backup your Moveo Explorer database before upgrading or uninstalling the software.
You must dispose of this product properly according to local laws and regulations. Because this product contains electronic components,
it must be disposed of separately from household waste. When this product reaches its end of life, contact local authorities to learn
about disposal and recycling options, or simply return it to APDM. For more information, please contact [email protected].
This equipment has been tested and found to comply with the limits for medical devices to the IEC 60601-1-2 standard. These limits
are designed to provide reasonable protection against harmful interference in a typical medical installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference with other devices in the vicinity. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference with other devices, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
●
• Configure the system to use a different radio frequency.
• Reorient or relocate the receiving device.
● • Increase the separation between the equipment.
● • Connect the equipment into an outlet on a circuit different from that to which the other device(s) are connected.
● • Consult the manufacturer or field service technician for help.
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

7
Information Security for Computers running Moveo Explorer
The Moveo Explorer database may contain private or personal Protected Health Information (PHI). While Moveo Explorer
accommodates the need to protect PHI, the database itself is not secured or encrypted by Moveo Explorer. Instead, you should secure
access to the database using your operating system’s built in security features. Always follow information security best practices on the
Moveo Explorer computer, including:
● • Use separate user and admin accounts
● • Use strong passwords
● • Lock the computer after a few minutes of inactivity
● • Control physical access to your computer
● • Keep your operating system and Moveo Explorer software up-to-date
● • Back up your computer regularly and store your backups securely
● • Use your operating system’s built-in strong disk-level encryption
If your Moveo Explorer system is online, use internet security software to prevent malware infections. Moveo Explorer uses SSL to secure
any communication with APDM servers that might contain personal information, and no PHI is collected without your consent. Any
information on APDM servers is securely maintained.
UDI Product/Catalogue Numbers
Opal: 1
Access Point: 2
Docking Station: 3
Mobility Lab System: 5
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

8
Compliance Information
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by APDM could void the user’s authority to operate the equipment.
To access FCC and IC information on the APDM Opal and Access Point - Press Button 2 twice from the home screen.
Industry Canada (IC)
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canadienne applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire d’interférence, et (2) l’utilisateur de l’appareil doit accepter
toute interférence subie, même si l’interférence est susceptible d’en compromettre le fonctionnement.
WEEE Directive Statement for the European Union
In common with all Electronic and Electrical products, APDM equipment should not be disposed of in household waste. Alternative
arrangements may apply in other juristictions.
FCC ID: 2AHZD-OPAL
IC: 21349-OPAL
Model: Opal
FCC ID: 2AHZD-AP
IC: 21349-AP
Model: AP
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

9

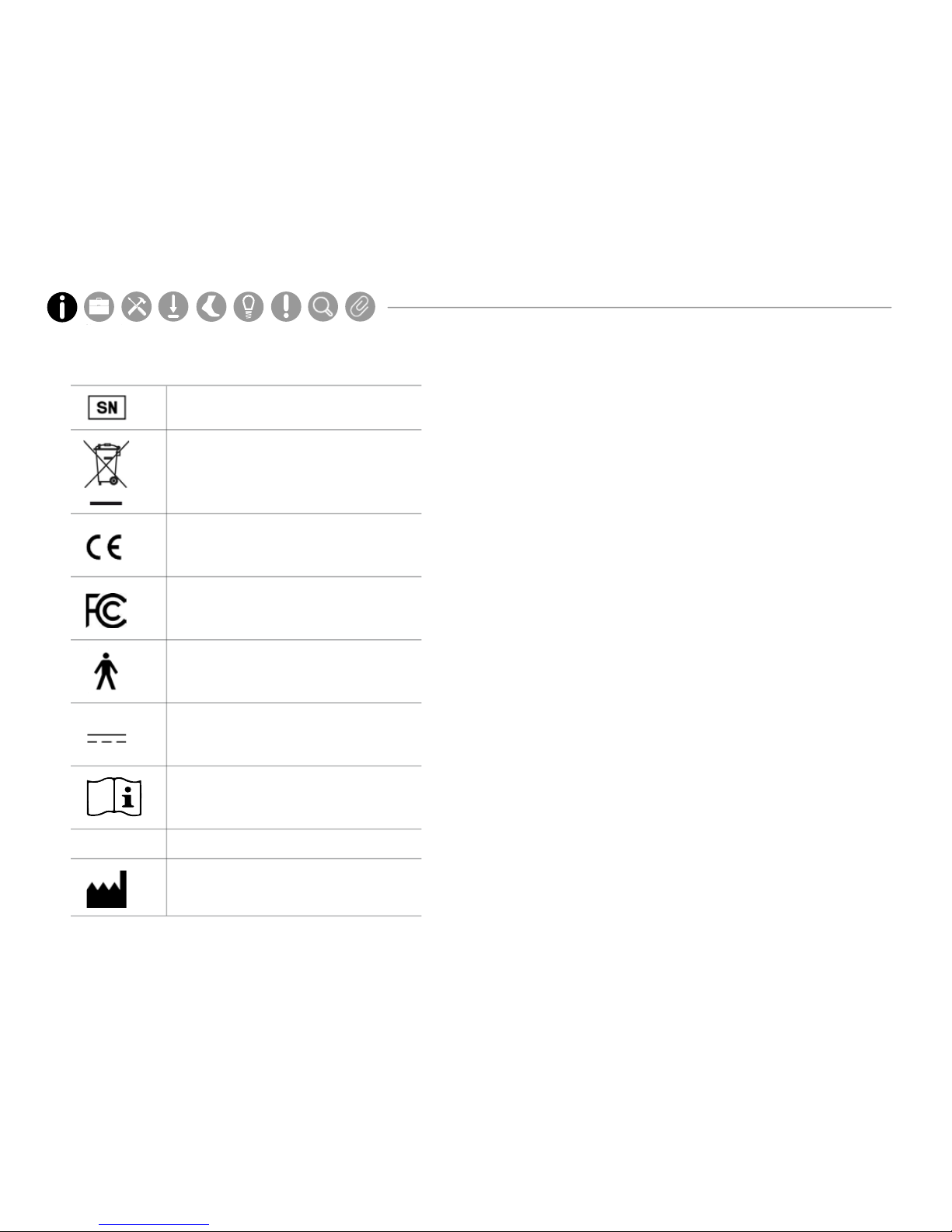

Serial Number
Not for General Waste
European Union (EU) CE Medical Mark
FCC Compliance
Type B Applied Part
Direct Current
Refer to Instruction Manual/Booklet
Ingress Protection Rating
Manufacturer
IP64 I
Symbols
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

10
PARTS
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

11
PARTS
OPALS
The Opal sensors precisely record movement
with triaxial accelerometers, gyroscopes, and
magnetometers. Depending on your package,
you may have 7 to 15 Opals.

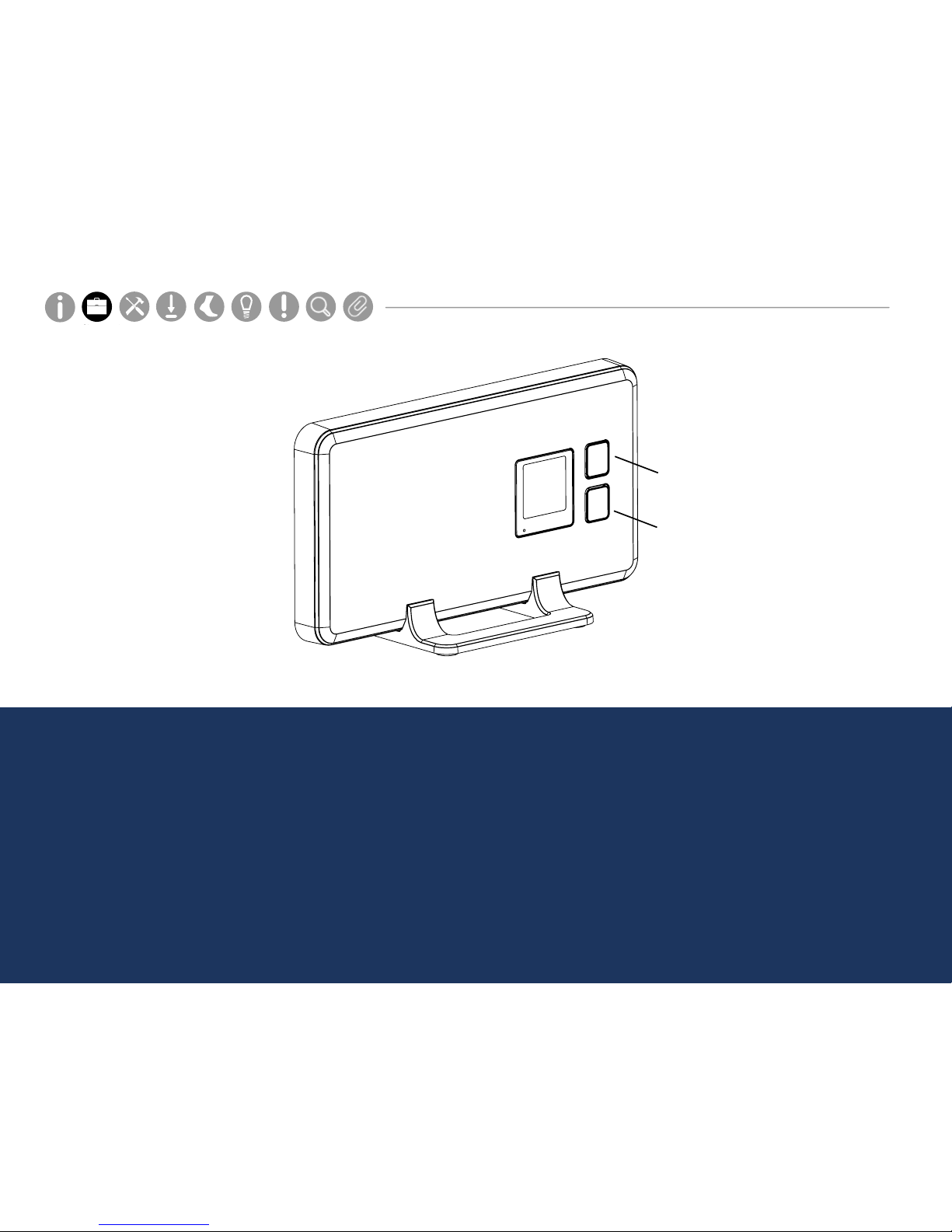

DOCKING STATION
The Docking Station is used to charge and
congure the Opal sensors. Depending on your
package, you may have 1 to 3 Docking Stations.
Button 1
B1
Button 2
B2
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

12
ACCESS POINT
The wireless Access Point allows for wireless
communication between your computer and the
Opal movement sensors. A single Access Point
can support up to 6 Opals. Depending on your
Package, you may have 1 to 3 Access Points.
Button 1
B1
Button 2
B2
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

13

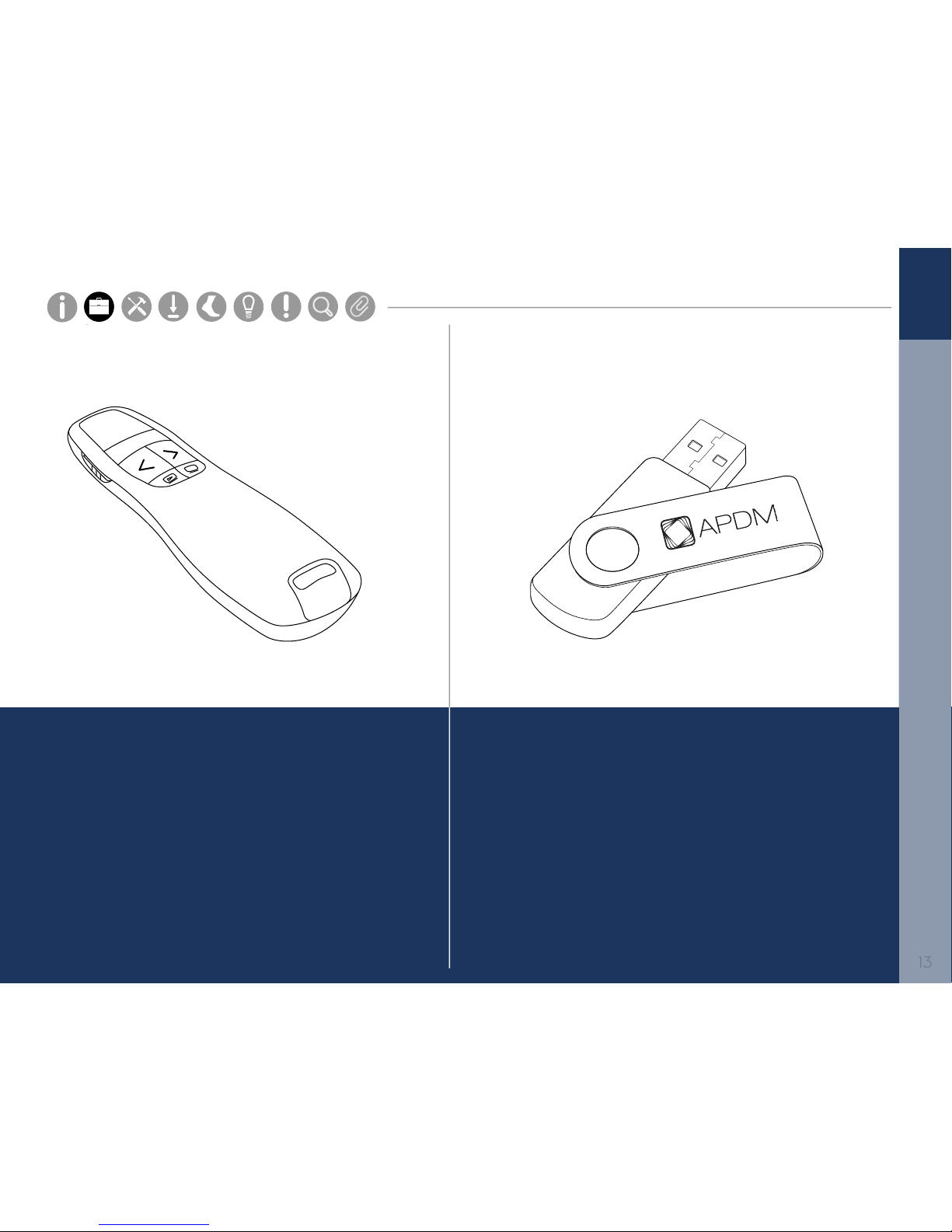

WIRELESS REMOTE
The Moveo Explorer software supports the use
of a remote control to aid while collecting data.
This functionality makes it possible for a single
attendant to collect data while following or
assisting the subject.
USB DRIVE
The USB drive contains the Moveo Explorer
software.
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

14

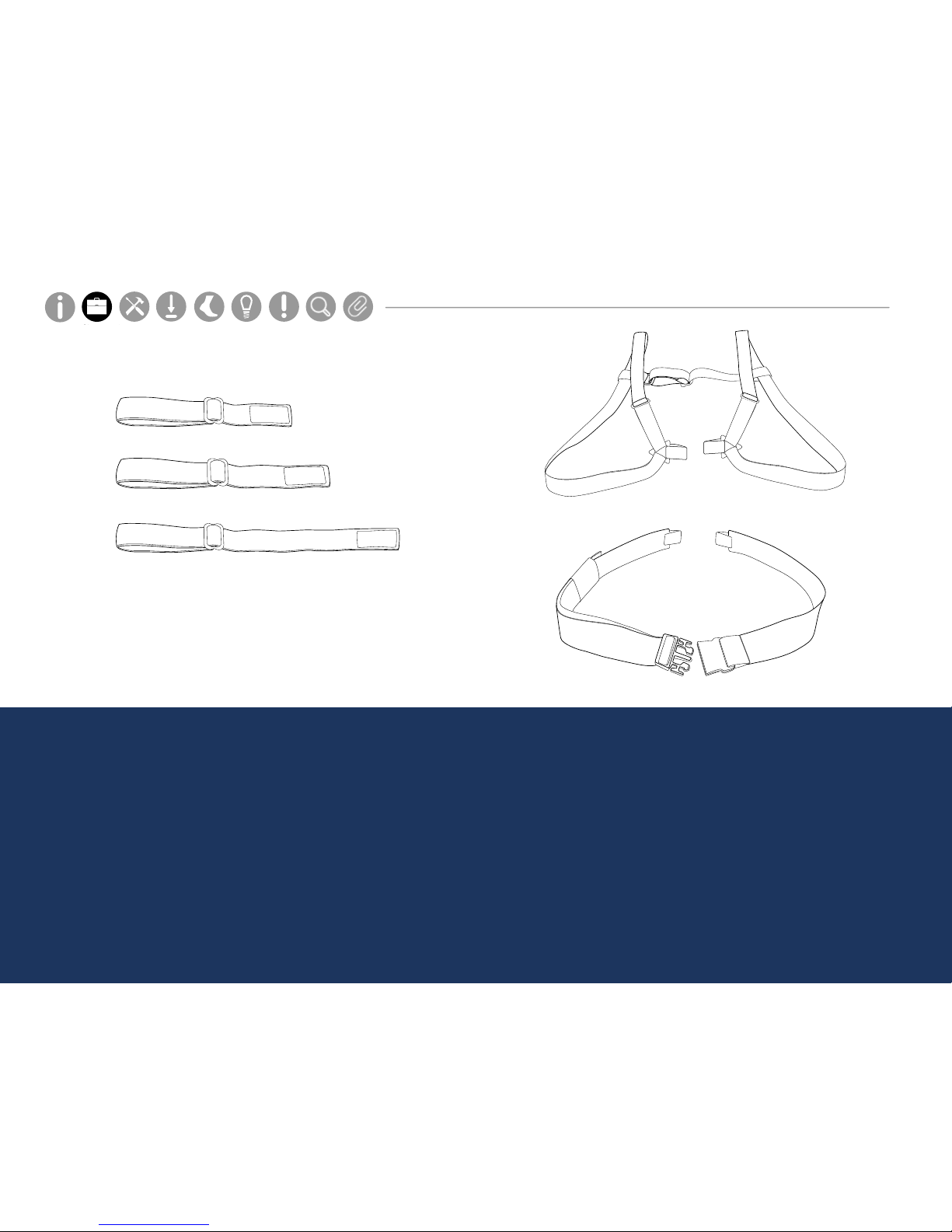

STRAPS
There are a number of options for securing the
sensors on subjects using a selection of straps.*
*All straps are latex-free.
A. Multi-length straps are suitable for universal
use including hand, wrist, upper arm, head,
upper leg, lower leg, and foot.
B. Sternum strap
C. Lumbar strap
AB
C
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

15
Your Moveo Explorer system may come with a complete or partial set of the sensors shown. For
high impact or long duration activities, we recommend reinforcing strap/sensor placement with
double sided skin-safe adhesive or additional wraps.
To upgrade your system, contact us at 888-988-APDM (2736) or [email protected].
Sensor Placement
Foot
Centered on top of the foot
Lower Leg
Inside the front of the
shin, on the at surface of the
bone, high enough for the
strap to wrap just above the
widest part of the calf muscle
Upper Leg
Side of thigh, midline,
between muscular tissue, one
hand’s width above the knee
Lumbar
Centered on the low back, at
the base of the spine
Sternum
Centered on the at surface
of the chest just below where
the collar bones meet
Head
Centered on the front of the
forehead
Upper Arm
Centered on the outside of
the arm, just below the
shoulder muscle
Wrist
On the wrist worn like a watch
Hand
On the back of the hand
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Always place the Opal
port-side down

16
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
HARDWARE
SETUP

17
SETUP
1. Connect the Access Point(s) to the Docking Station(s) using a Micro USB cable.
2. Connect the external power adapter to the Docking Station(s), and plug it in to a power outlet.
3. Connect the Docking Station(s) to your computer using a Micro USB cable*.
4. Plug the Opal(s) into the Docking Station in any order.
* There are 1 dock and AP for every 6 Opals in your system. If needed, a USB hub will be provided.
It is the responsibility of the user to use the needed accessories supplied with the
equipment. Changes or modications not expressly approved by APDM could void
user authority to operate the equipment.
Docking Station
(up to 3)
Access Point
(up to 3)
Opal
(up to 15)
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

18
MOVEO EXPLORER
INSTALLATION
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

19
Requirements
Operating System
Windows 7 (64-bit) or later.
(Make sure you have Internet Explorer 10 or later installed.)
OS X El Capitan (10.11) or later.
RAM
4GB+
Processor
Intel Core i3 or equivalent required.
Intel Core i5 or i7 recommended.
Drive Space
500MB for installation.
Recommended 100GB+ for ample
recording storage.

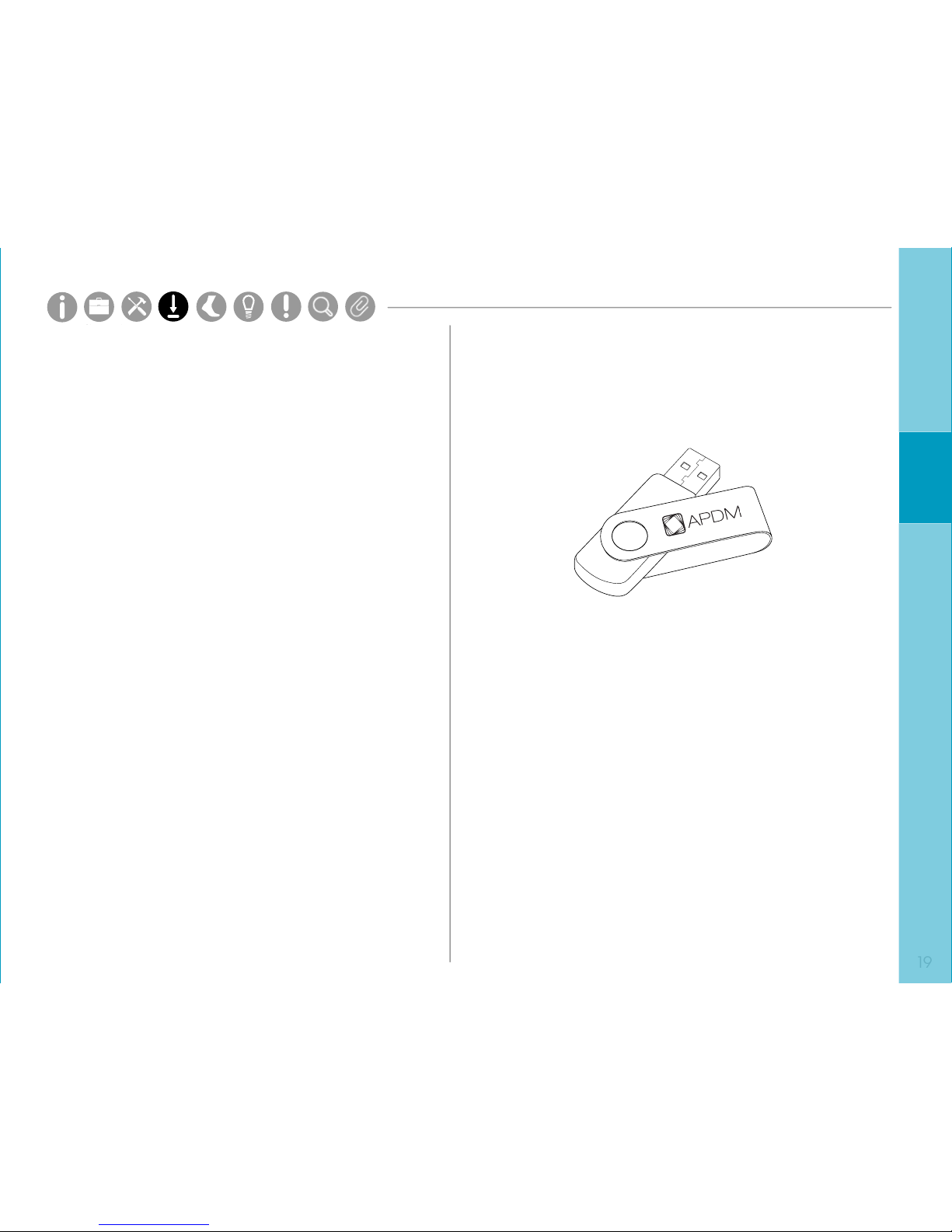

Installation
MacOS
• Insert the provided USB drive into your computer.
Drag the Moveo Explorer icon into the Applications
folder to install. Right click the Moveo Icon in your
Applications folder and select “Open.” If you receive
a security warning, right click and select “Open”
a second time to launch the application. This
behavior is dependent on the version of MacOS you
are running and your specied security preferences.
Windows
• Insert the provided USB drive into your computer.
Double click on the setup le. This will guide you
through the installation process.
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info

20
USING
YOUR SYSTEM
Parts Setup M.L. How to
M.L. Software Download Troubleshooting
Hardware Cong
Tech Stats/Info
