Apelson AMFTZ60SS User manual

USER
MANUAL
Customer Care
BUILT-IN ELECTRIC MULTIFUNCTION
TWIN ZONE OVEN
0344 800 1128
AMFTZ60SS

2
IMPORTANT INFORMATION
CONTENTS
Important Information
Before you start 2
Safety information 3
Environment information 4
Technical and legal information 4
Voltage and frequency of power supply 4
Your oven
Control panel and Electronic programmer 5
Your Oven 5
First use/Setting up your oven
Setting the clock 6
Cleaning the oven 6
Product functions including using the divider 6
Daily operation of your oven
Setting the temperature 9
Display icon 9
Setting end cooking 9
Setting delayed start cooking 9
Setting kitchen timer 10
Lock function 10
Care and Maintenance
How to keep your oven in good condition 13
How to remove the oven doors 14
Replacing the oven lamp 15
Installation 16
Trouble shooting 18
Guarantee 19
Customer service contact details 20
BEFORE YOU START
To avoid the risks that are always present when you use
an electrical appliance it is important that this appliance is
installed correctly and that you read the safety instructions
carefully to avoid misuse and hazards. Please keep this
instruction booklet for future reference and pass it on to
any future owners. After unpacking the appliance please
Decide on the appropriate location for your product.
Check the package and make sure you have all of the
parts below.
Your product contains glass please take care when tting
or handling to prevent personal injury or damage to the
product.
The specications plate displays all the necessary
identication information for ordering replacement parts.
If you sell the appliance, give it away, or leave it behind
when you move house, make sure you also pass on this
manual so that the new owner can become familiar with
the appliance and its safety warnings.
Off
O

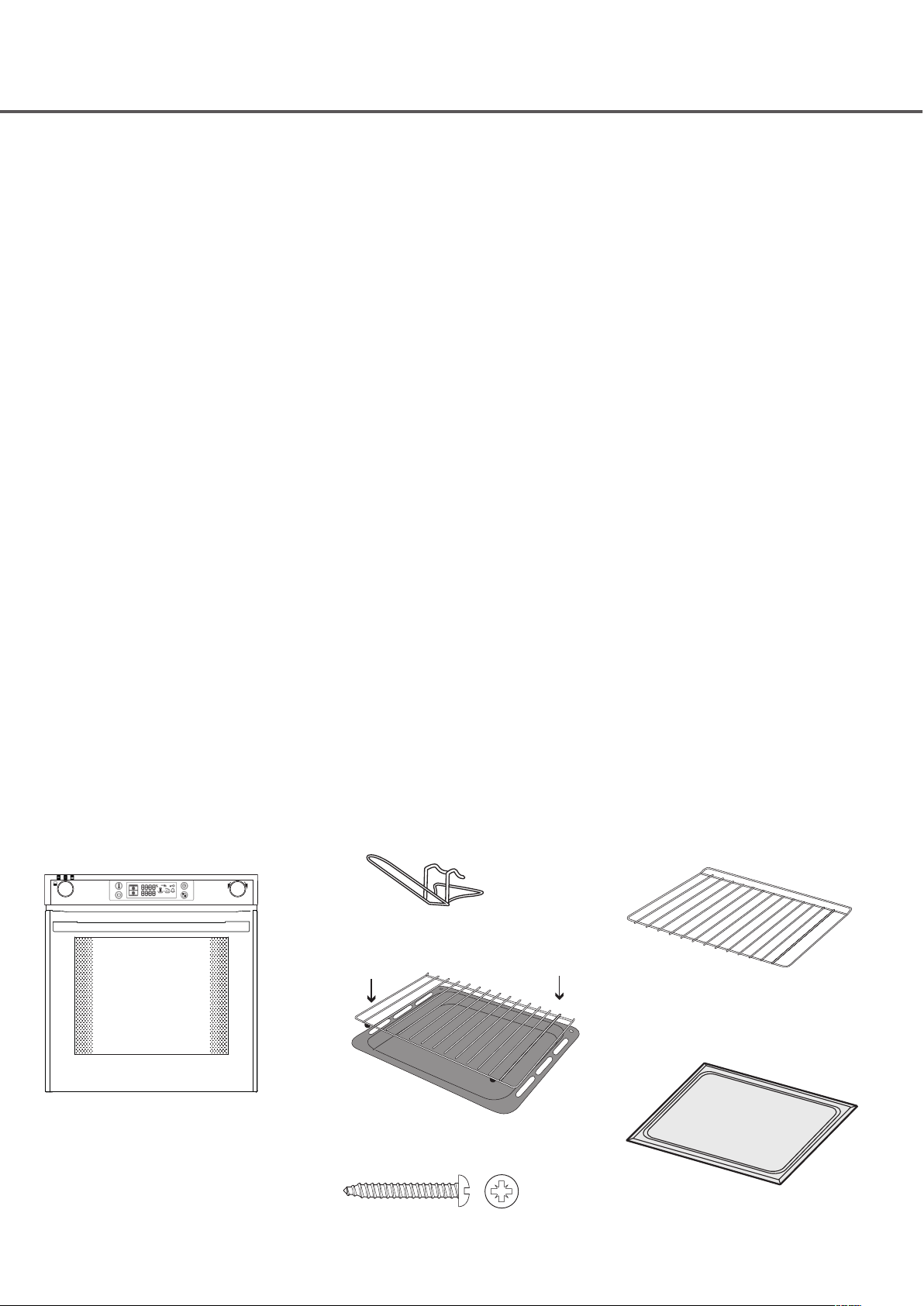

Grill pan/drip tray x1
Oven shelf x2
Ø4mm x 25mm screws x4
Oven cavity divider x1
check that it is not damaged. If in doubt, do not use the
appliance but contact Customer Services on 0344 800 1128.
AMFTZ60SS
AMFTZ60SS Oven x1Grill pan handle x1

3
IMPORTANT INFORMATION
SAFETY INFORMATION
These instructions are for your safety. Please read through
them thoroughly prior to installation and retain them for
future reference.
All installation work must be carried out by a competent
person or qualied electrician.
This appliance must be installed correctly by a suitably
qualied person, strictly following the manufacturer’s
instructions.
This appliance complies with all current European safety
legislation, however, the Manufacturer must emphasise
that this compliance does not prevent the surfaces of the
appliance from heating up during use and remaining hot
during its operation.
Do not allow the electric cables to touch the hot parts of
the appliance.
Make sure that the power cord is not caught under or in
the appliance and avoid damage to the power cable.
Do not remove the plug in the presence of ammable gas.
Do not install the appliance outdoors in a damp place or in
an area which may be prone to water leaks such as under
or near a sink unit. In the event of a water leak allow the
machine to dry naturally.
Please dispose of the packing material carefully.
Do not use ammable sprays in close vicinity to the
appliance.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Regularly check the power plug and power cord for
damage. If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualied
persons in order to avoid a danger or injury.
A steam cleaner is not to be used.
The appliance is not intended to be operated by means of
external timer or separated remote-control system.
The appliance is for domestic use only.
The Manufacturer declines all liability for personal or
material damage as a result of misuse or incorrect
installation of this appliance.
Danger of burns! During use the appliance becomes hot.
Care should be taken to avoid touching heating elements
inside the oven.
Warning! Accessible parts may become hot during use.
Children should be kept away.
Warning! If the door or door seals are damaged, the
oven must not be operated until it has been repaired by a
competent person.
Do not lean on the door or place any objects on the door
of the appliance. This can damage the door hinges.
The oven should be cleaned regularly and any food
deposits removed.
Warning! Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
The oven must be installed in accordance with installation
instructions and all dimensions must be followed.
Before connecting the appliance to the power supply,
check that the power supply voltage and current rating
corresponds with the power supply details shown on the
appliance rating label.
Never use a damaged appliance! Disconnect the appliance
from the electrical outlet and contact your retailer if it is
damaged.
Danger of electric shock! Do not attempt to repair the
appliance yourself. In case of malfunction, repairs are to
be conducted by qualied personnel only.
To avoid damaging the cord, do not squeeze, bend or
chafe it on sharp edges. Keep it away from hot surfaces
and open ames as well.
Lay out the cord in such a way that no unintentional
pulling or tripping over it is possible.
Keep the appliance and its cord out of reach of children.
Do not operate the appliance with wet hands or while
standing on a wet oor. Do not touch the power plug with
wet hands.
Connect the power plug to an easily reachable electrical
outlet so that in case of an emergency the appliance can
be unplugged immediately. Pull the power plug out of the
electrical outlet to completely switch off the appliance. Use
the power plug as the disconnection device.
Disconnect the power plug from the electrical outlet when
not in use and before cleaning.
Always turn the appliance off before disconnecting the
power plug.
This appliance is classied as protection class I and must
be connected to a protective ground (Earth).
Means for full disconnection must be incorporated in
the xed wiring in accordance with the wiring rules. To
achieve this install an appropriate circuit breaker (CB) and
residual current device (RCD). It should be installed in an
AMFTZ60SS

4
IMPORTANT INFORMATION
easily reachable place so that in case of emergency the
appliance can be disconnected from power immediately.
The xed wiring must be protected against heat surfaces.
Do not hang an objects to the handle of the oven door.
Do not cover the bottom of the oven with aluminium foil or
other objects. Caution: Risk of re!
Do not allow aluminium foil, plastic, paper or fabric contact
with heating elements.
Never leave the appliance unattended during use,
especially when cooking with ammable substances
(e.g. hot oil, fat, etc.).
Do not store or never use harsh chemicals, sprays,
ammable or non-food in or near the oven. Oven is
designed specically for heating or cooking food. The use
of corrosive chemicals in heating or cleaning will damage
the unit and may cause injury.
Should any food inside the oven catch re, keep the
door closed. Switch the oven off and disconnect the power
supply.
Always exercise caution when opening the door. Move
to side, open the door slowly to vent the hot air and/or
steam. Make sure your face is away from the opening and
make sure there are no children or pets near the oven.
Only use utensils that are suitable for use in this type
of oven.
ENVIRONMENTAL INFORMATION
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for
recycling advice.
This symbol on the product or its packaging indicates
that this product cannot be treated as normal
household waste. This product must be handed
over to an electric and electronic equipment
collection point for recycling.
On ensuring that this product is disposed
of correctly, you will help to avoid possible negative
consequences for the environment and public health,
which could occur if this product is not handled correctly.
To receive more detailed information about recycling this
product, contact your local government, domestic waste
disposal services or the outlet where the product was
bought.
TECHNICAL AND LEGAL INFORMATION
TECHNICAL INFORMATION:
Power supply: 220-240V~, 50/60Hz
Power consumption: 3.9-4.7kW
Power supply cable: H05RR-F 3 x 2.5mm²
Bulb Type: E14
Wattage & Voltage: 25W/220-240V
Measurements:
Oven capacity (net): 67L
External dimensions (WxHxD): 594x566x594mm
Net weight: 42.7kg
LEGAL INFORMATION
The Manufacturer declines all liability for damage caused
to persons and objects due to incorrect or improper
installation of the appliance.
AMFTZ60SS

5
YOUR OVEN
A. ON/OFF and cooking zone selection dial
B. Temperature button
C. Function button
D. Display
E. Time button
F. Twin zone - active zone selection
G. Time/temp/function control dial
YOUR CONTROL PANEL
A
D
a. Control panel
b. Top heating/grill element
c. Oven cavity divider
d. Glass door
e. Shelf guide levels 1-5
f. Shelf guides
YOUR OVEN
B
C
E
FG
a
b
c
d
e
f
d
AMFTZ60SS

6
FIRST USE/SETTING UP YOUR OVEN
We recommend that you read the instructions in this owner’s manual carefully before use for the best performance and to
extend the life of your appliance, as it will provide you with all the instructions you require to ensure its safe installation,
use and maintenance. Always keep this owner’s manual close to hand since you may need to refer to it in the future.
Thank you.
SETTING THE CLOCK
When the appliance is switched on for the rst time, the
display on the control panel will light briey and 0:00 will
begin blinking in the display. The oven cannot be operated
until the clock is set.
To set the clock you need to rst set the hour “0:” then
the minutes “:00”. This is done by turning the Time/
Temp/Function (G) dial left or right to set the hours then
pressing the Time (E) button to select the minutes in the
same way.
CLEANING THE OVEN FOR THE FIRST TIME
Before using the oven for the rst time we recommend
that you operate the oven at the convection setting at
200°C for 1 hour before using. There will be a distinctive
odour from the oven, this is normal. Ensure your kitchen is
well ventilated during this period.
PRODUCT FUNCTIONS
USING THE DIVIDER
This oven comes equipped with an oven cavity divider
which divides the oven cavity into two separated cooking
zones enabling independent cooking. This function only
operates when the cavity divider is in the central position
(level 3).
This feature gives great exibility, enhancing energy
efciency and is convenient to use.
Divider Oven function Insert divider Usage information
Upper zone
True fan
Top heat +convectional
Large grill
Yes This zone saves energy and time when
cooking small amounts of food
Lower zone True fan
Bottom heat +convectional Yes This zone saves energy and time when cooking small amounts of food
Single zone
True fan
Top heat +convectional
Conventional
Large grill
Small grill
Bottom heat = true fan
Defrosting
No
Twin zone Both upper and lower zone
function Yes You can cook two dishes at two different temperatures at the same time
SETTING THE ZONE SELECTION
For upper, twin and lower zones, select the “OFF” position
before inserting the divider in the central position, level 3
of shelf guides. For single zone, remove the divider when
“OFF” position is selected. Then turn the Zone selection
dial (A) to single mode. Press the Function button (C) and
hold for about 3 seconds. Turn the Time/Temp/Function
(G) dial to select the desired oven function. If after 3
seconds there are no further adjustments, the oven will
begin automatically.
AMFTZ60SS

7
FIRST USE/SETTING UP YOUR OVEN
UPPER ZONE
The divider should be inserted.
True fan Top heat + true fan Large grill
LOWER ZONE
The divider should be inserted.
True fan Bottom heat + true fan
SINGLE ZONE
The divider should NOT be inserted.
True fan Top heat + true fan Large grill
Large grill Small grill Bottom heat + true fan
Defrosting
AMFTZ60SS

8
FIRST USE/SETTING UP YOUR OVEN
TWIN ZONE
The divider should be inserted in the central position
(level 3).
The upper and lower zones can operate at the same time
and It is possible to set which zone activates rst using the
programmer.
True fan in both Top heat + true fan in both Top & bottom heat + true fan i n b o t h
Bottom heat + true fan in both Small/large grill in top & bottom
heat + true fan in bottom
Small/large grill in top & true fan
in bottom
AMFTZ60SS

9
DAILY OPERATION OF YOUR OVEN
This twin zone oven can give you two separate cooking
zones giving you exibility and control . It is an extremely
versatile appliance that allows you to choose easily and
safely between different cooking modes.
SETTING THE TEMPERATURE
Select the required zone (see page 6).
LOWER, UPPER AND SINGLE ZONE TEMPERATURE
SETTING
Press the Temperature button (B) and hold for about 2
seconds and the temperature will ash in the display.
Turn the Time/Temp/Function dial (G) left or right to
adjust the temperature in increments of + or - 5°C to the
desired setting.
Single zone 40°C - 250°C
Upper zone 40°C - 250°C
Lower zone 40°C - 250°C
NOTE!
You can adjust the temperature during cooking in any of
the zones
TWIN ZONE TEMPERATURE SETTING
Press the Temperature button (B) and hold for about
2 seconds and the temperature will ash in the display
(upper or lower zone).
Turn the Time/Temp/Function dial (G) left or right to
adjust the temperature in increments of + or - 5°C to the
desired setting.
Press the Twin zone button (F) to change the zone and the
temperature will ash in the display (upper or lower zone).
Single zone 40°C - 250°C
Upper zone 40°C - 250°C
Lower zone 40°C - 250°C
DISPLAY ICONS
End
End time
icon
End
Locked icon
End End cooking
time
End
Kitchen
timer icon
SETTING END COOKING TIME
You can set an end cooking time once you have started
cooking. This will turn off the oven automatically after the
programmed time has elapsed. You will hear a audible
beep when it turns off.
LOWER, UPPER AND SINGLE ZONES
You have already started cooking now press the Time
button (E) for 2 seconds and the end time “ 0:00 ” and the
end time icon will ash.
Turn the Time/Temp/Function dial (G) to set the end time
required.
EXAMPLE:
0:35 (thirty ve minutes)
Wait 3 seconds and the display will alternate between
temperature and time remaining.
The oven will continue to cook until the selected time has
elapsed.
TWIN ZONE
You can set a different end cooking time for each zone
Use the Twin zone button (F) to select the zone required
and then carry out the same operation as above.
The select the other zone using the Twin zone button (F)
and carry out the same operation.
Wait 3 seconds and the display will alternate between
temperature and time remaining.
The oven will continue to cook until the selected time has
elapsed.
SETTING DELAYED START COOKING
You can set the oven to turn on automatically when you
are out at a prescribed time so you can have something
cooked when you return.
LOWER, UPPER AND SINGLE ZONES ONLY
Select the appropriate cooking zone and set your cooking
temperature.
Press and hold Time button (E) for 2 seconds and end
time “ 0:00 ” and the end time icon will ash.
Turn the Time/Temp/Function dial (G) to set the cooking
time required.
AMFTZ60SS

10
DAILY OPERATION OF YOUR OVEN
EXAMPLE:
2:30 (two hours, thirty minutes)
Press the Time button (E) again within 3 seconds to set
the end cooking time.
Turn the Time/Temp/Function dial (G) to set the end
cooking time required.
EXAMPLE:
19:00 (7.00PM)
Wait 3 seconds and the everything is set and the oven will
turned off until cooking time is reached
Using the example above at 16:30 the oven will start
cooking for 2:30 (two hours, thirty minutes). Cooking will
stop at the end time of 19:00 (7.00pm).
SETTING KITCHEN TIMER
This only works when a cooking function is not selected.
Press and hold Time button (E) for 2 seconds and end
time ‘ 0:00 ‘ and the kitchen timer icon will ash.
Turn the Time/Temp/Function dial (G) to set the time
required.
EXAMPLE:
0:15 (fteen minutes)
Wait 3 seconds and the timer will start. Once time has
elapsed a beep will sound.
LOCK FUNCTION
This locks the touch control buttons on the display.
Press the Time button (E) and Twin zone button (F) at the
same time and hold for 1 second and the Locked icon will
appear in the display .
Press the Time button (E) and Twin zone button (F) at the
same time and hold for 3 seconds again to unlock.
OVEN OPERATIONAL SAFETY
SAFETY SHUT-OFF
If a cooking time is not entered, the oven will shut itself
off after a prescribed period of time indicated below.
Shut-off times for various temperature settings
Under 105°C 16 hours
From 105°C to 200°C 8 hours
From 200°C to 250°C 4 hours
This oven features a thermal shut-off system and if the
oven heats to abnormally high temperatures, the system
will shut off the power supply to the heating elements for
a period of time until the oven reaches a safe temperature.
COOLING FAN
During cooking, it is normal for the vent to release hot air
from the front of the oven.
The cooling fan will also continue to operate after the oven
has been in use. It will turn off when the internal oven
temperature has dropped to 110°C or after 22 minutes.
PRACTICAL COOKING ADVICE
The oven offers a wide range of alternatives which allow
you to cook any type of food in the best possible way.
With time you will learn to make the best use of this
versatile cooking appliance and the following directions are
only a guideline which may be varied according to your
own personal experience.
AMFTZ60SS

11
DAILY OPERATION OF YOUR OVEN
THE INFORMATION GIVEN IN THE FOLLOWING CHARTS IS INTENDED ONLY AS A GUIDE.
SELECT THE LOWEST TEMPERATURE QUOTED AND CHECK THE FOOD AT THE END OF THE
SHORTEST DURATION QUOTED.
Conventional
Cakes/Biscuits Temperature °C Shelf Position
(Recommended)
from the bottom
Cooking
Time
in min.
Cake Mixture Desserts in Moulds
Sponge cake 150 – 170 1 60 – 70
Marble, nut cake
(tin)
150 – 170 1 60 – 80
Fresh fruit cake
(tray)
170 – 190 2 45 – 50
Flan base 170 – 190 1 20 – 25
Biscuits (tray) 170 – 190 2 20 – 20
Sponge cake
(3 to 6 eggs)
170 – 190 1 20 – 35
Swiss roll 180 – 200 1 12 – 16
Short Pastry Dessert in Moulds
Tart / an base 170 – 190 2 15 – 20
Streusel cake 170 – 190 2 45 – 55
Cheesecake 170 – 190 2 10 – 20
Apple pie 170 – 190 1 90 – 90
Apricot tart with
topping
170 – 190 1 55 – 75
Raised Dough Dessert in Moulds
Streusel cake 170 – 190 1 35 – 45
White bread 180 – 200 1 40 – 50
Pizza (tray) 190 – 210 1 35 – 45
Onion tart 180 – 200 1 25 – 35
Apple turnovers 160 – 180 2 25 – 30
Choux pastry,
Eclairs
180 – 200 2 25 – 35
Puff Pastry 190 – 210 2 15 – 25
Meringues,
Macaroons
120 – 140 2 25 – 50
Pre-heat the oven.
Conventional
Food Temperature °C Shelf Position
(Recommended)
from the bottom
Cooking
Time
in min.
Roast beef,
approx. 1 kg
190 - 210 1 100 – 120
Beef llet,
approx. 1 kg
200 – 220 1 45 – 55
Venison, approx.
1 kg
190 – 210 1 90 – 120
Pork joint,
approx. 1 kg
200 – 220 1 100 – 120
Pork joint,
approx. 2 kg
180 – 200 1 120 – 150
Ham joint,
approx. 1 kg
200 – 220 1 60 – 70
Meat loaf,
approx. 1 kg
190 – 210 1 70 – 80
Veal, approx.
1.5 kg
190 – 210 1 100 – 120
Leg of lamb,
approx. 1.5 kg
220 – 220 1 90 – 120
Rack of lamb,
approx. 1.5
190 – 210 1 50 – 60
Poultry,
0.8 – 1 kg
190 – 210 1 60 – 70
Poultry, approx.
2 kg
190 – 210 1 90 – 110
Poultry, approx.
4 kg
180 – 200 1 150 – 180
Fish, whole,
approx. 1.5 kg
190 – 210 1 35 – 55
Pre-heat the oven.
AMFTZ60SS

12
DAILY OPERATION OF YOUR OVEN
True fan mode
Cakes/Biscuits Temperature °C Shelf Position
(Recommended)
from the bottom
Cooking
Time
in min.
Cake Mixture Desserts in Moulds
Sponge cake 150 – 170 1 60 – 70
Marble, nut cake
(tin)
150 – 170 1 60 – 80
Fresh fruit cake
(tray)
150 - 170 1 45 – 50
Flan base 150 – 170 1 20 – 25
Biscuits (tray) 150 – 170 1, 3 20 – 25
Sponge cake
(3 to 6 eggs)
160 – 180 1 25 – 35
Swiss roll 160 – 180 1 20-25
Short Pastry Dessert in Moulds
Tart / an base 150 – 170 1 25 - 25
Streusel cake 150 – 170 1 45 – 55
Cheesecake 150 – 170 1 70 – 90
Apple pie 150 – 170 1 50 – 70
Apricot tart with
topping
150 – 170 1 55 – 75
Pre-heat the oven.
Unless otherwise stated, the times given are for an
oven which has not been pre-heated.
True fan mode
Cakes/Biscuits Temperature °C Shelf Position
(Recommended)
from the bottom
Cooking
Time
in min.
Raised Dough Dessert in Moulds
Streusel cake 150 – 170 1 35 – 45
White bread 160 – 180 1 40 – 50
Pizza (tray) 170 – 190 1 35 – 45
Onion tart 170 – 190 1 35 – 45
Apple turnovers 150 – 170 1, 3 25 – 30
Choux pastry,
Eclairs
160 – 180 1, 3 30 – 40
Puff Pastry 170 – 190 1, 3 20 – 25
Meringues,
Macaroons
120 – 140 2 25 – 50
Poultry, approx.
4 kg
160 - 180 1 150 -180
Fish, whole,
approx. 1.5 kg
160 - 180 1 35 - 55
Pre-heat the oven.
Unless otherwise stated, the times given are for an
oven which has not been pre-heated.
Food to be
grilled
Recommended
shelf level from the
bottom
GRILL
Temperature
setting
Total grilling time in
min.
Thin cuts
Steak 3 or 4 maximum 10-16
Chicken kebabs 3 maximum 20-25
Liver 3 or 4 maximum 8-12
Burgers 3 or 4 maximum 14-20
Sausages 3 or 4 maximum 10-15
Fish llet 3 or 4 maximum 12-16
Trout 3 or 4 maximum 16-20
Cheese toast 3 or 4 maximum 7-9
Thicker cuts
Chicken
(approx. 1 kg)
1 maximum 50-60
Pork
(approx. 1 kg)
1 maximum 100-120
Turn half way through the grilling time.
Select the appropriate shelf level for the thickness of the food.
Use the 2nd shelf level from the bottom for "Fan grill".
AMFTZ60SS

13
CARE AND MAINTENANCE
WARNING
Always switch off the electricity supply before
performing maintenance work. In the event of a
fault, contact customer services.
CAUTION
Do not use hot water, dilutents, petrol, alcohol, kerosene,
washing powder, cleanser, alkaline detergent, acid,
chemical cloth, etc. for cleaning so as not to damage the
enamel coating and plastic. The appliance must not be
cleaned directly with water as this could cause rusting or
render the insulation less efcient.
The enamelled and stainless steel parts of the appliance
should be wiped clean using a damp cloth using the
minimum possible amount of soap and lukewarm water.
Do not use abrasive powders or corrosive substances
which could ruin the surfaces. Remember stainless steel
could tarnish and restoring these surfaces can be difcult.
Specialist stainless steel cleaners are available from major
supermarkets. After cleaning these surfaces should be
wiped with a clean cloth and lukewarm water to remove
any traces of detergent.
The inside of the oven should ideally be cleaned when the
oven is still warm using a damp cloth and the minimum
possible amount of soap and hot water. After cleaning the
soap should be removed using a clean damp cloth and hot
water. Dry the interior of the oven with a soft dry cloth
after cleaning.
Do not use abrasive powders, cleaners, sponges or acids
(lime scale remover) to clean the interior as these can
damage the enamel. If the interior is very difcult to
clean use a specialist oven cleaner. Follow closely the
instructions provided on the packaging.
WARNING!
DO NOT USE EXCESSIVE AMOUNTS OF WATER WHEN
CLEANING THE PRODUCT AND NEVER USE A STEAM
CLEANER TO CLEAN THE INSIDE OF THE OVEN.
If the oven is in use for an extended length of time
condensation may form. Once the oven has cooled remove
the condensation using a dry cloth.
HOW TO KEEP YOUR OVEN IN GOOD
CONDITION
Before cleaning your oven, or performing maintenance,
disconnect it from the power supply.
To extend the life of your oven, it must be cleaned
frequently, keeping in mind that
The enamelled or stainless steel parts should be washed
with lukewarm water without using any abrasive powders
or corrosive substances which could ruin them. Stainless
steel could get stained. If these stains are difcult to
remove, use special products available on the market.
After cleaning, it is advisable to rinse thoroughly and dry.
The inside of the oven should preferably be cleaned
immediately after use, when it is still warm, with hot water
and soap. The soap should be rinsed away and the interior
dried thoroughly. Avoid using abrasive detergents (for
example cleaning powders, etc.) and abrasive sponges for
dishes or acids (such as lime scale remover, etc.) as these
could damage the enamel. If the grease spots and dirt
are particularly tough to remove, use a special product for
oven cleaning, following the instructions provided on the
packet.
WARNING!
NEVER USE A STEAM CLEANER TO CLEAN THE INSIDE OF
THE OVEN.
If you use your oven for an extended period of time,
condensation may form. Dry it using a soft cloth.
There is a rubber seal surrounding the oven opening which
guarantees its perfect functioning. Check the condition
of this seal on a regular basis .If necessary, clean it and
avoid using abrasive products or objects to do so. Should
it become damaged, please contact the customer service
centre. We recommend you avoid using the oven until it
has been repaired.
Never line the oven bottom with aluminium foil, as the
build up of heat could compromise cooking and even
damage the enamel.
Clean the glass door using non-abrasive products or
sponges and dry it with a soft cloth.
FUSE
USE A 30 AMP FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
ON
AMFTZ60SS

14
CARE AND MAINTENANCE
1. Open the door to the full extent. 2. Open the lever A completely on
the left hand hinges
3. Open the door to angle as
shown.
A
B
4. Close the door until the left & right hand
levers A are hooked to part B of the door
5. Withdraw the hinge hoods for
there position following arrow C.
To replace the door, reverse the
above procedure
C
HOW TO REMOVE THE OVEN DOORS
For a more thorough clean, you can remove the oven door.
To remove the oven door use the following instructions:
REMOVING THE INNER PANE OF GLASS
1. Remove the top plate by unscrewing the 2 screws (A). 2. Gently pull out the inner panel of glass
G
A A
Clean the glass with an appropriate cleaner. Dry thoroughly, and place on a soft surface. Now you can also clean the
inside of the outer glass.
To replace the glass reverse the procedure above.
AMFTZ60SS

15
CARE AND MAINTENANCE
REPLACING THE OVEN LAMP
WARNING!
Disconnect the appliance from the electricity supply, open
the oven door remove the oven shelves. During use the
appliance becomes hot. Care should be taken to avoid
touching heating elements inside the oven.
90’
A
B
Remove all internal shelves and shelf support guides from
the oven cavity, by applying downward pressure to Point A
and upward pressure to point B to release and guides.
To remove the glass cover, position thumb at top of glass
panel and exert a small amount of downward pressure and
the glass panel will pop off, ensure you use two hands for
this process to enable you to hold the piece of glass when
it is released.
Unscrew the old light bulb and dispose of it safely and
ecologically, change it for one as specied in the “Technical
data” and replace the cover.
AMFTZ60SS

16
INSTALLATION
595mm
595mm
595mm
595mm
594.5mm
594.5mm
545mm
22mm
570mm
Only a qualied person in compliance with the instructions
provided must install the appliance. The manufacturer
declines all responsibility for improper installation, which
may harm persons and animals and damage property.
CAUTION
The power supply to the appliance must be switched
off before any adjustments or maintenance work is
undertaken.

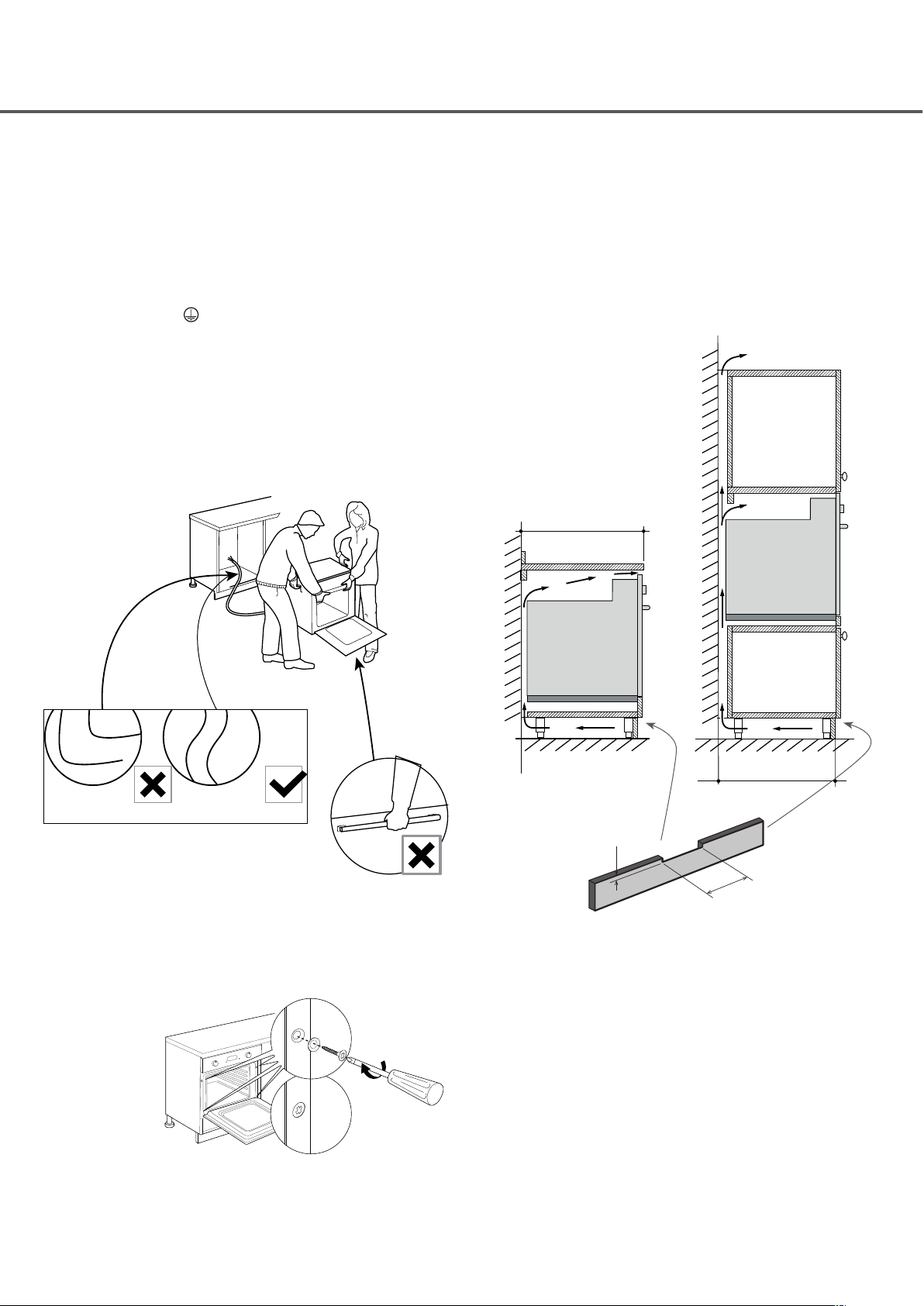

INSTALLATION OF BUILT-IN TWIN
CAVITY OVEN
This product can be tted under the work surface or in
a tall unit. To ensure that the oven functions correctly it
should be installed using one of the two methods shown:
INSTALLATION METHOD 1
Fitting under the work top in a new or existing oven
housing unit.
INSTALLATION METHOD 2
Fitting in a tall unit in a new or existing oven housing unit.
ELECTRICAL CONNECTION
All installation work must be carried out by a competent
person or qualied electrician.
Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate
inside the cooker hood.
WARNING:
THIS APPLIANCE MUST BE EARTHED.
Mains Supply could be connected to the Mains Voltage by
Direct Connection
WARNING
Make sure the fused spur outlet is
located in an accessible position.
DIRECT CONNECTION
If the appliance is being connected directly to the mains
an omnipolar circuit-breaker must be installed with a
minimum opening of 3mm between contacts.
If the cable is damaged or to be replaced, the operation
must be carried out the by a qualied electrician with
dedicated tools to avoid any accidents.
The installer must ensure that the correct electrical
connection has been made and that it complies with wiring
diagram.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by
authorized technicians only.
ELECTRICAL REQUIREMENTS
Any permanent electrical installation must comply with
the latest I.E.E. Regulations and local electricity company
regulations. For your own safety a qualied electrician or
contractor who is on the roll of the National Inspection
Council for Electrical Installation Contracting (NICEIC)
should undertake the electrical installation.
Electrical Connection
Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate
inside the appliance.
WARNING:
THIS APPLIANCE MUST BE EARTHED
The appliance is supplied with a 3-core mains cable and
must be connected to the electricity supply via a double
pole switch having a 3mm minimum contact gap on each
connector.
FUSE
USE A 32 AMP FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
ON
AMFTZ60SS

17
INSTALLATION
A Switched Fused Connection Unit to BS 1363 Part 4 is
recommended
The fuse must be rated at 32 Amps.
The wires in the mains lead are coloured in accordance
with the following code:
Brown = L - Live
Blue = N - Neutral
Green and Yellow = - Earth
The connection point must be placed in a position adjacent
to the appliance so as to be readily accessible for an
engineer in the event of a breakdown.
Disconnect the appliance from the mains supply before
carrying out any kind of maintenance or cleaning.
FIXING THE SINGLE OVEN
VENTILATION
An air circulation slot that should be cut into the plinth if
tted. See below for air circulation requirements.
It is essential when installing your oven there is adequate
air circulation around the appliance to ensure the correct
operation of the appliance. Inadequate air circulation will
greatly impair the operation of the appliance and can
affect surround cabinets due to the rise in temperature.
Once the oven has been lifted into place insert the 4x
plastic washers into the holes located within the sides
of the metal casing of the oven as shown and secure
with 4x screws [Ø4mm x 25mm].
Also ensure
that you adjust
the furniture
doors adjacent
to the sides
of the oven
so there is a
5 - 7mm gap
between them,
otherwise heat
displaced from
the oven might damage the furniture door.
THE APPLIANCE IS NOW READY TO USE.
570mm
600 mm
200mm
10mm
AMFTZ60SS

18
The following circumstances may not be a problem. Do not
contact the customer services until the problem has been
conrmed.
ERROR AND
SAFETY CODES
GENERAL
FUNCTIONS
SOLUTIONS
Er 3 or Er 4 Temperature
sensor error
Call customer
service
Er0 Communication
failure
Call customer
services
WHAT SHOULD I DO IF THE OVEN DOESN’T
HEAT UP?
Check to see if one of the following actions resolves the
issue:
The oven may not be switched on. Switch the oven
on.
The clock may not be set. Set the clock (see section
“Setting the clock”).
Check to see if the required settings have been
applied.
A household fuse may have blown or a circuit breaker
may have tripped. Replace the fuses or reset the
circuit. If this happens repeatedly, call the Service
Centre.
WHAT SHOULD I DO IF, EVEN THOUGH THE
OVEN FUNCTION AND TEMPERATURE HAVE
BEEN SET, THE OVEN DOES NOT HEAT UP?
There may be problems with the internal electrical
connections. Call the Service Centre.
WHAT SHOULD I DO IF THE TIME DISPLAY IS
BLINKING?
There was a power failure. Set the clock (see “Setting the
clock”).
WHAT SHOULD I DO IF THE OVEN LIGHT DOES
NOT ILLUMINATE?
The oven light is faulty. Replace the oven light bulb (see
“Replacing the oven lamp the lamp”).
WHAT SHOULD I DO IF THE OVEN’S FAN IS
RUNNING WITHOUT HAVING BEEN SET?
Following use, the oven’s fan runs until the oven has
cooled down. Call the service centre if the fan continues to
run after the oven has cooled down.
THE GRILL DOES NOT HEAT UP PROPERLY?
The grill power is set to low, turn the temperature control
dial to maximum.
WHAT SHOULD I DO AFTER HEATING FOR
SOME TIME, THE OVEN STOPS HEATING SUD-
DENLY AND ALL THE ELECTRIC PARTS DO NOT
WORK?
Check to see if one of the following actions resolves the
issue:
The automatic protect system works when the
temperature inside oven is very high. You should ask a
professional technician to help you. Open the top cover
and push the button of temperature limiter with a tool,
and then connect the oven to electric again.
A household fuse may have blown or a circuit breaker may
have tripped. Replace the fuses or reset the circuit. If this
happens repeatedly, call an authorised electrician.
TROUBLESHOOTING
AMFTZ60SS

19
GUARANTEE
This appliance is covered by a full manufacturer’s 2 year
parts and 2 year labour guarantee and covers all parts and
labour costs associated with the repair of the appliance
in a domestic environment. We will repair any defect that
arises due to faulty materials or workmanship and use
genuine manufacturers parts.
All claims must be supported with the original receipt or
other reasonable proof of purchase.
If, during the guarantee period, the appliance becomes
irreparable as agreed by the engineer approved by
Apelson Appliances UK Ltd then we reserve the right, at
our discretion, to exchange the defective product with
a replacement appliance at Apelson Appliances UK Ltd
sole cost. If the same product is no longer available an
alternative will be offered with the same functions as the
faulty item.
After an appliance has been repaired or replaced any
remaining balance of the Apelson Appliances UK Ltd
guarantee will be valid and any further call outs during this
prescribed period will be covered by Apelson Appliances
UK Ltd on the replacement appliance.
Should any person other than an authorized engineer
modify or attempt to repair the appliance then the
warranty will be invalid.
The guarantee applies to the UK mainland, Scotland and
Ireland but is not transferable between EU countries.
This guarantee is non-transferable to any other person or
product.
The guarantee is covered by UK law and is in addition to
and does not diminish your legal rights.
EXTENDED PARTS ONLY WARRANTY
As testimony to our commitment to you as a valued
customer of Apelson Appliances UK Ltd, we will offer you
an additional 3 years parts warranty absolutely free.
If during the extended parts warranty period the
appliance fails and it is considered uneconomical to repair
our Customer Service Department will offer you the
opportunity to purchase the same or equivalent model at a
discounted price.
All parts supplied free of charge under the extended
warranty must be tted by our approved engineers and
will be subject to a call out charge to t the part.
EXCLUSIONS TO THE GUARANTEE
This guarantee does NOT cover:
Appliances that have been damaged or neglected as a
result of failure to store, assemble, install, use or care
of the products in accordance with the manufacturer’s
instructions - Apelson Appliances UK Ltd will not accept
responsibility under this guarantee if a product is damaged
or becomes defective due to, misuse, neglect, wilful or
accidental damage or act of god.
Normal wear and tear.
Consumable items such as carbon lters and bulbs.
Claims arising from non-domestic use or commercial
environment.
Any gas appliance not tted by a gas safe qualied
installer.
If no fault is found then Apelson Appliances UK Ltd
reserves the right to charge for the call out at the going
rate of £55.00 plus VAT.
In the course of the service work carried out it may be
necessary to remove the built in appliance from its tted
position. If the appliance is glued, grouted or tiled in such
a manner that it cannot be removed, it is the responsibility
of the customer/installer to remove and reinstall the
appliance to facilitate the repair.
This Guarantee does not affect your statutory rights.
The guarantee is offered by Apelson Appliances UK Ltd,
Unit 3 Normandy Landings, Pope Street, Castleford, WF6 2AG
AMFTZ60SS

20
USEFUL CONTACTS
USEFUL CONTACTS
SPARES
Apelson Appliances UK LTD
Phone: [phone]
Email: [email protected]
Web: www.myspareparts.co.uk
SERVICE AND GUARANTEE
Apelson Appliances UK LTD
Email: [email protected]
Web: www.myspareparts.co.uk
Phone: [phone]
AMFTZ60SS
